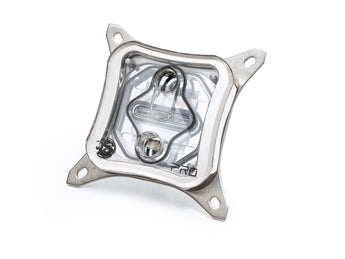

Bitspower CPU Block Summit M Pro - Crystal (12th Gen Intel CPU,LGA1700)

Bitspower presents an efficient and stylish solution for CPU water cooling: the Summit M Pro Crystal. With brackets and accessories for Next-Gen CPU, this CPU block is all you need to keep your processor cool under during demanding performance. Fashioned with a clear, high quality acrylic top plate, style and substance come together in this CPU block.

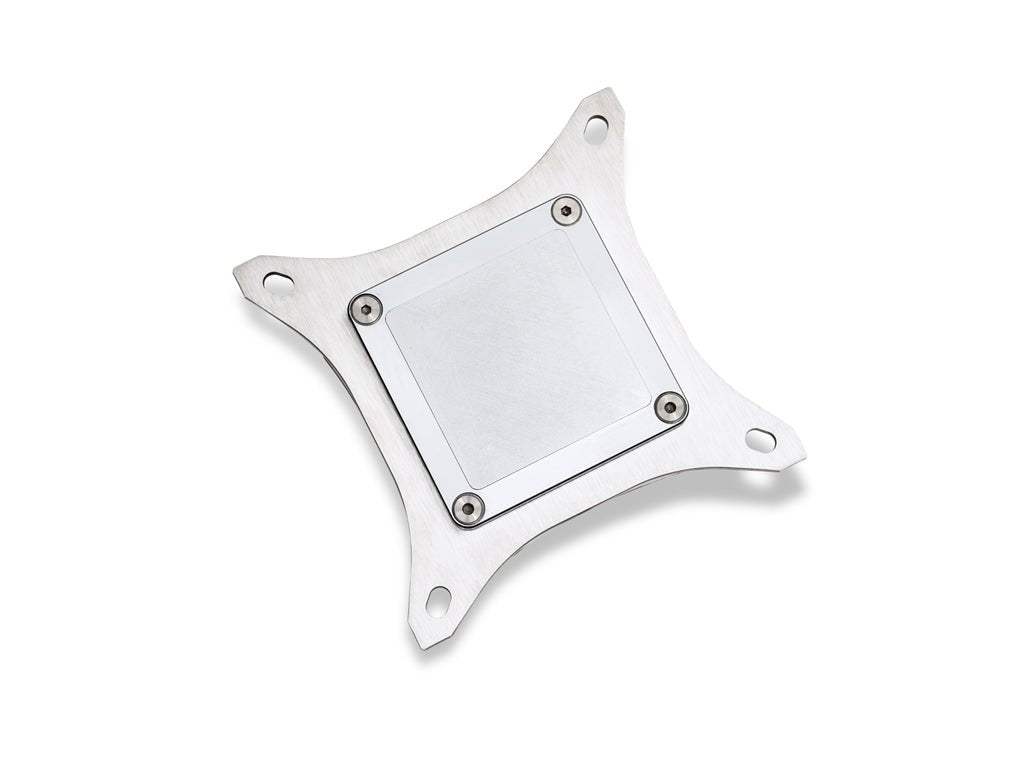

In order to make heat exchange as efficient as possible, the copper base plate with its water injection design circulates a high flow of coolant, which is essential for optimal heat dissipation.

The Summit M Pro Crystal, equipped with Bitspower Digital RGB around the top plate, is sure to become the center of attention of your case with bright LEDs that are certified by ASUS AURA Sync, GIGABYTE RGB Fusion2.0, MSI Mystic Light Sync, and ASRock Polychrome.

Included :
1Set of BP-CPUMPRO-DRGB
1Set of BP-MKCPUM-1217
1Set of BPA-TP1-2.5G
1Set of Mounting Screws/Accessories



Dimension(LxWxH) : 92x92x19.5 MM

Brand	Product
INTEL	LGA1200
	LGA1700





If there arenâ??t enough DRGB headers on the motherboard, you can use the Bitspower Touchaqua Digital RGB Multi Function Controller.

I wanna show off, but what's the support I'd need?

â??DRGB

The end of power supply is 3PIN. The sequence is +/D/â?? (some motherboards are shown +5V/D/â??, and the plug is like 4PIN but the 3rd PIN is empty). Please plug in the corresponding direction of motherboard, controller or the wire integrator for one to many. If choosing the motherboard as the power supply, the light effect can be synchronize with MB.
