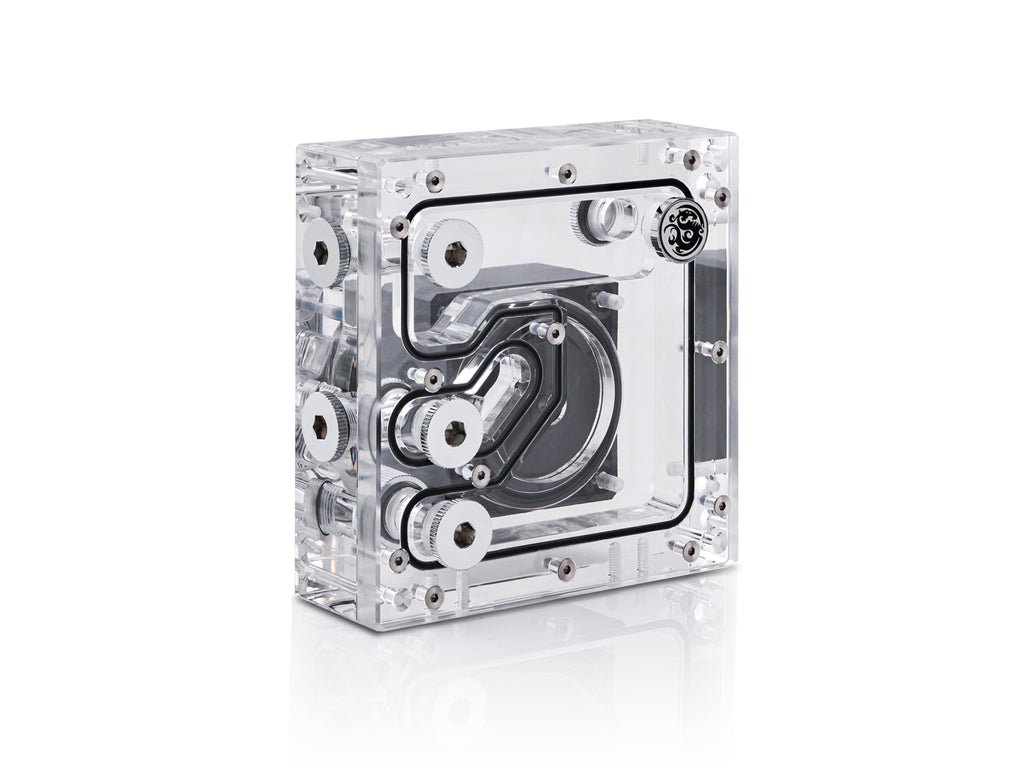

Bitspower CR120 Reservoir

Bitspower CR120 Reservoir



Bitspower introduces the all-new CR Reservoir series, featuring a flat-type design. This unique reservoir offers a distinct product experience, both in practicality and visual appeal.

The flat design of the Bitspower CR Reservoir series requires minimal installation space, providing you with greater creative flexibility. It shares the same screw hole positions as standard radiators, allowing you to install the CR Reservoir series in almost any location where you would install a radiator. This greatly enhances the convenience of setting up the CR Reservoir series.

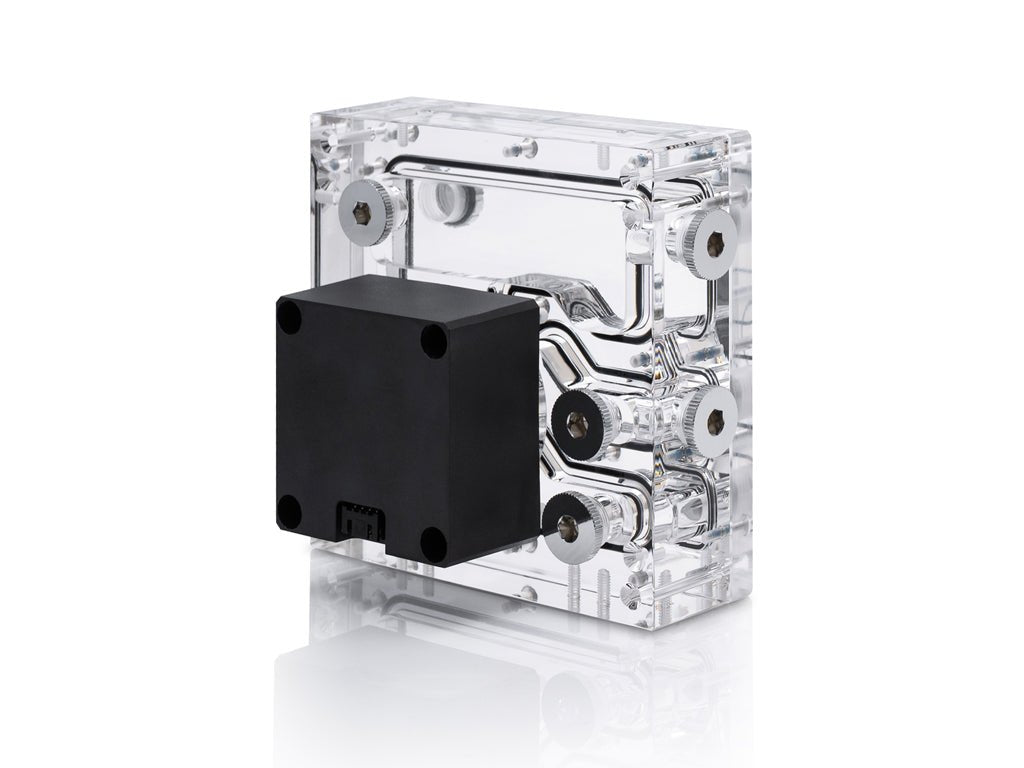

The Bitspower CR Reservoir series comes equipped with the Hercules pump, a high-performance pump known for its excellent flow and pump lift. It can handle the most complex water loop configurations, making the CR reservoir with the Hercules pump the perfect kit for your water cooling system.

Furthermore, we offer various auxiliary mounting brackets and dazzling lighting modules capable of producing brilliant lighting effects. This transforms your CR Reservoir into more than just a central cooling liquid hub in your system; it can become one of the eye-catching stars of your water cooling system.

The flat design of the Bitspower CR Reservoir series requires minimal installation space, providing you with greater creative flexibility. It shares the same screw hole positions as standard radiators, allowing you to install the CR Reservoir series in almost any location where you would install a radiator. This greatly enhances the convenience of setting up the CR Reservoir series.

The Bitspower CR Reservoir series comes equipped with the Hercules pump, a high-performance pump known for its excellent flow and pump lift. It can handle the most complex water loop configurations, making the CR reservoir with the Hercules pump the perfect kit for your water cooling system.

Furthermore, we offer various auxiliary mounting brackets and dazzling lighting modules capable of producing brilliant lighting effects. This transforms your CR Reservoir into more than just a central cooling liquid hub in your system; it can become one of the eye-catching stars of your water cooling system.









Included :

1 set of CR120 Reservoir ((Include Hercules pump)

2 pcs of Mounting bracket (short)

2 pcs of Mounting bracket (long)

1 set of Mounting Screws.

Hercules pump Specification:

Rated Voltage: 12V DC

Operation Voltage: 8 ~ 20V

Rated Current: 1.2 ± 10% A

Power consumption: 15W

Maximum flow: 11 ± 15% LPM

Maximum pump lift: 5.5 ± 0.5m

System Temperature: -25 ~ 80 °C

Noise Level: 40dBA

MTBF: 15,000 hours

PWM: Yes

Pump shell material: PPS

Reservoir Capacity: 80ml

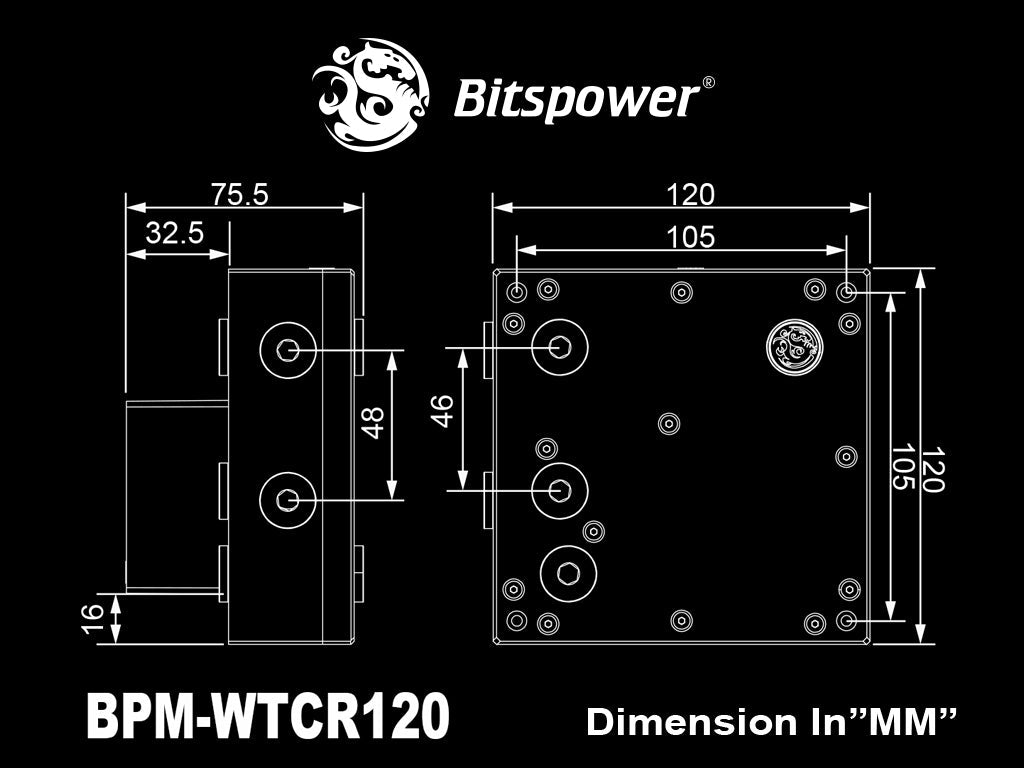

Dimension(LxWxH) : 120x120x75.5 MM
