Bitspower Griffin 120 Fan - Extreme 2500 Edition

Bitspower Griffin 120 Fan - Extreme 2500



The Bitspower Griffin 120 Fan - Extreme 2500 has been uniquely designed to provide the best in cooling efficiency. With a top speed of 2500 RPM, which is adjustable via the supported PWM, this 120x120x25mm fan is well suited to be paired with our radiators for efficient cooling.

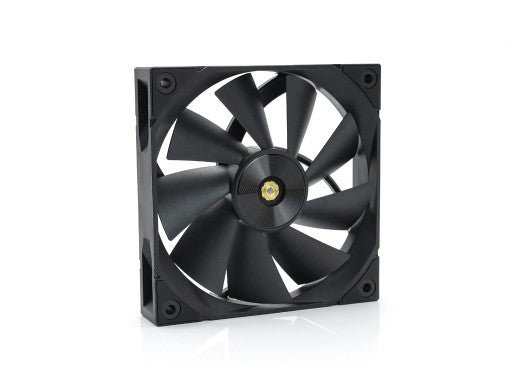

The Bitspower Griffin 120 Fan - Extreme 2500 is designed with 9 blades, allowing for an increased degree of blade curvature and resulting in higher air pressure and greater airflow. The fan blades also fit snugly within the outer frame, bringing the design together to reduce turbulence, enhance air pressure and obtain better heat dissipation performance.

This fan is the leader in the Griffin series, offering outstanding performance with specifications reaching 2500 RPM, perfectly meeting the cooling demands of Intel and AMD servers or workstation platforms.

The Bitspower Griffin 120 Fan - Extreme 2500 is designed with 9 blades, allowing for an increased degree of blade curvature and resulting in higher air pressure and greater airflow. The fan blades also fit snugly within the outer frame, bringing the design together to reduce turbulence, enhance air pressure and obtain better heat dissipation performance.

This fan is the leader in the Griffin series, offering outstanding performance with specifications reaching 2500 RPM, perfectly meeting the cooling demands of Intel and AMD servers or workstation platforms.





Included :

1 pcs of BPA-GF1218FDB-E25

Specification
Rated Voltage	DC 12V
Operation Voltage	7.0～13.8 V
Staring Voltage	DC7.0V (ON/OFF)
Fan Speed	2500±10%RPM
Rated Airflow	99.18（Min：89.26) CFM
Rated Air Pressure	4.00（Min：3.24) mmH2O
Acoustical Noise	44.5（max:47.5） dB(A)
Life Time	50000 Hours
Number of Blades	9
Bearing	FDB
