Bitspower Sedna O11D EVO-N for LIAN LI O11 Dynamic EVO Series (Normal Mode Ver.)

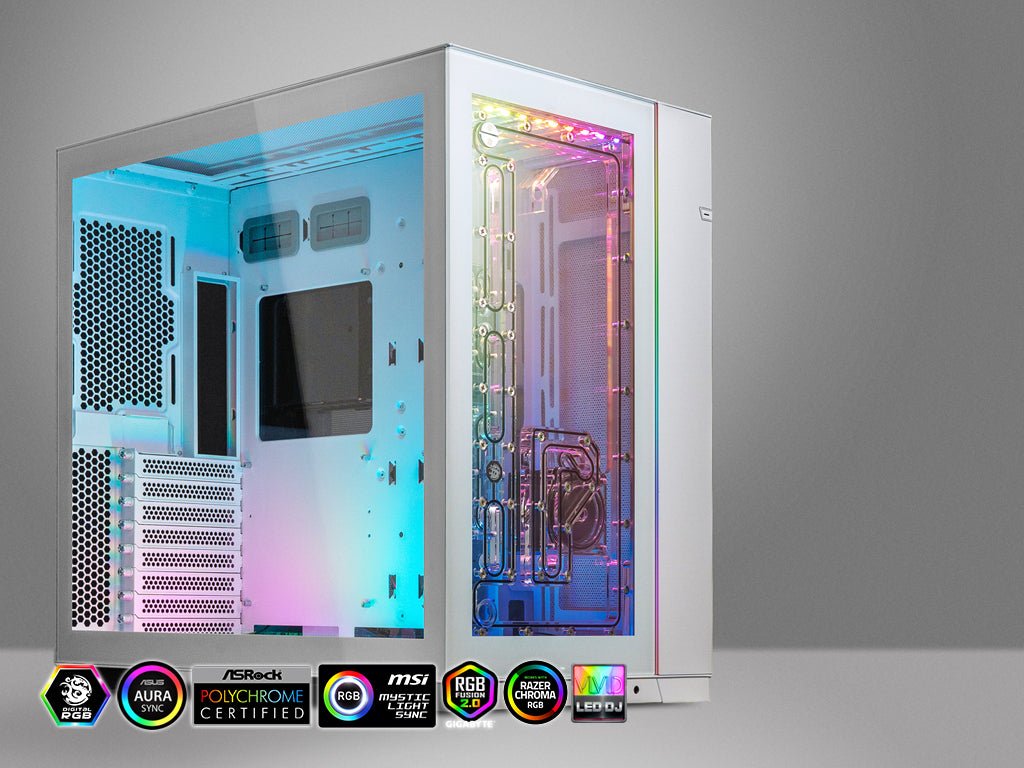

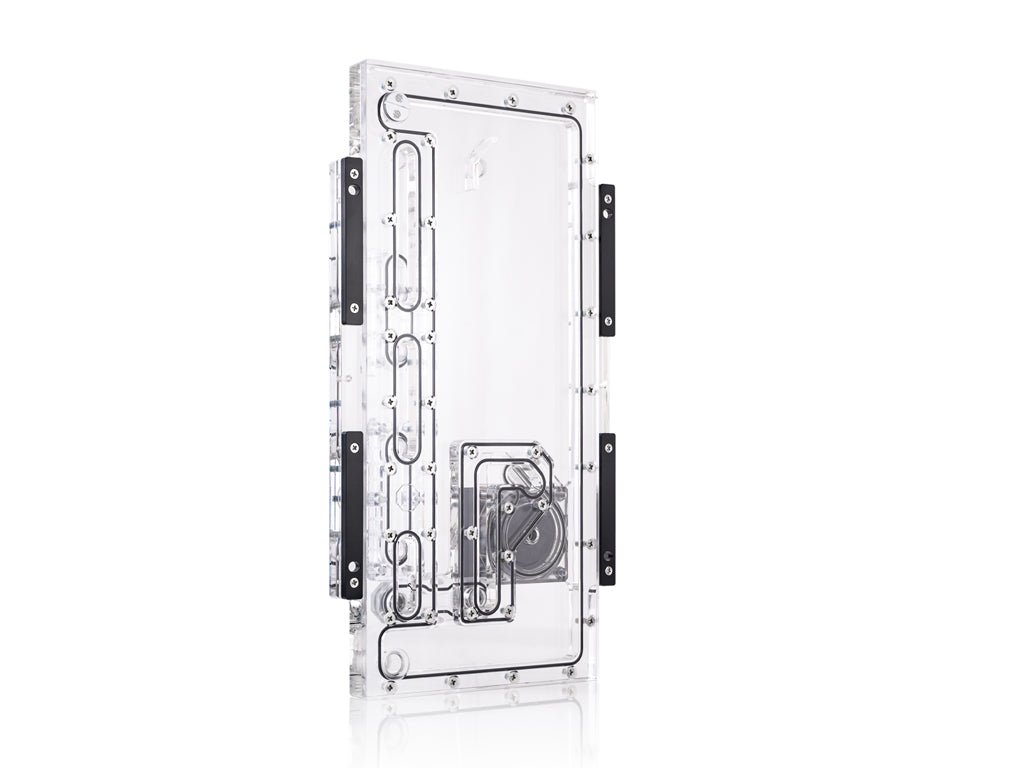

For those of you looking to bring extra customization to your LIAN LI O11 DYNAMIC EVO cases, Bitspower offers a customized reservoir and pump combo under the name of Sedna O11D EVO. Designed to replace the front panel of the case, this distribution reservoir features an ideal pump that will keep your liquid moving at the right pace, and a mirror silver finish, that will turn your case in a work of art.

With novice modders in mind, Bitspower designed a reservoir that is easy to install while providing a professional look. Equipped with multiple 1/4 water inlets and outlets to route the water from the radiator to the VGA than the CPU, this customized reservoir also gives you more playroom for the graphics card location with a dual inlet/outlet designed to prevent having to bend more tubes and create a cleaner look to your loop.

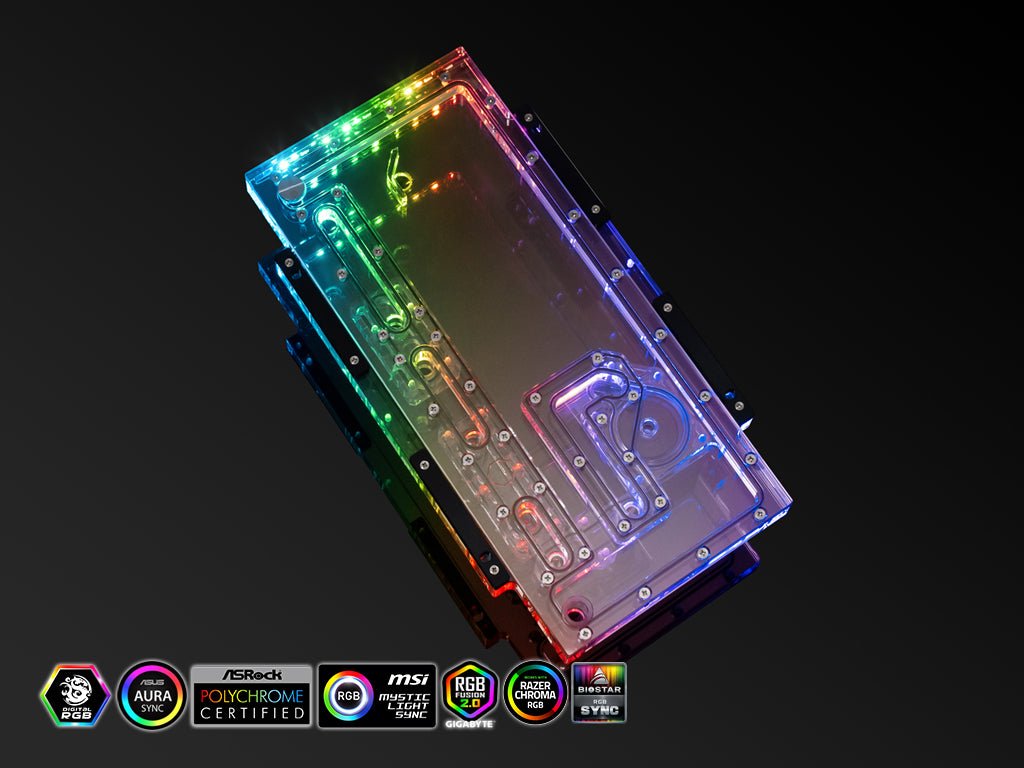

The Sedna O11D EVO, equipped with Bitspower Digital RGB LED, is sure to become the center of attention of your case with bright LEDs that are certified by ASUS AURA Sync, GIGABYTE RGB Fusion 2.0, MSI Mystic Light Sync, ASRock Polychrome, BIOSTAR VIVID LED DJ and Razer Chroma.



LED Color : Digital RGB

LED Strip Management By Bitspower Digital RGB And Certified By ASUS AURA Sync, GIGABYTE RGB Fusion 2.0, MSI Mystic Light Sync, ASRock Polychrome, BIOSTAR VIVID LED DJ and Razer Chroma

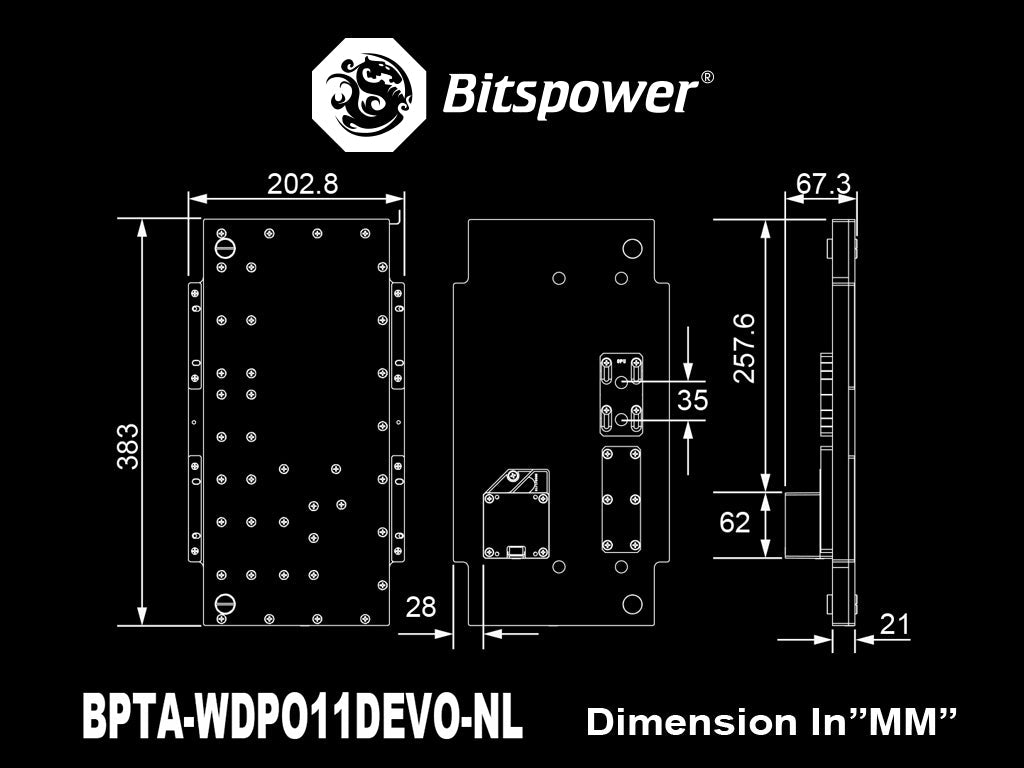

Dimension(LxWxH) : 383x208.5x67.3 MM



Included :
1Set Water Distribution Reservoir for LIAN LI O11 Dynamic EVO Series
1Set CPU slider
1Set of Mounting Screws


Compatibility :
LIAN LI O11 Dynamic EVO Series

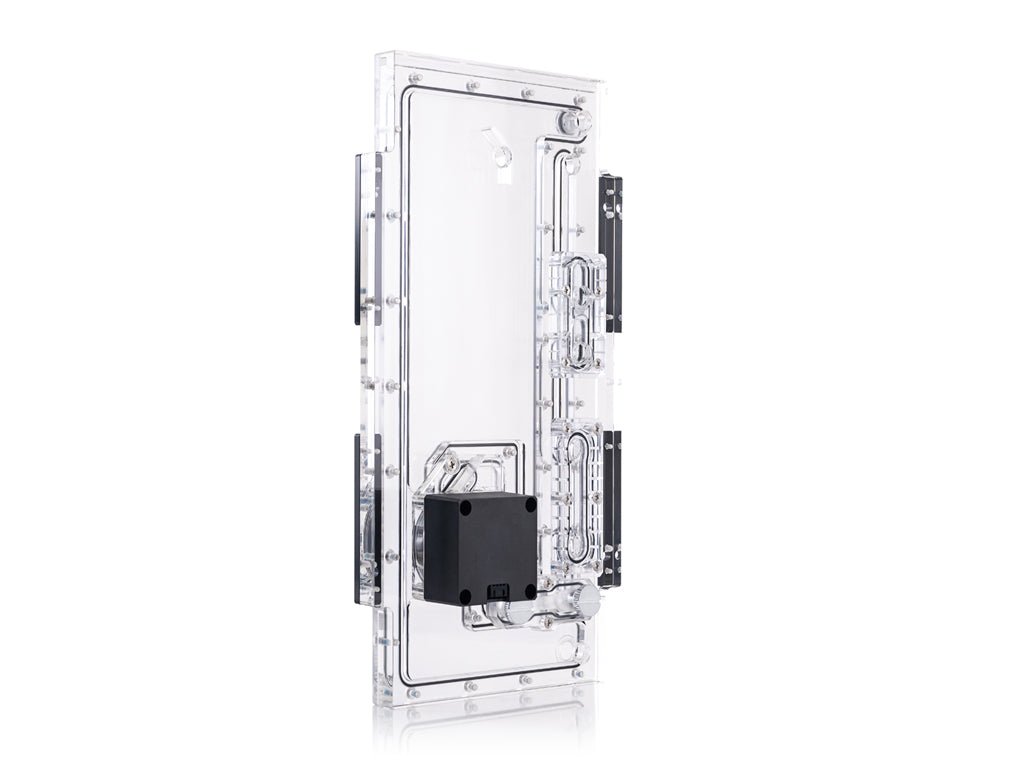

K2M Pump Spec:

Rated Voltage: 12V DC
Operation Voltage: 8 ~ 20V
Rated Current: 1.2 ± 10% A
Power consumption: 15W
Maximum flow: 11 ± 15% LPM
Maximum pump lift: 5.5 ± 0.5m
System Temperature: -25 ~ 80 °C
Noise Level: 40dBA
MTBF: 15,000 hours



If there arenâ??t enough DRGB headers on the motherboard, you can use the Bitspower Touchaqua Digital RGB Multi Function Controller.



I wanna show off, but what's the support I'd need?

â??DRGB

The end of power supply is 3PIN. The sequence is +/D/â?? (some motherboards are shown +5V/D/â??, and the plug is like 4PIN but the 3rd PIN is empty). Please plug in the corresponding direction of motherboard, controller or the wire integrator for one to many. If choosing the motherboard as the power supply, the light effect can be synchronize with MB.
