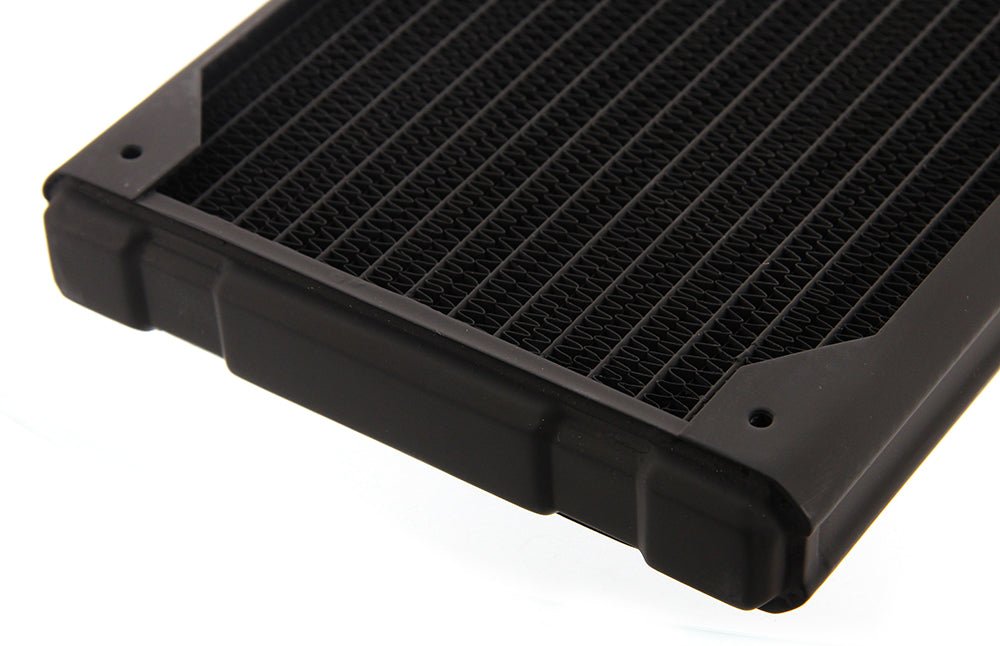

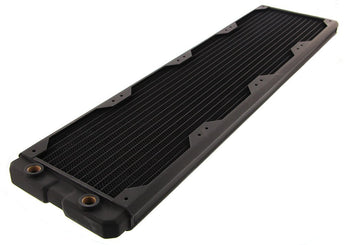

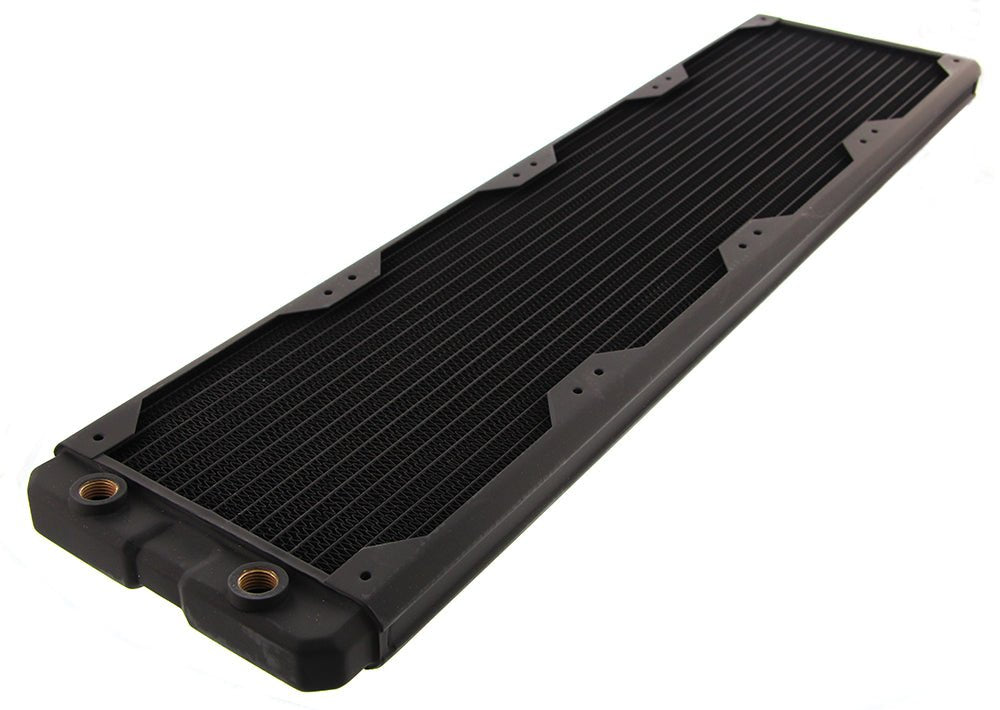

Black Ice Nemesis 560GTS® Ultra Stealth U-Flow Low Profile Radiator - Black Carbon

Black Ice Nemesis 560GTS? Ultra Stealth U-Flow Low Profile Radiator - Black Carbon

• 140 mm x 4 fan slim form factor two-pass radiator.


• 592mm x 153mm x 29.6mm (L x W x H)

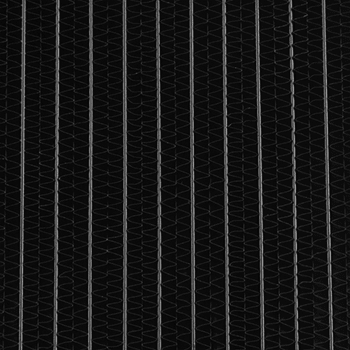

• 16 FPI 25 Micron Copper Fins


• Now optimized for sub-800 rpm ultra-stealth fans


• Supercruise optimizations for scalable performance with higher speed fans


• 15% more tubing area in the same Black Ice^® GTS^? 560 form factor


• Increased internal coolant flow rates

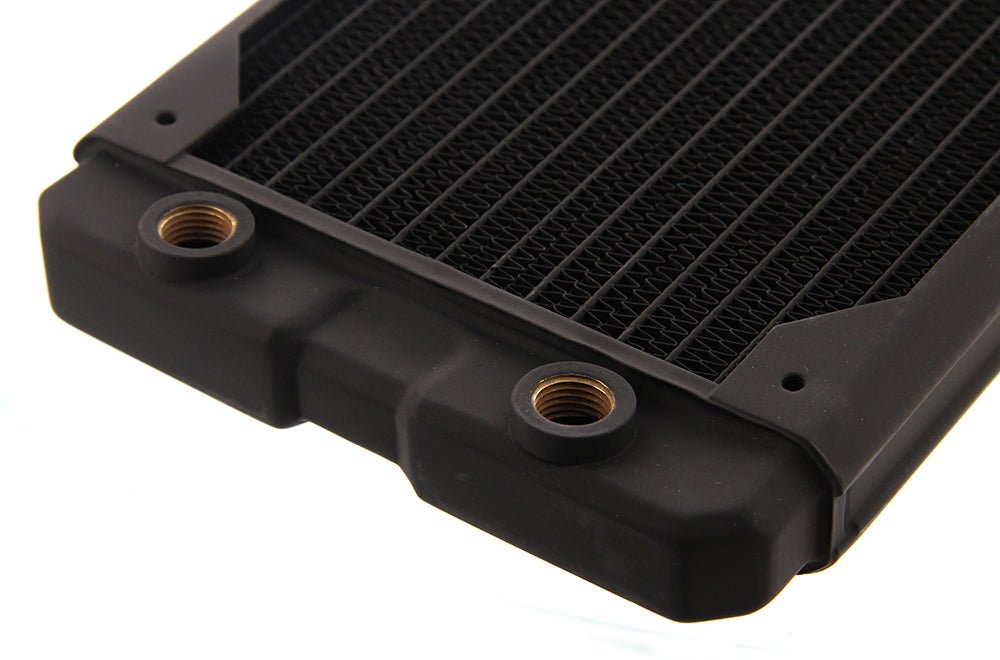

• Standard G 1/4 inlet/outlet fittings

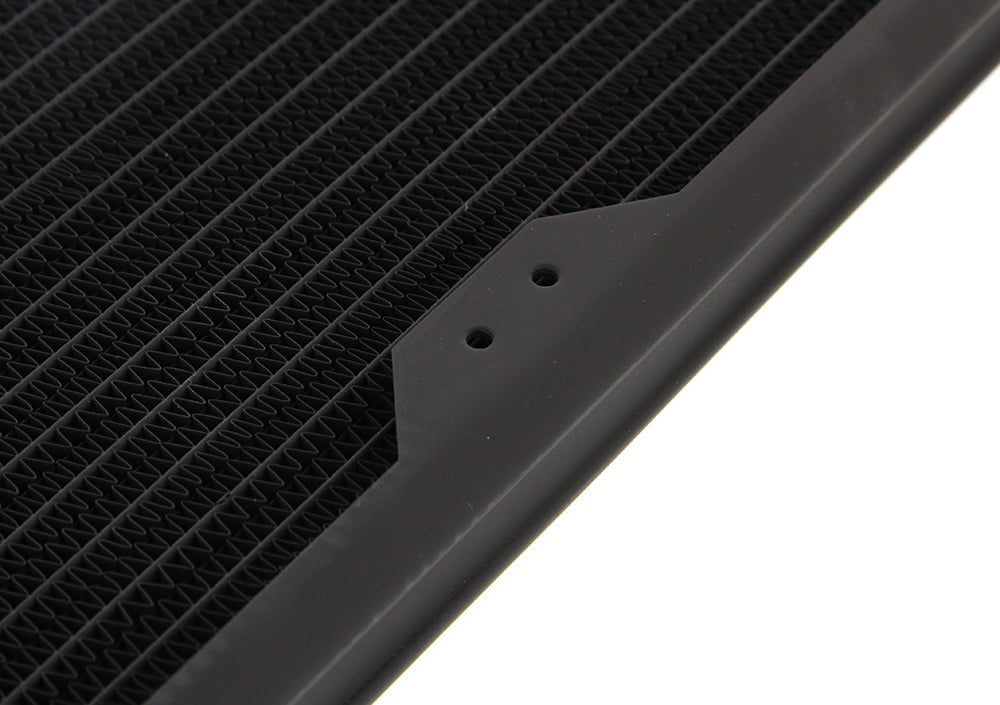

• Standard M4 mounting threads


• Custom Black Carbon^?


• Fully ROHS Compliant


• 100% Made from conflict-free materials


• Industry standard Black Ice^® quality


• Lifetime warranty against manufacturing defects^*

^* Limited warranty information: www.hardwarelabs.com/nemesis/warranty
^** radiator shown with optional push fittings

Recommended	Capacity	Stealth	Supercruise	8-Core CPU	GPU SLI/Crossfire	FANS
120GTS	350W	â?	â?	â?	1	1 X 120mm
240GTS	750W	â?	â?	â?	DUAL	2 X 120mm
360GTS	1200W	â?	â?	â?	QUAD	3 X 120mm
480GTS	1500W	â?	â?	â?	QUAD	4 X 120mm
140GTS	370W	â?	â?	â?	1	1 X 140mm
280GTS	800W	â?	â?	â?	DUAL	2 X 140mm
420GTS	1350W	â?	â?	â?	QUAD	3 X 140mm
560GTS	1600W	â?	â?	â?	QUAD	4 X 140mm

SLI and Crossfire names are trademarks^? or registered^® trademarks of their respective holders.

October 23, 2014   The Quad Rad Roundup
