Blacknoise Noiseblocker Multiframe S-Series M12-S1 Blacknoise Noiseblocker Multiframe S-Series M12-S1
Blacknoise Noiseblocker Multiframe S-Series M12-S1

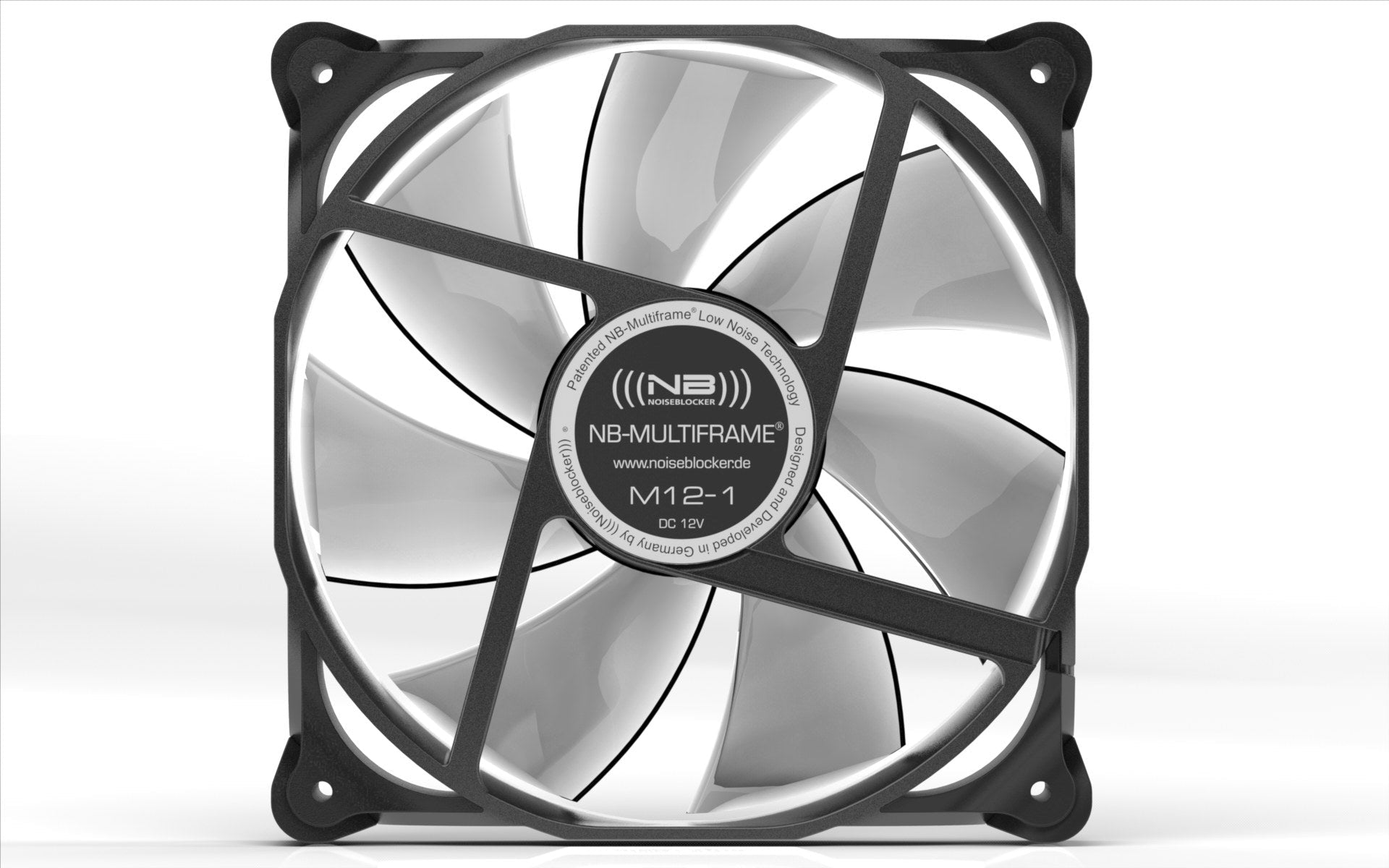

Blacknoise Noiseblocker Multiframe M12-1

Blacknoise

M12-1

Developed and patented in Germany, the original Multiframe-Series has been a milestone in fan construction since 2008 and has been an example for an entirely new generation of fans. We offer a standard selection of especially low-noise fans in sizes of 80 x 80 x 25 mm and 120 x 120 x 25 mm with different power stages.

Found a better price? Let us know and we'll try and match it!
Estimate shipping
24 in stock, ready to ship
$22.15 $16.61 Sale
Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

Developed and patented in Germany, the original Multiframe-Series has been a milestone in fan construction since 2008 and has been an example for an entirely new generation of fans. We offer a standard selection of especially low-noise fans in sizes of 80 x 80 x 25 mm and 120 x 120 x 25 mm with different power stages.
Features


  • 100% developed in Germany

  • fully integrated body-noise, silicone attenuators

  • position-invariant magnetic bearing NB-NanoSLI® 2NEW!

  • silent NB-EKA P2 Drive NEW!

  • Bayer® Makrolon® rotor with anti-dust technology

  • weighted reinforced fibreglass PBT frame

  • 50 cm cable with high-quality textile sheath
Specifications


  • 4 assembly screws (tool free assembly possible)

  • Silicone frame



Versions
















































TypeNumber of revolutionsConnectionStart/nominal voltageVolumePerformance
M12-1 750rpm 3 Pin 6.0 V / 12.0 V 8 dBA 58.0 m³
M12-2 1250rpm 3 Pin 4.5 V / 12.0 V 16 dBA 87.0 m³
M12-3 1800rpm 3 Pin 4.5 V / 12.0 V 27 dBA 124.0 m³
M12-P 2000rpm 4 Pin (PWM) 4.5 V / 12.0 V 29 dBA 133.0 m³
M12-PS 1500rpm 4 Pin (PWM) 5.5 V / 12.0 V 23 dBA 100.0 m³

= 25 dB(A) – H461Limit for industrial worknoise at night within Germany according to VDI-Richtlinie 2058 (H460Association of German Engineers guideline) and TA Lärm (technical regulation about noise) according to § 48 of Bundesimissionsschutzgesetzes (BImSchG) (German Federal Imission Protection Law).
