Bykski 360mm x 29mm Copper Radiator - Thin - Black (B-RD360-TN)

Bykski

B-RD360-TN-BK

Bykski B-RD360-TN radiator is a single channel copper radiator.  The thickness of the radiator is 29mm which allows this radiator to be mounted in smaller profile locations.  The single...

Found a better price? Let us know and we'll try and match it!
Estimate shipping
$74.95 USD Sold out
Shipping calculated at checkout.

Pickup currently unavailable at Performance-PCs.com

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

Bykski B-RD360-TN radiator is a single channel copper radiator. The thickness of the radiator is 29mm which allows this radiator to be mounted in smaller profile locations. The single channel design creates a low pressure drop across the radiator which is great for slow flow systems.
Features


  • Dual Channel Design

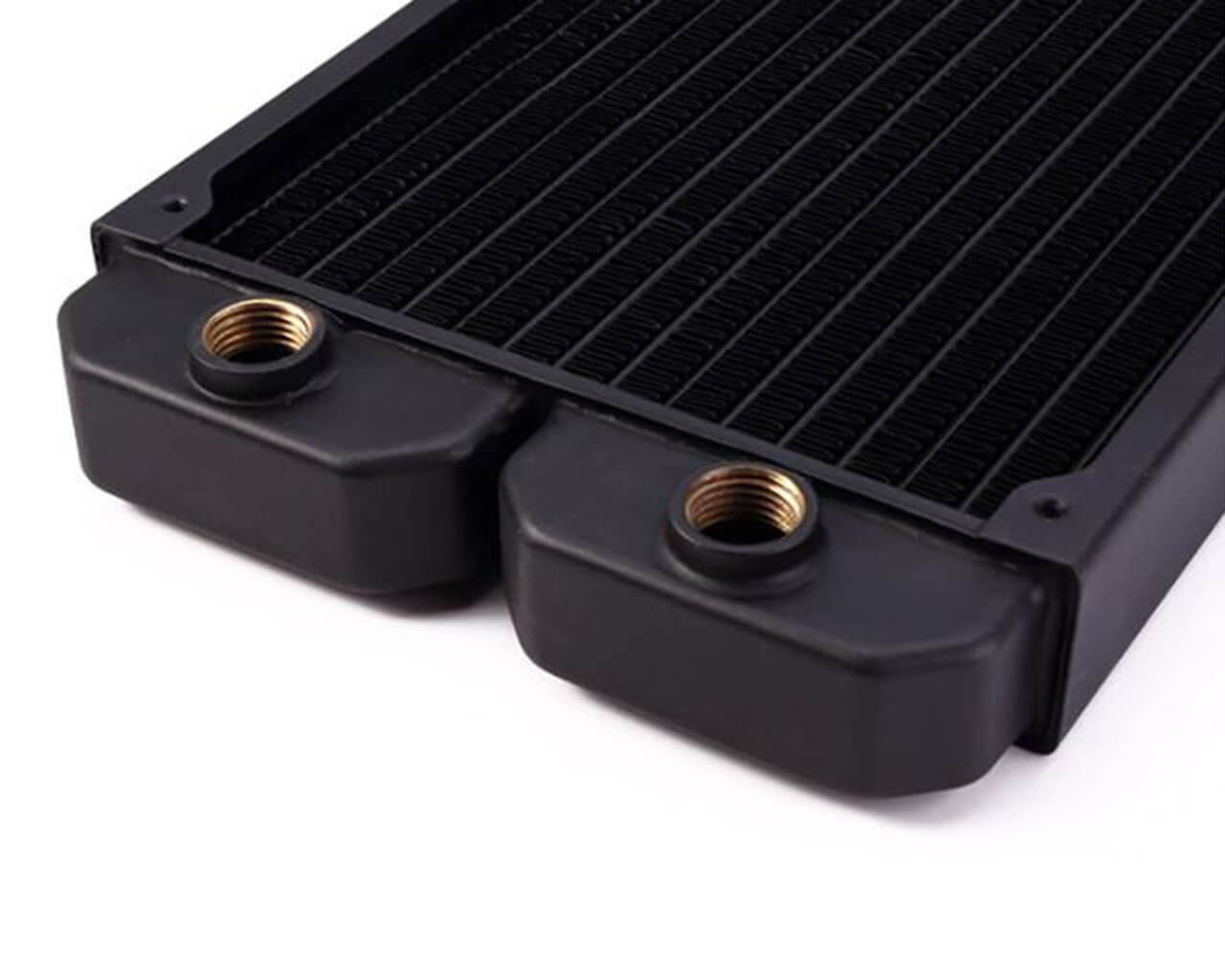

  • Industry Standard G1/4 Thread

  • Copper Core
Specifications


  • Material:Copper / Brass

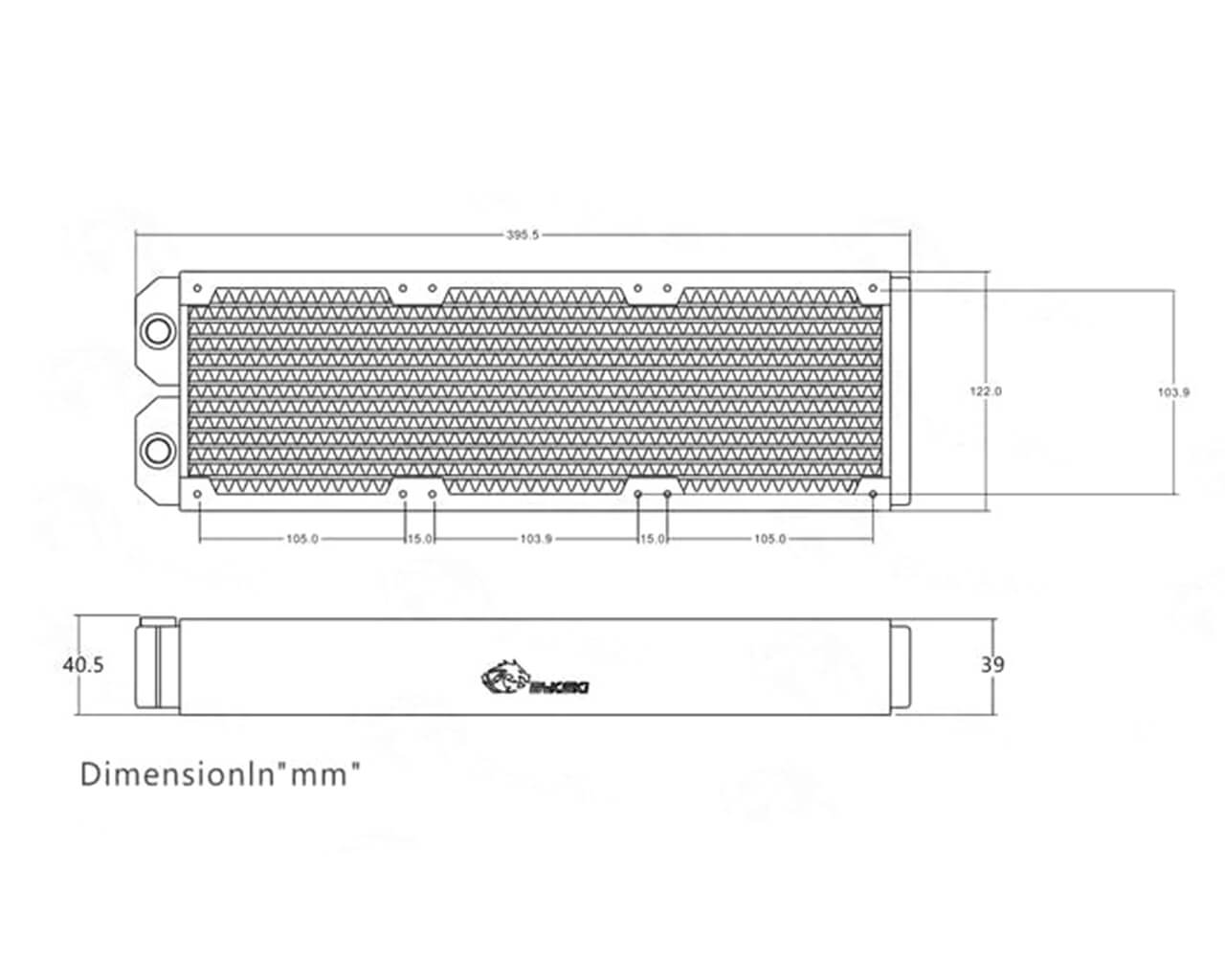

  • Dimensions:395.5mm x 122mm x 29mm

  • Ports:2

  • Thread:G 1/4

  • Channels:12

  • Pressure:1.5bar

  • Weight:1.2 Kg

  • Fan Spacing:15mm


Compatibility


  • Fan:120mm


Included Parts


  • 1x Radiator

  • Mounting Hardware - M3 x 30mm


Warnings

Radiator is formed by a high temperature integrated soldering process.

Due to this, there will be a slight color change in the copper, this is s result of the process not rust.




Please pay attention to the length of the screw.

If the screw is too long, it will break through the radiator and cause water leakage and voiding warranty.



Radiator come with equipped with M3X30mm screws suitable for 12cm fans of 25mm thickness,

If you want to install a thinner fan, please choose the right length of the screw.




*Bykski.us is not responsible for any hardware damage. Use at your own risk.
