Channelz™ ASUS ROG Hyperion GR701 Distribution Plate Set

Designed and manufactured in the USA by Performance PCs.

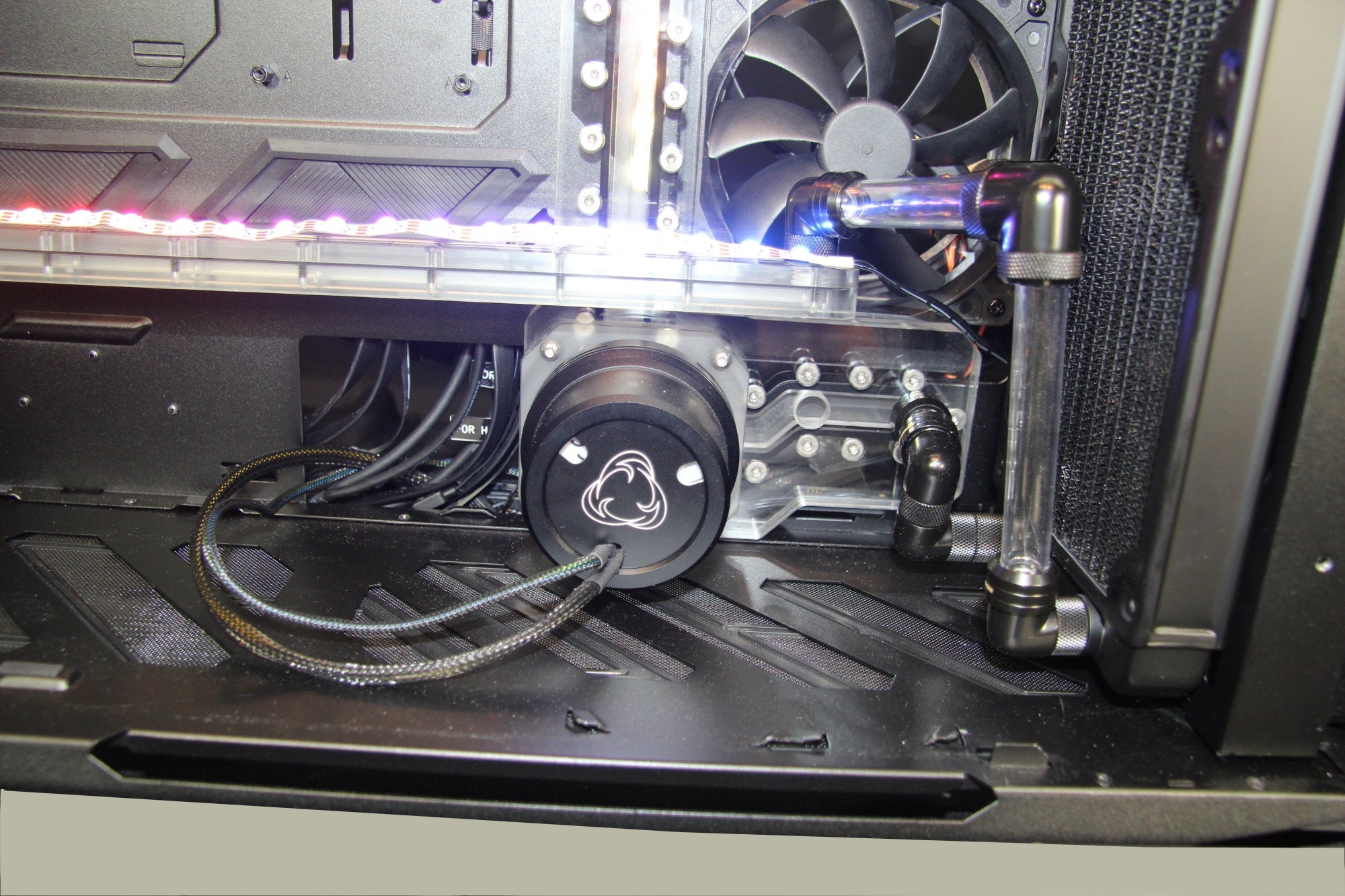

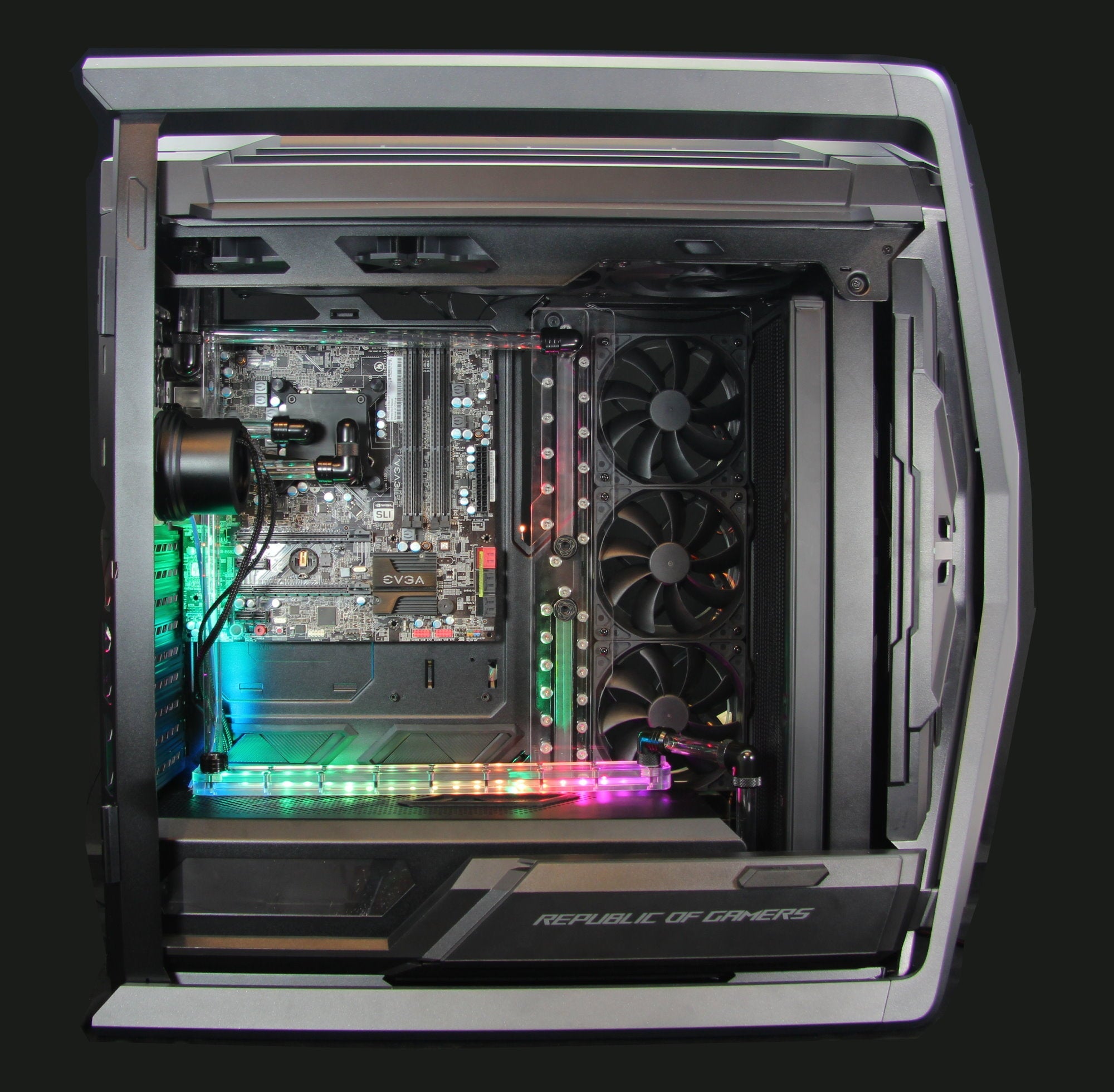

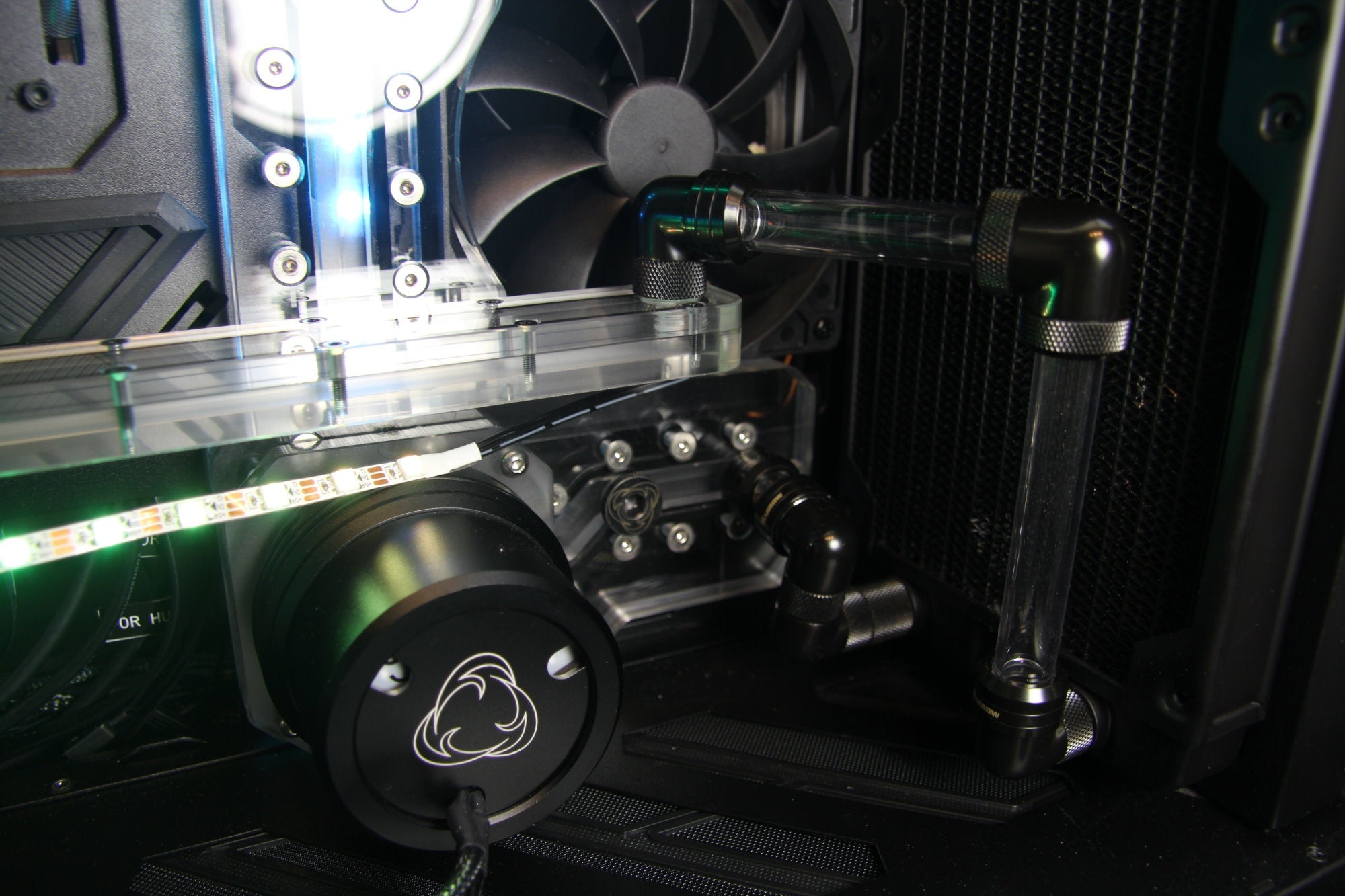

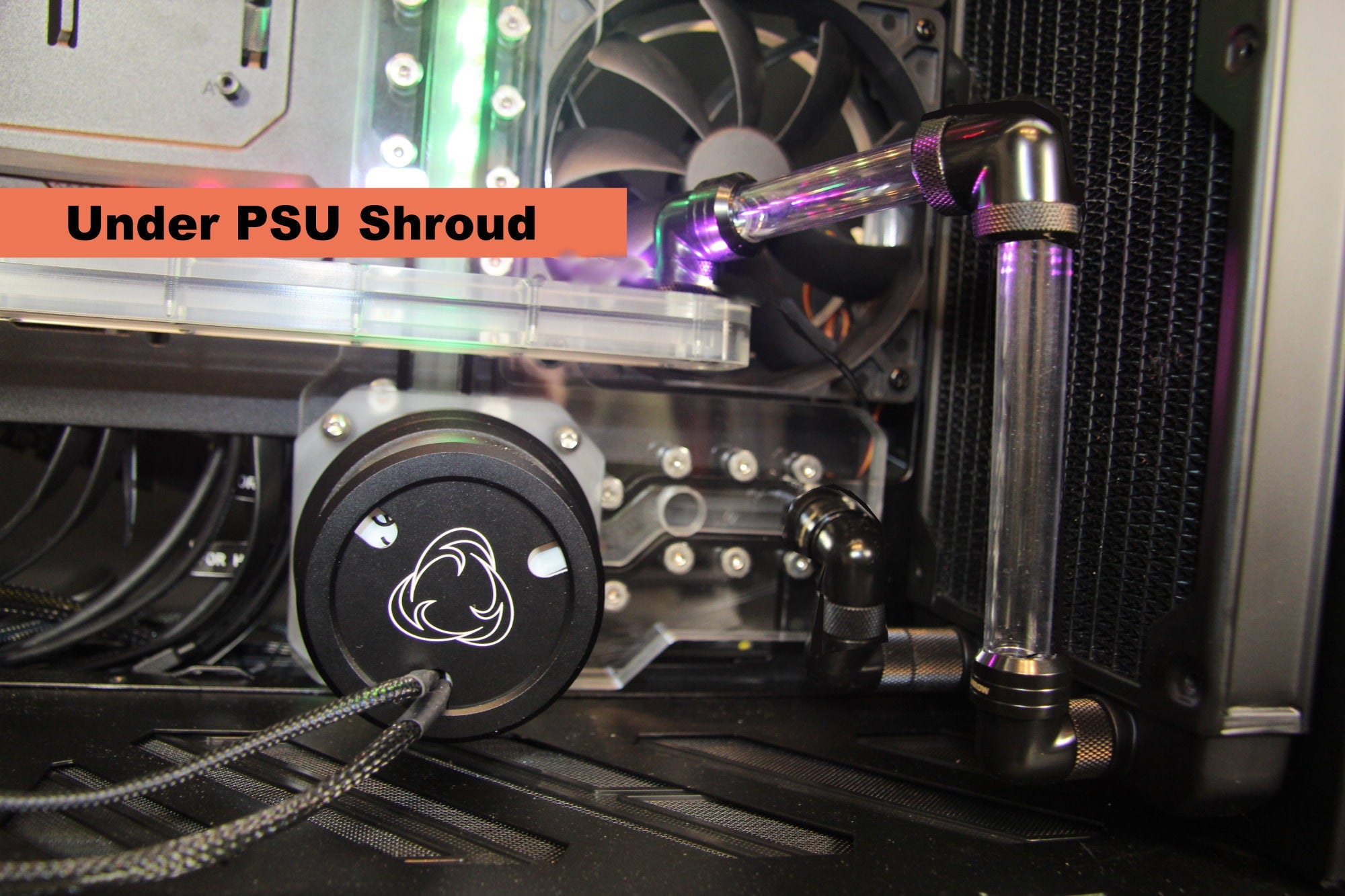

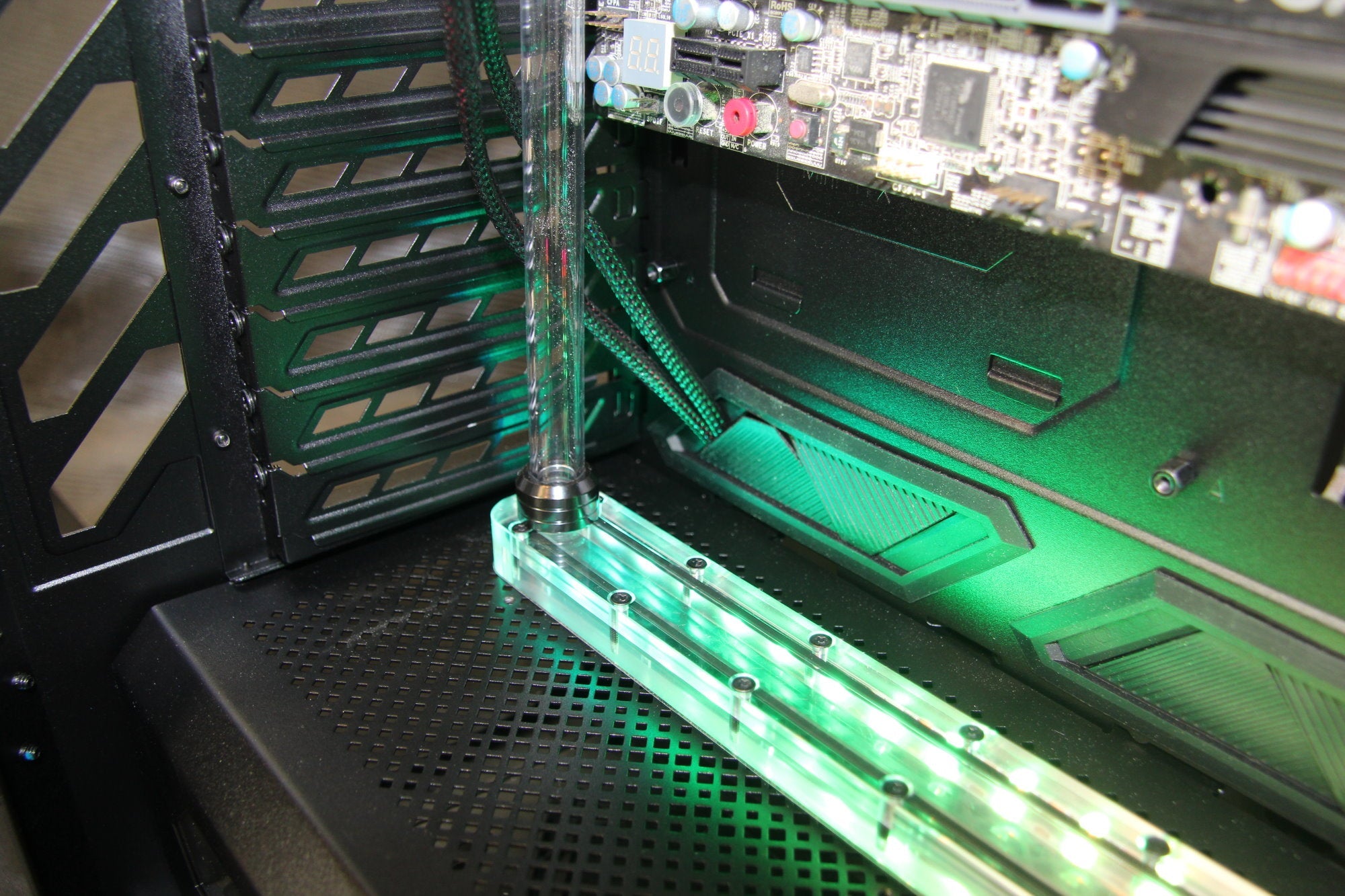

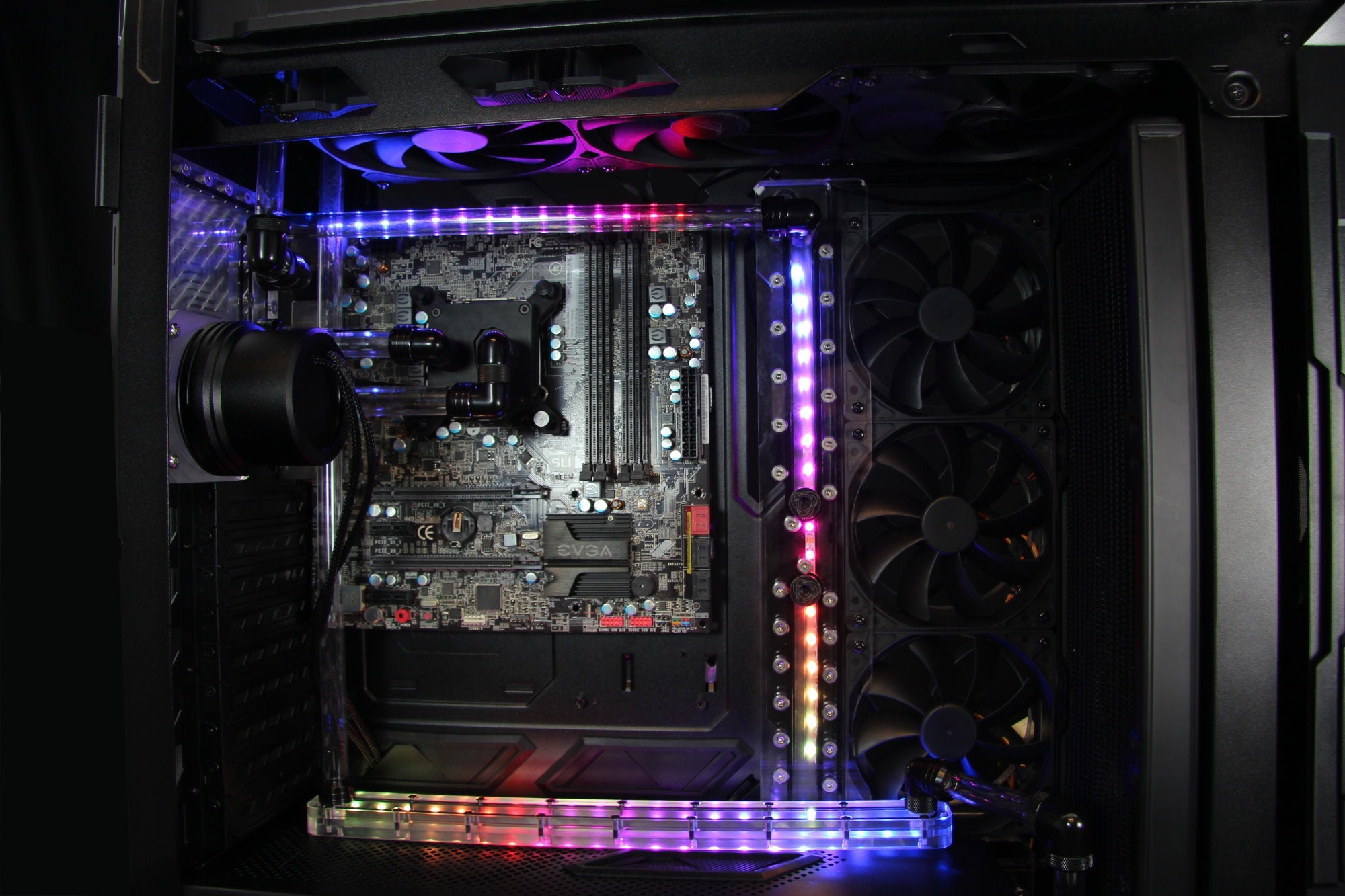

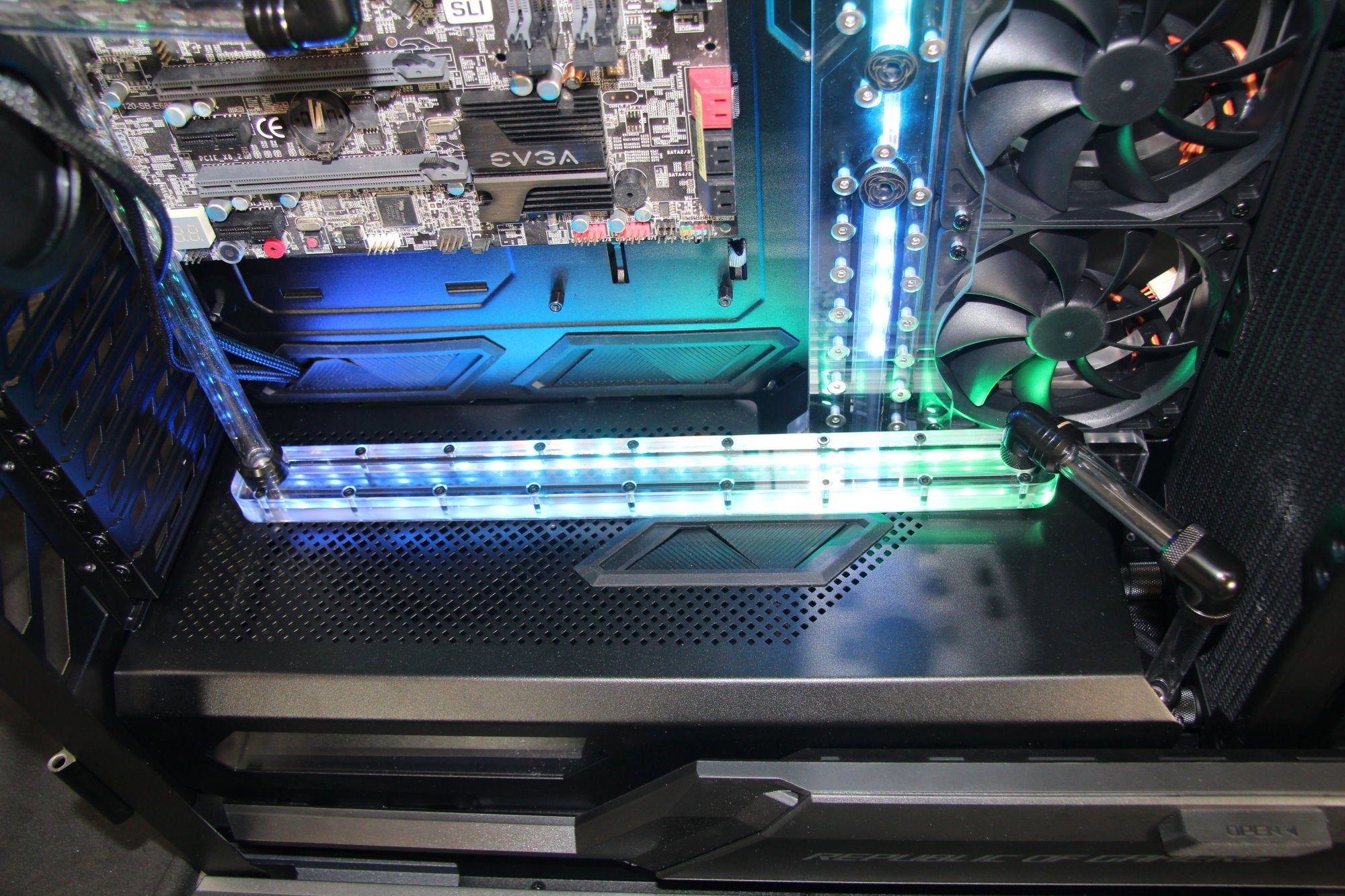

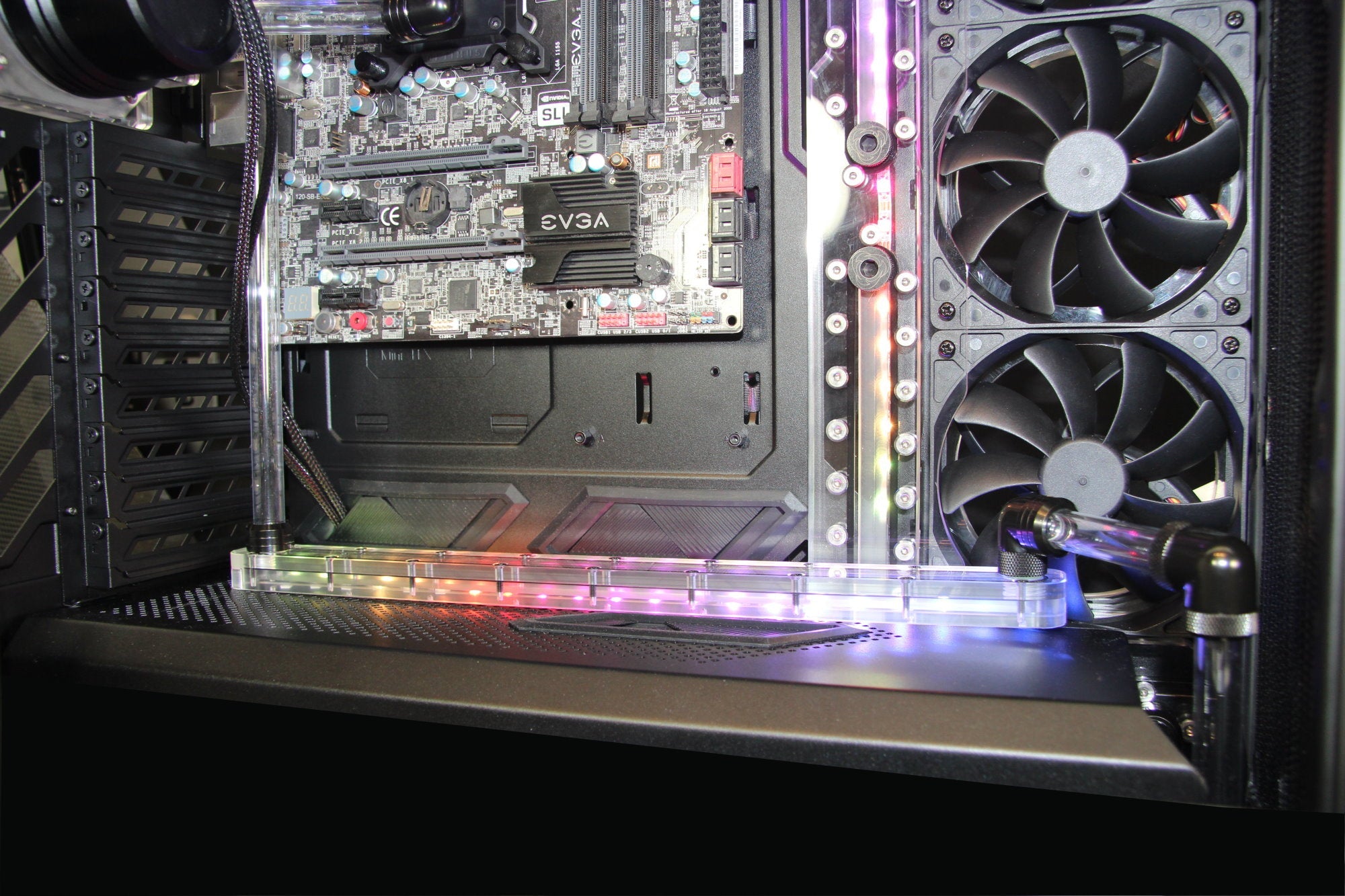

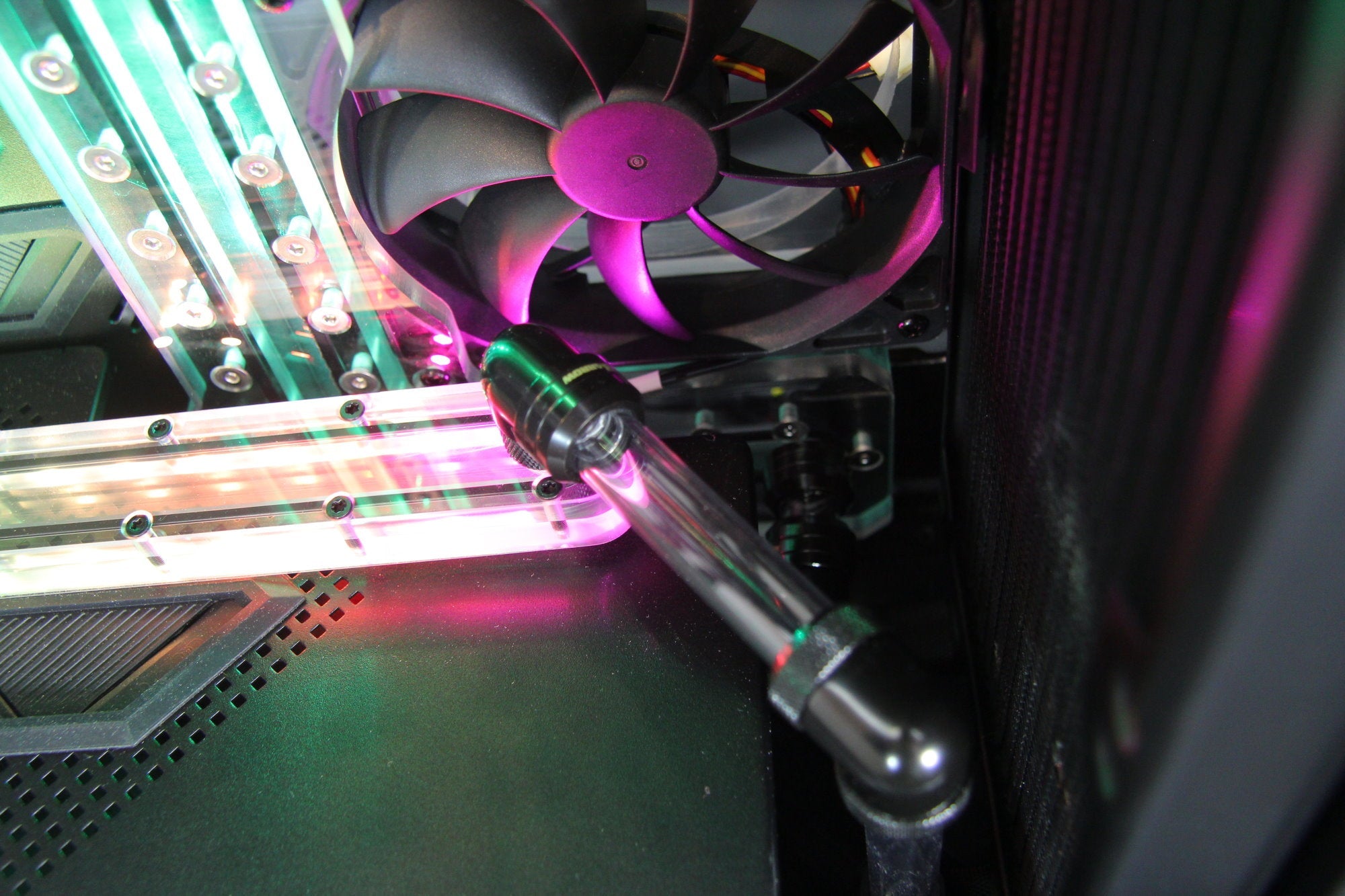

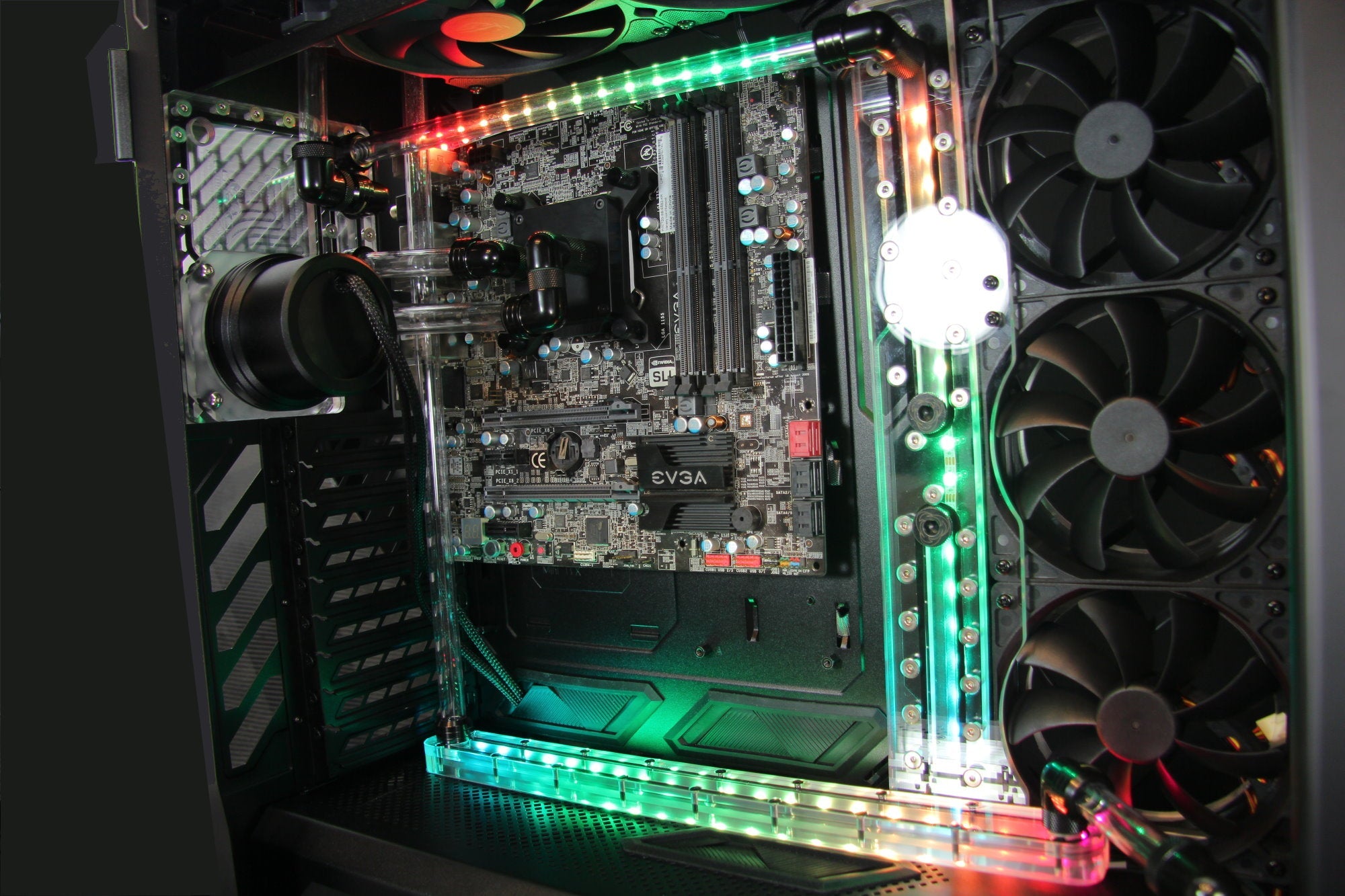

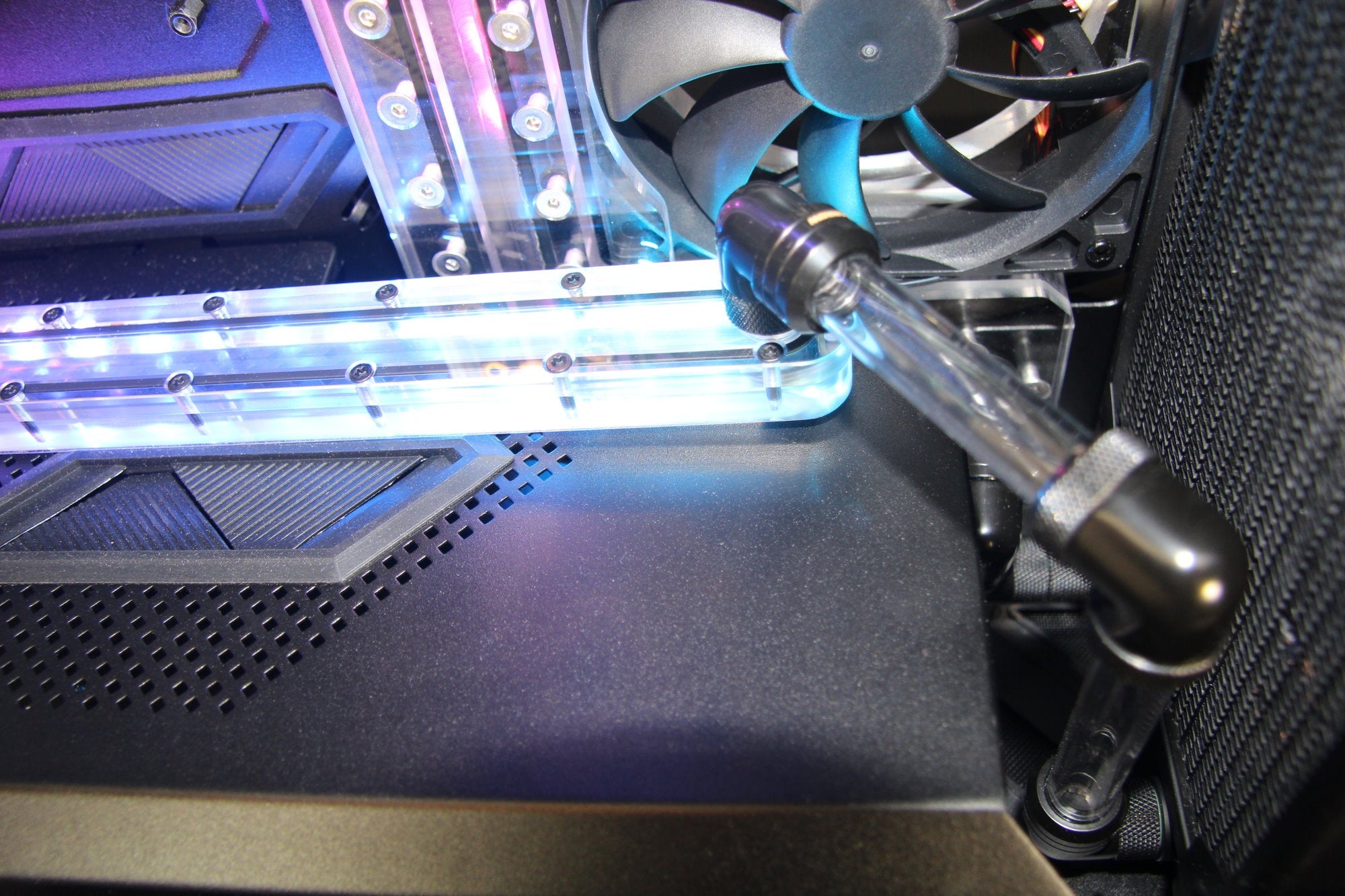

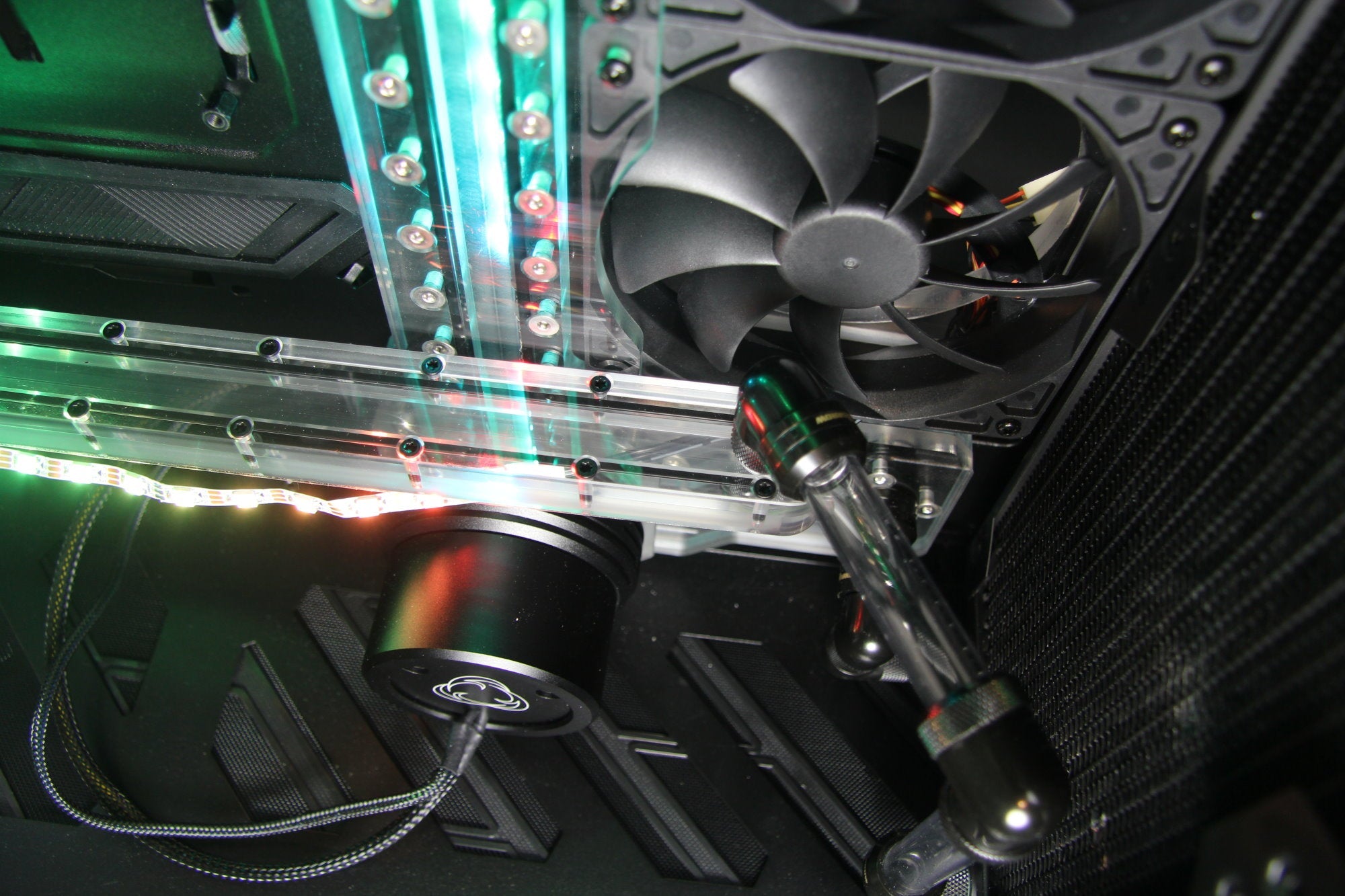

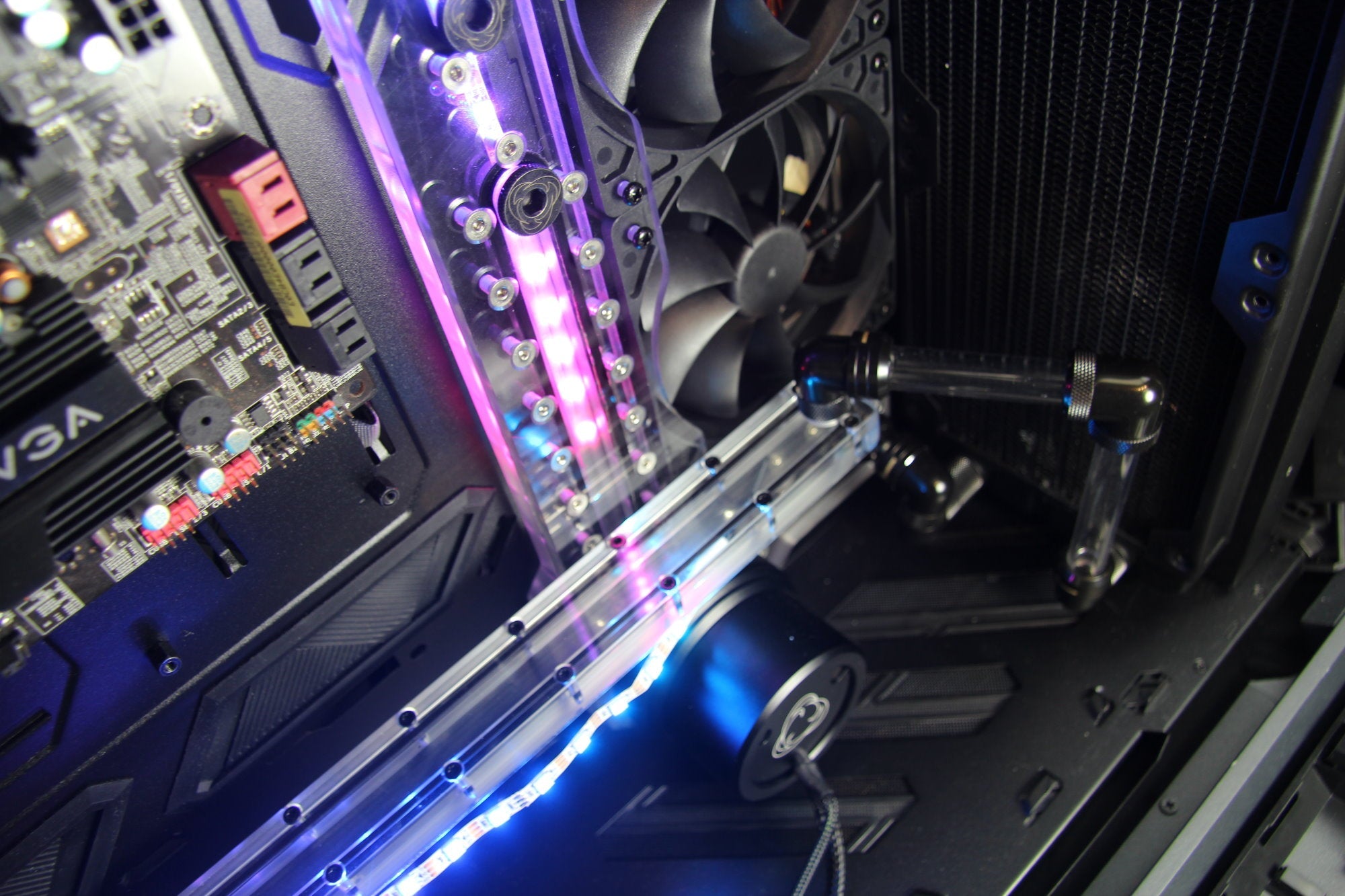

This distroplate pump res combo set is specifically designed to fit into the ASUS ROG Hyperion GR701case on the side next to the motherboard (center), and the back inside panel. Featuring 14 Ports total, designed to be used with 2 x 420mm radiators! Distroplates include integrated D-RGB strips for stunning lighting effects. This distro plate is compatible with standard D5 or DDC pumps. This distroplate set was design with a new compact D5 pump mount due to the marrow space used in the chassis for mounting. We carefully designed the center distroplate to have scalloped sides so that none of the center 120mm fan mounts are interfered with so that you can maximize your chassis airflow! Not included but seen in some of the images is a Stealkey Customs CubeTube 360mm. This is perfect for mount on top of the PSU shroud to return the loop from the front to the back. Visually its more interesting and attractive to look at vs. just another lateral tube. You can add this as an option below. Included with the 2 distroplate set is the spacer mount that goes between the 3 center 120mm fans and the actual distroplate. Enjoy this beautiful Channelz™ set and optimize the ROG GR701's cooling today!

Channelz™ Effectz Service

Tired of all that colored Coolant clogging up your loop but don't want to stick with some boring old clear coolant? Well Performance-PCs has you taken care of with their new Channelz™ Effectz Service! This service is a great way to add some color to your Channelz™ distribution plate without clogging your loop with pastel or mica filled coolants. We use an epoxy resin mixture that is safe for your loop and will certainly help that build POP. There is 30 different super vivid color options to choose from and we even added the ability for you to mix colors to give your loop its own style.

Installation:

Center ROG Hyperion GR701 Distroplate:

Insert the 45mm buttoned screws through the center 120mm fans on the left side. Then pass the 6 screws through three center spacer, then the center distroplate and add M4 washer and nut. On the 6 right side screw holes repeat the same installation order except use the 6 x 40mm buttonhead screws.

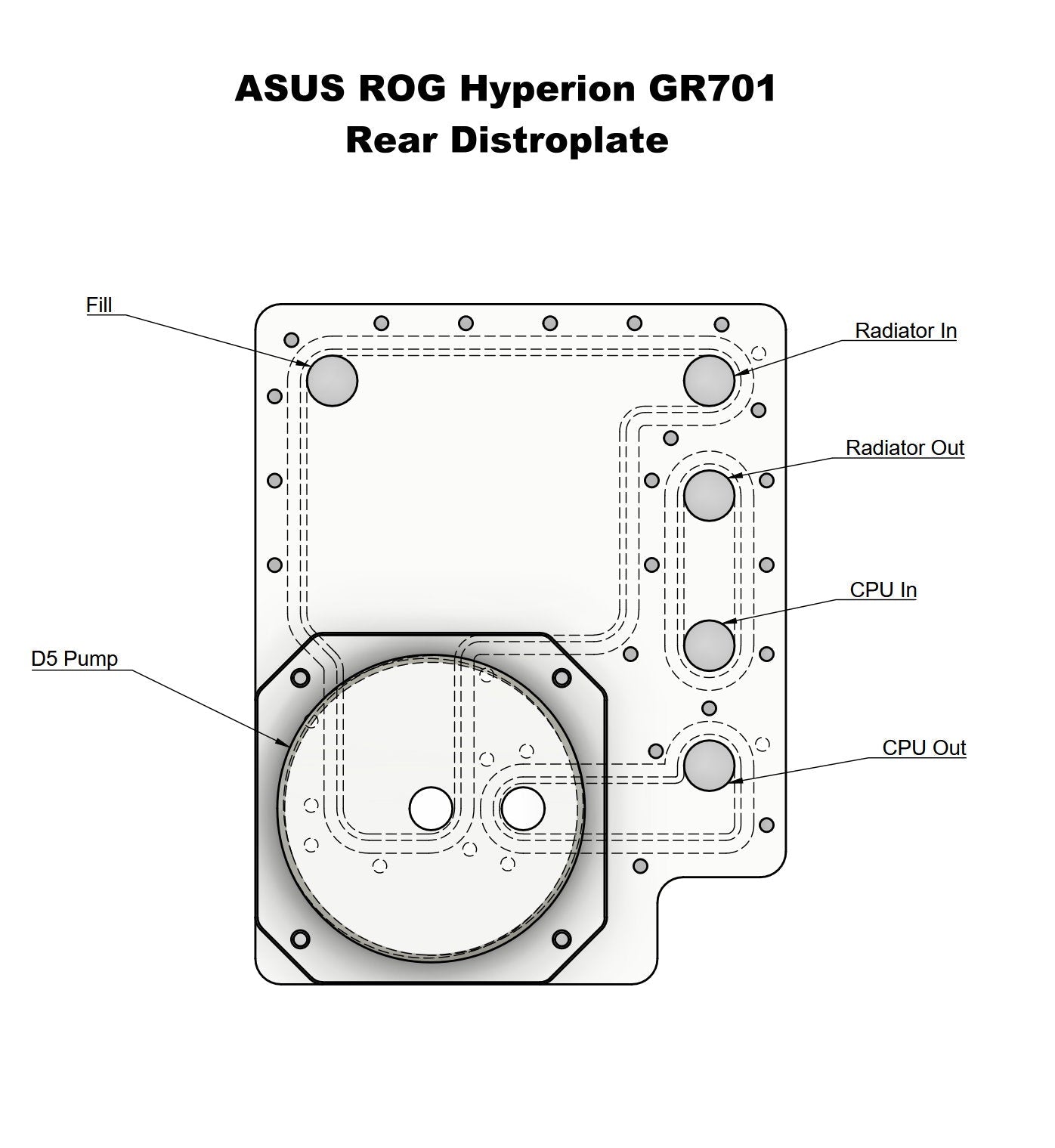

Rear ROG Hyperion GR701 Distroplate:

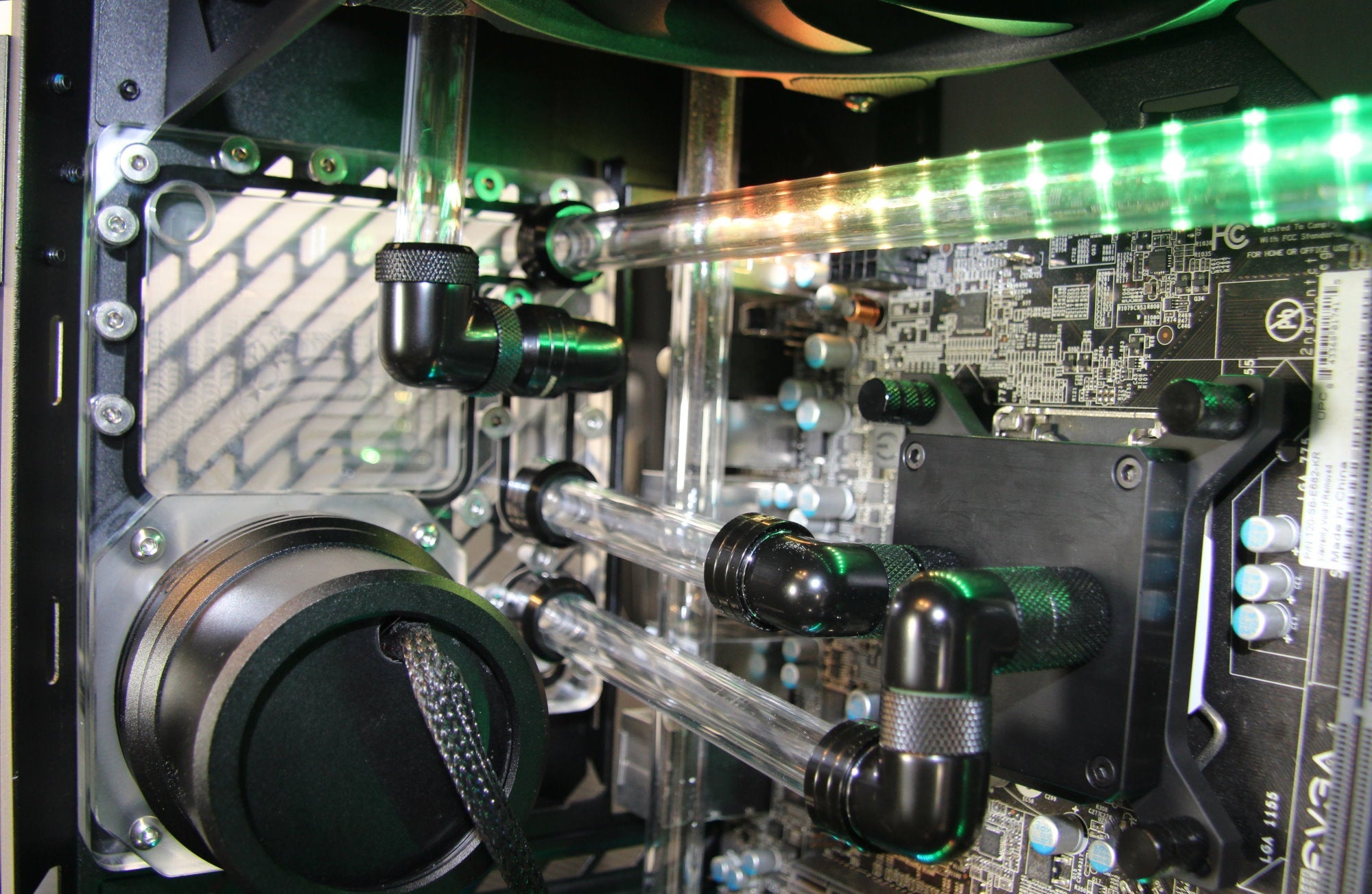

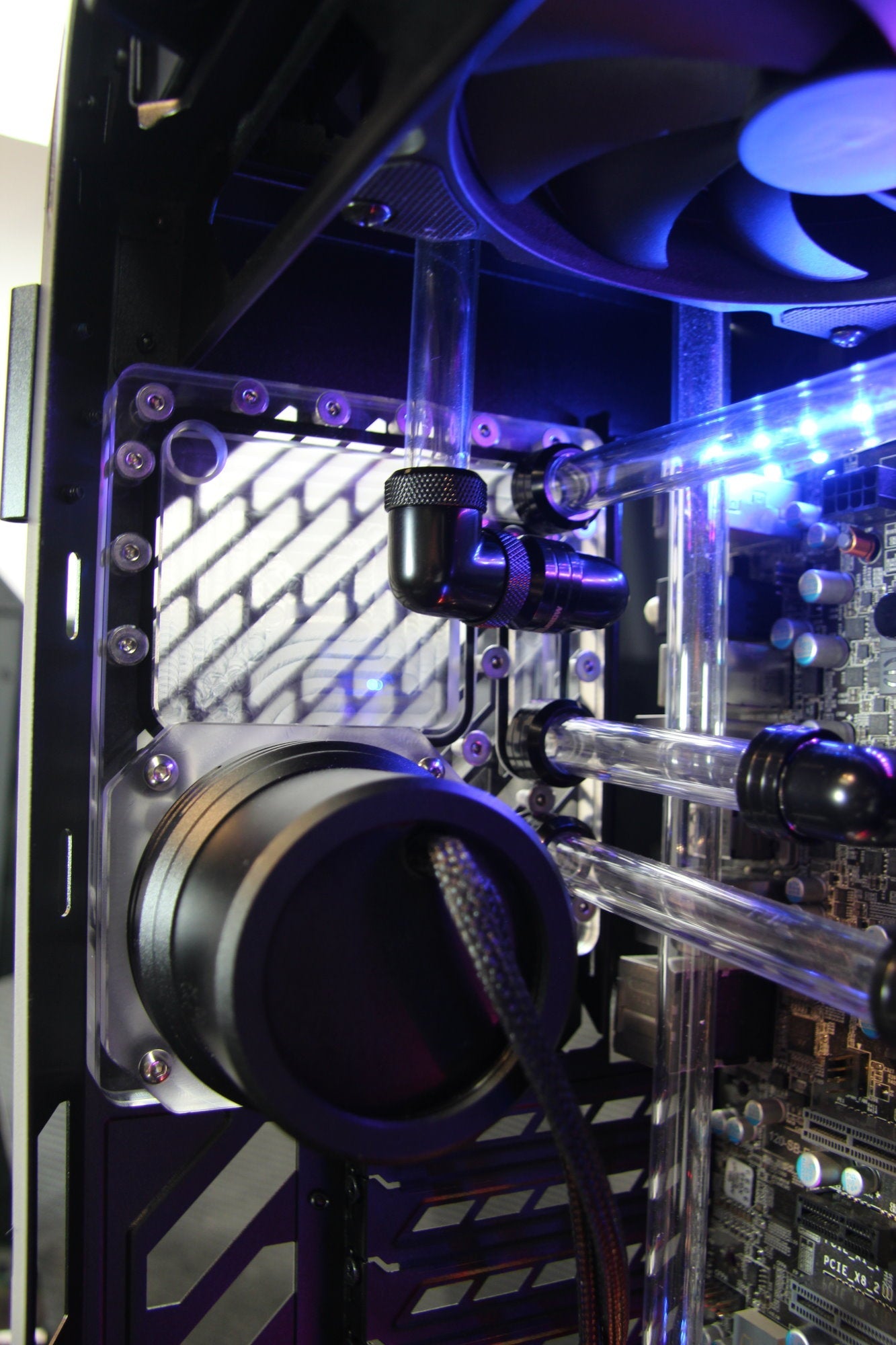

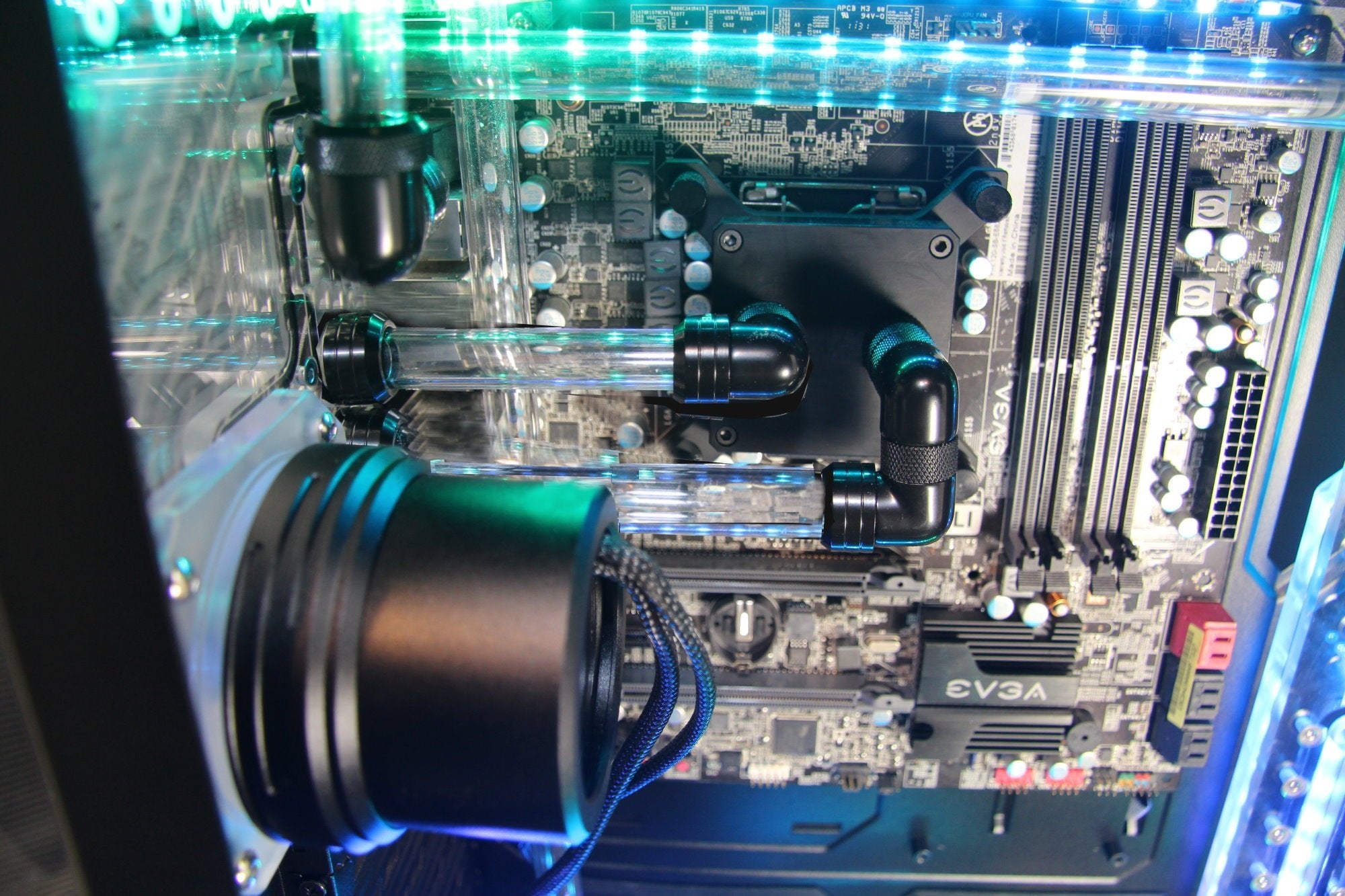

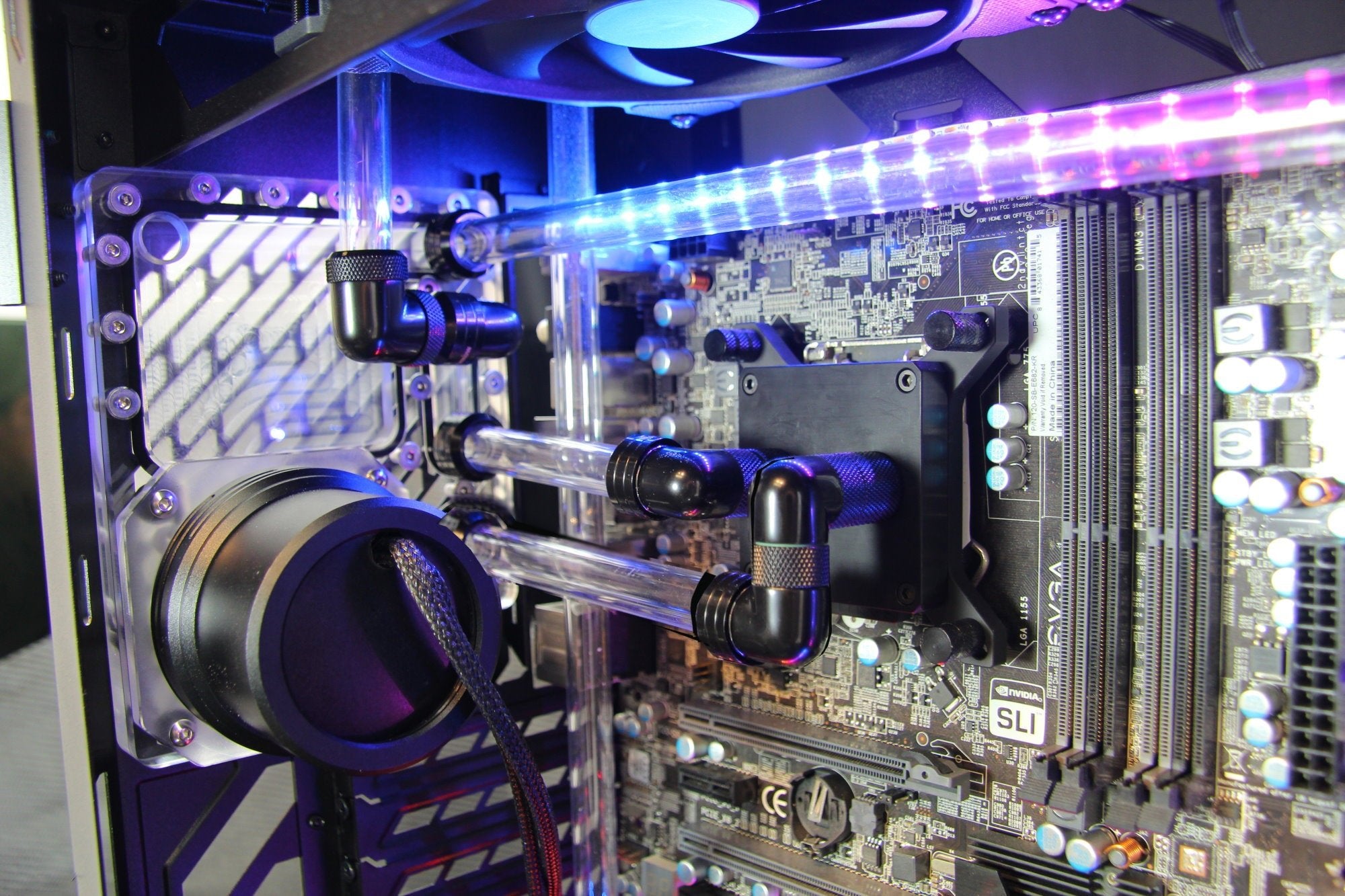

Rest the rear bistro on the small shelf above the I/O panel. The check which hexagon mesh holes best line up with the M4 threads of the rear distroplate. Insert your 4 x M4 x 10mm screws and tighten into the rear distroplate.

Done! Easy!

Specifications:

Material: Clear Cast Acrylic.

Fasteners: Stainless Steel Silver.

Stand Offs: Brass.

Gaskets: Silicone Black.

O-rings: Silicone Black and Clear.

Stop Fittings: Brass Black Powder coat.

Ports: x10 .

Center Distroplate:

Inlets: x2

Outlets: x3

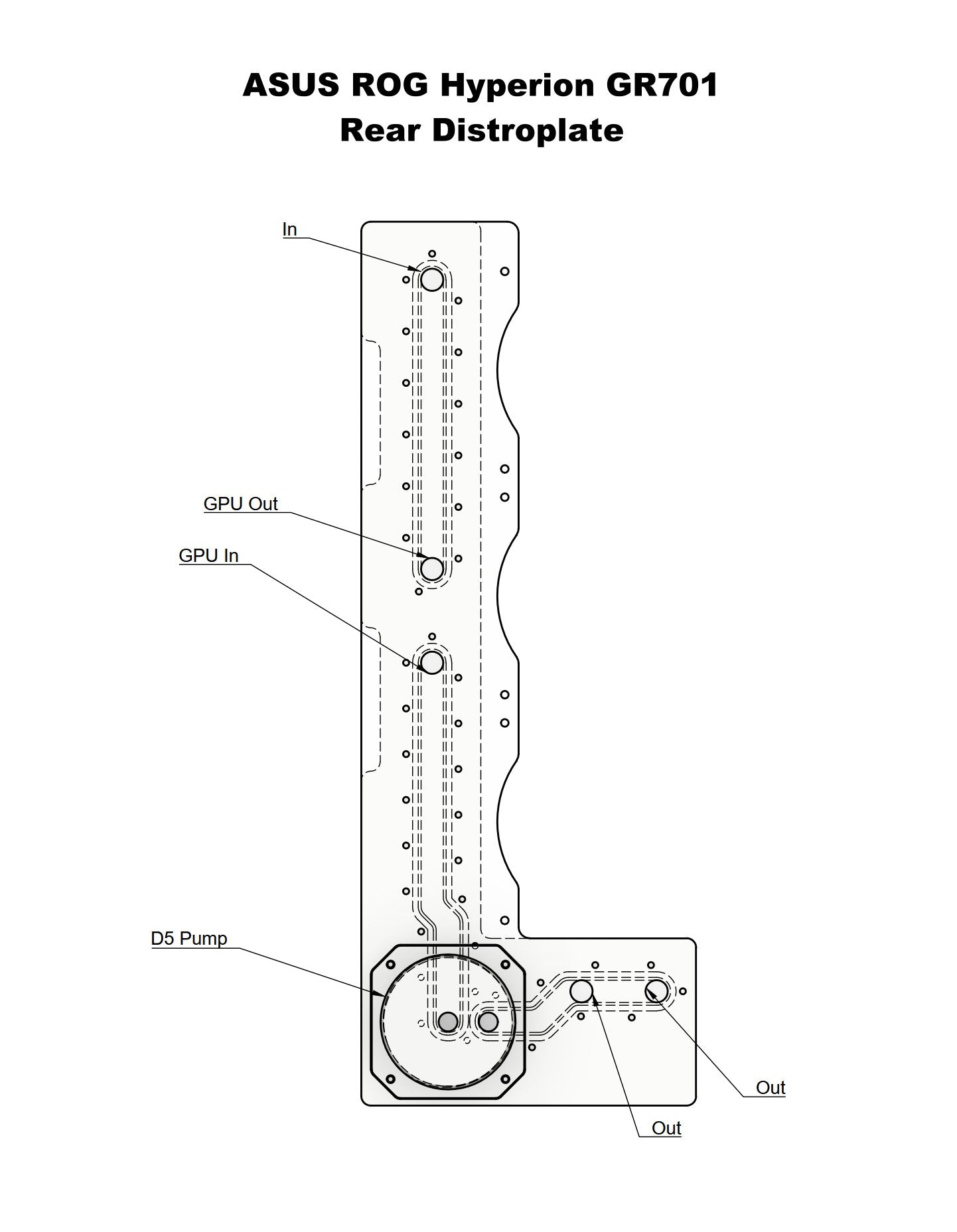

Rear Distroplate

Inlets:x 2

Outlets x 2

Fillport x 1

LED Strip: DRGB 5V Addressable.

Dimensions:

Center Distroplate: Width: 200mm. Height 185mm.

Rear Distroplate: Width: 275mm. Height 420mm.

Included Items:

Channelz ROG Hyperion GR701 Center Distroplate: x1

Channelz ROG Hyperion GR701 Rear Distroplate: x1.

DRGB LED Strip: x2.

Center spacer for mounting distroplate to 120mm fans and chassis

Mounting fasteners (see below)

Mounting Fasteners:

Center Distroplate M4 x 40mm buttonhead screw: x 6, M4 x 45mm buttonhead screw: x 6, M4 Washers: x12, and M4 Nuts x12

Rear Distroplate M4 x 10mm buttonhead screw: x4
