Channelz™ Asus TUF GT502 Distribution Plate Kit - 2 Piece Set

Another of our Newest and Most Requested Distroplate Sets for 2026!

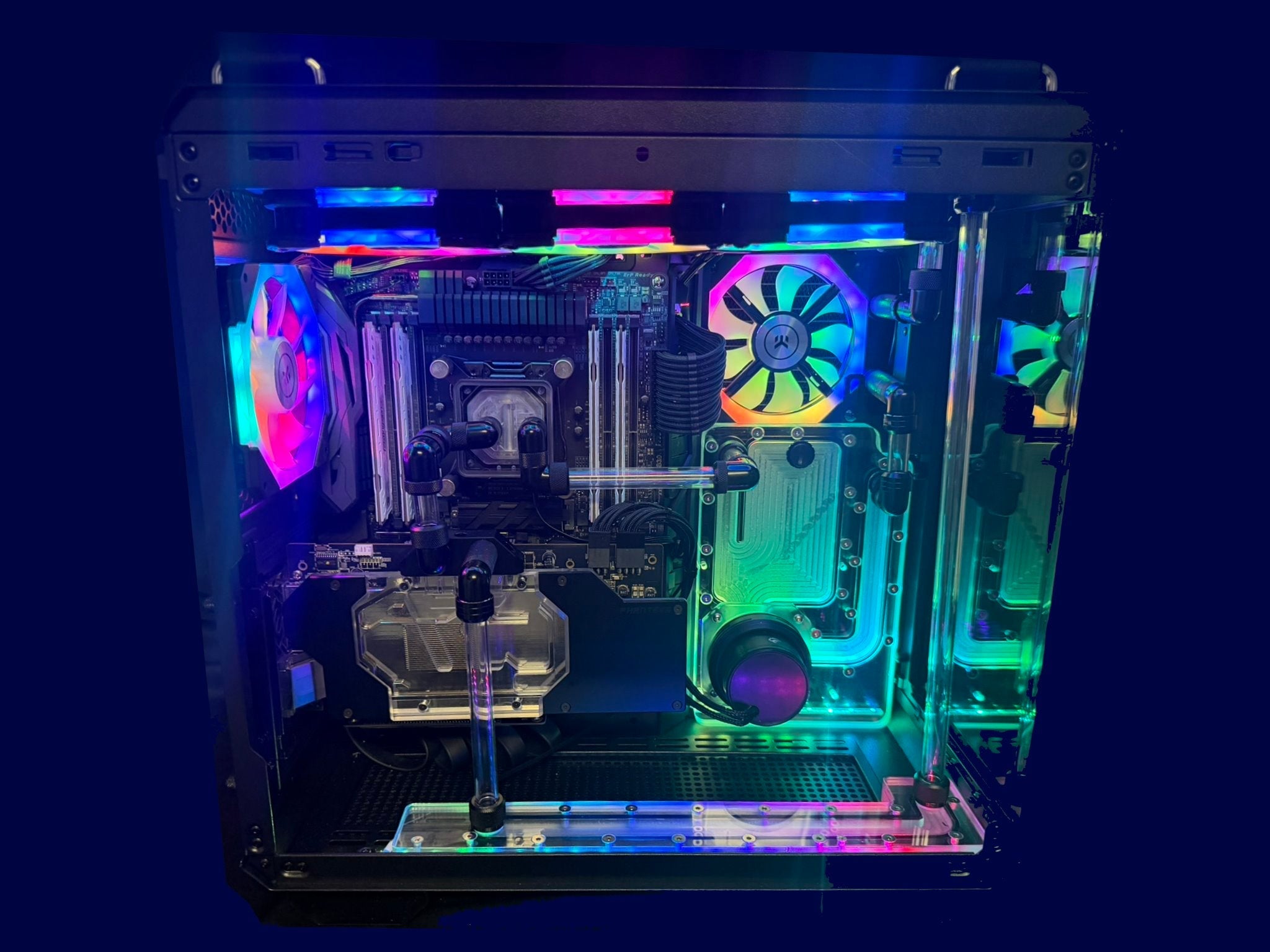

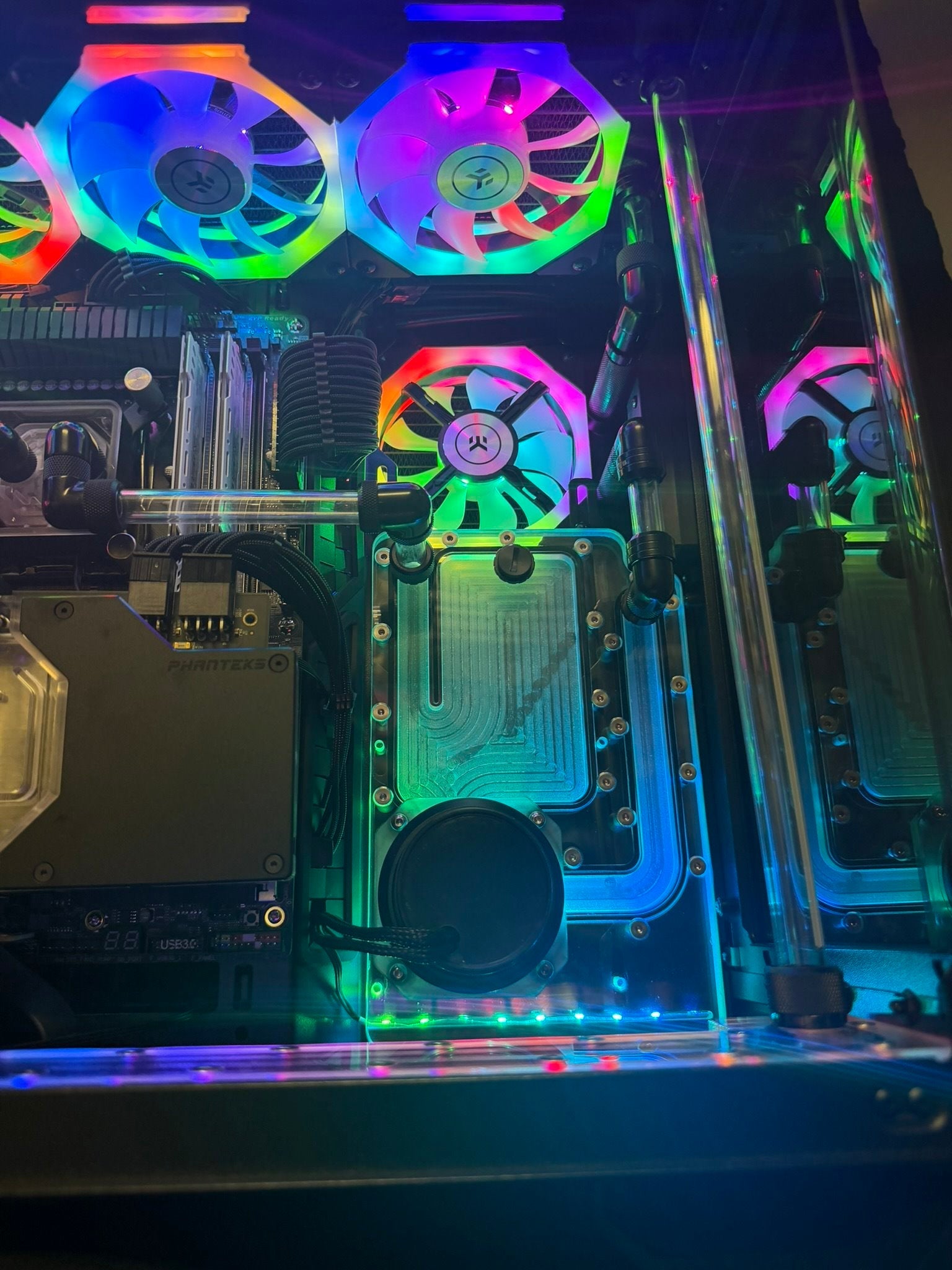

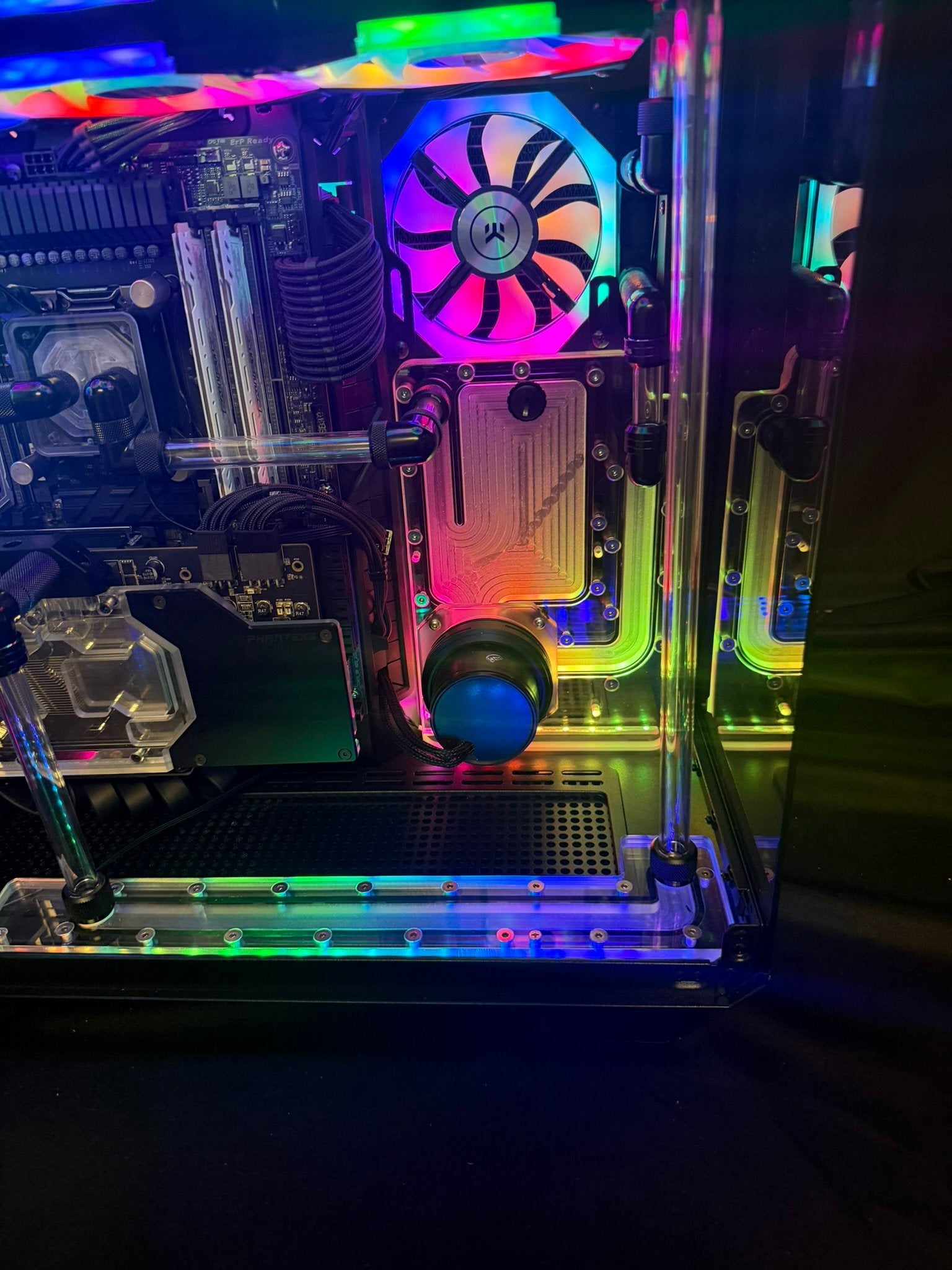

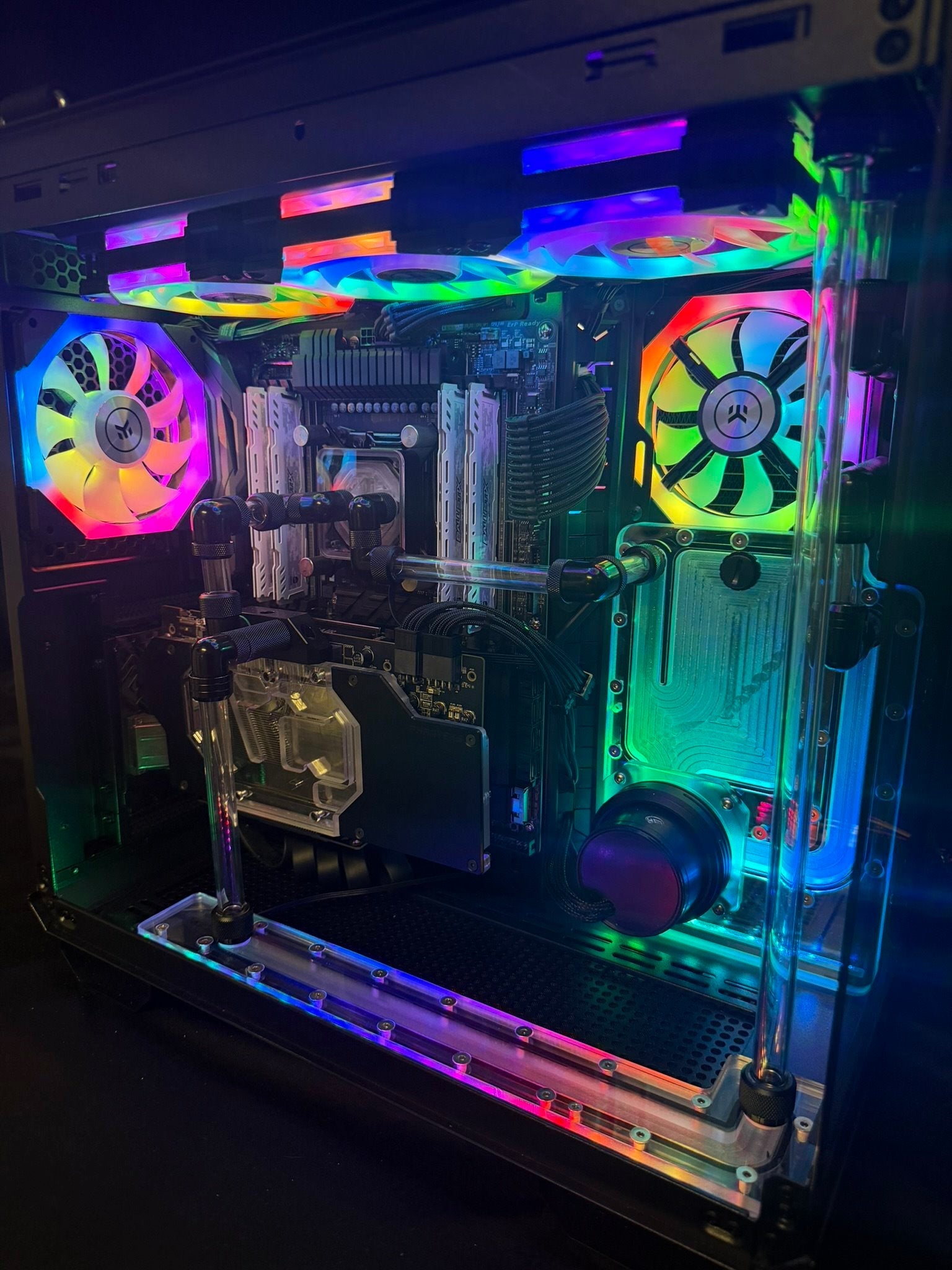

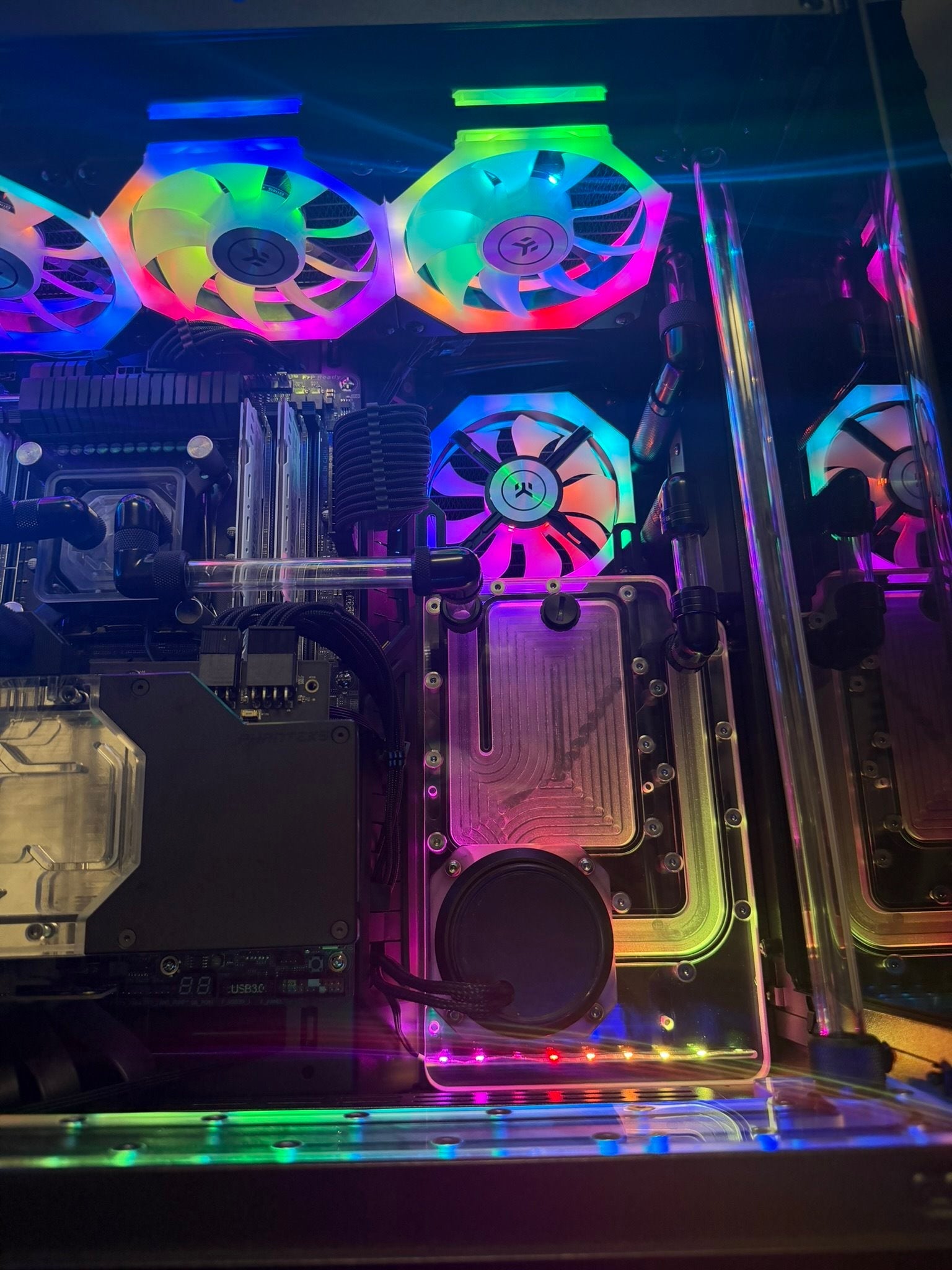

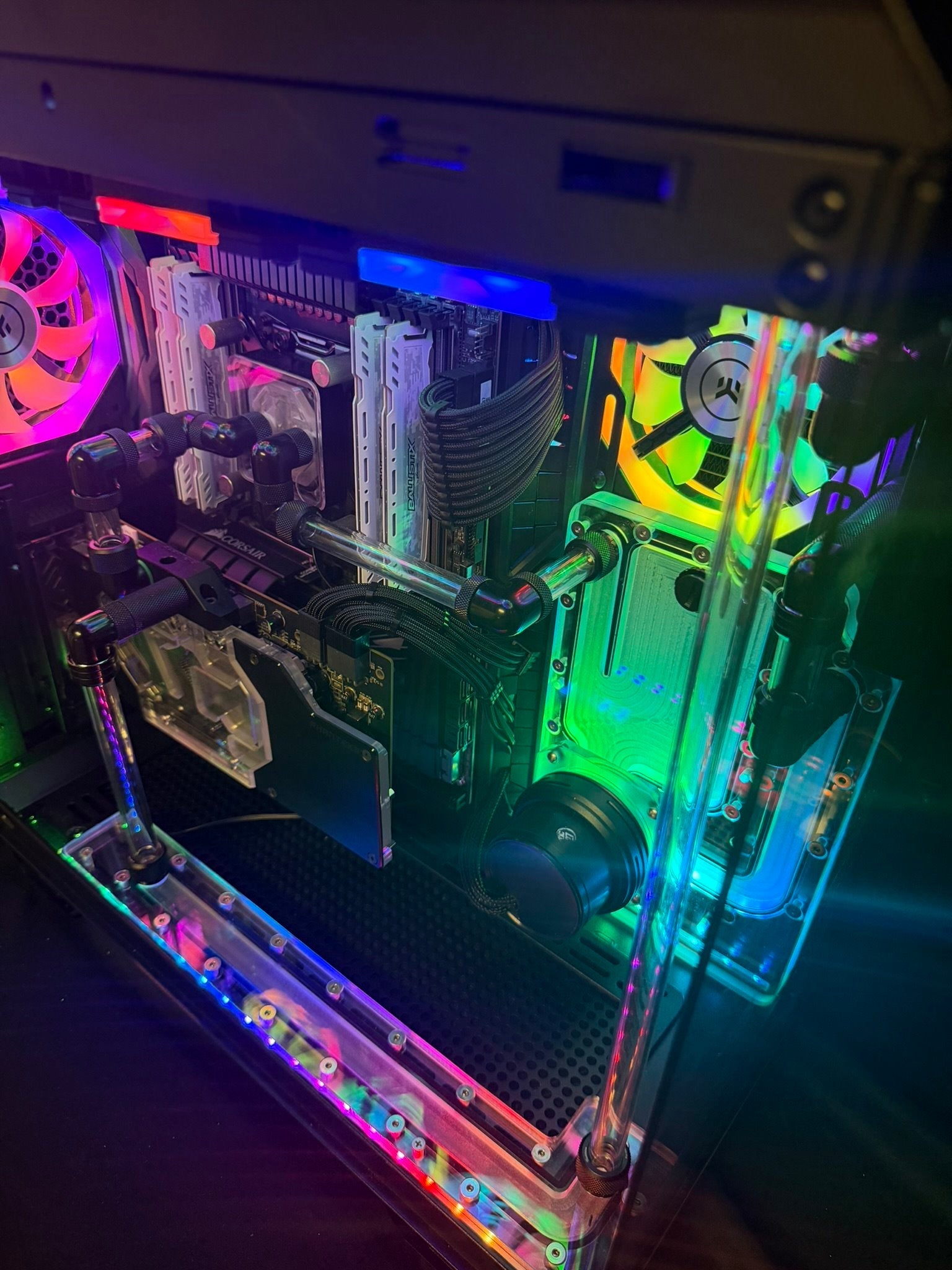

Our brand new Channelz™Asus TUF GT502 distroplate set which is a pump res combo that is specifically designed to fit easily and conveniently in the Storage drive section to the right of the mainboard area of this chassis and a bottom return flow distro that makes hardline loops a breeze to install and leave an aesthetically pleasing build at completion. With most motherboards housing 4 x M2 SSD and this chassis also having room to mount one storage bay behind the cpu area of the case, this allows 6 storage drives which is more than enough for 98% of users and thus leaving the rest of the storage bay area open to mount our beautifully designed distro!

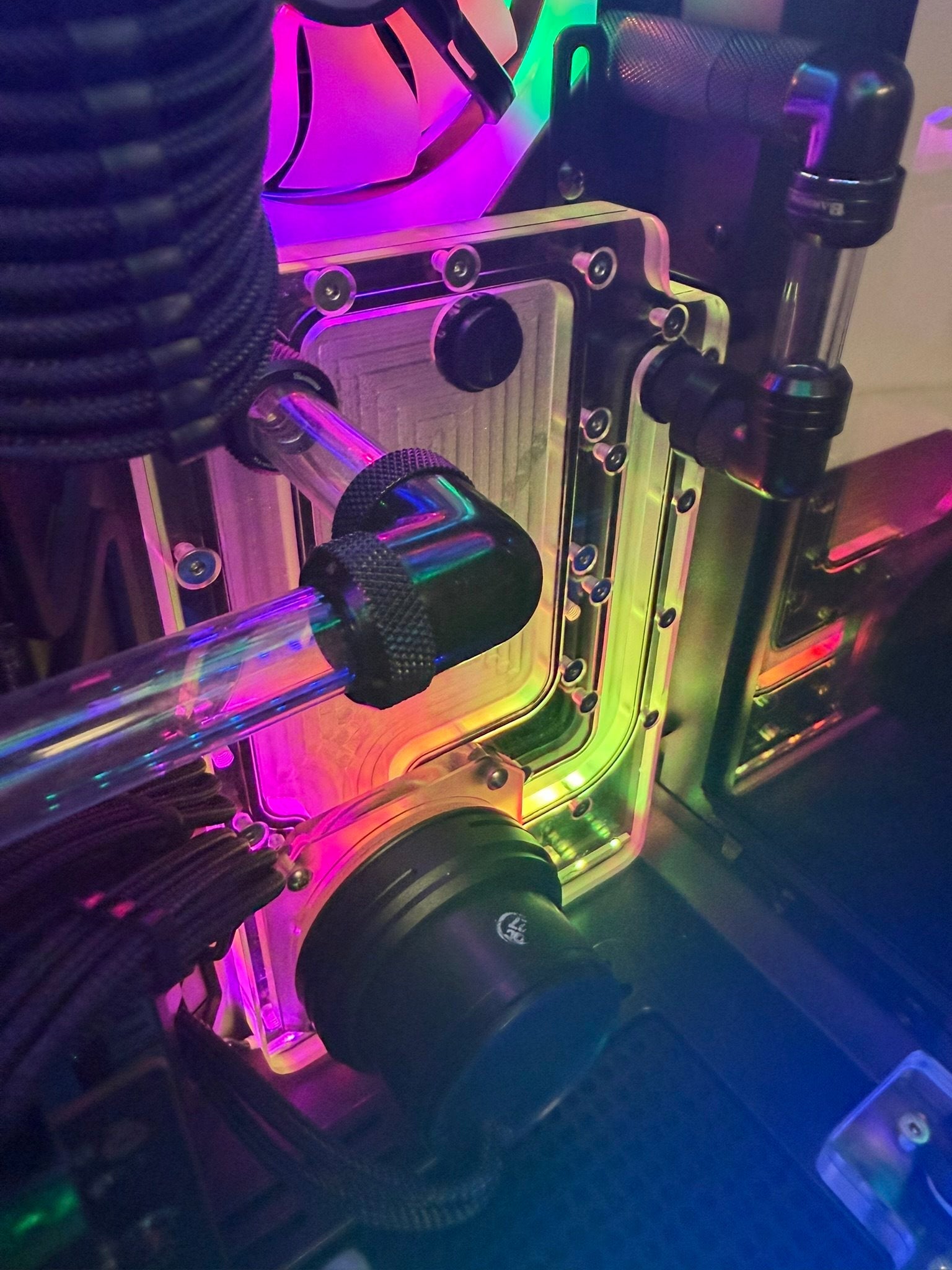

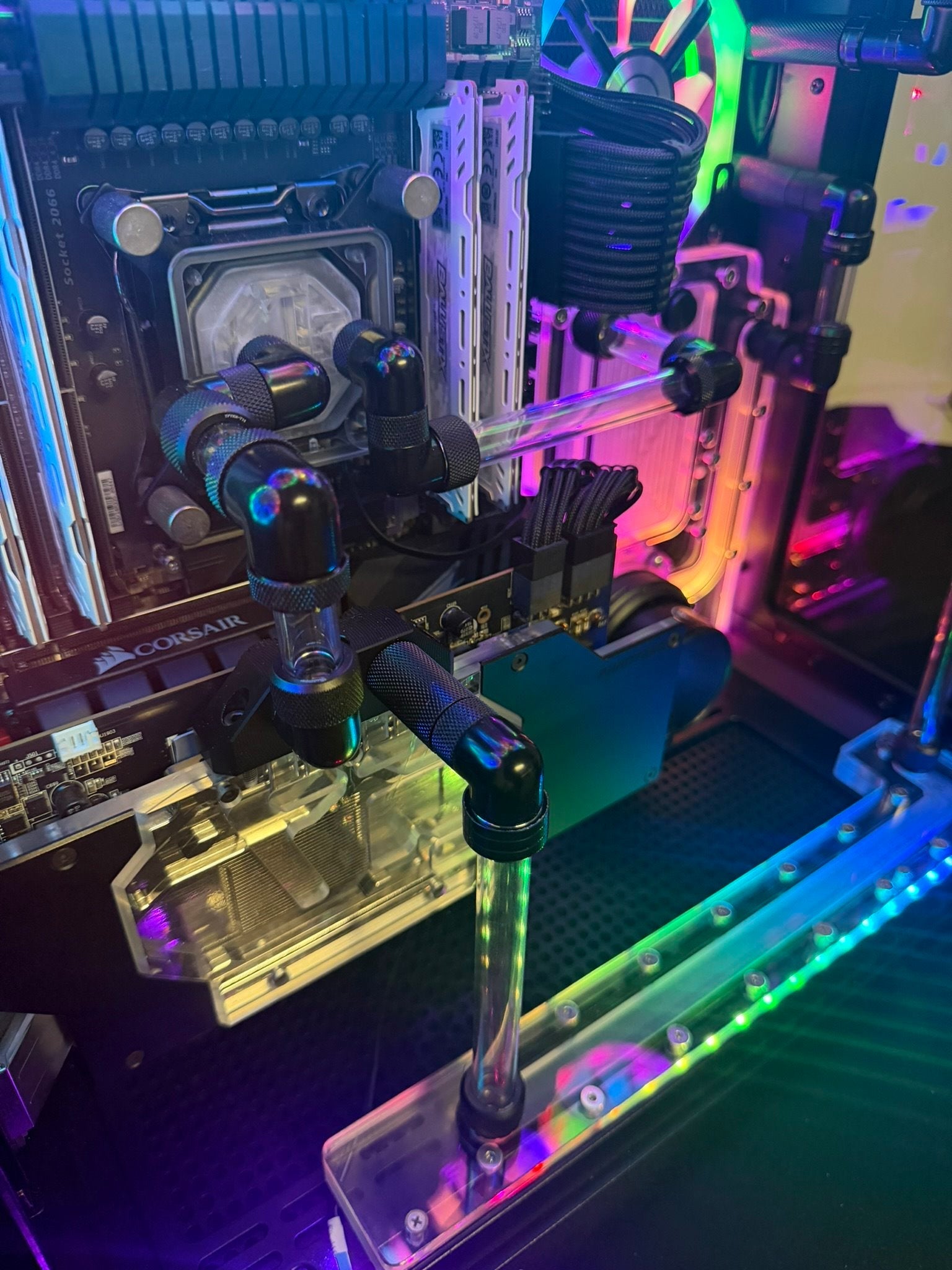

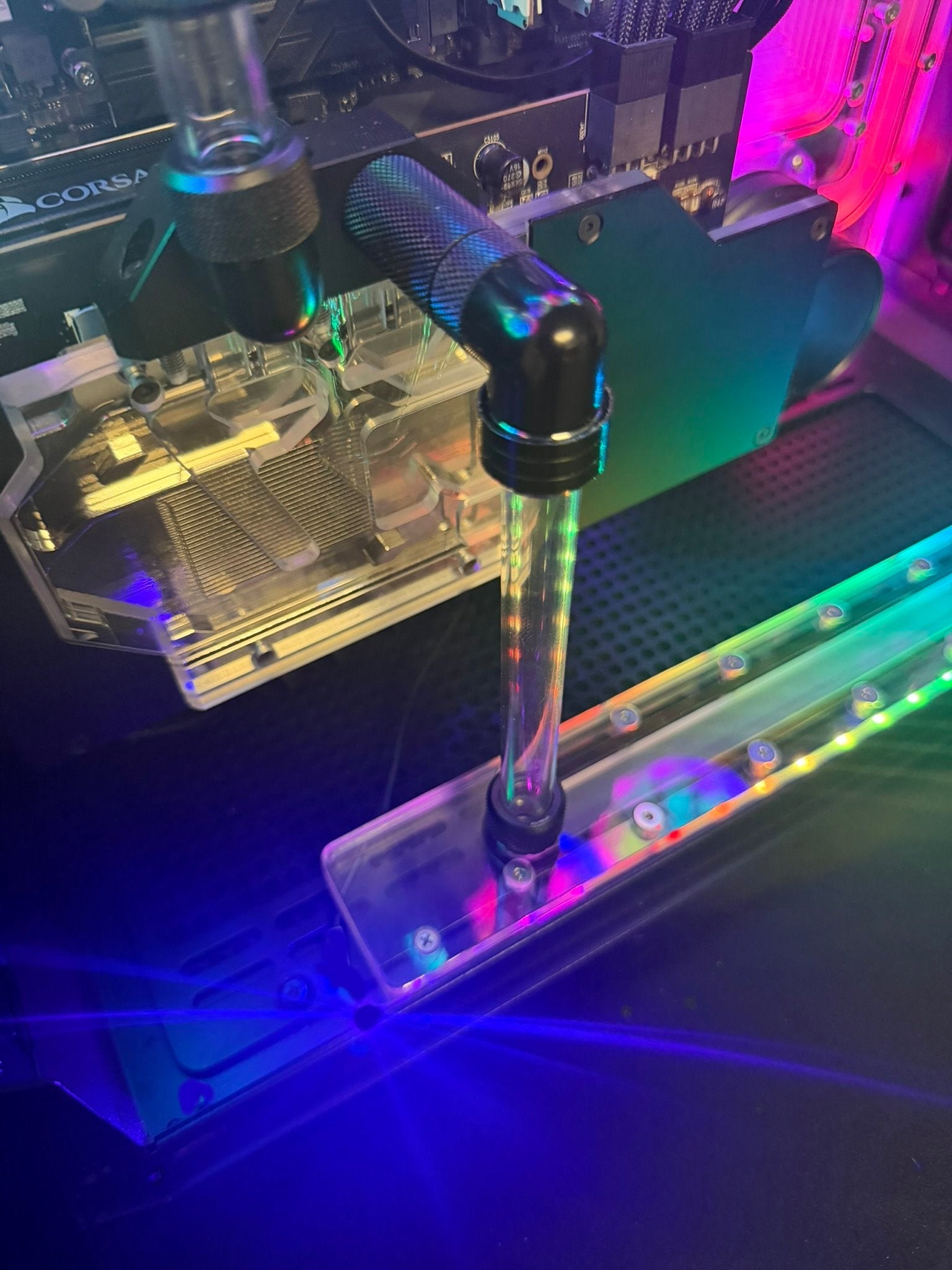

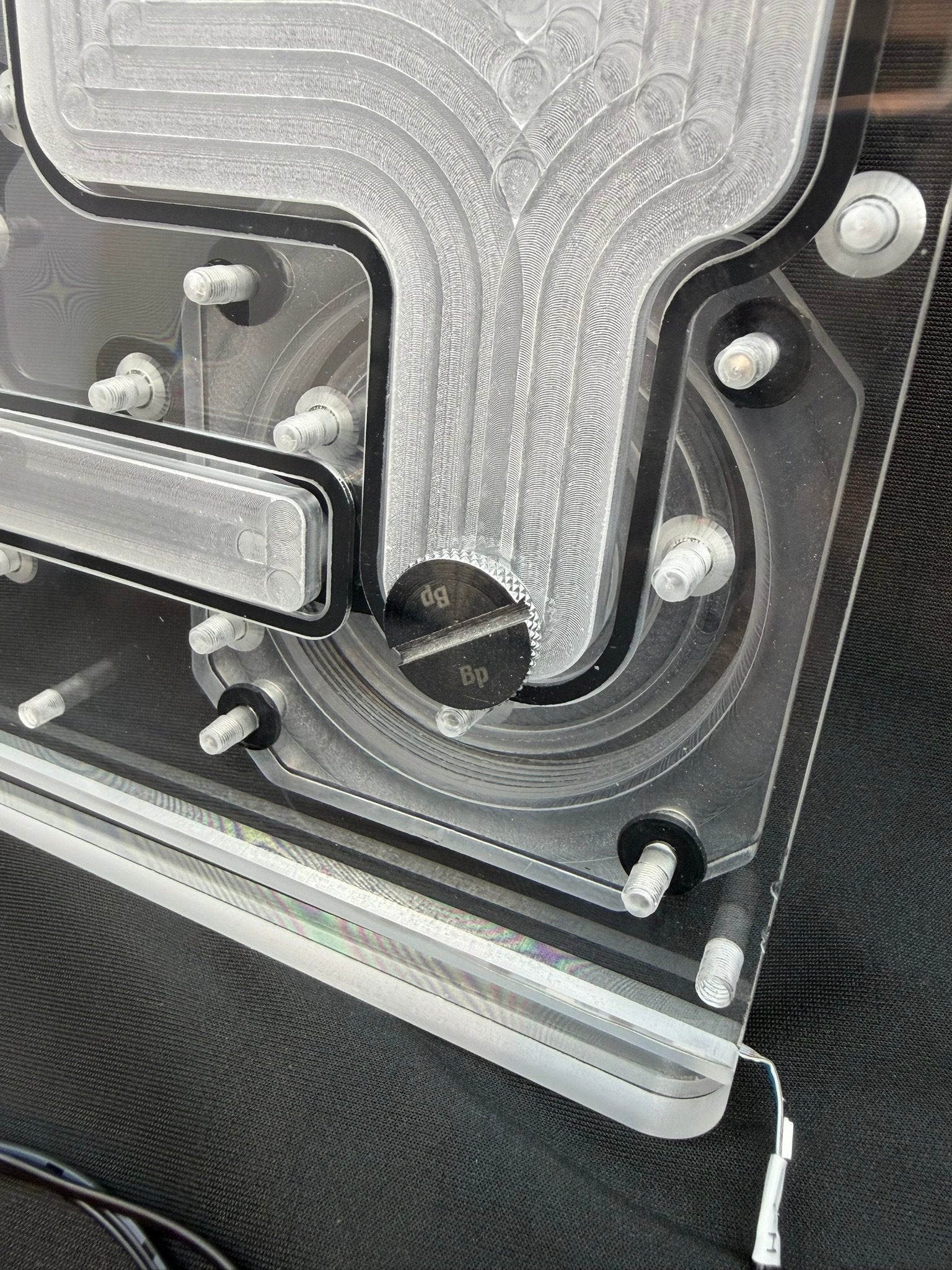

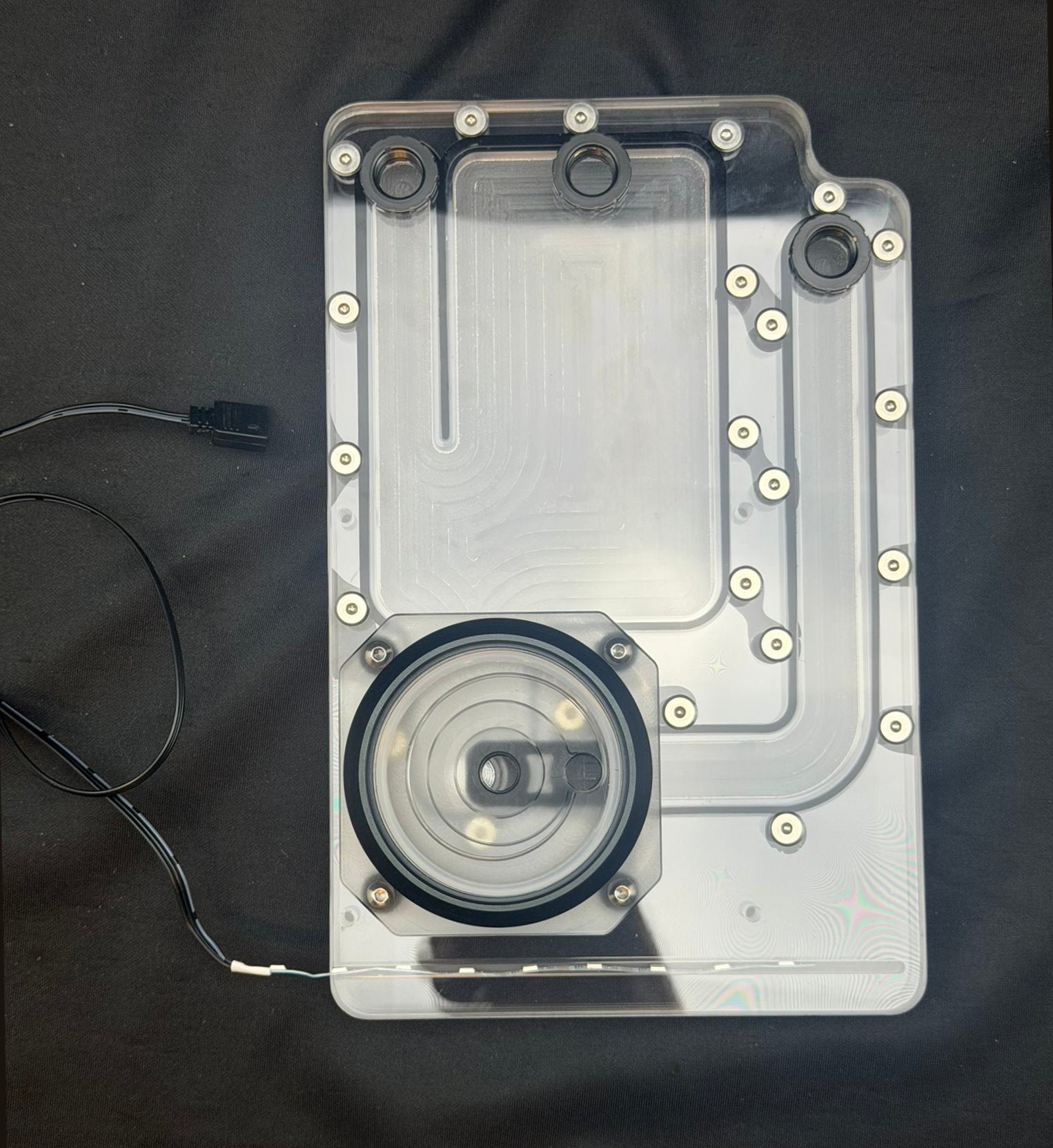

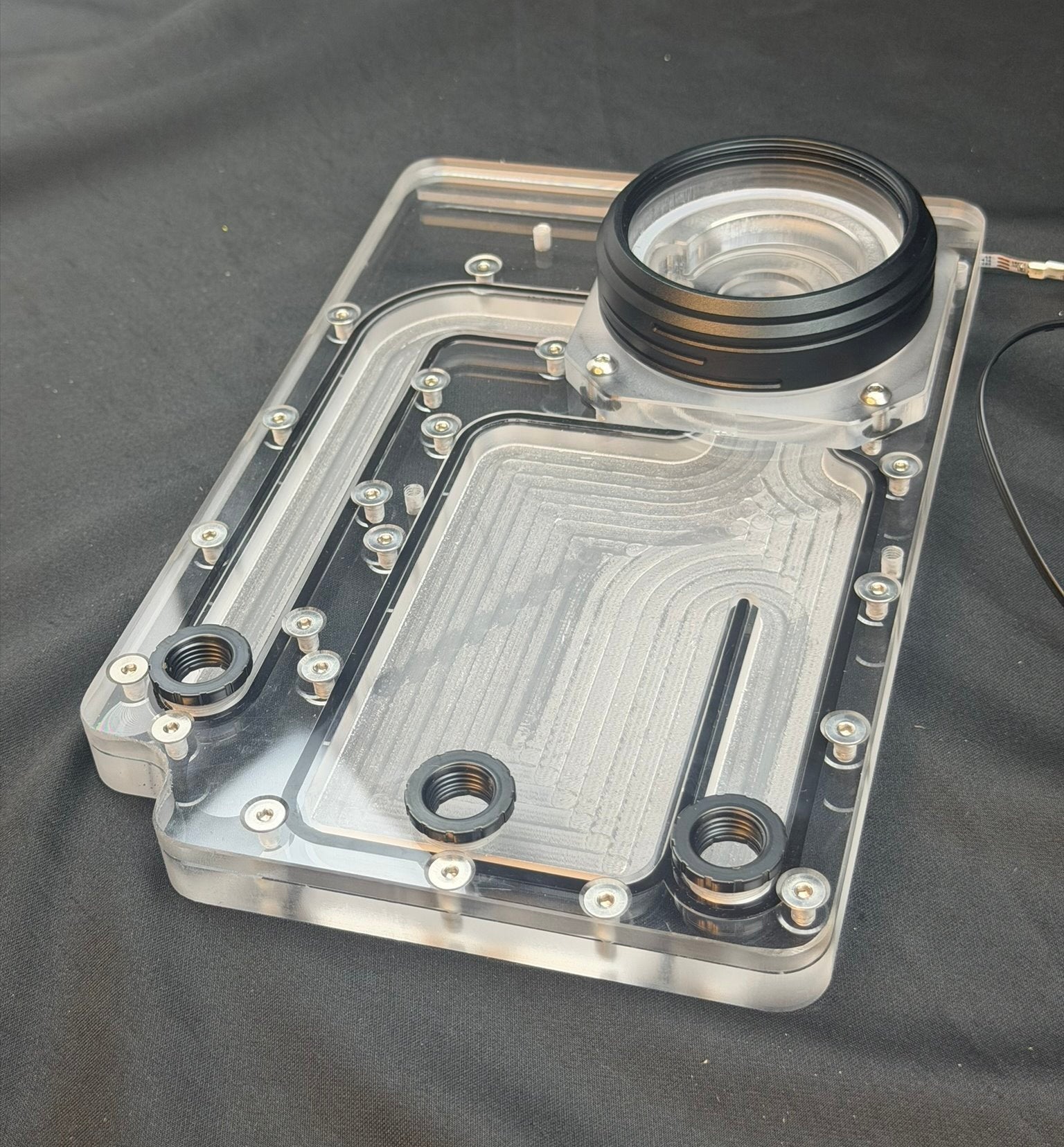

Featuring 6 Ports total, 4 in the front for CPU, GPU, and radiator and 2 ports at the bottom for a return to GPU from radiator, this distro is designed to be used with 2 x 360mm top and rear of mainboard mounted and includes an integrated D5 Pump Mount for easy mounting and efficient flow. This distroplate set includes built-in D-RGB for stunning lighting effects. This distro plate is compatible with any standard D5 pump. This distroplate was carefully designed to allow for completely straight hard tubes for that perfect aesthetic look! Also our goal was a vertically mounted VGA card so that every component is completely visible and leads to a clean layout

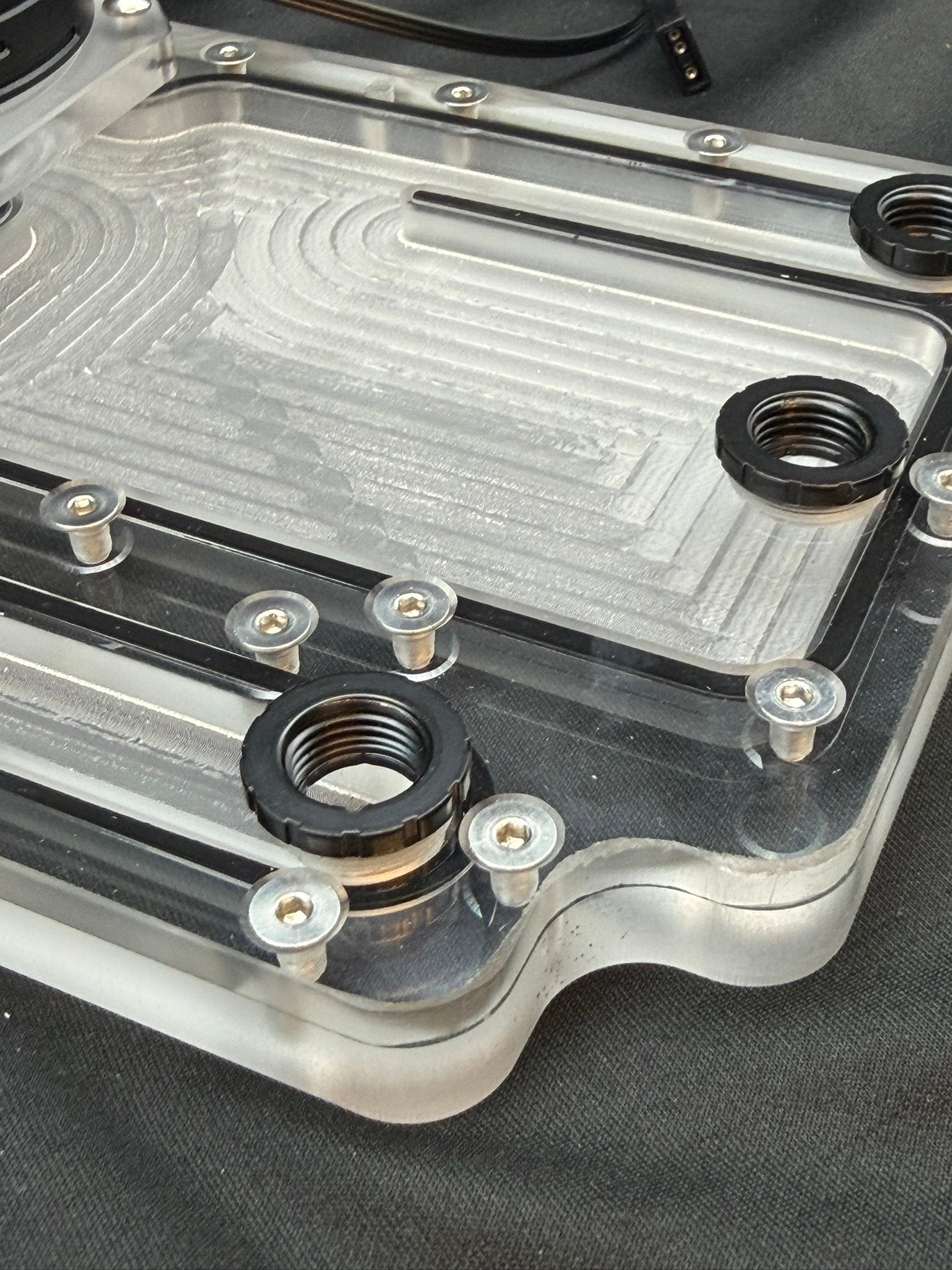

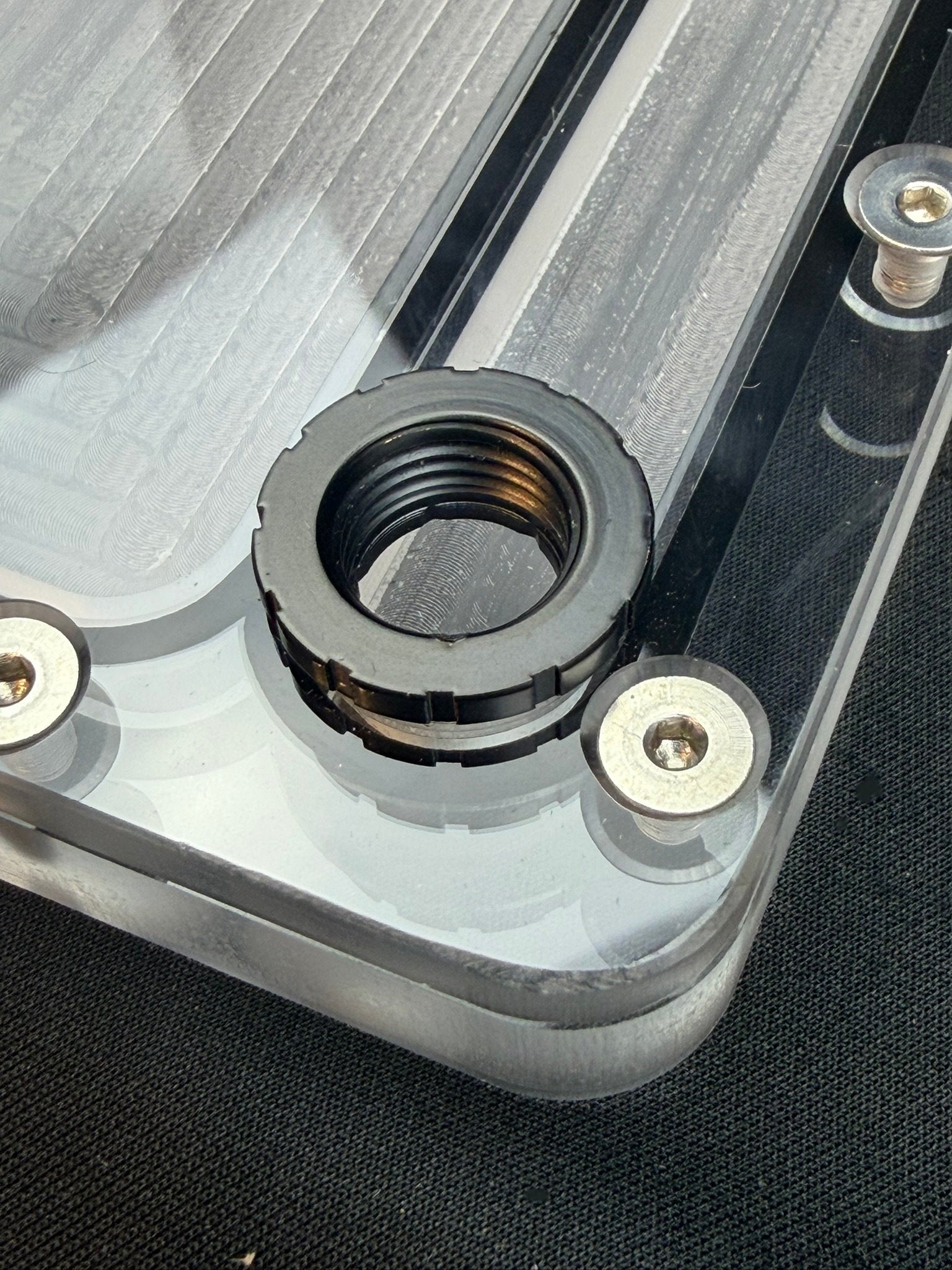

We have to be honest that we were blown away with the Asus TUF GT-502 chassis and we feel that this is one of the finest looking and functionally sound distros we have ever designed. Also we are pleased to now offer distro plate insert fittings that Singularity Computers designed for us and gives this distroplate a much more clean and expensive look. But other than aesthetics we will now include these inserts with all our new distroplate designs because it virtually eliminates cross-threading or damaging the G 3/8 threads on this distro. Finally, the fittings come in a beautiful satin black color but, for a small extra fee, we can Cerakote these inserts to any color you desire! Other options we offer with all our distros are choice of colored screws, choice of black or clear gaskets, Channelz™ resin colored chambers and even a magnetic top mounted blind plate in black or white if you want to only see the LED color fluid in the chambers and not the rest of the distroplate.All mounting hardware and manuals included!

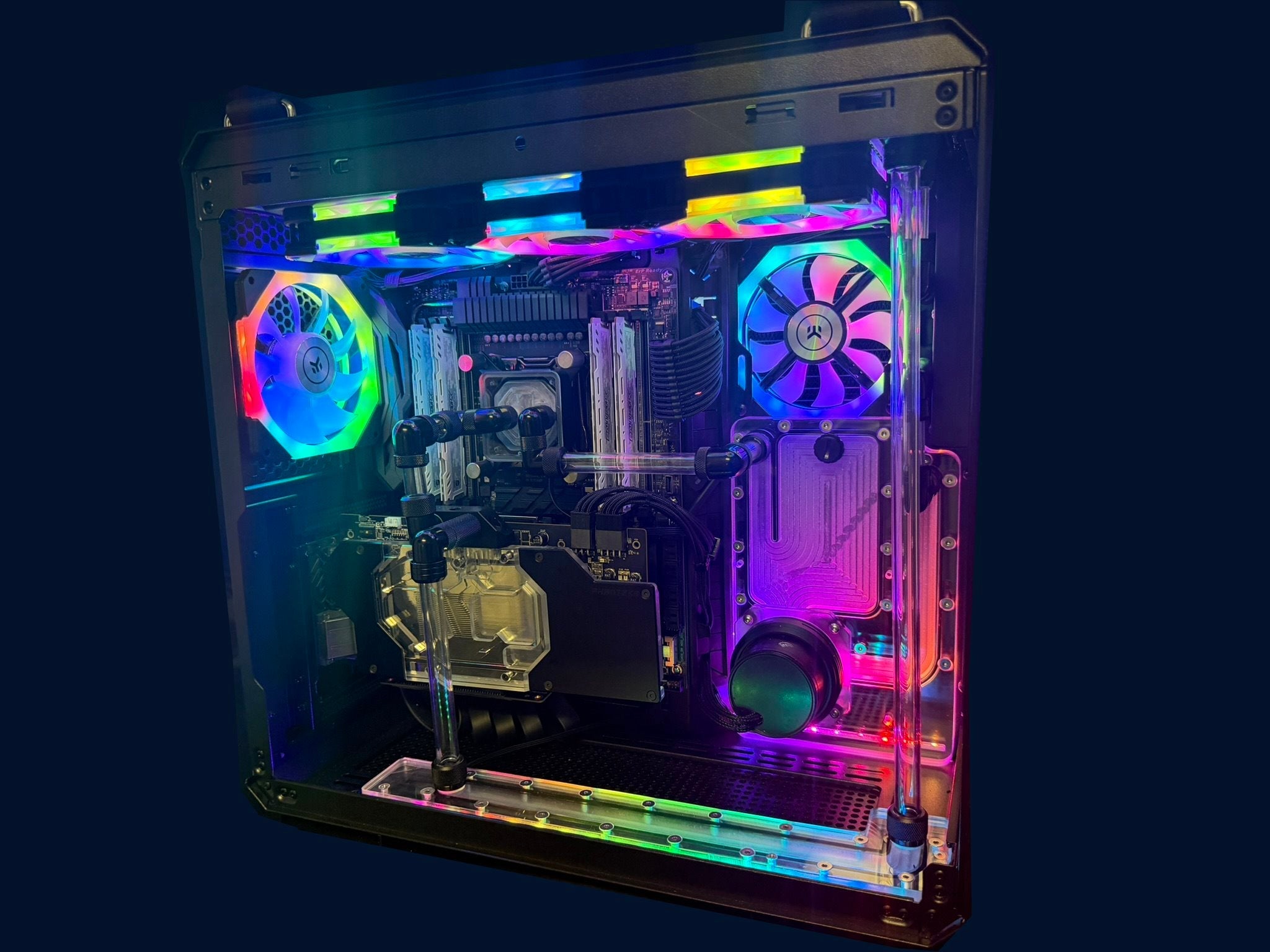

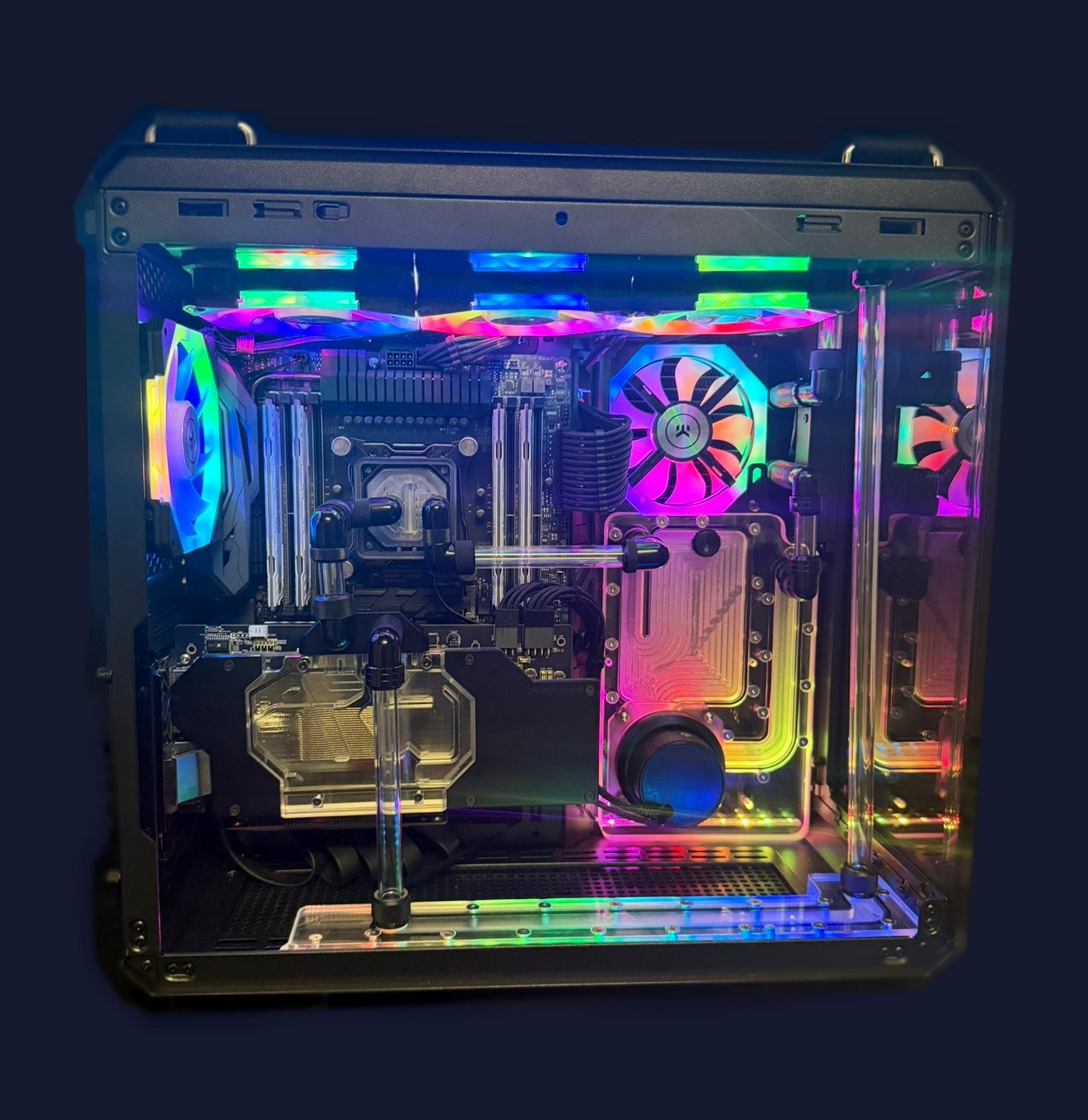

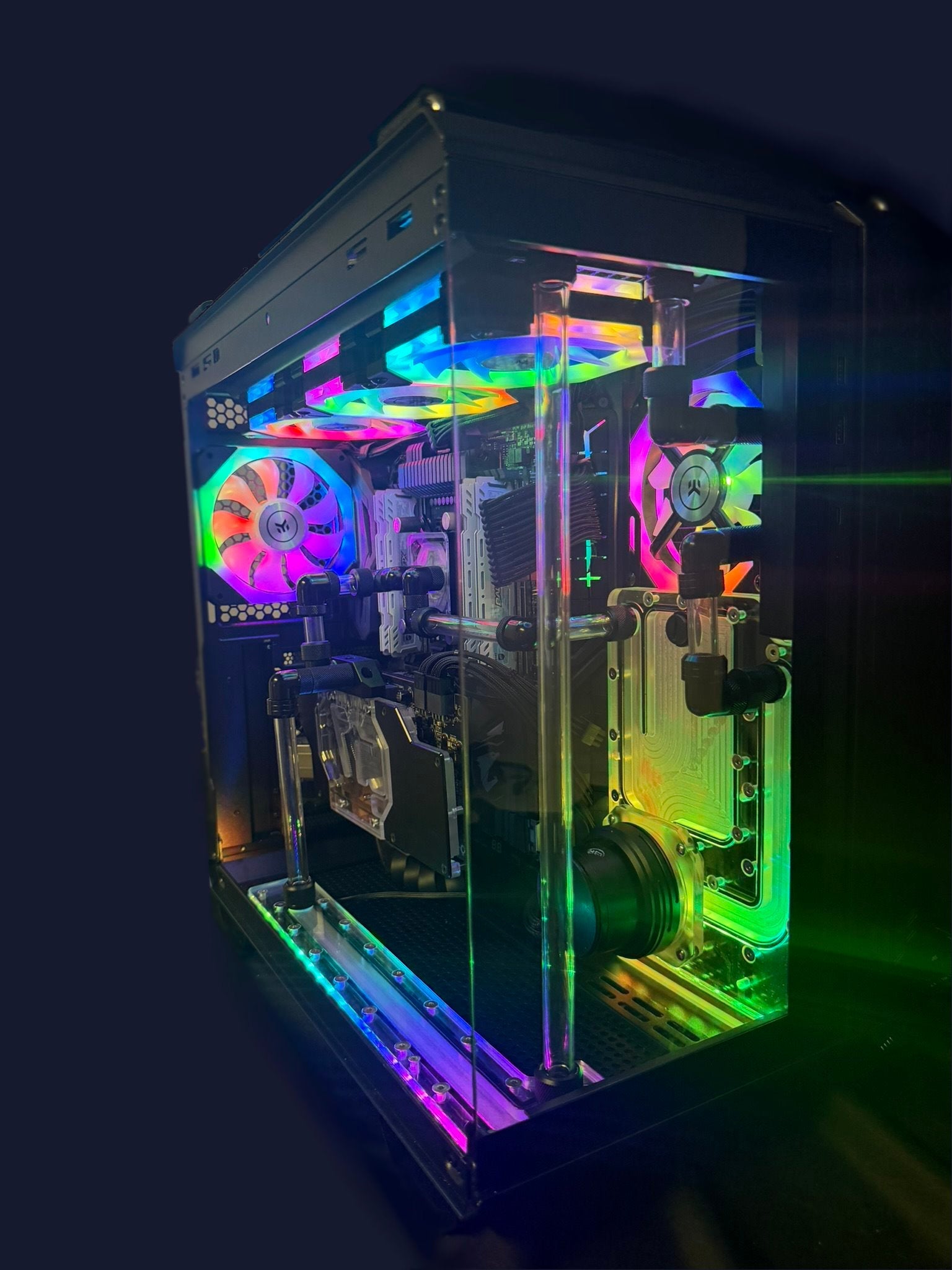

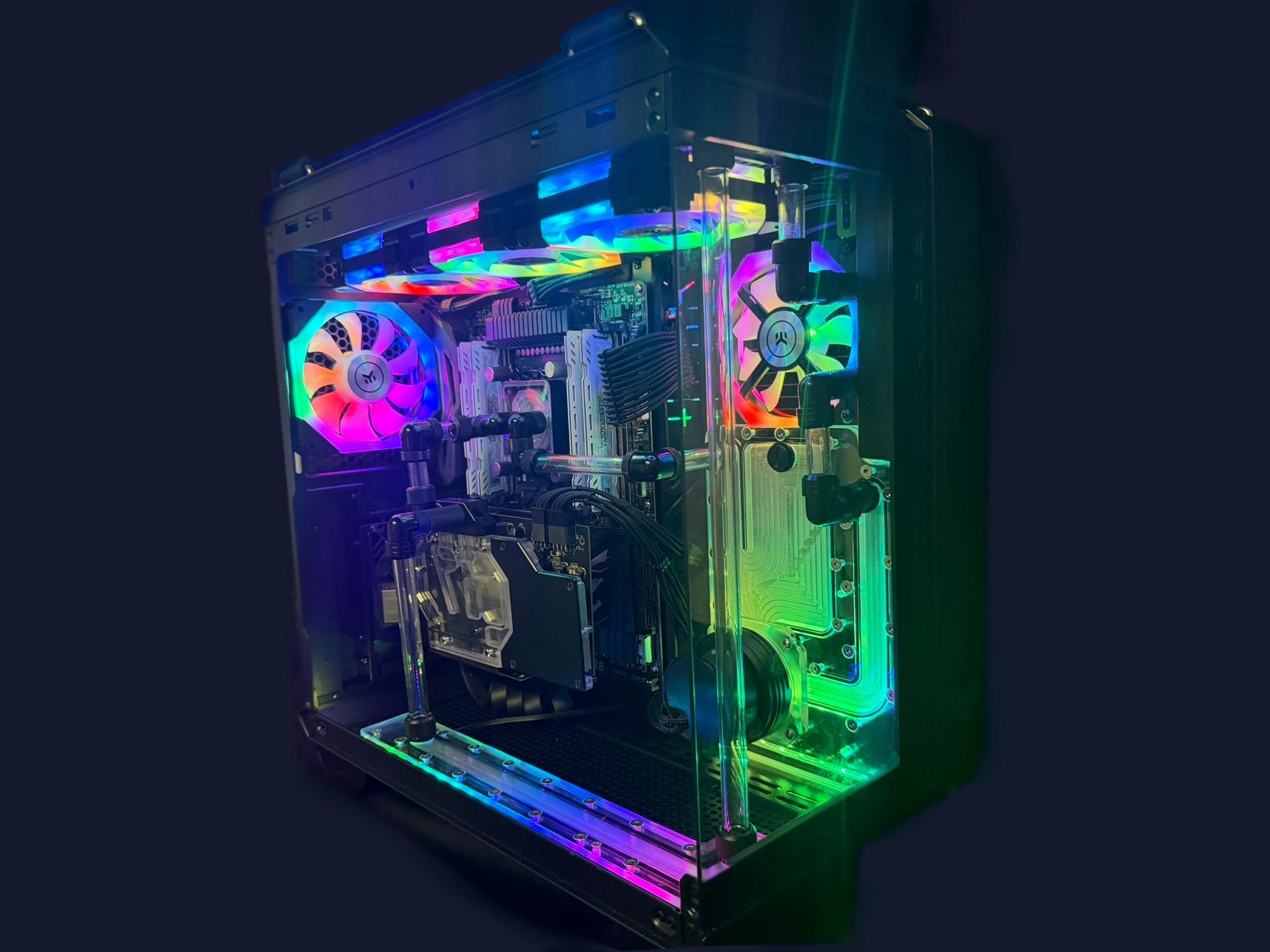

So be one of the first customers to grab one of these gorgeous distroplate sets and, if you are deciding on what chassis to build in, please look no further than theAsus TUF GT-502 (especially using the Vertical GPU mount edition which is our new favorite mid-tower chassis. :)

Designed and manufactured in the USA by Performance PCs.

Channelz Effectz™ Service

Tired of all that colored Coolant clogging up your loop but don't want to stick with some boring old clear coolant? Well Performance-PCs has you taken care of with their new Channelz™ Effectz Service! This service is a great way to add some color to your Channelz™ distribution plate without clogging your loop with pastel or mica filled coolants. We use an epoxy resin mixture that is safe for your loop and will certainly help that build POP. There is 30 different super vivid color options to choose from and we even added the ability for you to mix colors to give your loop its own style.

Installation:

This is one of the easiest to install distros we have ever offered because it uses the storage area of the HS 420 to mount the disroplate. The storage bays are all removed and you use the 4 screws incuded with the distroplate to mount in the groves of the storage bay. Please note that one of these storage bays can then be mounted in a spot behind the CPU area to hold 2 SSD's. So this along with most modern day motherboards holding 4 x M2 drives, this still gives you the chance to use 6 storage drives with this disstroplate.

Specifications:

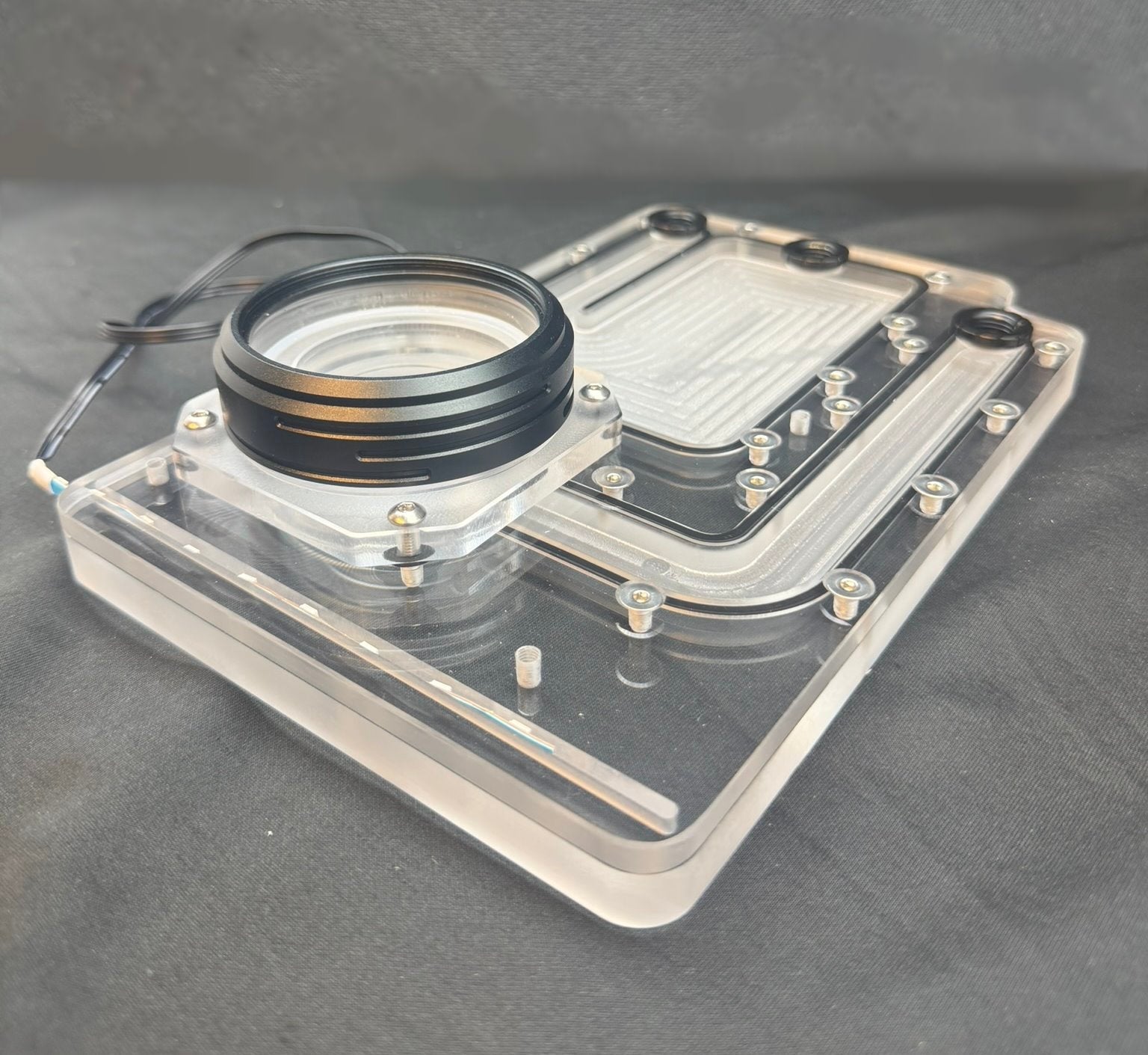

• Material: Clear Cast Acrylic. CNC Milled
• Fasteners: Stainless Steel Silver or custom colored Black or Cerakote

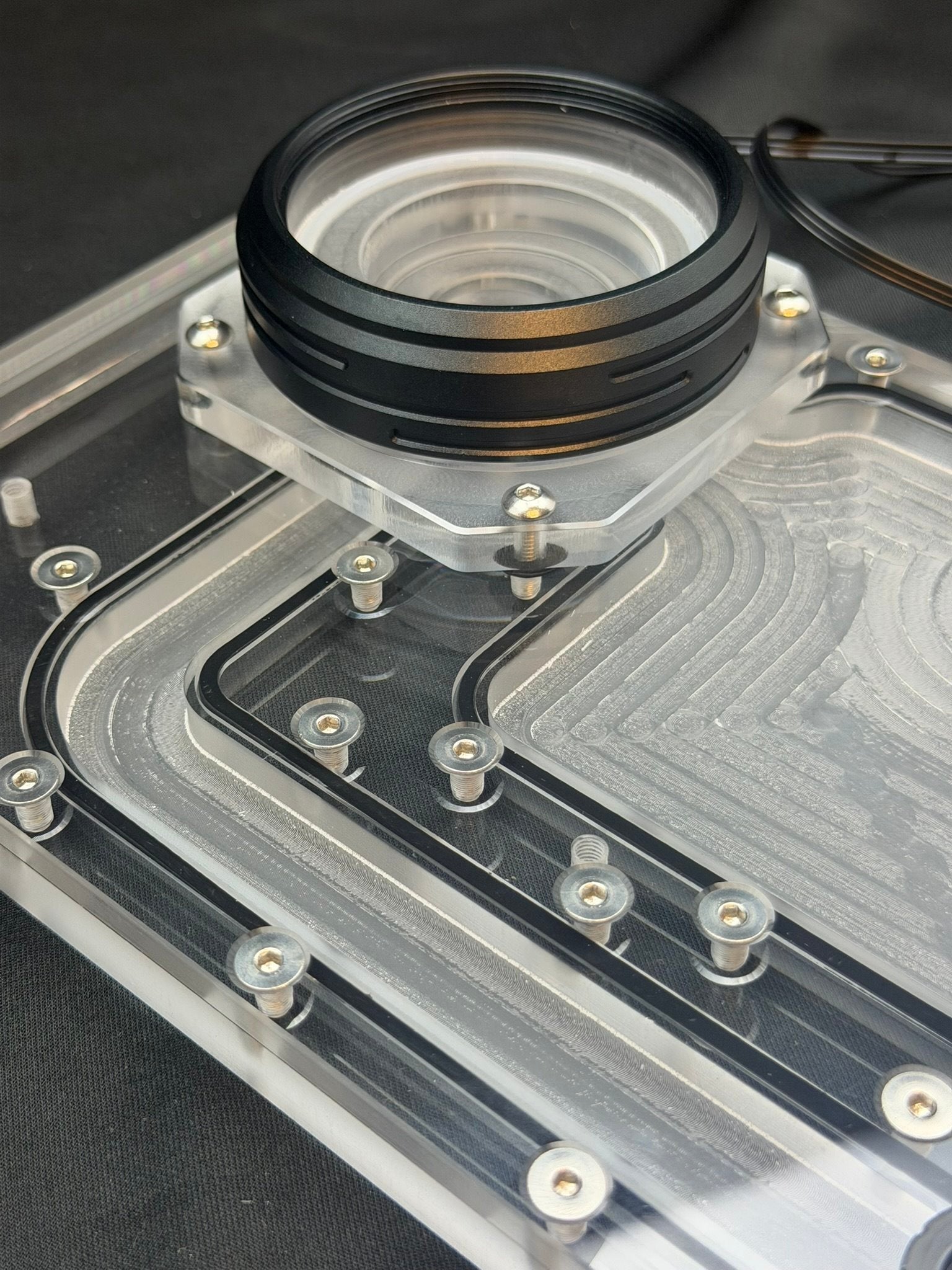

• Singularity Insert Fittings: Satin Blackened Brass.
• Gaskets: Silicone Black or Clear.
• O-rings: Silicone Black and Clear.
• Stop Fittings: Satin Blackened Brass
• Ports: x6. Inlets: x2 Outlets: x2 Fill: x1 Drain: x1 Fill
• LED Strip: DRGB 5V Addressable.
• Dimensions:

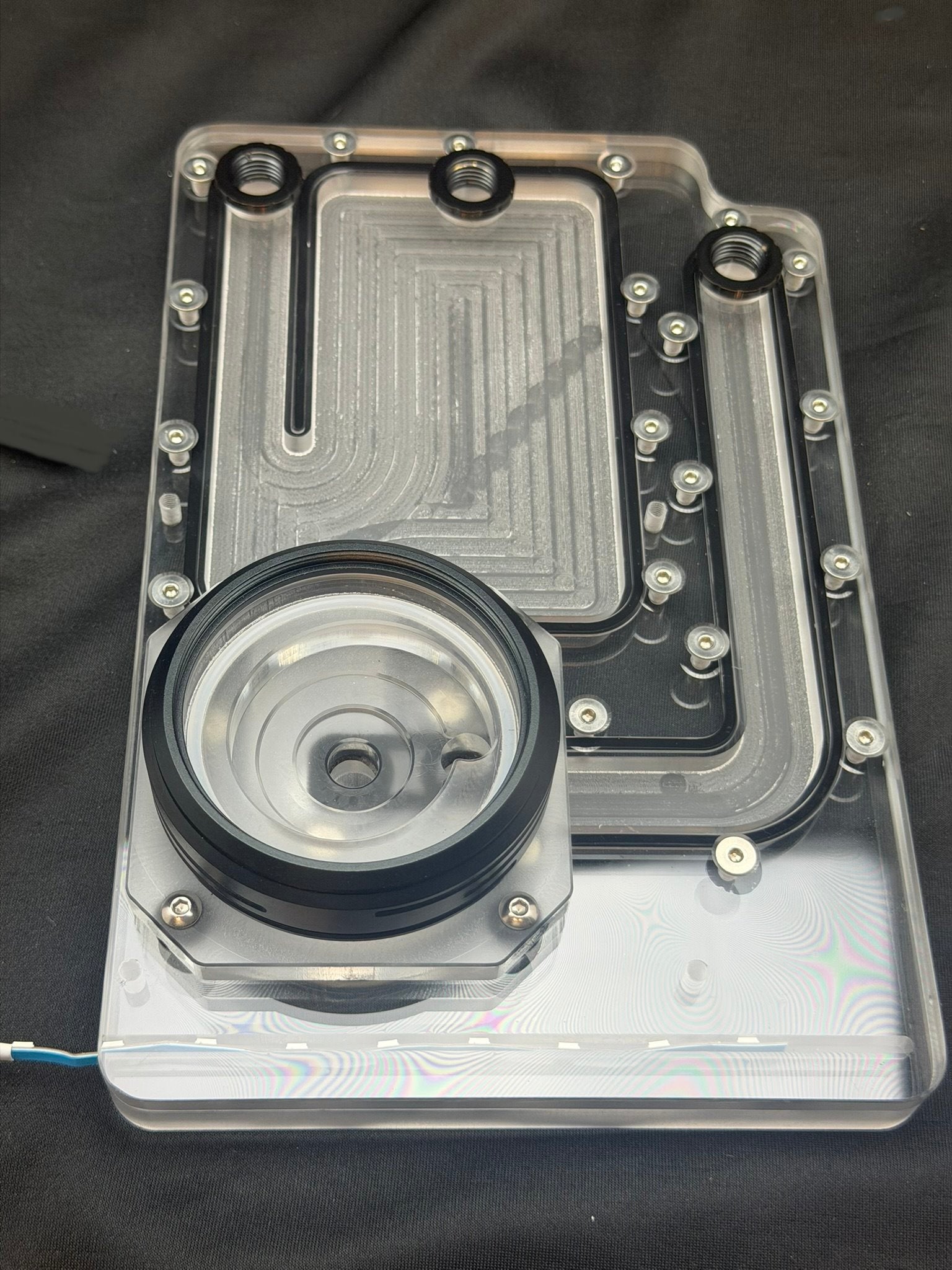

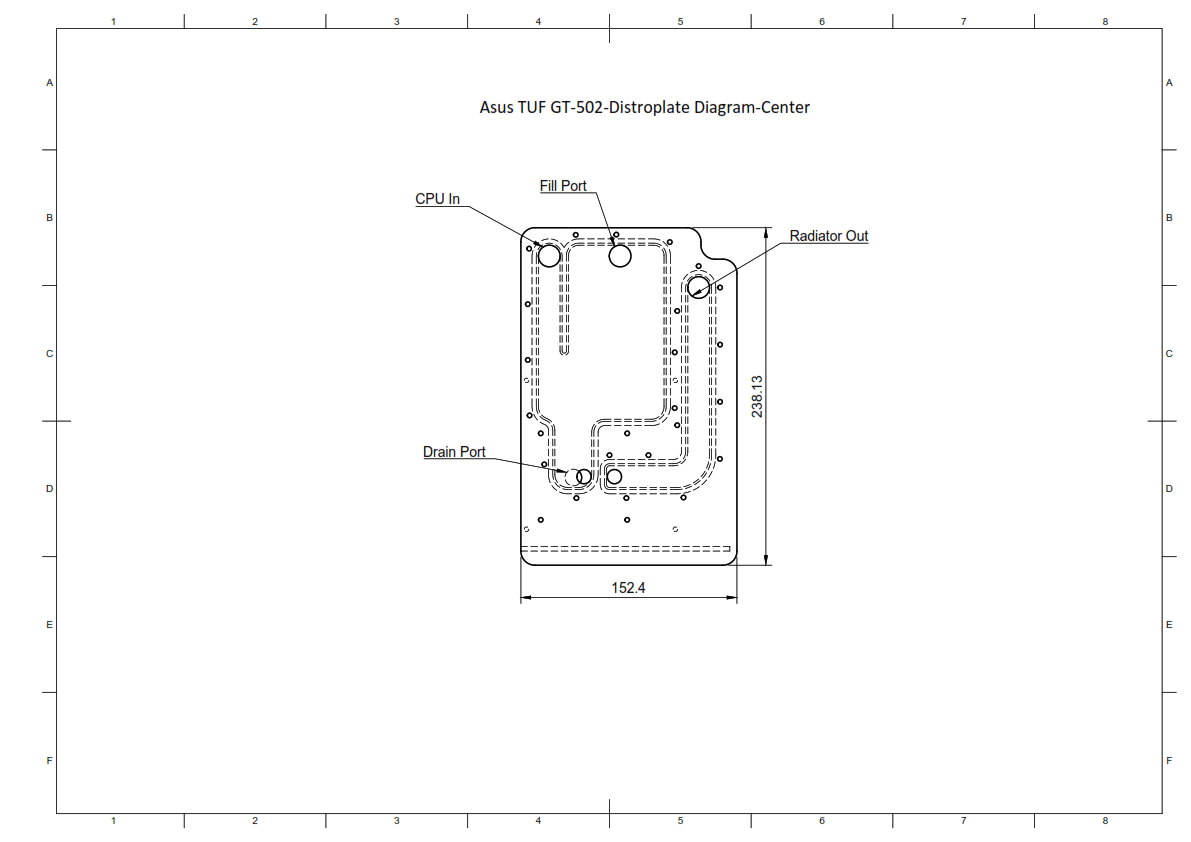

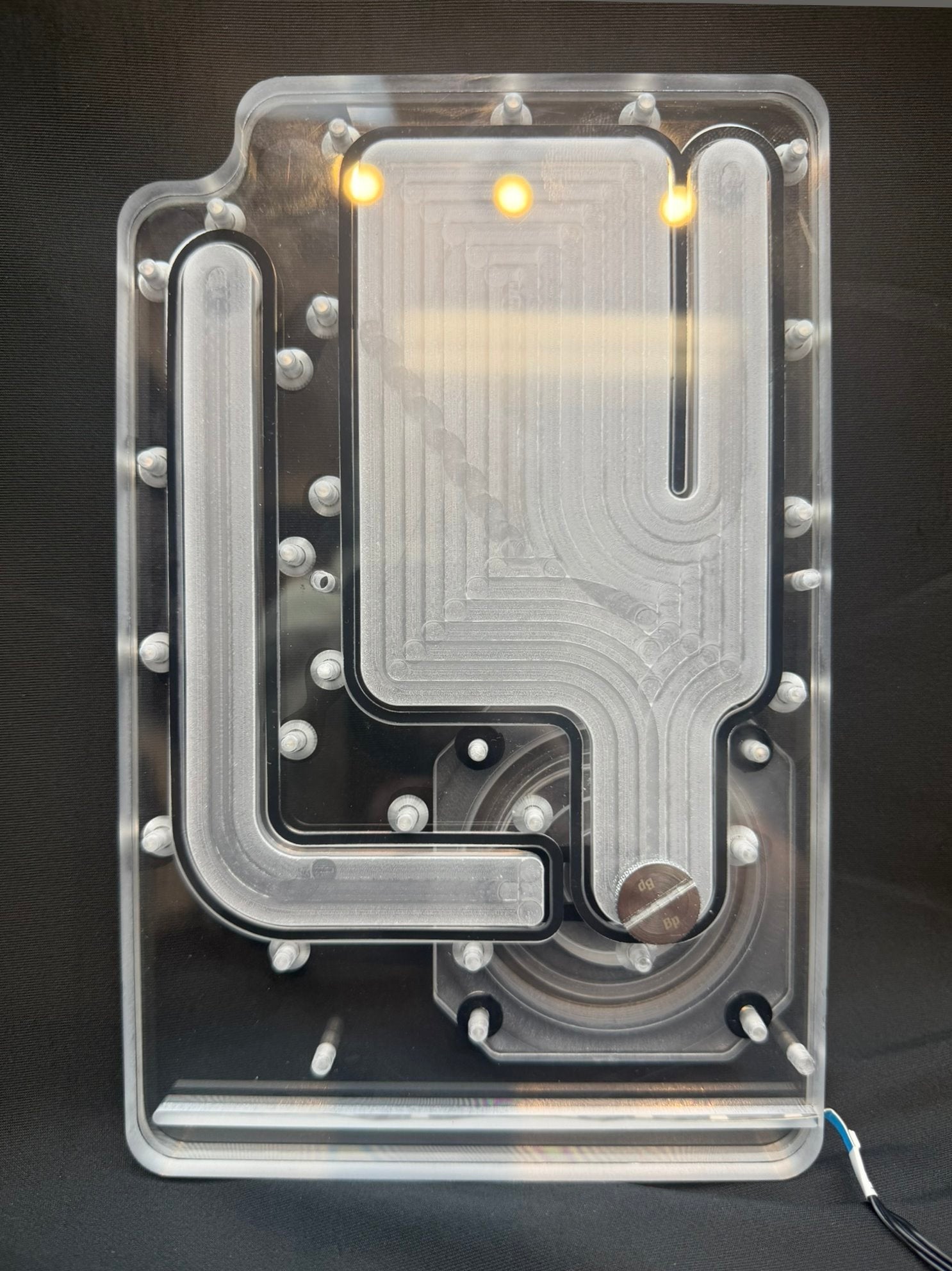

  • Center Distroplate: Width: 152.4mm. Height 238.13mm

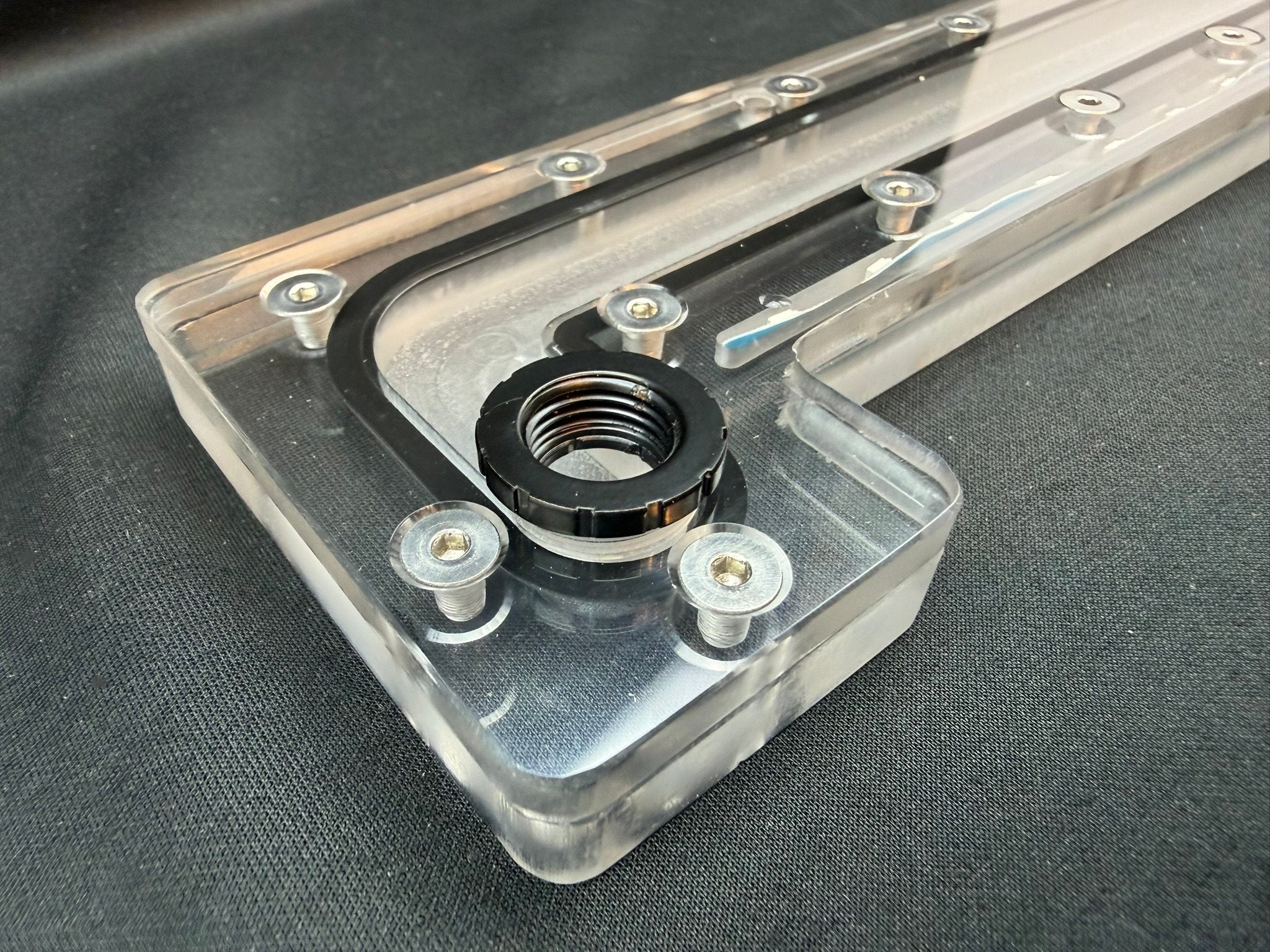

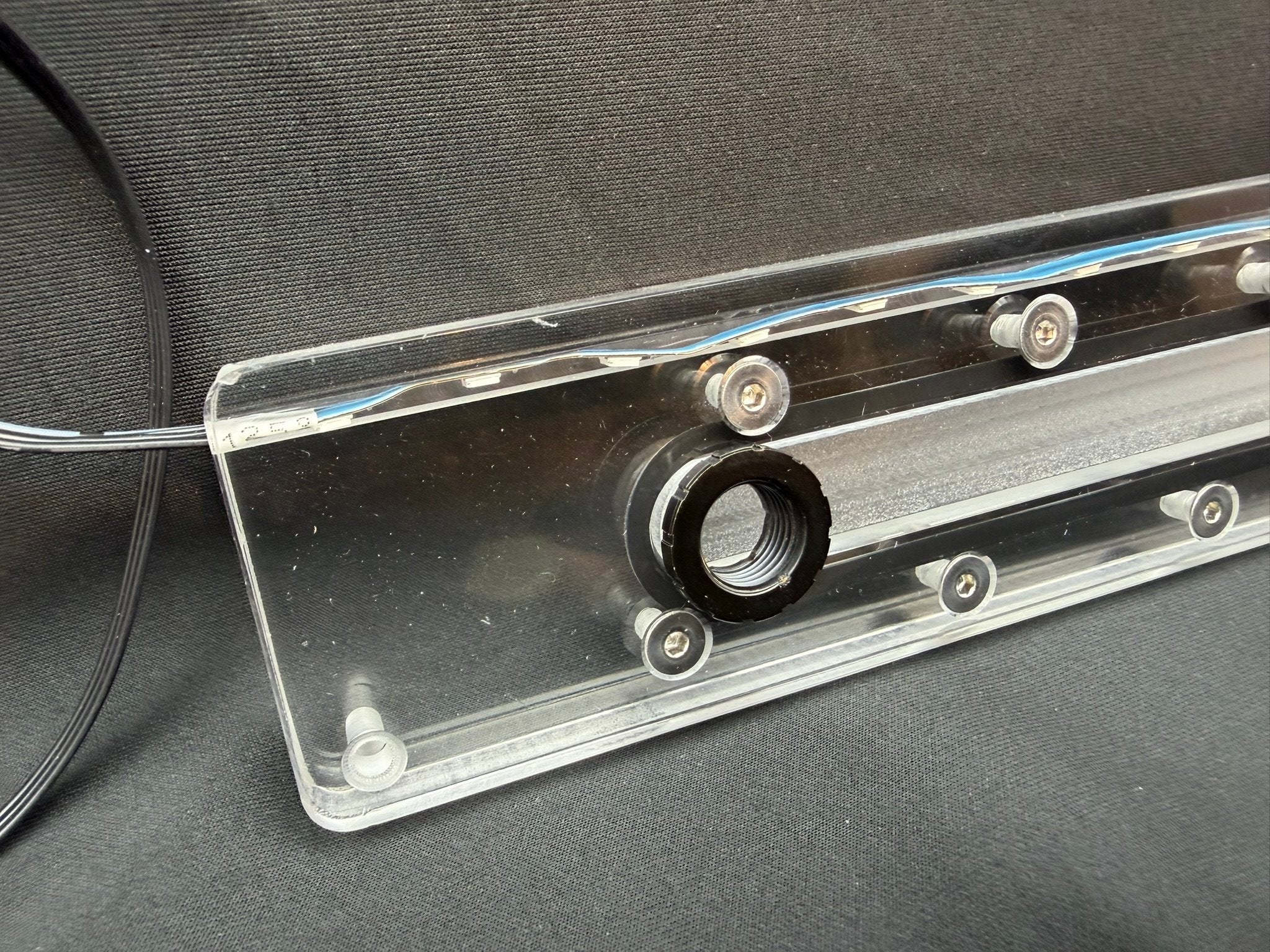

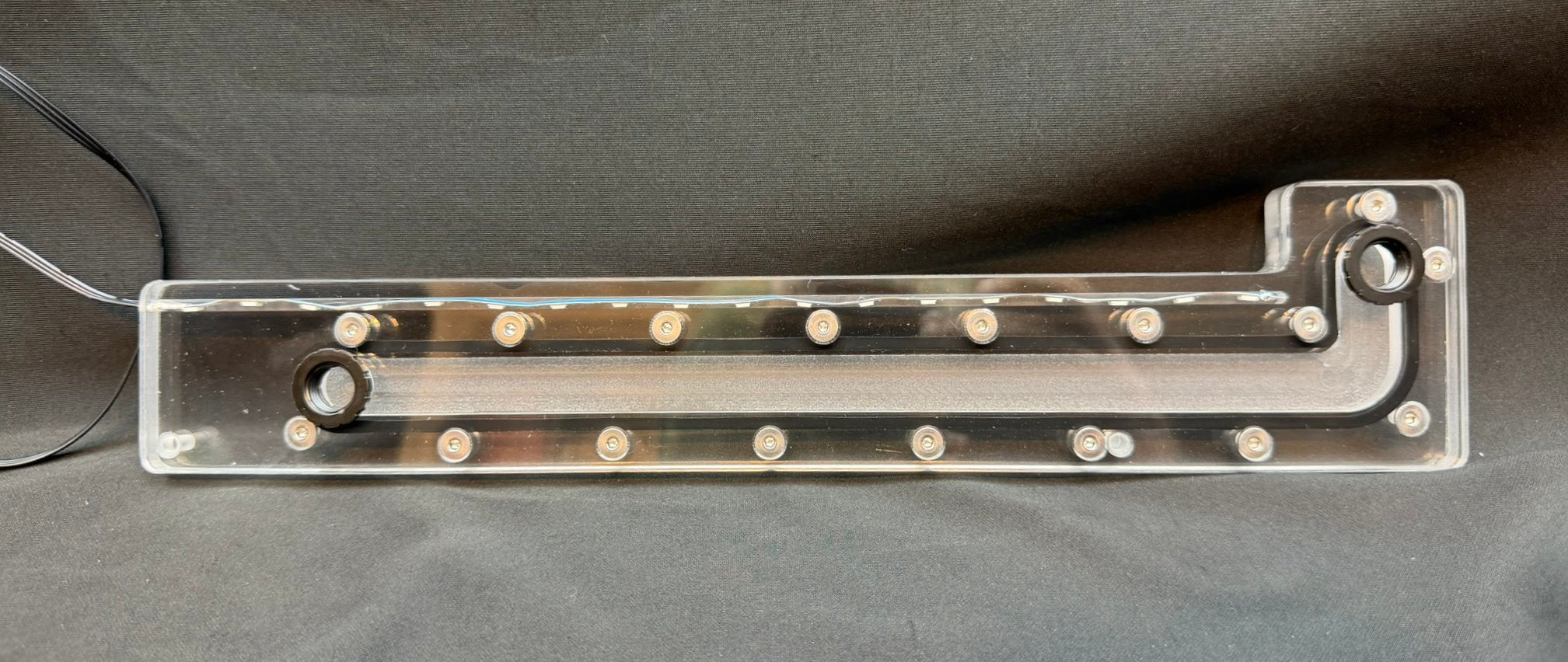

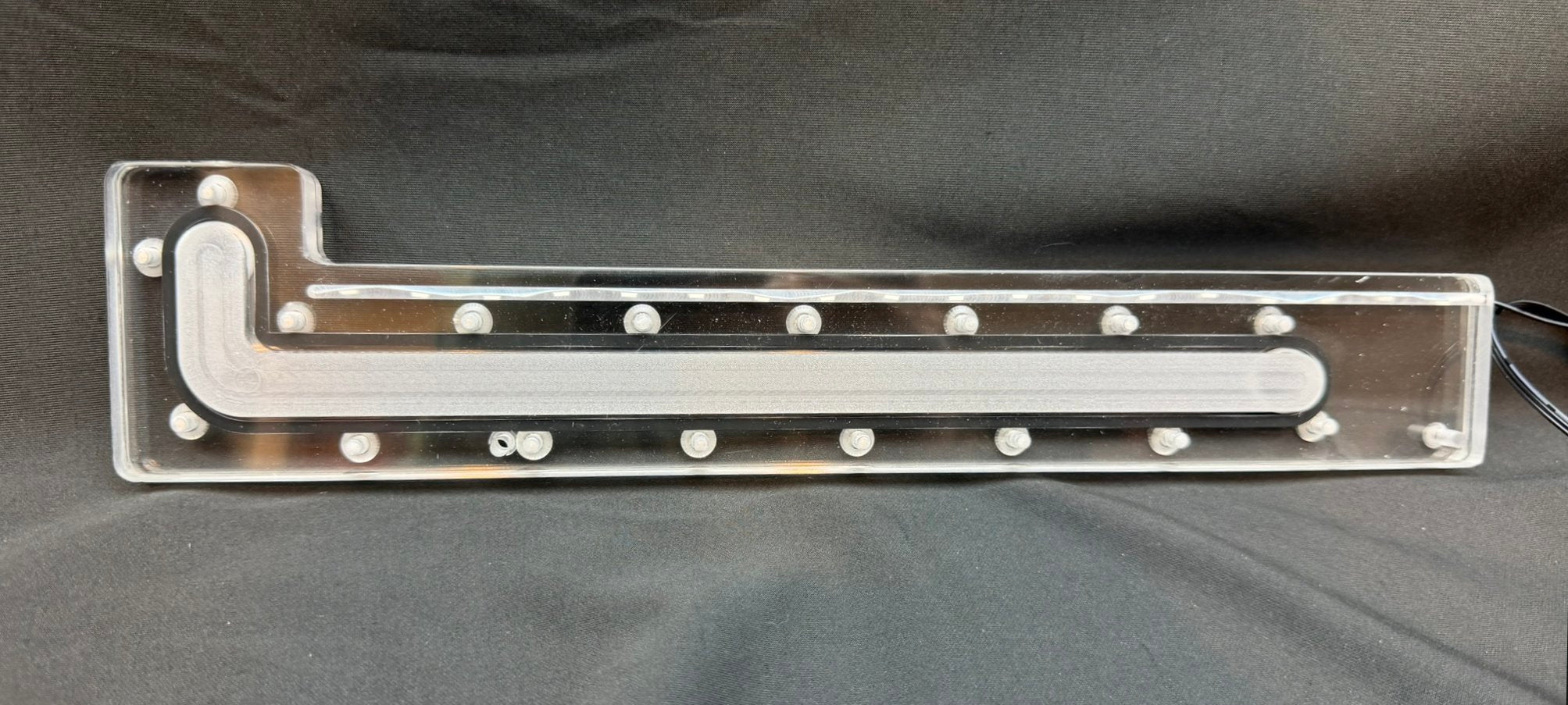

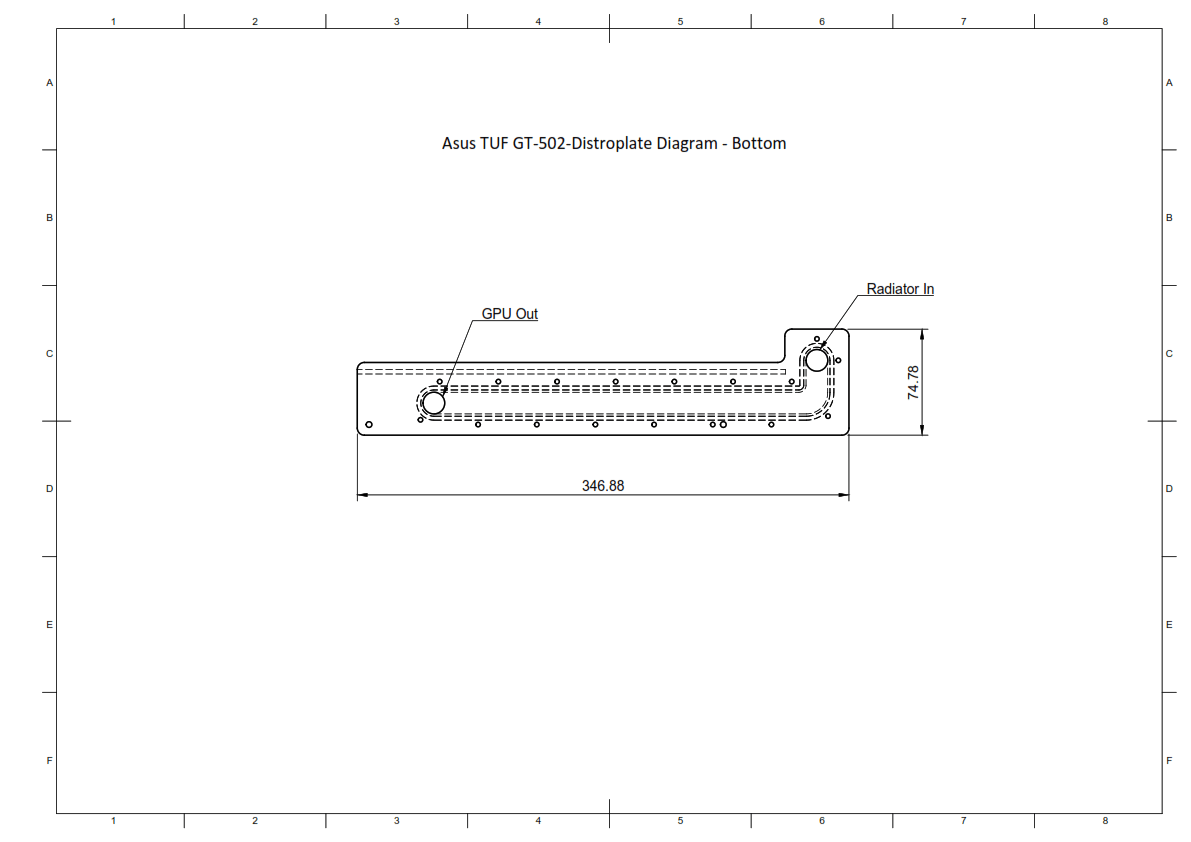

  • Bottom Distroplate  Width: 346.88mm. Height 74.78mm

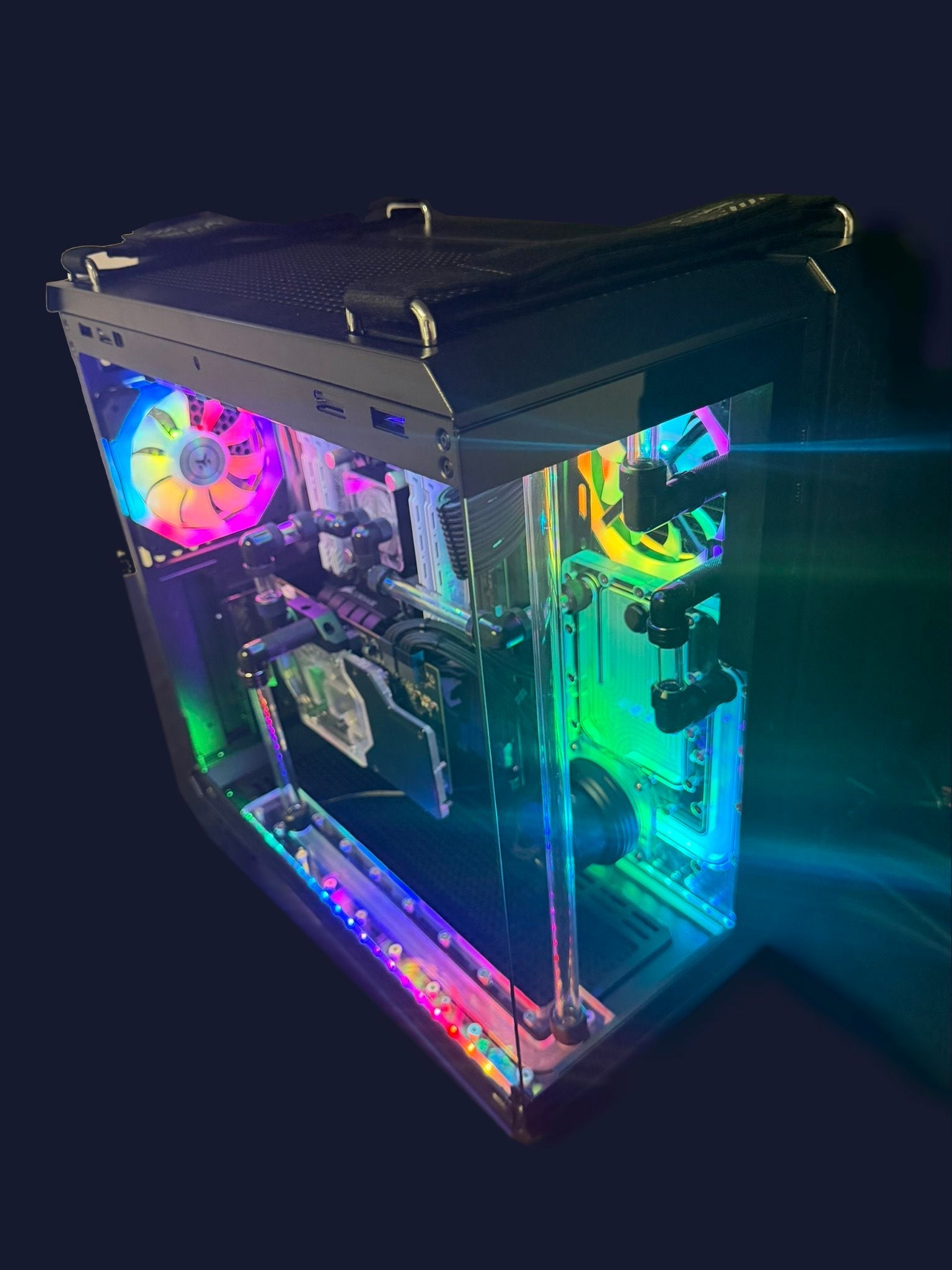

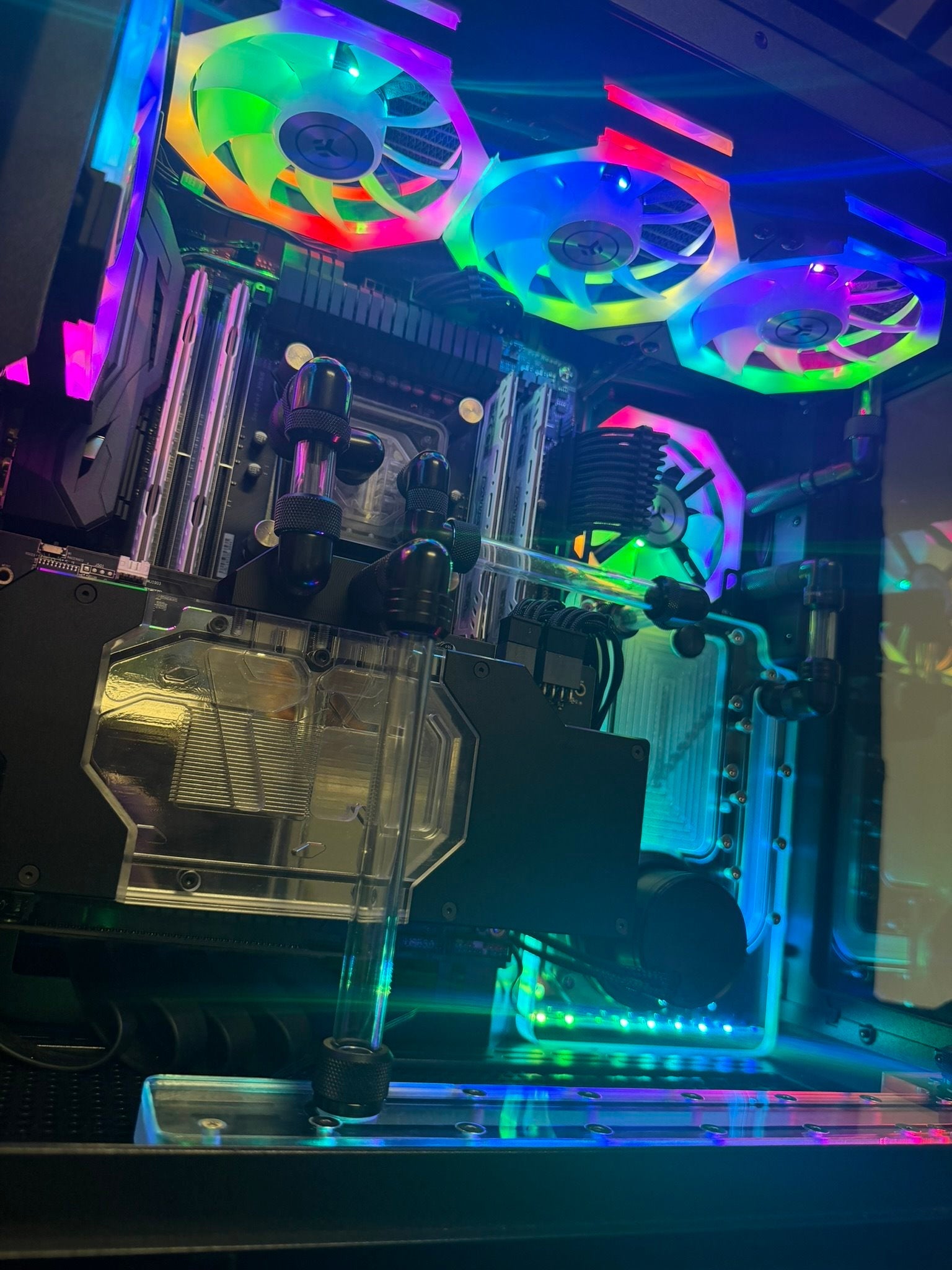

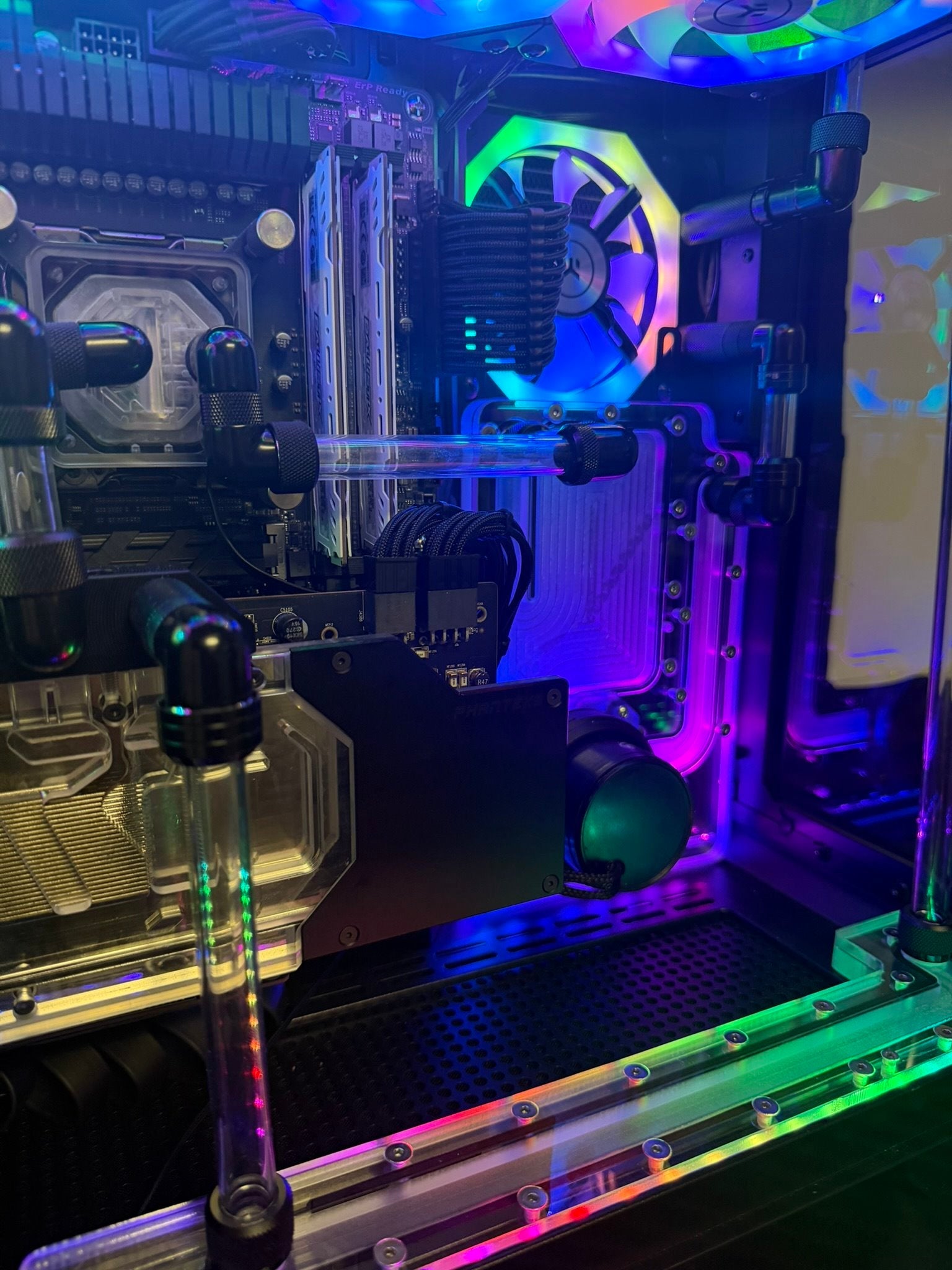

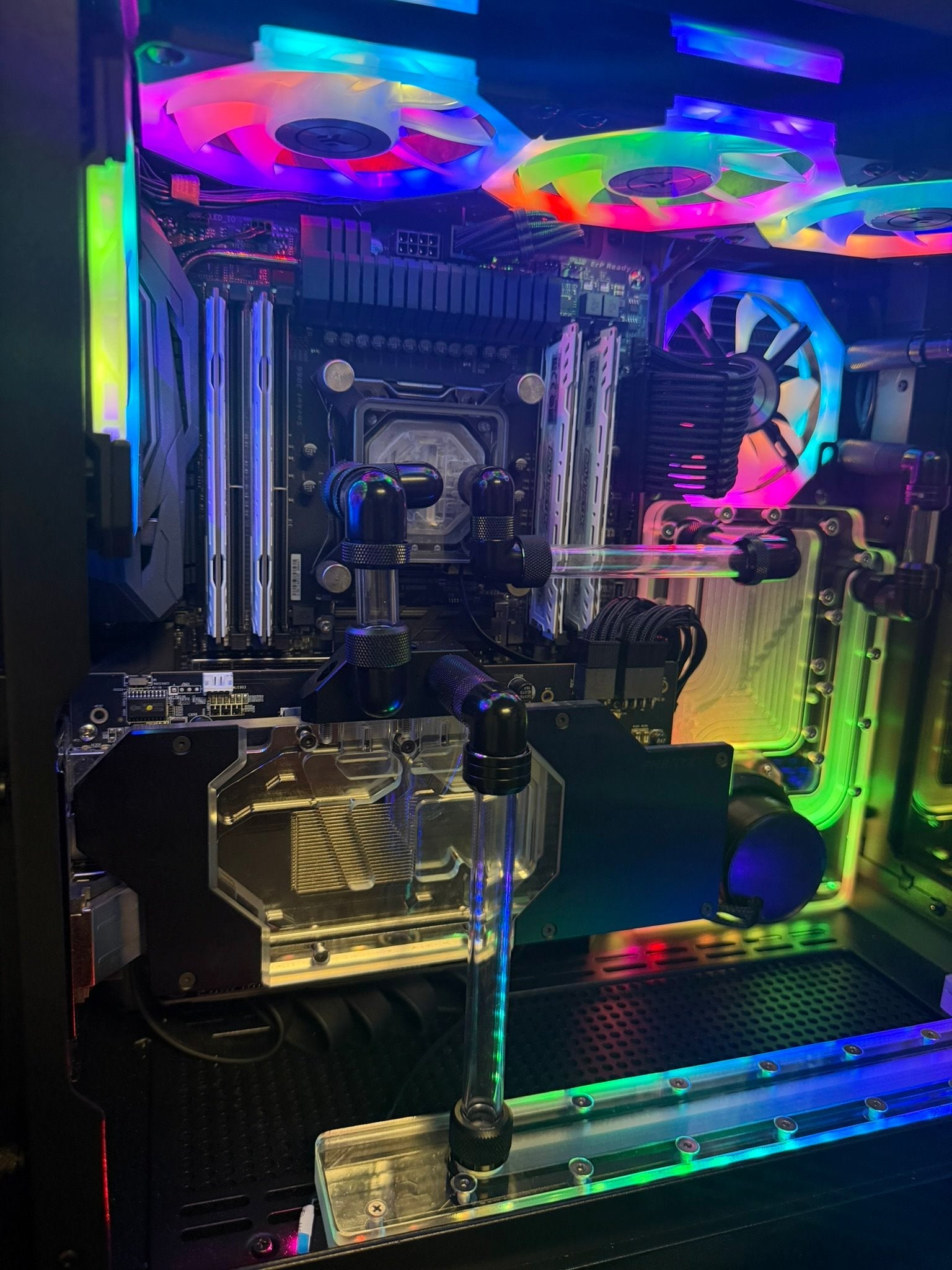

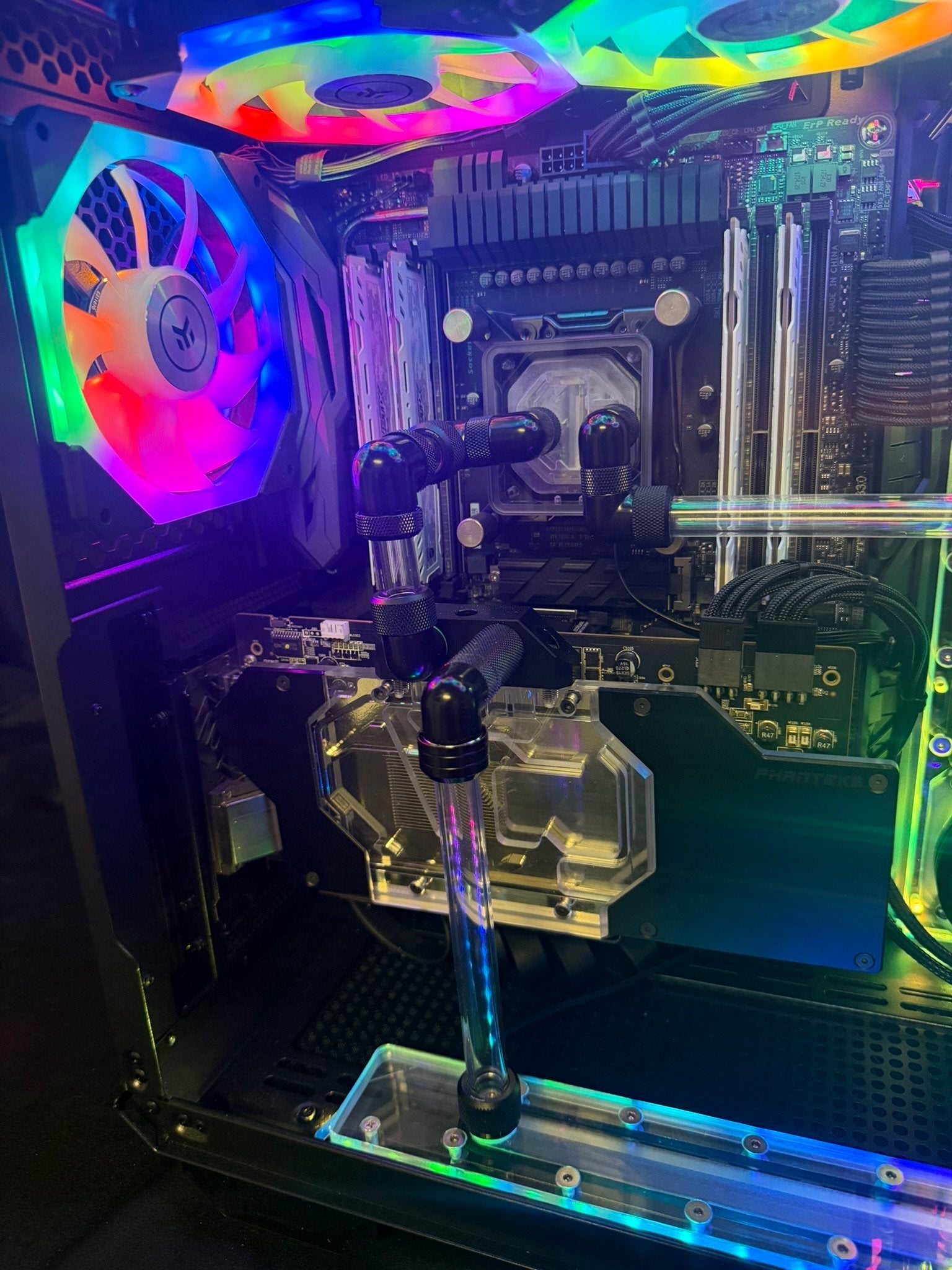

Please Note: We chose to use the chassis included vertical GPU mount because we just believe this has a much better look and is clean and more efficient. But you certainly can install your GPU block horizontally if you prefer this look.

Included Items:

• Channez™Asus TUF GT502 Center Distroplate: x 1.
• Channez™Asus TUF GT502 Bottom Distroplate: x 1.

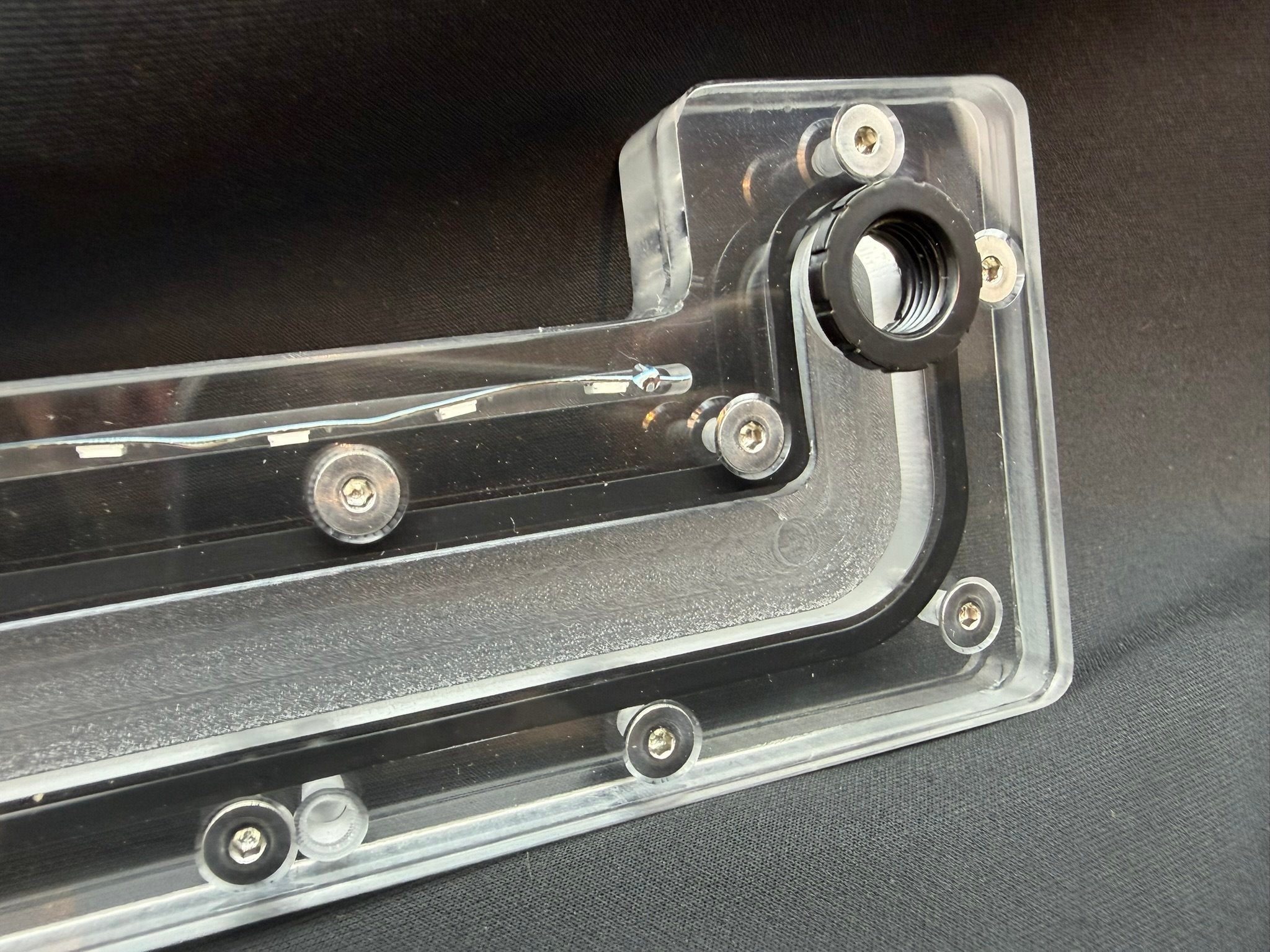

• Singularity G3/8 to G1/4 Distribution plate blackened brass inserts x 4
• DRGB LED Strips: x2.
• Stop Plug: x 2.
• PAN M3*30mm Countersunk head mount screws: x 2.
• PAN M4*8mm Countersunk head mount screws: x 4.
• Manuals: 2
