Channelz™ Hyte Y70 Front Distribution Plate w/ Magnetic Front Panel

#1 Best Seller
in Case Parts & Mods
#1 Best Seller
in Water Distribution Products

PPCS-DISTRO126

Our #1 Best Selling Distroplate now with over 200 SOLD!!

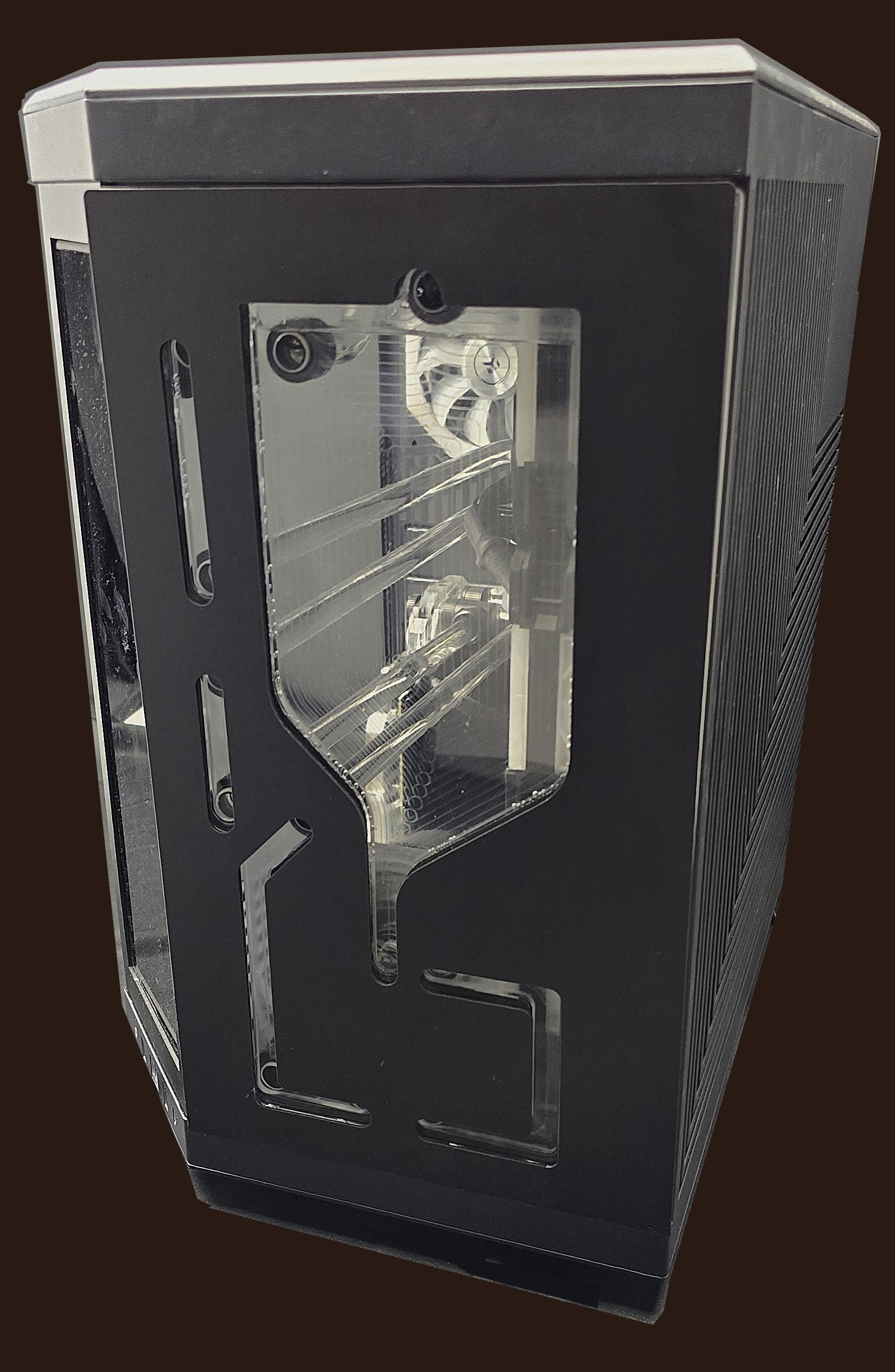

This new version now includes a front panel that hides all the screws and hardware so that you only see the colored (or just clear) channels. Available in either black or white acrylic this front panel uses 4 neodymium magnets making installation and removal super easy. This new version just adds a clean look to an already spectacularly gorgeous chassis. For the best DIY watercooled Hyte Y70 check out our new Channelz™ distroplate with front cover!

Found a better price? Let us know and we'll try and match it!
Color: White
Estimate shipping
1 in stock
$329.95 USD
Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Color: White
Details

NEW Version of Our #1 Best Selling Distroplate now with over 200 units SOLD!!

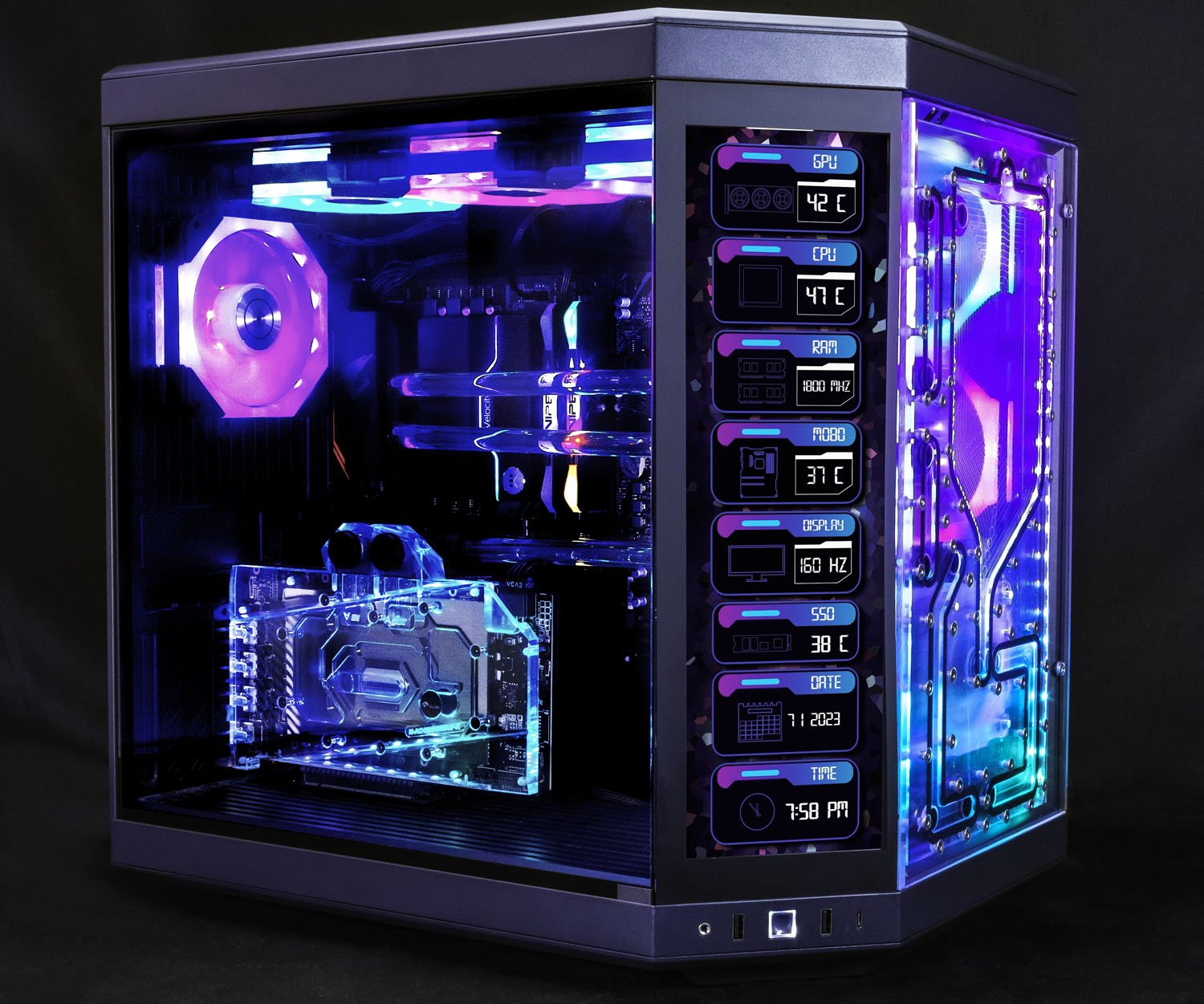

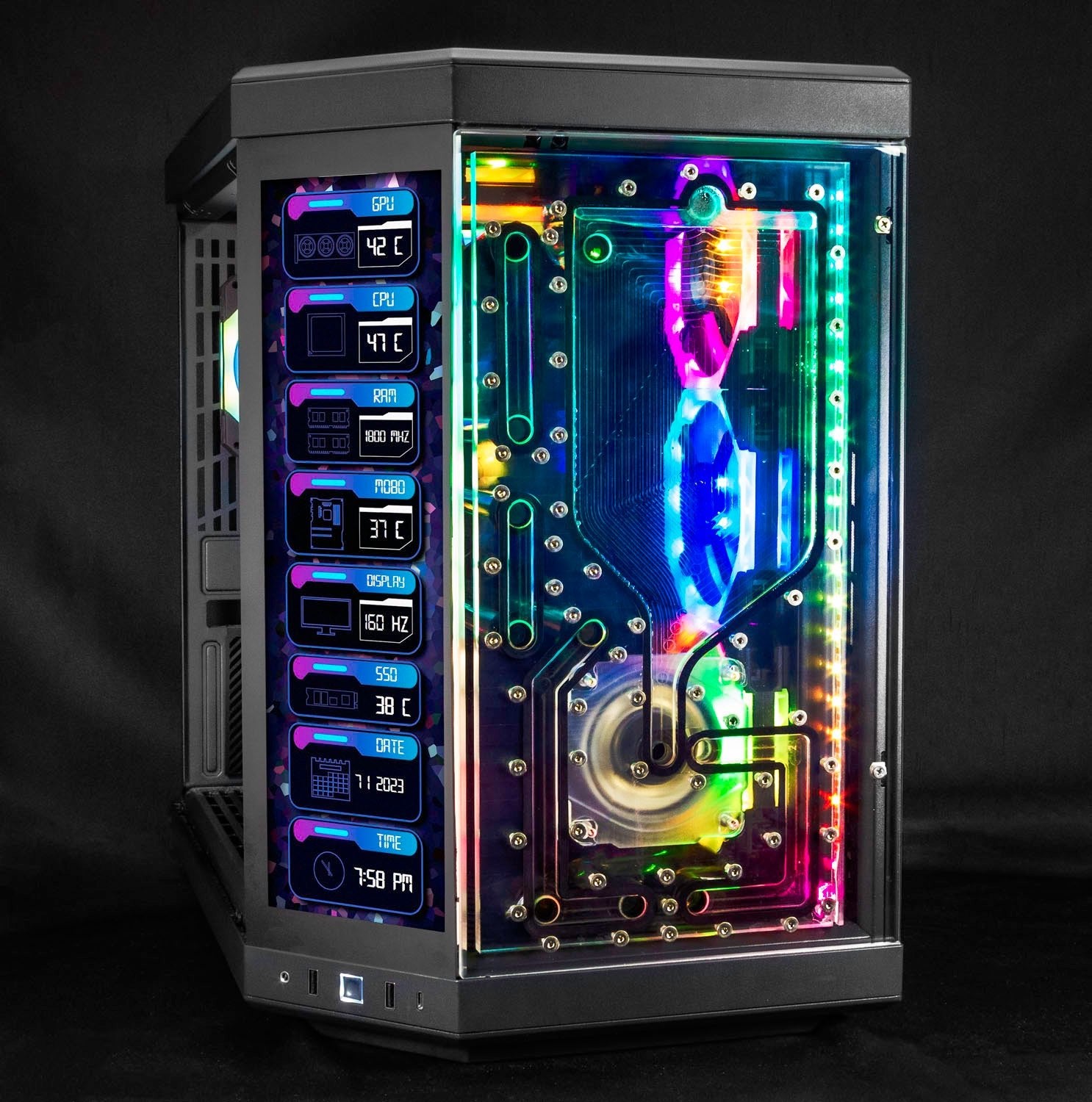

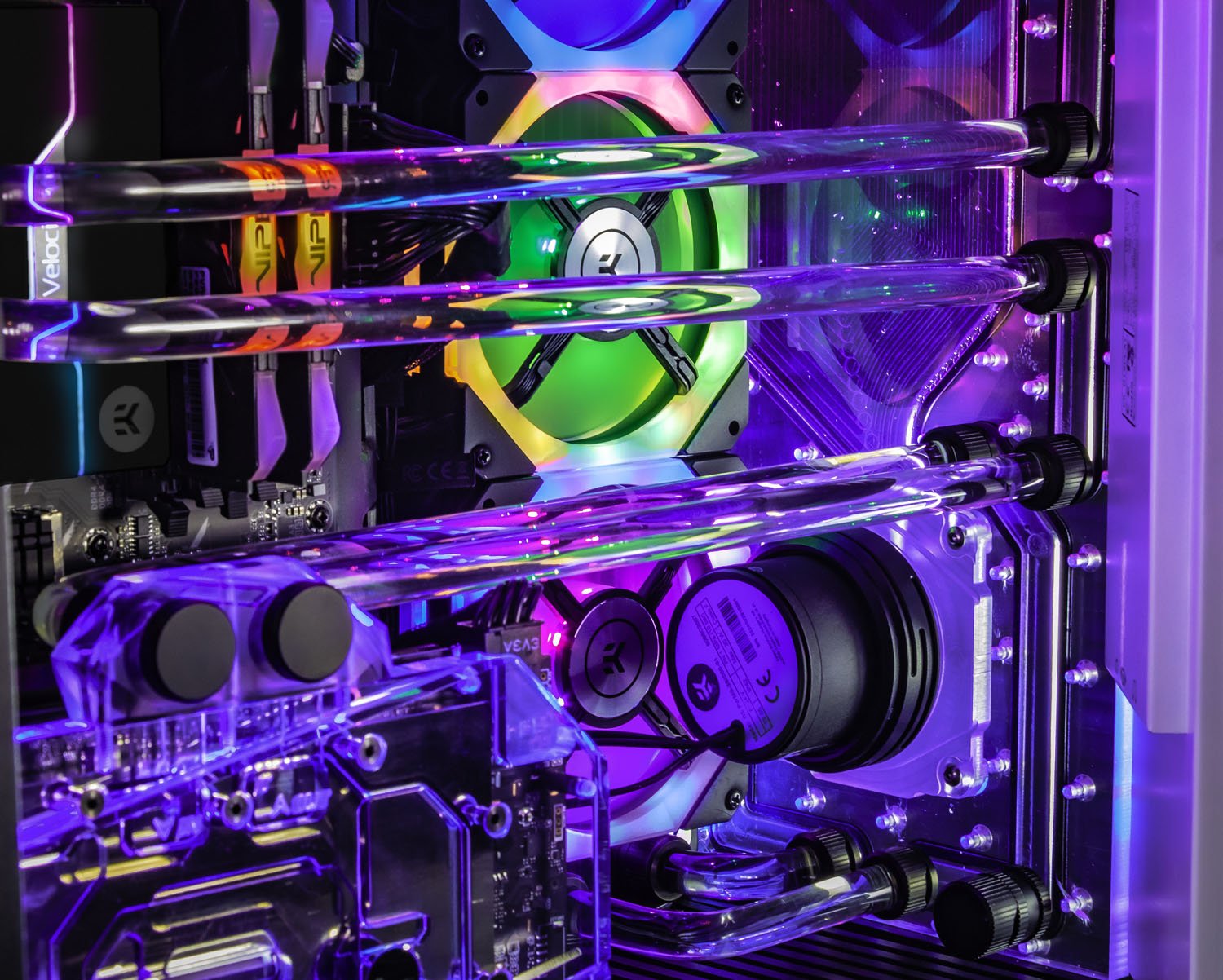

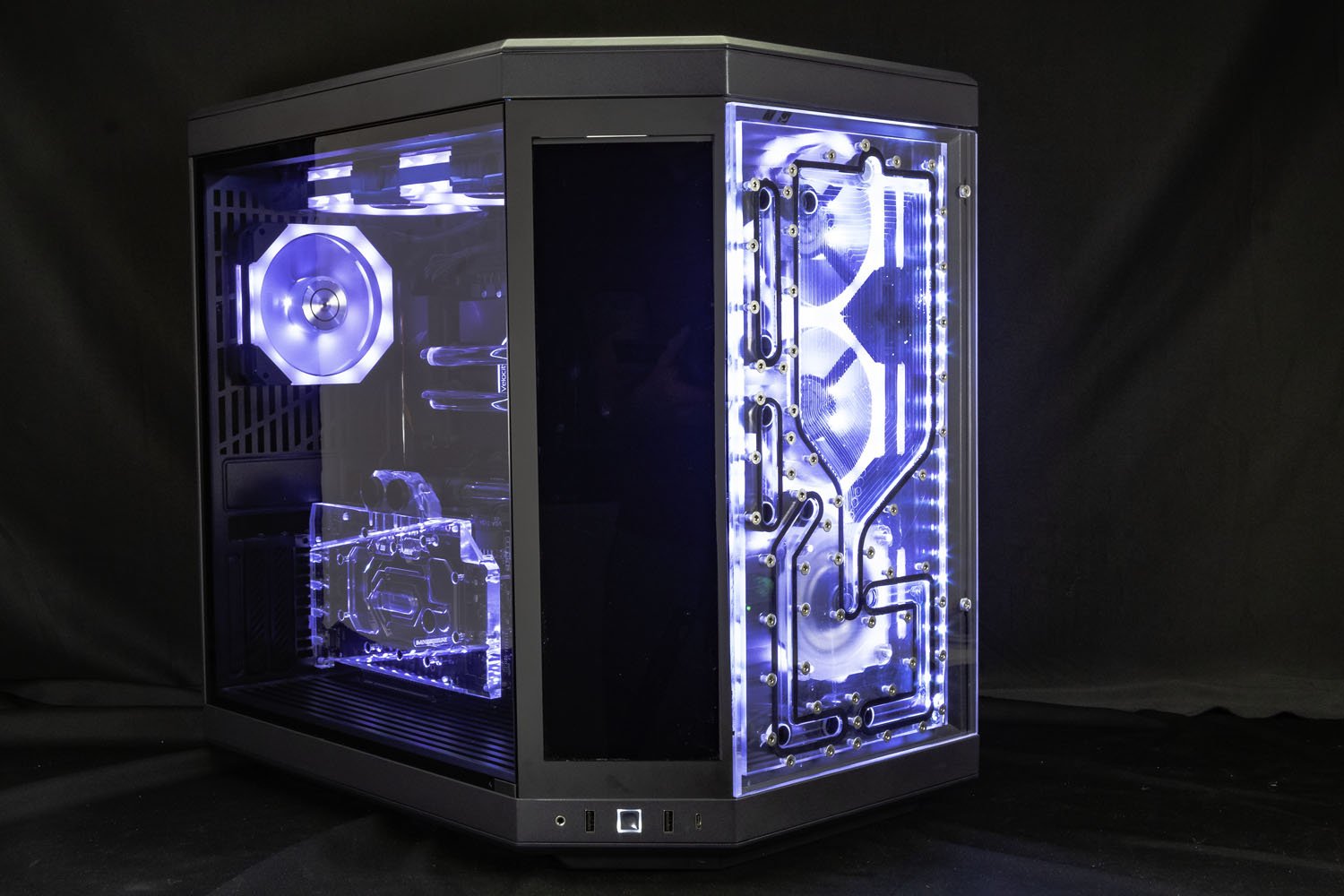

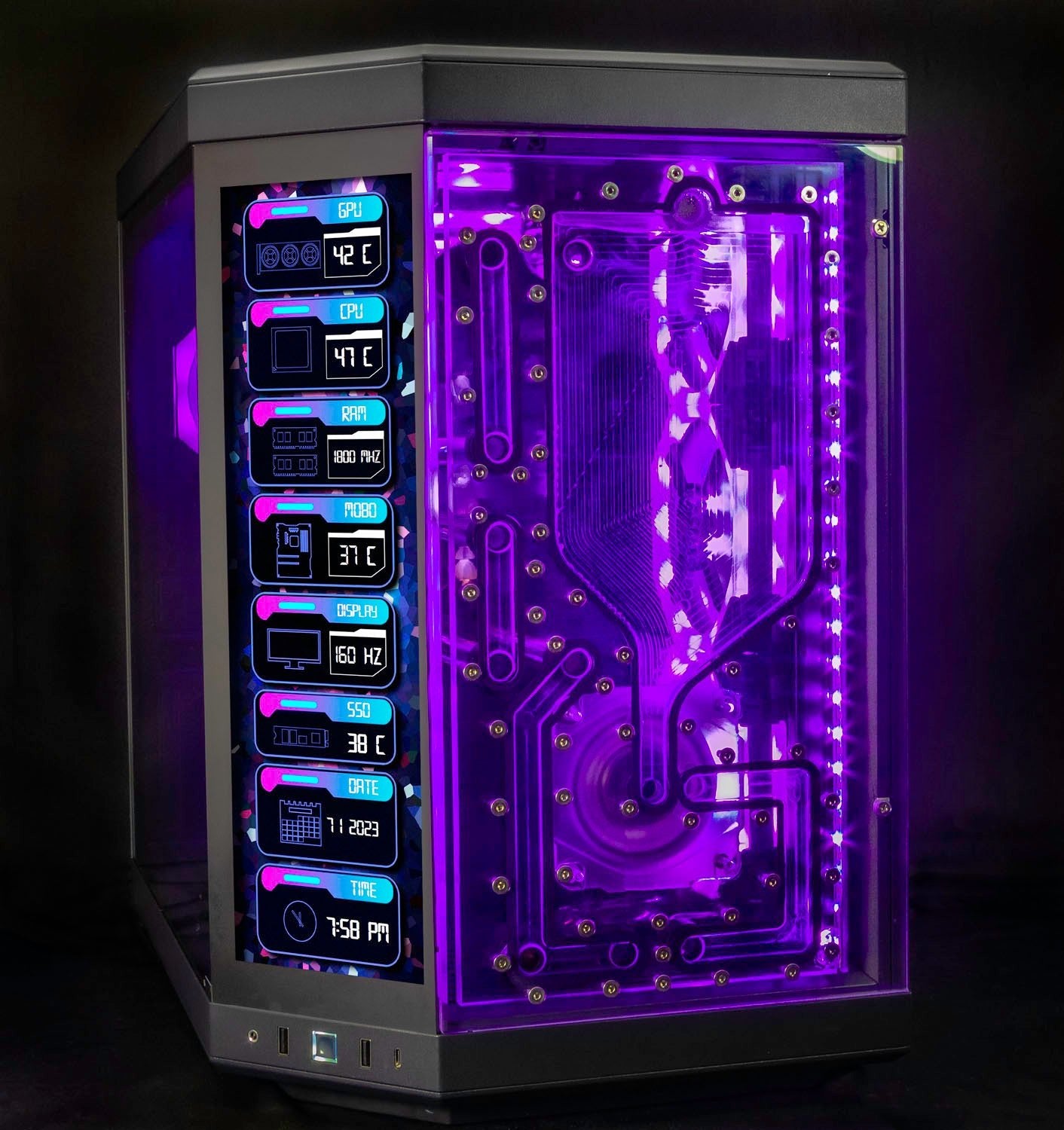

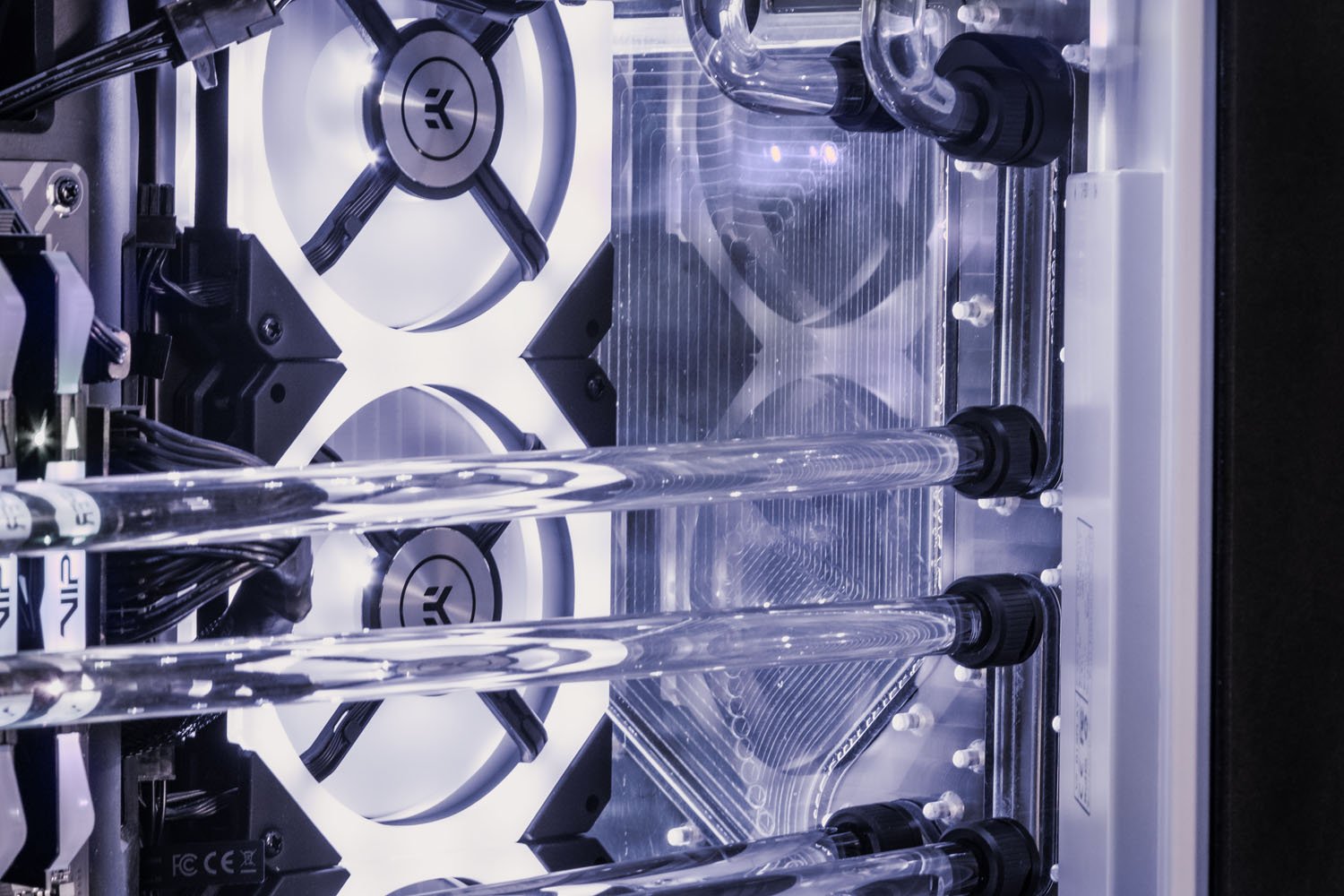

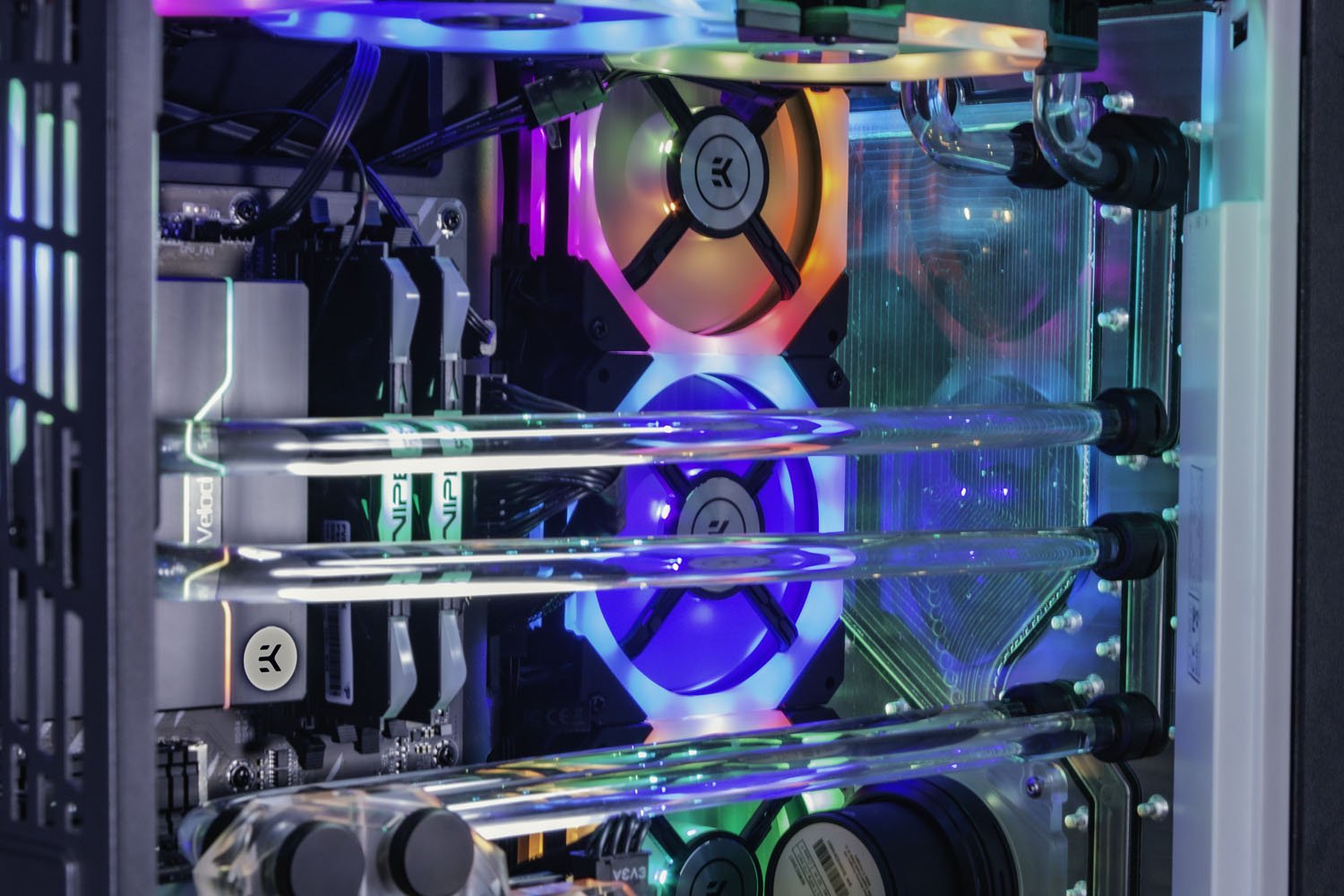

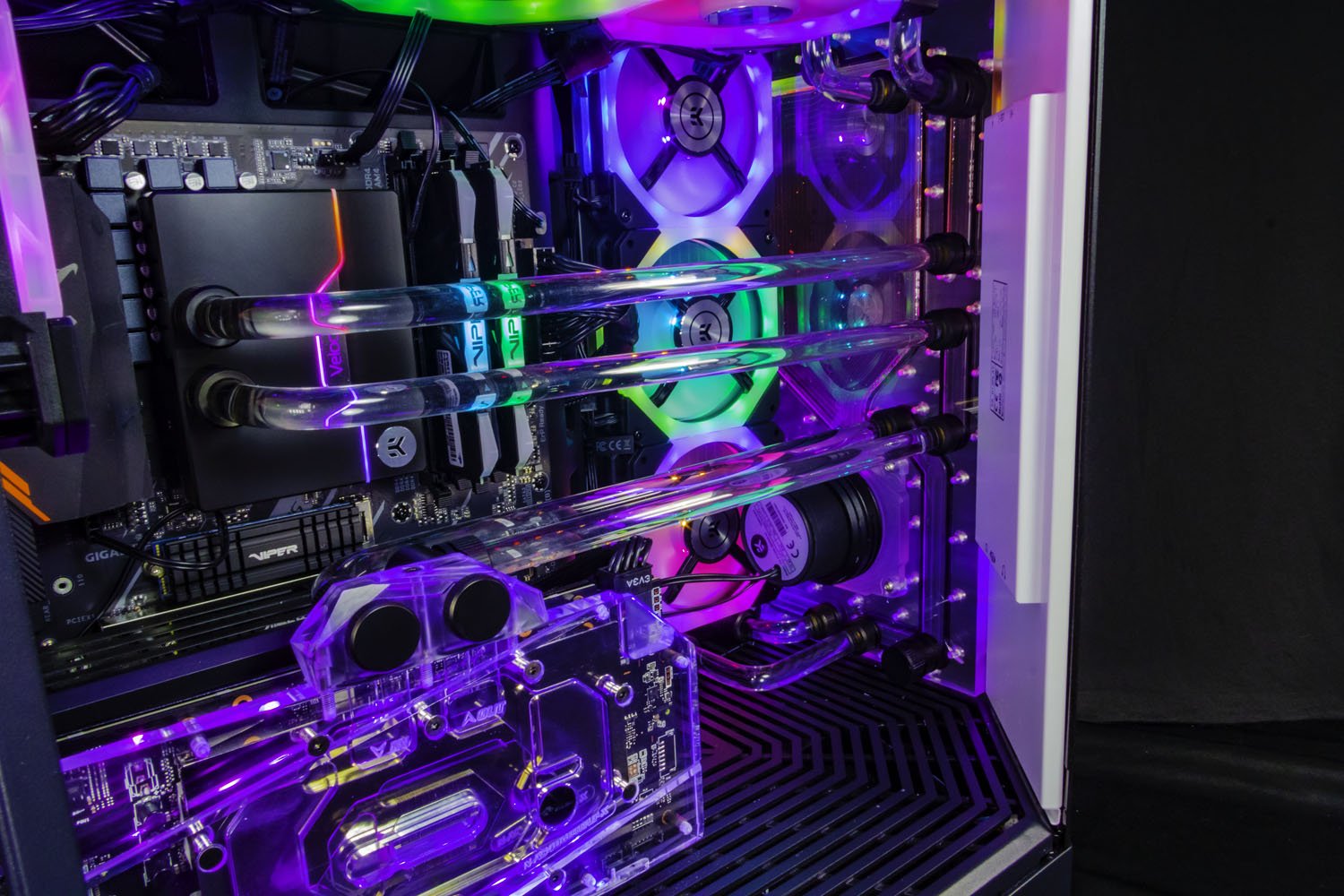

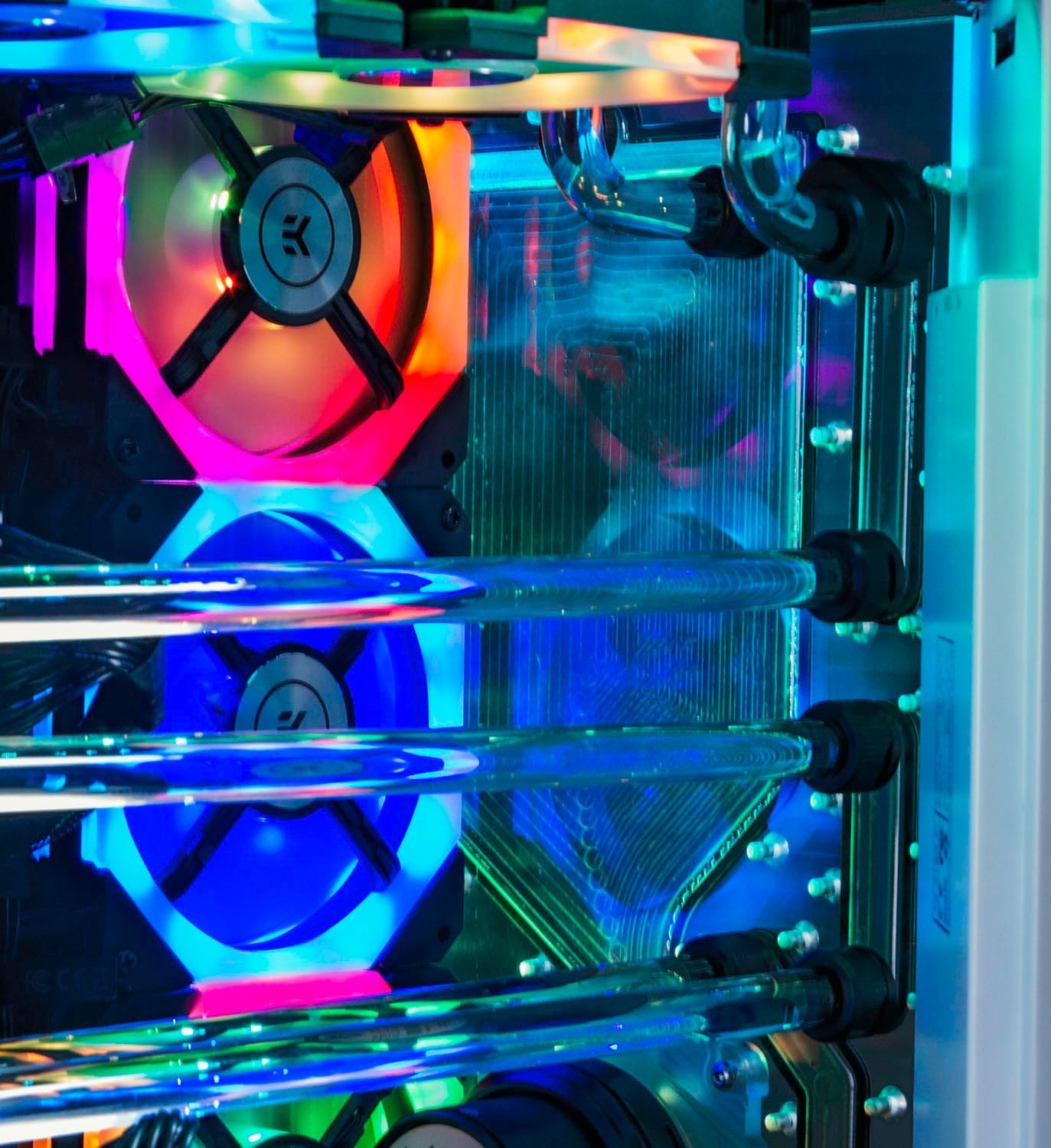

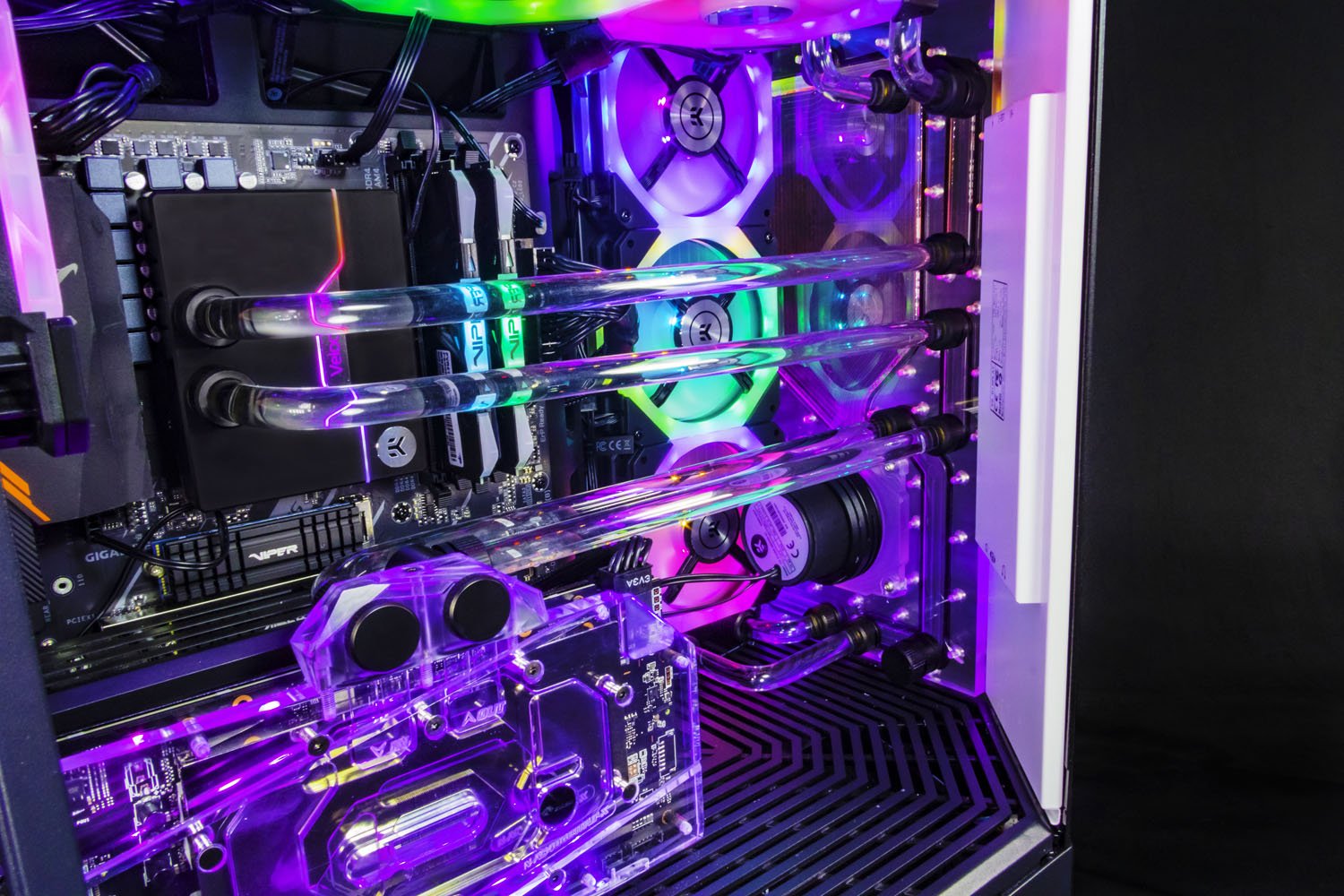

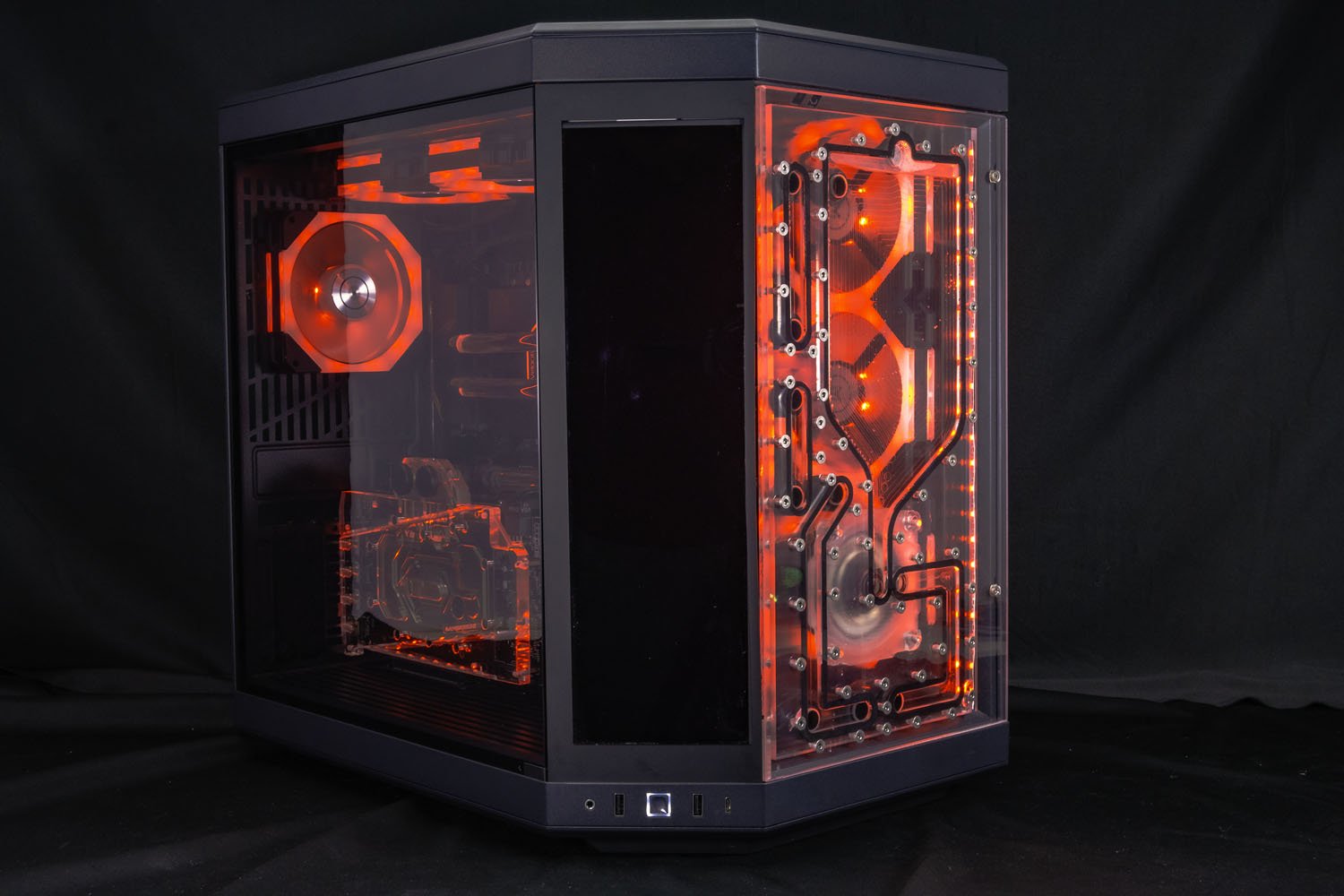

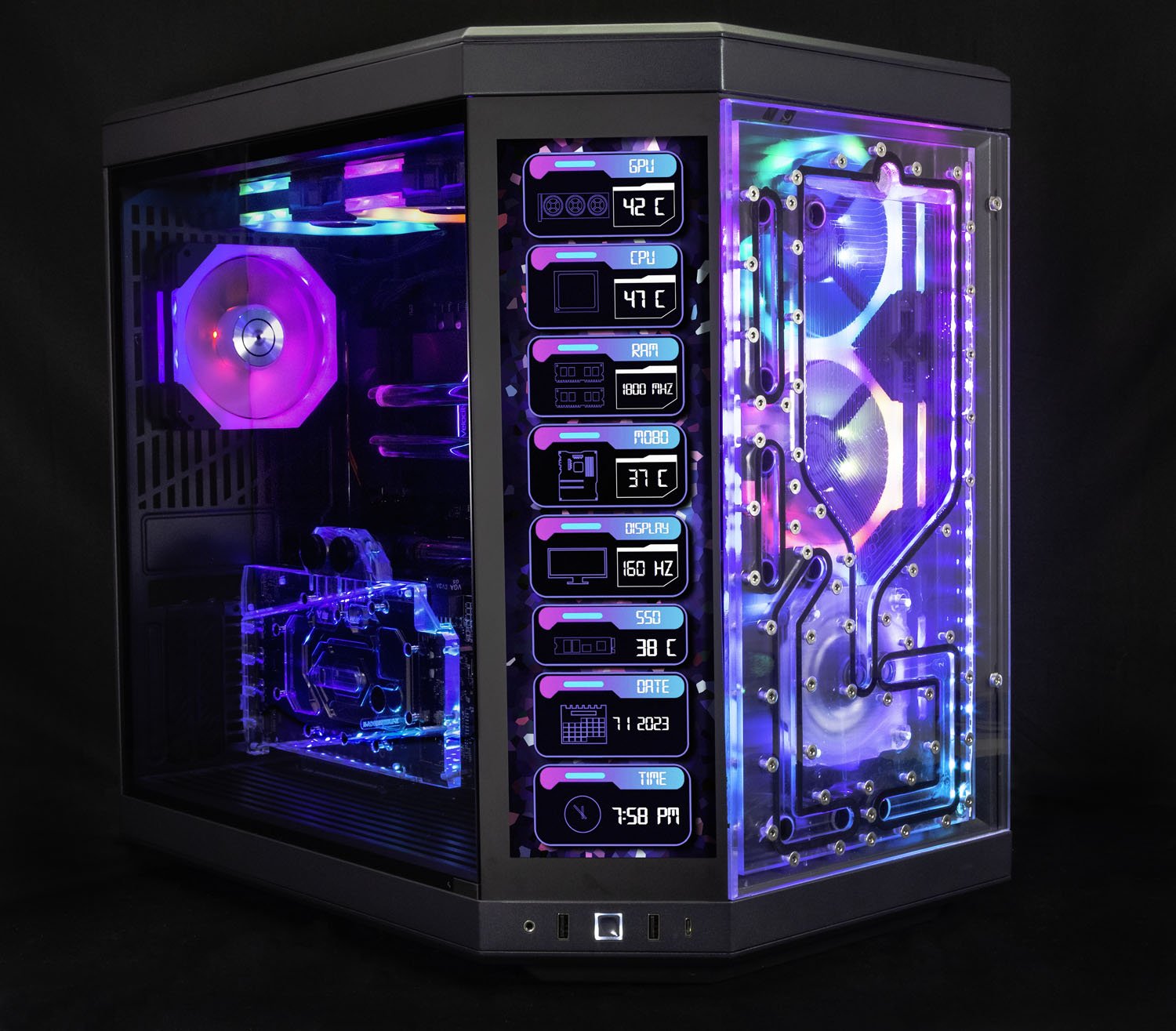

This distroplate pump res combo is specifically designed to fit into the Hyte Y70 case Replacing the front glass. Featuring 10 Ports total, designed to be used with 2 radiators and integrated D-RGB for stunning lighting effects. This distro plate is also compatible with standard D5 or DDC pumps. This distroplate was carefully designed to allow for completely straight hard tubes for that perfect aesthetic look!

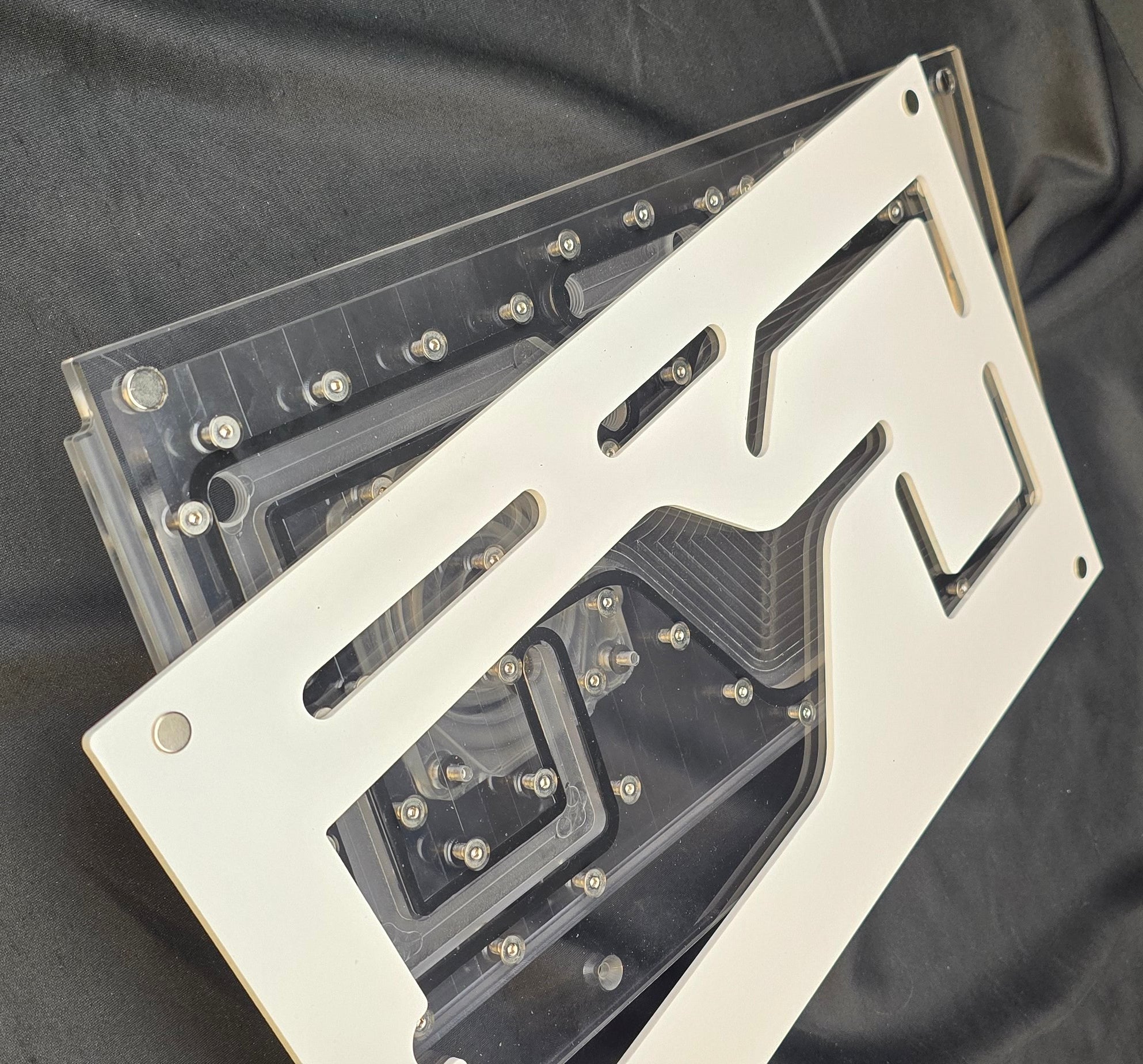

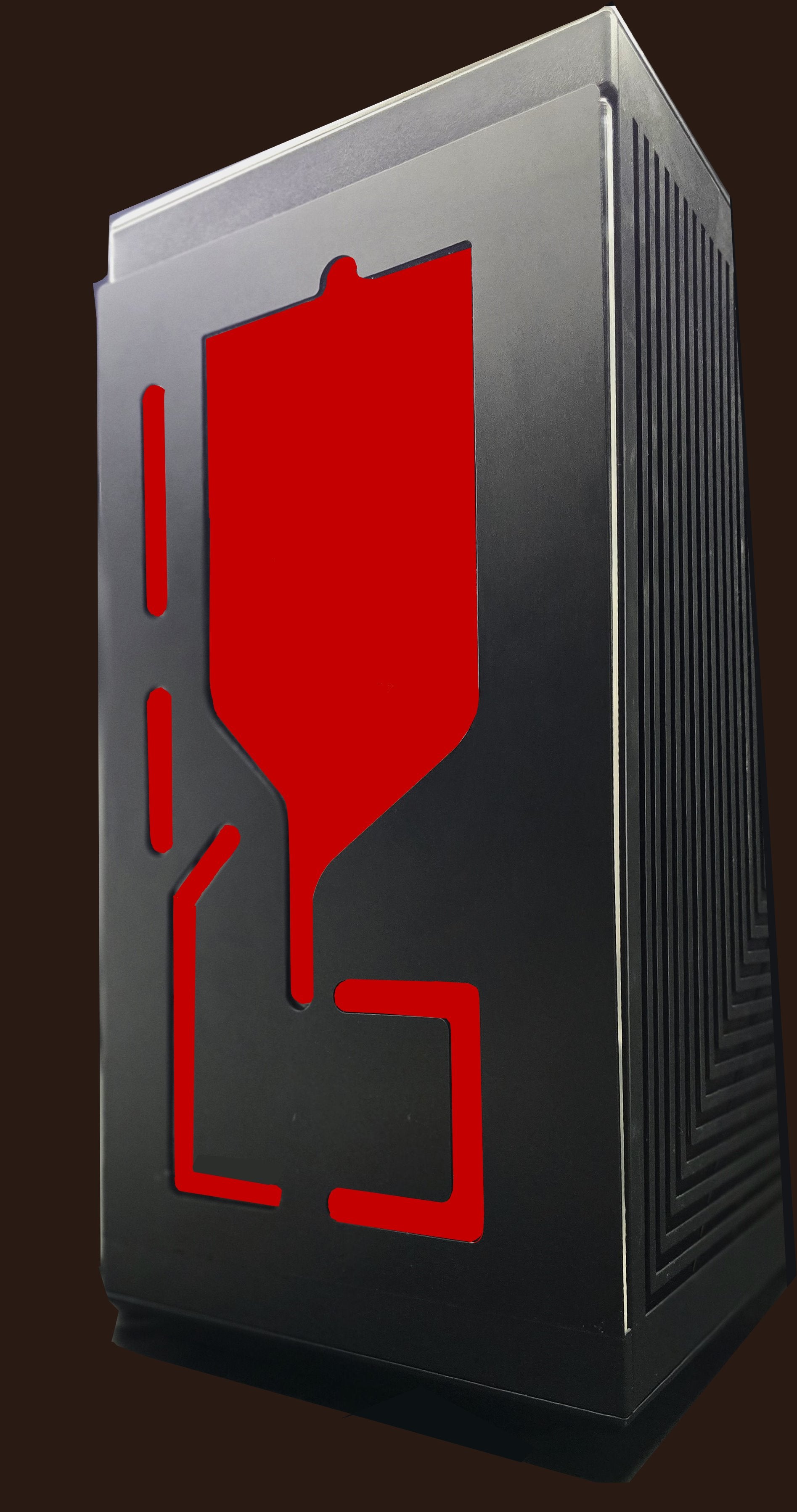

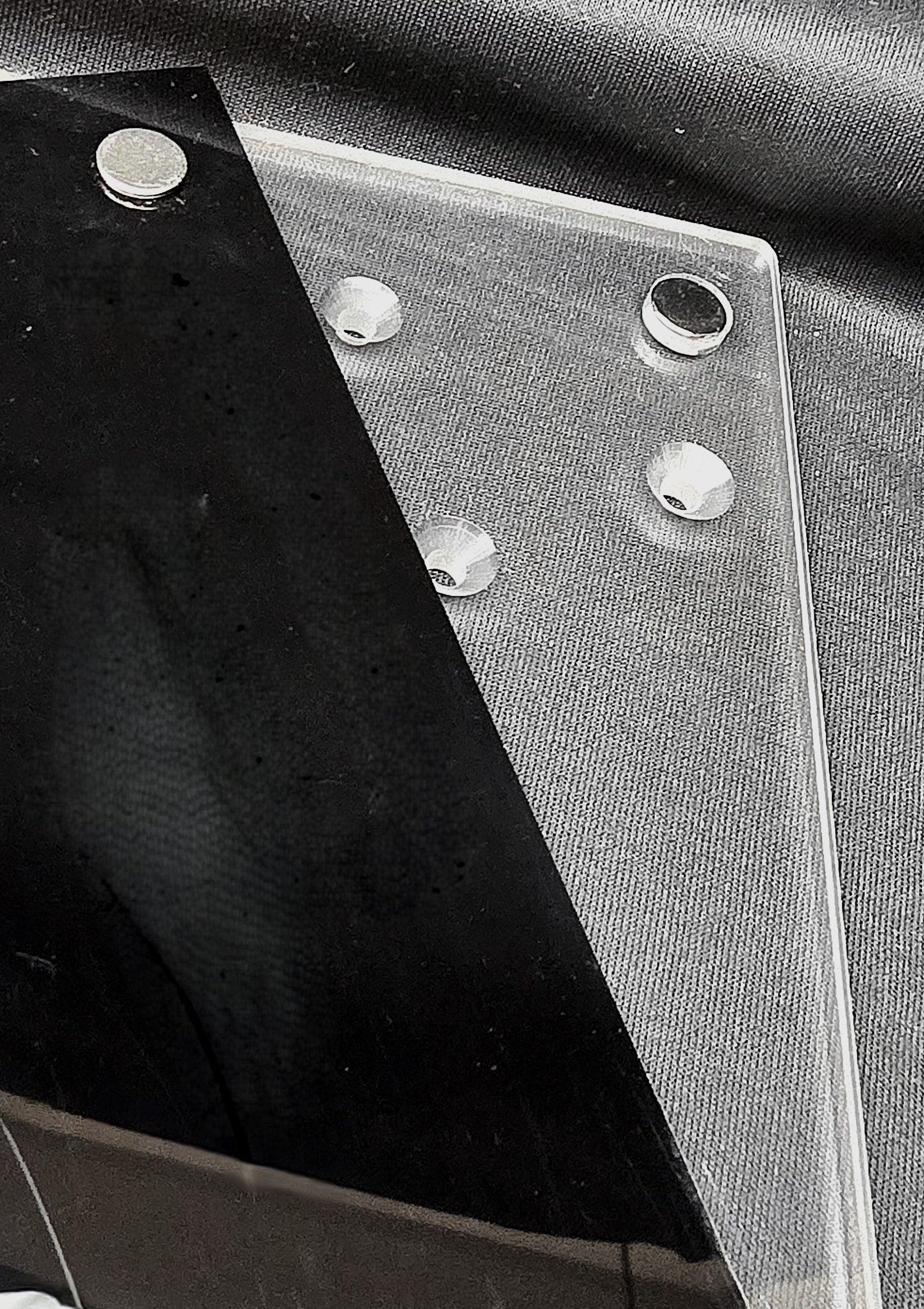

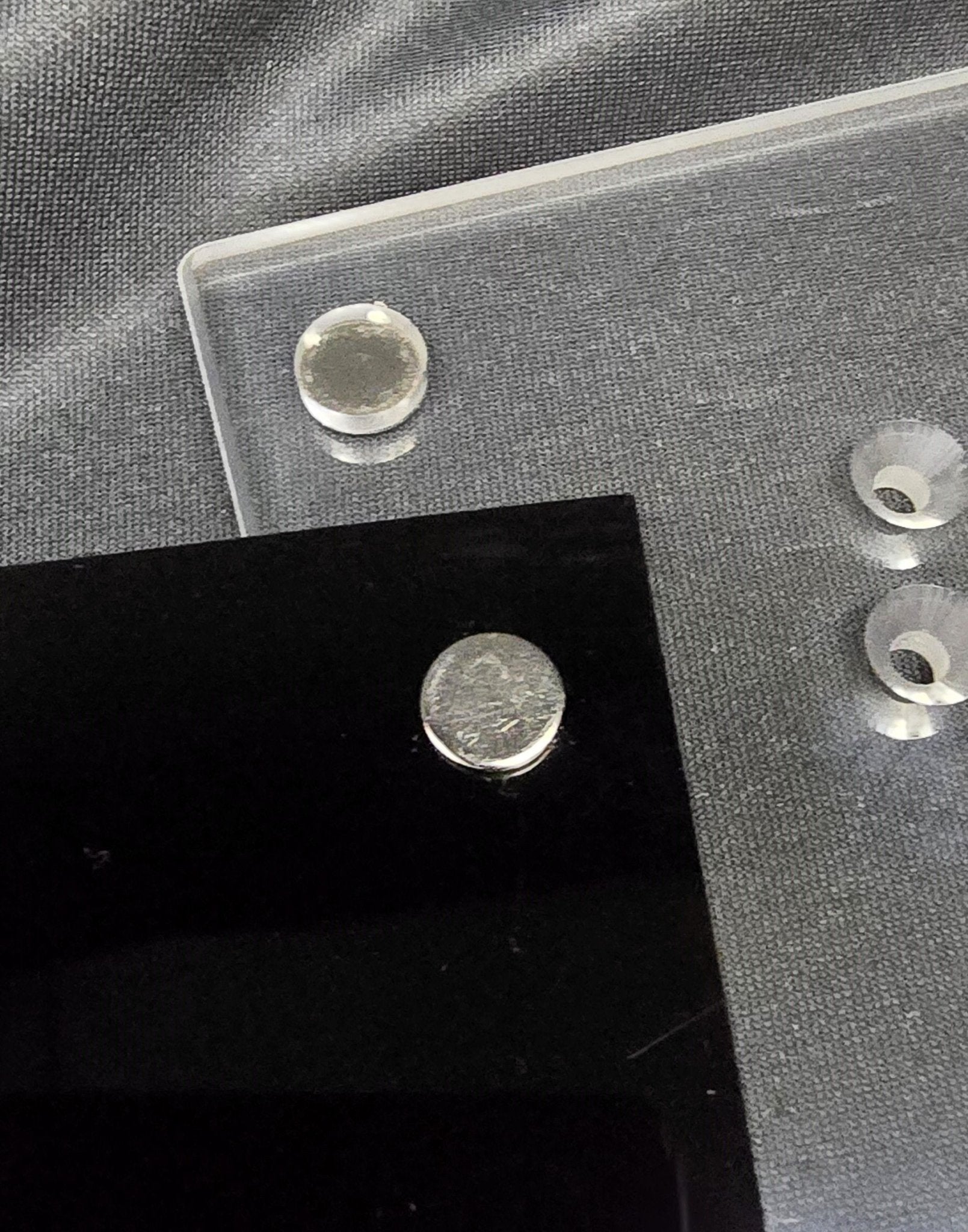

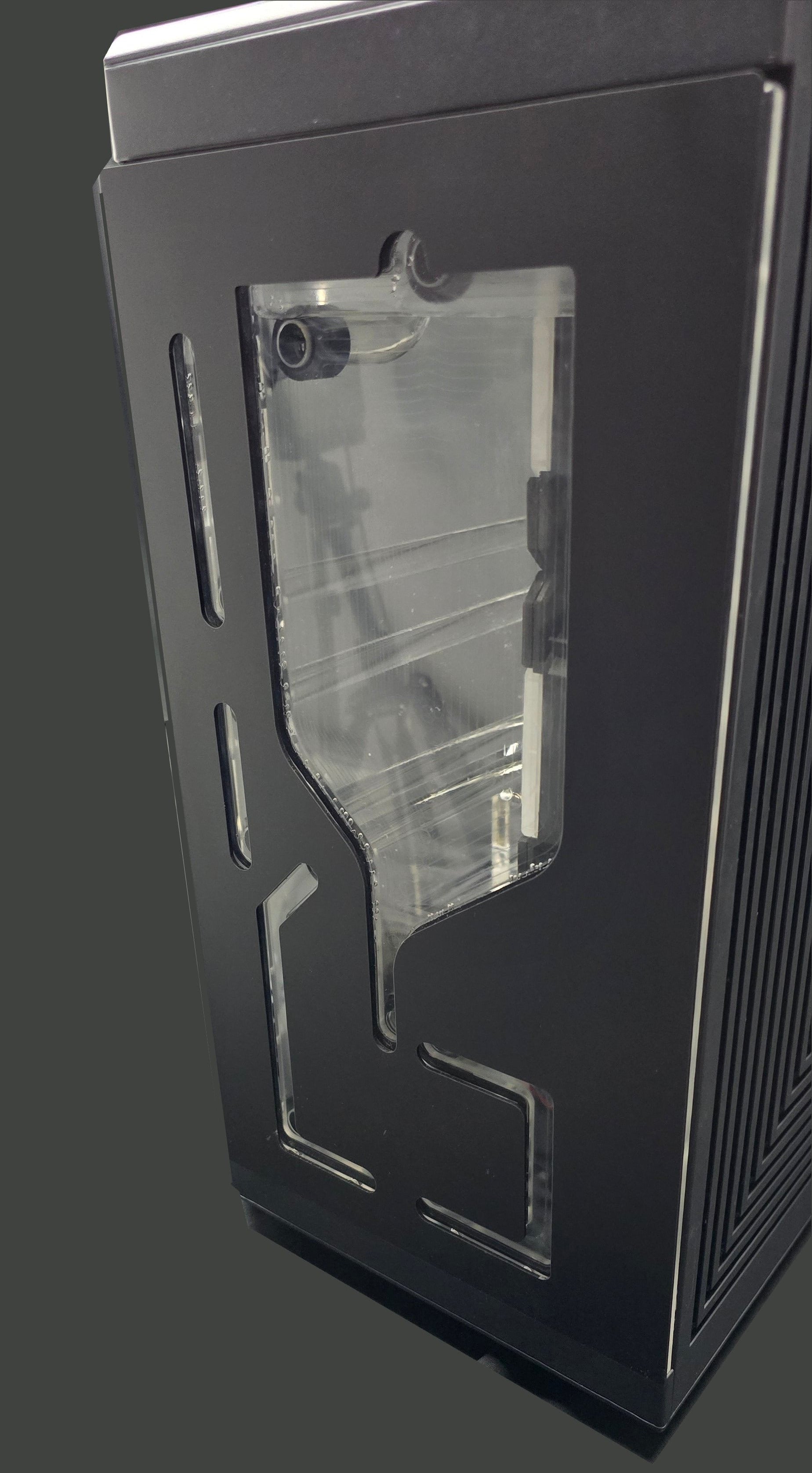

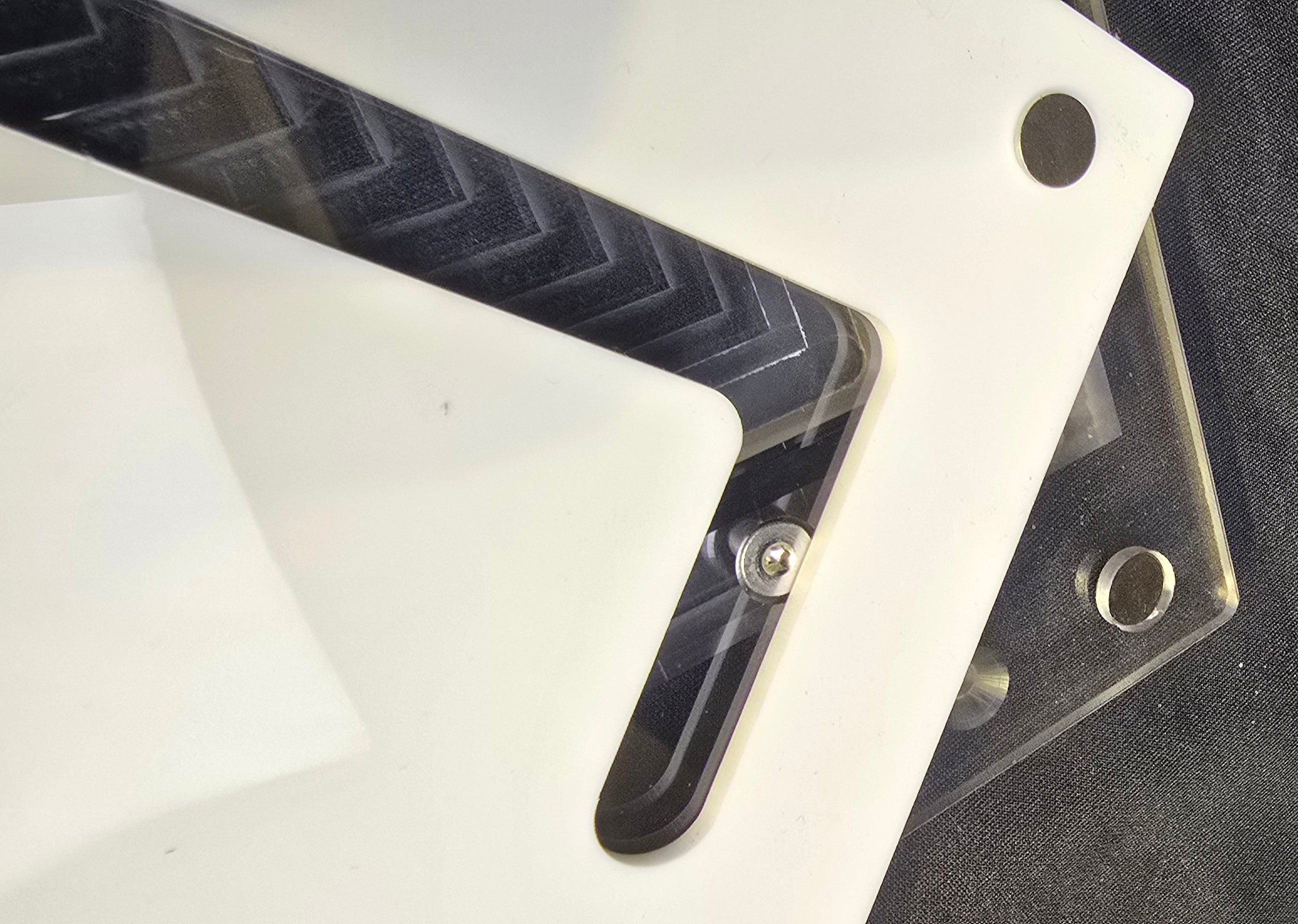

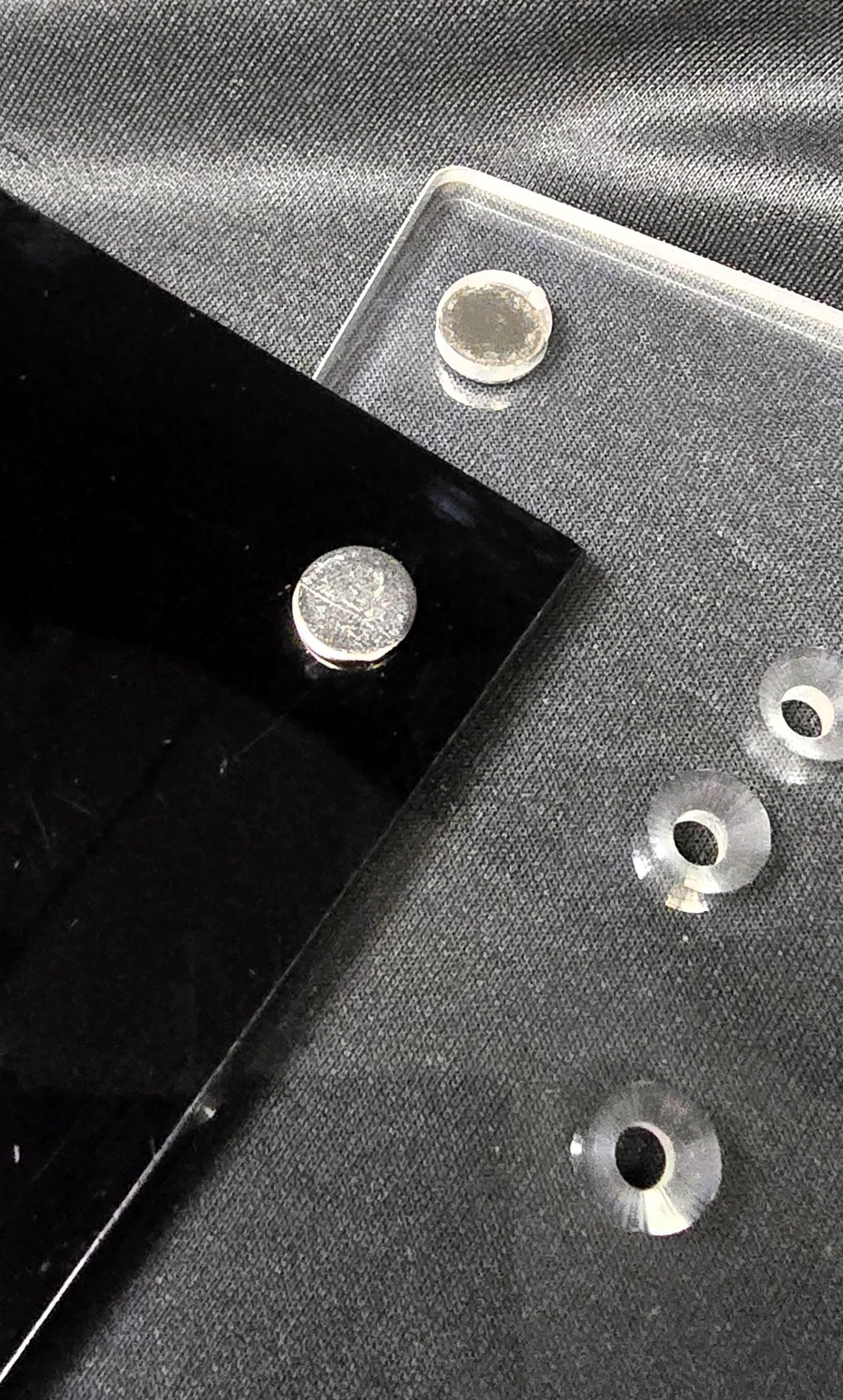

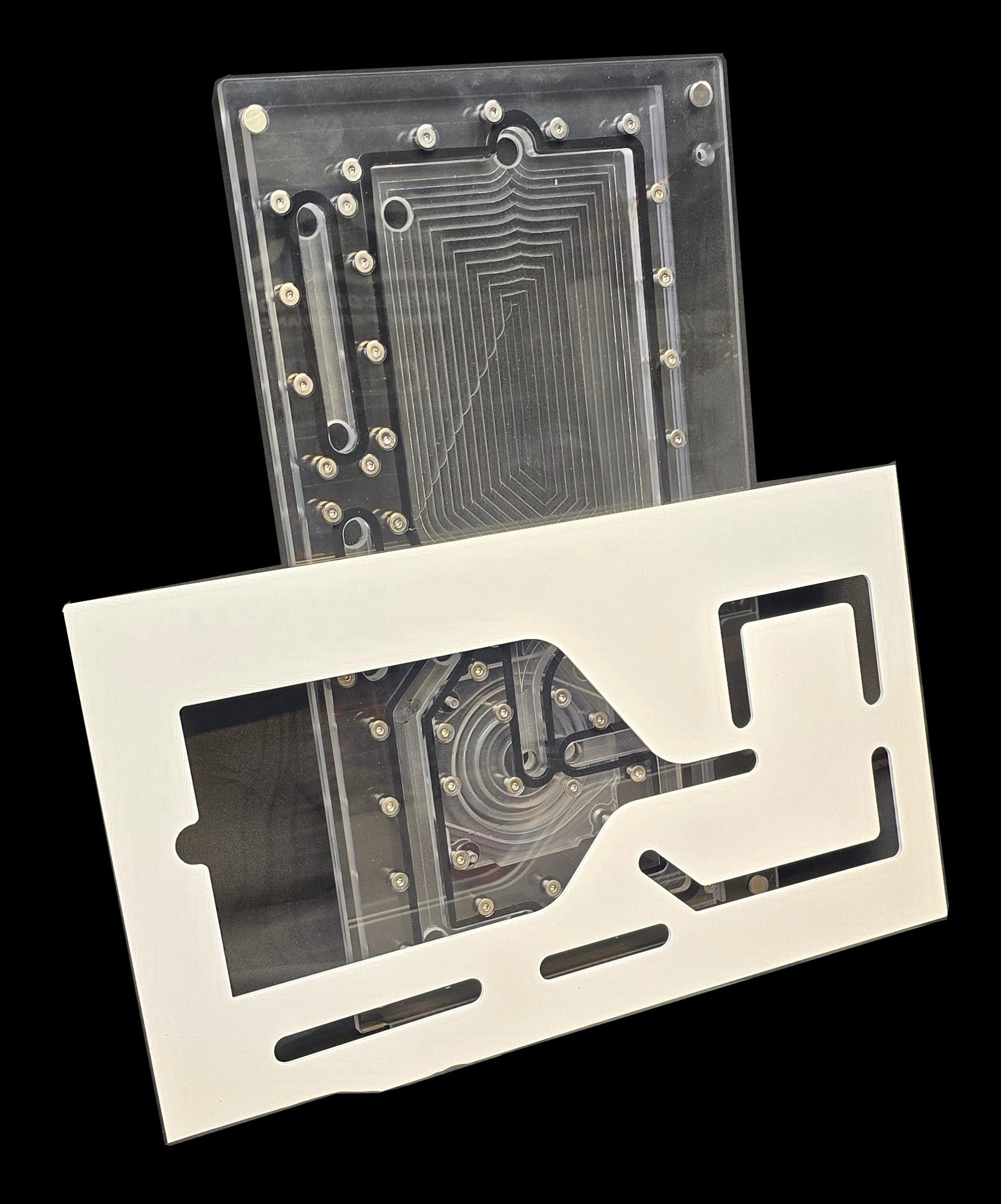

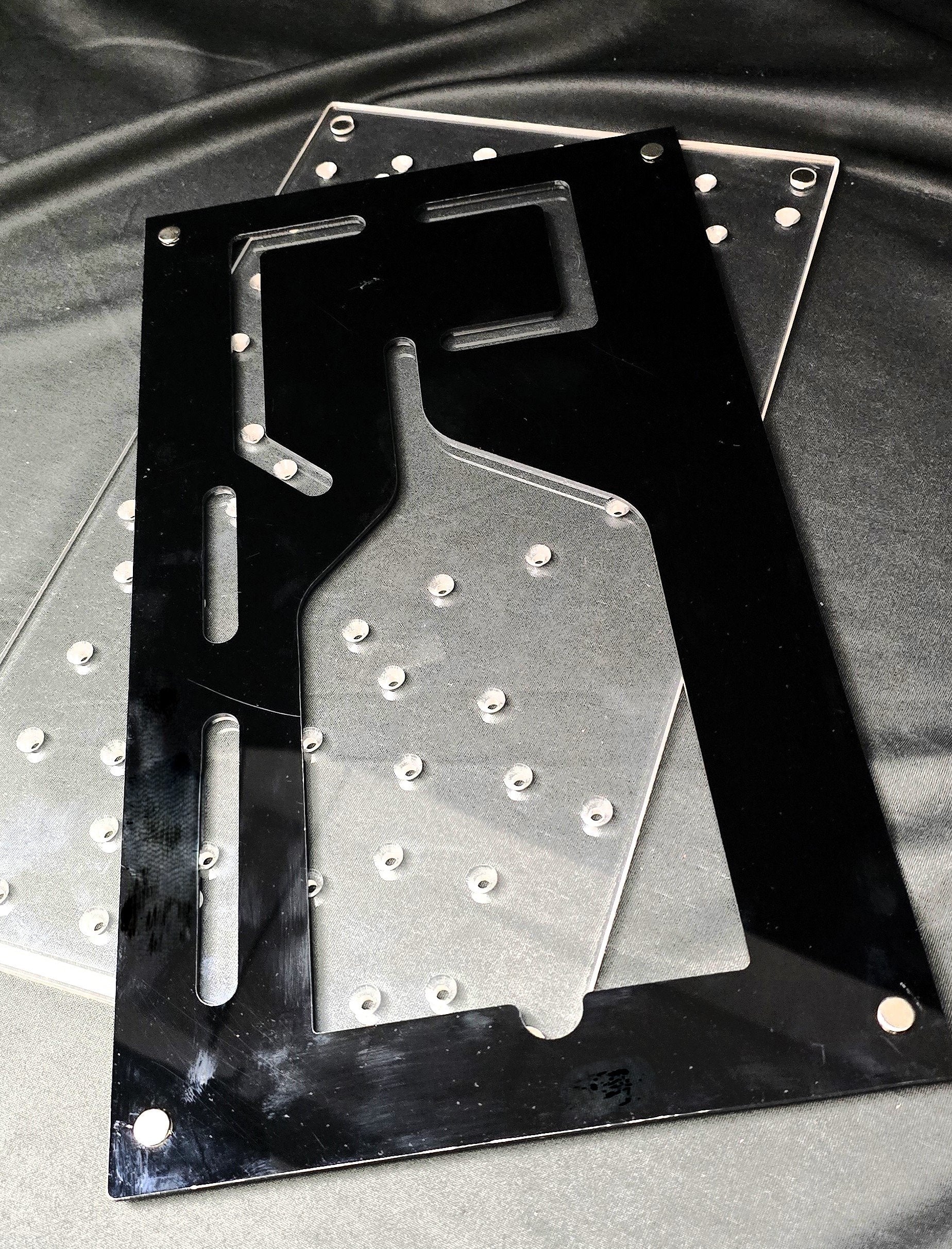

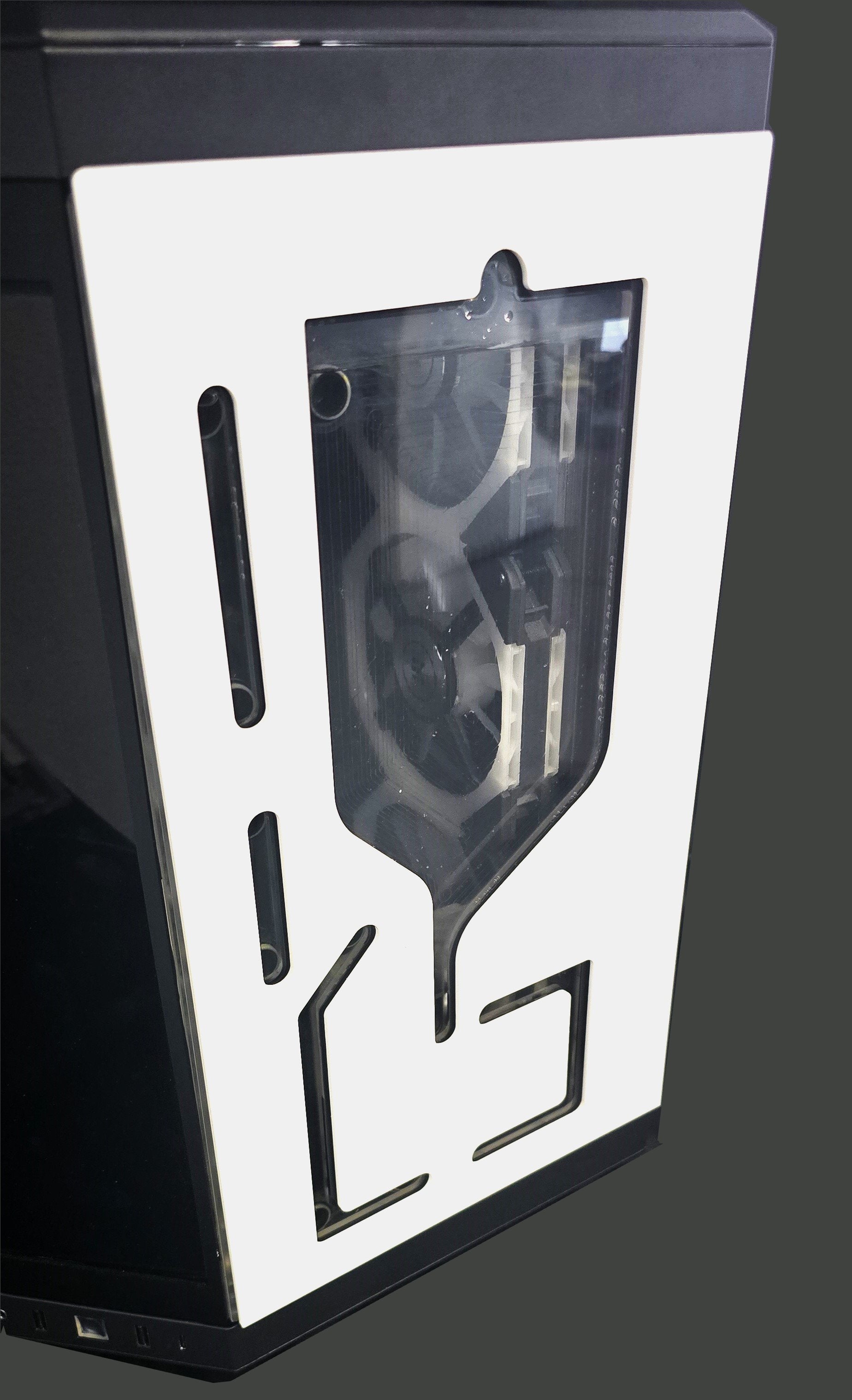

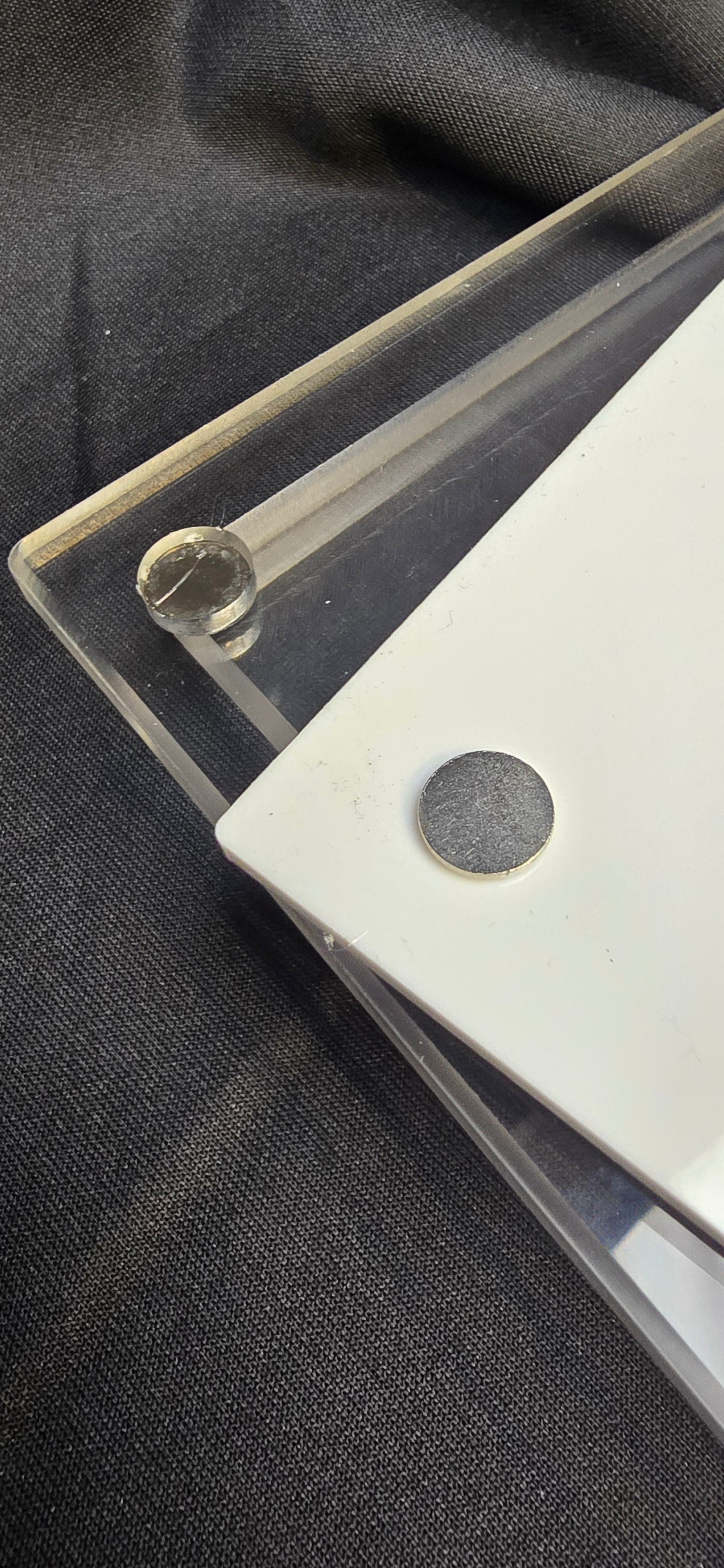

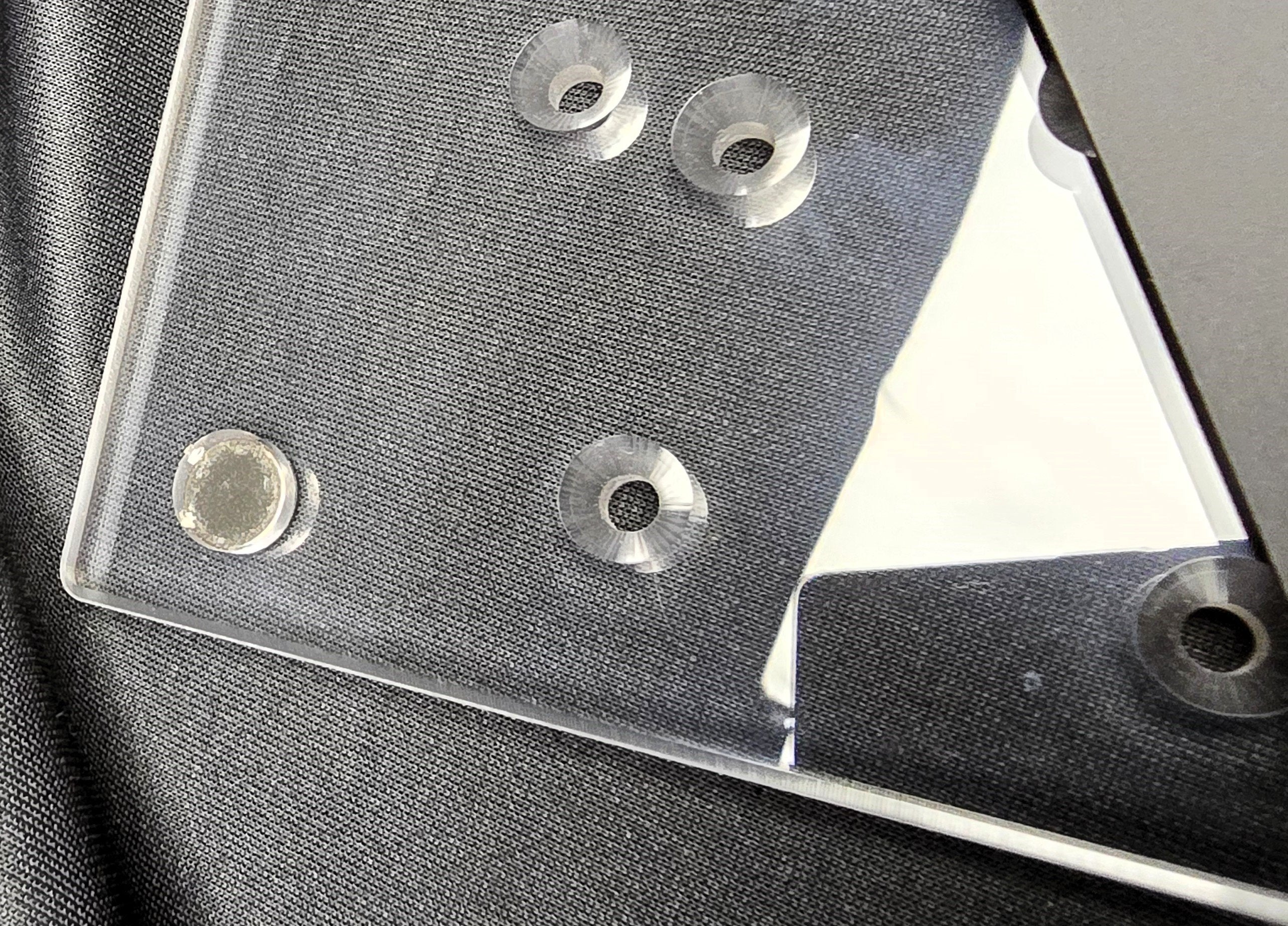

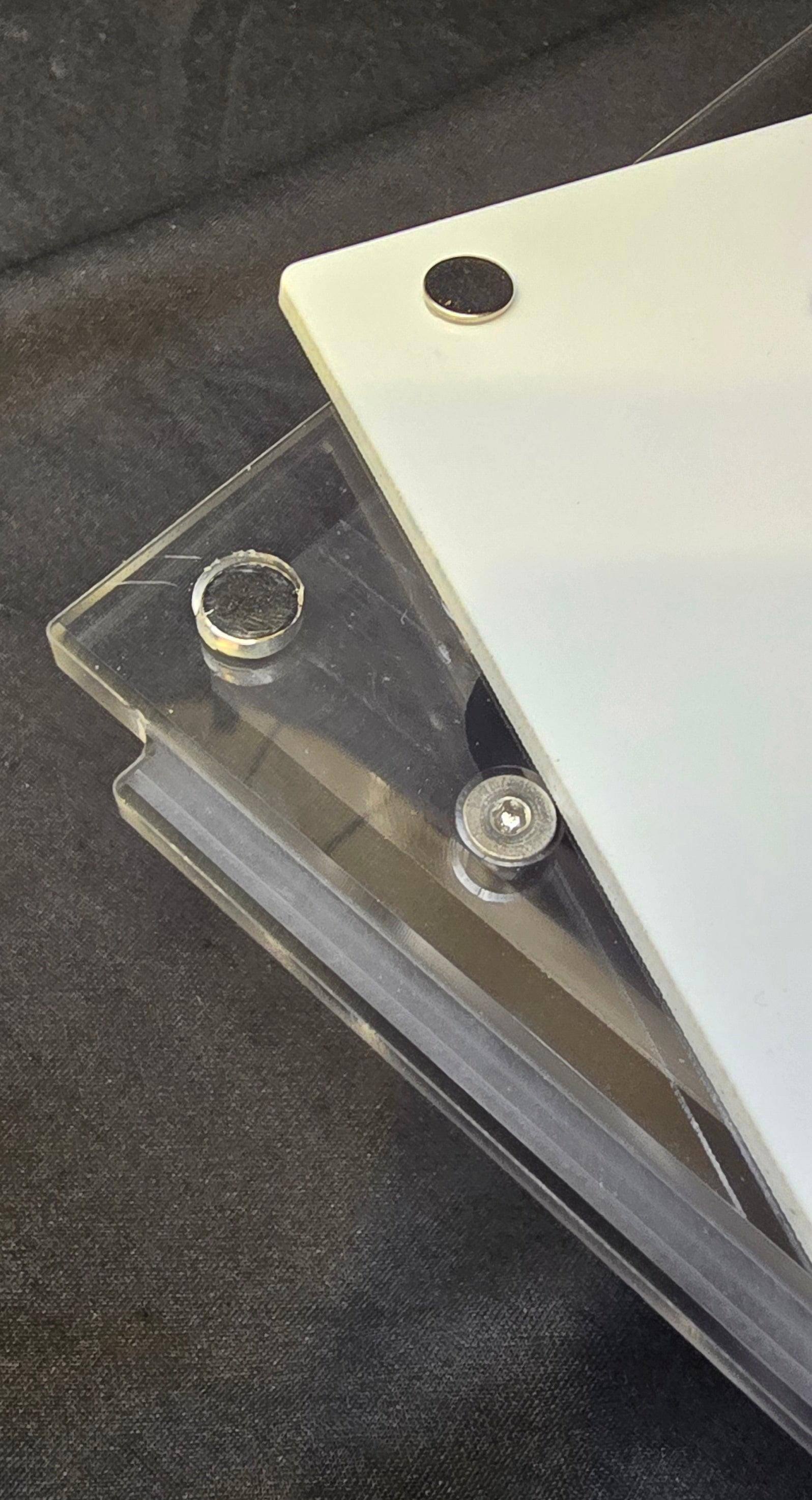

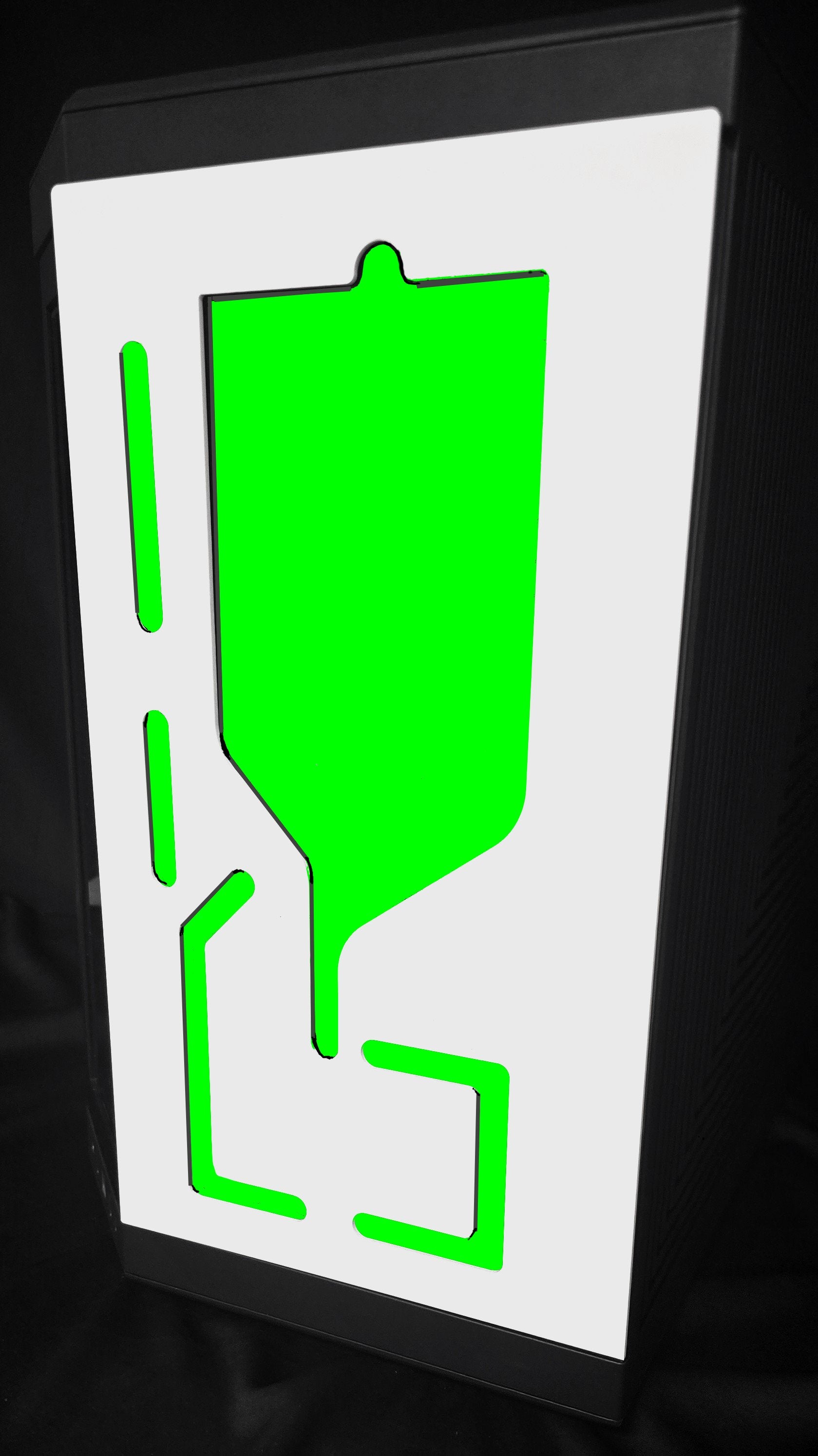

This new version now includes a front panel that hides all the screws and hardware so that you only see the colored (or just clear) channels. Available in either black or white acrylic this front panel uses 4 neodymium magnets making installation and removal super easy. This new version just adds a clean look to an already spectacularly gorgeous chassis. For the best DIY watercooled Hyte Y70 check out our new Channelz™ distroplate with front cover!

Designed and manufactured in the USA by Performance PCs.



Features

Channelz Effectz Service


Tired of all that colored Coolant clogging up your loop but don't want to stick with some boring old clear coolant? Well Performance-PCs has you taken care of with their new Channelz Effectz Service! This service is a great way to add some color to your Channelz distribution plate without clogging your loop with pastel or mica filled coolants. We use an epoxy resin mixture that is safe for your loop and will certainly help that build POP. There is 30 different super vivid color options to choose from and we even added the ability for you to mix colors to give your loop its own style.


Installation:


First Remove the front Glass of the Hyte Y70 once this is done remove the 2 brackets that the front glass rest on. Next attach the 2 L-brackets included in your box onto the back of the distro (do not tighten these all the way yet). Once the L- Brackets are installed you can place the distro into the front glass spot and use the original screws that held the glass in place to hole the distro in place. Once this is done you can tighten up the screws hold the L brackets on distro. Simple!

Specifications


Specifications:




  • Material: Clear Cast Acrylic.


  • Fasteners: Stainless Steel Silver.


  • Stand Offs: Brass.


  • Gaskets: Silicone Black.


  • O-rings: Silicone Black and Clear.


  • Stop Fittings: Brass Black Powder coat.


  • Ports: x10. Inlets: x4 Outlets: x4 Fill: x1 Drain: x1


  • LED Strip: DRGB 5V Addressable.


  • Neodymium Magnets x 4


  • Front Panel: Acrylic with choice of black or white


  • Dimensions: Width: 227mm. Height 406.1mm. (thinner Acrylic)  Width: 187mm. Height 377mm. (thicker Acrylic)



There is 58mm of clearance between pump top and Radiator mounting



Included Items:




  • Channelz Hyte Y70 Distribution Plate: x1


  • Magnetic Front Panel


  • DRGB LED Strip: x1


  • Stop Plug: x1



6-32 x .25 Countersunk screw: x2, L-Bracket: x2
