Channelz™ Phanteks NV7 Replacement Front panel Dual Loop/Dual D5 Pump Distribution Plate

PPCS-DISTRO118

This NEW Channelz™ offering is our latest greatest version distroplate pump/res combo that is specifically designed to fit onto the Phanteks NV7 chassis. Featuring 8 Ports total, designed to be used with 2 radiators and and 2 x D5 pumps each supply an independent loop (chamber). Each loop has a fill and drain location.

Found a better price? Let us know and we'll try and match it!
Estimate shipping
$329.95 USD
Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

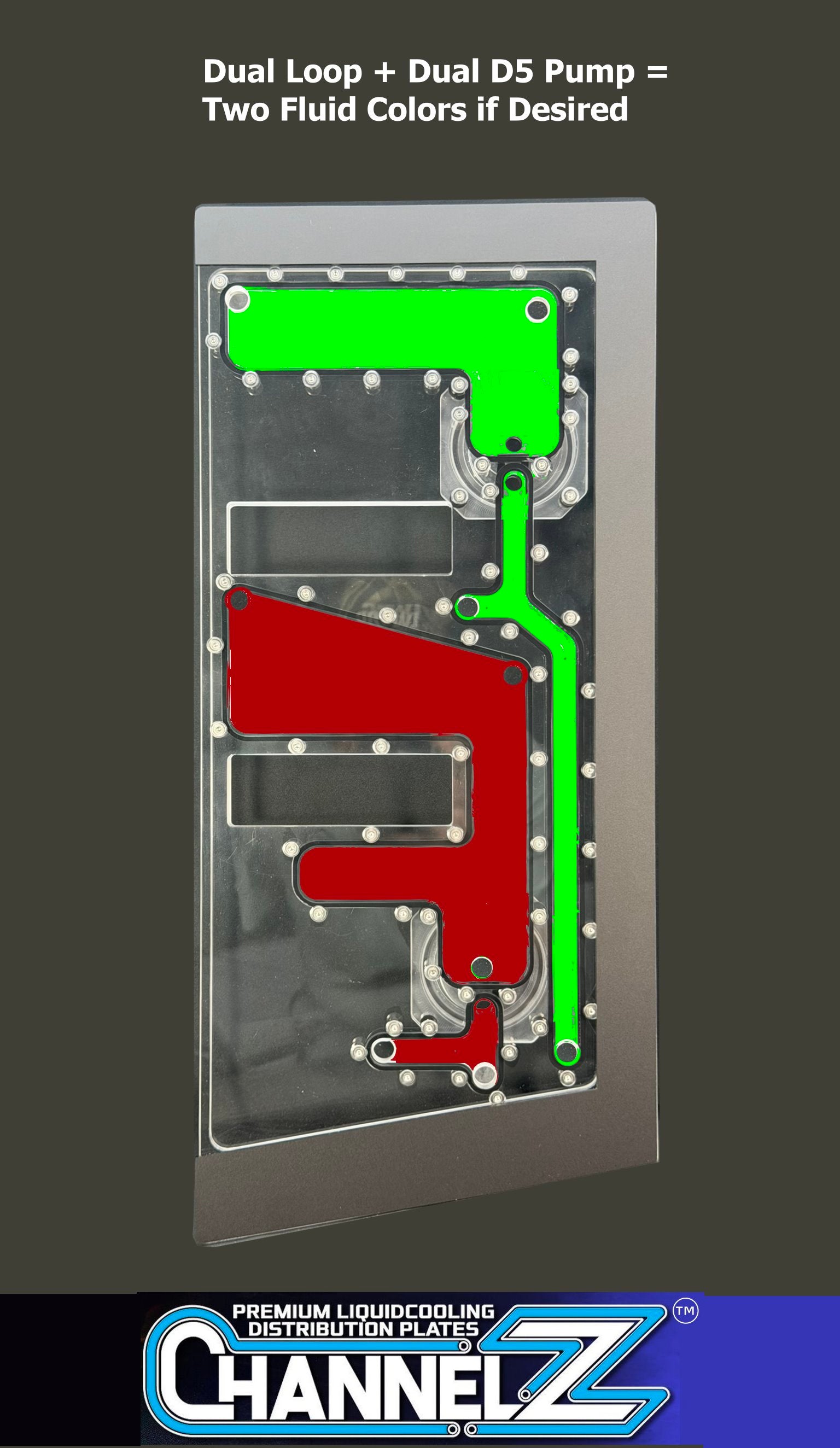

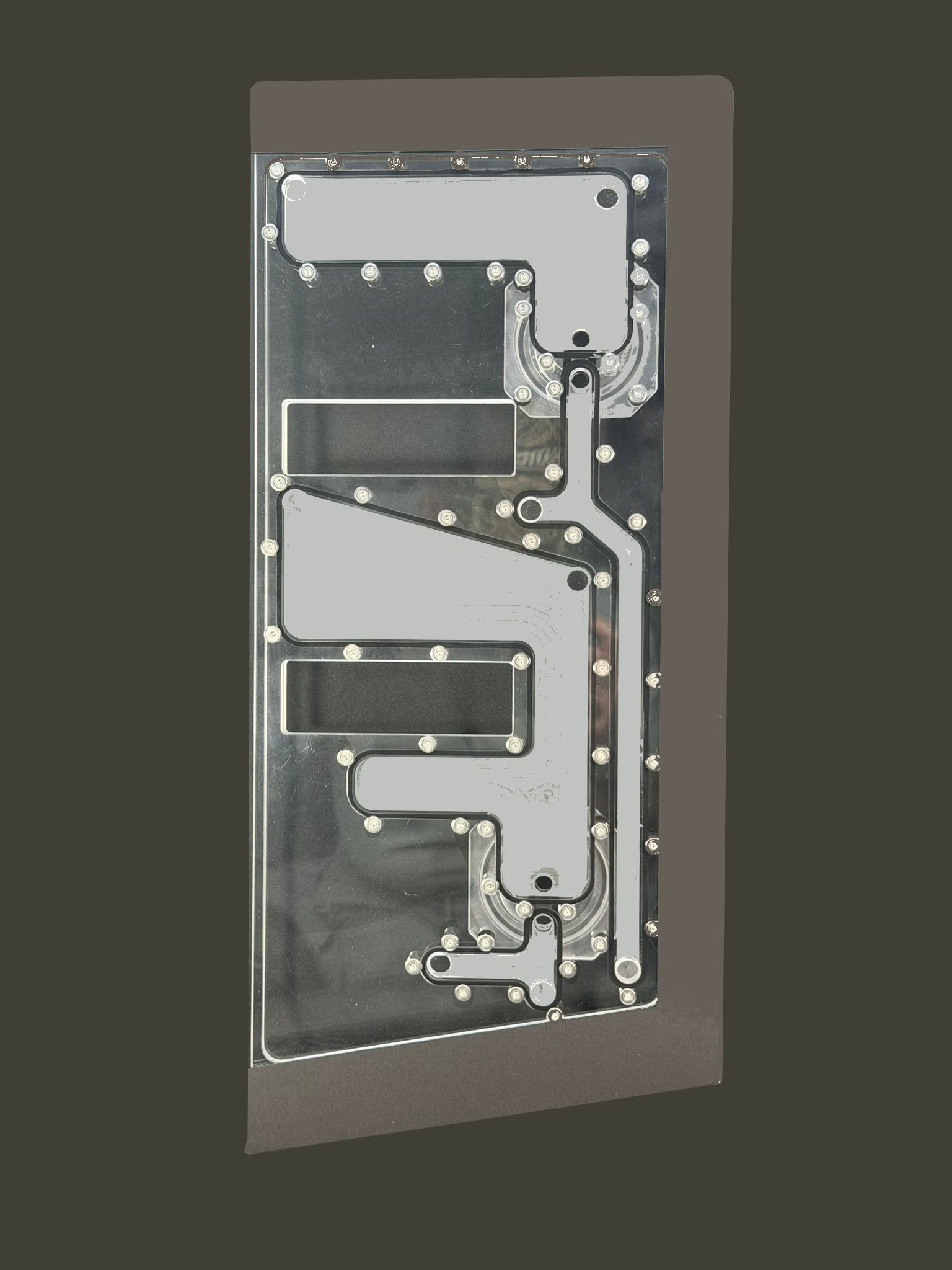

This is our latest greatest version distroplate pump/res combo that is specifically designed to fit onto the Phanteks NV7 chassis. Featuring 8 Ports total, designed to be used with 2 radiators and and 2 x D5 pumps each supply an independent loop (chamber). Each loop has a fill and drain location.

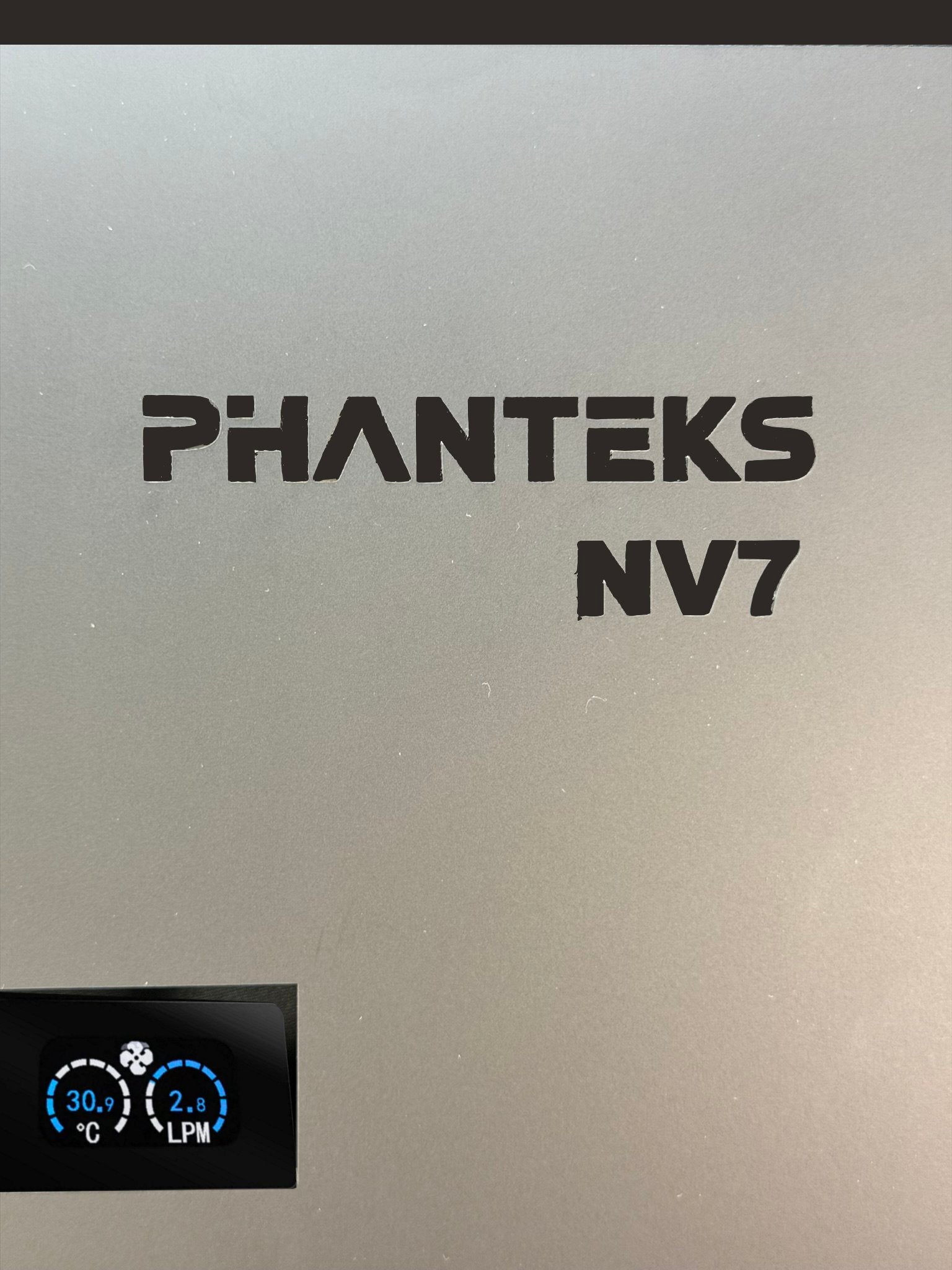

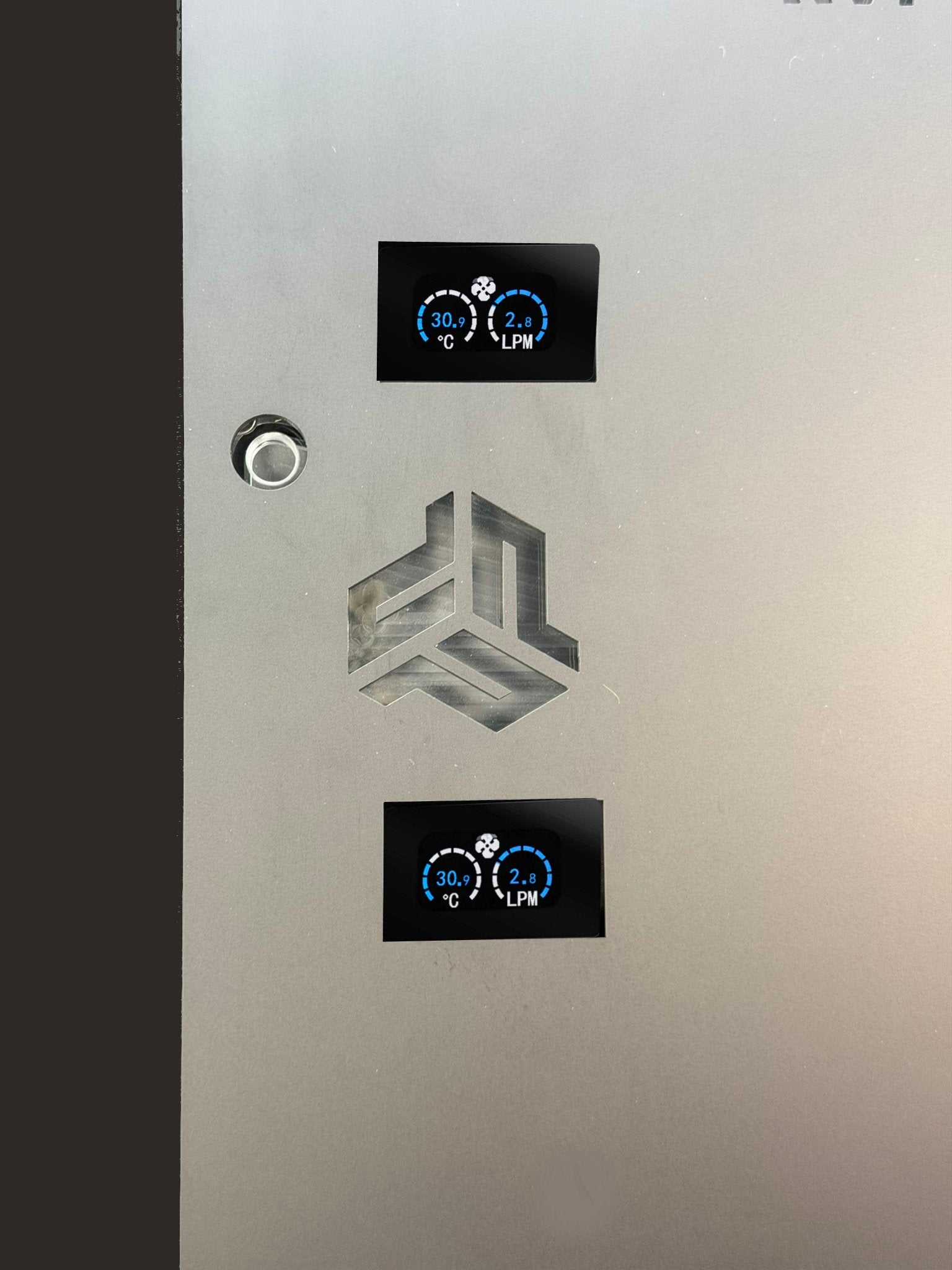

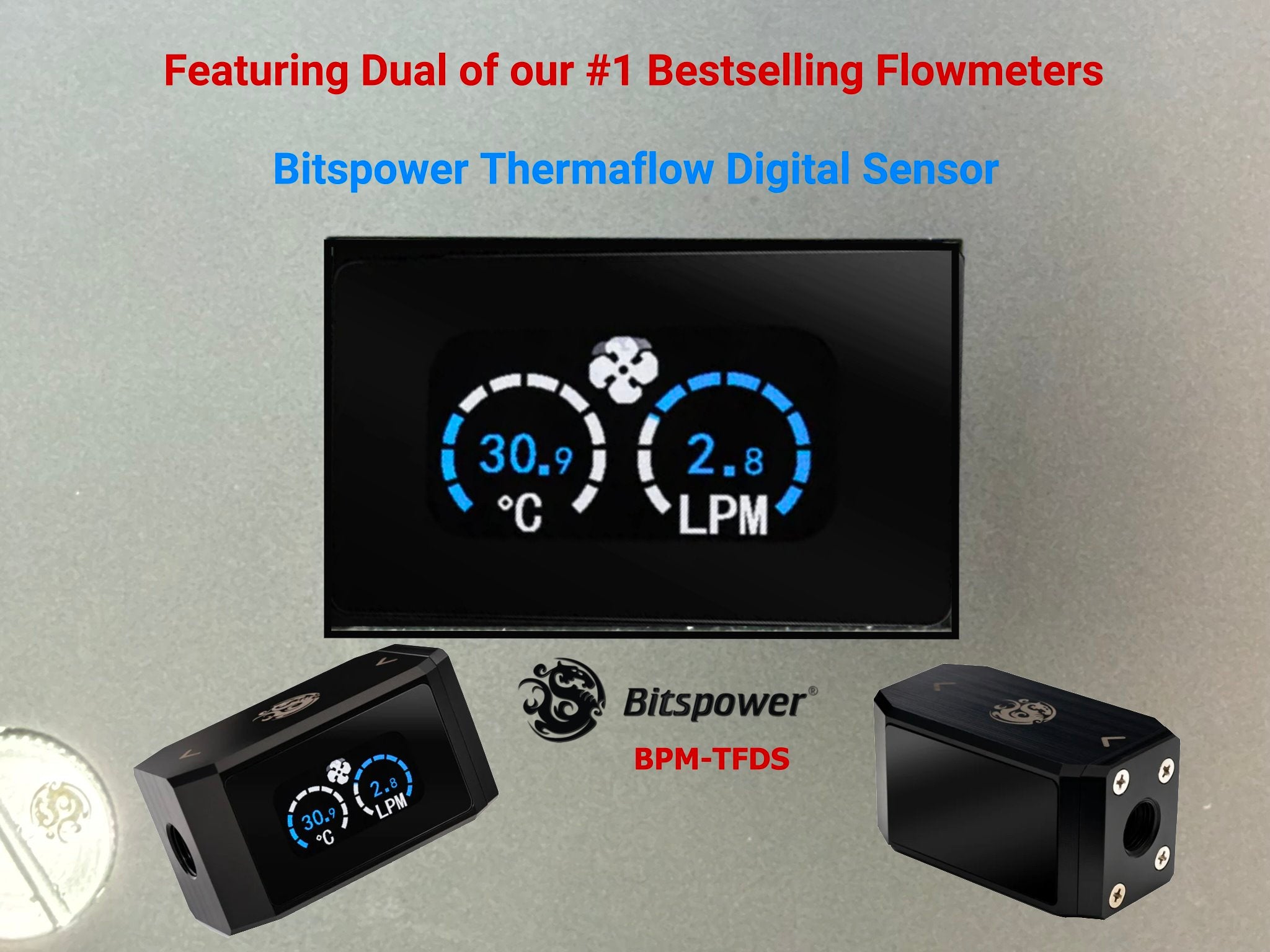

This distro plate packs in alot of amazing features and offers our first ever incorporation of flow meters/temperature readout displays within the distro. This particular distroplate is designed to house specifically 2 x Bitspower BPM-TFDS Thermaflow Digital Sensors.  We designed this distroplate to not need the gauges to be mounted but, using 2 x 90 degree fittings, you simply plumb these into each of your loops and simply push them into the provided holes/windows. The gauges will sit securely just with your hard tubes supporting and some friction from the distroplate itself.

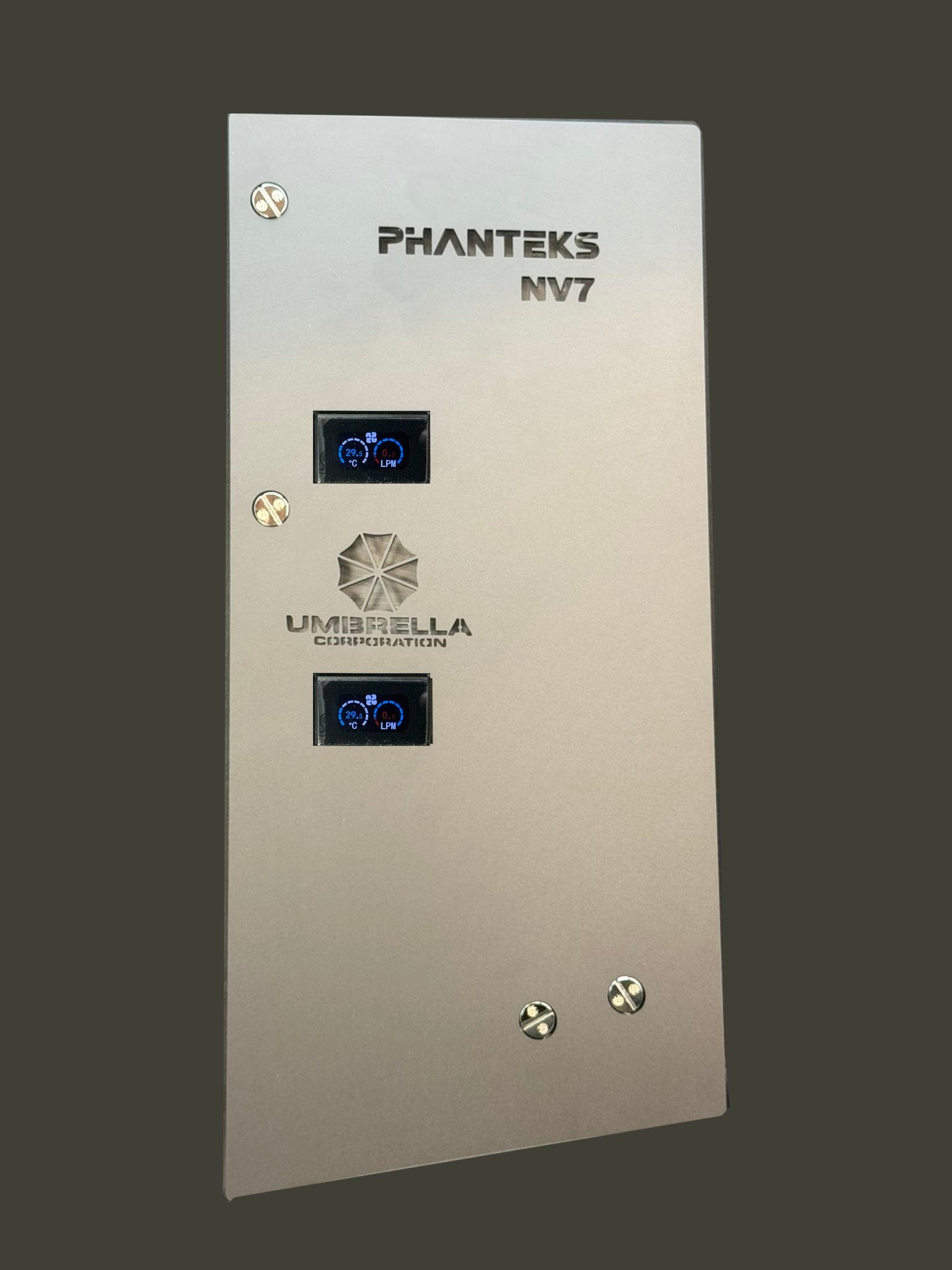

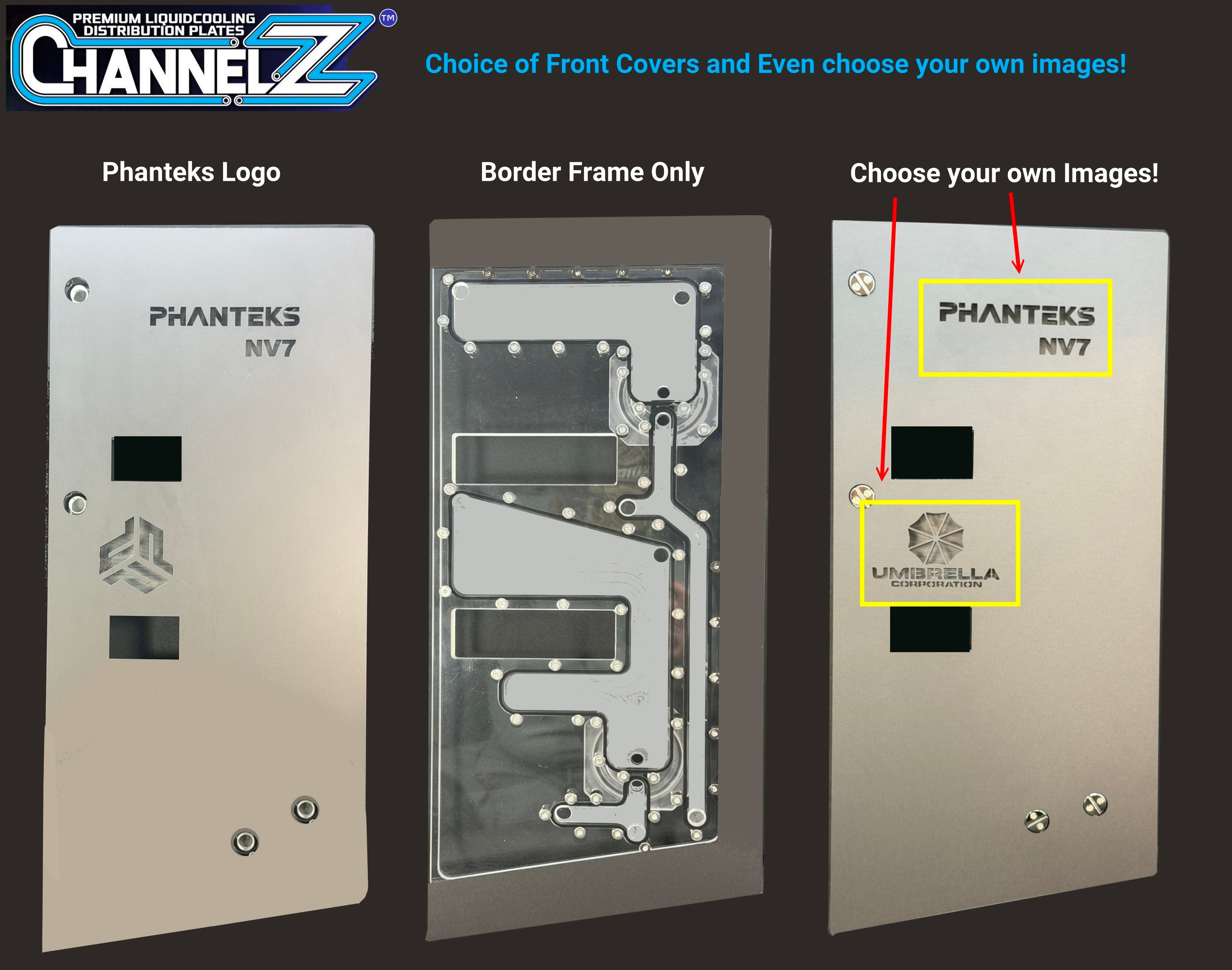

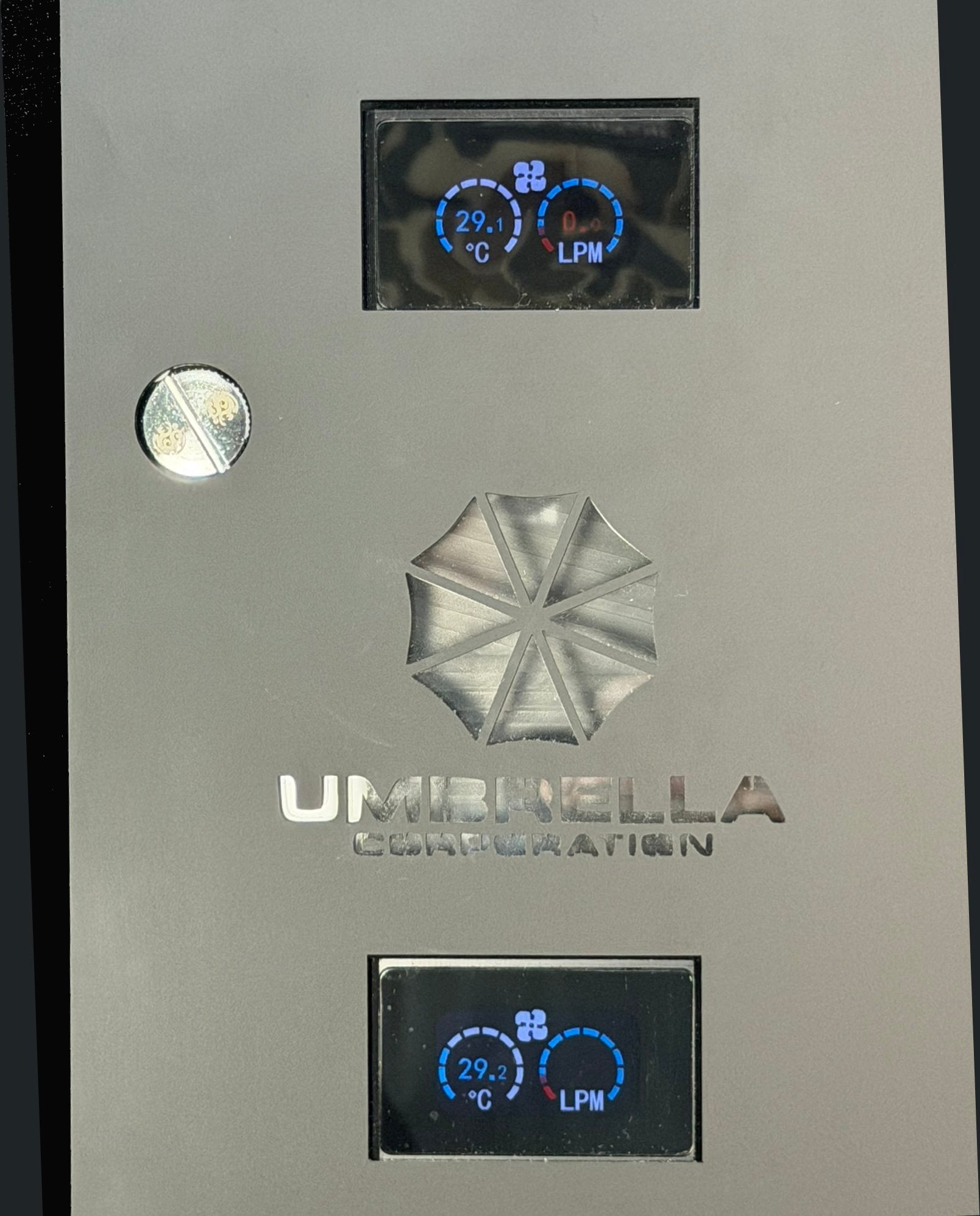

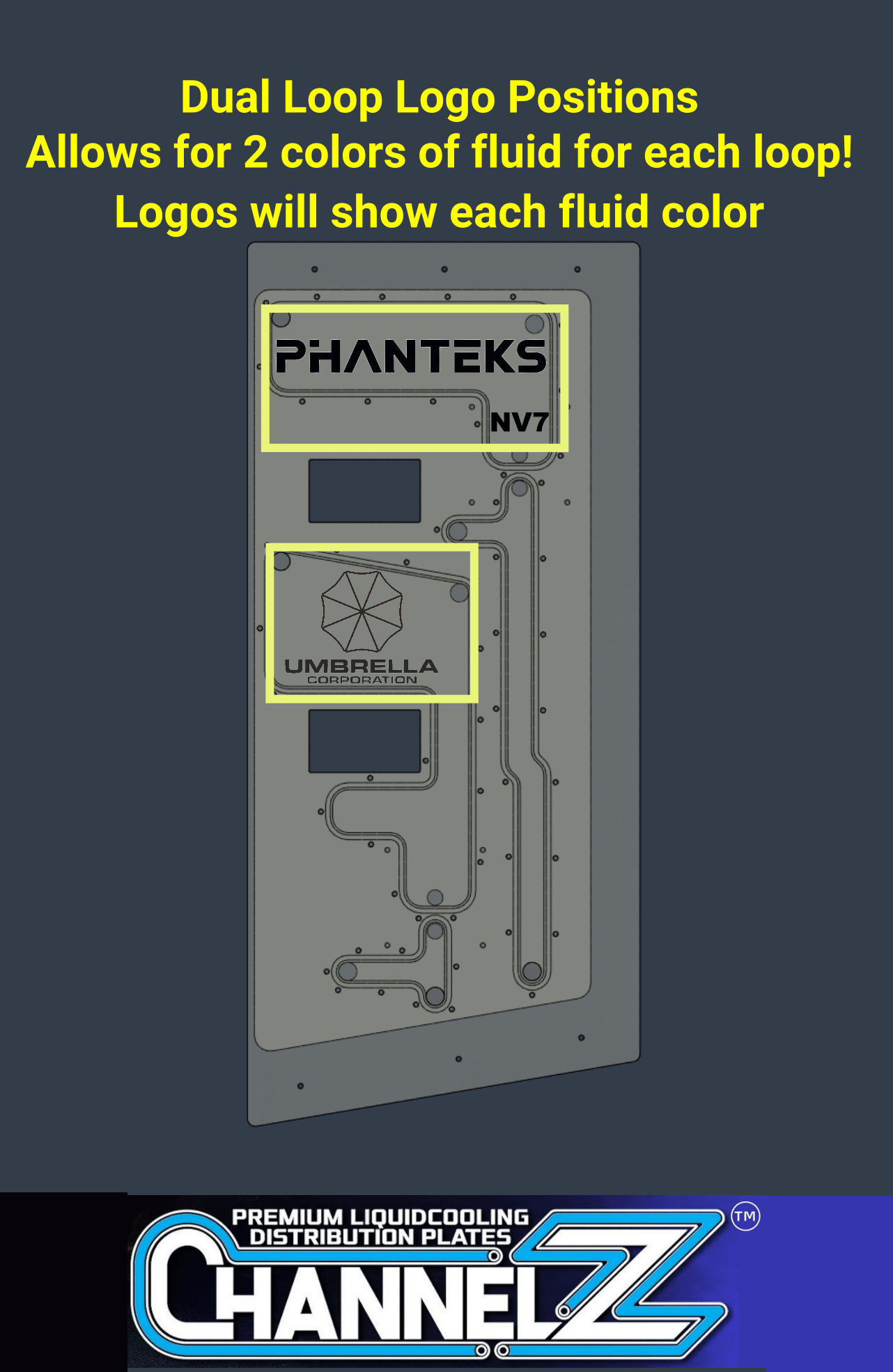

This new distroplate also offers unlimited customization's with choice of different front panel trims, or you can get your distro frosted or resin colored in the channels. You can even provide your own images if yoiu want something other then the standard Phanteks logos. See the Umbrella Corporation logo as an example and then dream up your own design!

Please Note: Maximum Radiator and Fan thickness for side Mount is 55mm and for base Radiator and Fan is 50mm.

Channelz Effectz Service

Tired of all that colored Coolant clogging up your loop but don't want to stick with some boring old clear coolant? Well Performance-PCs has you taken care of with their new Channelz Effectz Service! This service is a great way to add some color to your Channelz distribution plate without clogging your loop with pastel or mica filled coolants. We use an epoxy resin mixture that is safe for your loop and will certainly help that build POP. There is 30 different super vivid color options to choose from and we even added the ability for you to mix colors to give your loop its own style.

Designed and manufactured in the USA by Performance PCs.



Features

Installation:

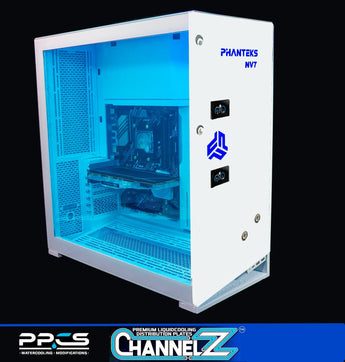

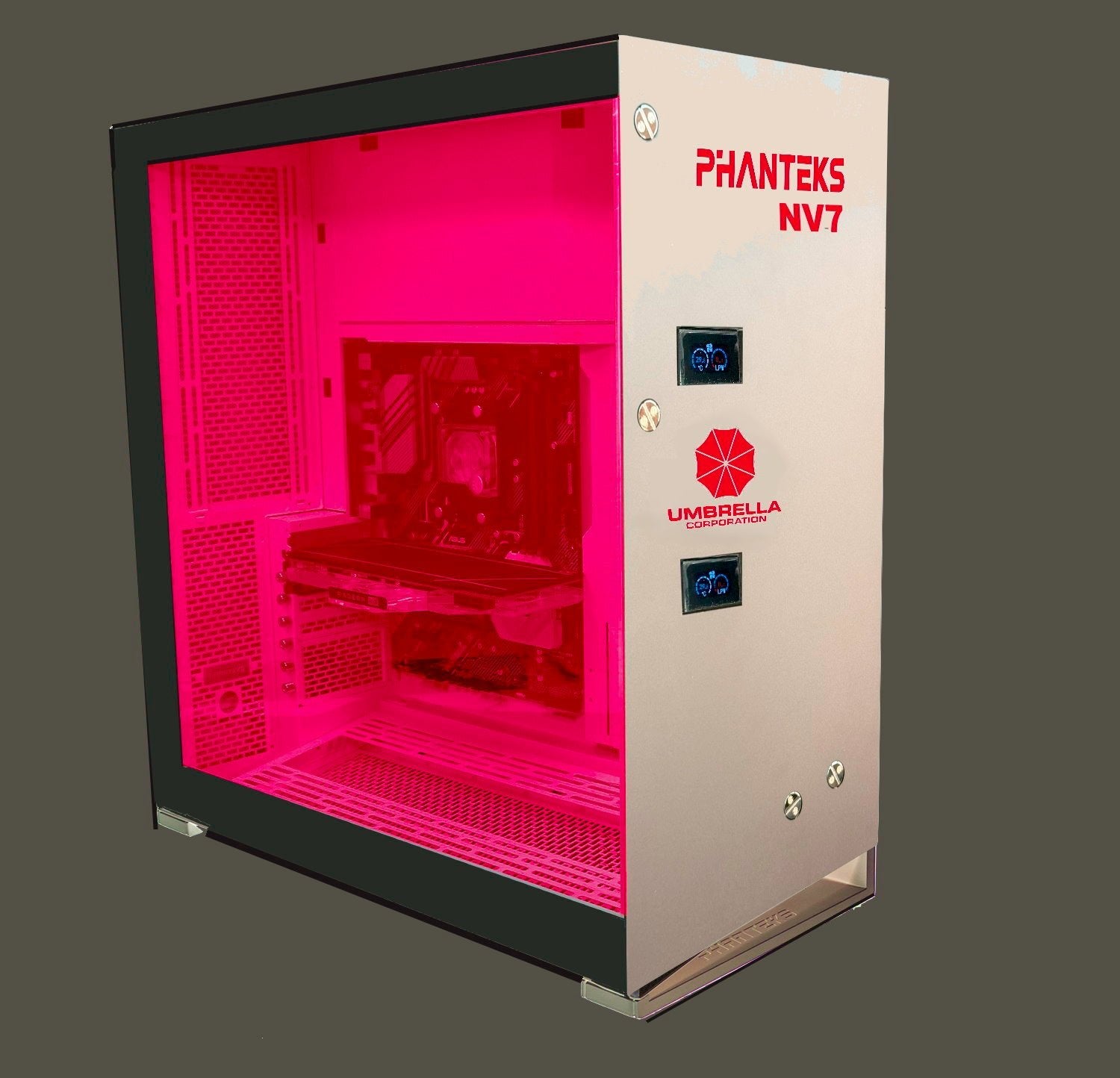

This Distro is designed to replace the Front Panel glass . Simply remove the original Front Panel and replace with the distro. The included mount screws can only attach in one place making installation a snap!

Specifications


Specifications:




  • Material: Clear Cast Acrylic.


  • Fasteners: Stainless Steel Silver. Optional other colors!


  • Gaskets: Silicone Black.


  • O-rings: Silicone Black and Clear.


  • Stop Fittings: Brass Black Powder coat.

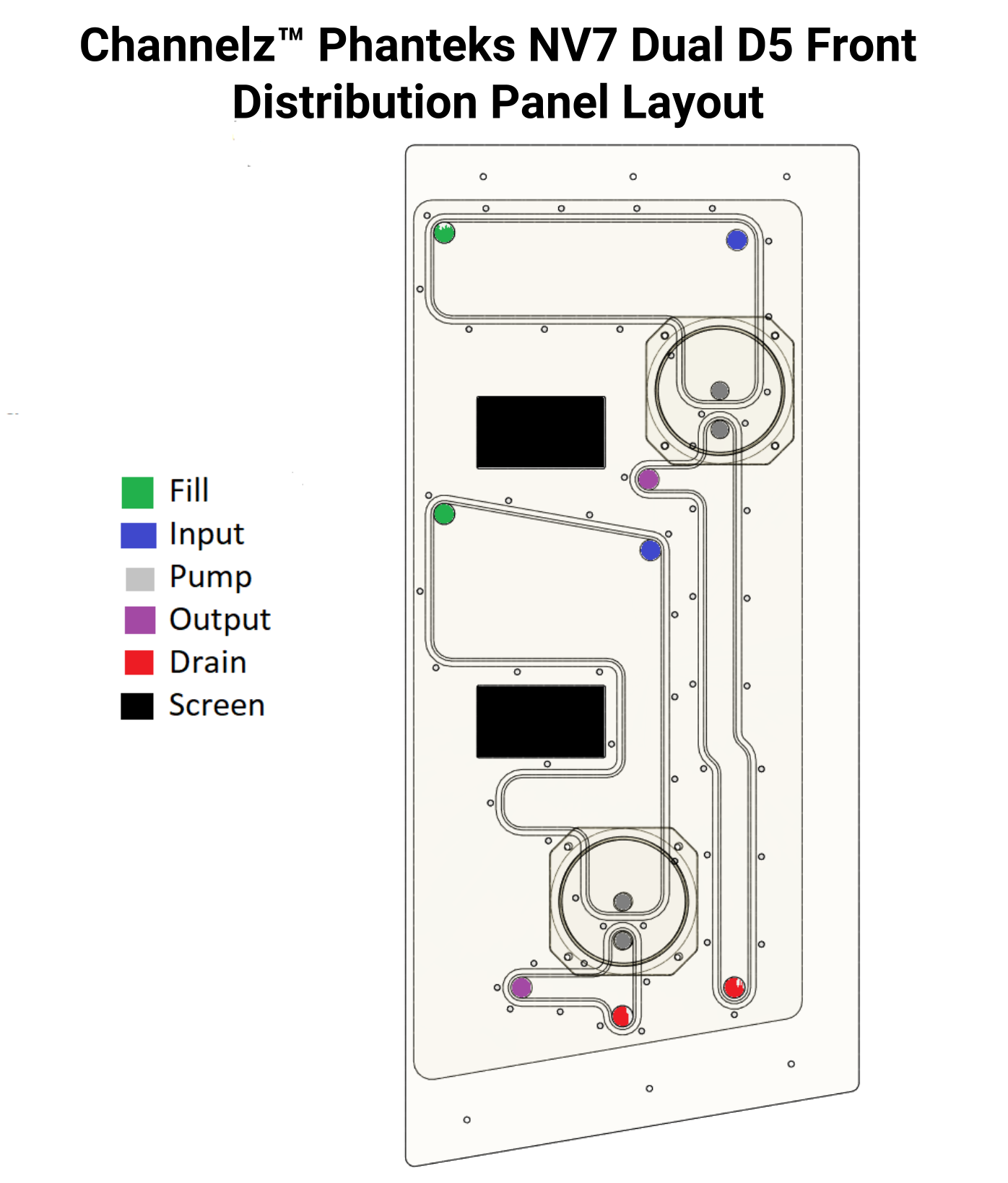

  • Ports: x8. Inlets: x2 Outlets: x2. Fill: x2 Drains x2.


  • LED Strip: Not incorporated. Use optional LED strips to backlight your colored fluid to have up to 2 different glowing colored chambers for your 2 loops


  • Dimensions: Width: 251mm. Height 565mm.





Included Items:




  • Channelz™ Phanteks NV7 Replacement Front panel Distribution Plate: x1.


  • Stop Plugs: x4


  • Mounting Fasteners: M4 x 6mm Countersunk screws: x6







Please Note: Maximum Radiator and Fan thickness for side Mount is 55mm and for base Radiator and Fan is 50mm.
