Channelz™ 360 Bridge Distroplate

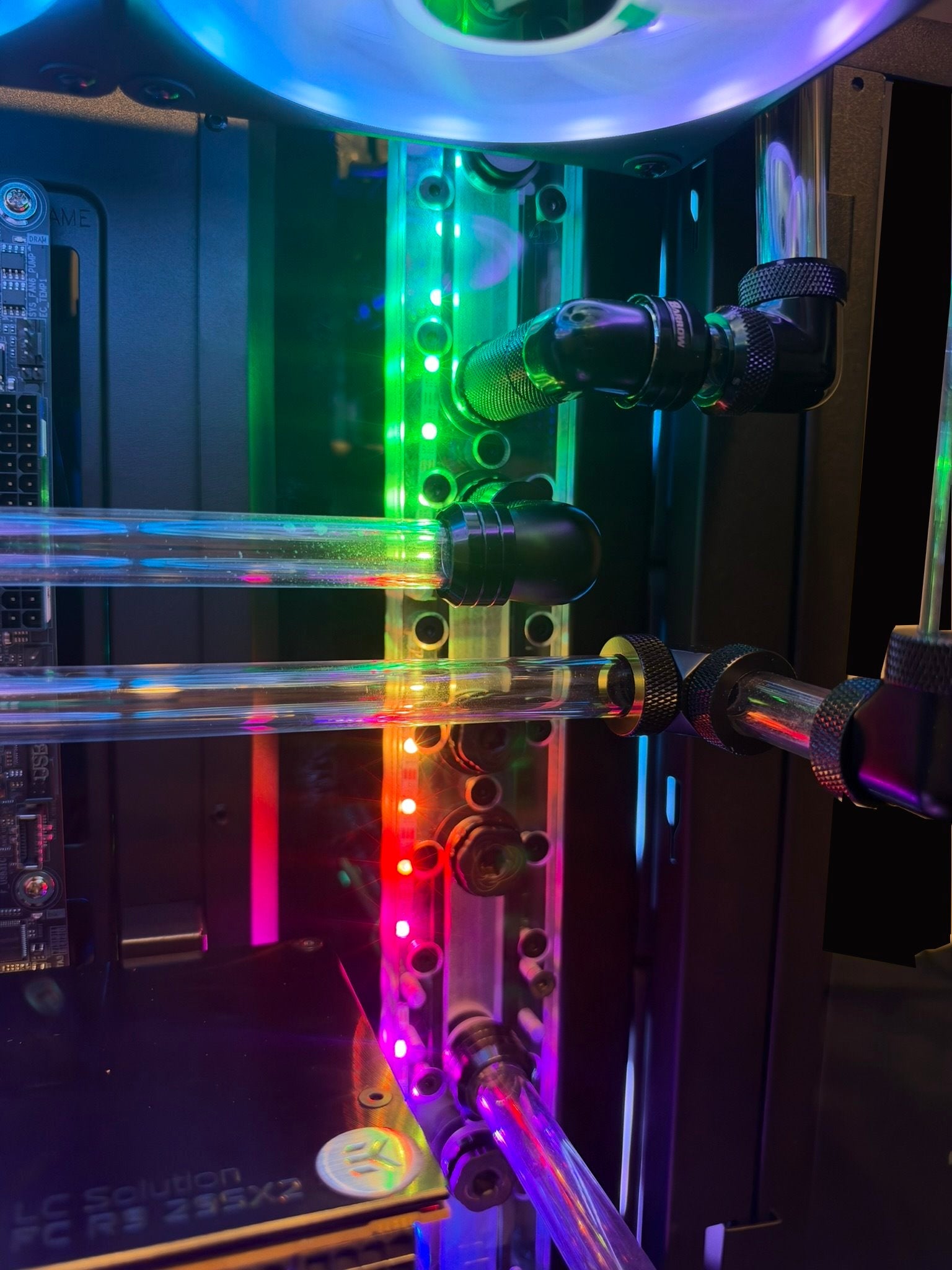

Introducing our brand new Channelz™  360 Bridge Distroplate.  Designed for those hardcore enthusiasts that insist on dual loops to separate the CPU and GPU cooling or multiple distroplate loop configuration. We designed this to be as minimalistic and as compact as possible to fit a large majority of chassis out there.

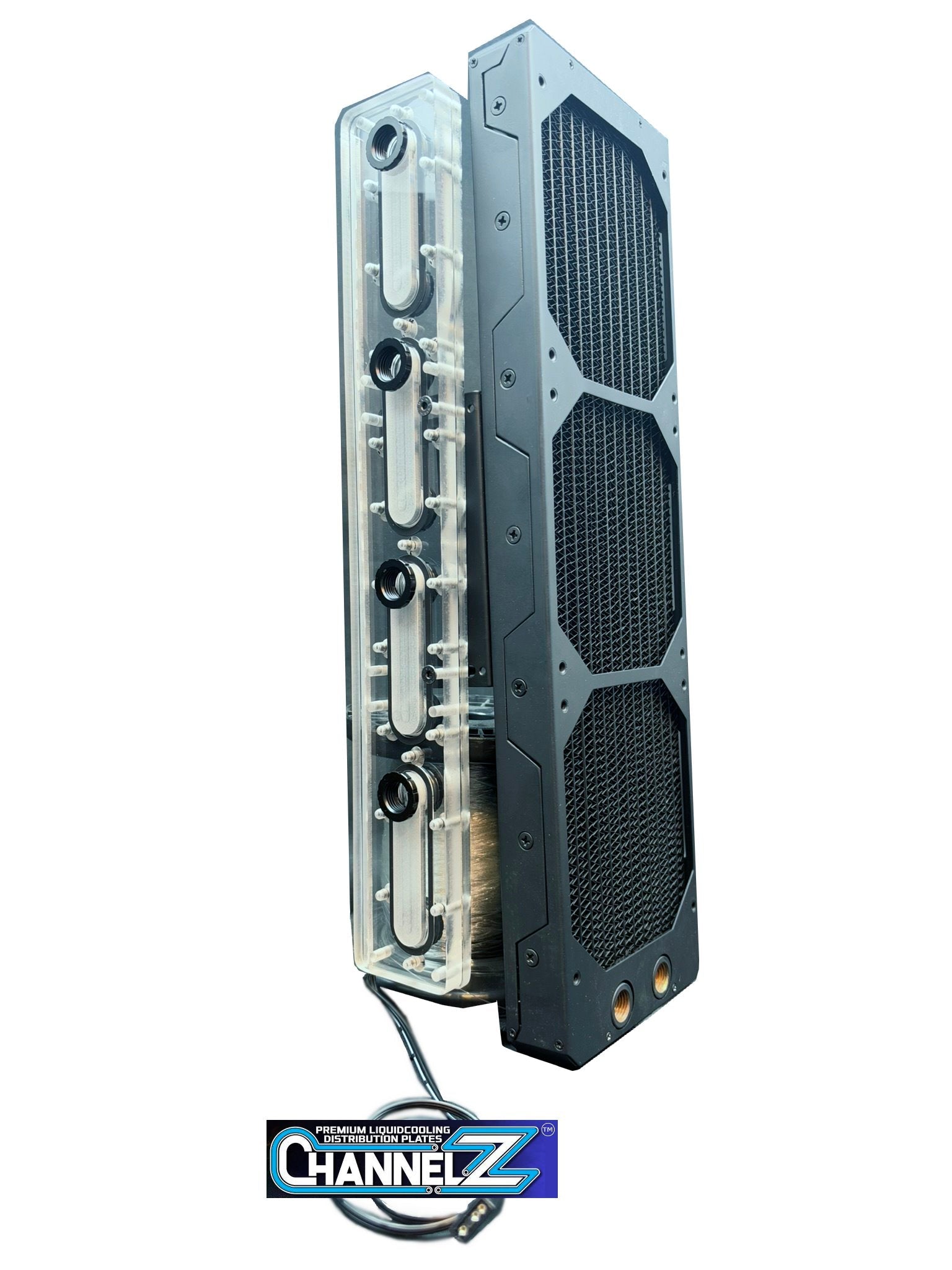

Our new 360 Bridge Distroplate is a compact  distro that basically fits any 360 radiator location. It could possibly fit elsewhere but the idea here was to create a distro bridge that takes inlet flow on the front and outlet flow on the back. This would be used when mounting a second distro to a rear location in the chassis, possibly a pump type distroplate.

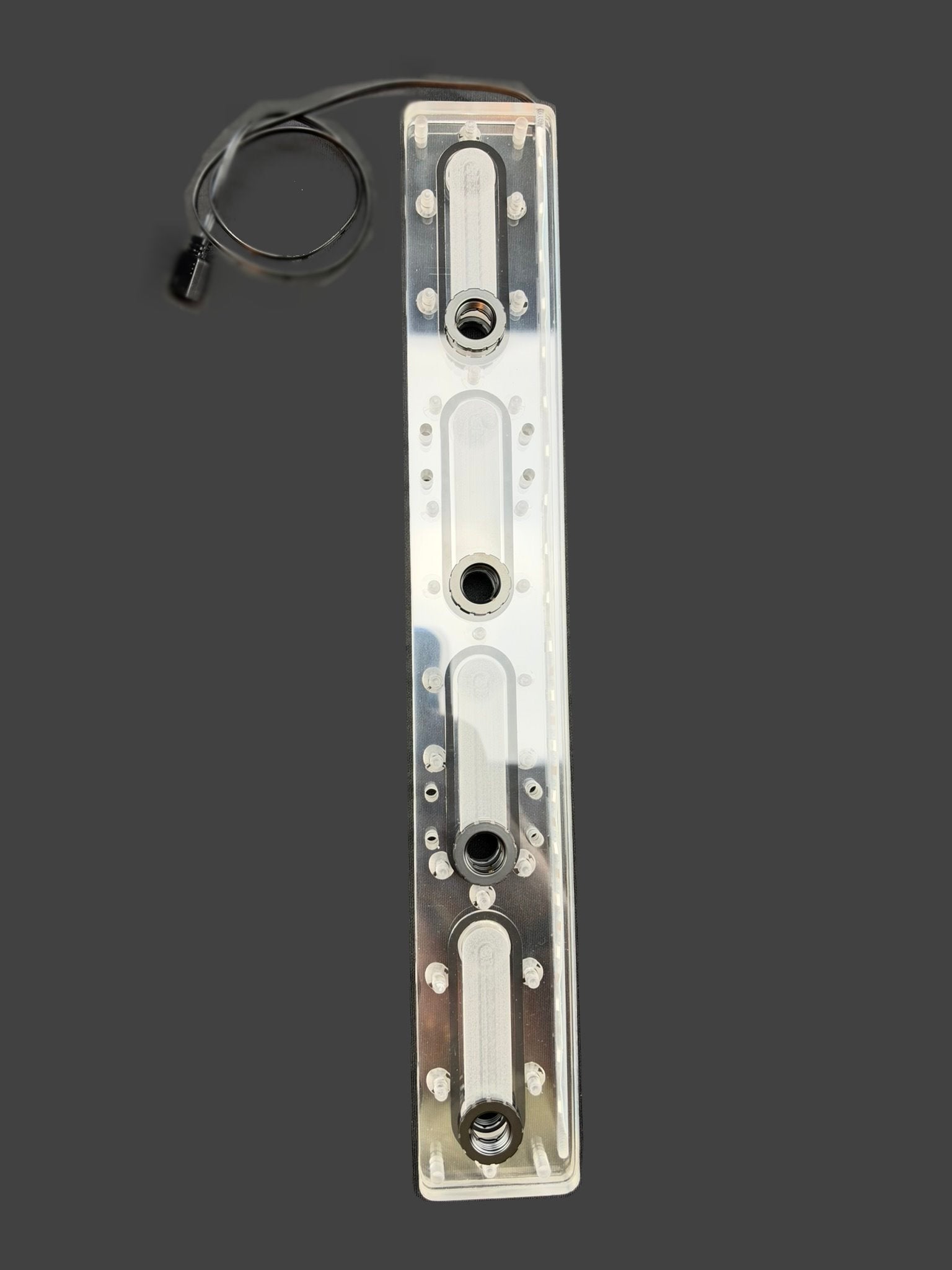

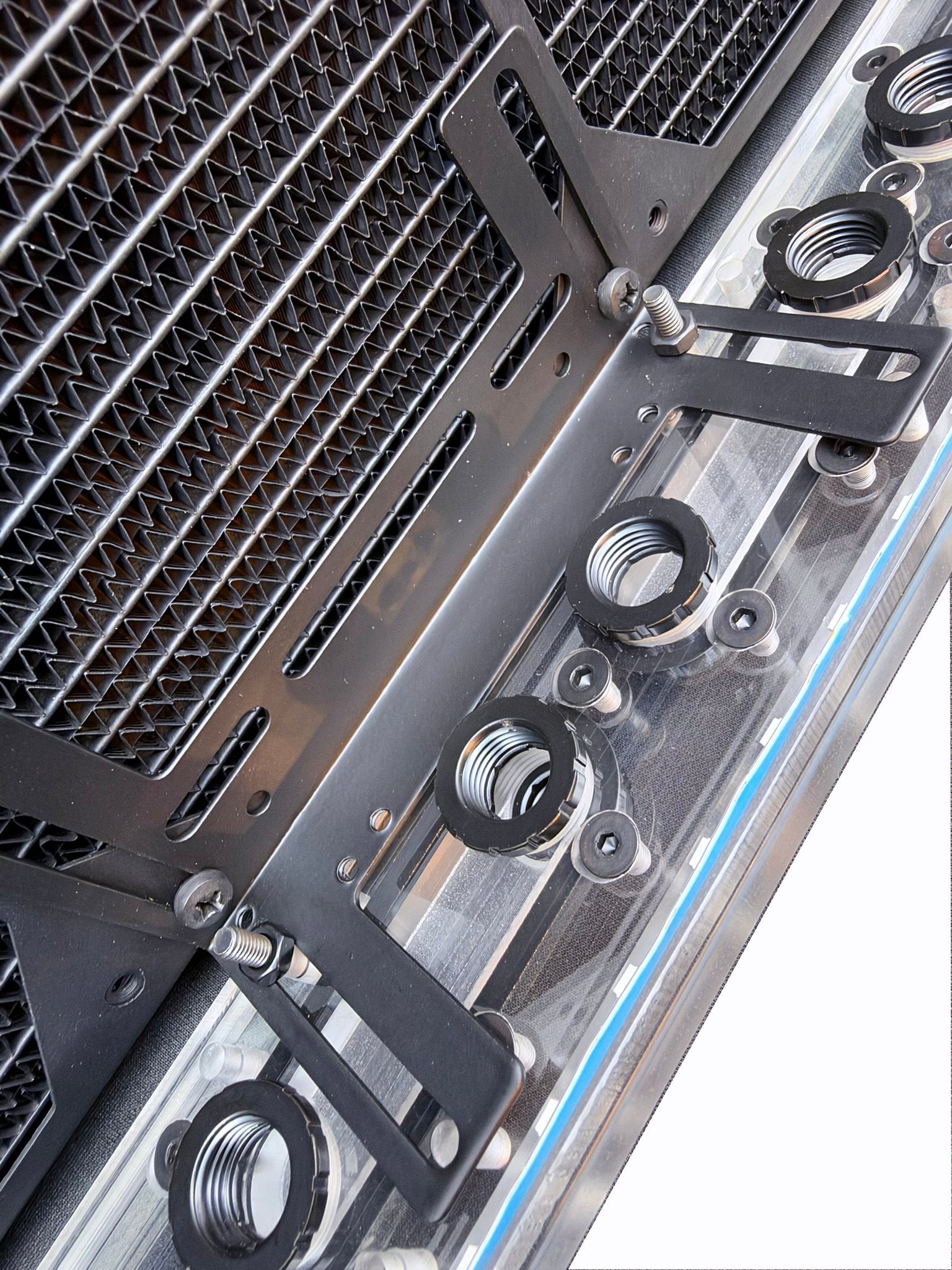

Our 360 Bridge Distroplate comes in 3 variants basically a 2, 3 or 4 chamber bridge depending on your needs. Thee distroplates feature 120mm holes on both sides of the bridge basically in a 360 rad layout. So depending on our loop design and what all is your chassis, you can choose any 2 holes at 120mm spacing to hold this compact and light bridge. We offer a 120mm bracket mount that is perfect for securing this bridge to your selected 120m hole spacing. These brackets are 90 degrees and are also compact and easy to install with this bridge. Our Channelz™ 120mm distroplate bracket comes with various mounting hardware to attach the Channelz™ Bridge to your selected 120mm rad or fan mount location. We are please to offer our 120mm mount in black or white powderoat colors. What more could you ask for??

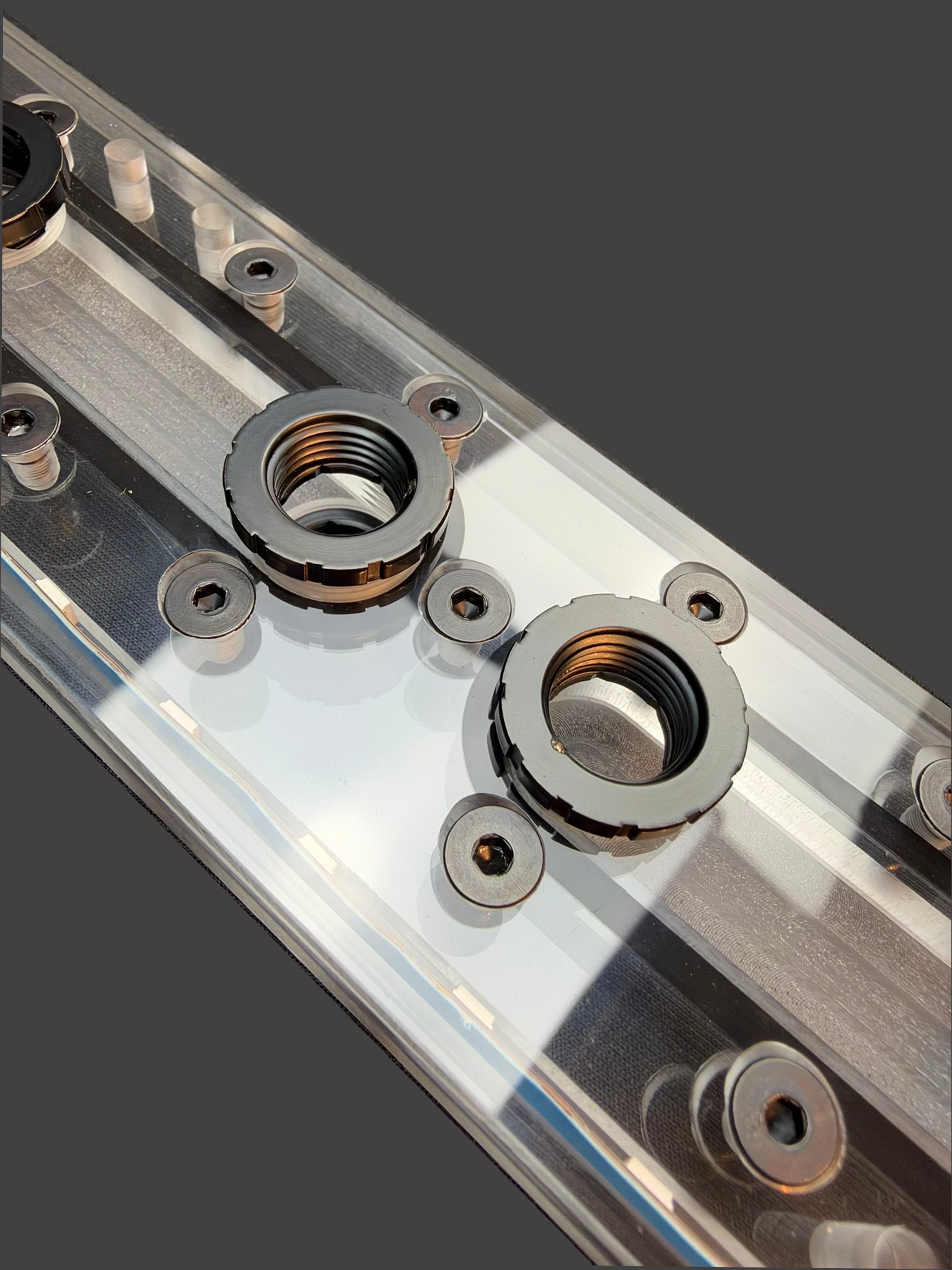

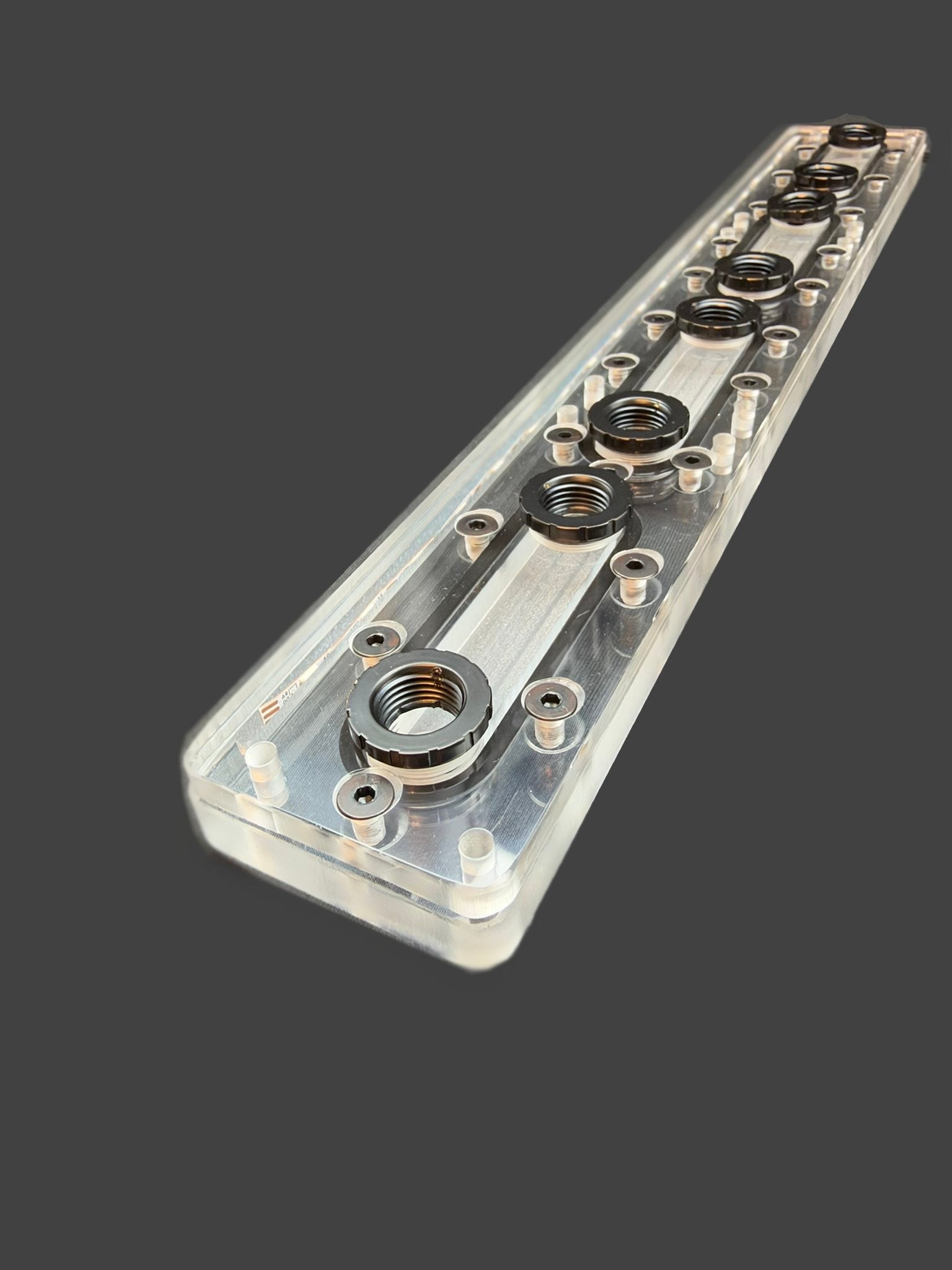

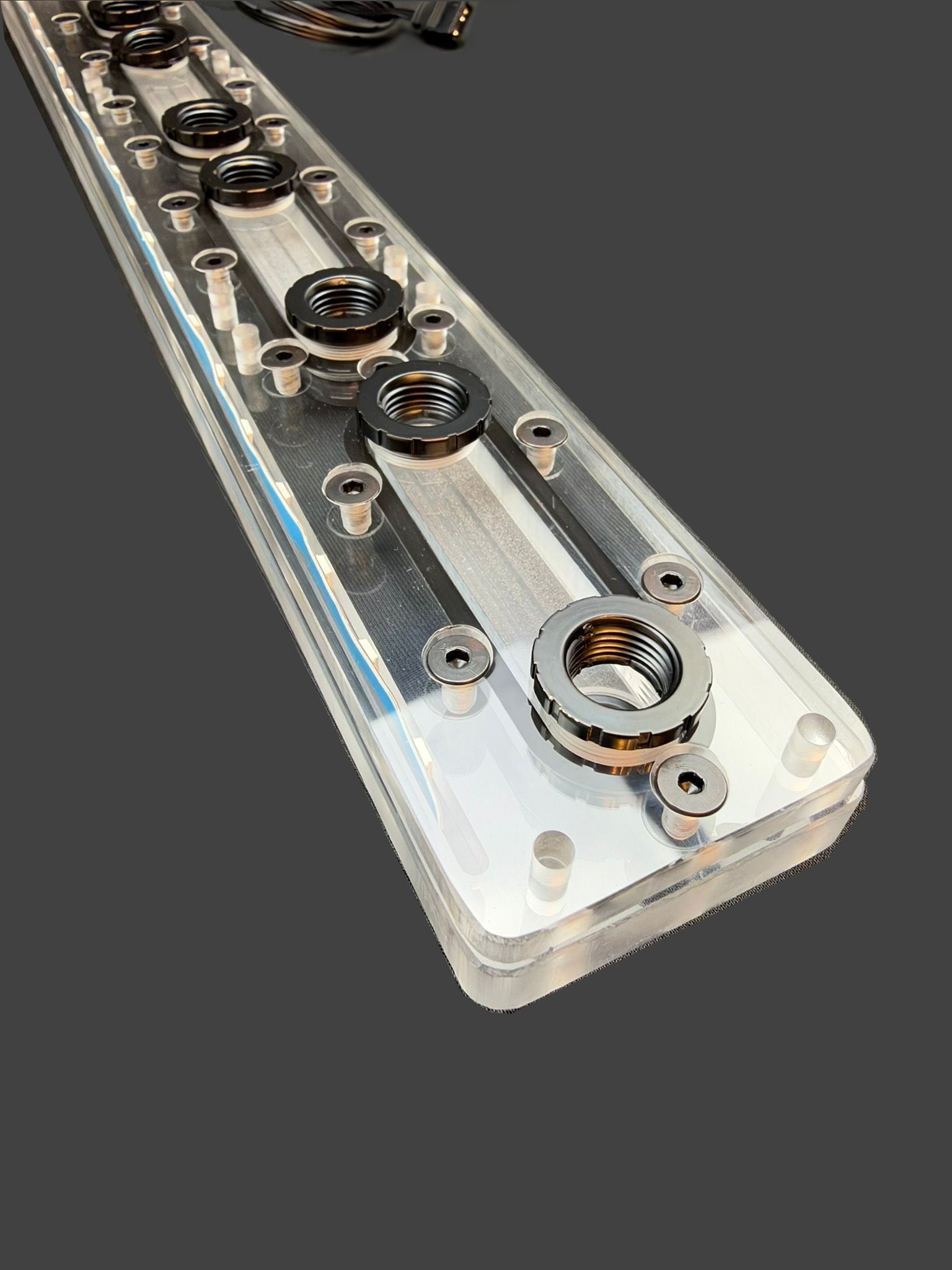

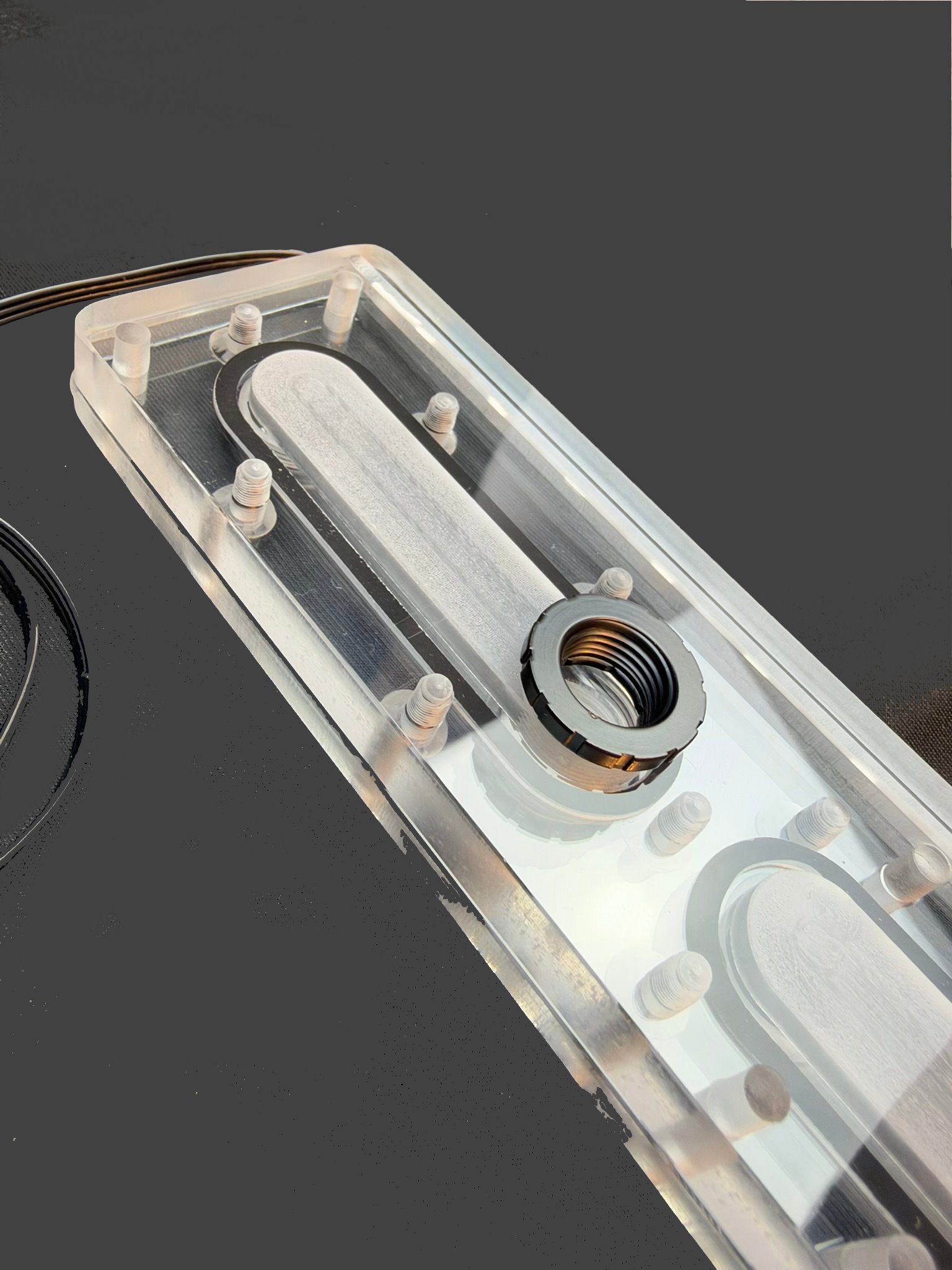

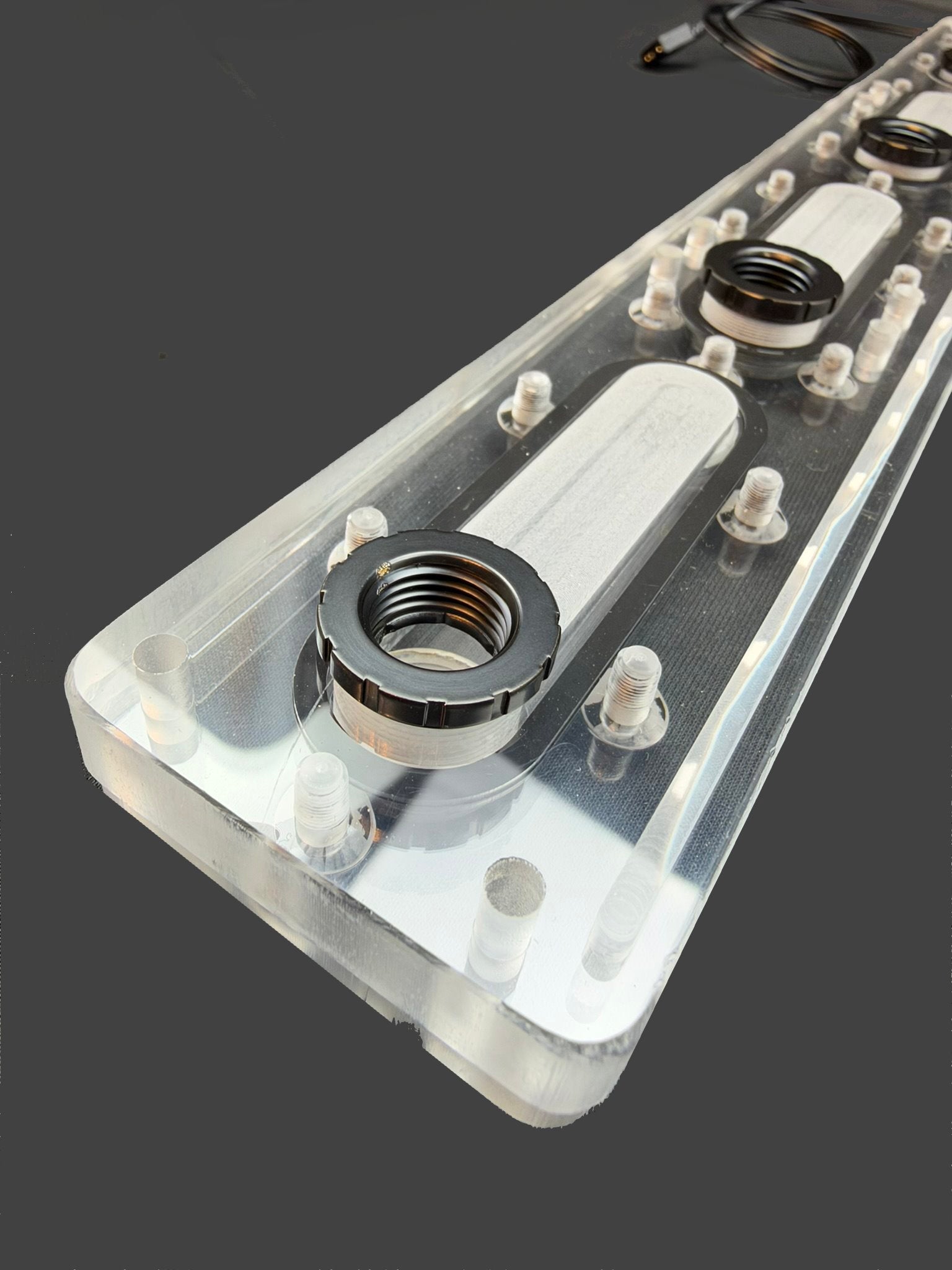

We also are now pleased to offer distroplate insert fittings that Singularity Computers designed for us and gives this distroplate a much more clean and expensive look. But other than aesthetics we will now include these inserts with all our new distroplate designs because it virtually eliminates cross-threading or damaging the G 3/8 threads on this distro. The G3/8 insets of course convert down to metal G1/4 female threads for the fittings of your choice. Finally, the fittings come in a beautiful satin black color but, for a small extra fee, we can Cerakote these inserts to any color you desire! Other options we offer with all our distros are choice of colored screws, choice of black or clear gaskets, a frosted acrylic option and even Channelz™ resin colored chambers! Go nuts and be creative!!

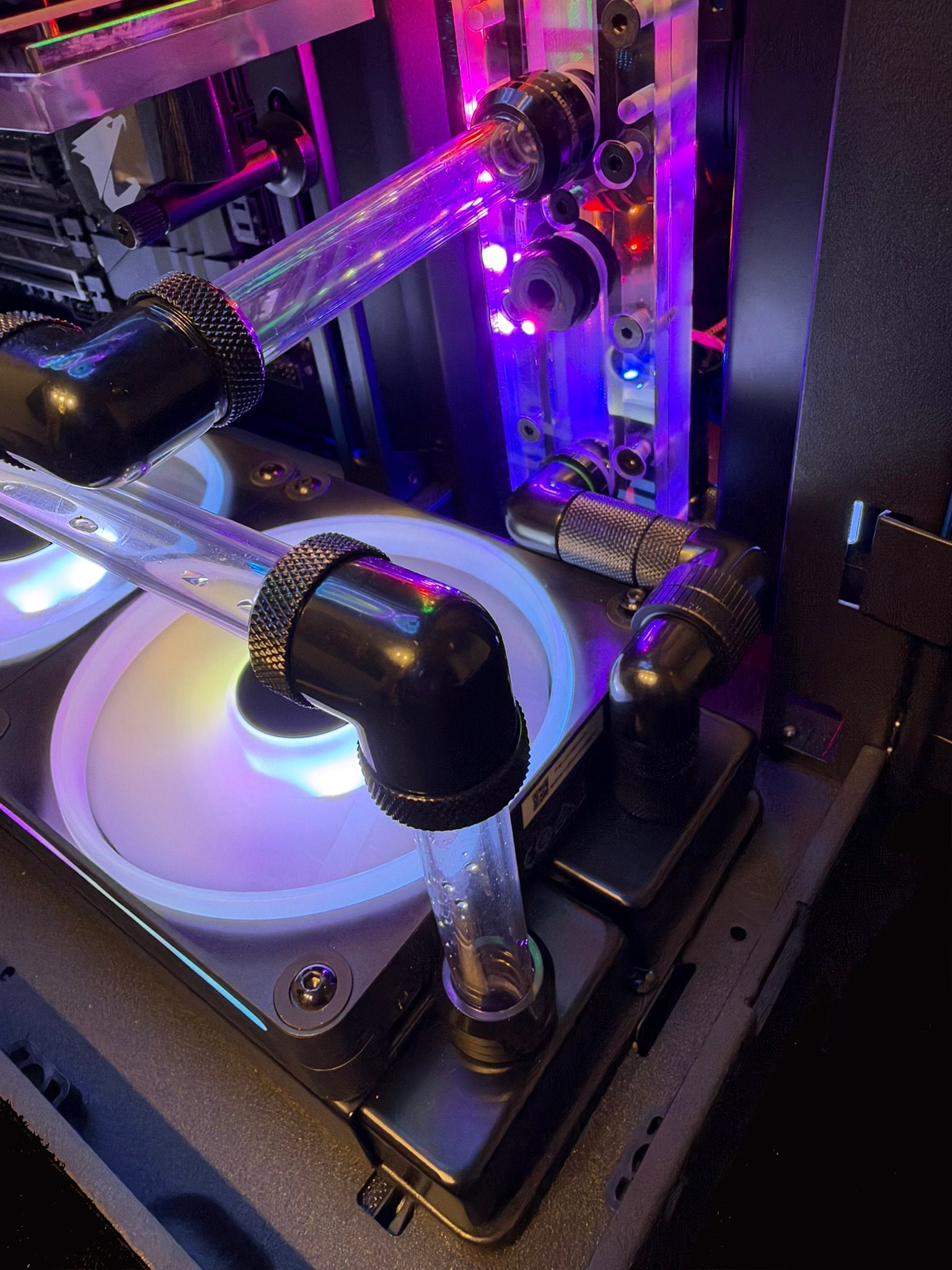

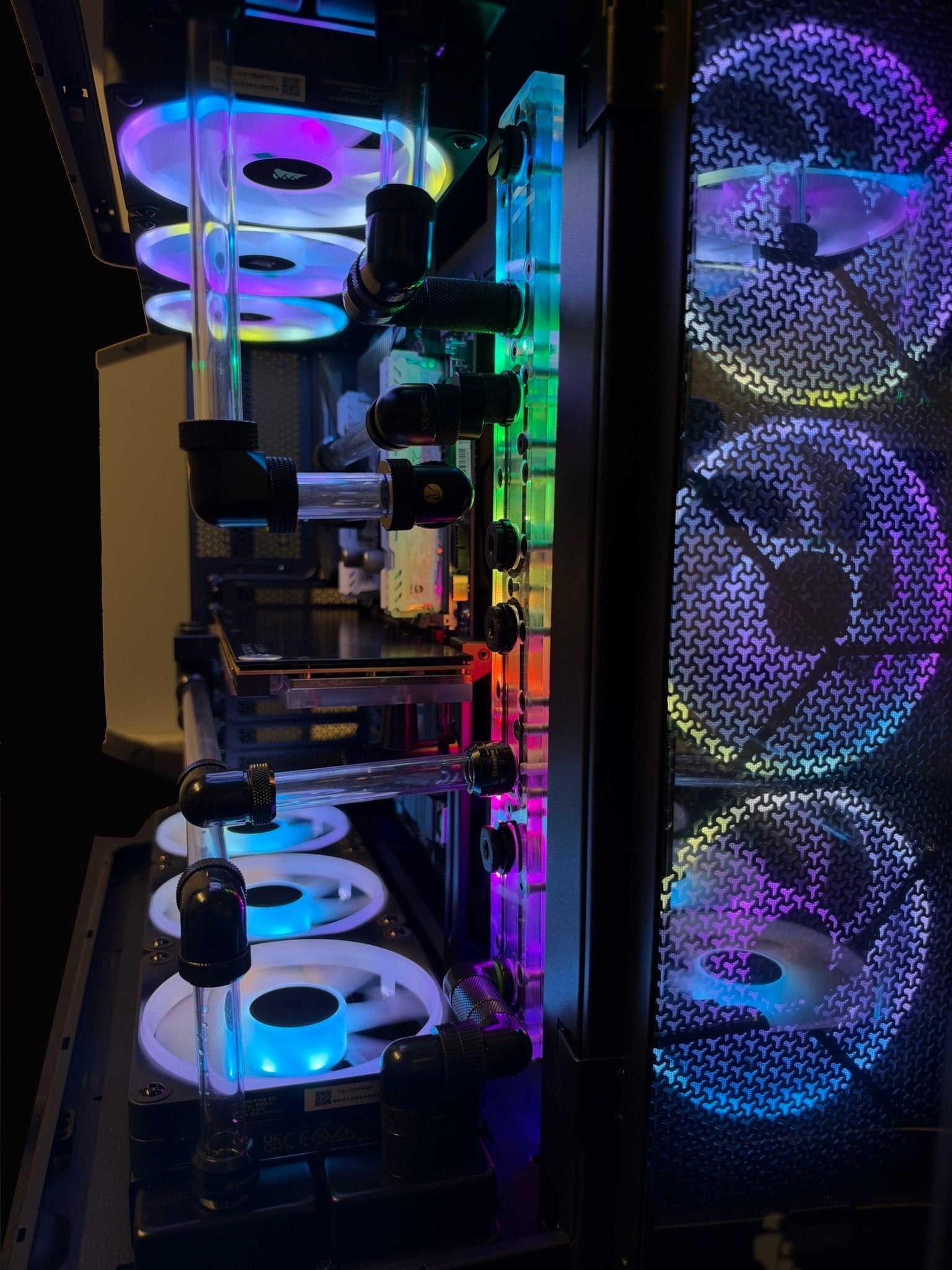

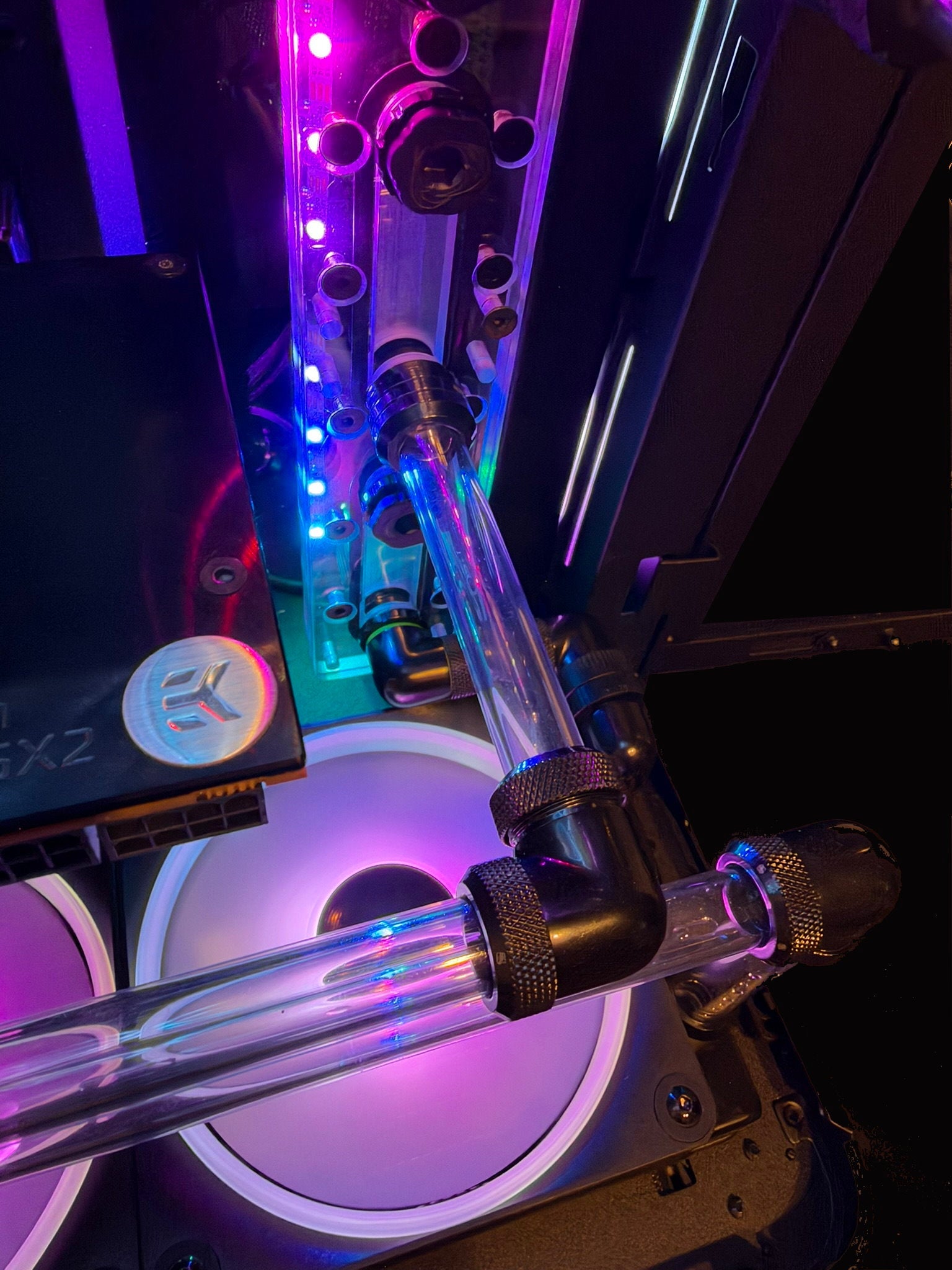

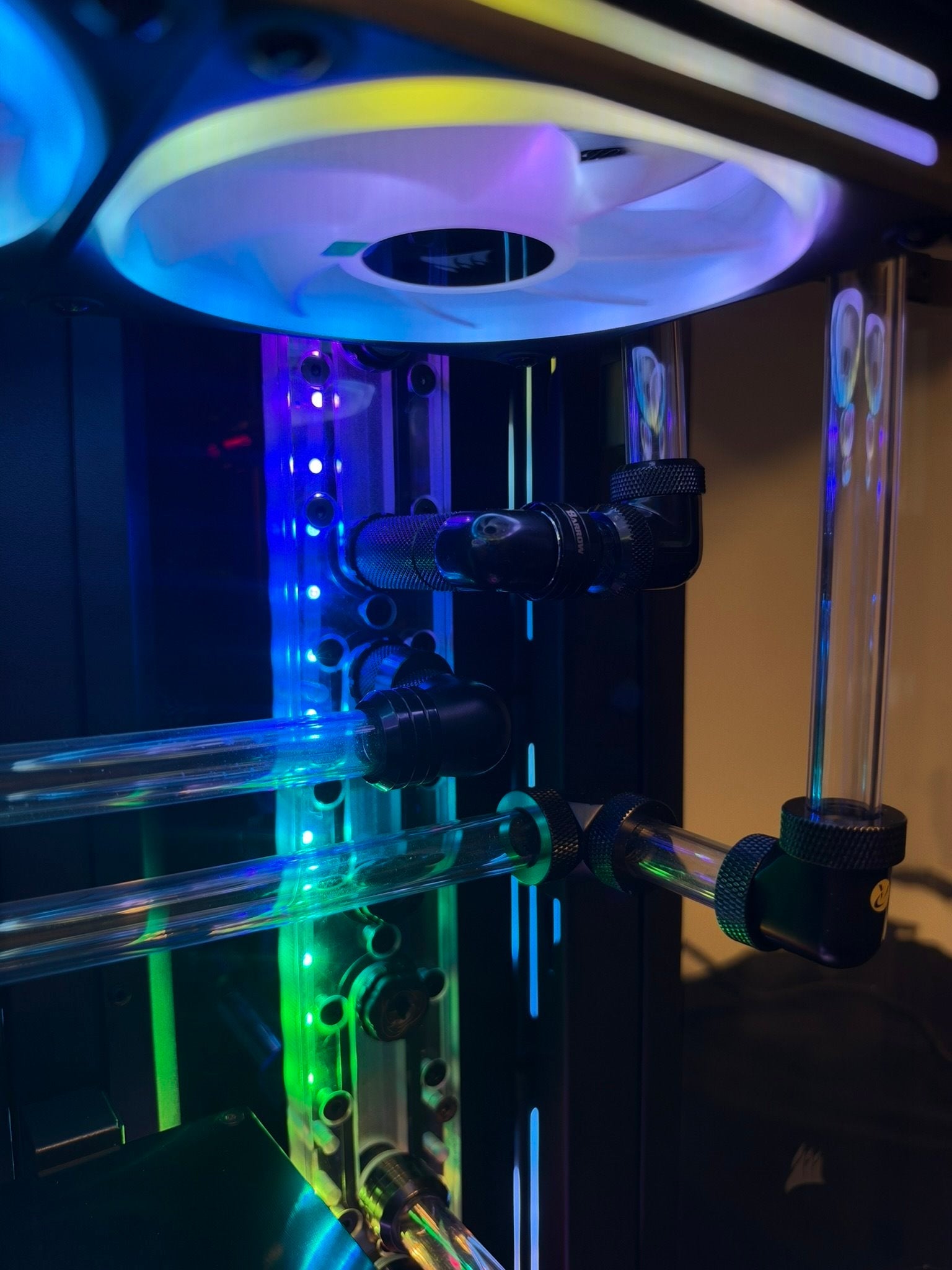

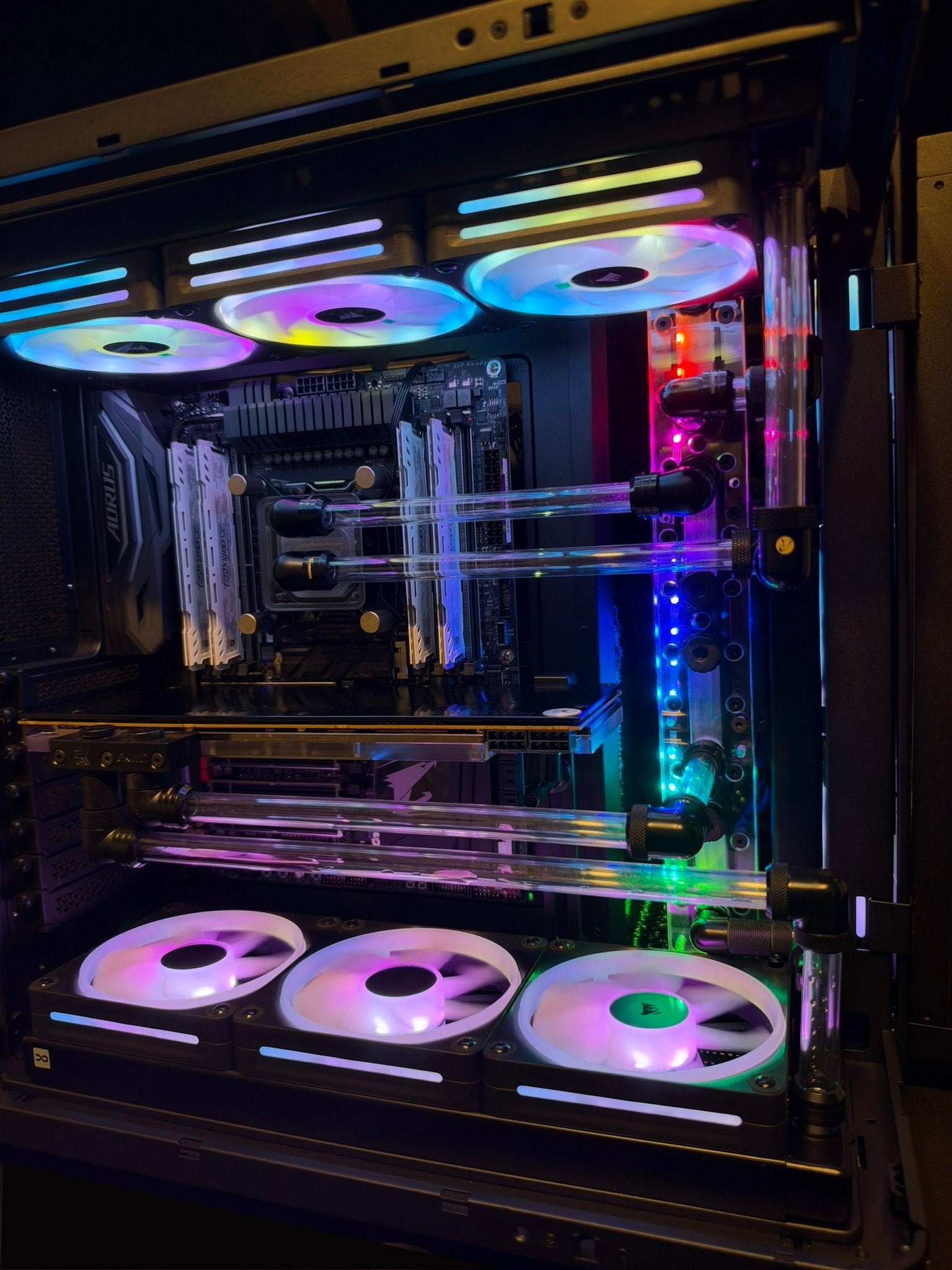

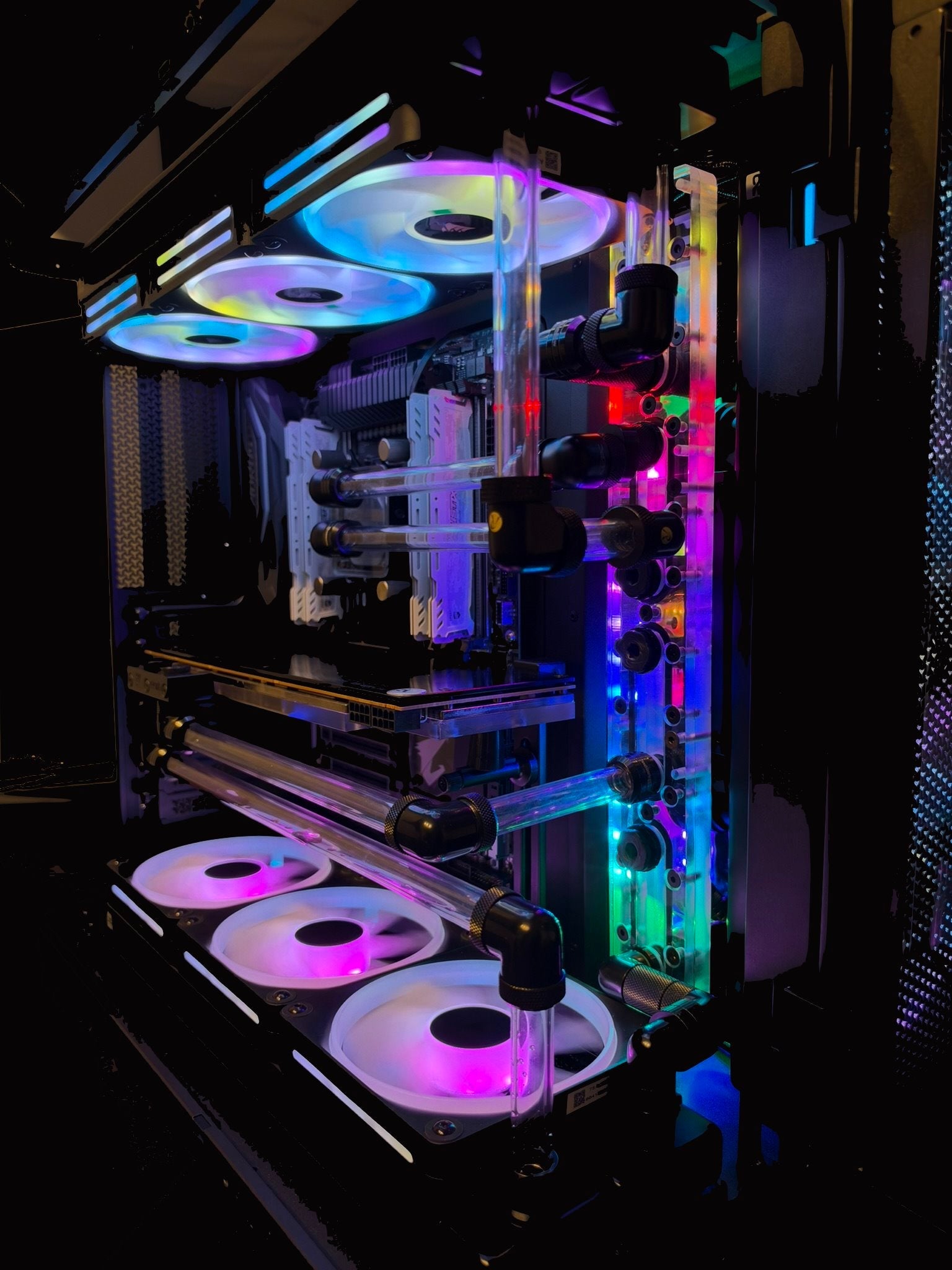

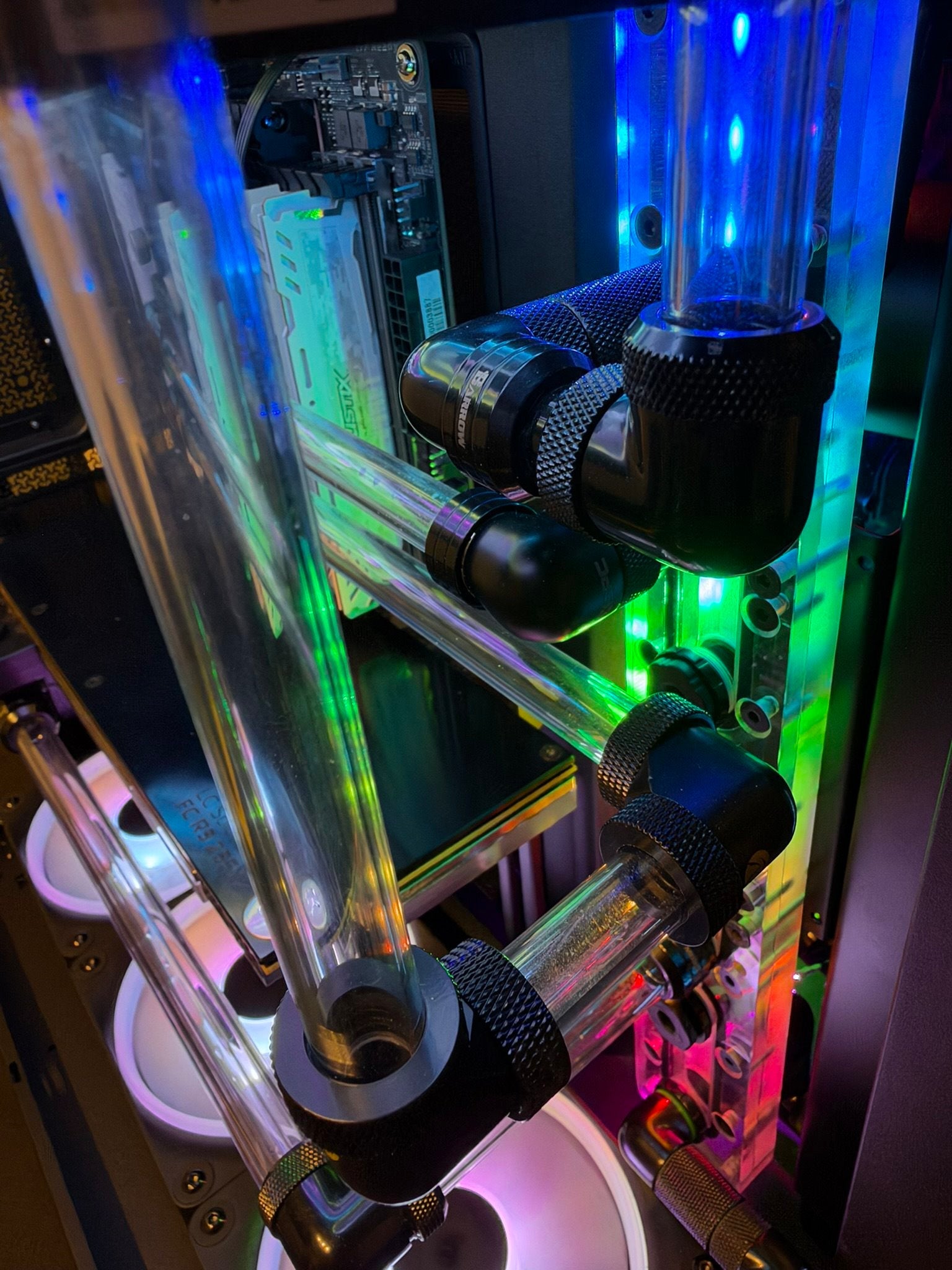

Please note that this distroplate is only one component in your loop and possibly another distro can be used in conjunction with this one to channel your flows from CPU blocks, GPU blocks, radiators, etc. and complete your full loops. Specifically this distroplate is perfect to use in larger chassis where you can use our Channelz™ Universal Dual D5 Pump Distroplates to deliver fluid from one section of your chassis to another section holding the pump distroplate. Our Bridge-style distroplatres have front intakes and rear outlets to channel your fluid from the front to the back of your chassis. Honestly using our 360 or 420 Bridge Distroplates along with our universal pump distroplates is as minimalistic as possible and will take up the least amount of real estate in your chassis while still delivering a multitude of options and loop configuration choices.

Designed and manufactured in the USA by Performance PCs.™



Channelz Effectz™ Service

Tired of all that colored Coolant clogging up your loop but don't want to stick with some boring old clear coolant? Well Performance-PCs has you taken care of with their new Channelz™ Effectz Service! This service is a great way to add some color to your Channelz™ distribution plate without clogging your loop with pastel or mica filled coolants. We use an epoxy resin mixture that is safe for your loop and will certainly help that build POP. There is 30 different super vivid color options to choose from and we even added the ability for you to mix colors to give your loop its own style.

Installation:

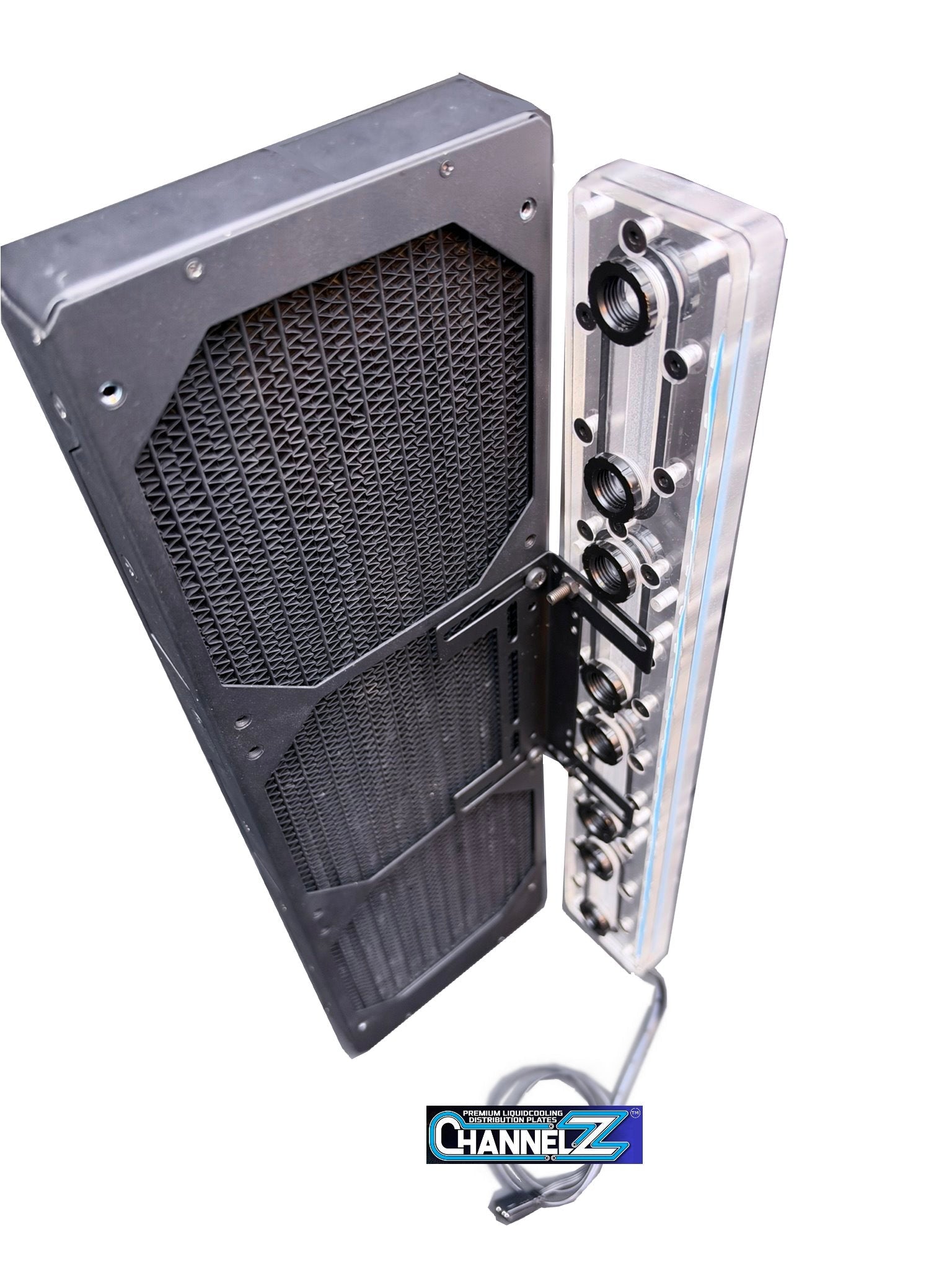

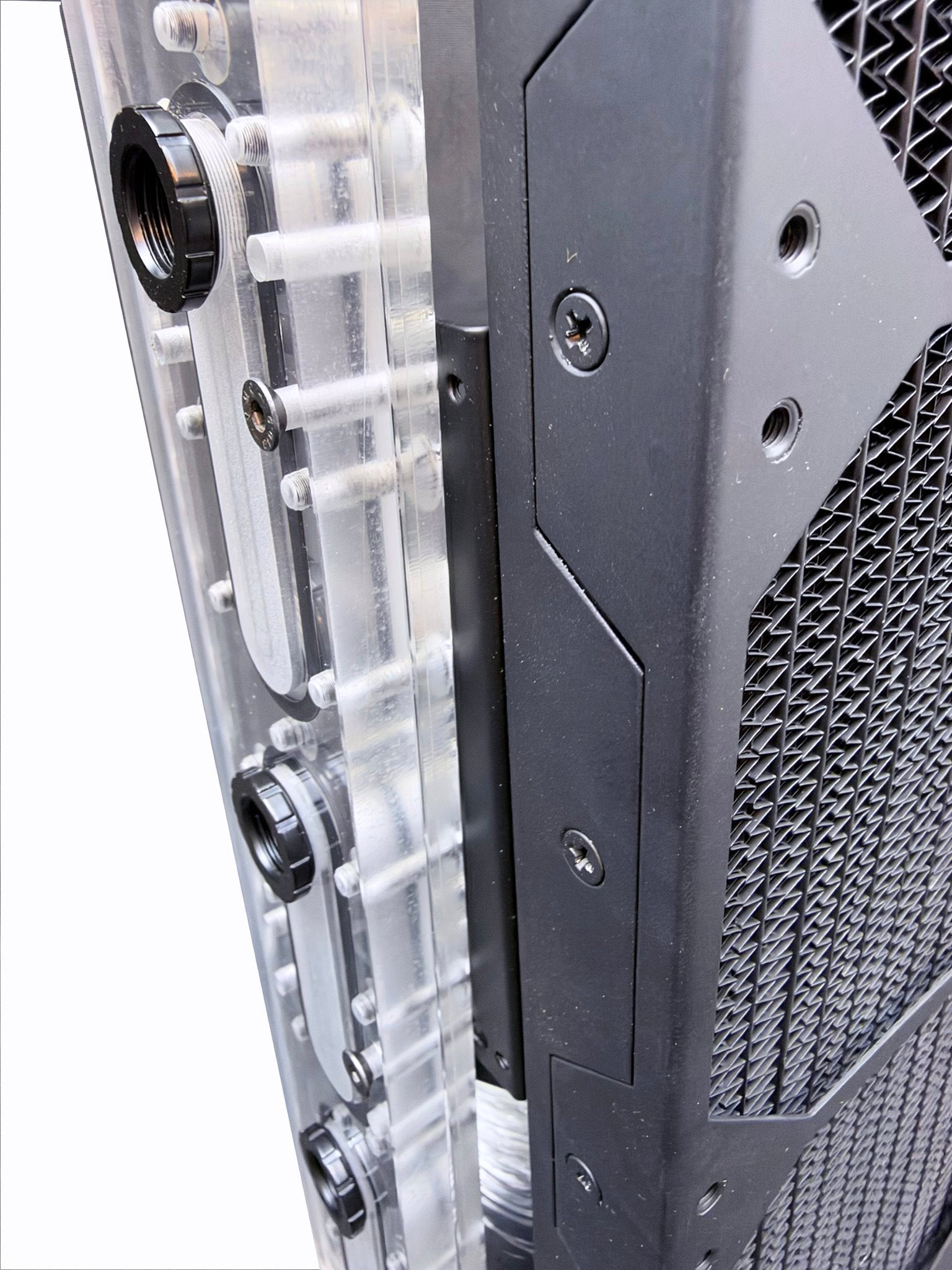

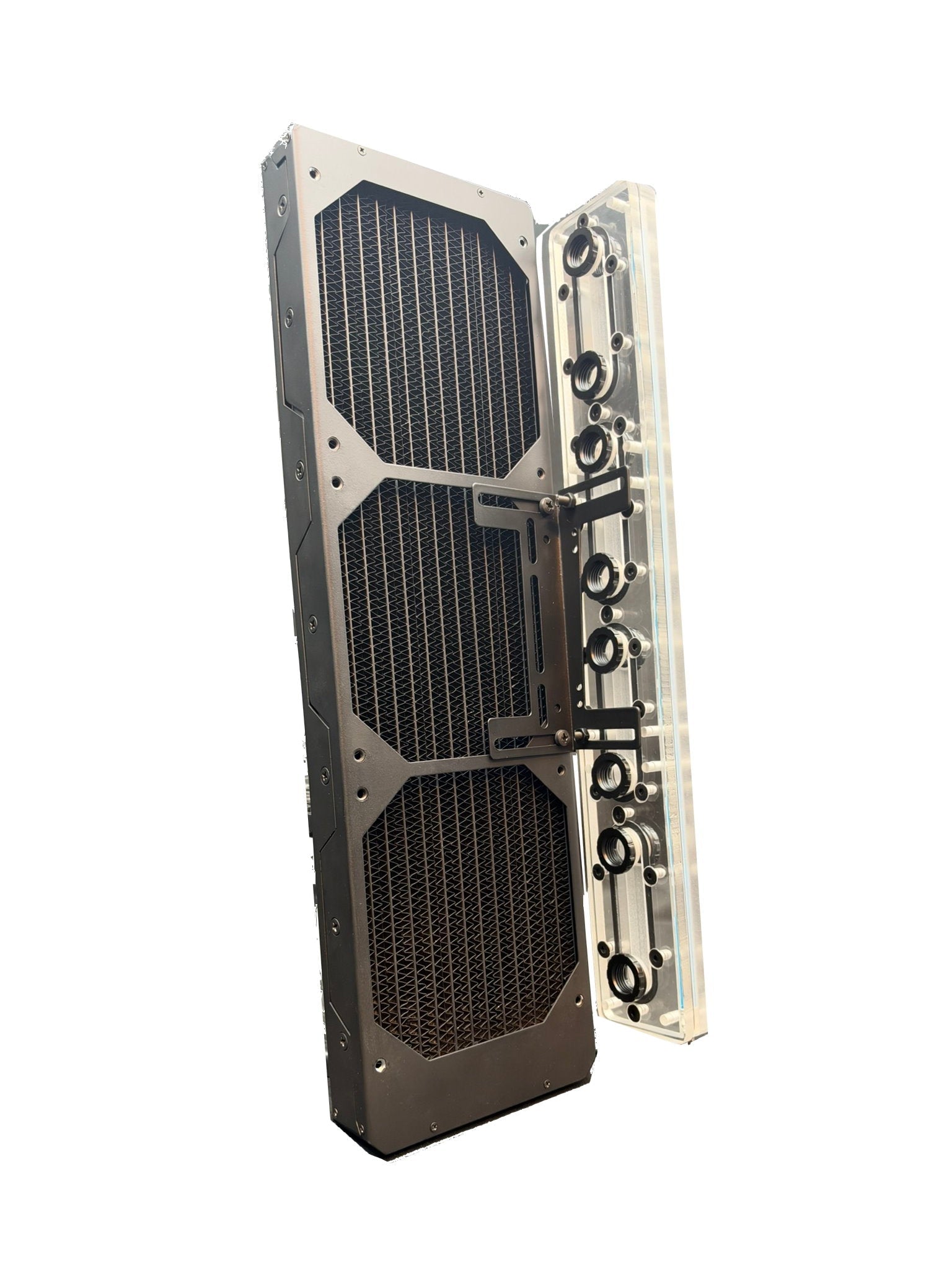

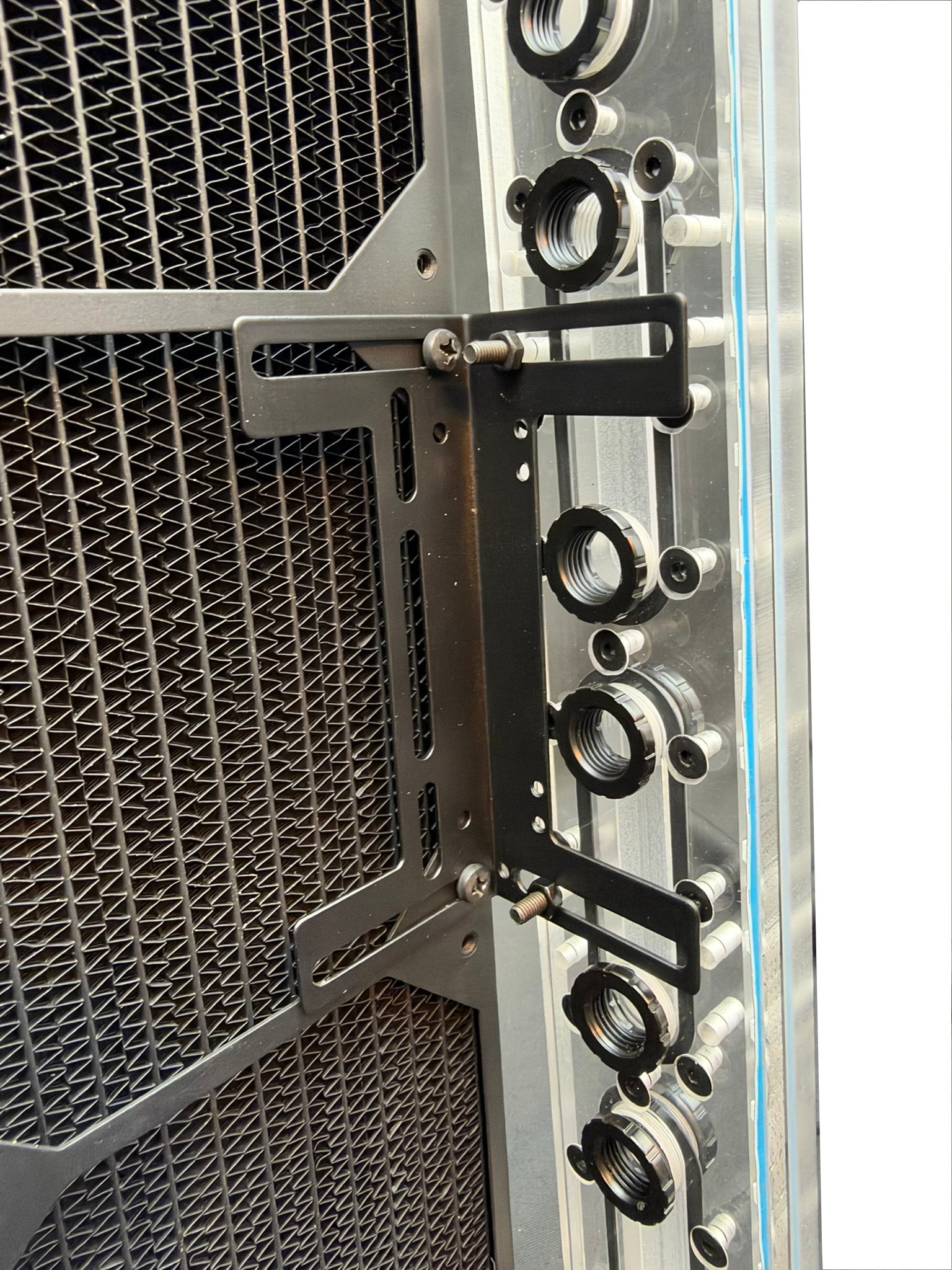

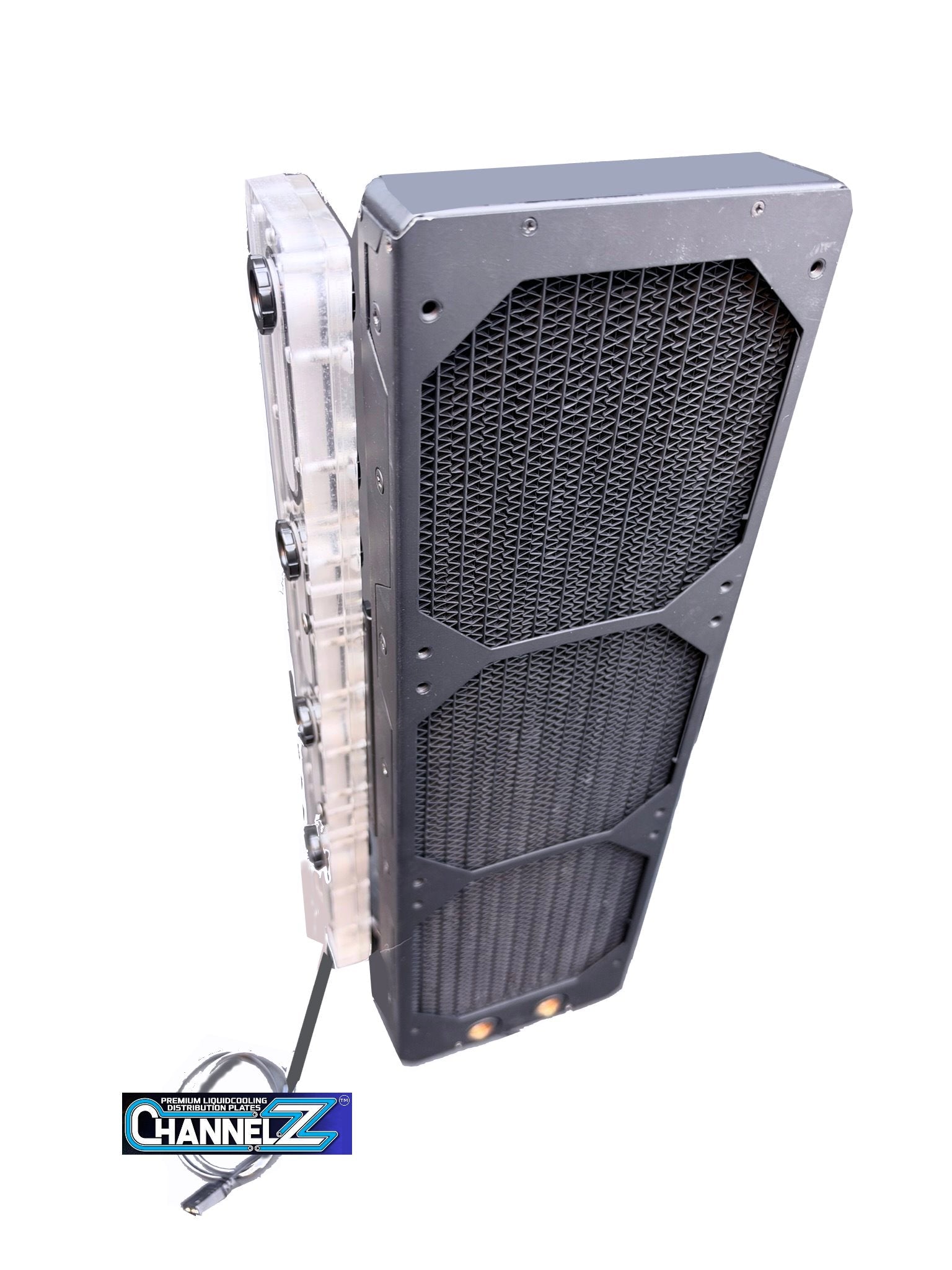

• To mount the 360 Bridge Distro, use any 2 holes spaced at 120.. that can attach to your chassis 120mm fan holes or better yet mount to our Channelz™ 120mm Universal Bracket. This lets you mount your Bridge 90 degrees off the chassis mount holes, radiator, fan, or bracket. The options are limitless! Hardware provided for most common installations using 2 x M4*12 countersunk screws and nuts.

Specifications:

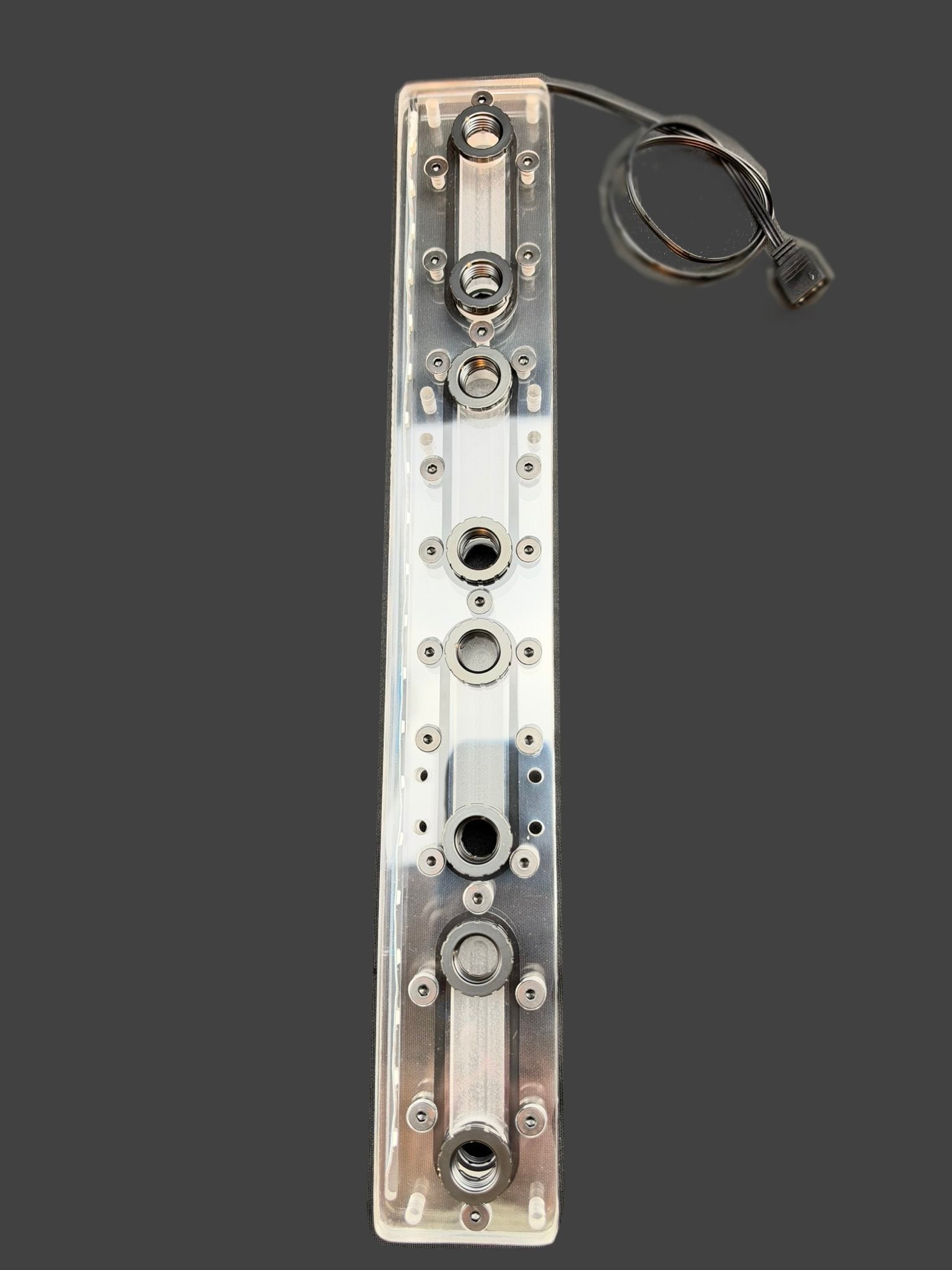

Bridge:

• Material: Clear Cast Acrylic. CNC Milled


• Fasteners: Stainless Steel Silver or custom colored Black or Cerakote


• Singularity Insert Fittings: Satin Blackened Brass.


• Gaskets: Silicone Black or Clear.


• O-rings: Silicone Black and Clear.


• Stop Fittings: Included 4 Silver stop plugs


• Ports: x12. Inlets: x8 Outlets: x4

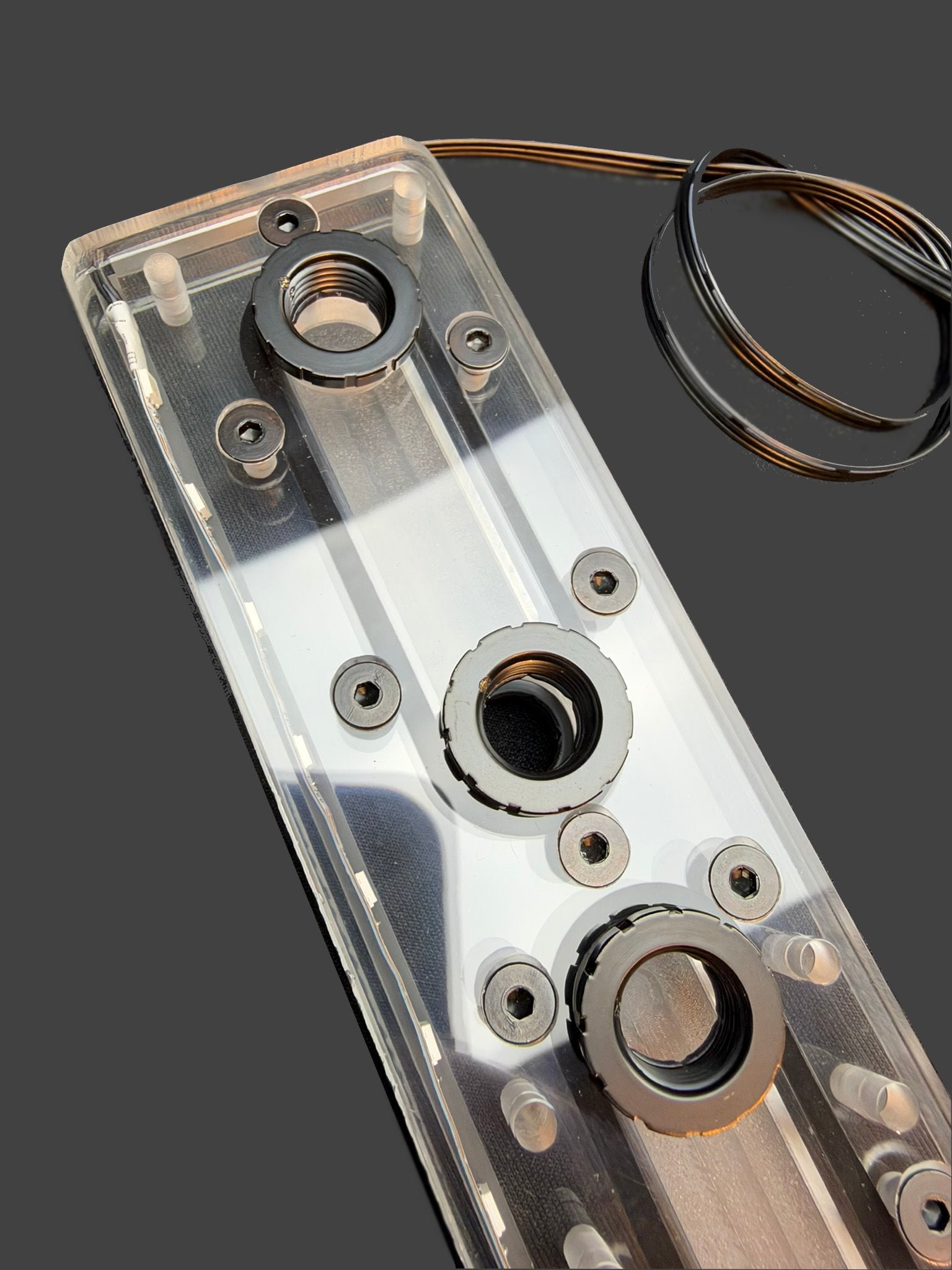

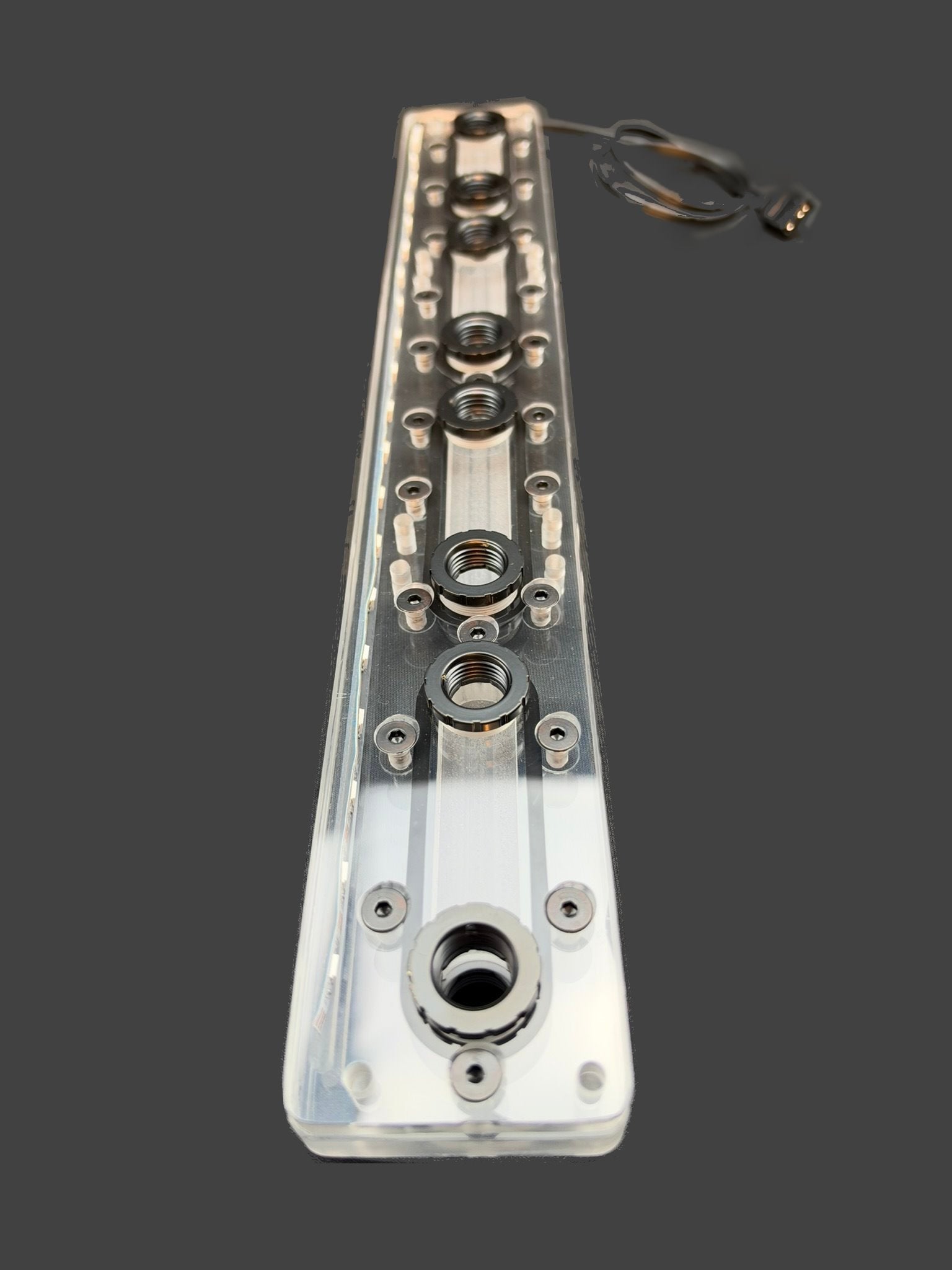

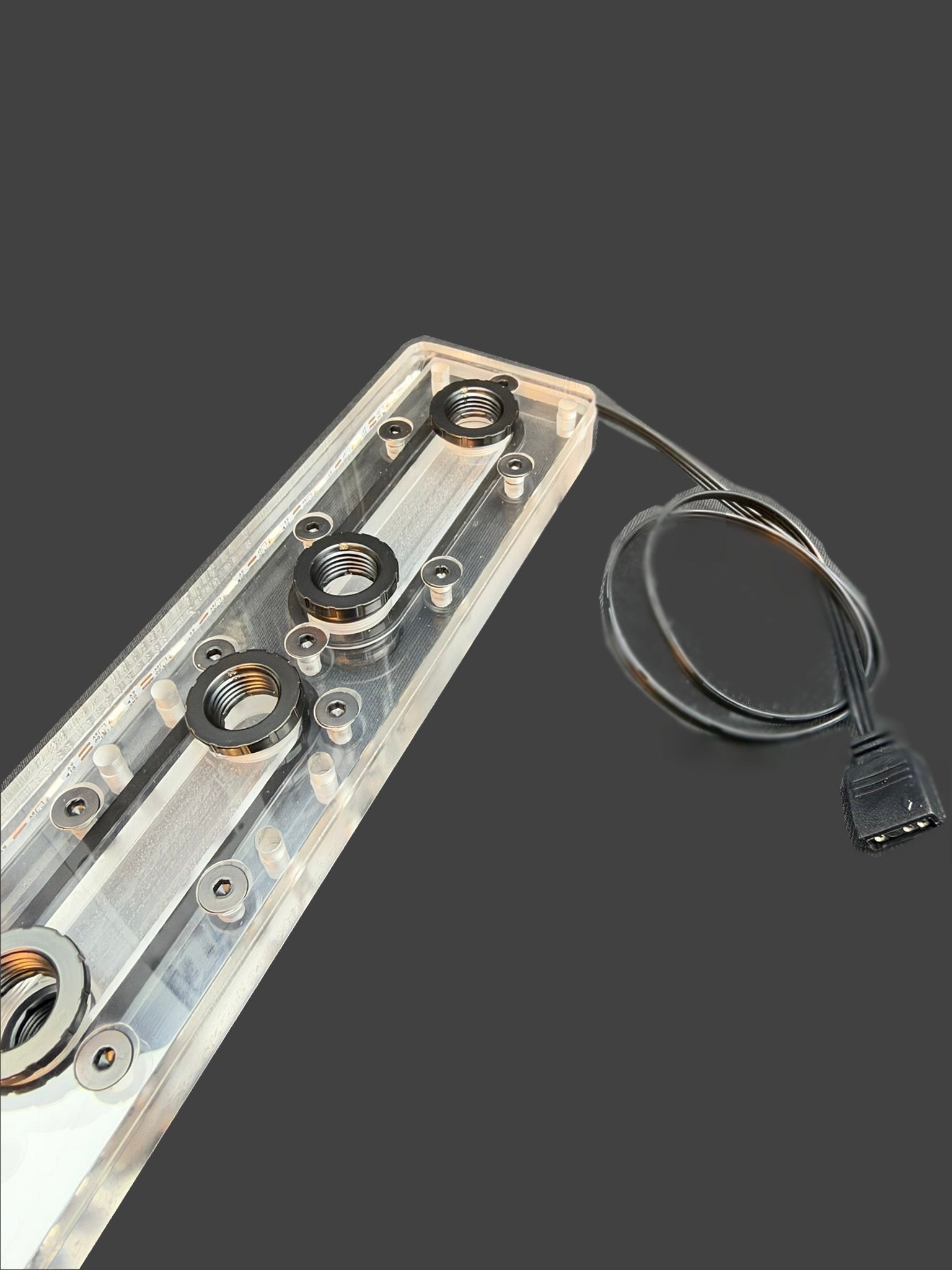

• LED Strip: DRGB 5V Addressable.

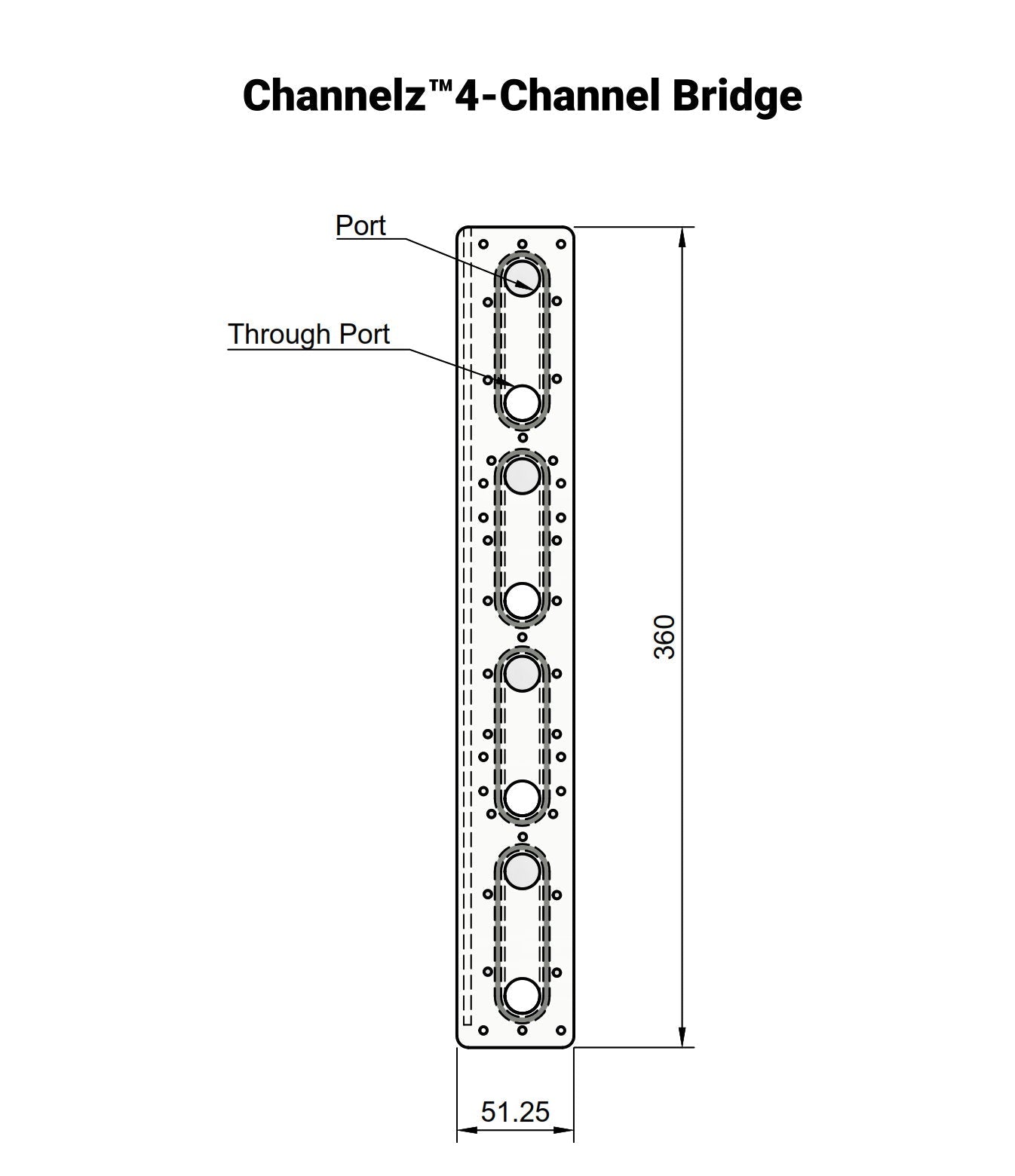

• Dimensions: Width: 51.25mm. Height: 360mm

Included Items:

• Channelz H₂O Bridge Distribution Plate: x 1


• Singularity G3/8 to G1/4 Distribution plate blackened brass inserts: x 8,12, or 16 depending on variant


• DRGB LED Strip: x1


• Stop Plug: x up to 4 depending on variant

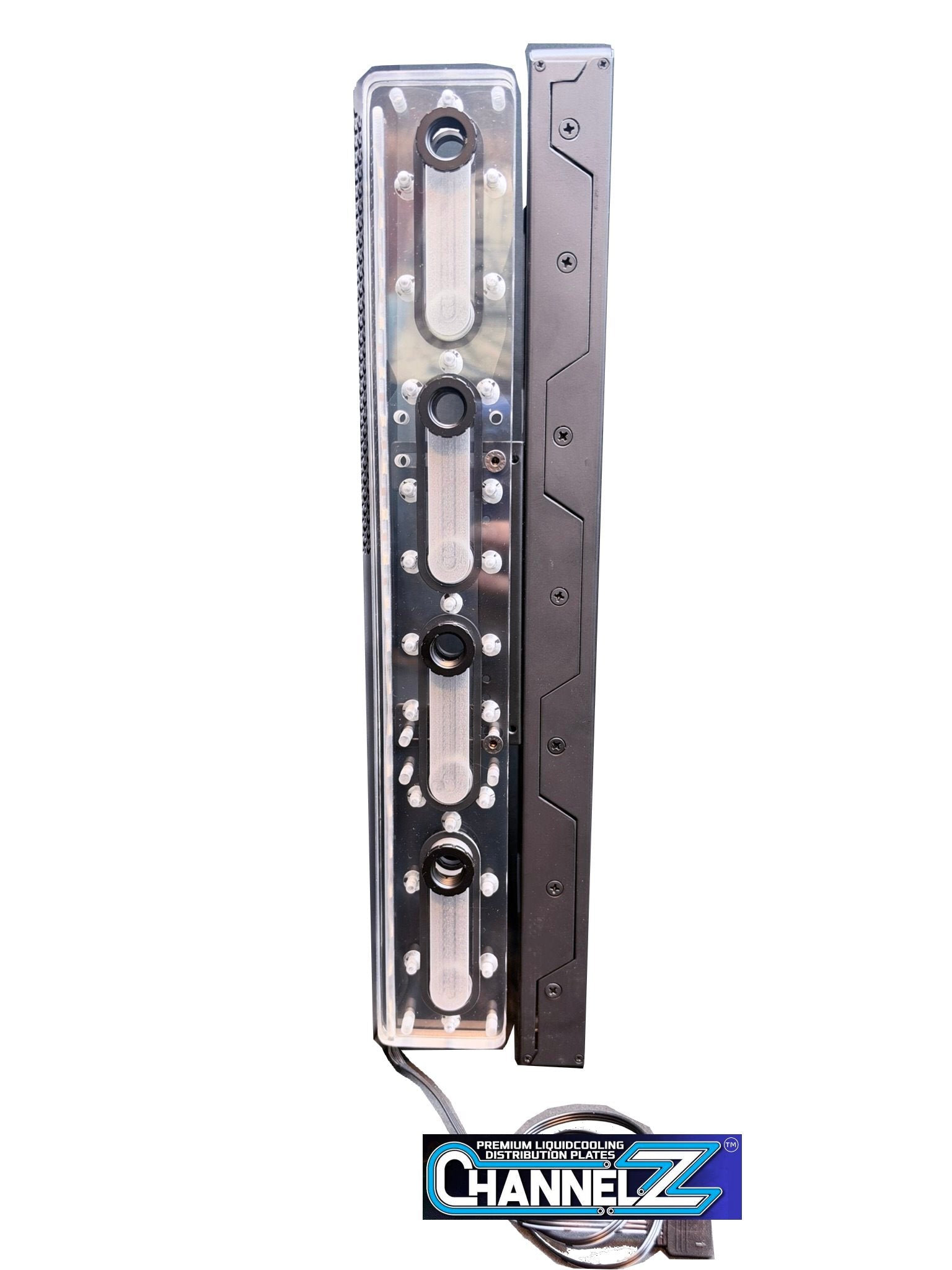

• 120mm Fan (Distro) Mount Powder coated Steel: Choice of Black or White


• Bridge Distro Hardware: Socket M4*30 Countersunk head mount screws: x 2, M4 Nuts: x2

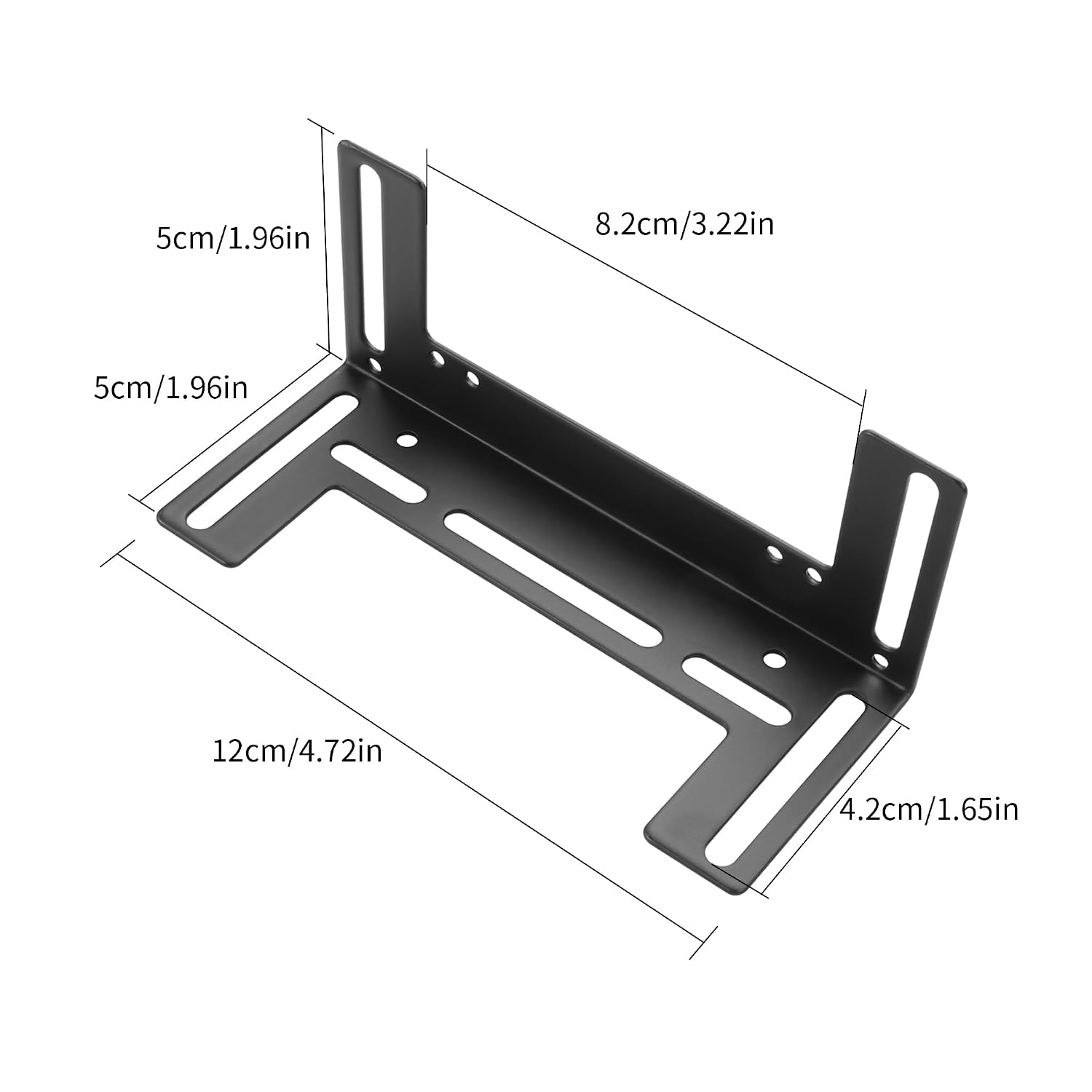

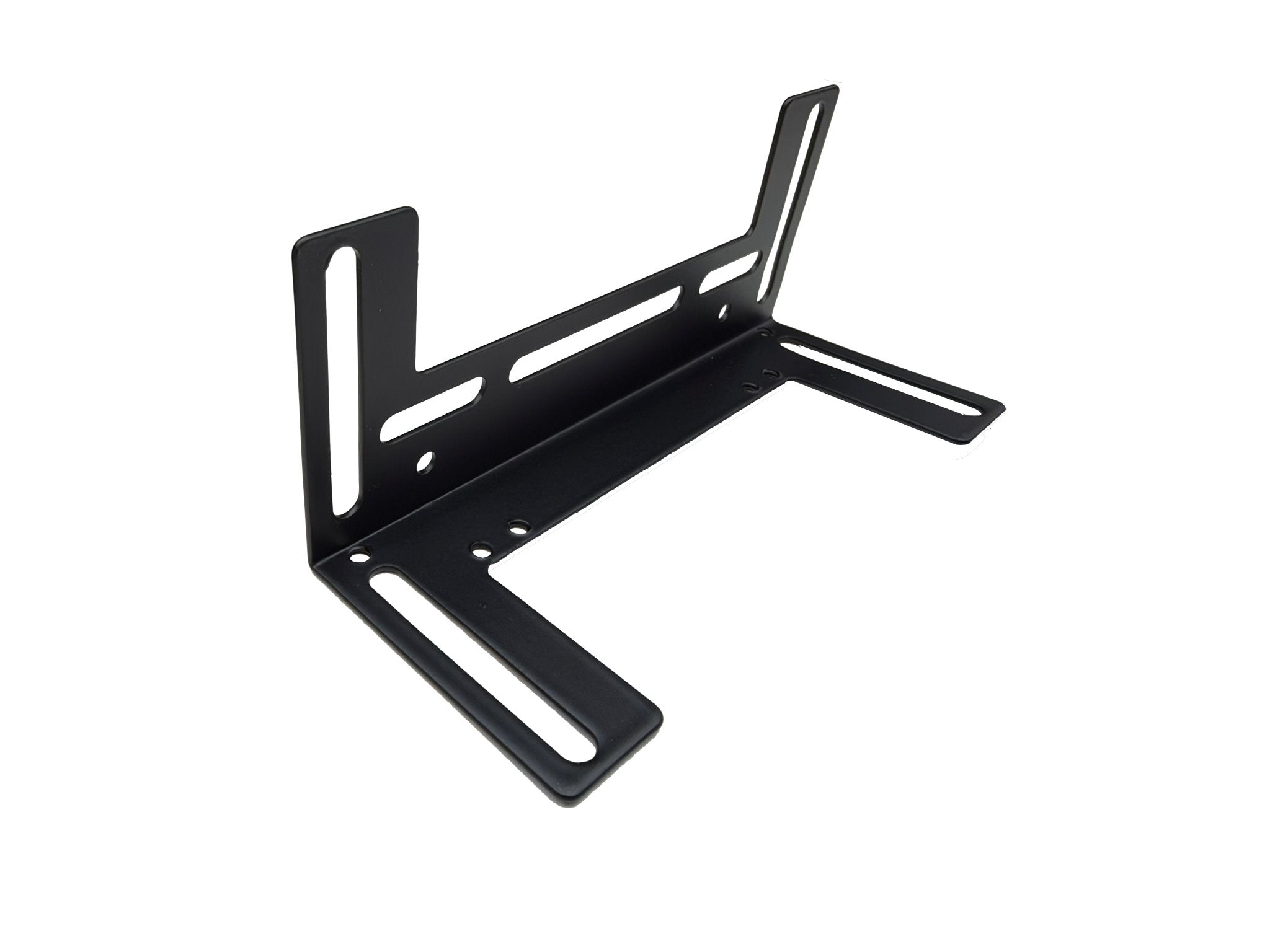

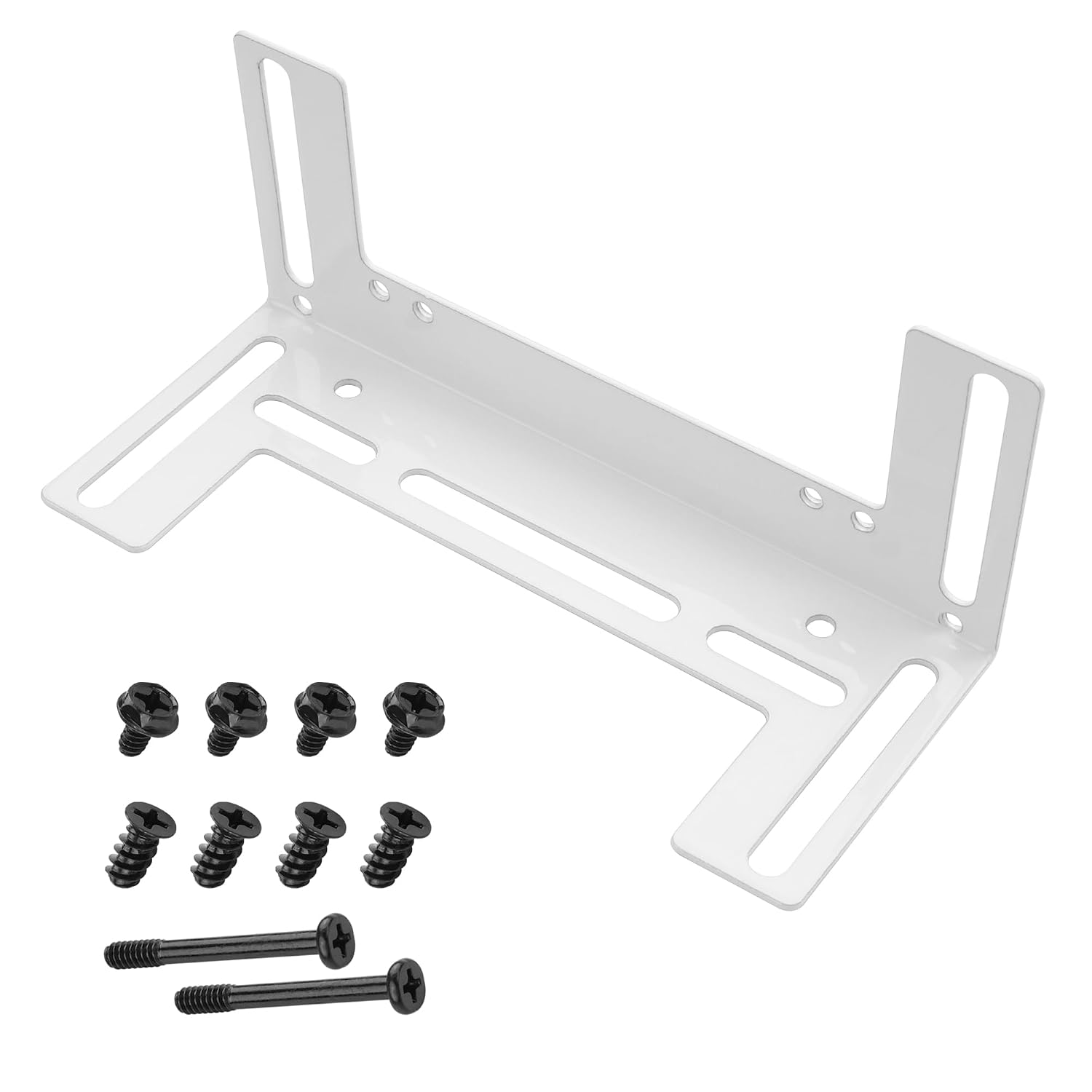

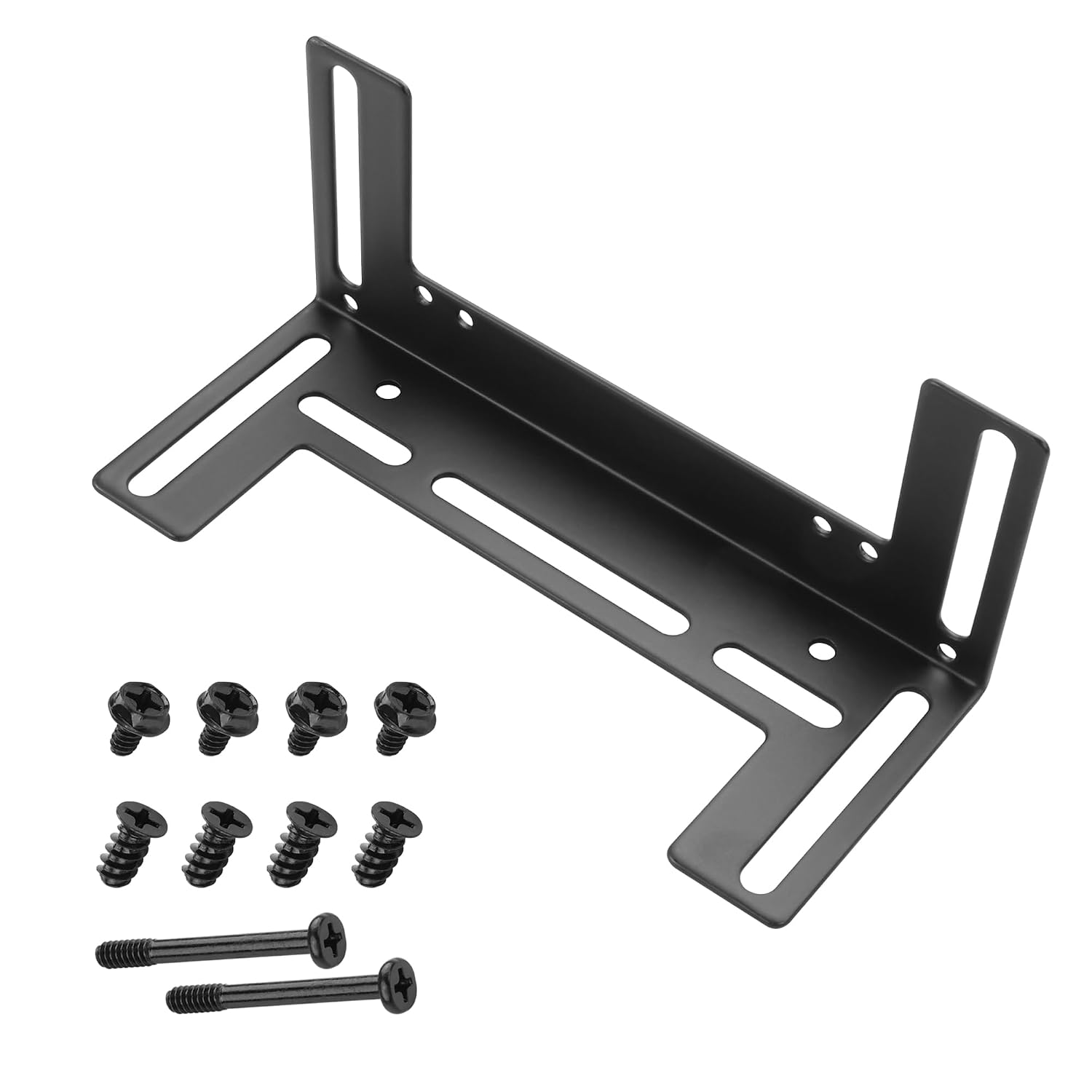

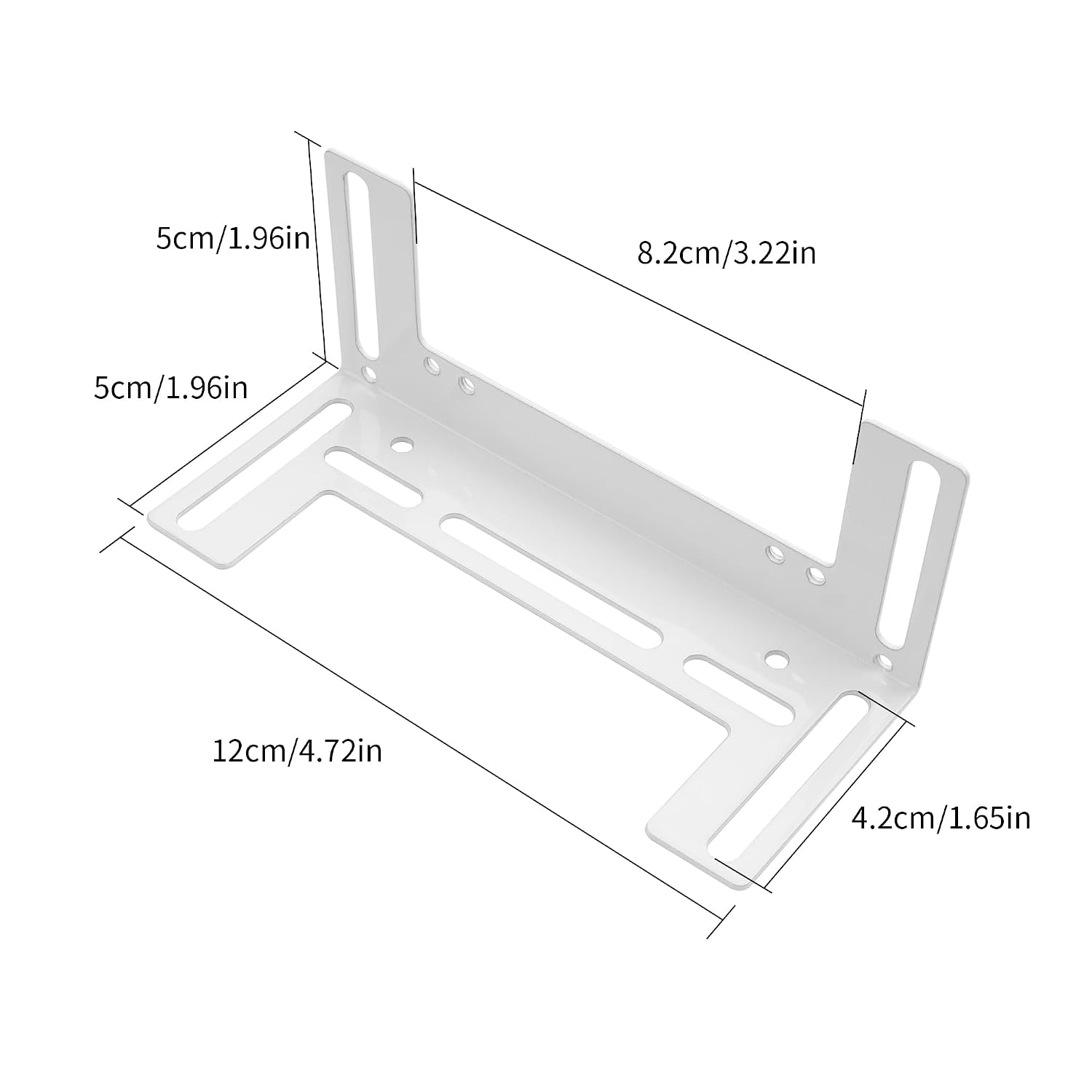

Optional Bridge Mount Universal 120mm Bracket

• Powdercoated Black or White Steel


• 120mm hole pattern
