Channelz™ 240 D5/DDC Reservoir Distribution Plate

Designed by Singularity Computers and manufactured in the USA by Performance PCs.

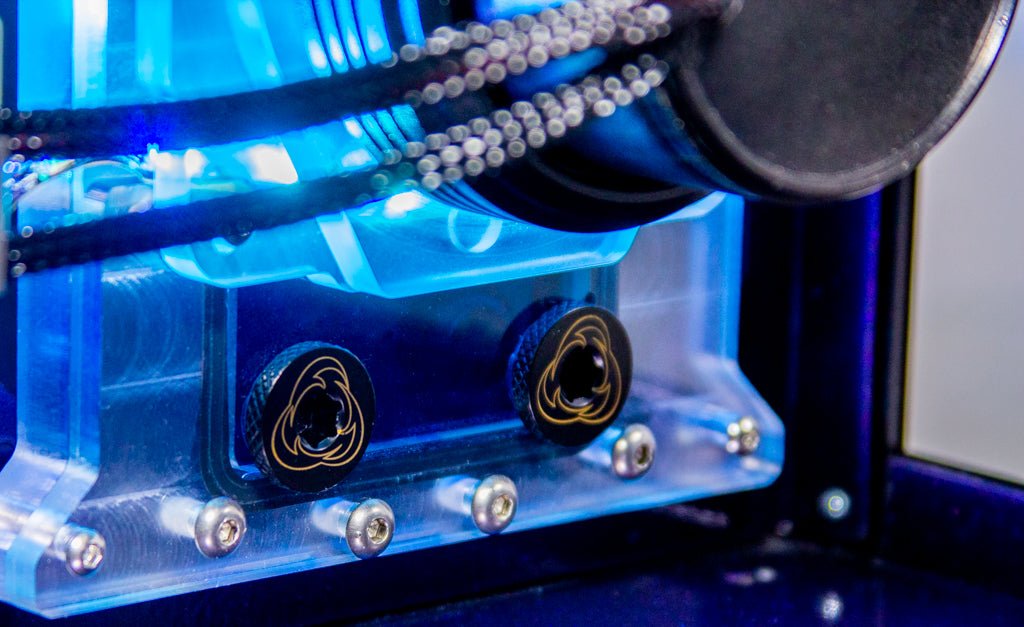

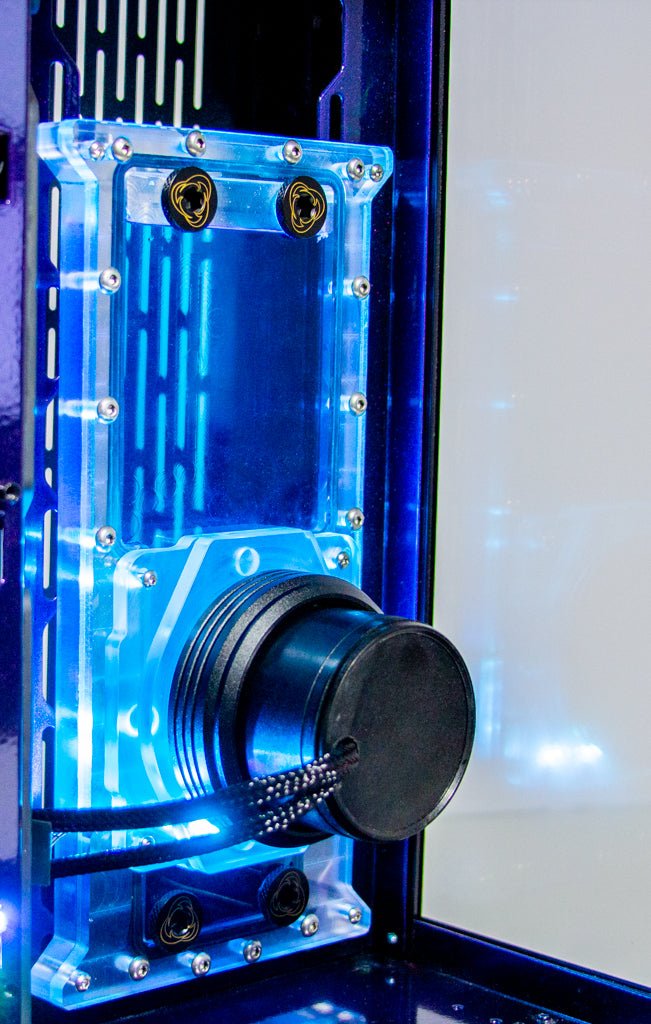

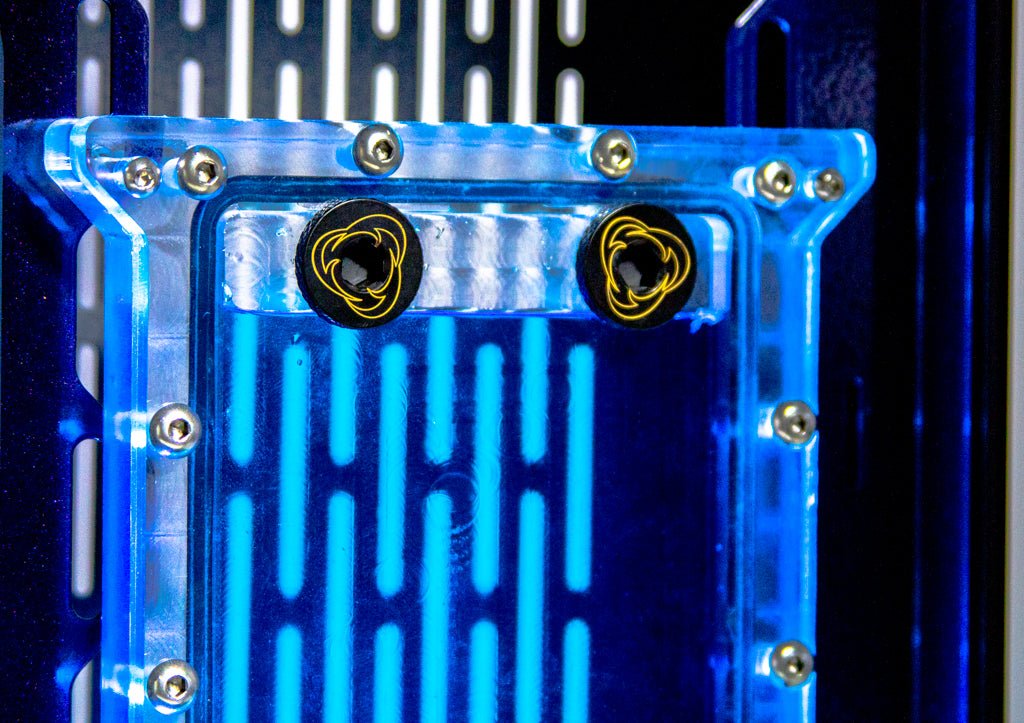

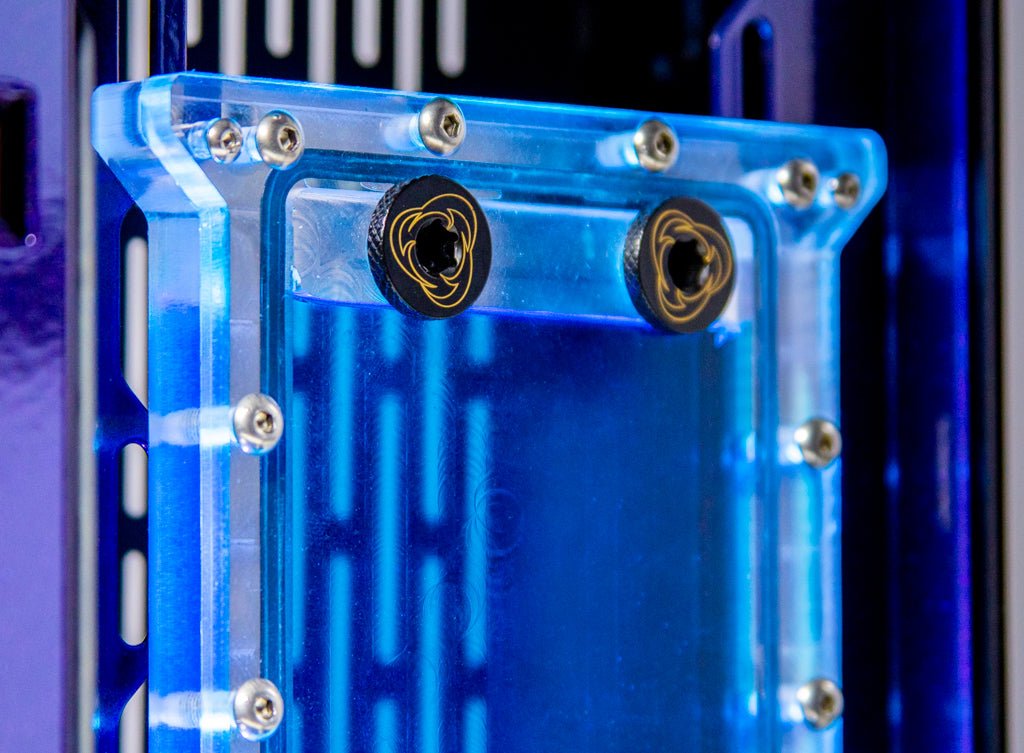

This distribution plate is a single D5/DDC pump and reservoir combination designed to be mounted onto 2x 120mm fan mounting positions, 2x 120mm fans or a 240mm radiator. It comes included with spacers which are only needed for airflow when mounting to a radiator or fans. It comes included with a D5/DDC Rentention Ring which attaches the pump to the Distribution plate. It has 4 ports, 1 inlet, 1 outlet, fill port and drain port. It comes included with a DRGB Addressable LED strip.

NOTE: D5/DDC Pump and Cover Not Included.

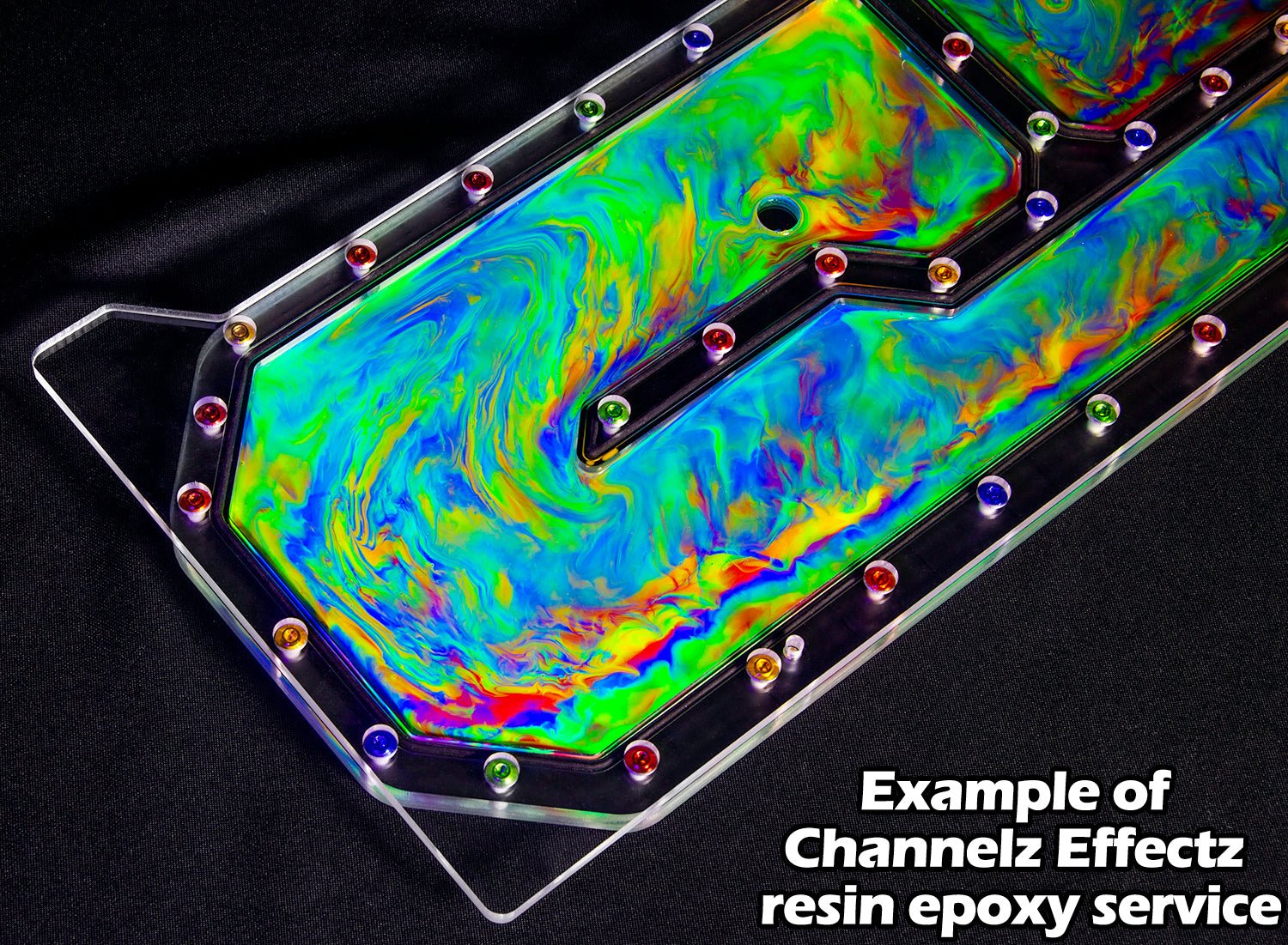

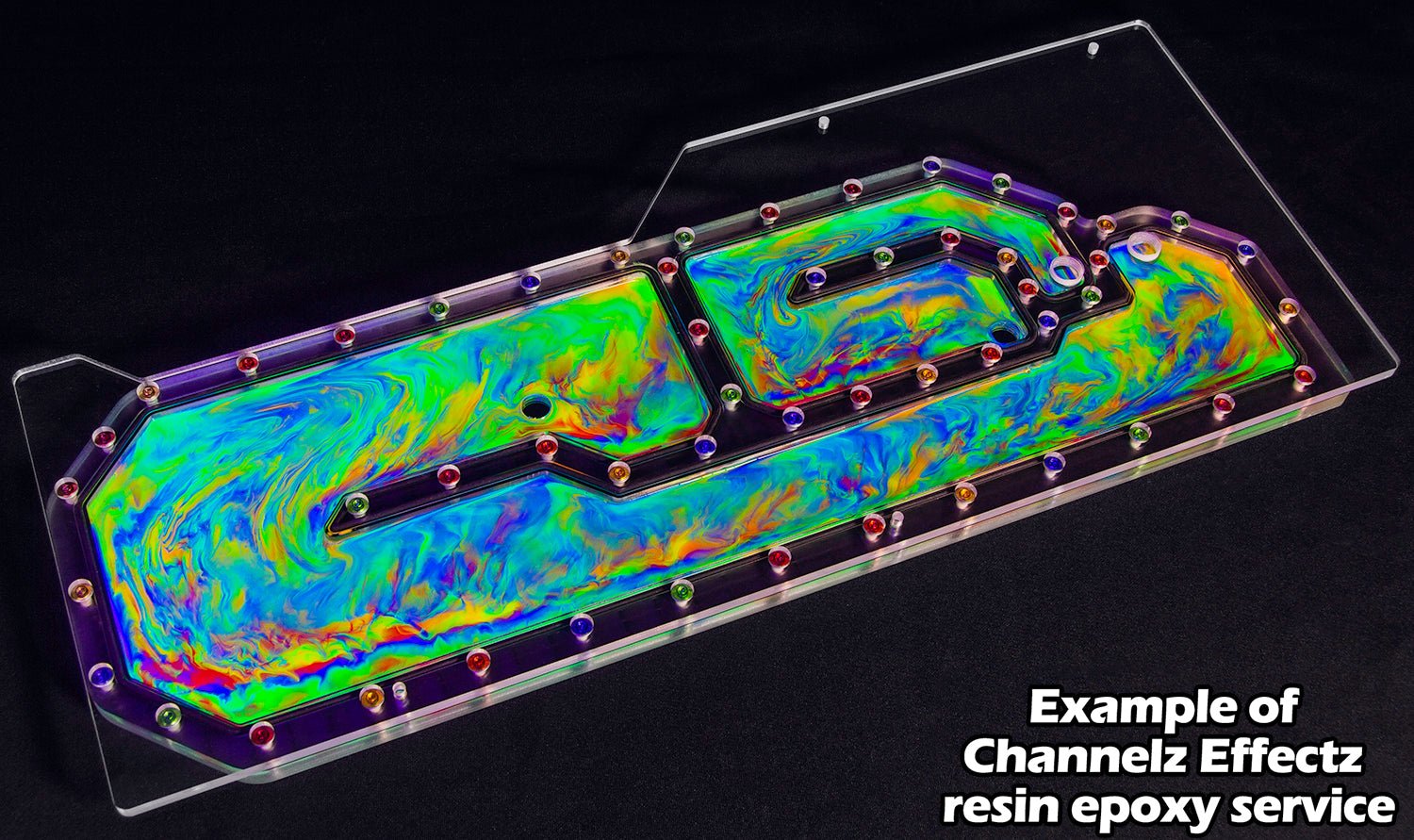

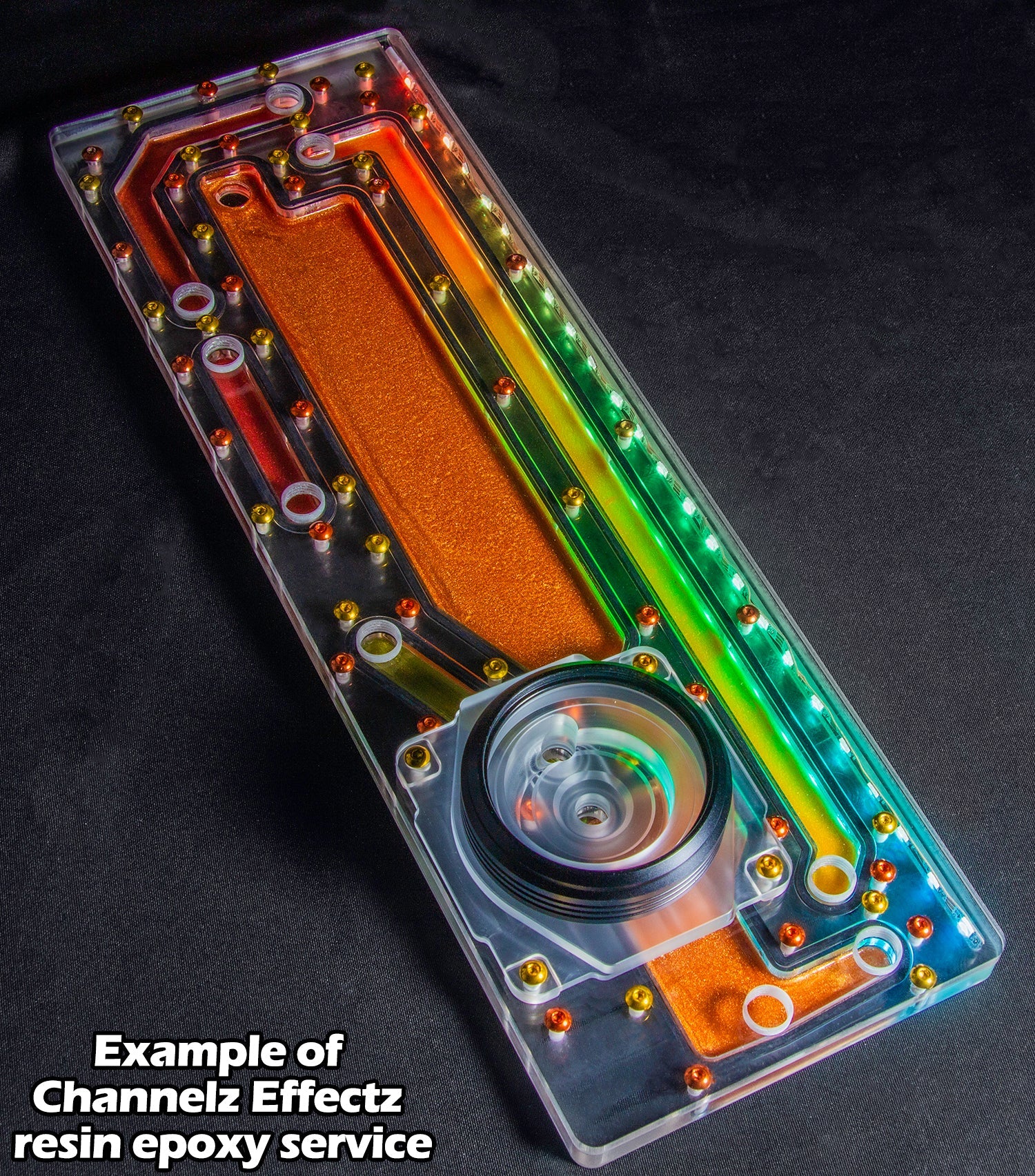

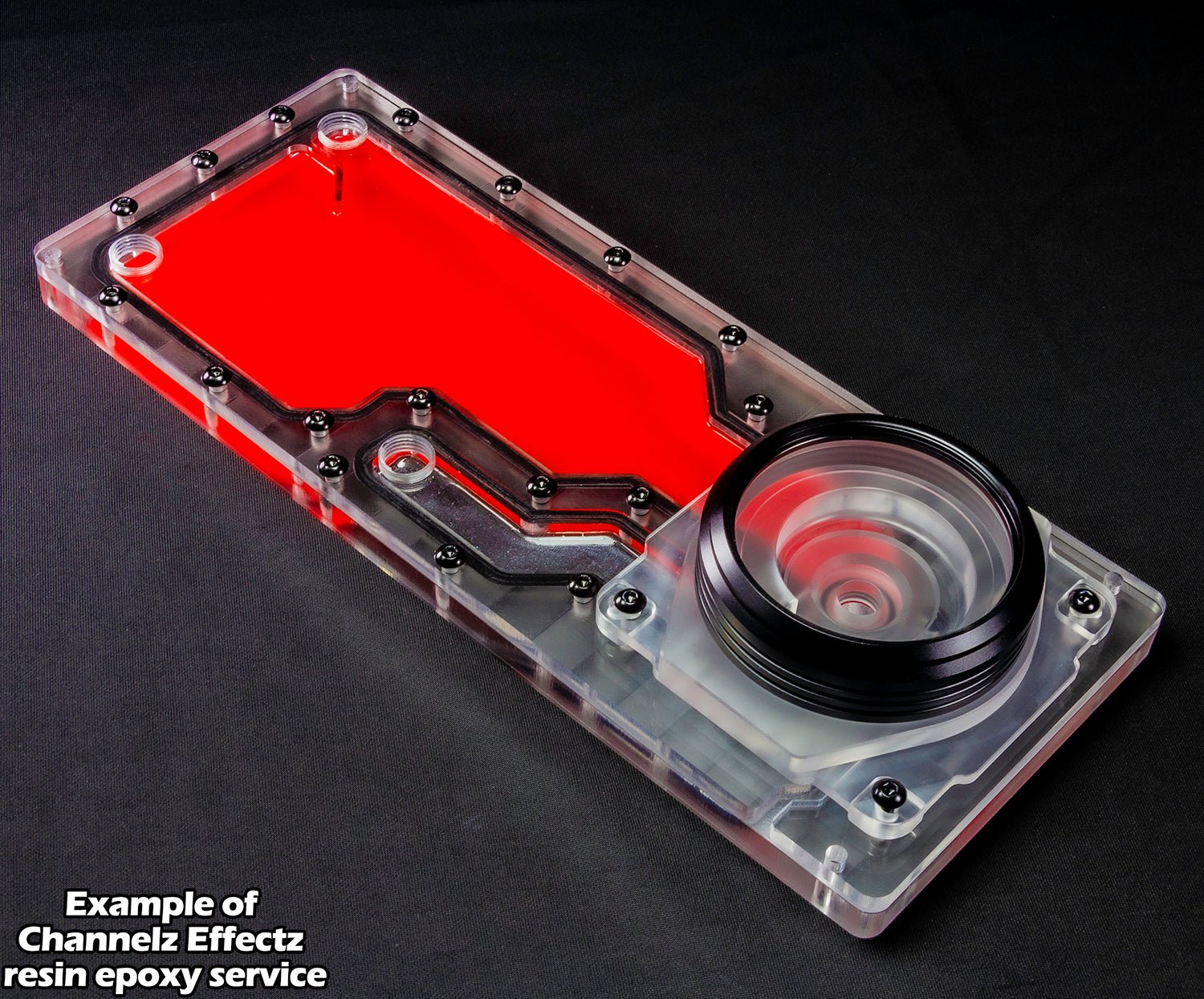

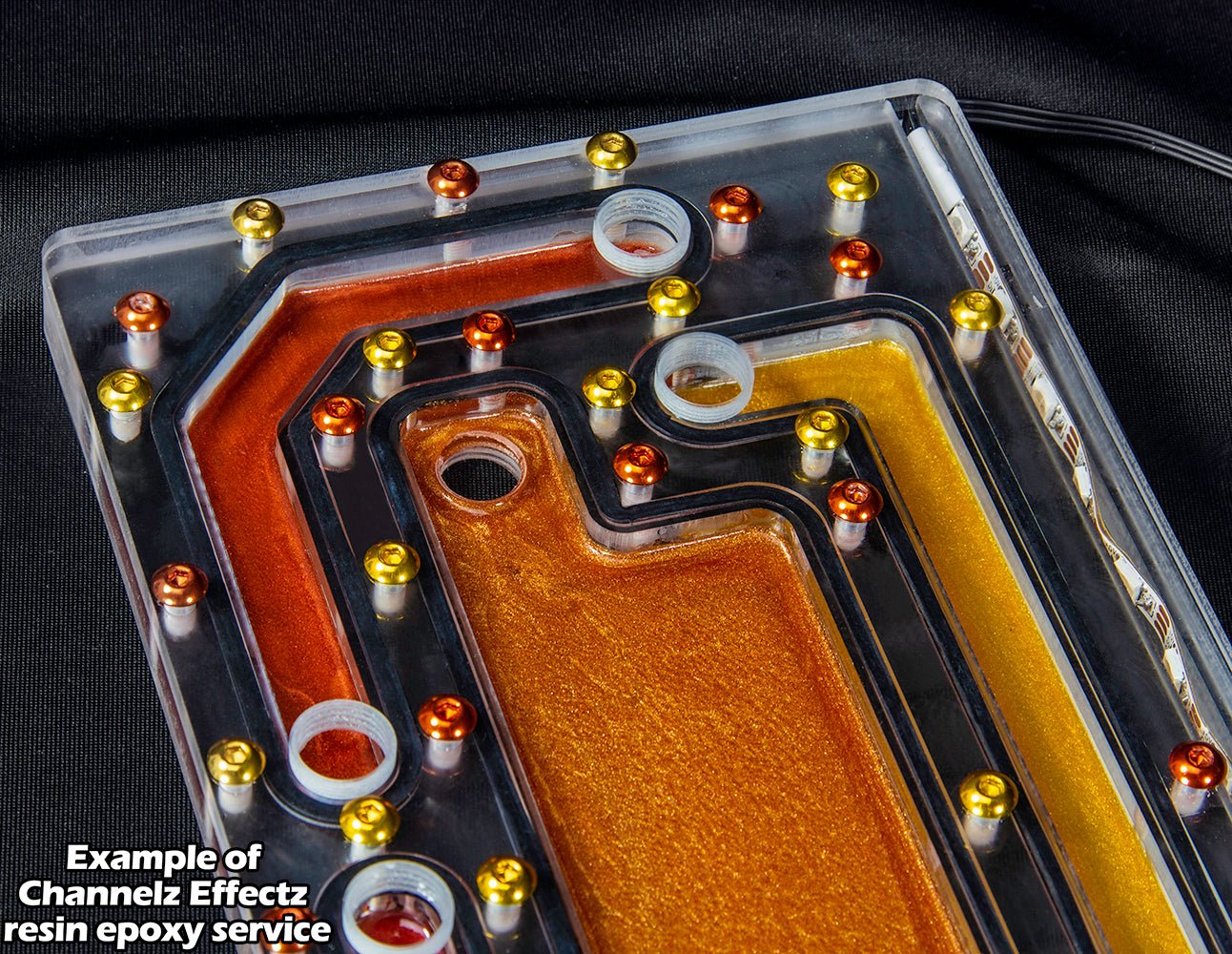

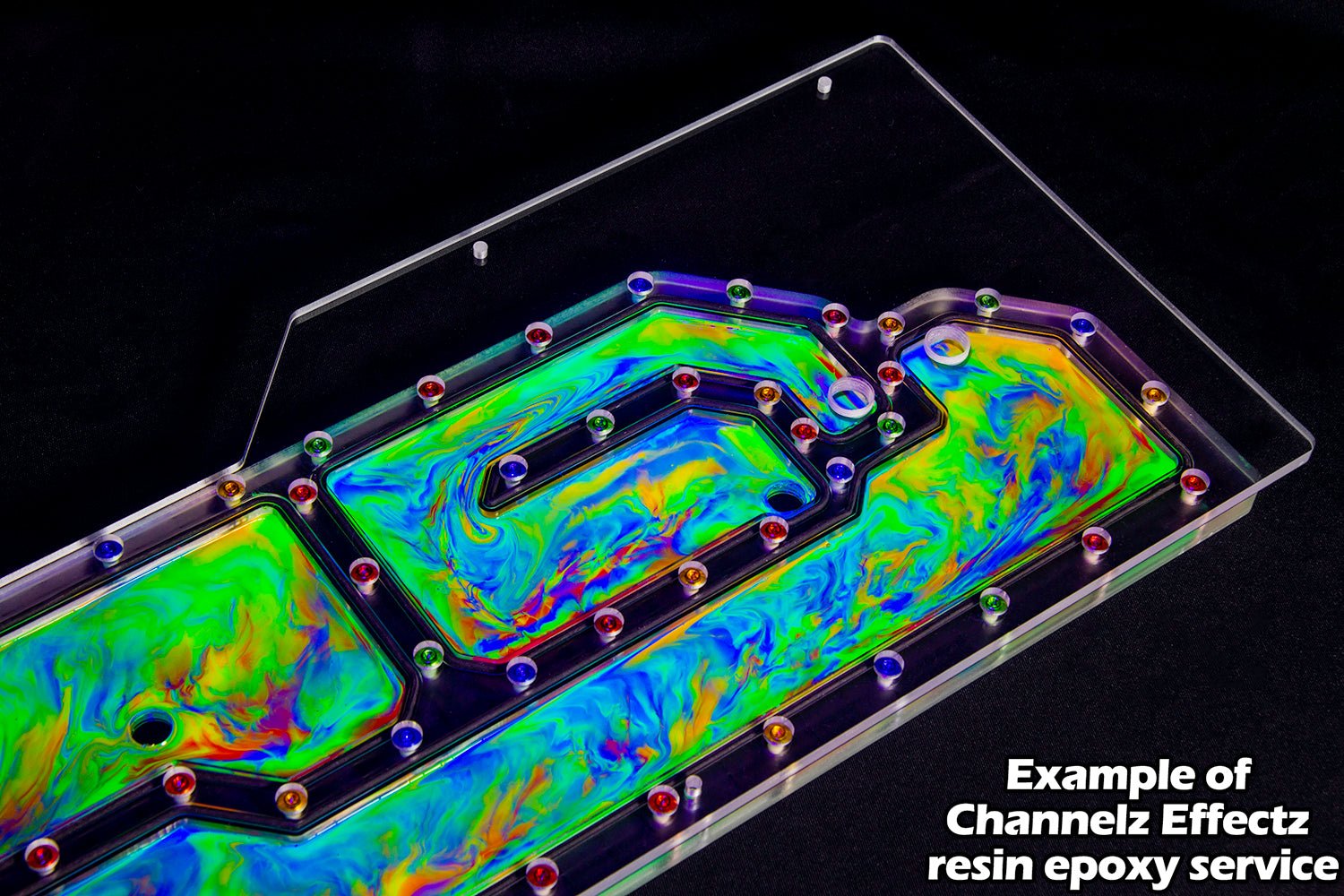

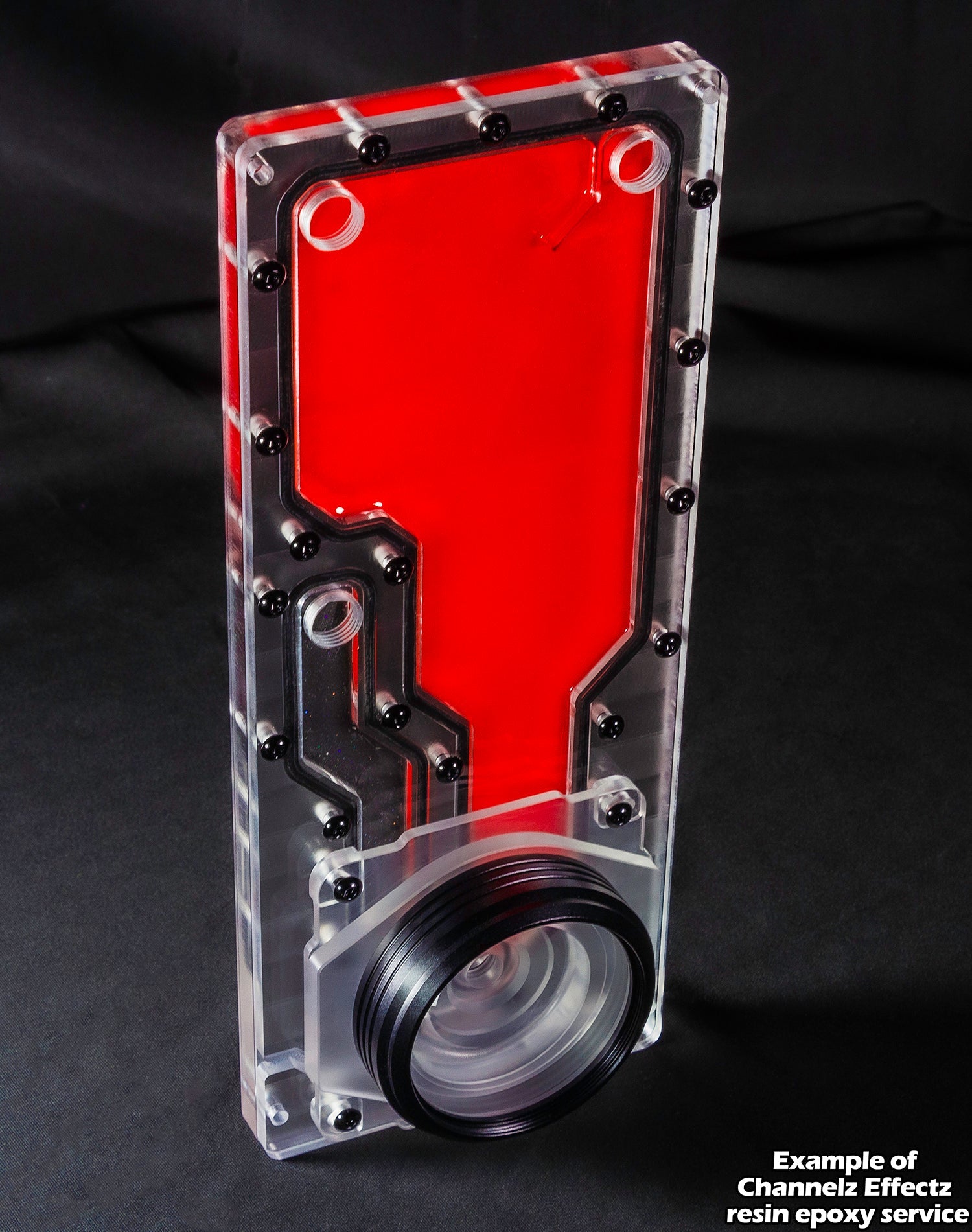

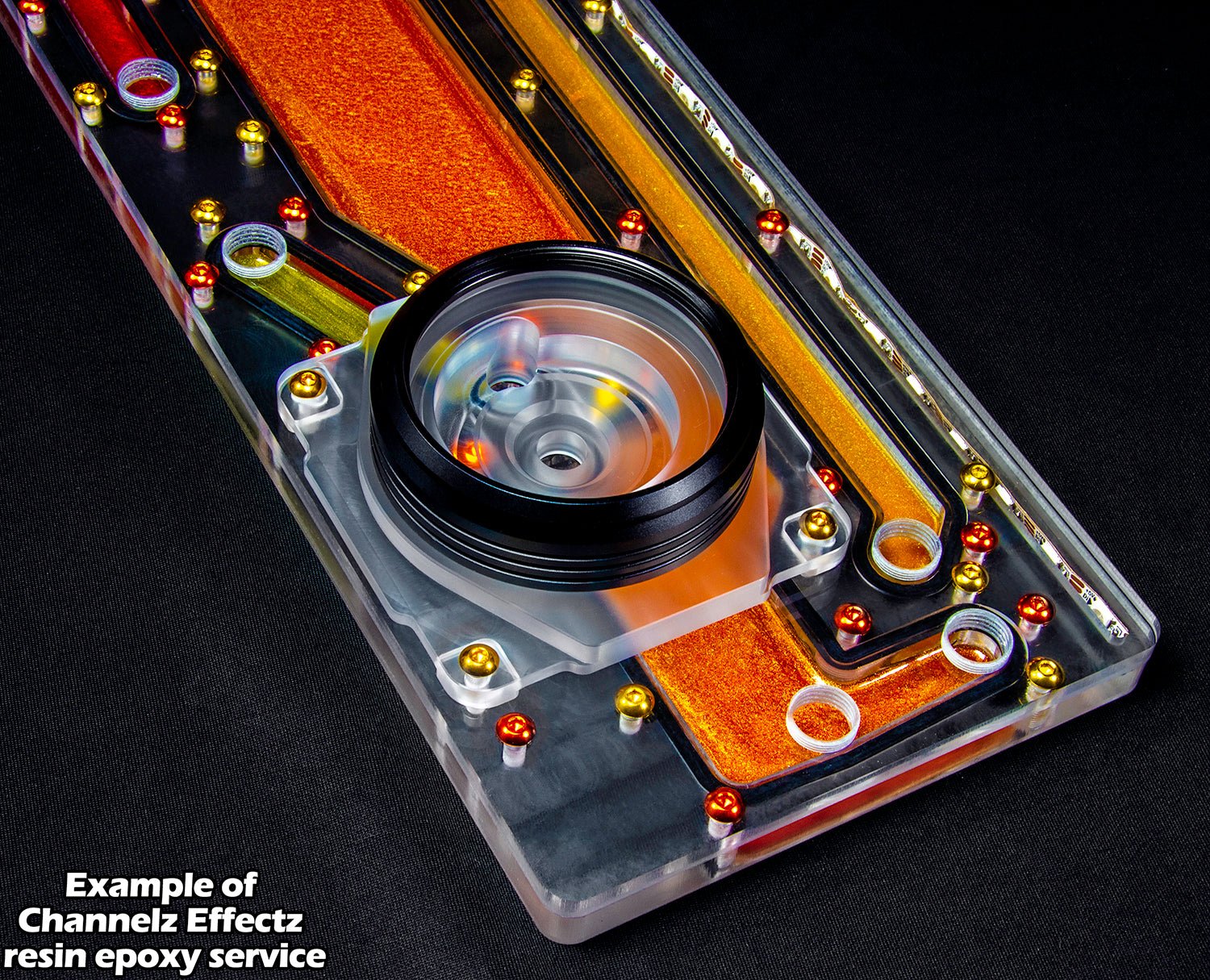

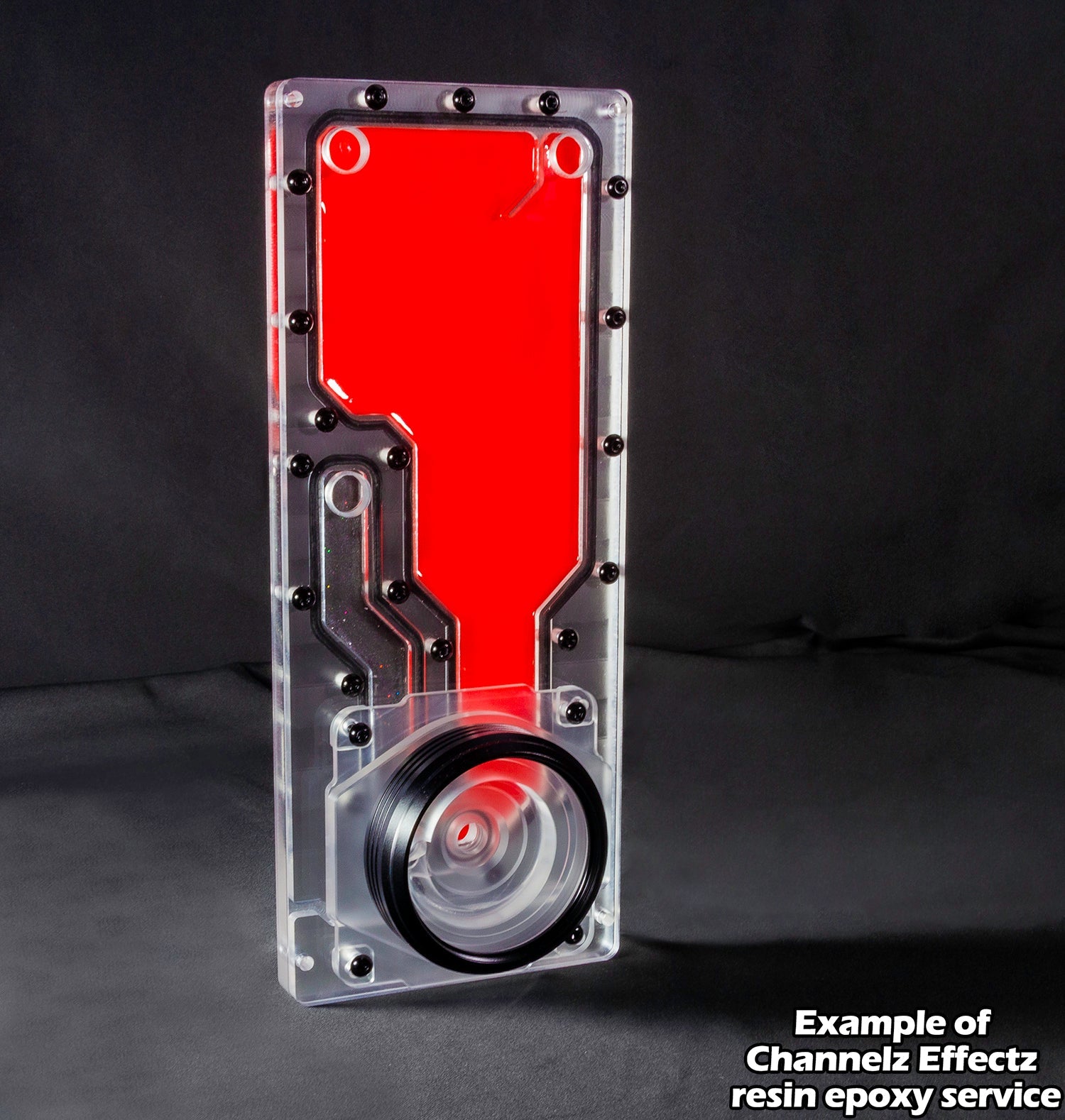

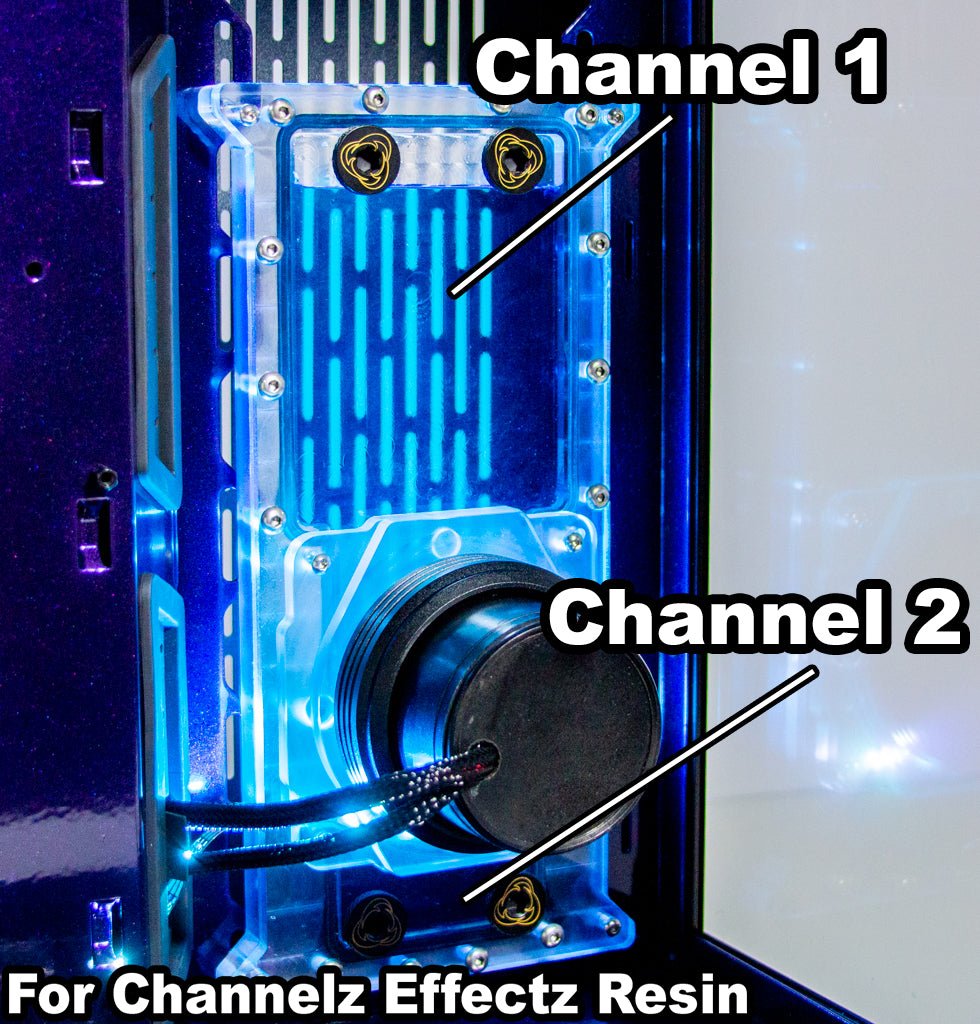

Channelz Effectz Service

Tired of all that colored Coolant clogging up your loop but donâ??t want to stick with some boring old clear coolant? Well Performance-PCs has you taken care of with their new Channelz Effectz Serivce! This service is a great way to add some color to your Channelz distribution plate without clogging your loop with pastel or mica filled coolants. We use an epoxy resin mixture that is safe for your loop and will certainly help that build POP. There is 30 different super vivid color options to choose from and we even added the ability for you to mix colors to give your loop its own style.

Installation:

Use the included x4 M4 22mm and x4 M4 Nuts to attach to any 2x 120mm fan mounting position.

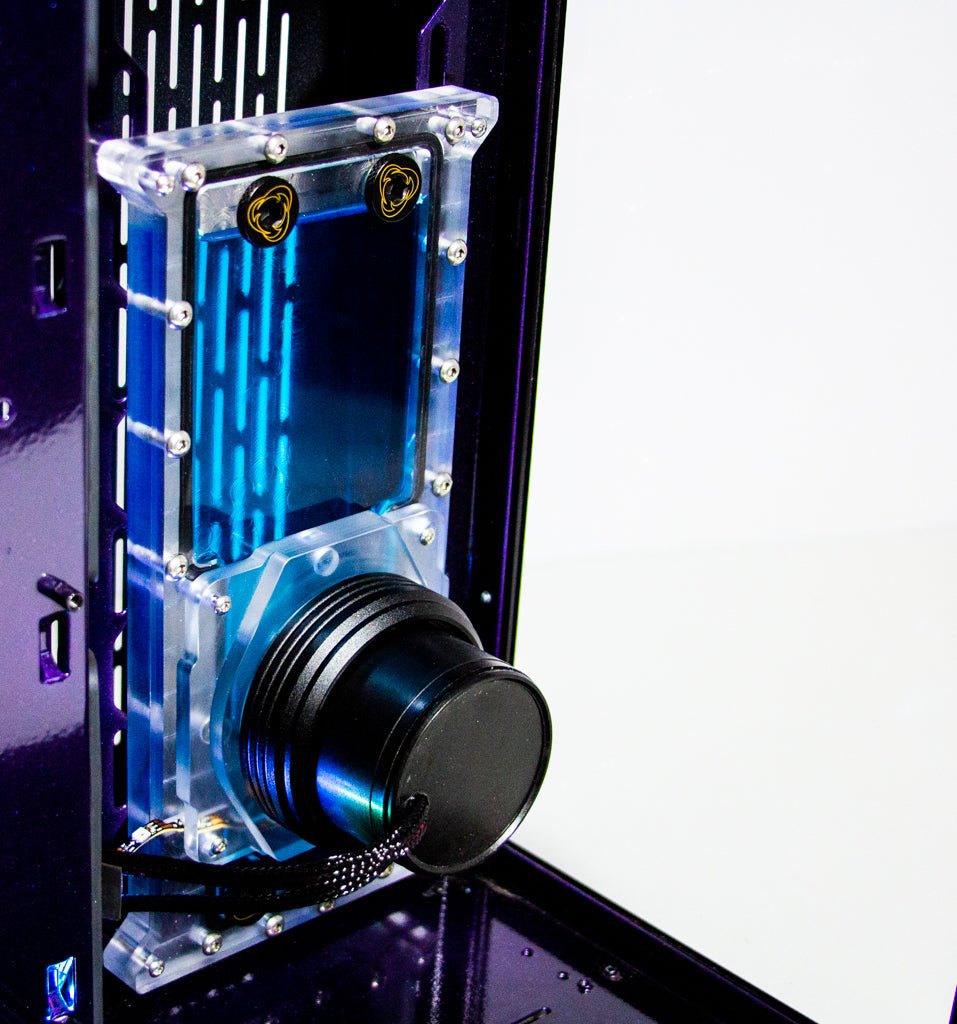

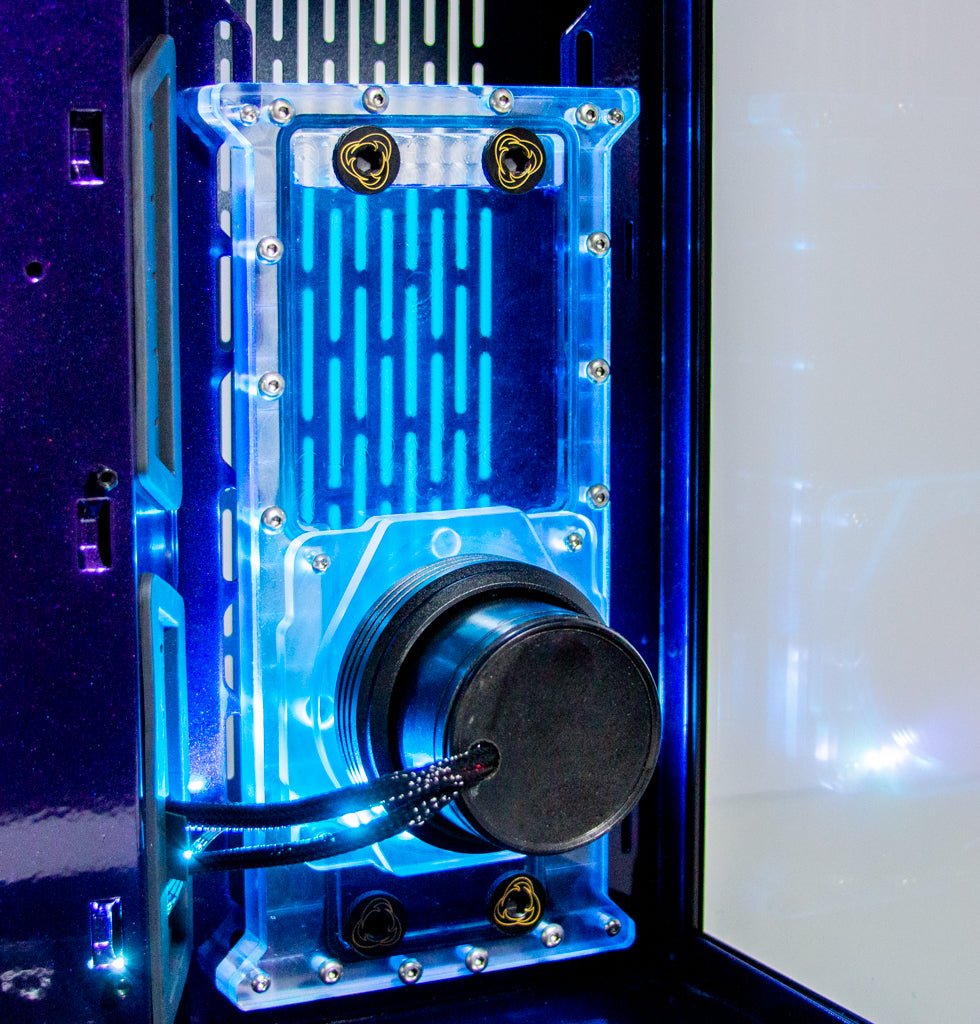

Install onto any 2x 120mm fan mounting position, 2x 120mm fans or a 240mm radiator. Fasteners are not included to mount to a 240mm radiator because radiator threads are non-standard and can be 6-32, M3 or M4 and different lengths depending if you are mounting to the radiator directly, with fans in between, or a case panel in between etc. 15mm Spacers are included for airflow.
Fastener length for direct to radiator mounting: 35mm. (Includes length of included spacers).
Fastener length for mounting to radiator with fans in between: 70mm. (Includes length of included spacers).

Specifications:

Material: Clear Cast Acrylic.
Fasteners: Stainless Steel Silver.
Gaskets: Silicone Black.
O-rings: Silicone Black and Clear.
Stop Fittings: Brass Black Powder coat.
Ports: x4. Inlet: x1. Outlet: x1. Fill Port: x1. Drain Port: x1.

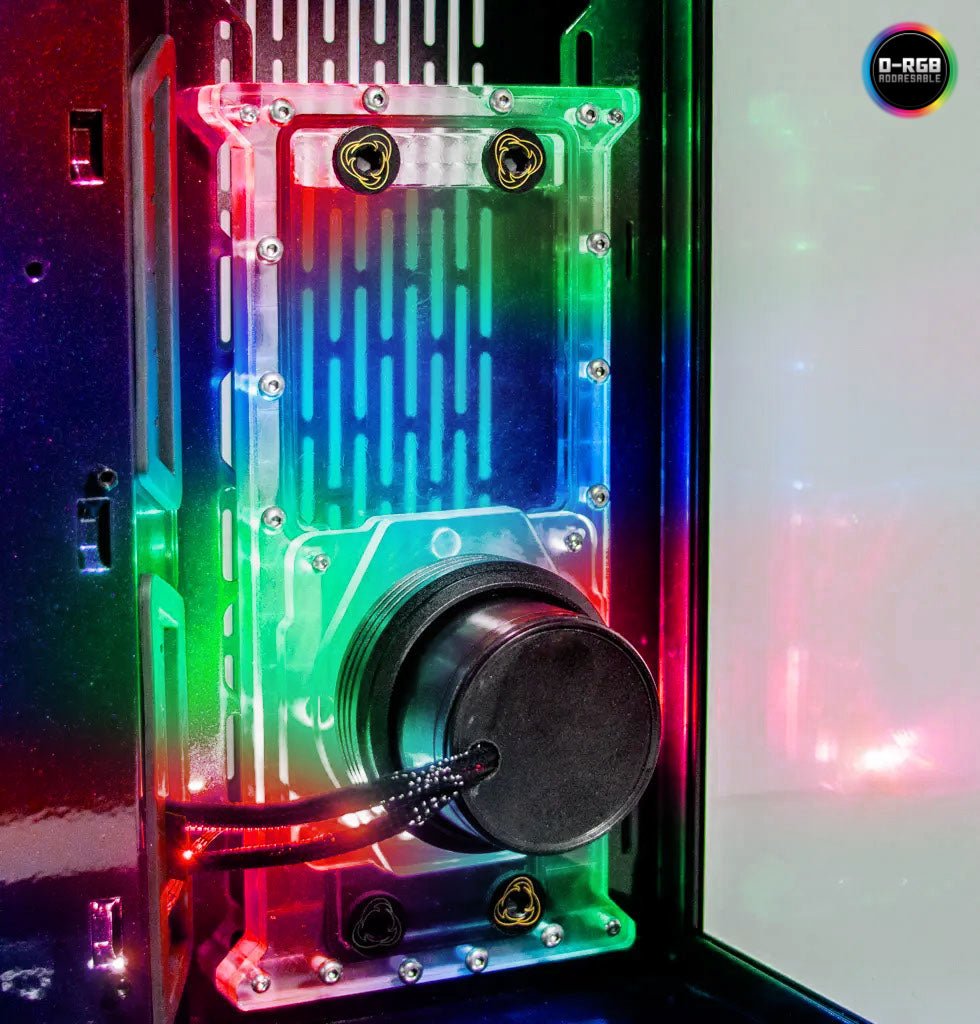

LED Strip: DRGB 5V Addressable.
Dimensions: Width: 120mm. Height: 240mm. Depth: 84mm. (88mm with airflow spacer included).



Included Items:

240 D5/DDC Reservoir Distribution Plate: x1.
Stop fittings: x2.
SC Reservoir Retention Ring Black: x1
Singularity Computers Distribution Plate D5/DDC Pump Top: x1.
D5/DDC O-ring: x1.
Spectrum 2.0 DRGB LED Strip: x1.
Mounting Fasteners: M4 22mm: x4. M4 Nut: x4.

NOTE: D5/DDC Pump and Cover Not Included.
