Channelz™ Lian Li Odyssey X Front Distribution Plate

Designed and manufactured in the USA by Performance PCs.

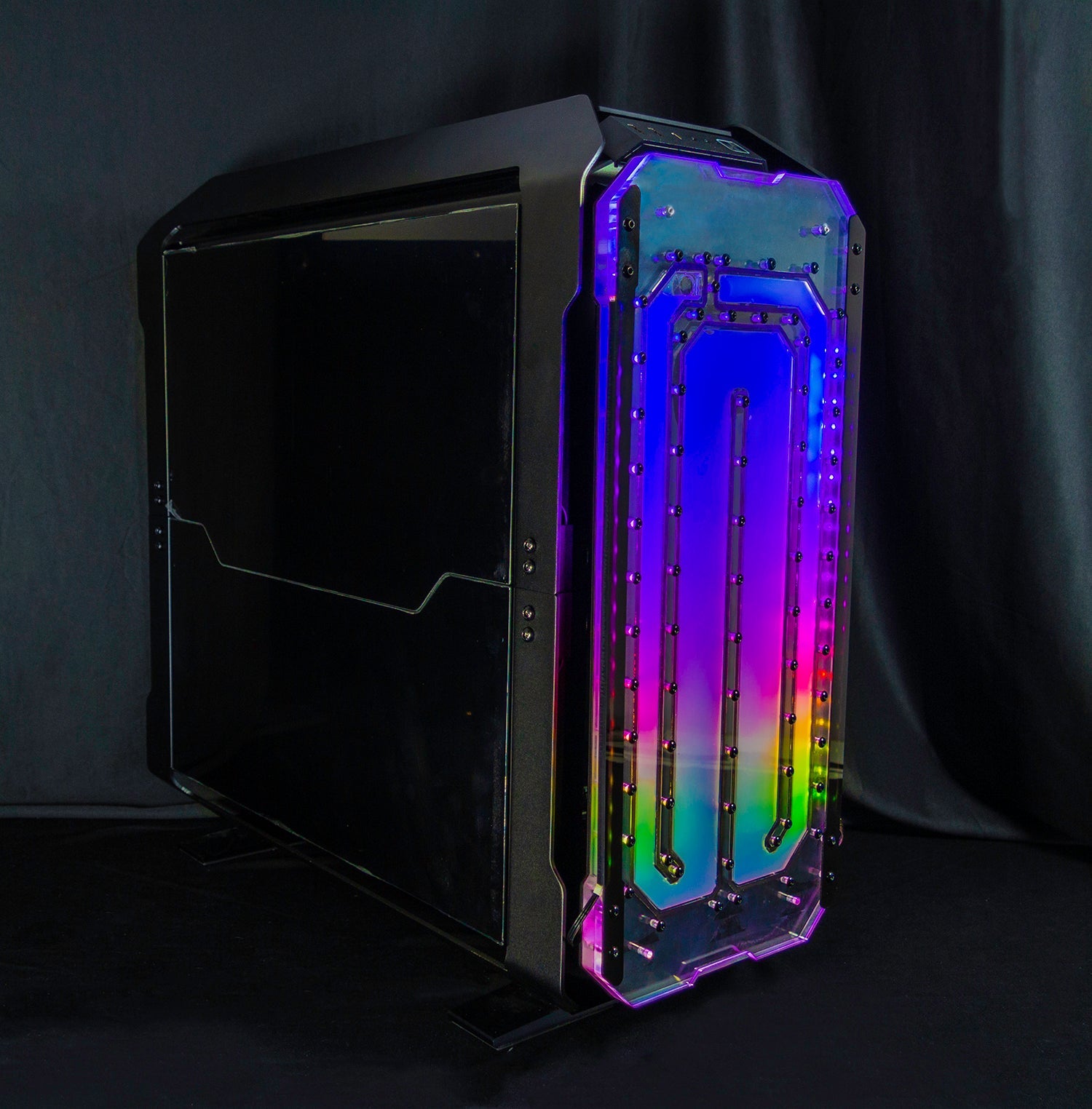

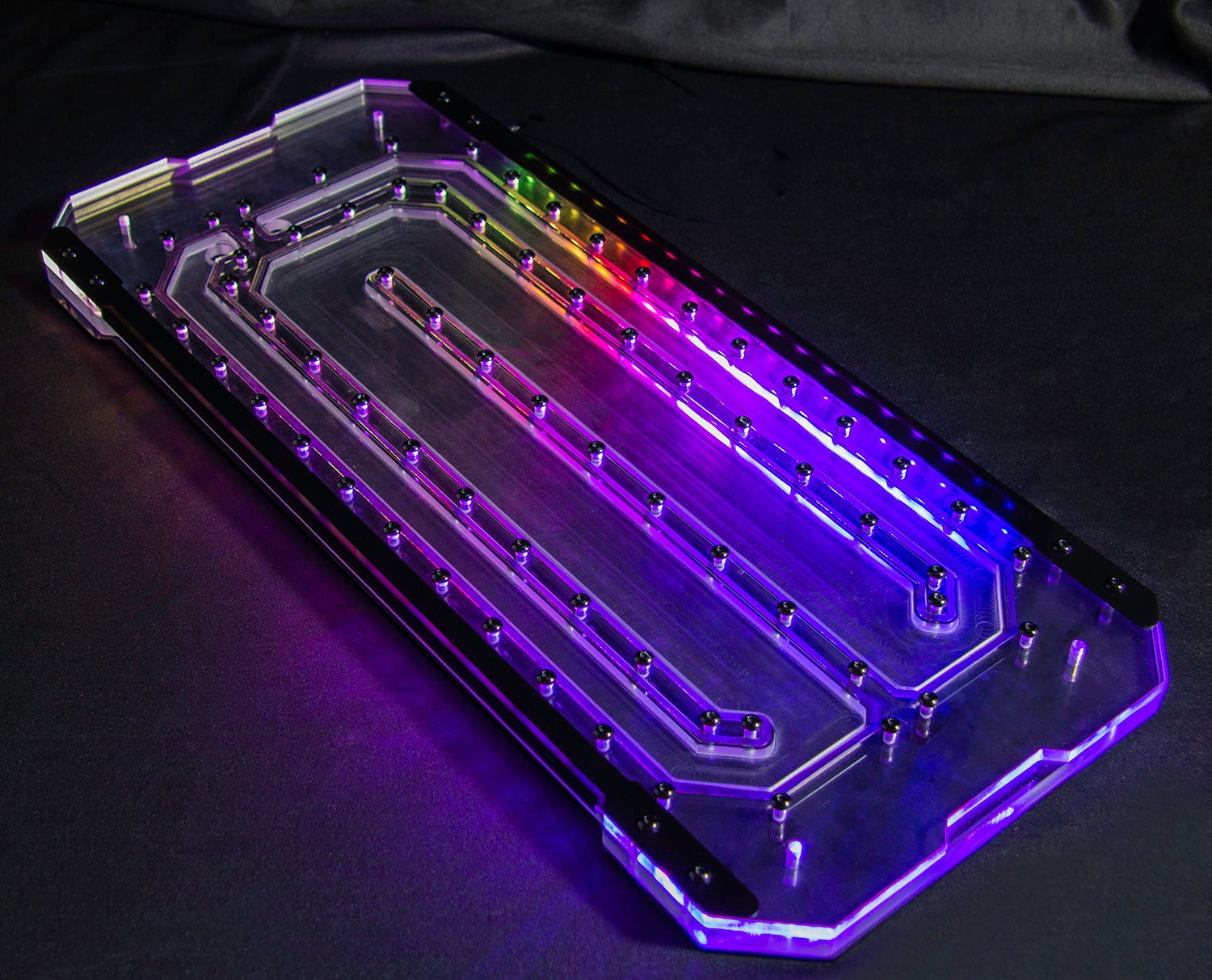

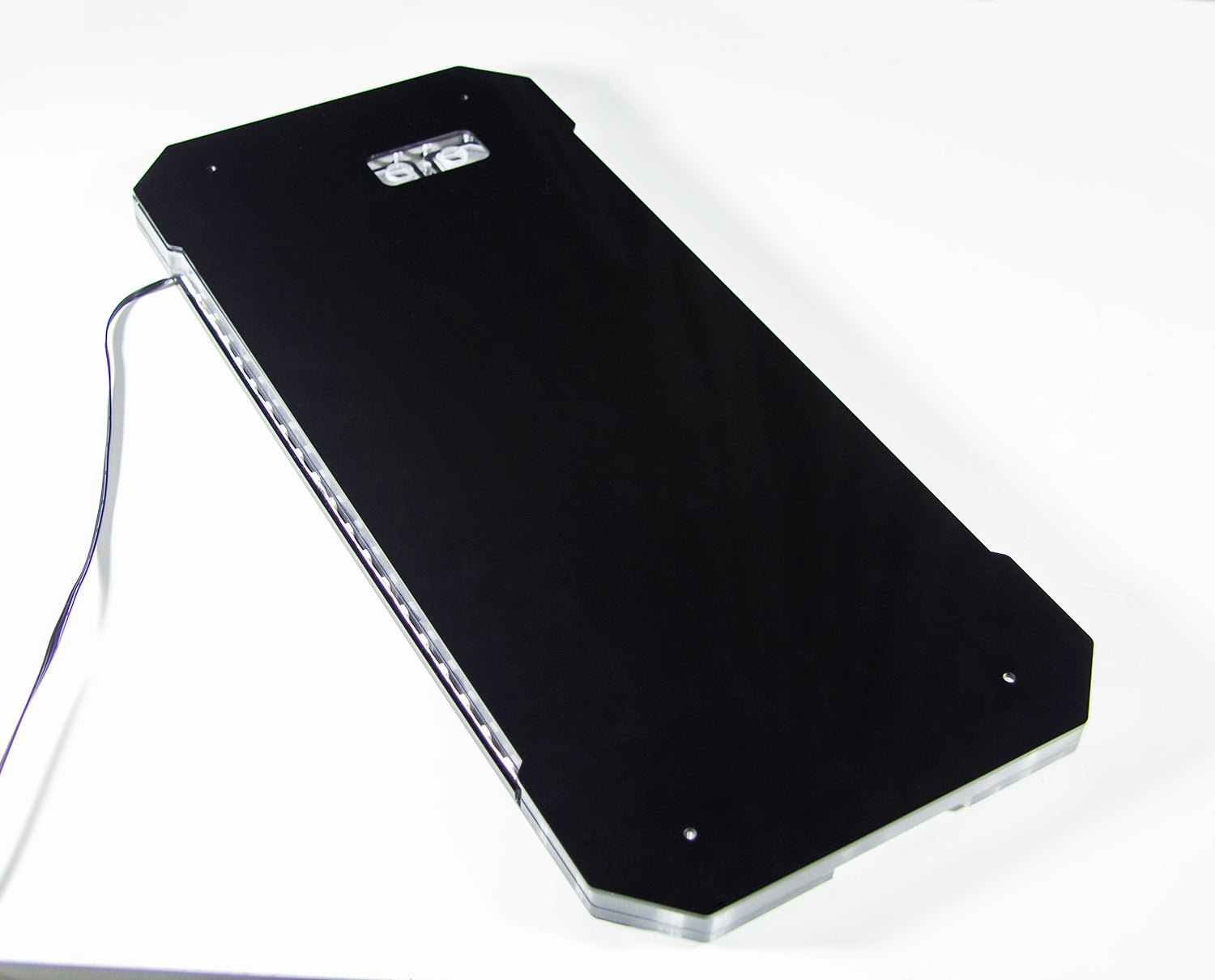

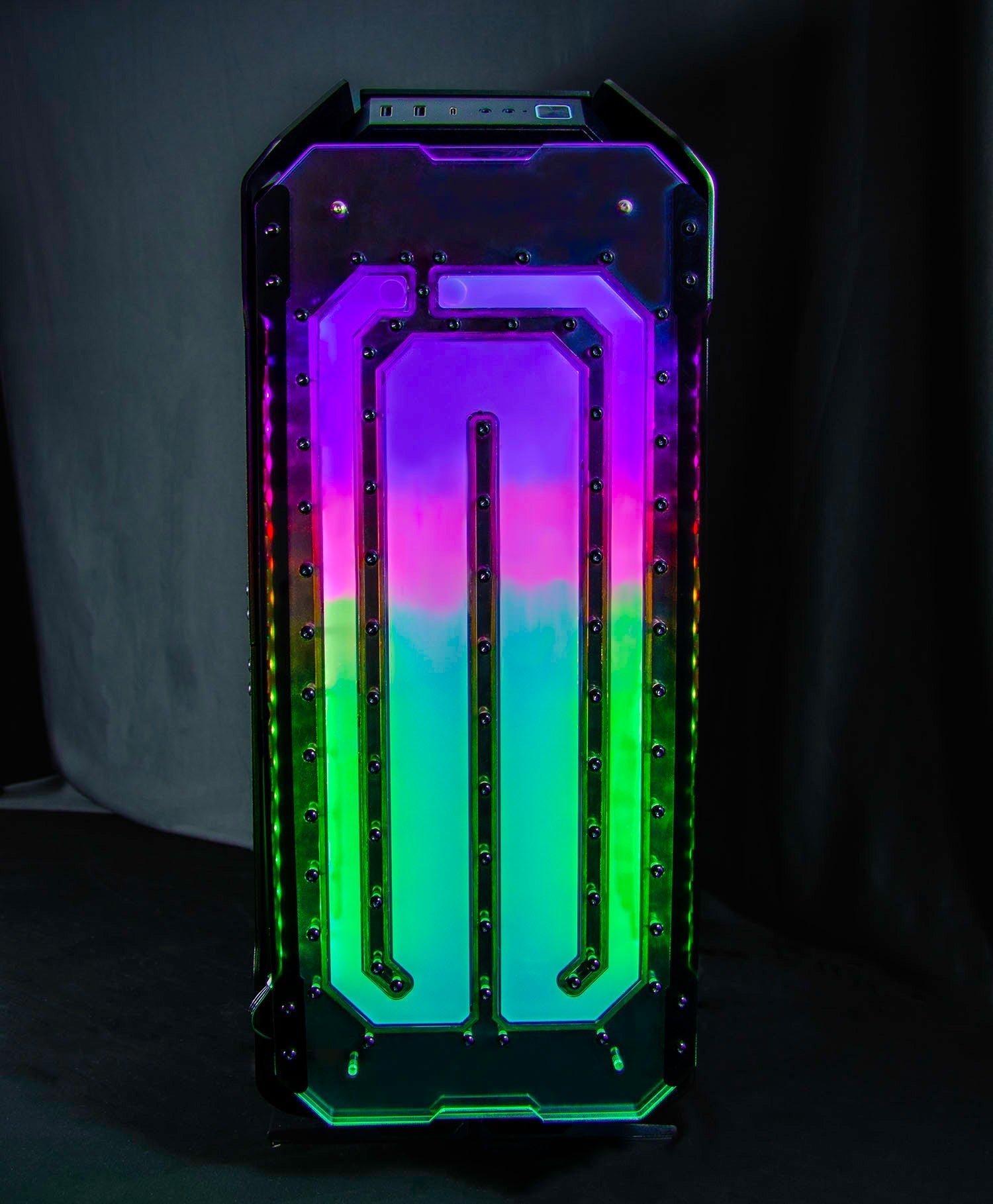

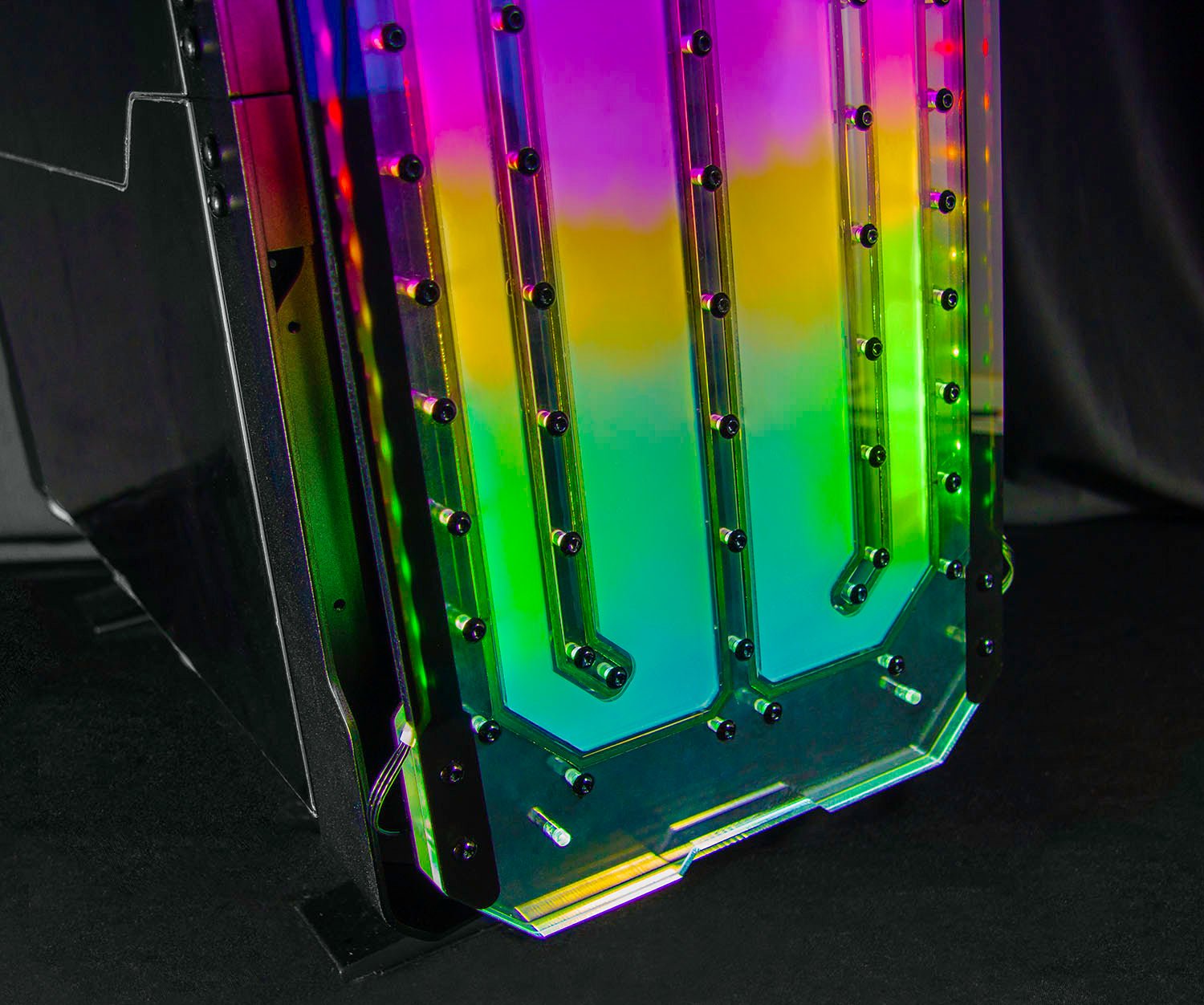

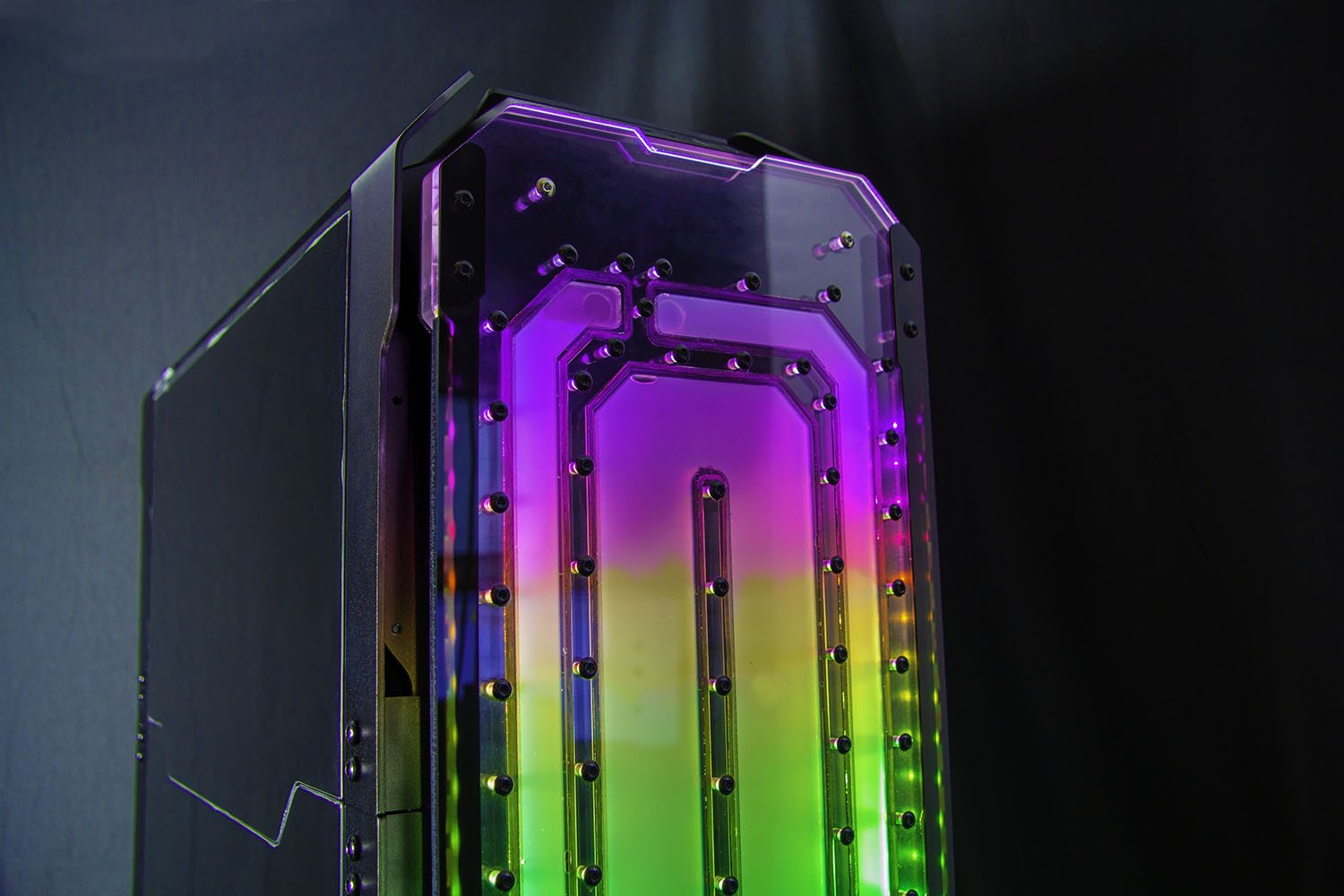

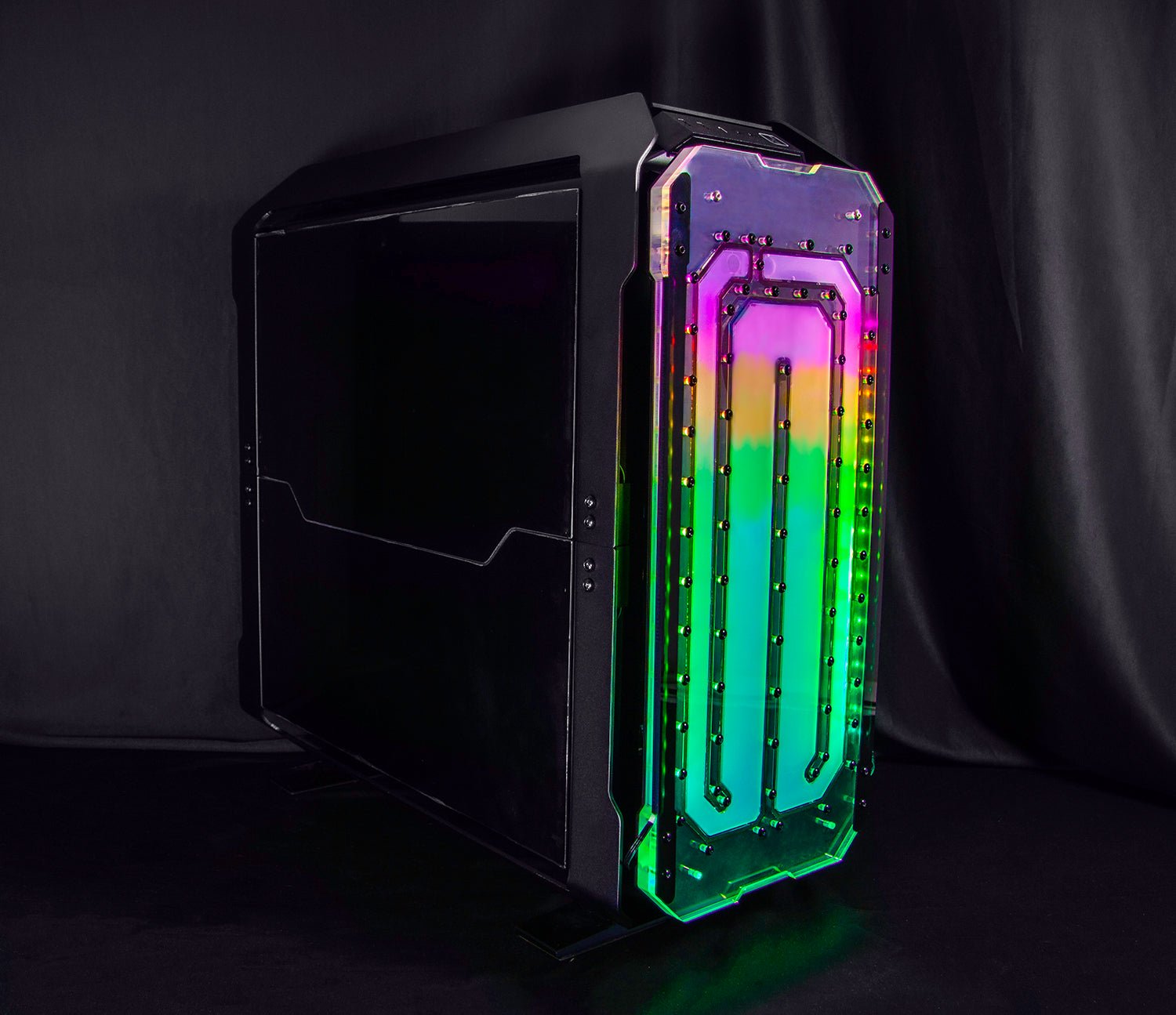

This distroplate is designed as a replacement panel for the 2 font pieces on the Lian Li Odyssea X case. Mounting to the existing brackets this distro does not block any airflow to the case. It features 2 D-RGB strips with black acrylic diffuser covers, a black acrylic backplate and a unique and symmetrical design. With one inlet and outlet port the distroplate is designed as a reservoir addition to your build to increase water volume as well as aesthetics.

Please Note: If you want to use a front mounted radiator we recommend a 360 rad leaving a gap at the top to run tubing or fittings to the distroplate.

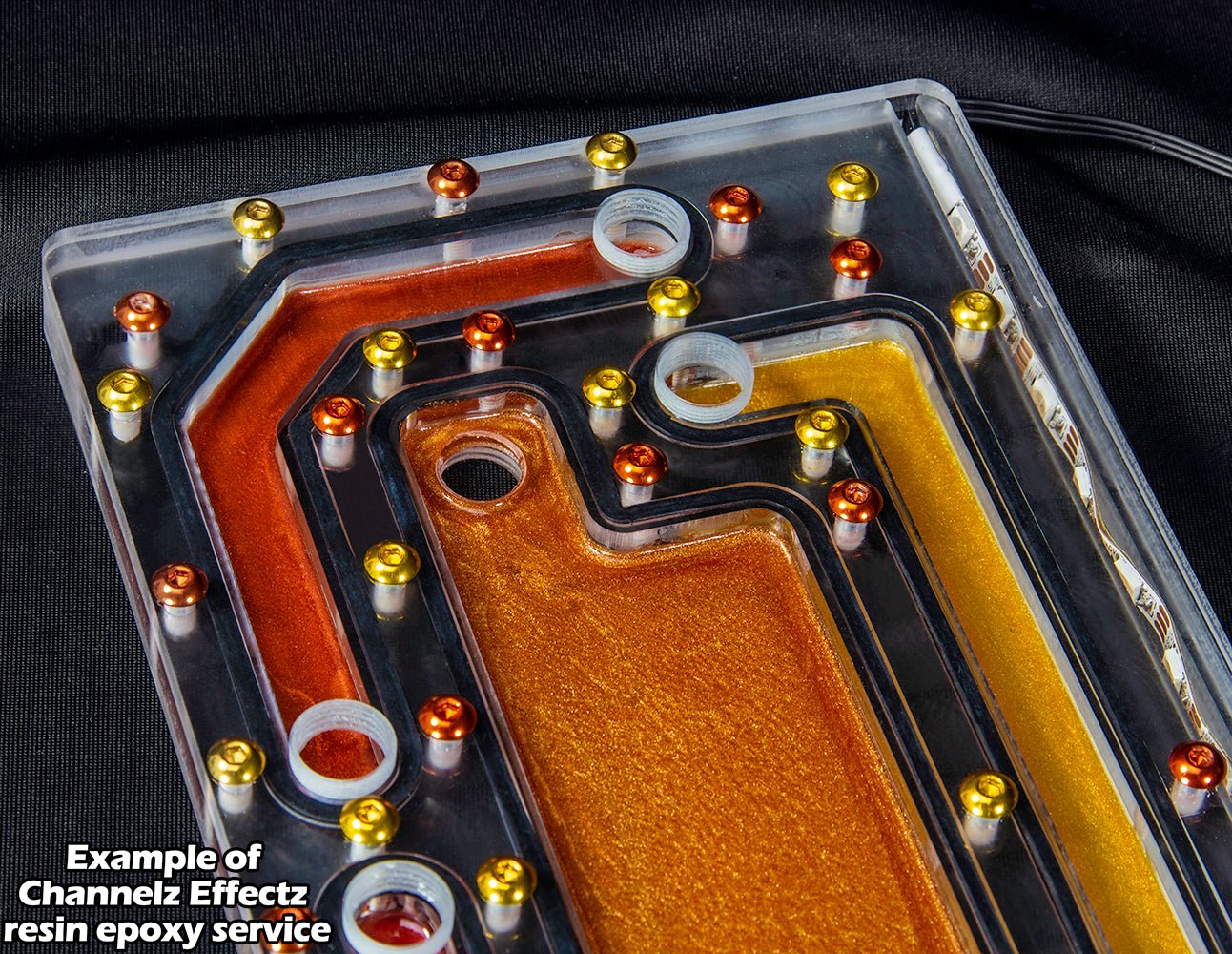

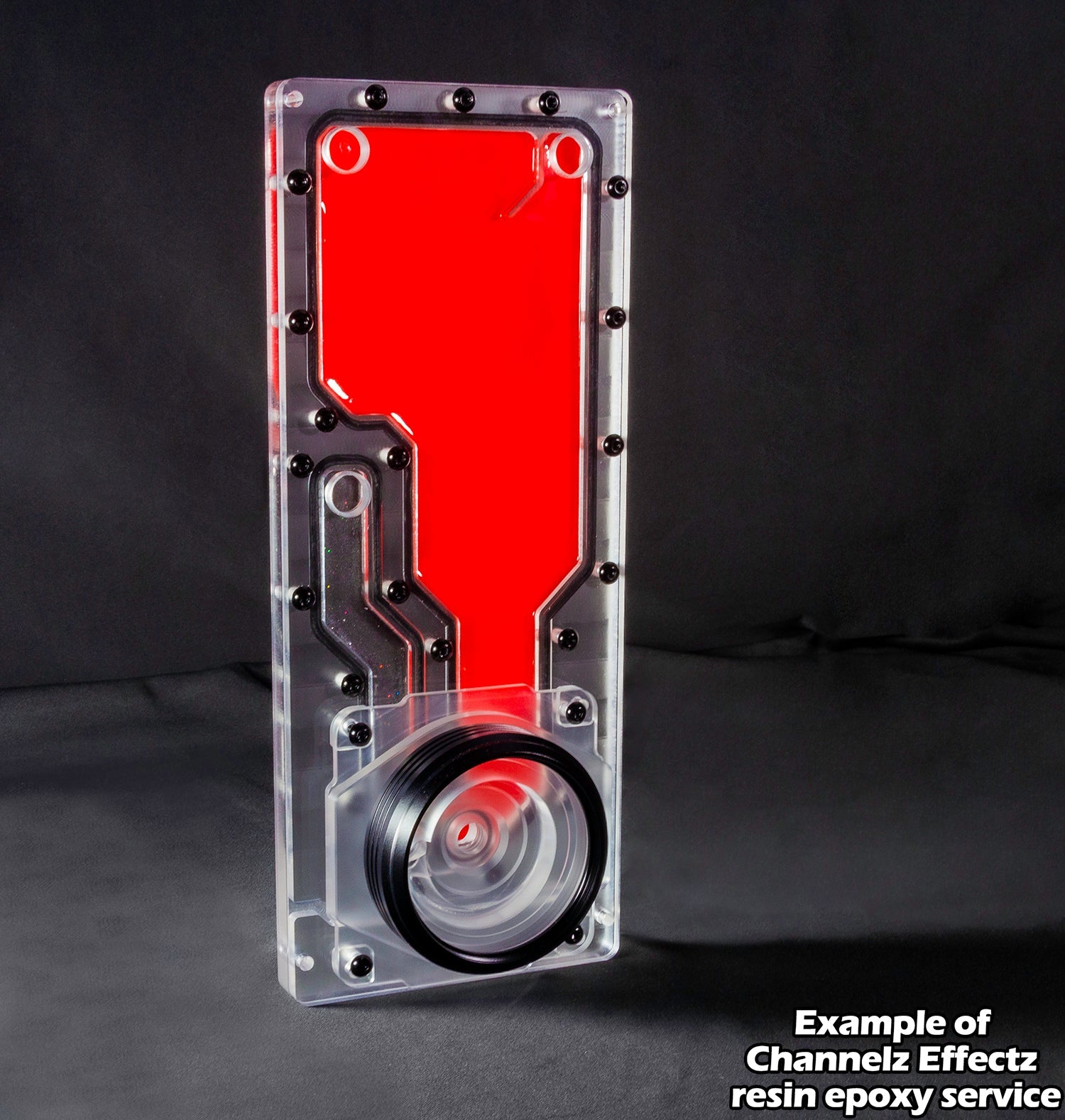

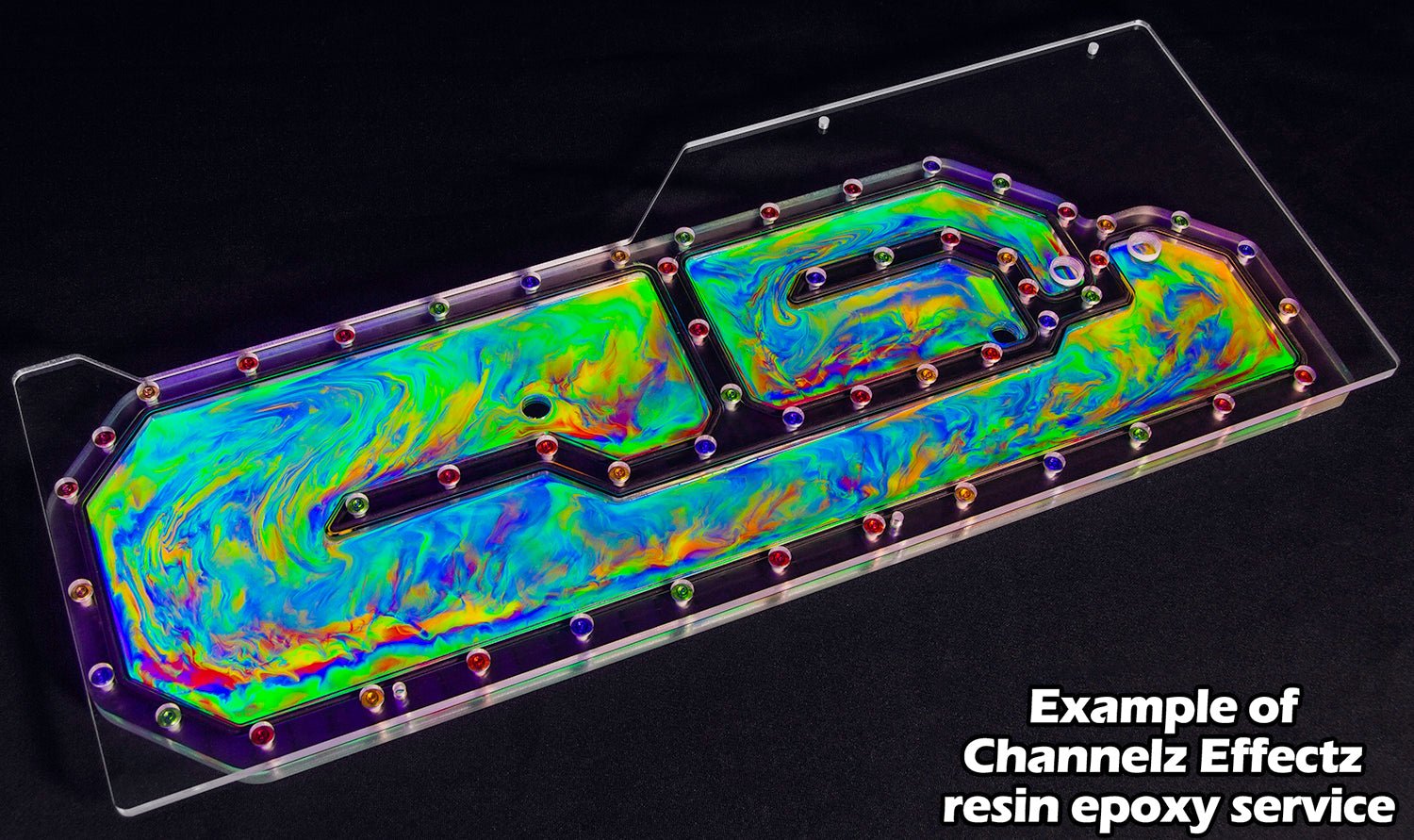

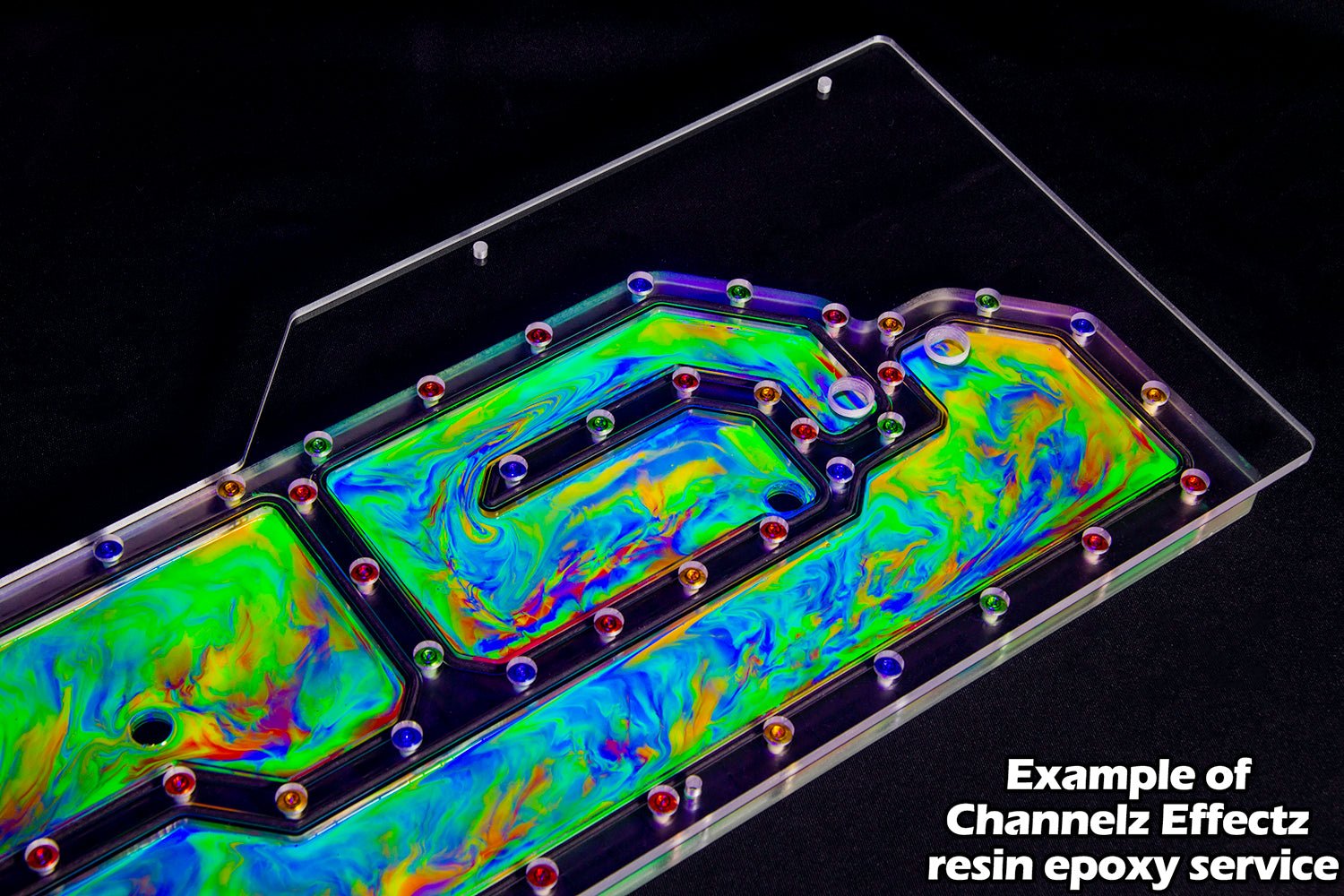

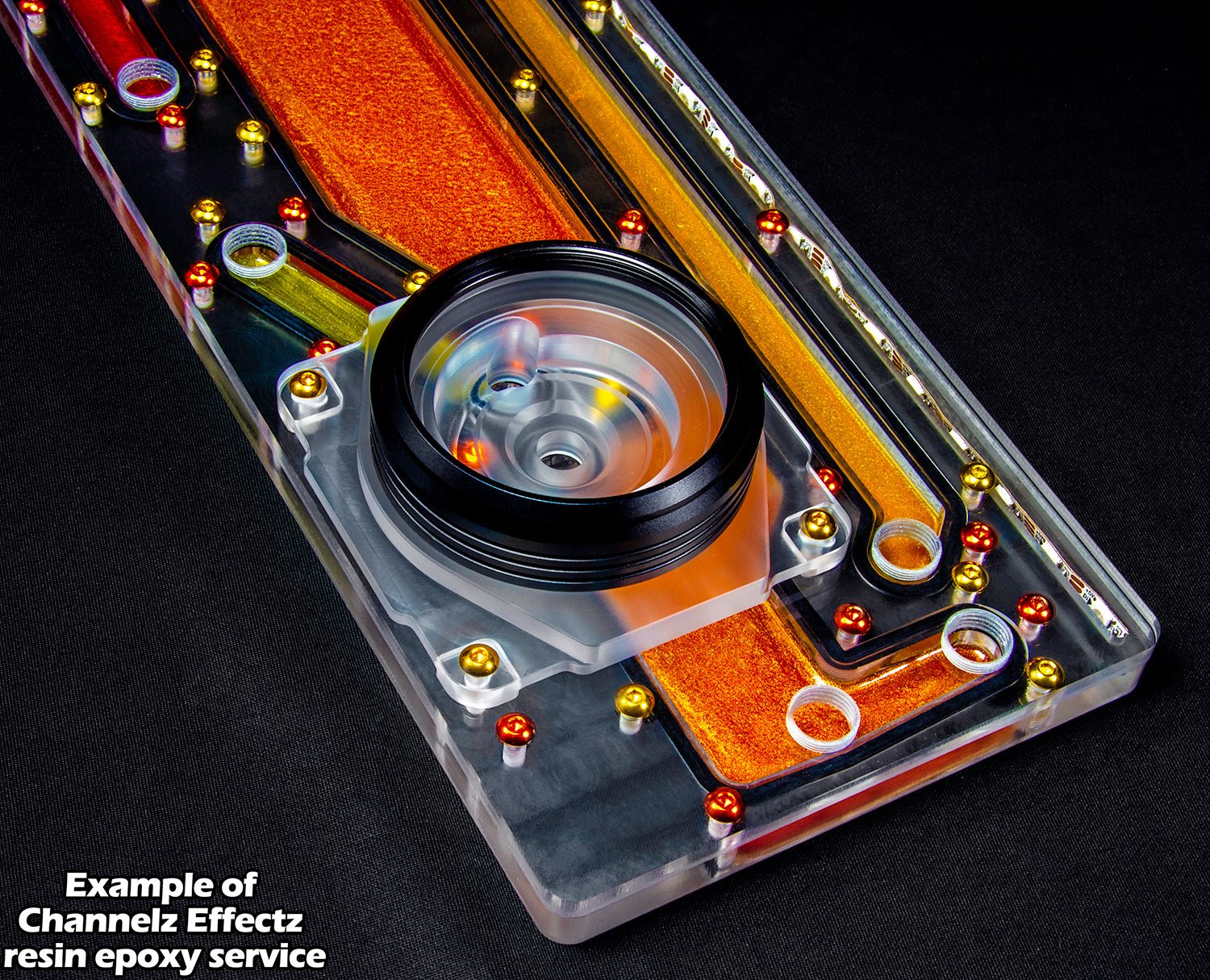

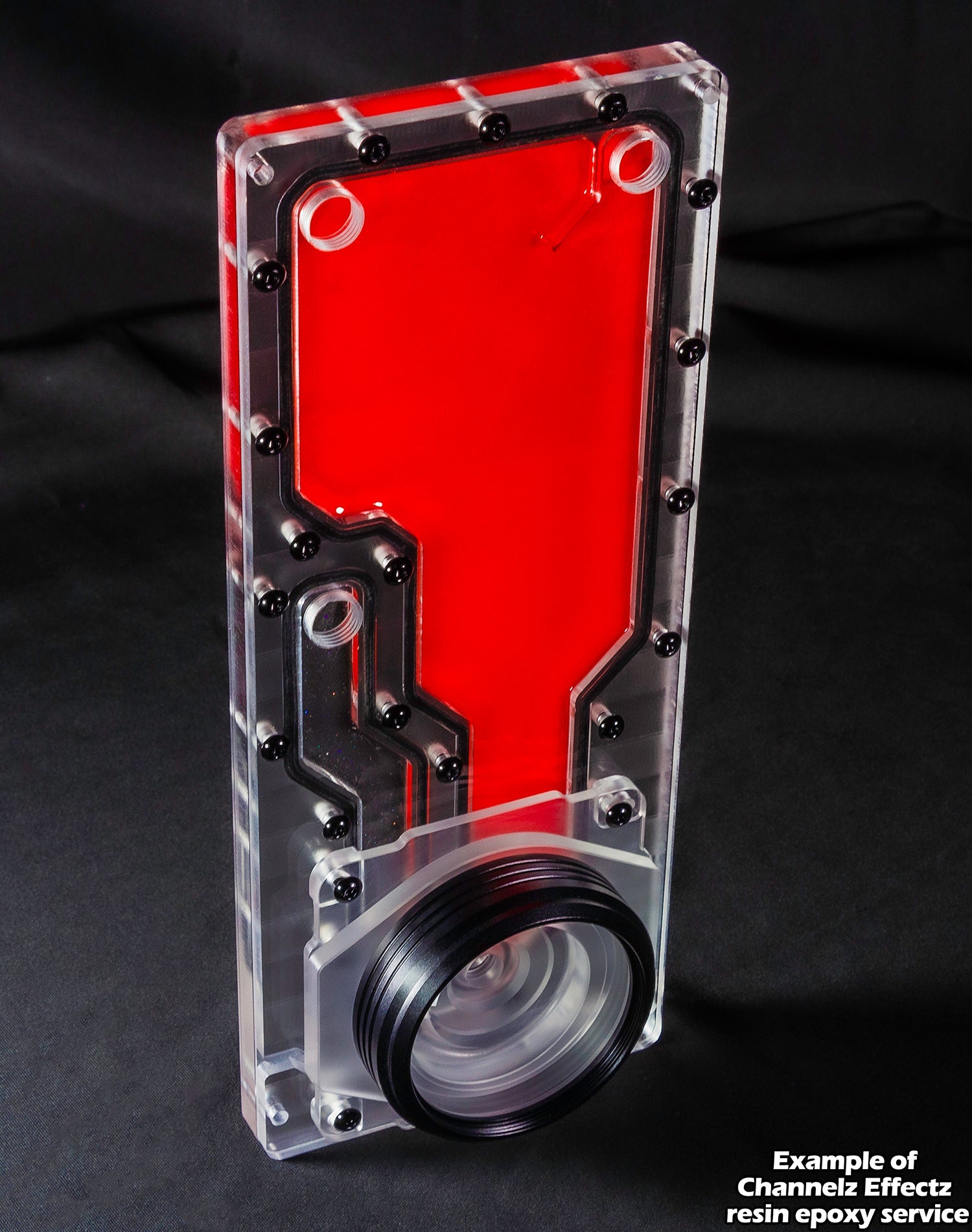

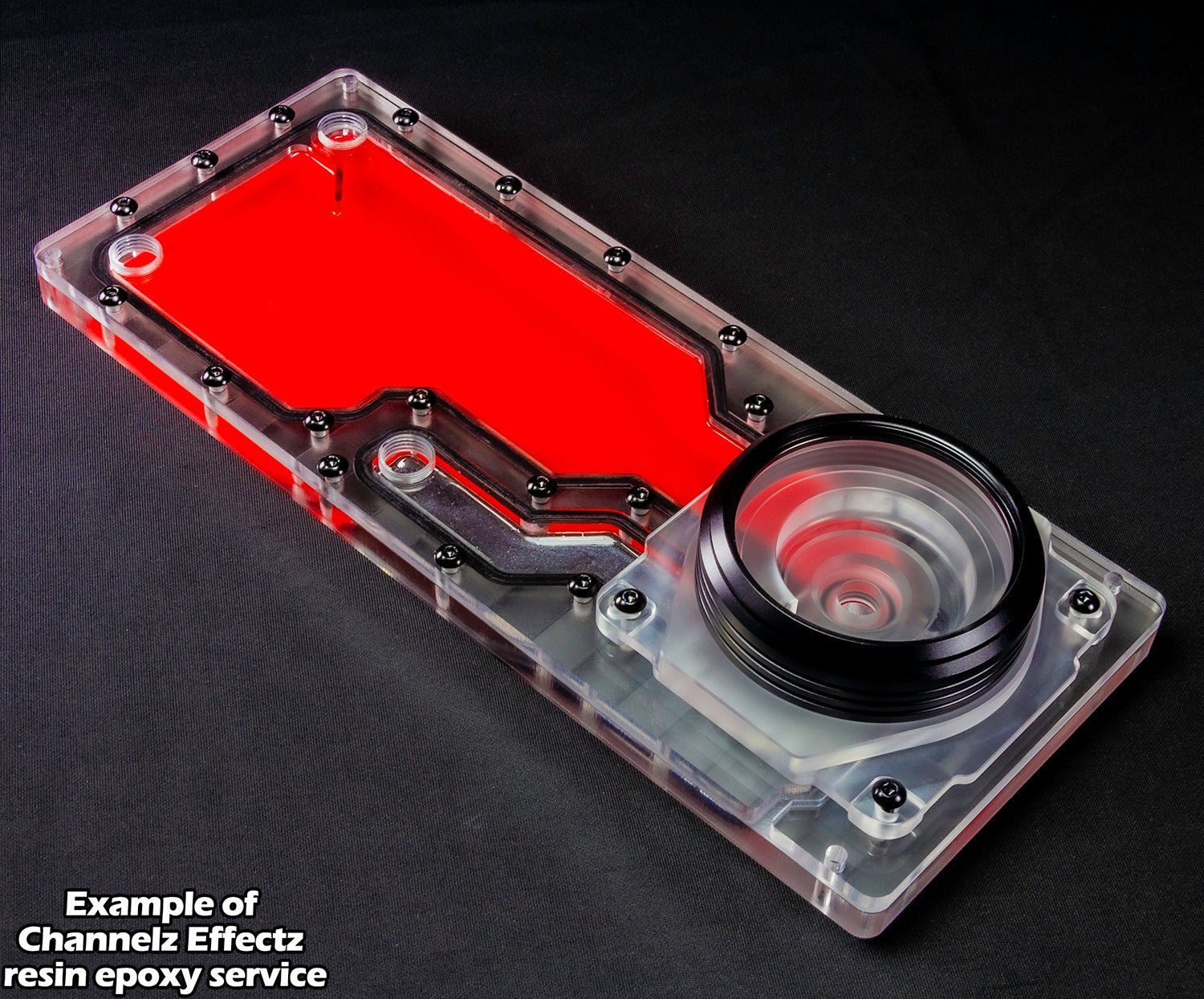

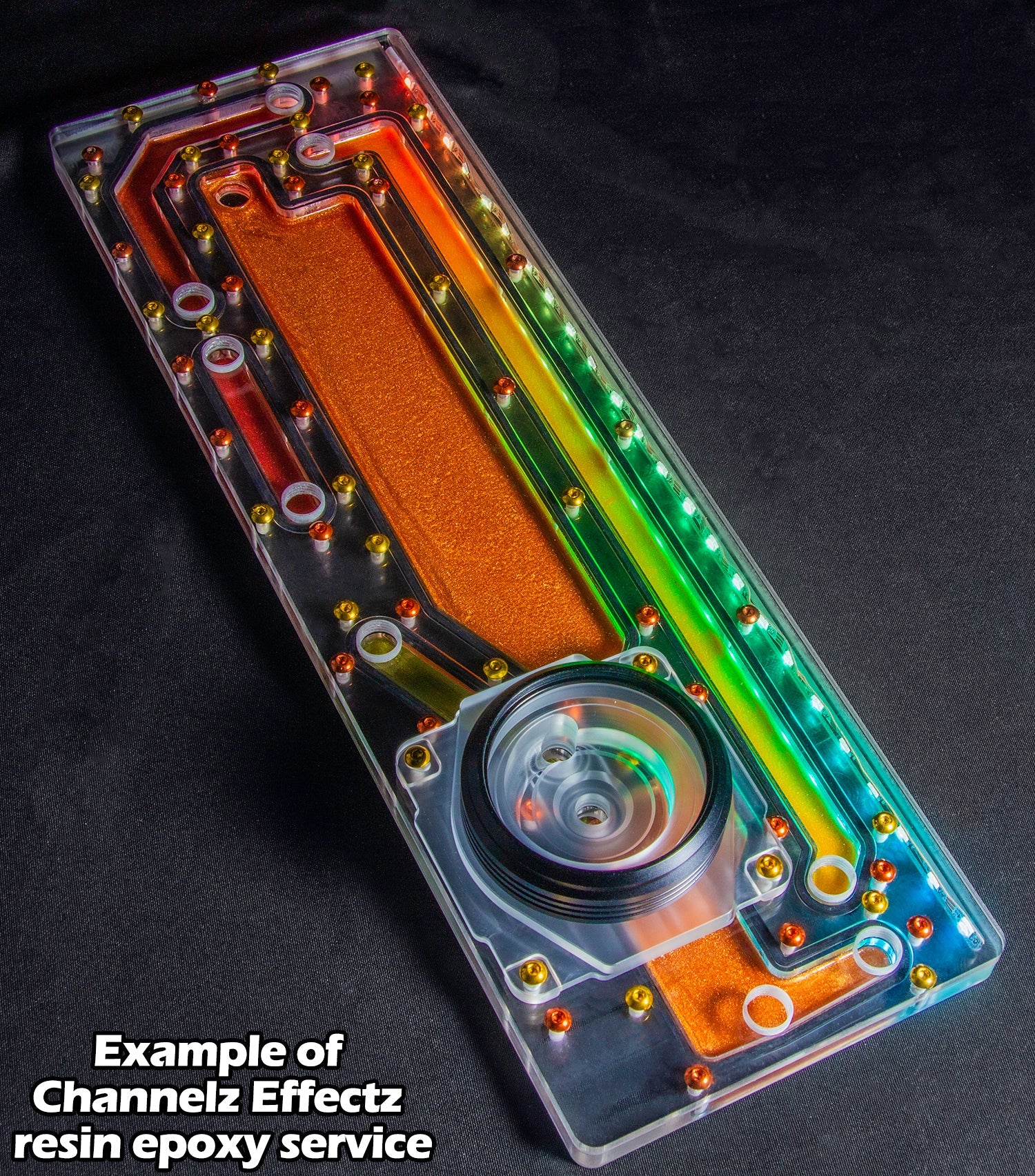

Channelz Effectz Service

Tired of all that colored Coolant clogging up your loop but donâ??t want to stick with some boring old clear coolant? Well Performance-PCs has you taken care of with their new Channelz Effectz Serivce! This service is a great way to add some color to your Channelz distribution plate without clogging your loop with pastel or mica filled coolants. We use an epoxy resin mixture that is safe for your loop and will certainly help that build POP. There is 30 different super vivid color options to choose from and we even added the ability for you to mix colors to give your loop its own style.

Installation:

This Distro plate is compatible with the Lian Li Odyssey X. First remove both Front Panel pieces along with the outer clips that hold the front panel piece on for easy installation also remove both side panels. With the Panels removed place the included M4x25mm Button heads through the mounting holes on the distro and the black acrylic backplate and then into the mounting holes on the front of the case. With the included M4 nuts secure the distro onto the case.

Specifications:

Material: Clear Cast Acrylic.
Fasteners: Stainless Steel Silver.
Stand Offs: Brass.
Gaskets: Silicone Black.
O-rings: Silicone Black and Clear.
Stop Fittings: Brass Black Powder coat.
Ports: x22. Inlets: x1 Outlets: x1.
LED Strip: DRGB 5V Addressable.

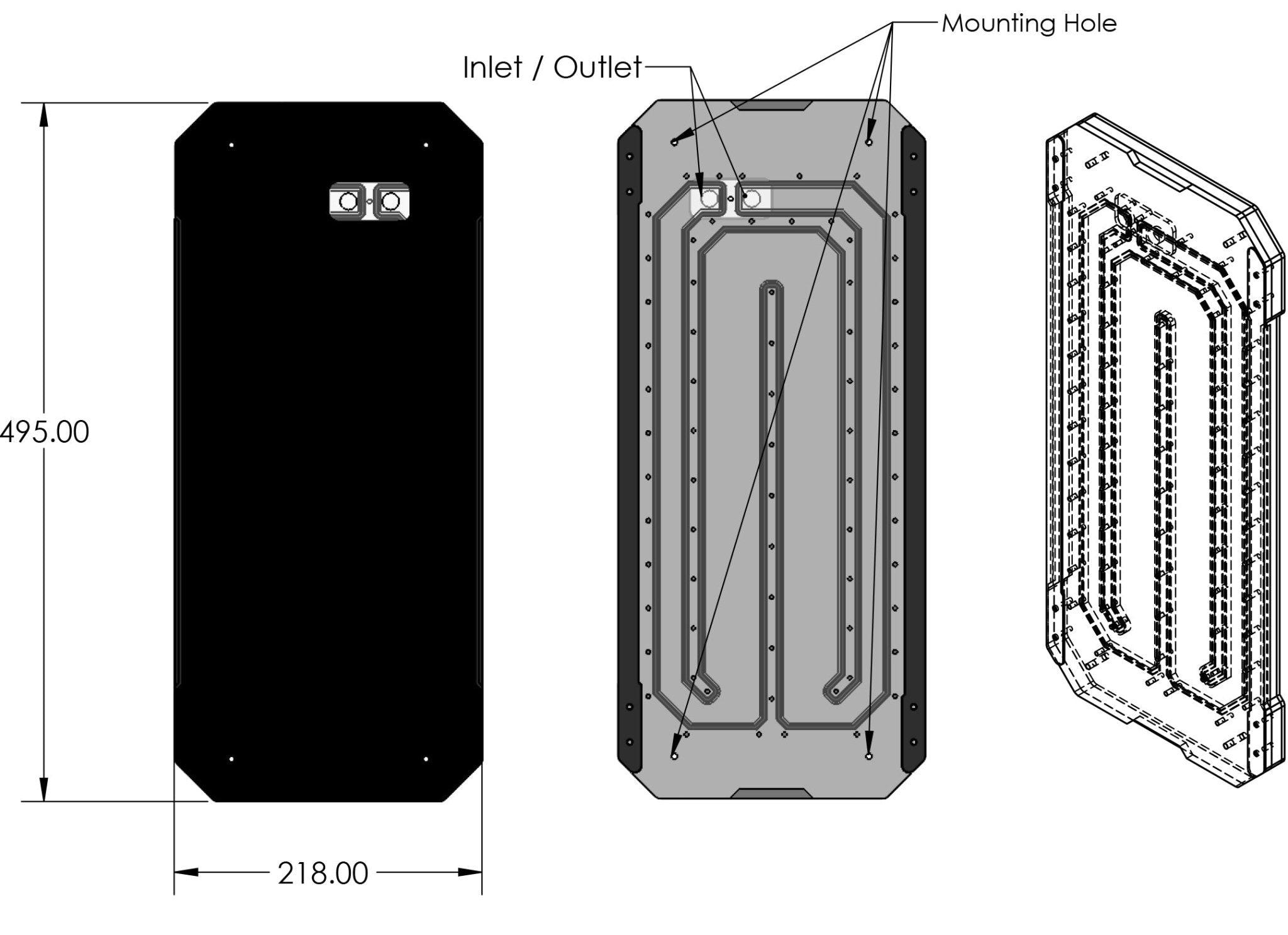

Dimensions: Width: 218mm. Height 495mm. Depth 20mm.



Included Items:

Channelz Lian Li Odyssey X Front Distrobution Plate : x1.
DRGB LED Strip: x2.
Mounting Fasteners: M4x25mm BottonHead: x4. M4-Nuts: x4.
