Channelz™ PC-O11 Mini Front Single D5/DDC Reservoir

Designed and manufactured in the USA by Performance PCs.

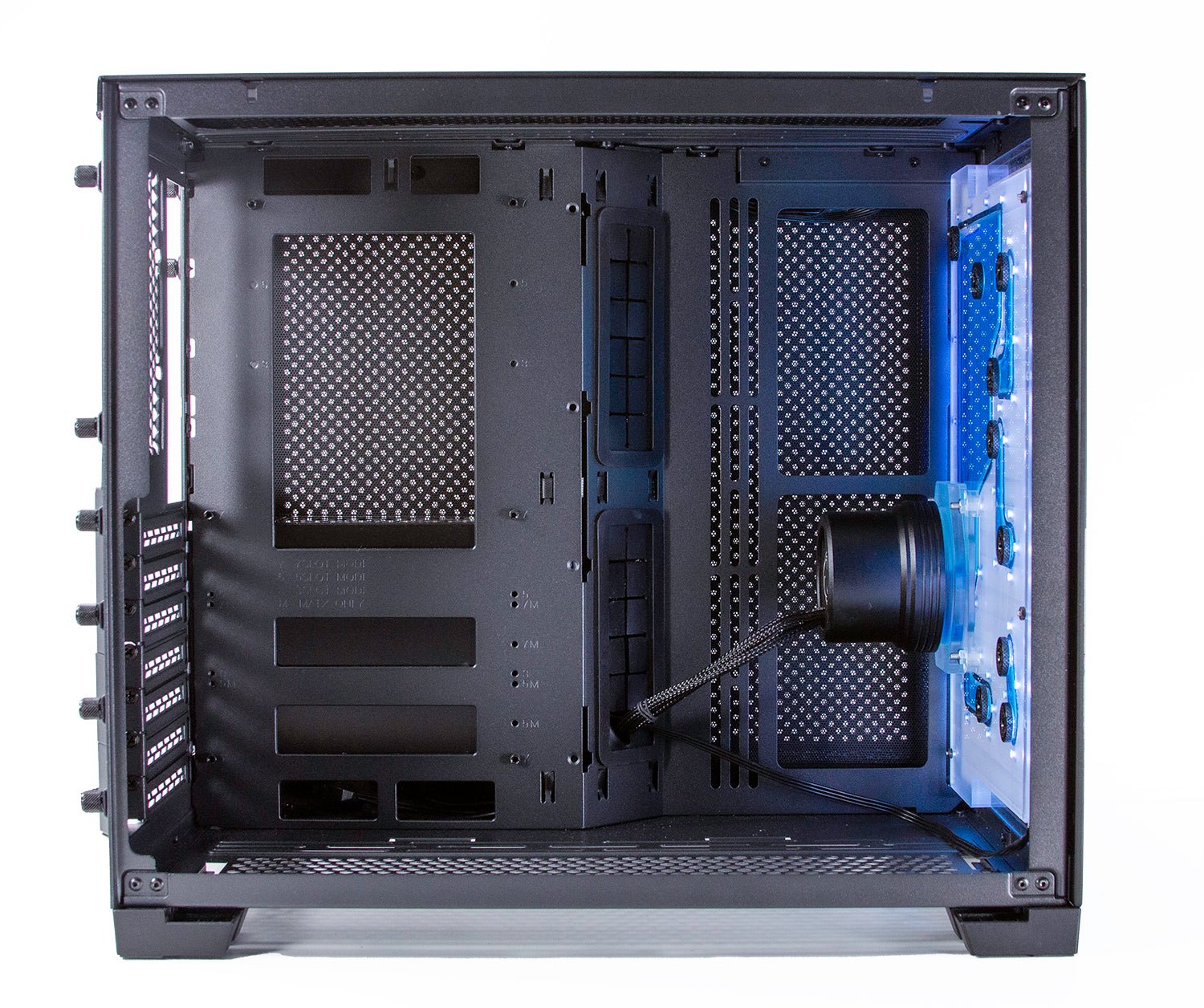

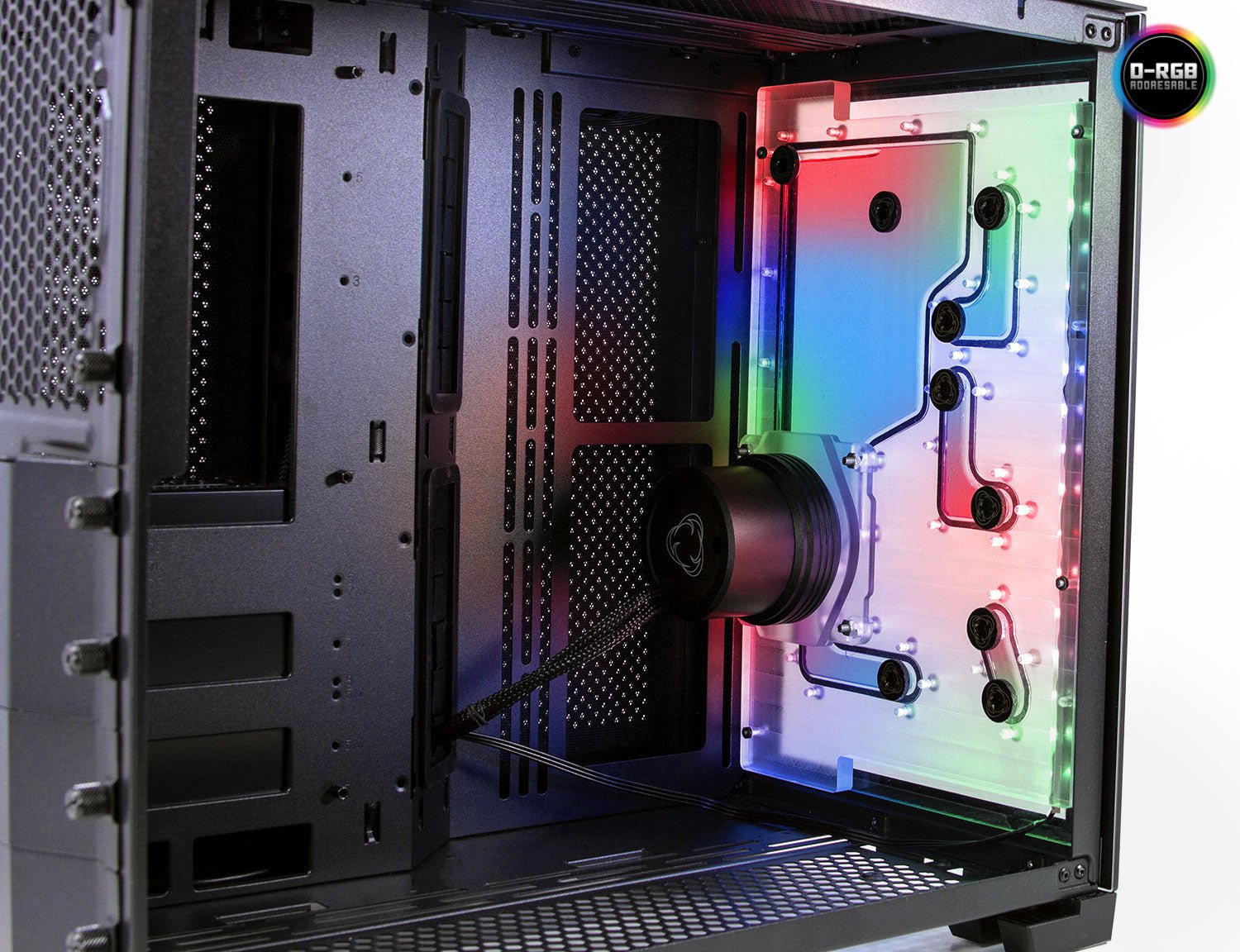

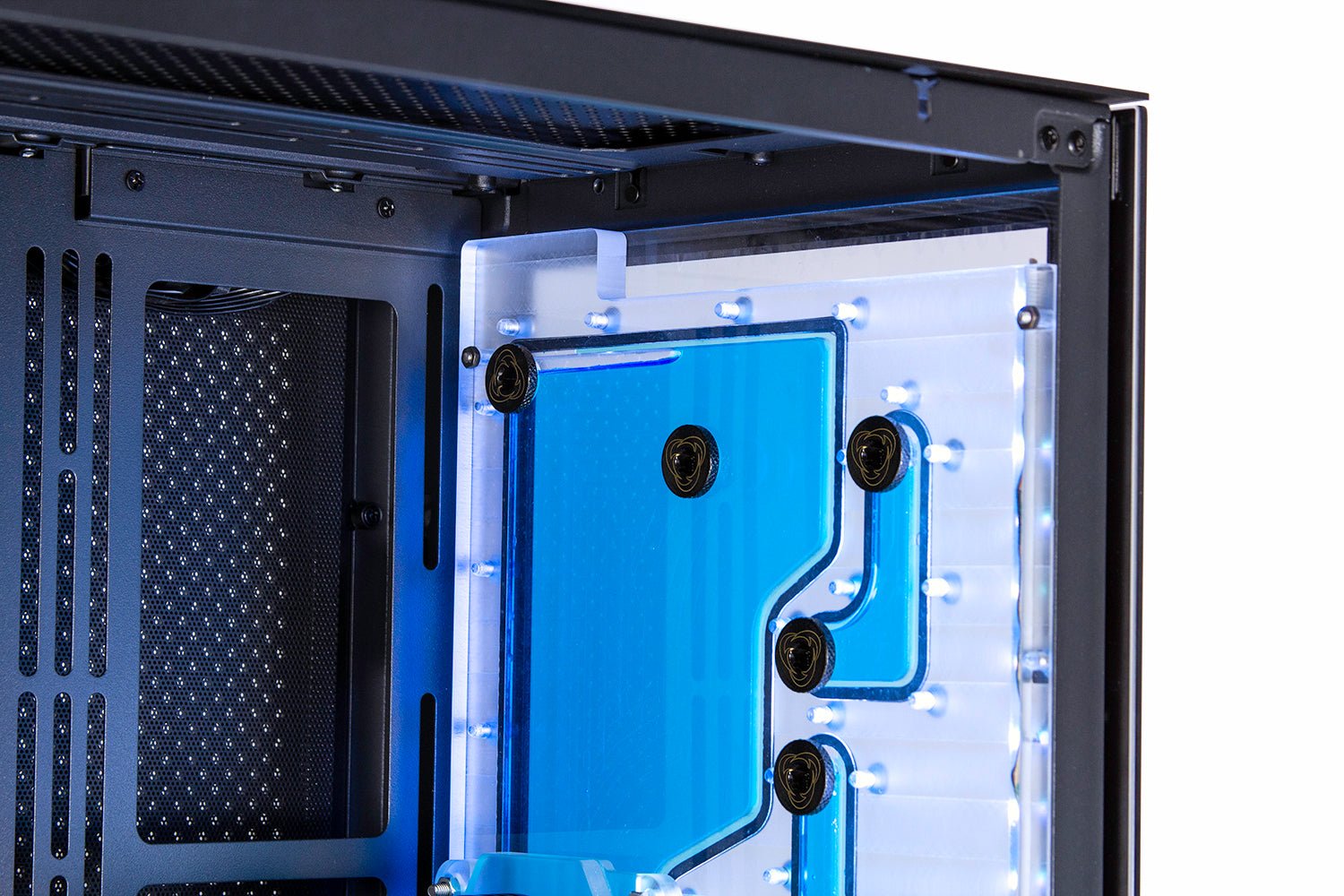

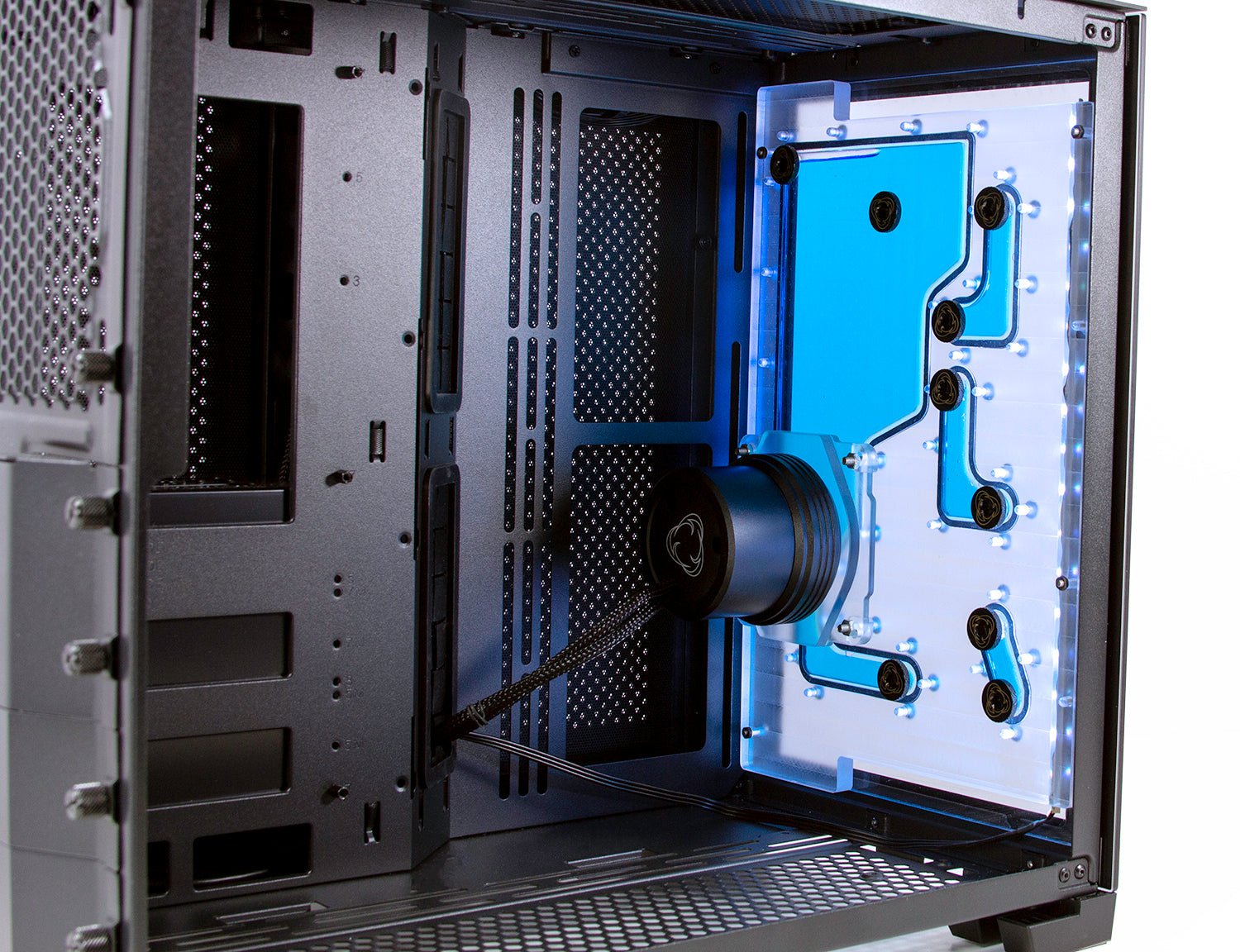

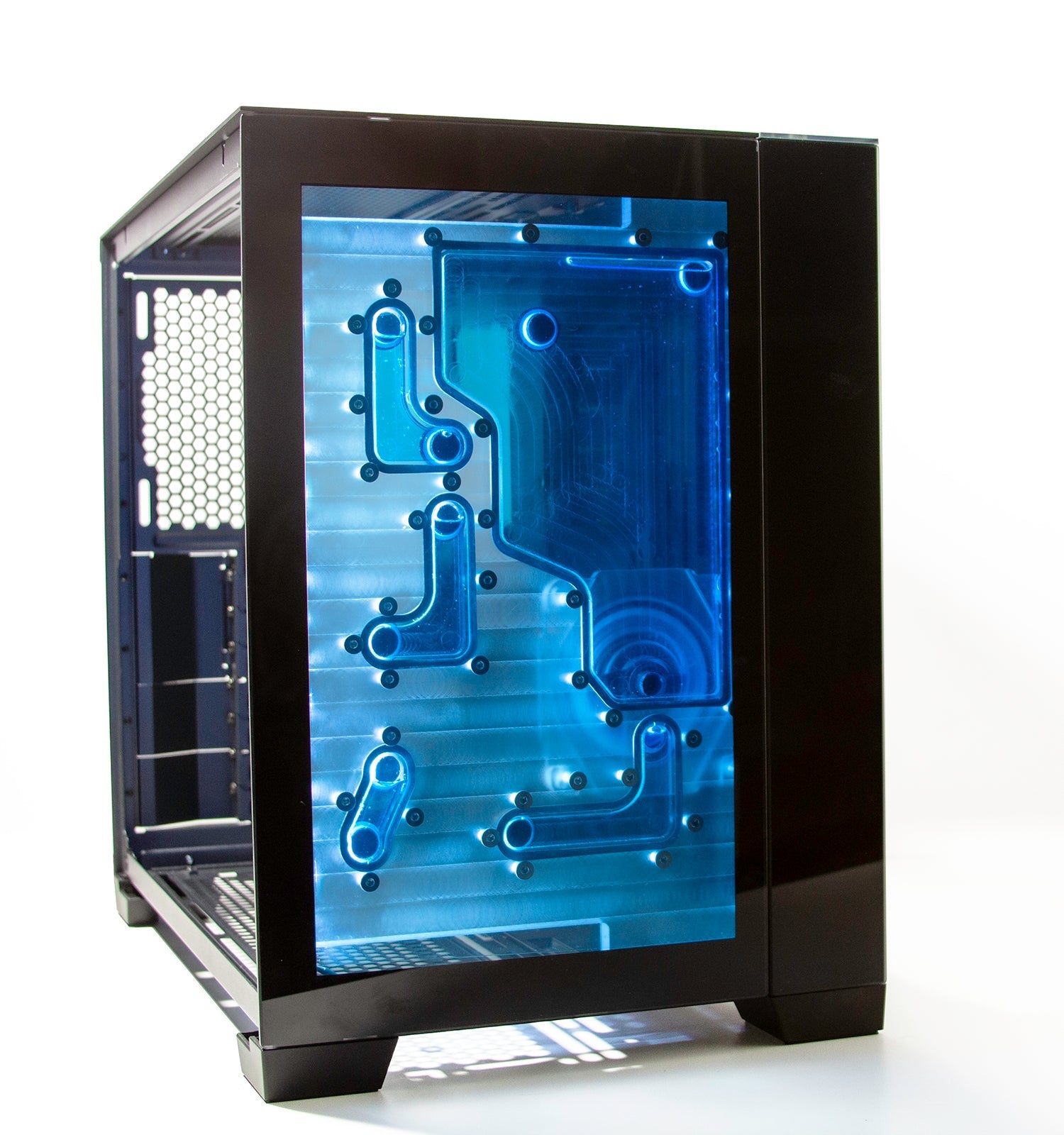

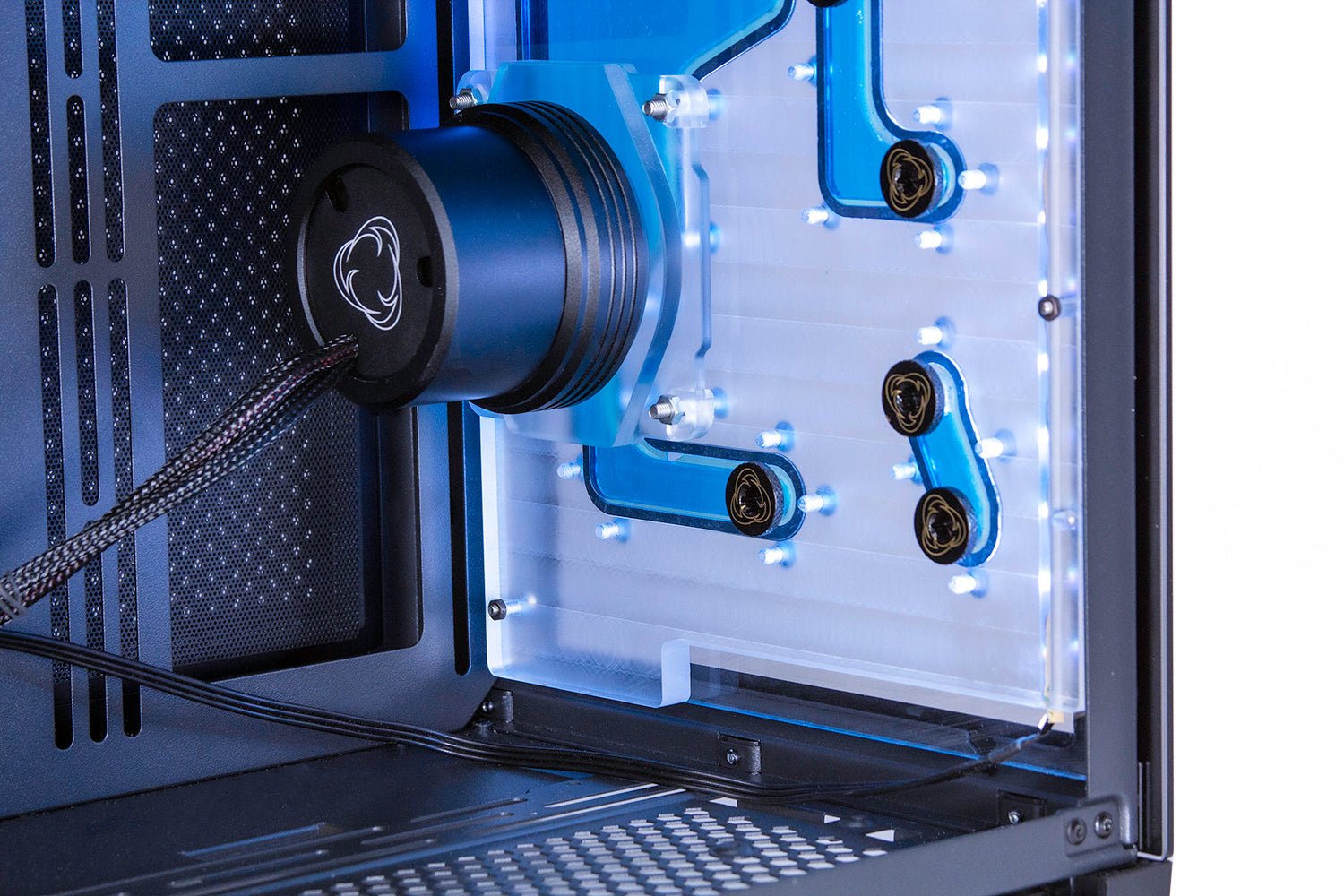

This is a Single Loop Distribution Plate which fits onto the front panel of the Lian Li PC-O11 Dynamic Mini inside of the tempered glass front panel window. It has one reservoir and fits a single D5/DDC pump. It comes included with a D5/DDC Rentention Ring which attaches the pump to the Distribution plate. There are 9 ports, 4 inlets and 4 outlets and 1 fill port. The fill port on the distribution plate is easily accessible while the side panel is off. This distribution plate is also designed to leave room on the top and bottom for a 360mm Raditor to be installed. It comes included with a DRGB Addressable LED strip.

NOTE: D5/DDC Pump and Cover Not Included.

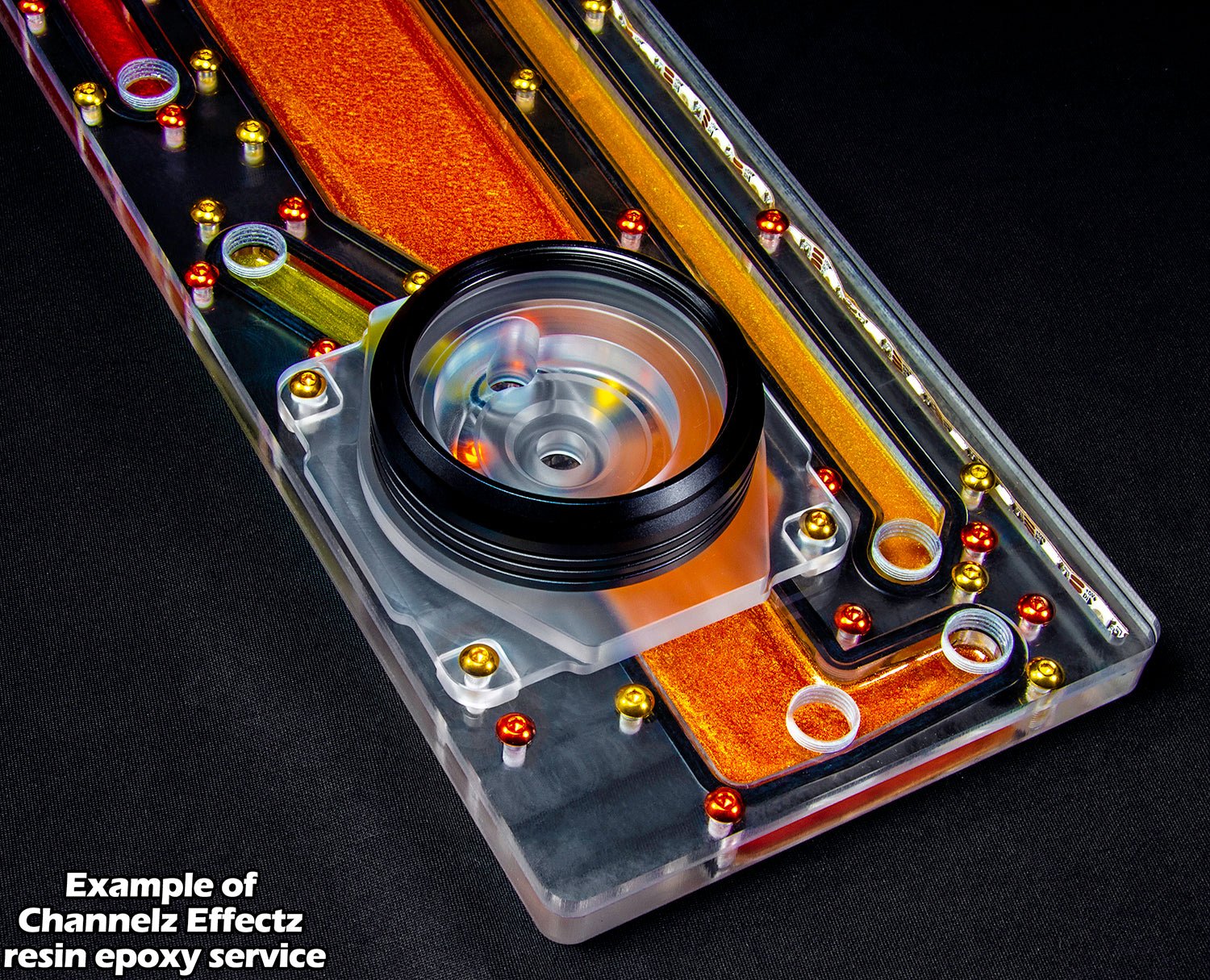

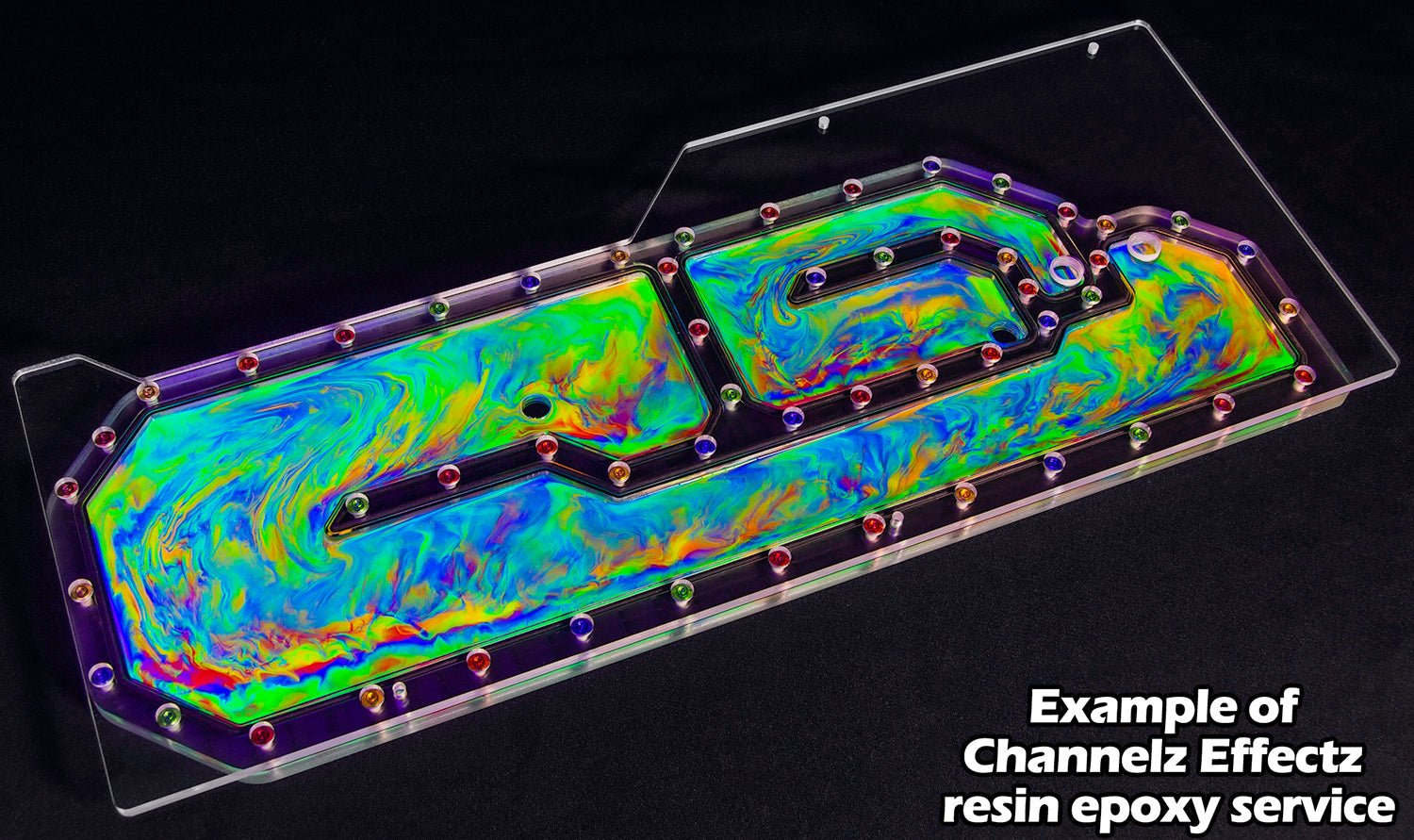

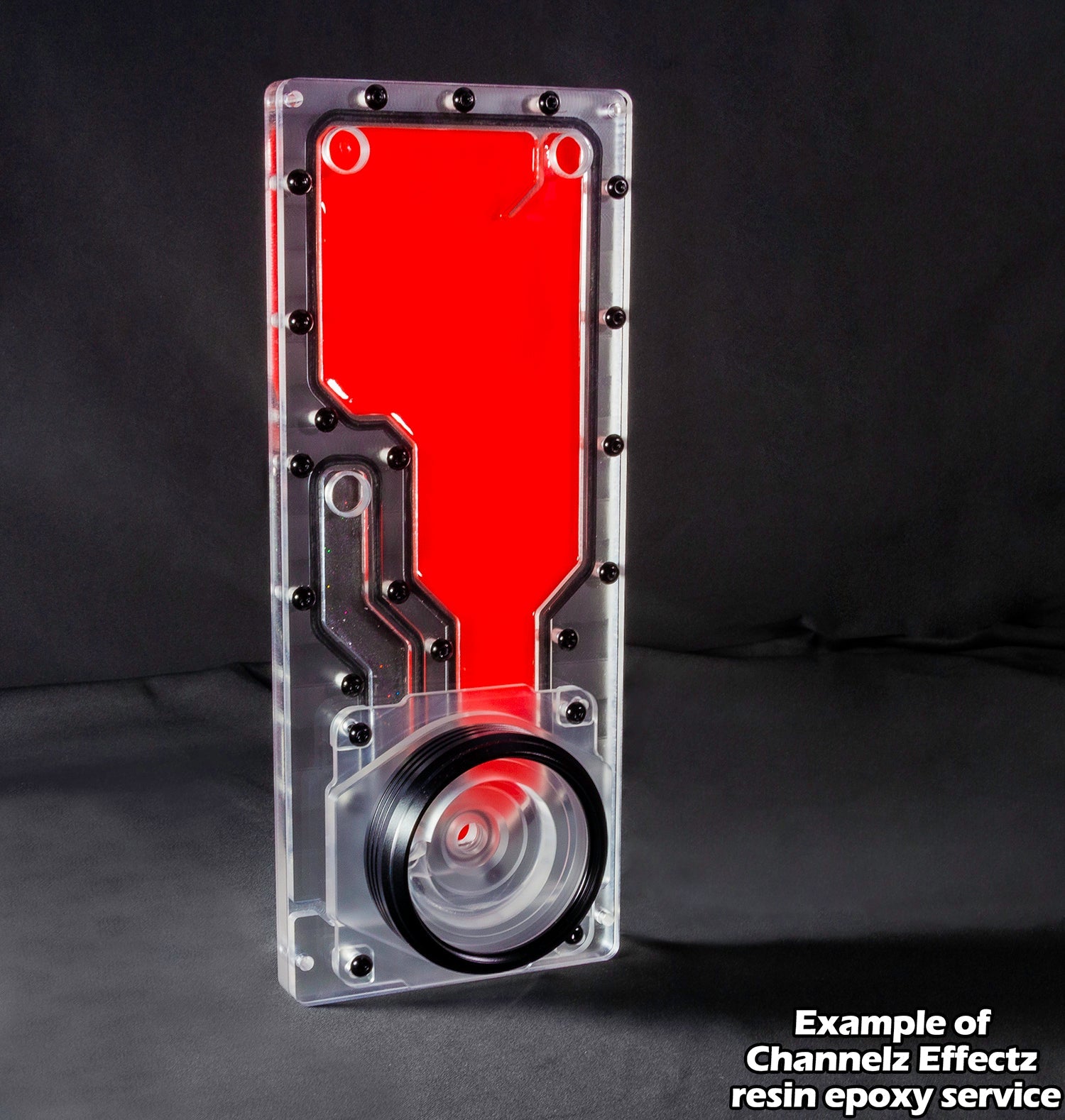

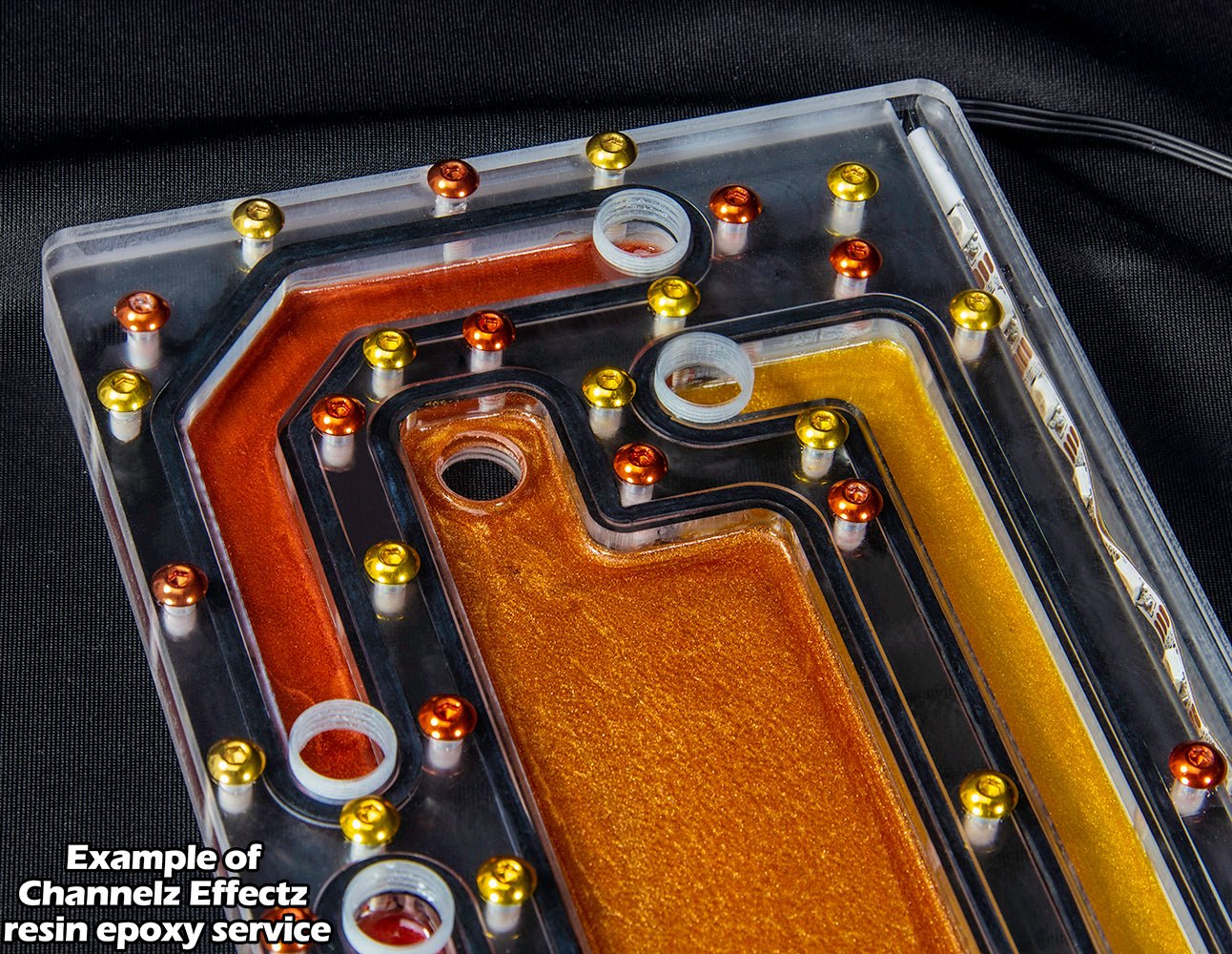

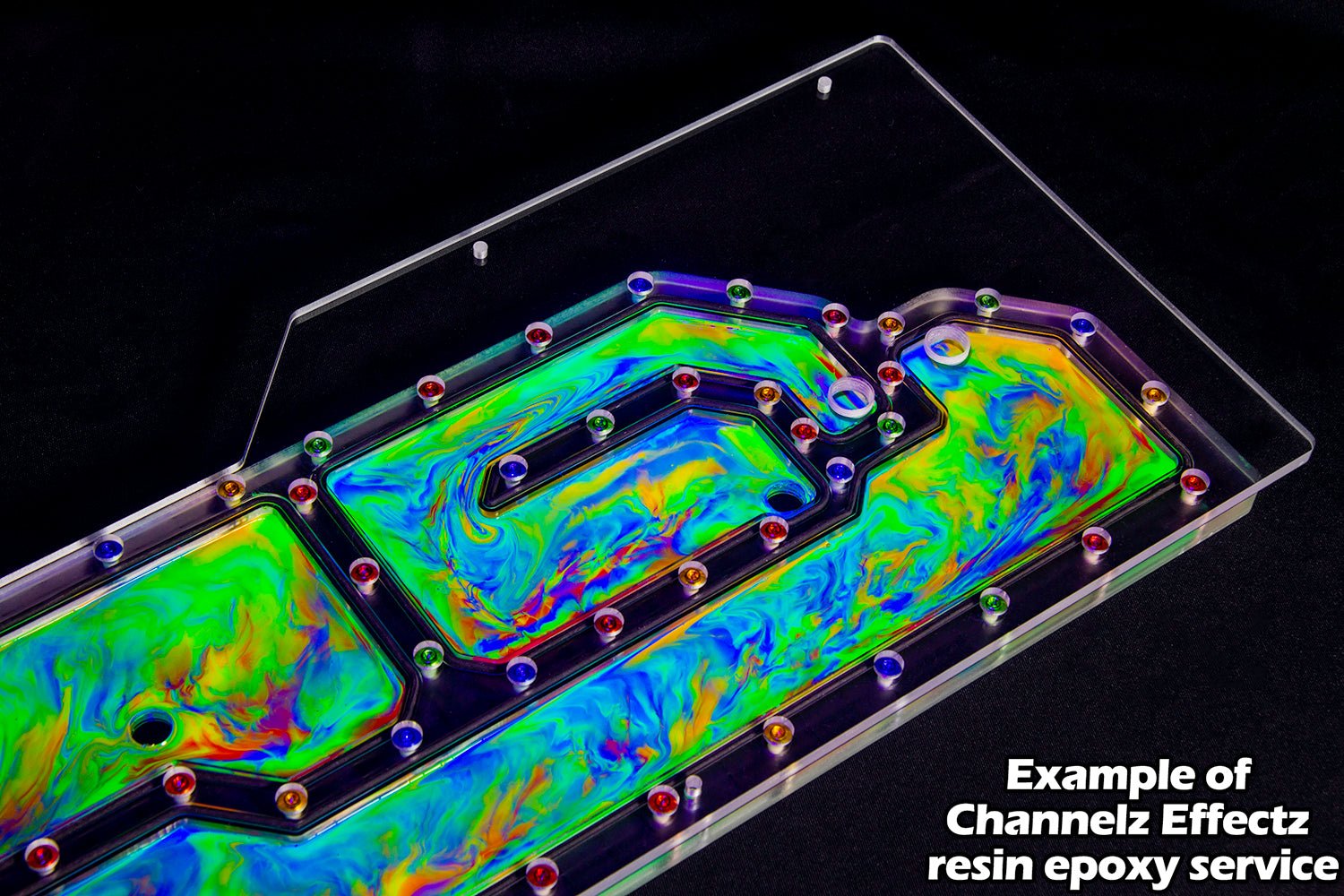

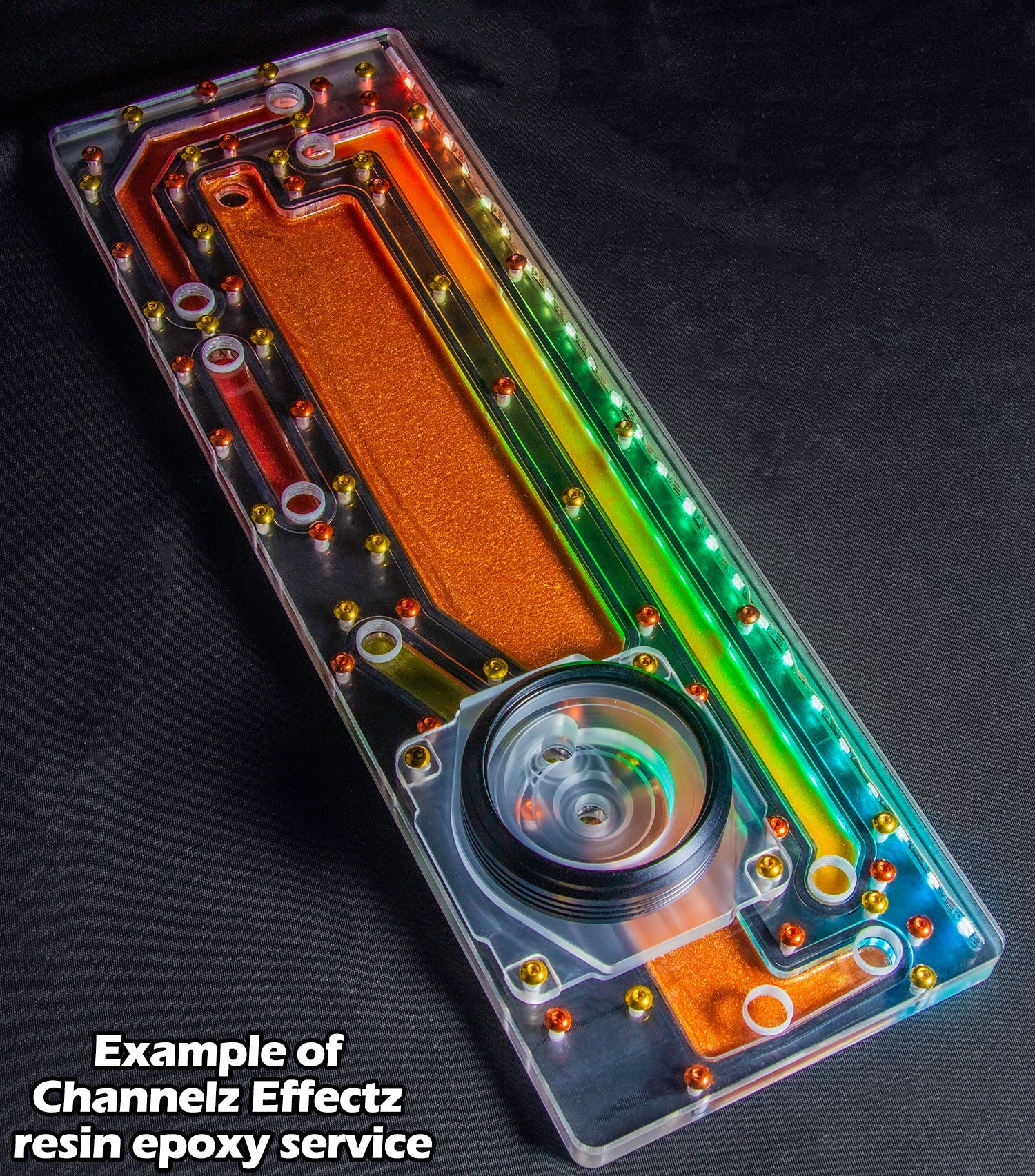

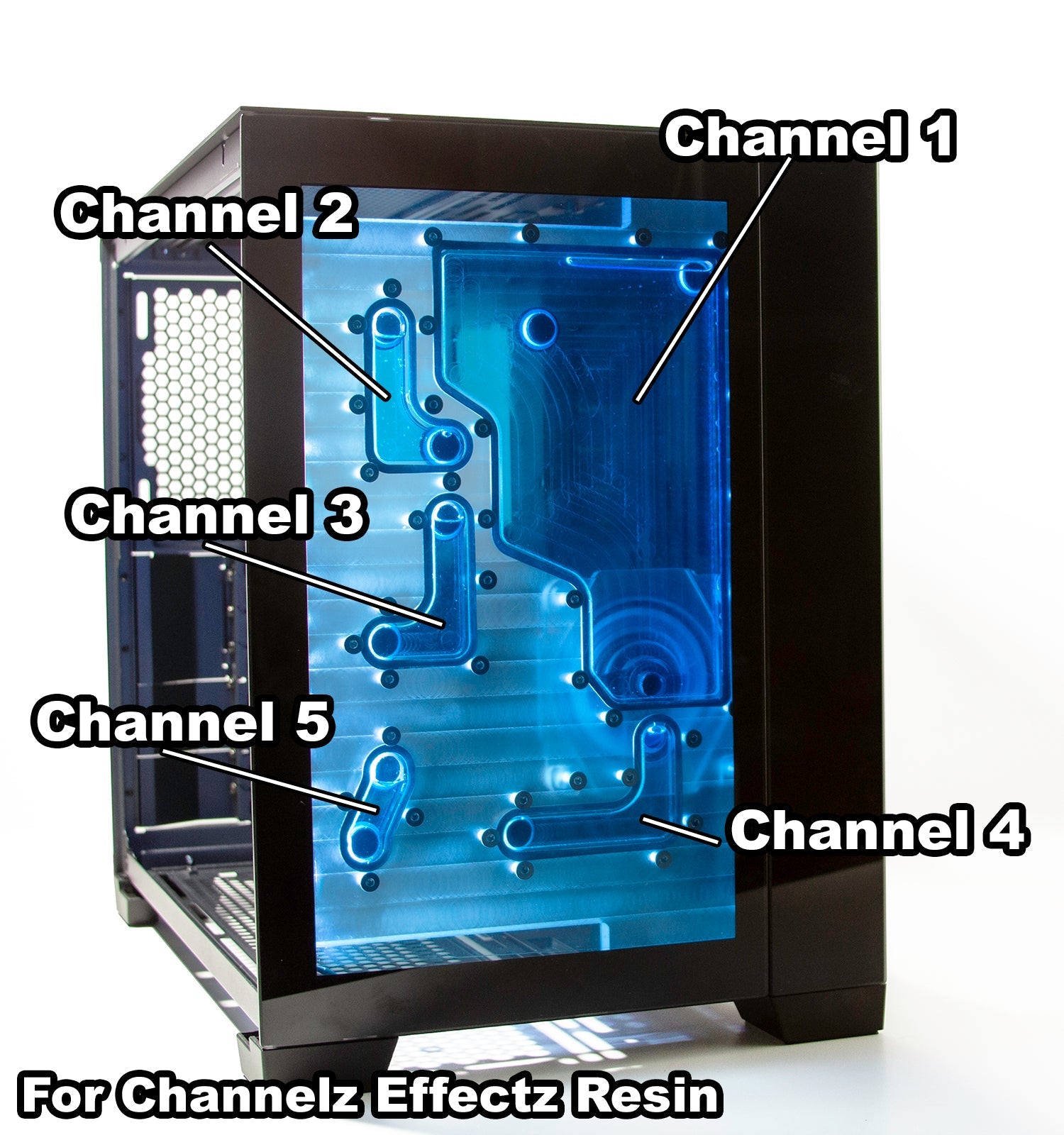

Channelz Effectz Service

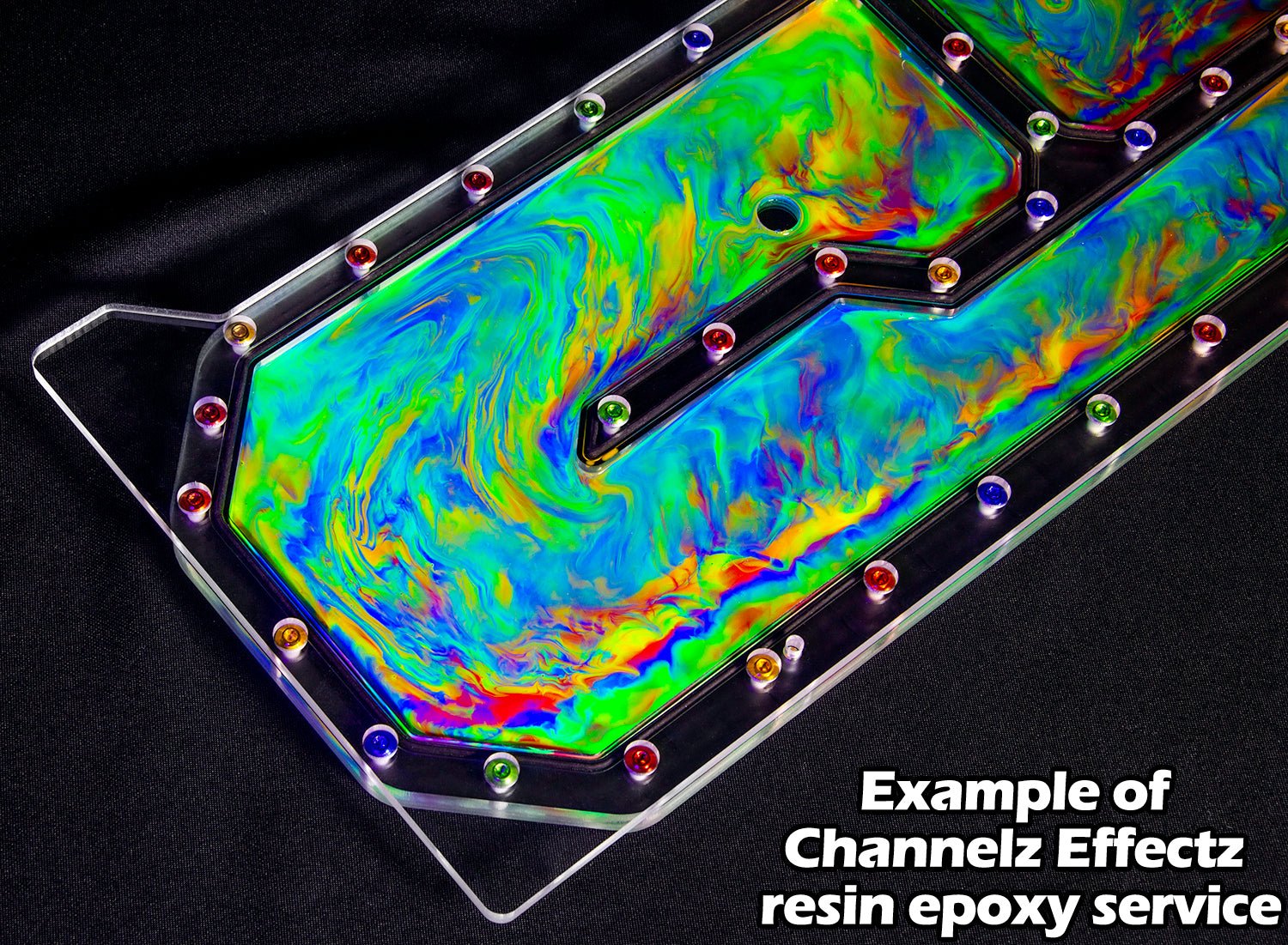

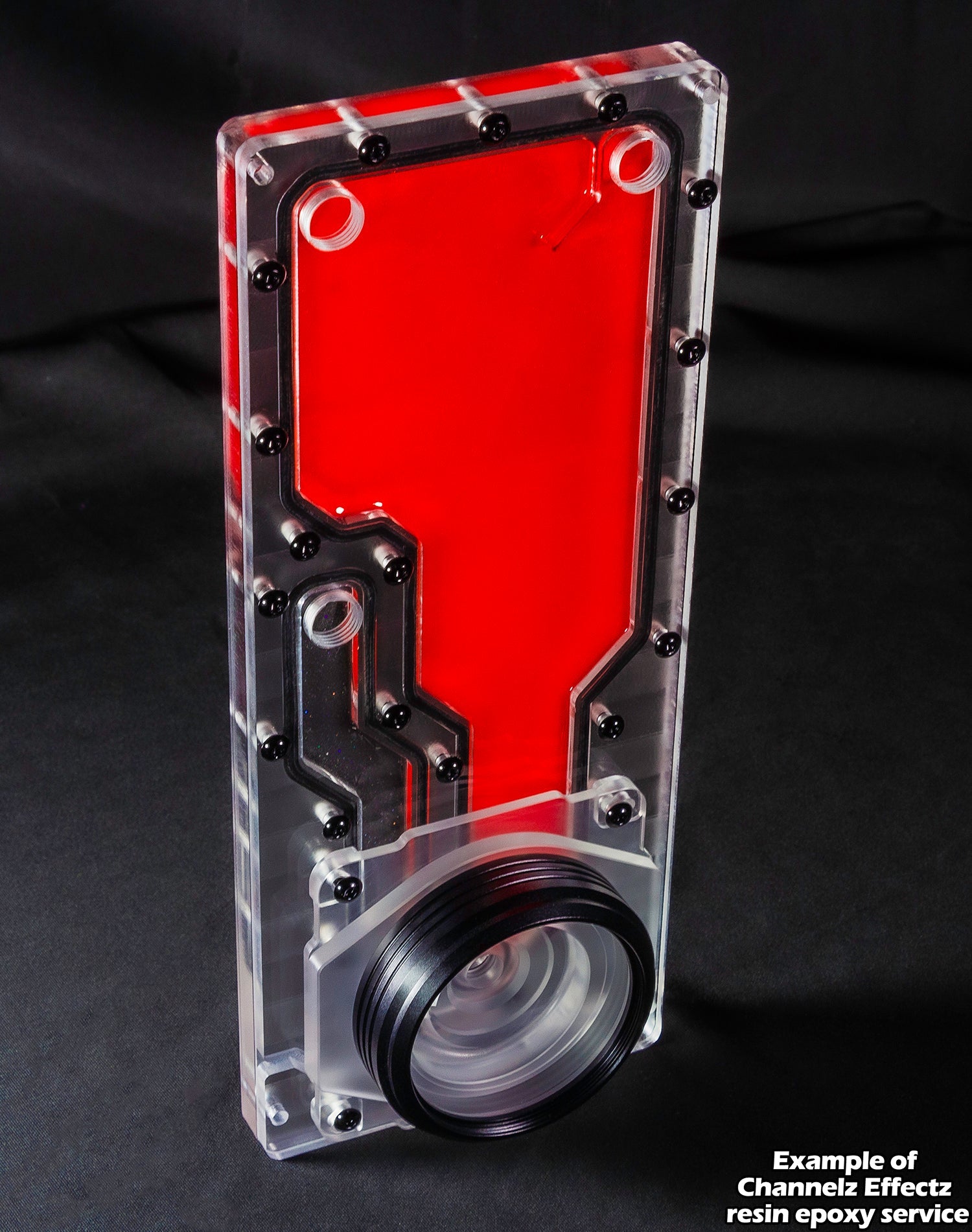

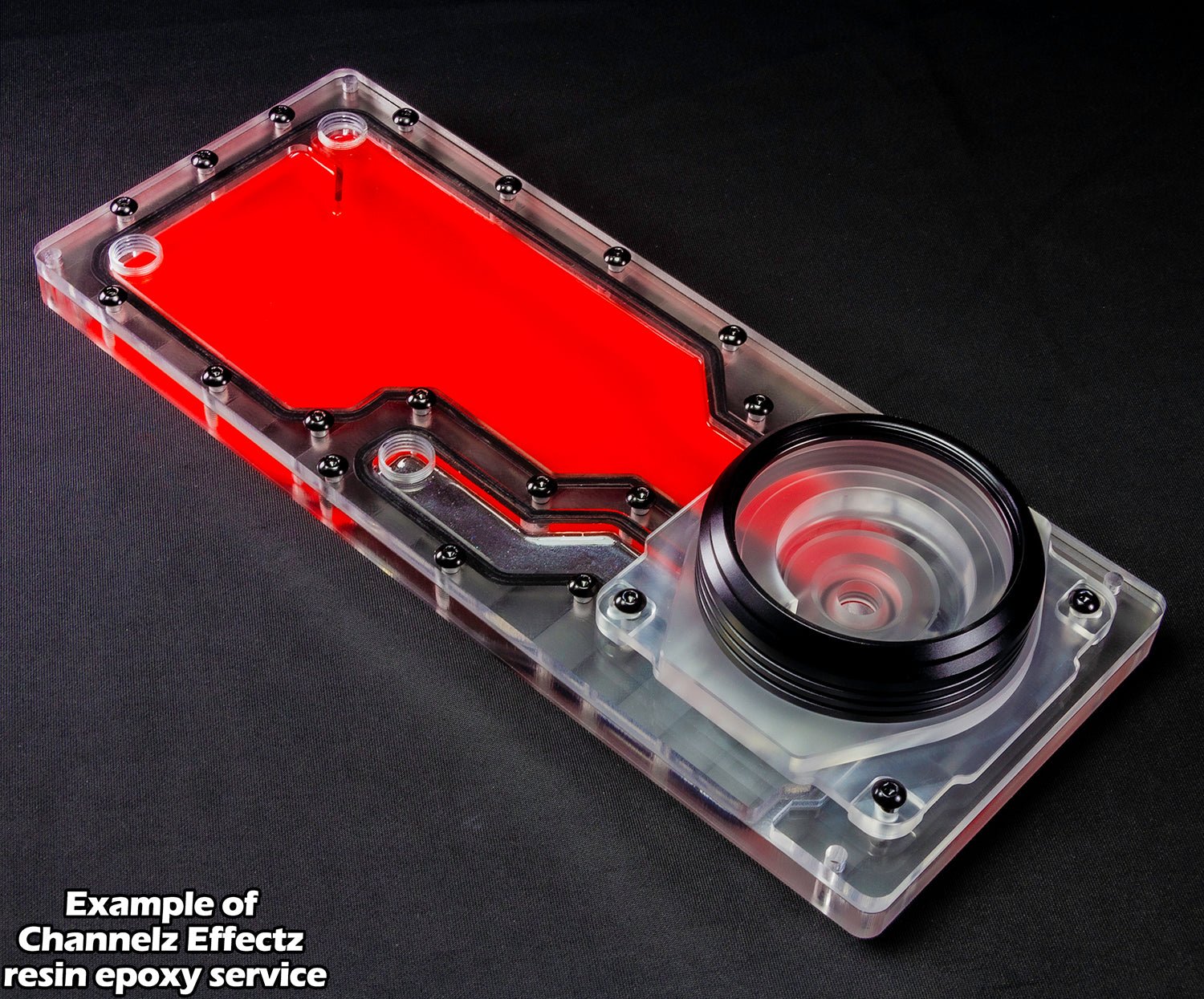

Tired of all that colored Coolant clogging up your loop but donâ??t want to stick with some boring old clear coolant? Well Performance-PCs has you taken care of with their new Channelz Effectz Serivce! This service is a great way to add some color to your Channelz distribution plate without clogging your loop with pastel or mica filled coolants. We use an epoxy resin mixture that is safe for your loop and will certainly help that build POP. There is 30 different super vivid color options to choose from and we even added the ability for you to mix colors to give your loop its own style.

Installation:

 Compatible with the Lian Li PC-O11 Dynamic Mini. Remove the front panel tempered glass from the PCO11.  Position the distribution plate inside of the front panel and mount it with the included M3 22mm Countersunk fasteners. Replace the front panel tempered glass.

Specifications:

Material: Clear Cast Acrylic.
Fasteners: Stainless Steel Silver.
Gaskets: Silicone Black.
O-rings: Silicone Black and Clear.
Stop Fittings: Brass Black Powder coat.
Ports: x5. Inlets: x2. Outlets: x2. Fill Port: x1.
LED Strip: DRGB 5V Addressable.
Dimensions: Width: 207mm. Height 318mm. Depth 84mm.



Included Items:

PC-O11D Mini D5/DDC Reservoir Distribution Plate: x1.
Stop fittings: x1.
SC Reservoir Retention Ring Black: x1
Singularity Computers Distribution Plate D5/DDC Pump Top: x1.
D5/DDC O-ring: x1.
Spectrum 2.0 DRGB LED Strip: x1.
Mounting Fasteners: 4x M3 22mm Countersunk Hex Bolts and 4x M3 Nuts



 NOTE: D5/DDC Pump and Cover Not Included.
