Channelz™ PC-O11D Mini 240 D5/DDC Reservoir

PPCS-DISTRO58

Designed and Manufactured in the USA by Performance PCs.

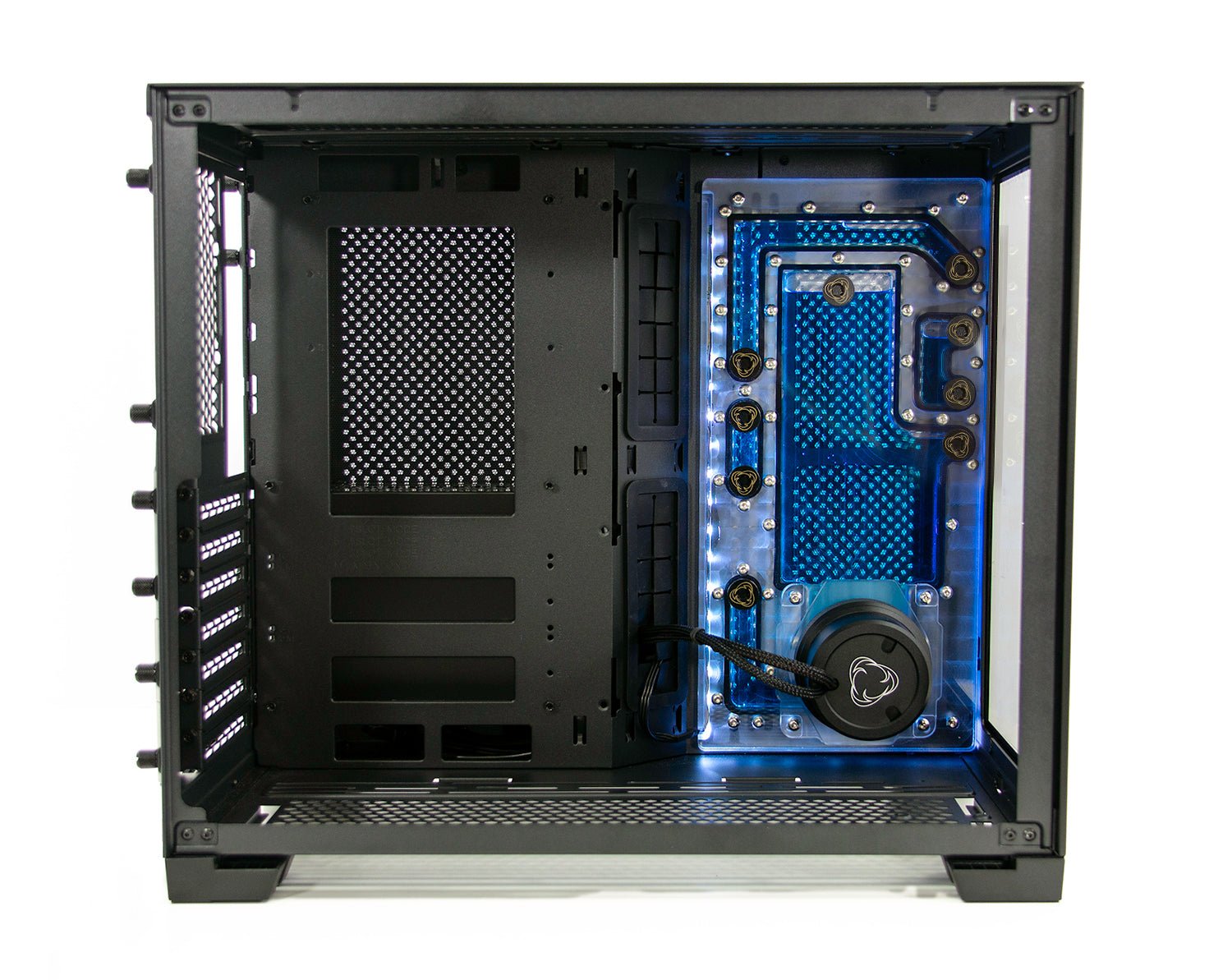

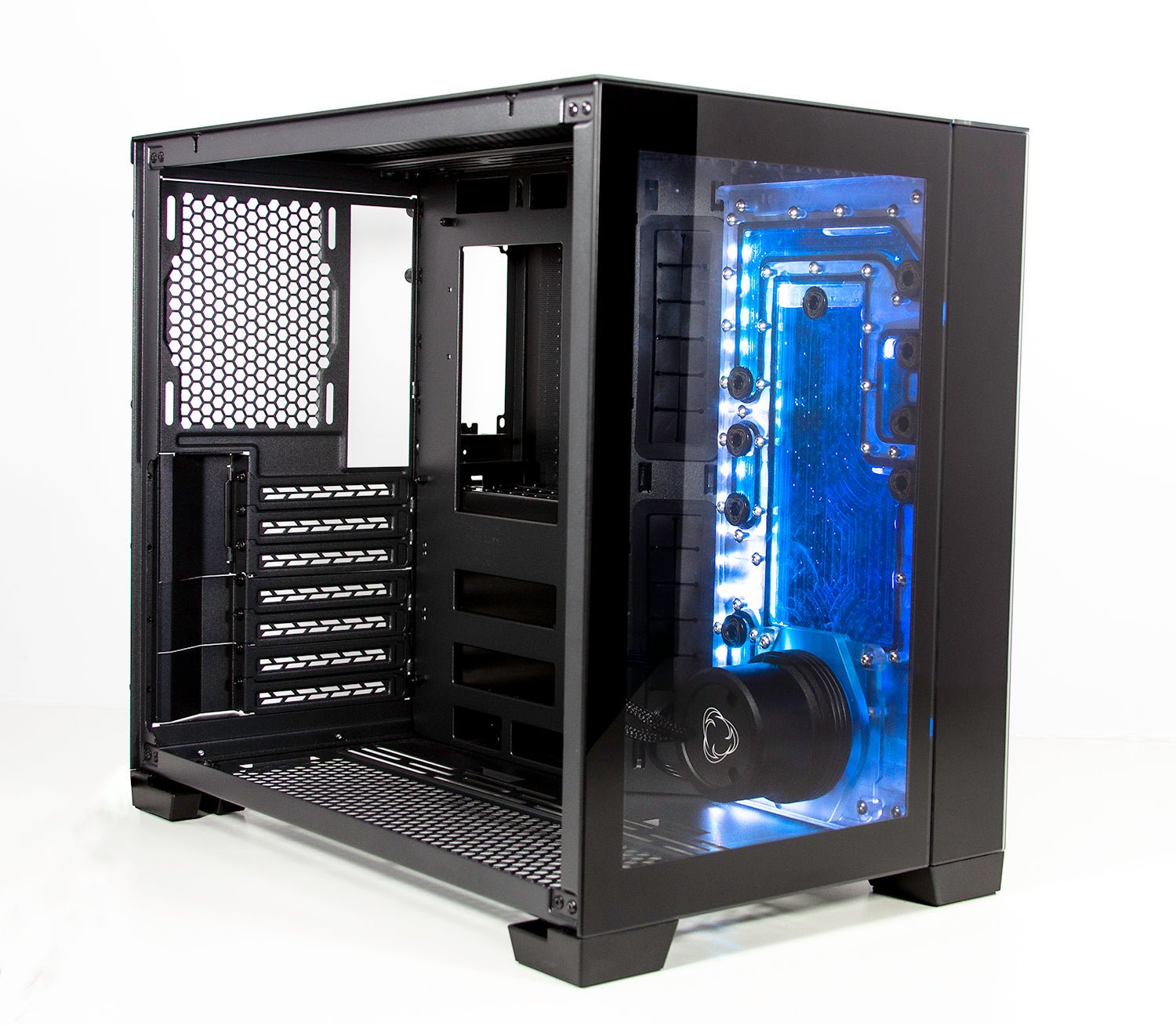

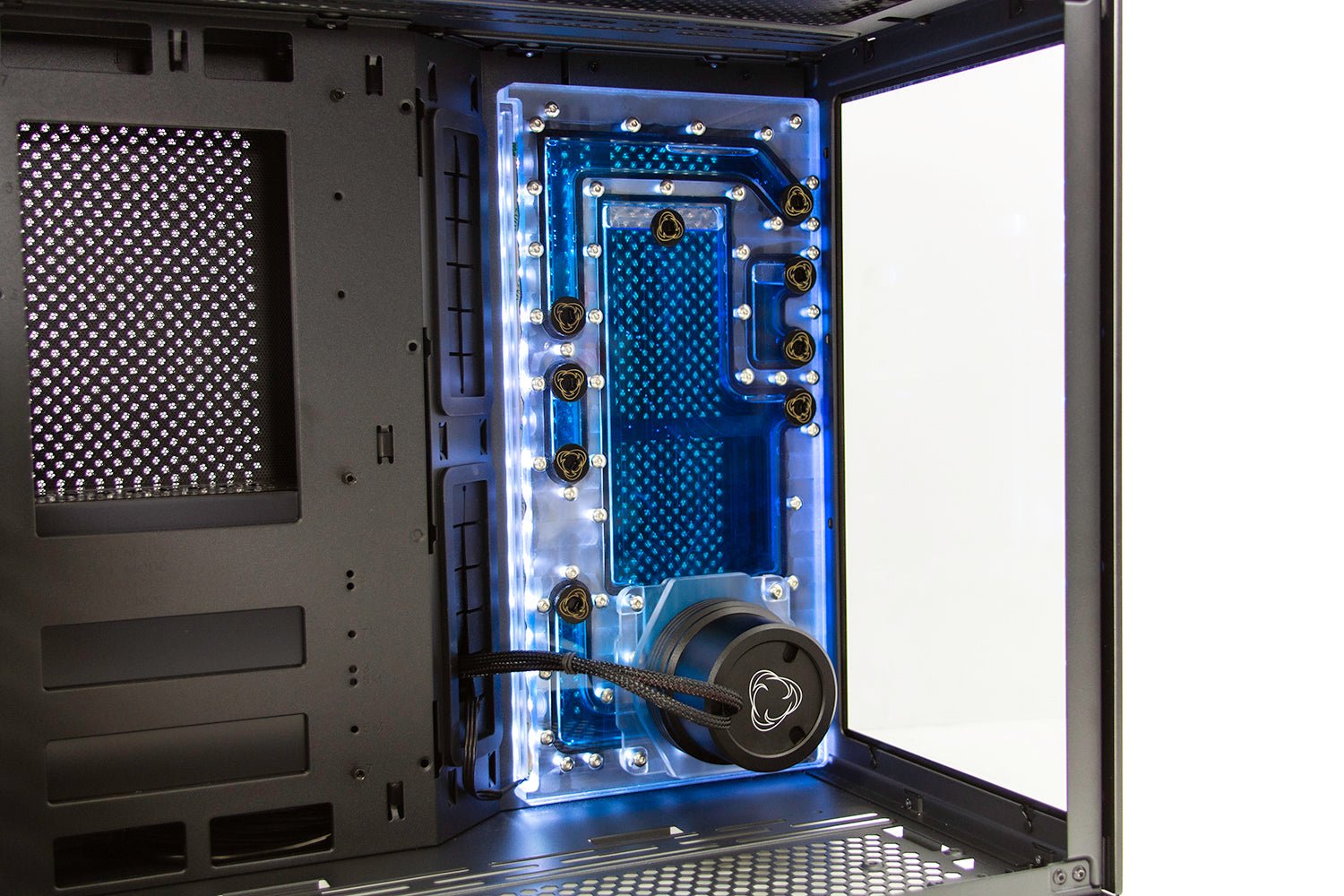

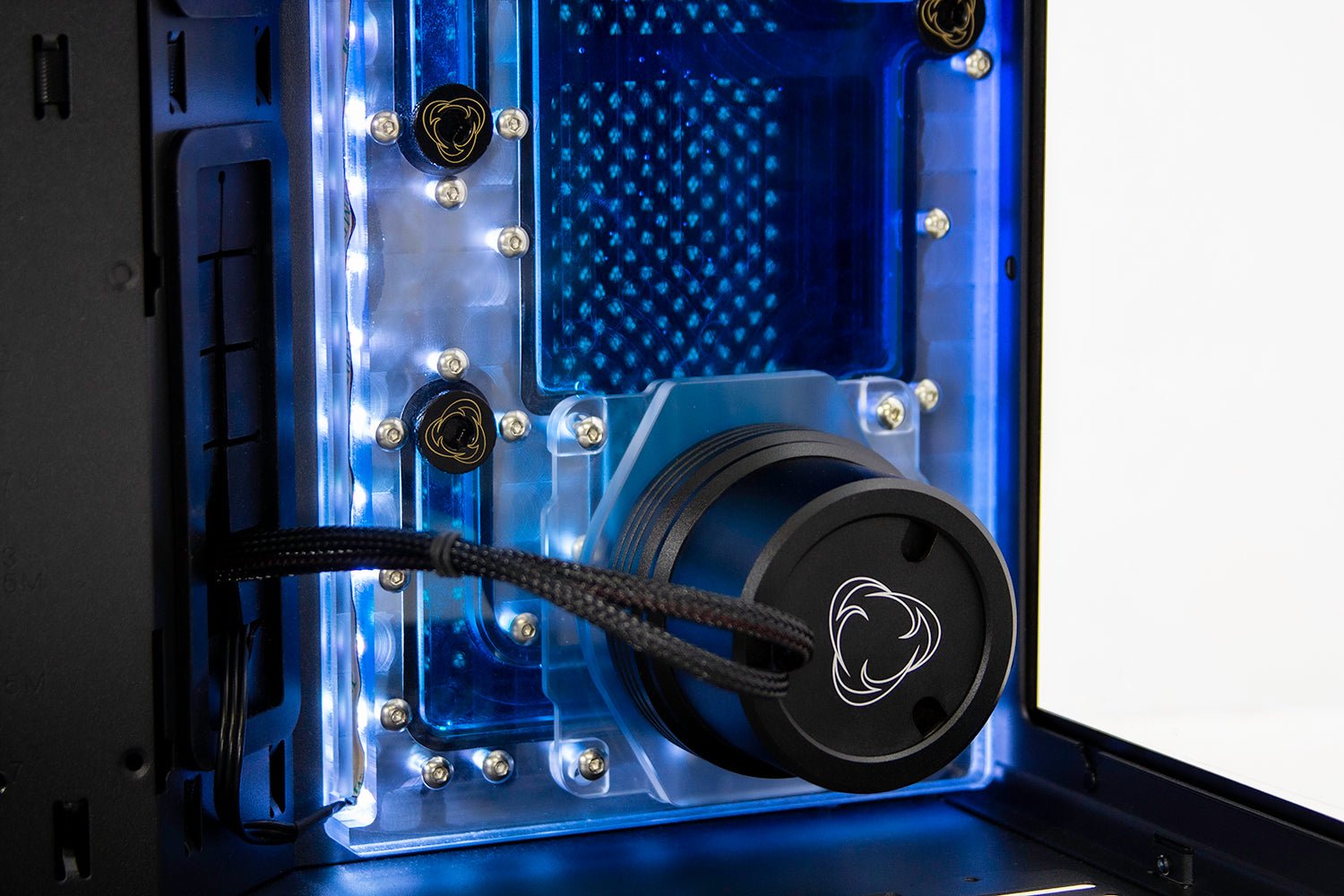

This is a Single Loop Distribution Plate which fits onto the 240mm side radiator mount of the Lian Li PC-O11 Dynamic Mini. It has one reservoir and fits a single D5/DDC pump. It is compatible with any D5/DDC pump. It comes included with a D5/DDC Rentention Ring which attaches the pump to the Distribution plate. There are 9 ports, 4 inlet, 4 outlet and a fill port. It comes included with a DRGB Addressable LED strip.


/

Found a better price? Let us know and we'll try and match it!
Estimate shipping
1 in stock
$199.99 USD
Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

Designed and Manufactured in the USA by Performance PCs.
This is a Single Loop Distribution Plate which fits onto the 240mm side radiator mount of the Lian Li PC-O11 Dynamic Mini. It has one reservoir and fits a single D5 pump. It is compatible with any D5 pump. It comes included with a D5 Rentention Ring which attaches the pump to the Distribution plate. There are 9 ports, 4 inlet, 4 outlet and a fill port. It comes included with a DRGB Addressable LED strip.

/

NOTE: D5 Pump and Cover Not Included.

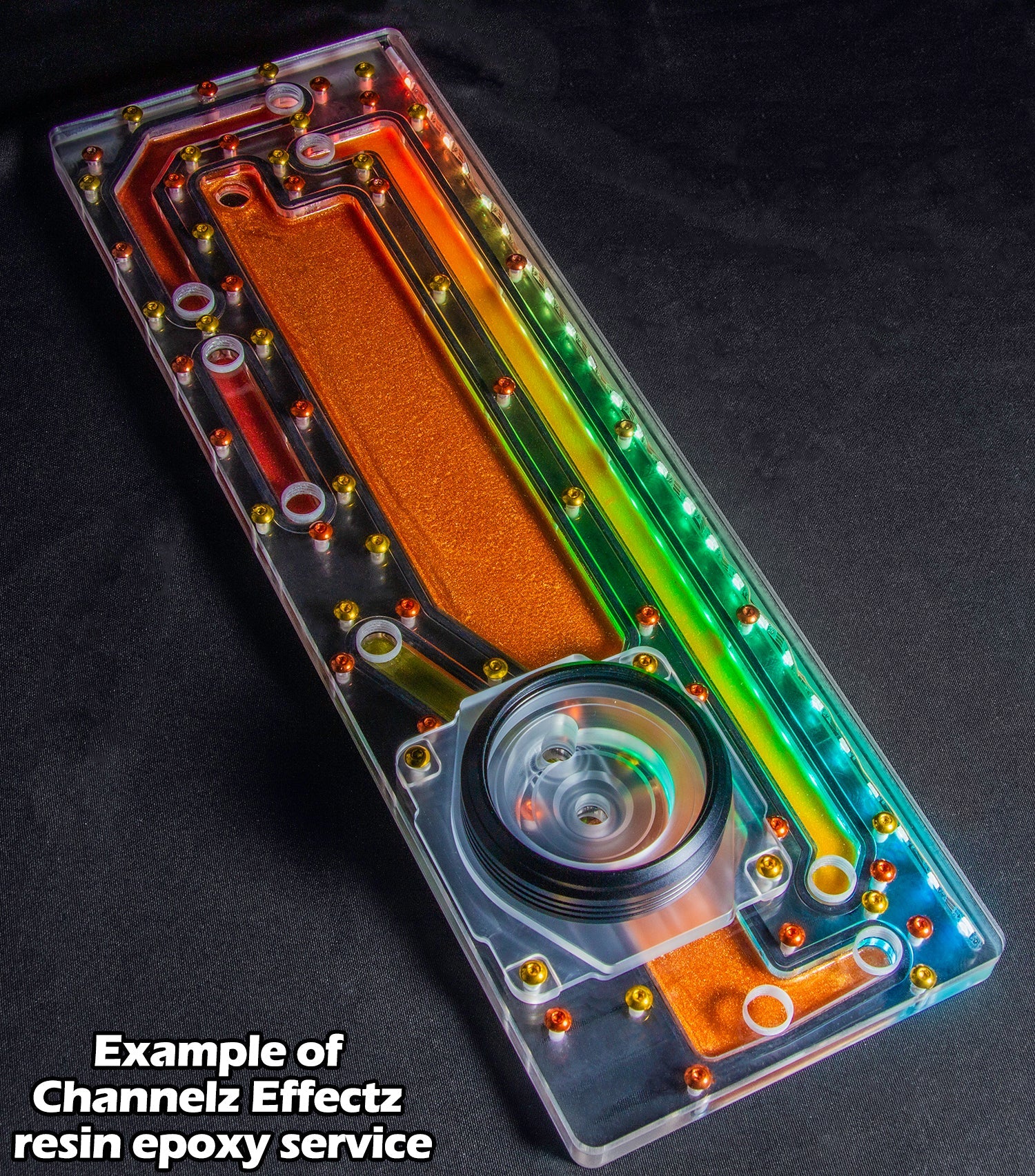

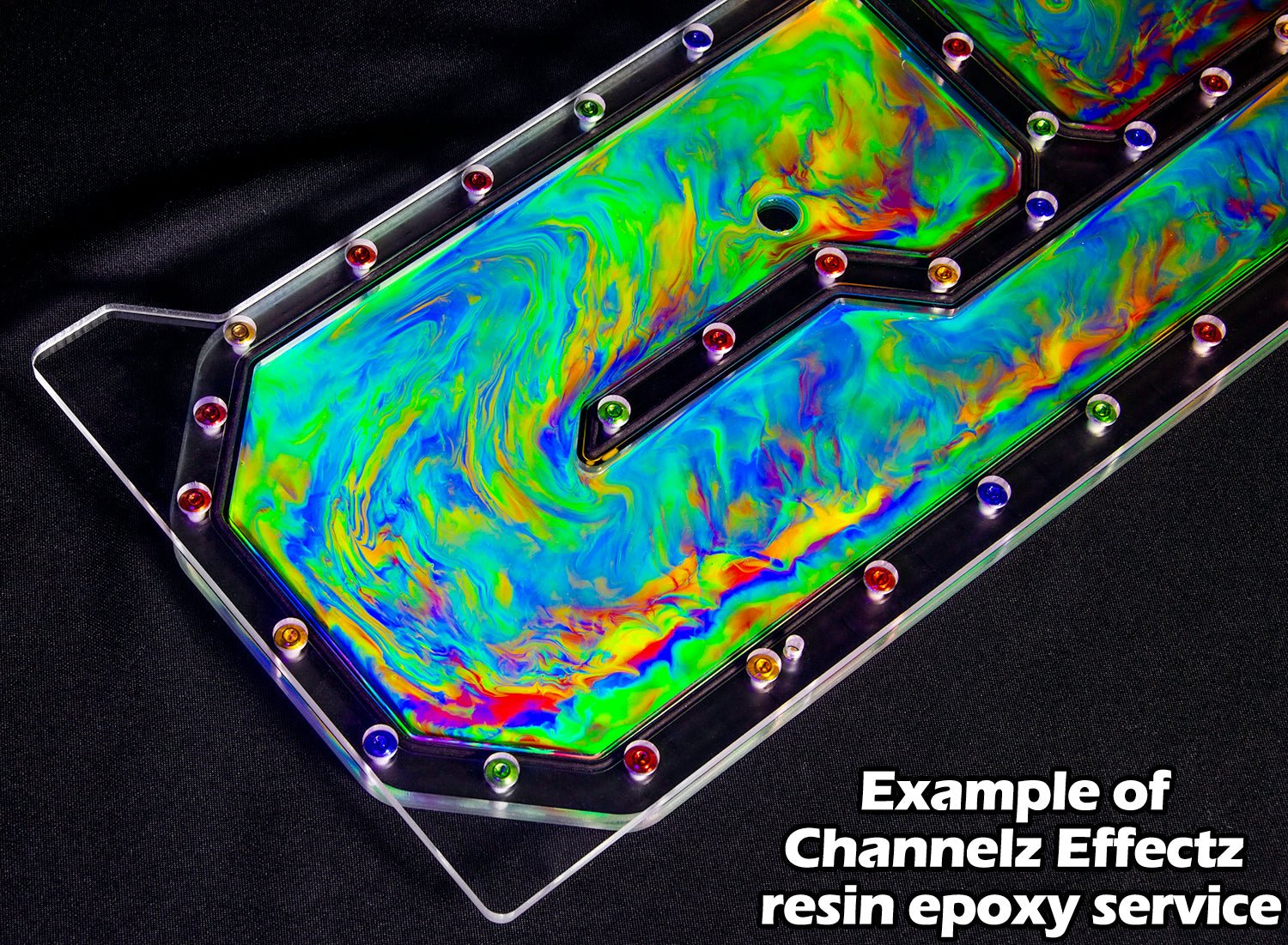

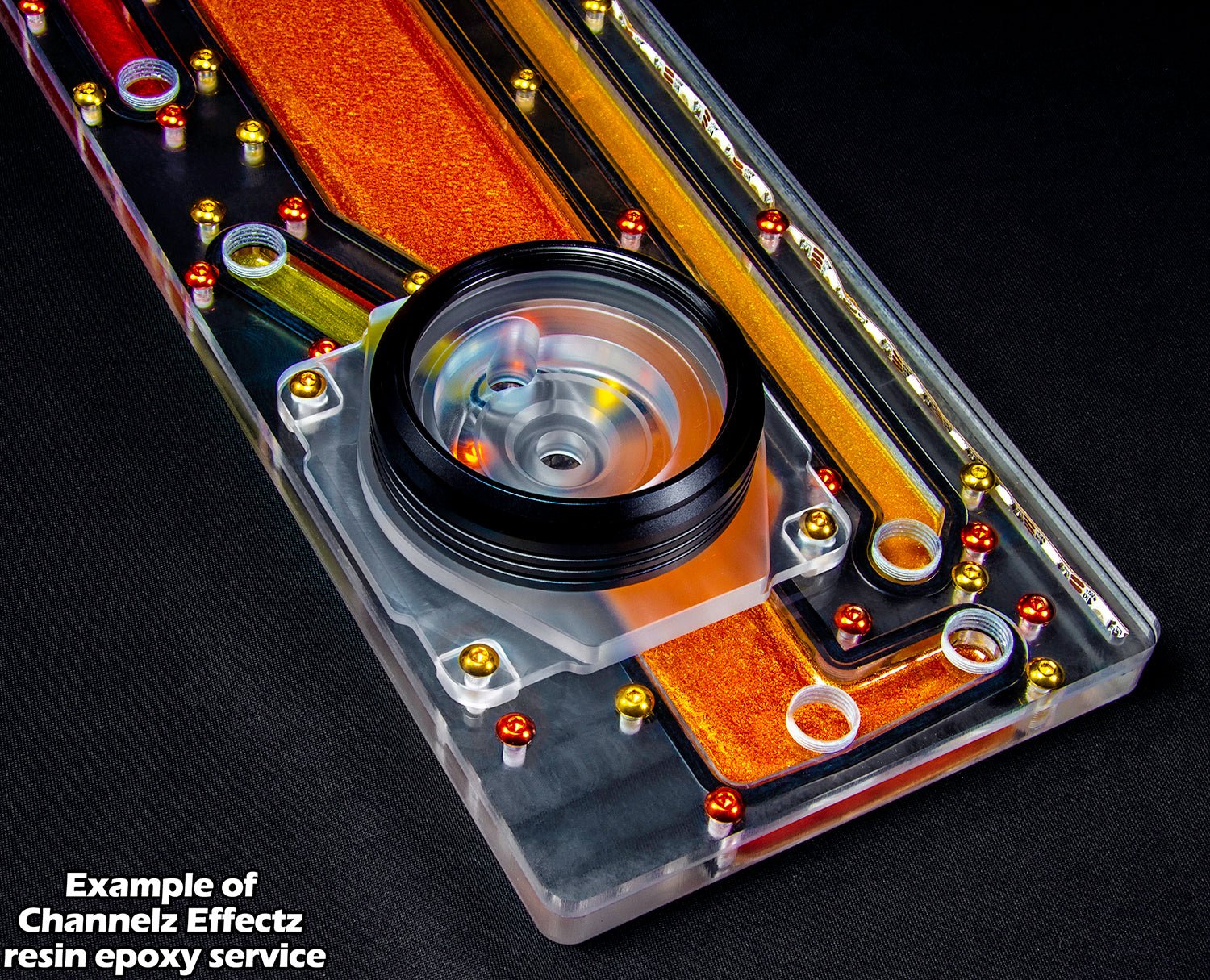

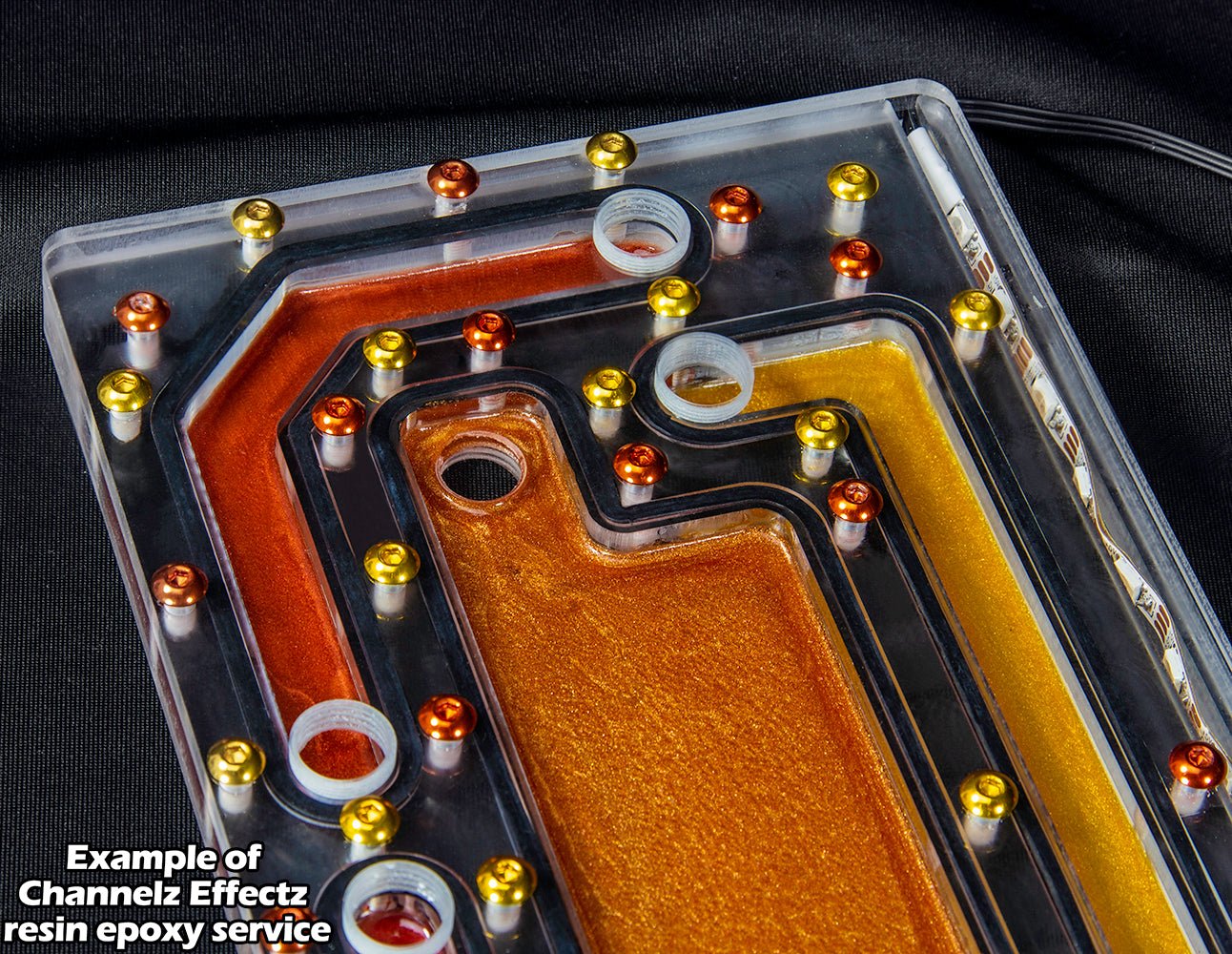

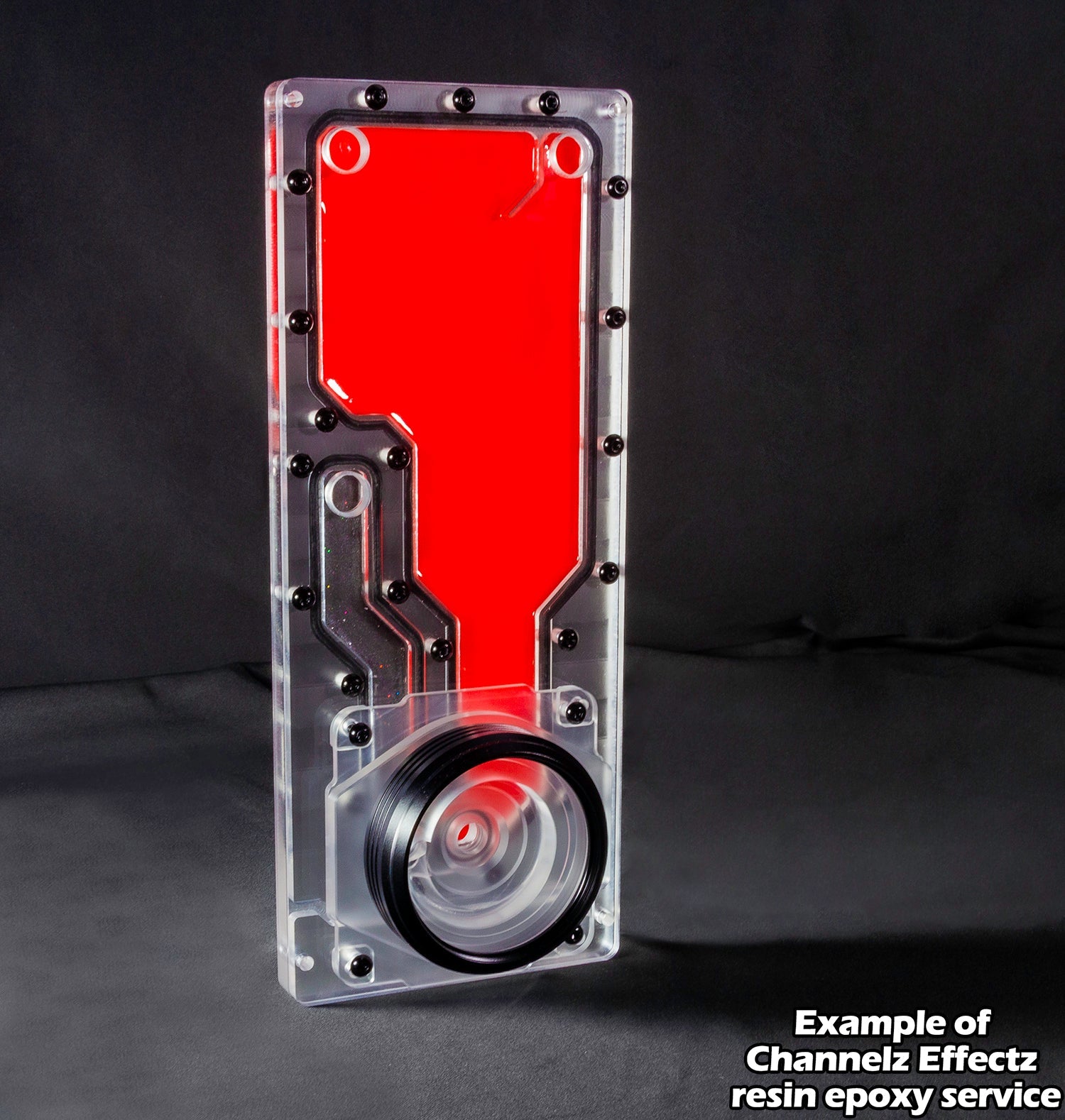

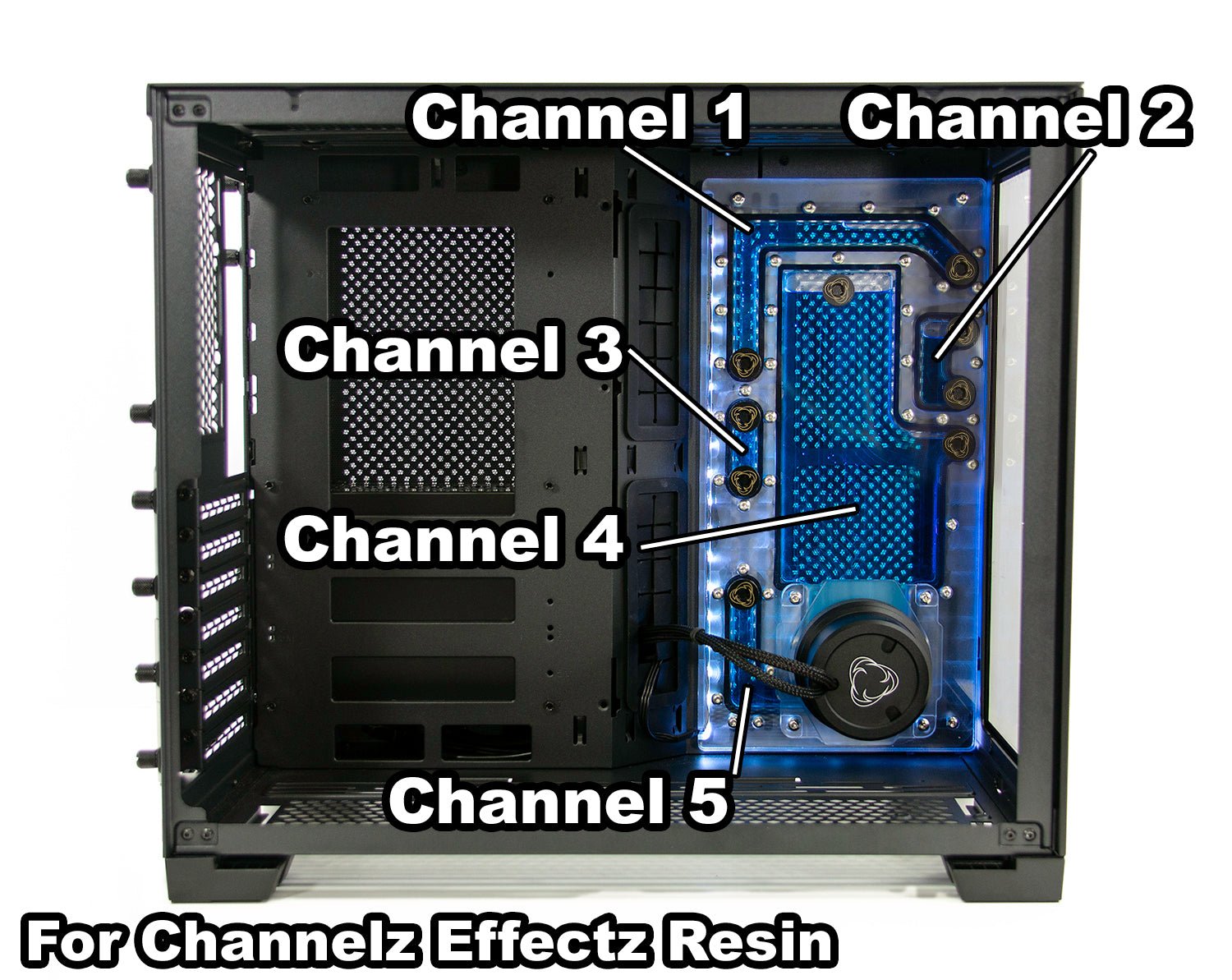

Channelz Effectz Service

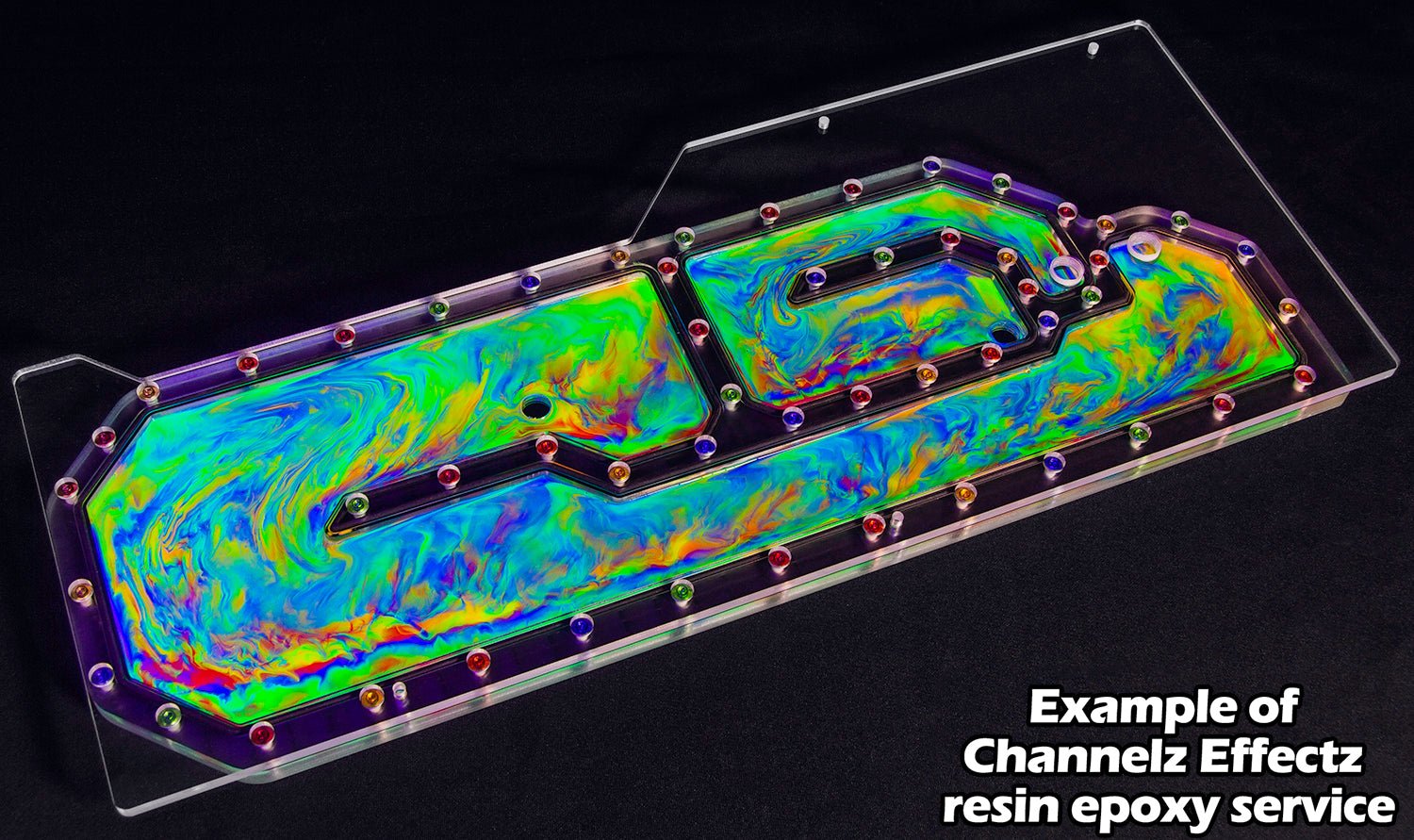

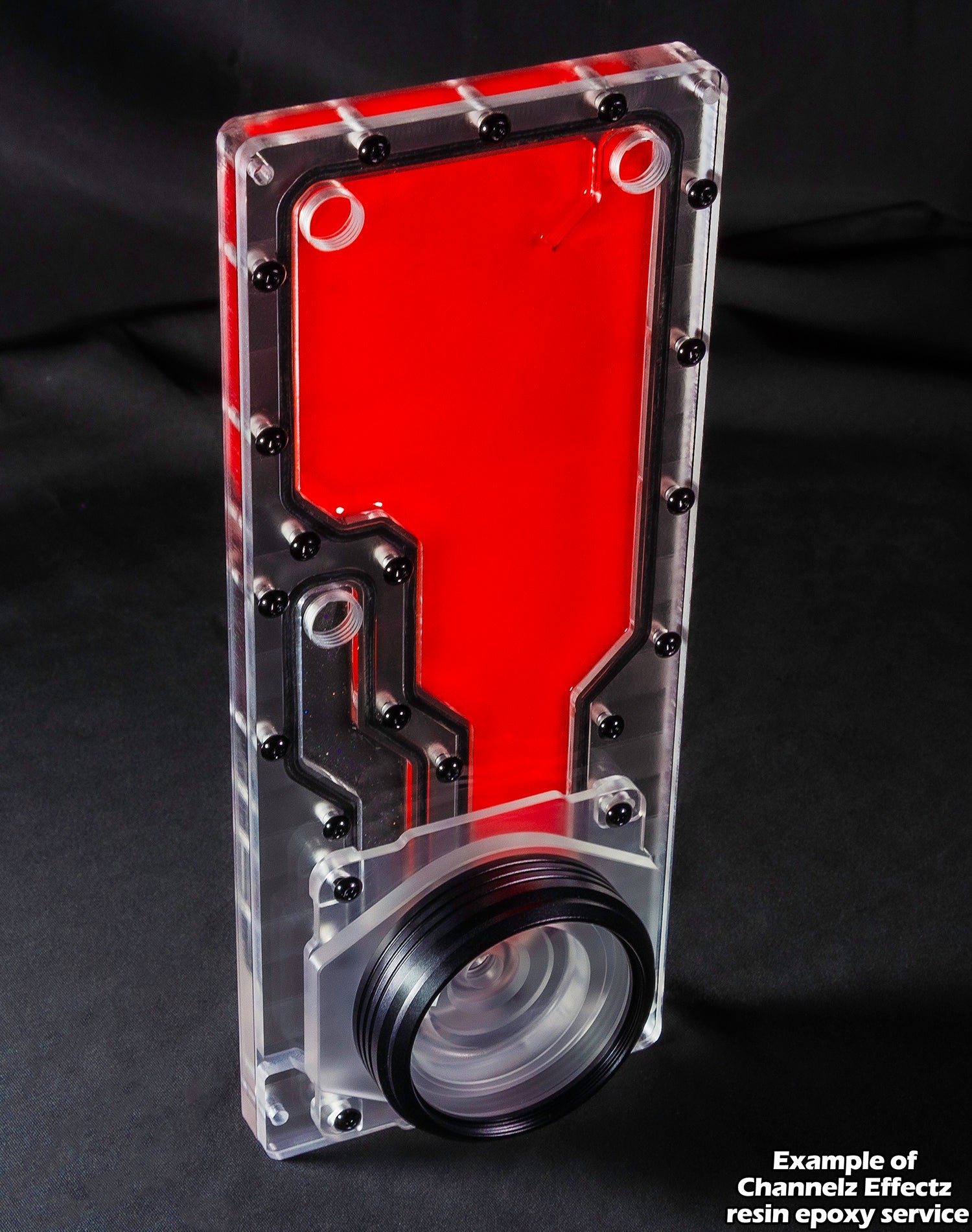

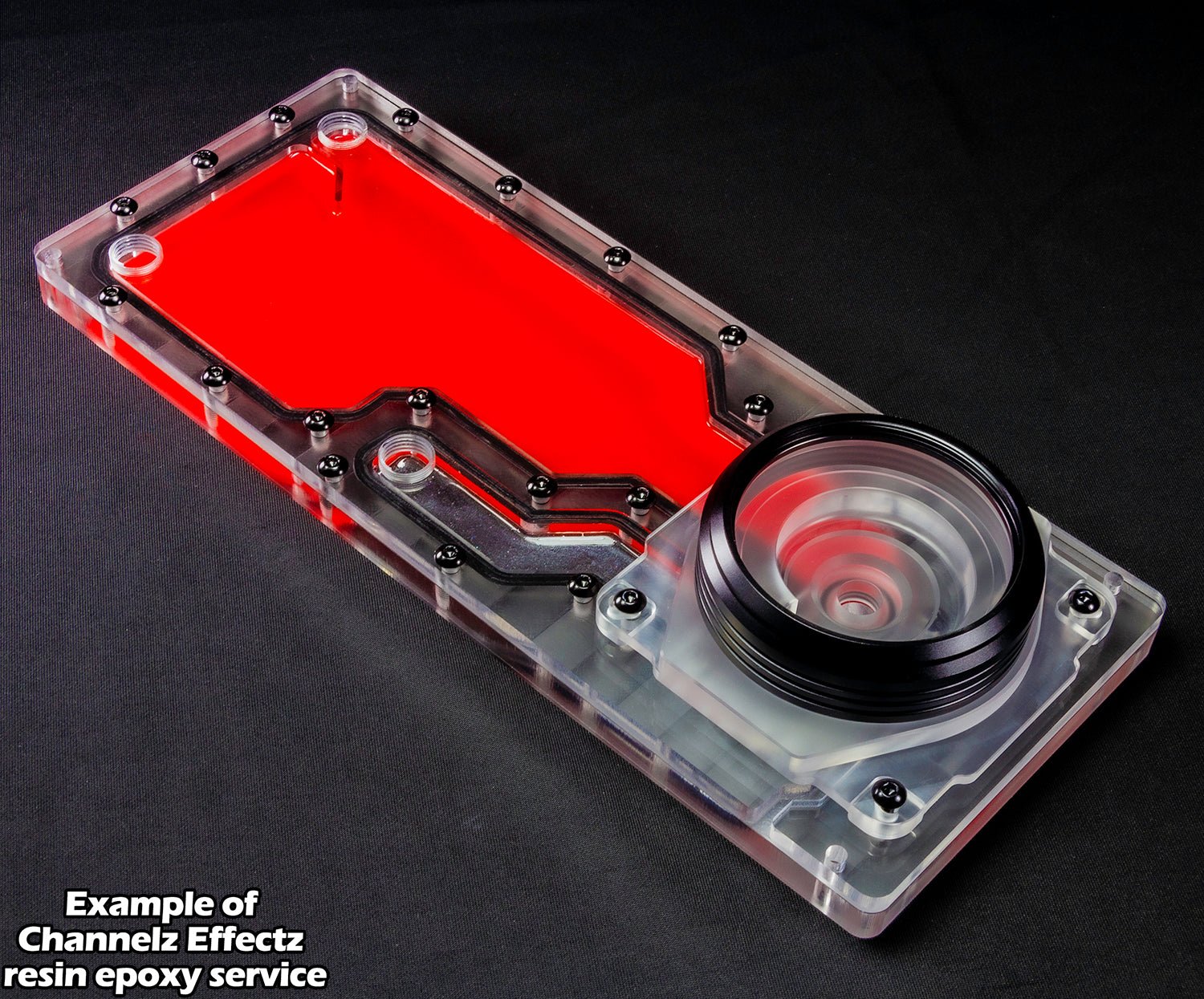

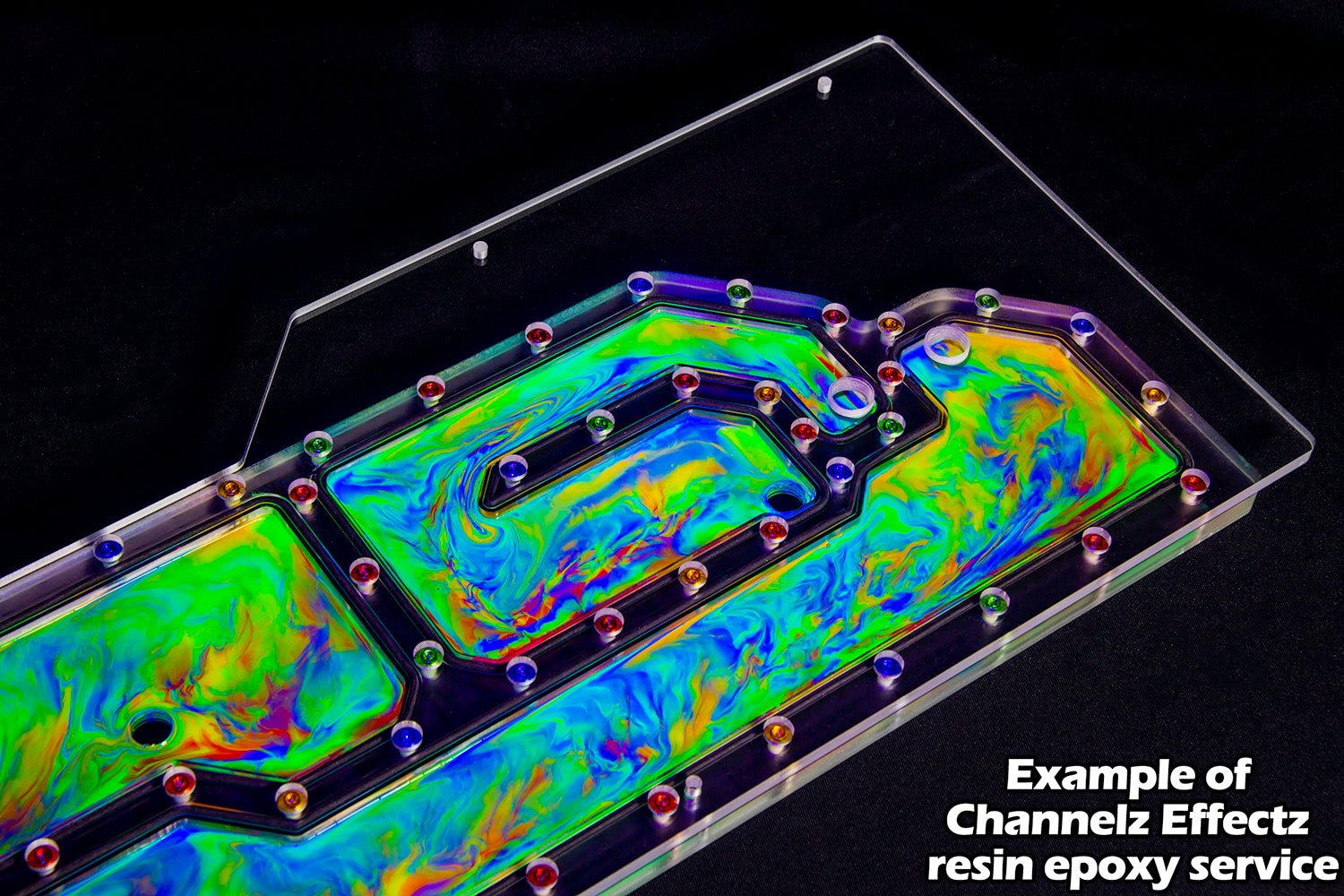

Tired of all that colored Coolant clogging up your loop but donâ??t want to stick with some boring old clear coolant? Well Performance-PCs has you taken care of with their new Channelz Effectz Serivce! This service is a great way to add some color to your Channelz distribution plate without clogging your loop with pastel or mica filled coolants. We use an epoxy resin mixture that is safe for your loop and will certainly help that build POP. There is 30 different super vivid color options to choose from and we even added the ability for you to mix colors to give your loop its own style.

Features

Installation:

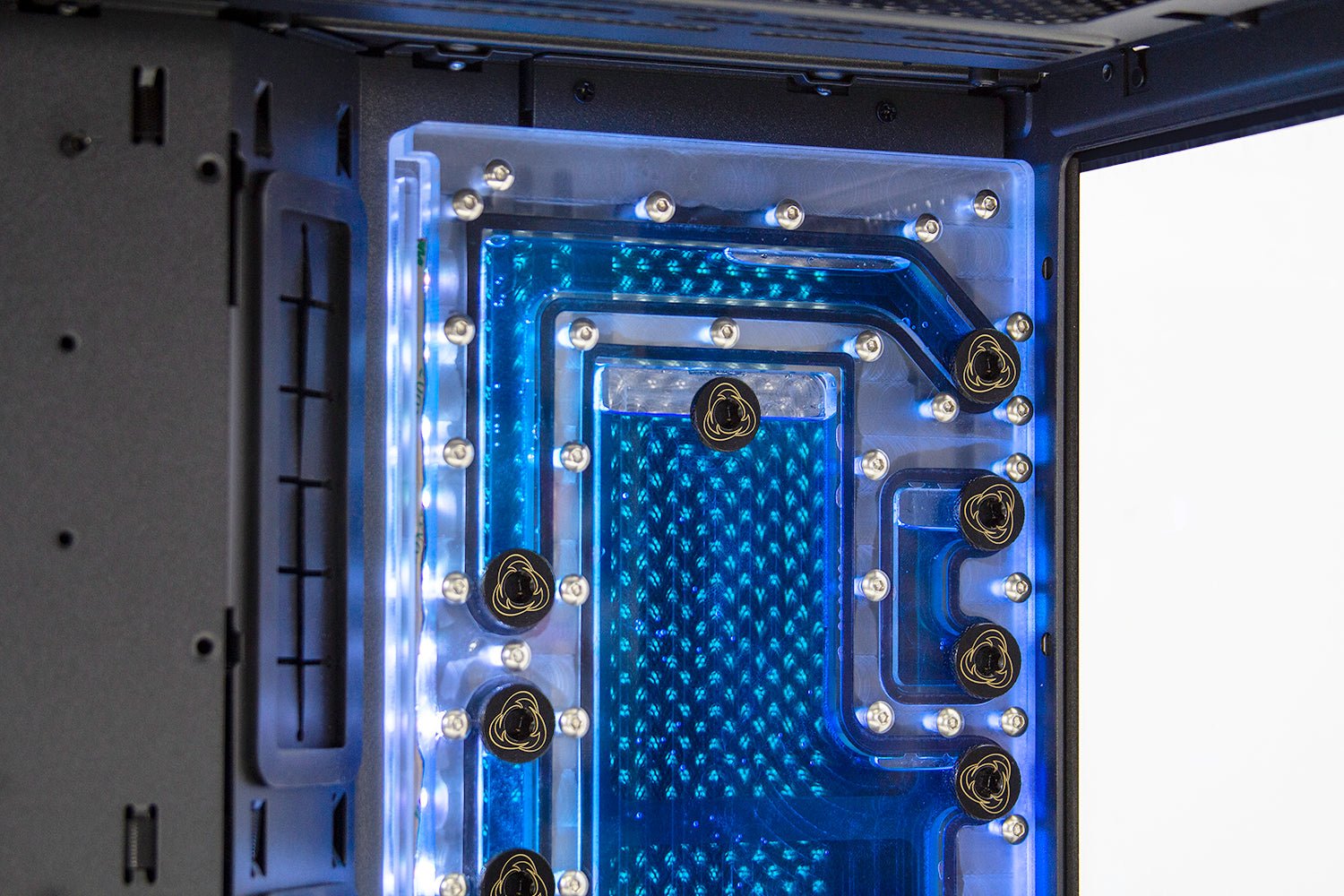

Compatible with the Lian Li PC-O11 Dynamic Mini. Install onto the PCO11 side 240mm radiator mounting holes using the included 4x M3 22mm Countersunk Hex Bolts and M3 Nuts. The mounting holes on the distribution plate will line up with the existing radiator mounting holes on the case.

Specifications

Specifications:


Material: Clear Cast Acrylic.
Fasteners: Stainless Steel Silver.
Gaskets: Silicone Black.
O-rings: Silicone Black and Clear.
Stop Fittings: Brass Black Powder coat.
Ports: x9. Inlet: x4. Outlet: x4. Fill Port: x1.

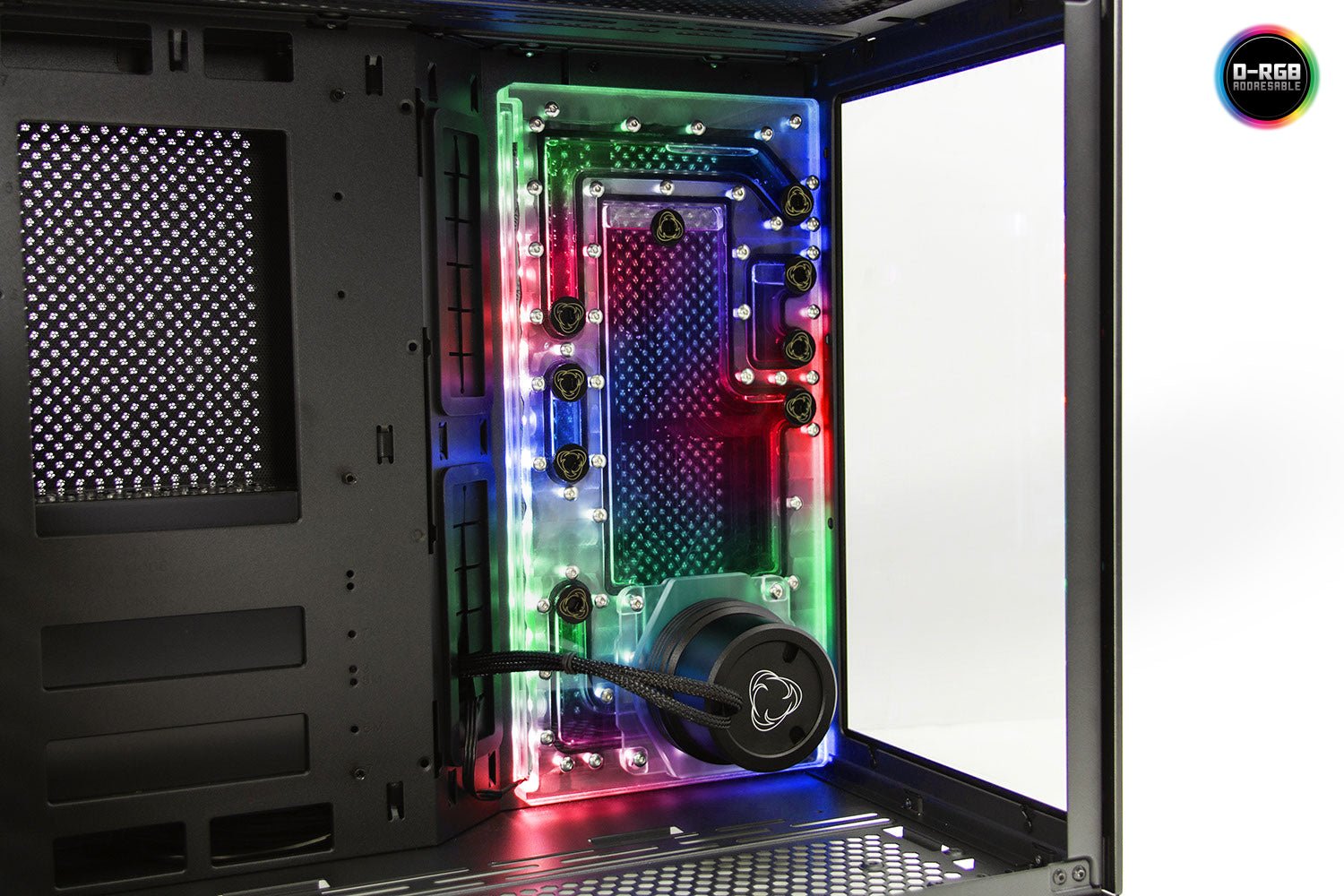

LED Strip: DRGB 5V Addressable.
Dimensions: Width: 159mm. Height: 321mm. Depth: 84mm.





Included Items:


PC-O11D Mini 240 D5/DDC Reservoir Distribution Plate. x1.
Stop fittings: x1.
SC Reservoir Retention Ring Black: x1
Singularity Computers Distribution Plate D5/DDC Pump Top: x1.
D5/DDC O-ring: x1.
Spectrum 2.0 DRGB LED Strip: x1.
Mounting Fasteners: M3 22mm Countersunk Hex Bolt: x4. M3 Nut: x4.


NOTE: D5/DDC Pump and Cover Not Included.
