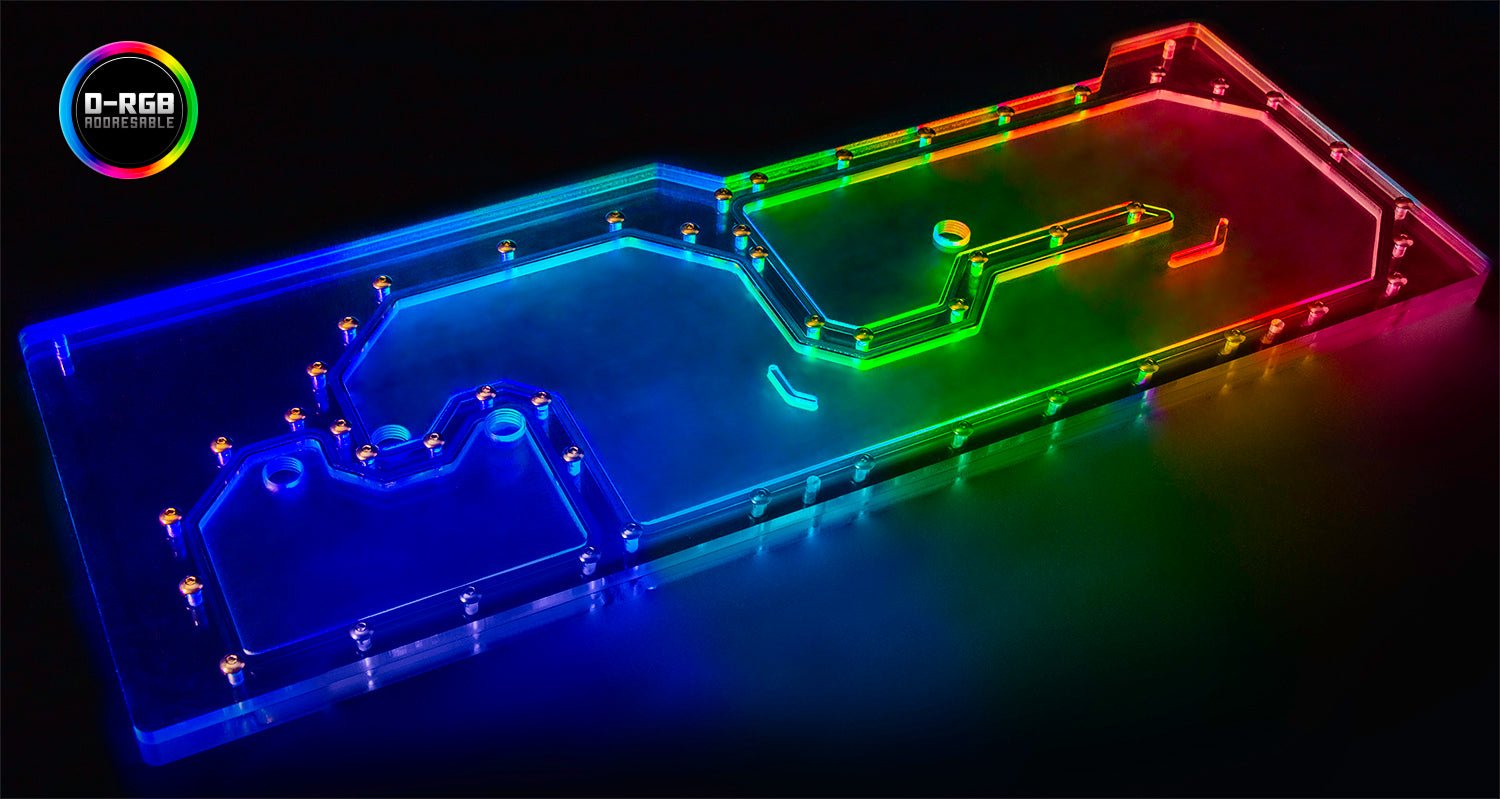

Channelz™ Phanteks Elite Horizontal

Designed by Singularity Computers and manufactured in the USA by Performance PCs.

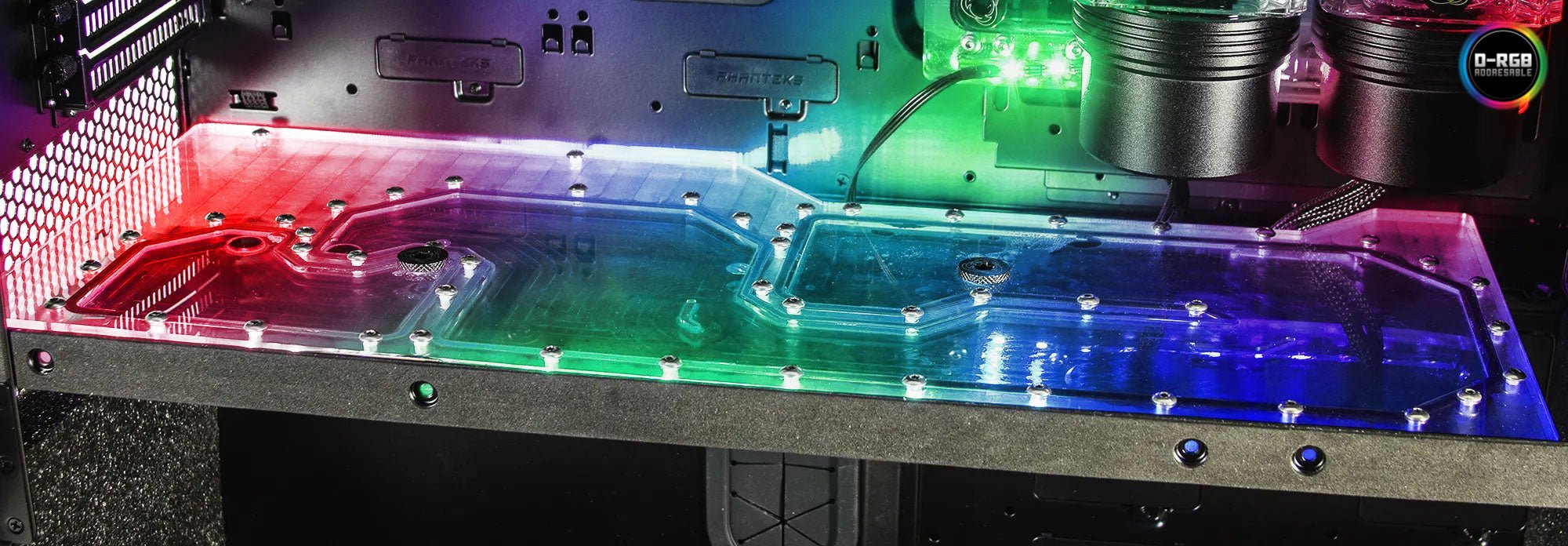

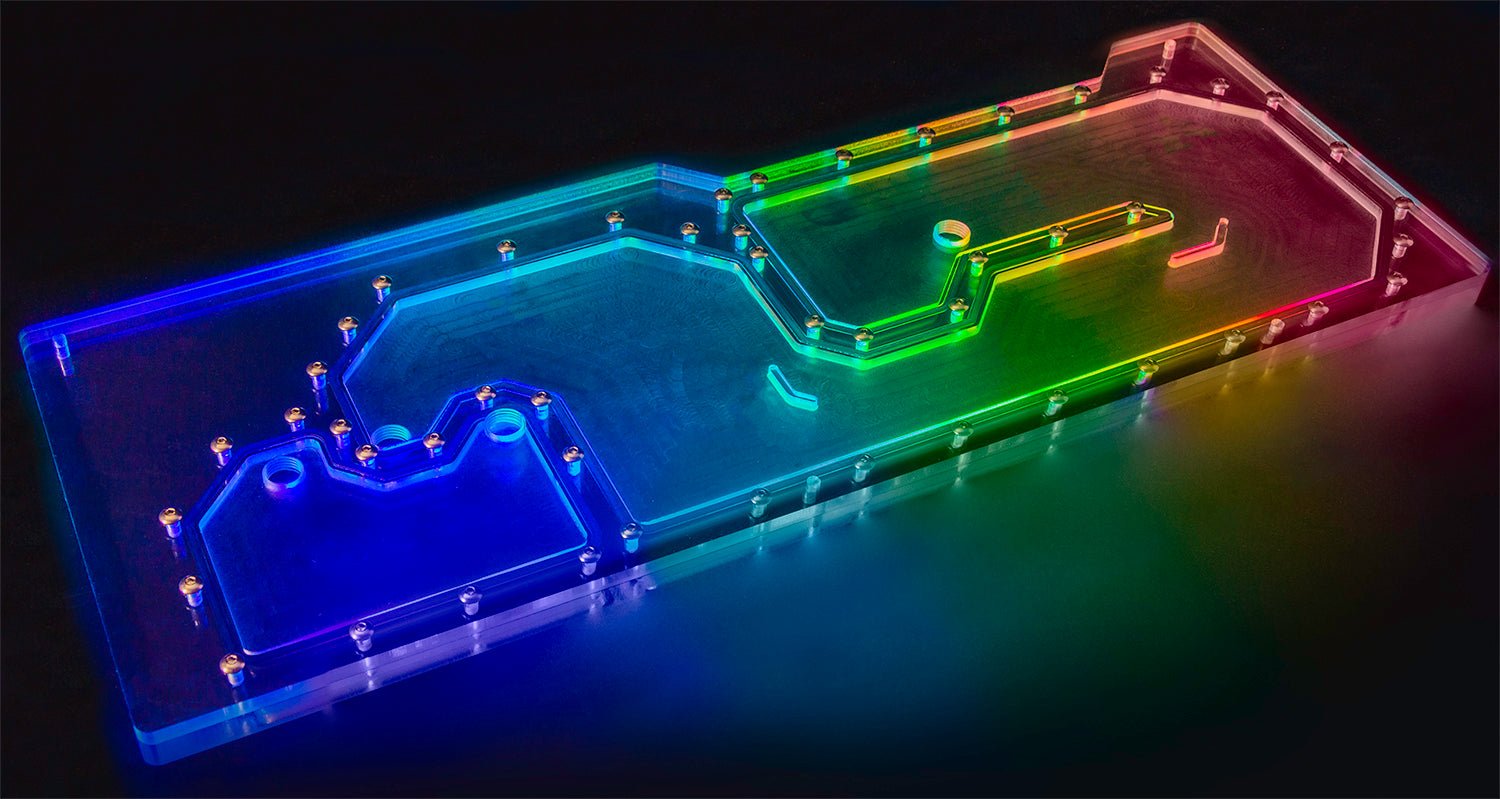

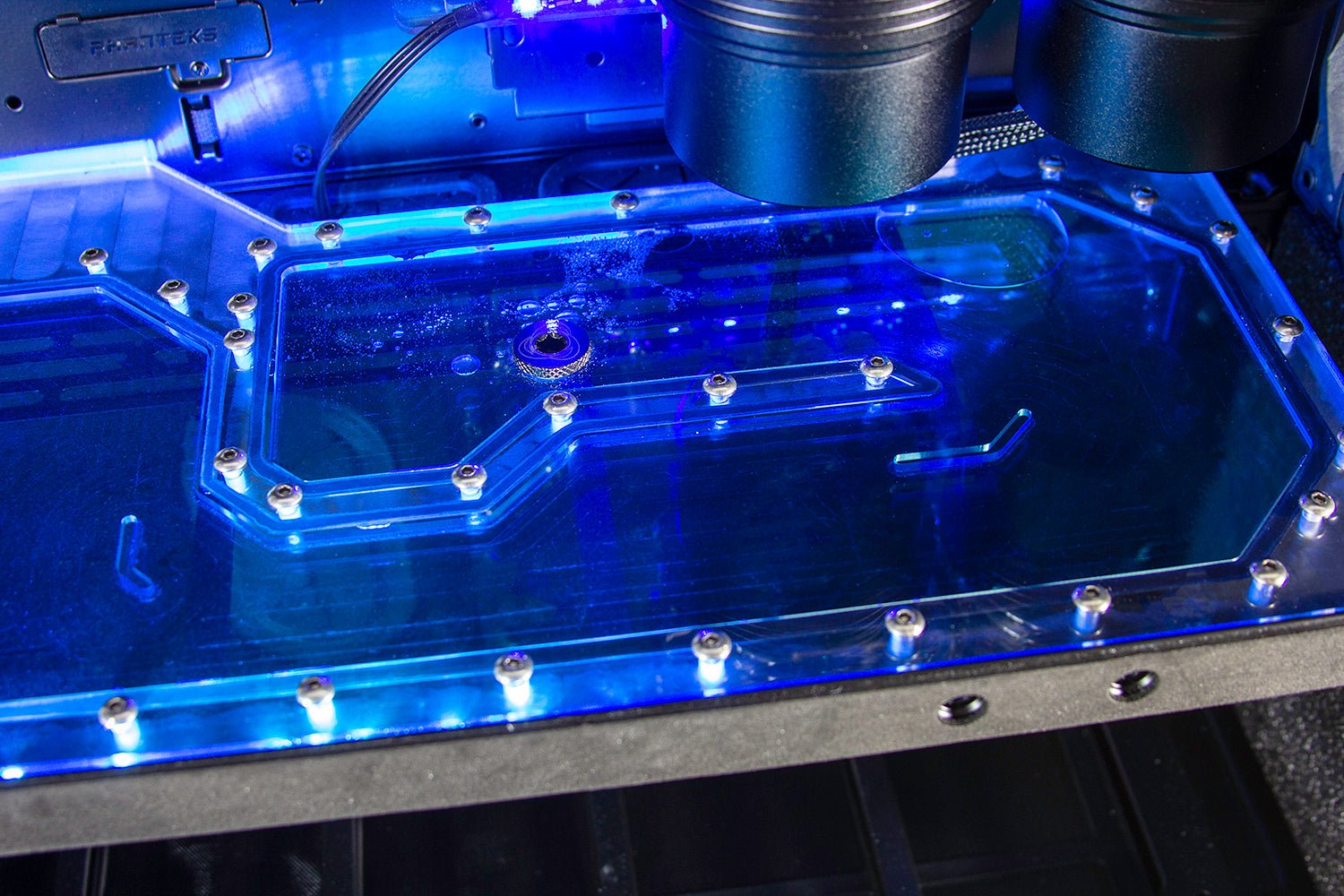

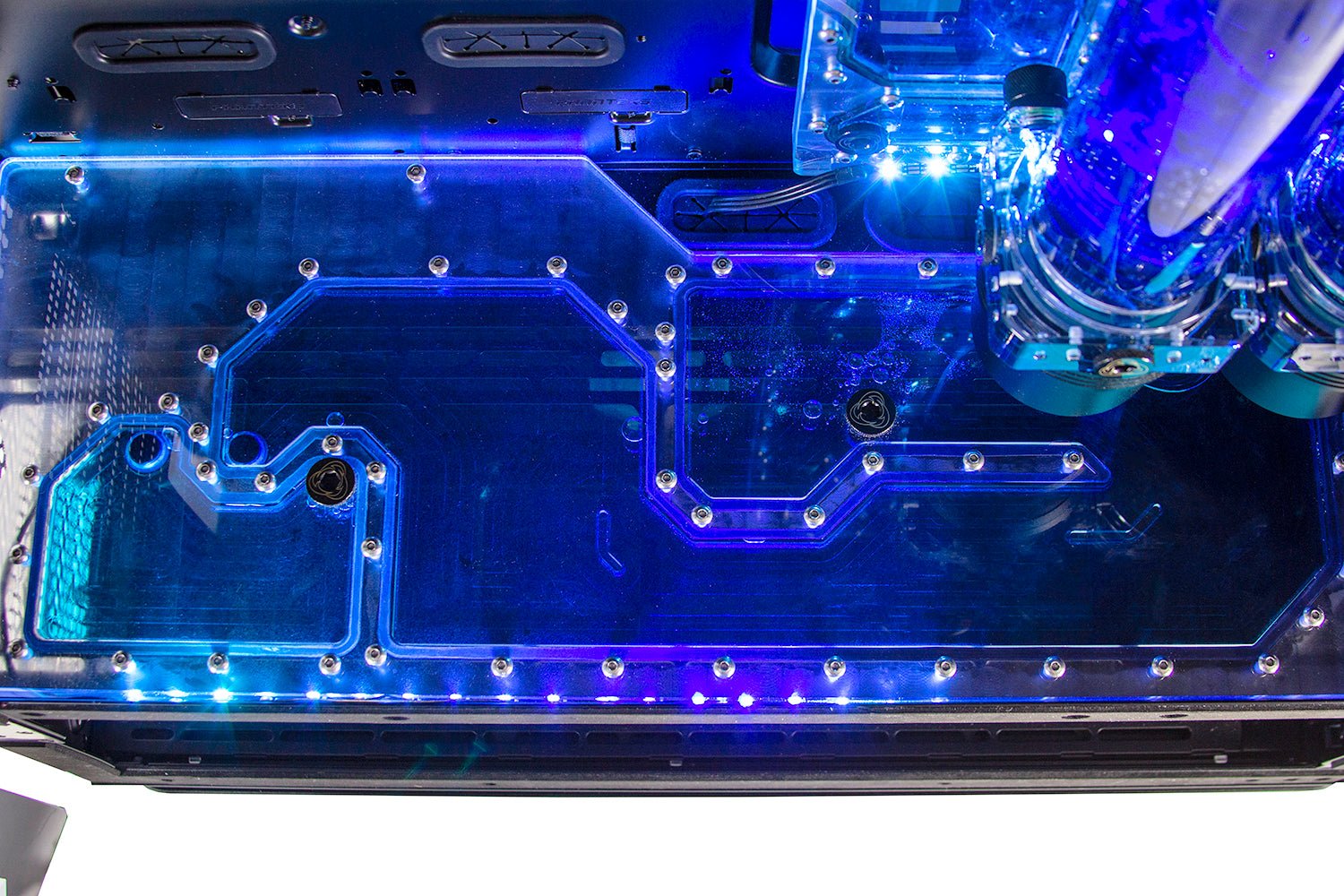

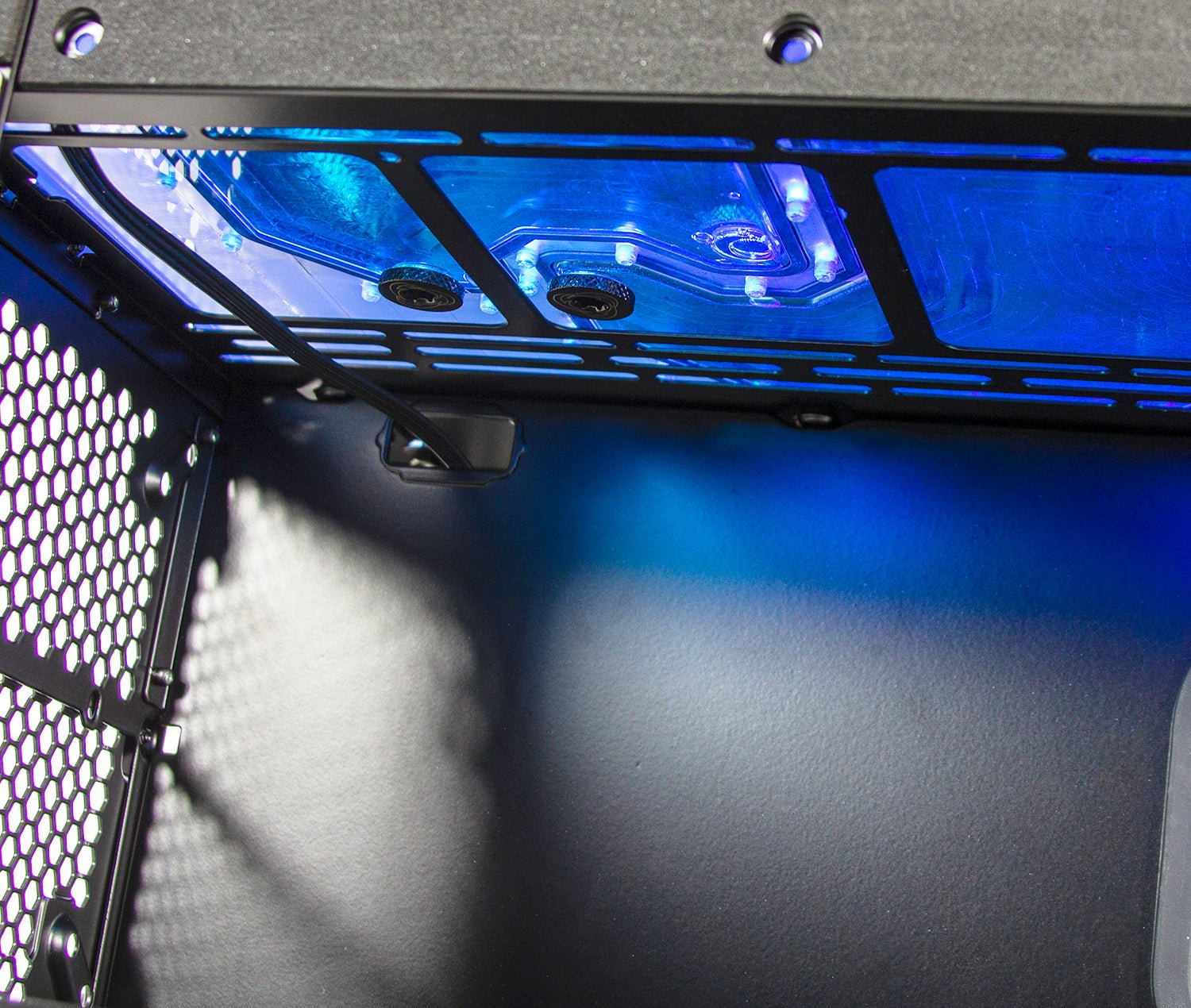

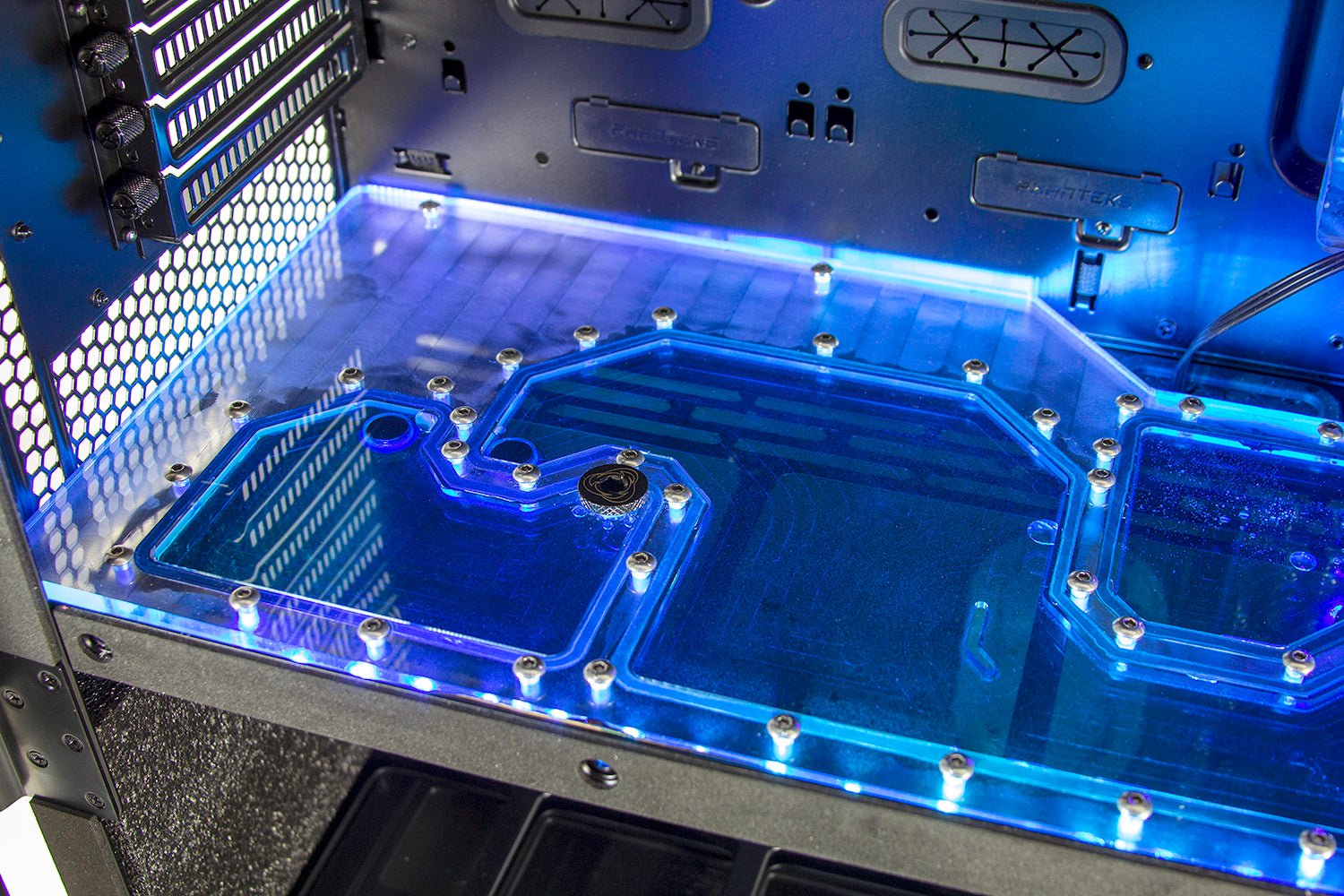

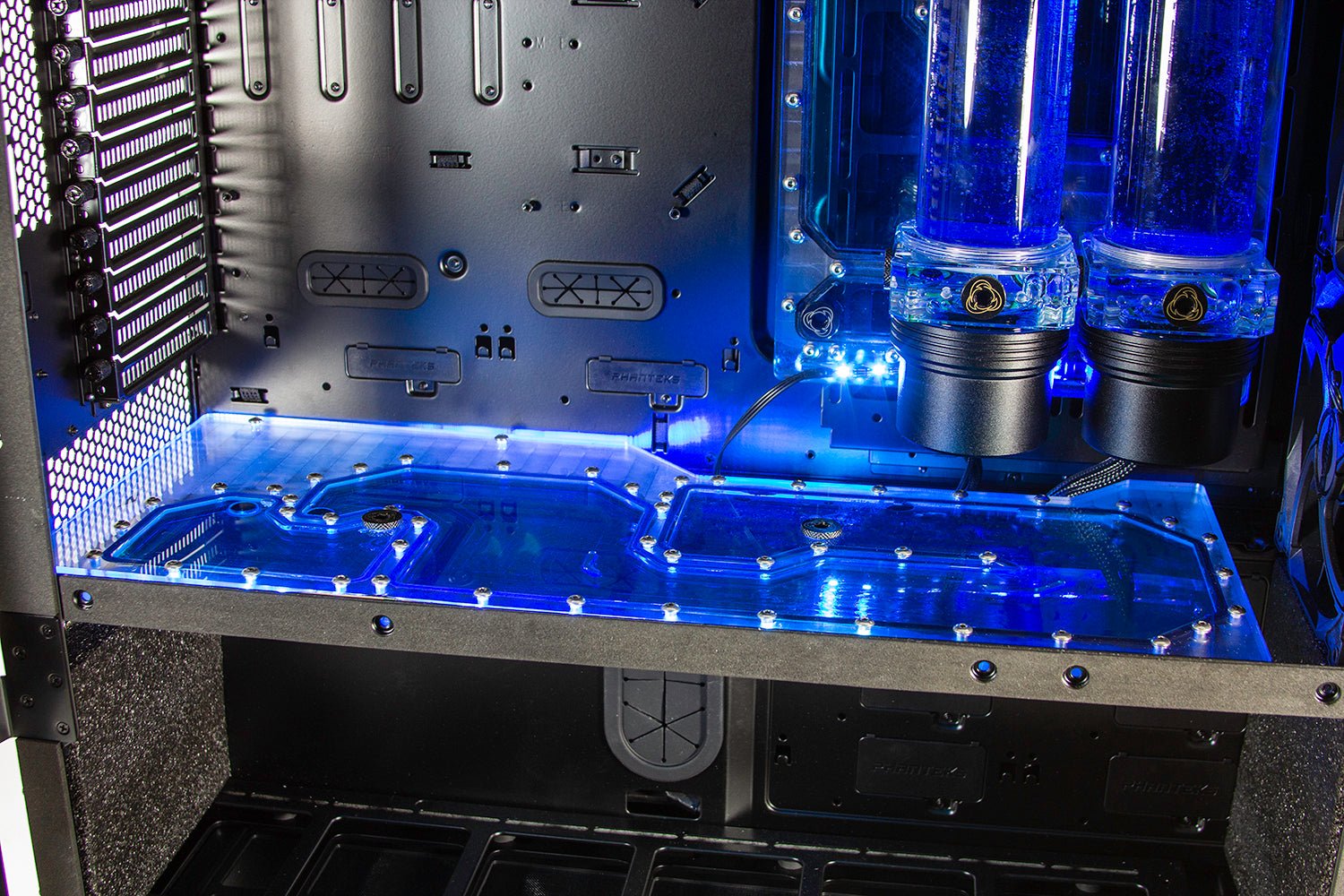

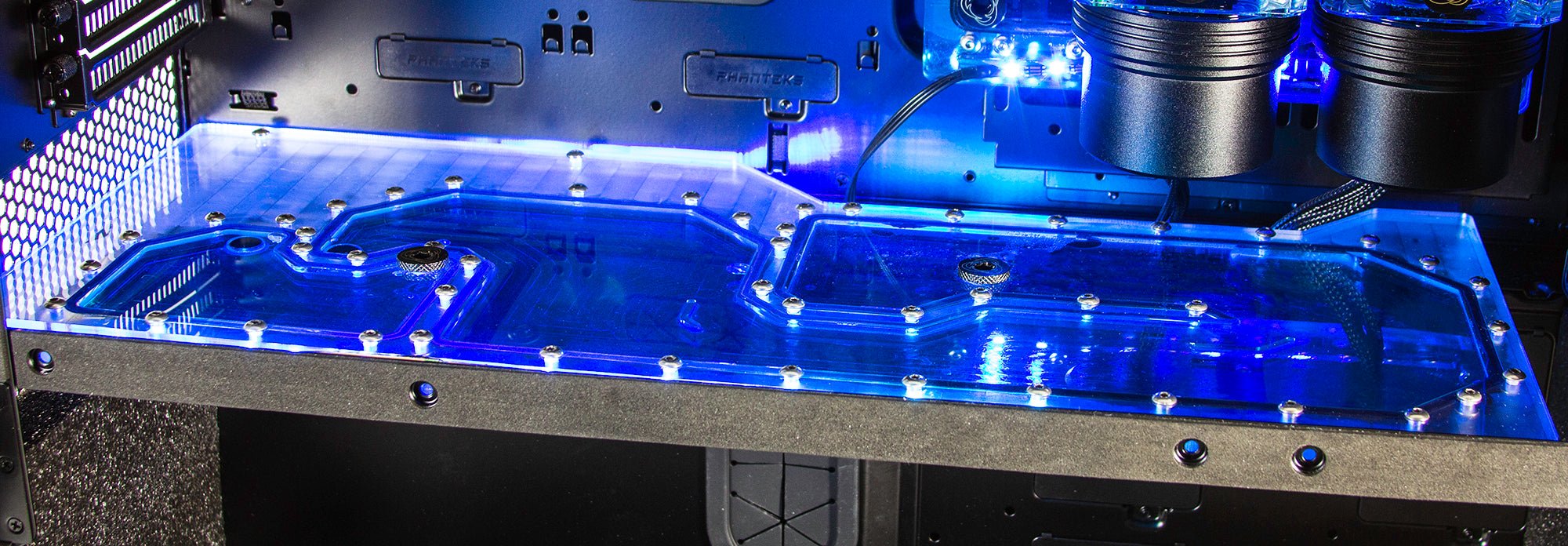

This distribution plate fits onto the mid plate of the Phanteks Enthoo Elite. It is designed to be used together with our Phanteks Elite Vertical Distribution Plate in a dual loop configuration. This distribution plate is for the GPU loop whereas the Phanteks Elite Vertical Distribution Plate contains both loops. One loop runs down to the Phanteks Elite Horizontal Distribution Plate and one loop runs up to the CPU area.

Installation:

Compatible with the Phanteks Enthoo Elite. Use the included x4 M4 22mm and x4 M4 Nuts to attach to the mid plates of any of the above cases. This distribution plate is smaller than the mid plate area of the Phanteks Enthoo Elite so that you can position it to align the ports and mounting holes where needed. A maximum of 3 of the 4 mounting holes can be aligned with existing mounting holes on the case and the 4^th in the top right corner may need to be drilled. If you need to drill mounting holes use a 4.5mm drill bit and use the distribution plate as the template to mark the mounting hole. For maximum adjustment to position the distribution plate where needed, it is best to drill both mounting holes closet to the motherboard side of the mid plate. The front existing mounting holes on the case have plenty of adjustment so can be used under any circumstances.

Specifications:

Material: Clear Cast Acrylic.
Fasteners: Stainless Steel Silver.
Gaskets: Silicone Black.
O-rings: Silicone Black and Clear.
Ports: x4.
LED Strip: DRGB 5V Addressable.
Dimensions: Width: 206mm. Length 509mm. Thickness: 16mm.



Included Items:

Phanteks Elite Horizontal Distribution Plate: x1.
Spectrum 2.0 DRGB LED Strip: x1.
Mounting Fasteners: M4 22mm Button Head Hex: x4. M4 Nuts: x4.



Whats needed for a complete Installation using both 84 and 85 Distros?

Singularity Computers Phanteks Elite Veritcal Distribution Plate
Singularity Computers Phanteks Elite Horizontal Distribution Plate
Protium 150 D5-Reservoir Combo: x2.
Protium 200mm Reservoir Tube: x2.
Protium D5 Pumps: x2.
Bitspower Mini D-Plugs: x6.
Bitspower 25mm Extension Fittings: x2.



Easily buy the complete Singularity Computers Phanteks Elite Set with Protium 200mm D5 Reservoirs -->HERE<--!



Phanteks Elite Distribution Plate Set Loop Route!
