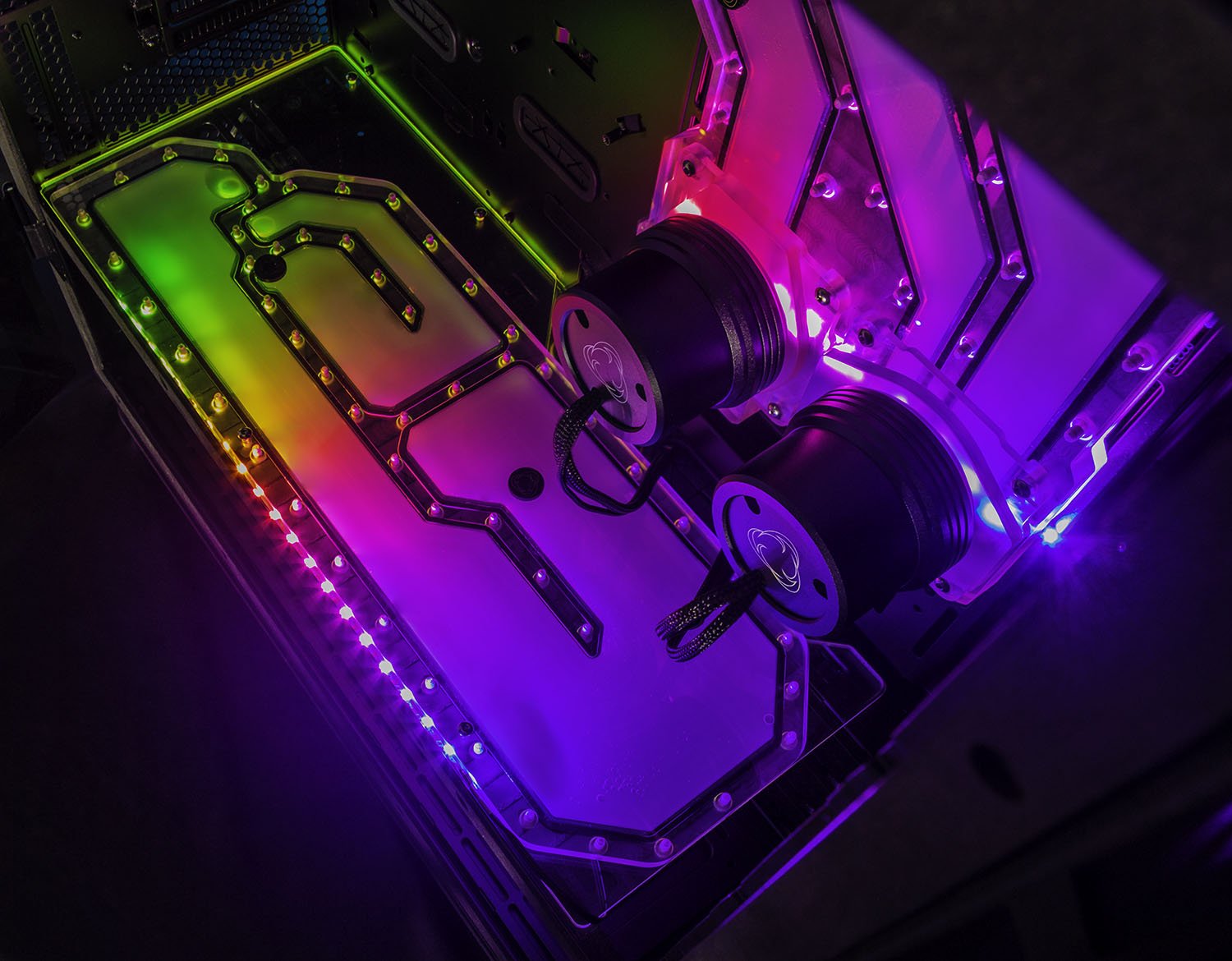

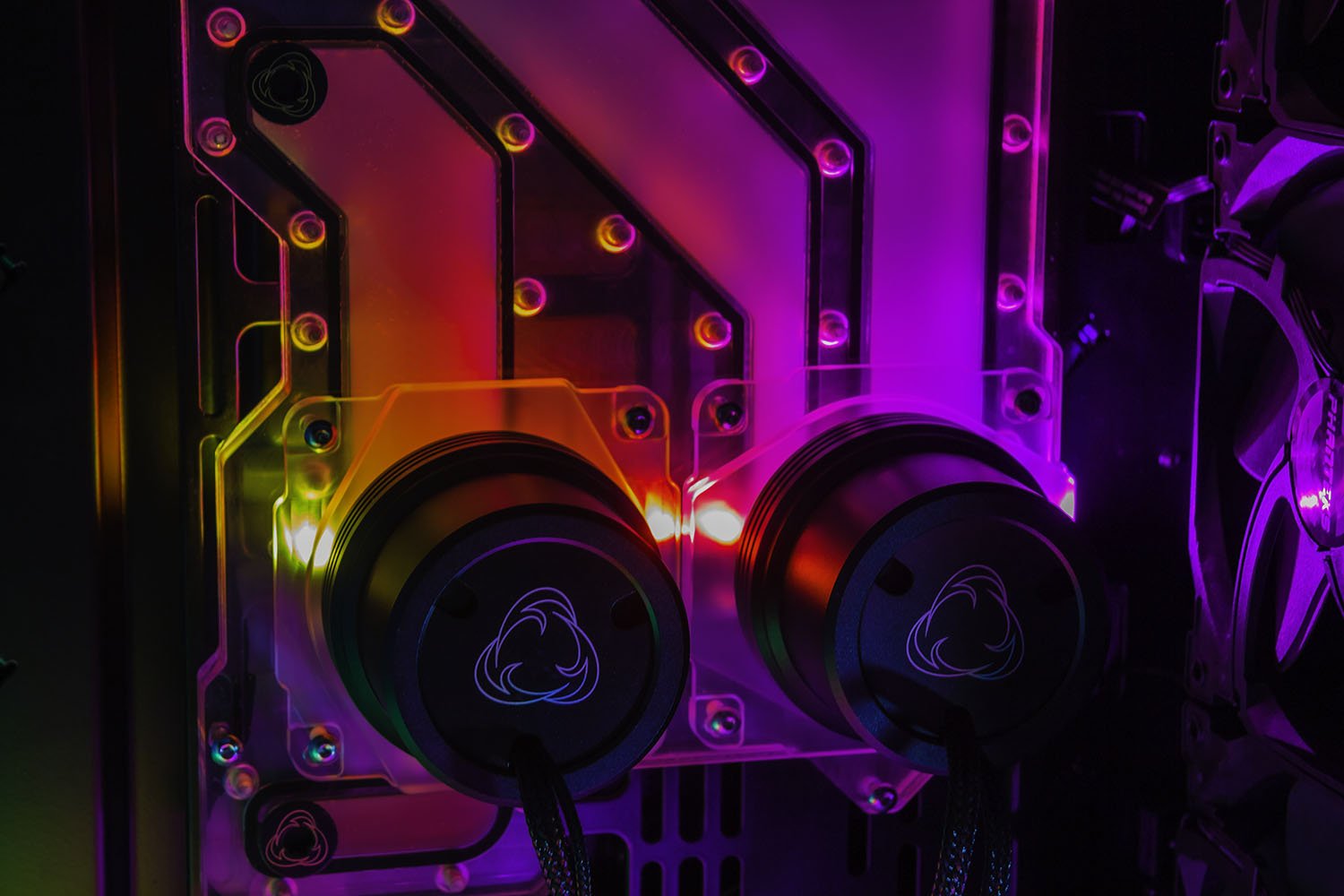

Channelz™ Phanteks Elite V2 Set D5 Reservoirs - Complete Solution

These distribution plates fit into the Phanteks Enthoo Elite. They are designed to be used together when installing in the Phanteks Enthoo chassis to maximize the design potential. Additionally, there are other accessories listed here that enhance the loop design thus making this a killer package deal. We take the guesswork out regarding what is all needed by offering this ready to go pump and reservoir combo extraordinaire!

Installation:

Compatible with the Phanteks Enthoo Elite. Use the included x4 M4 22mm and x4 M4 Nuts to attach to the reservoir mounting area next to the motherboard.

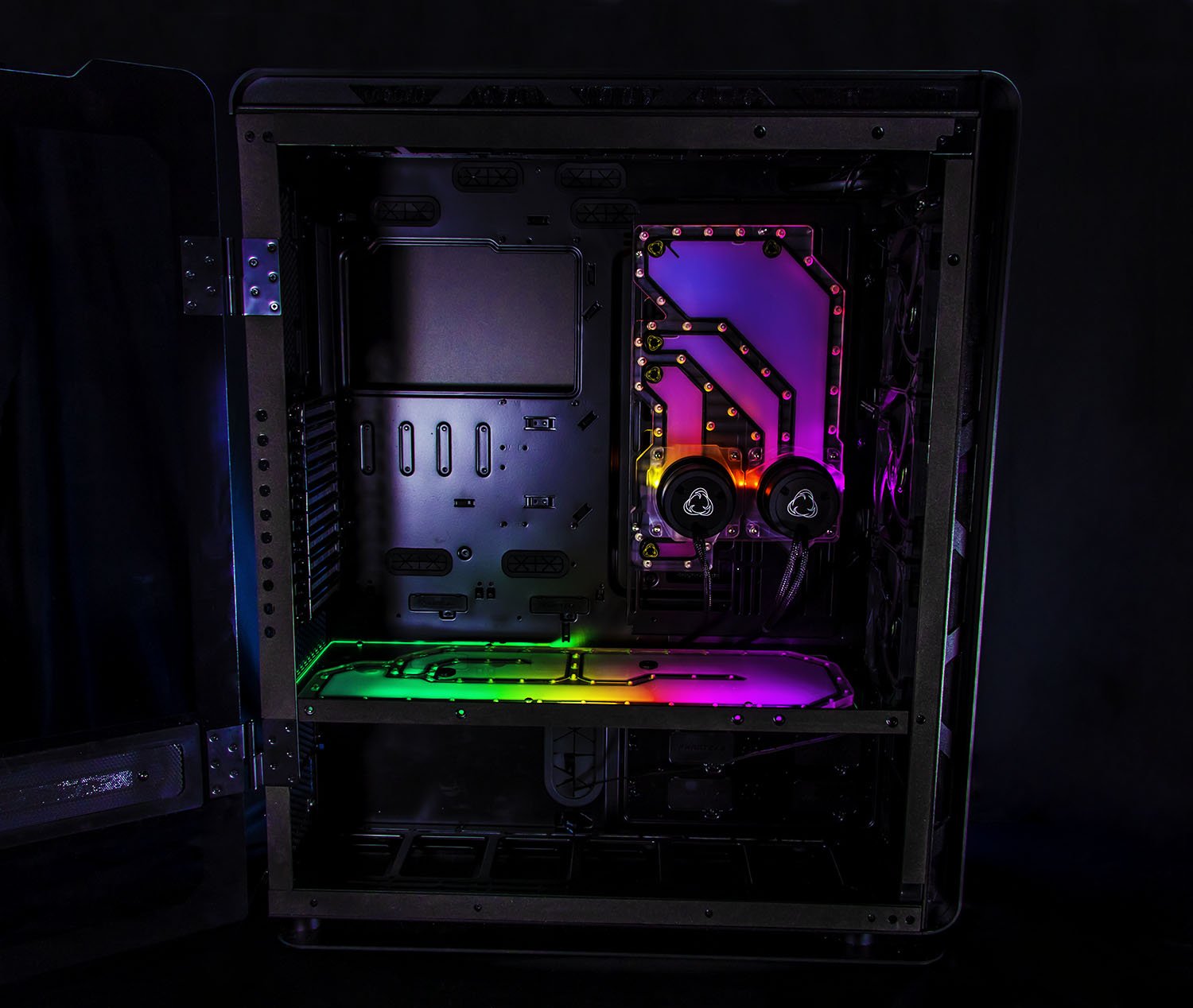

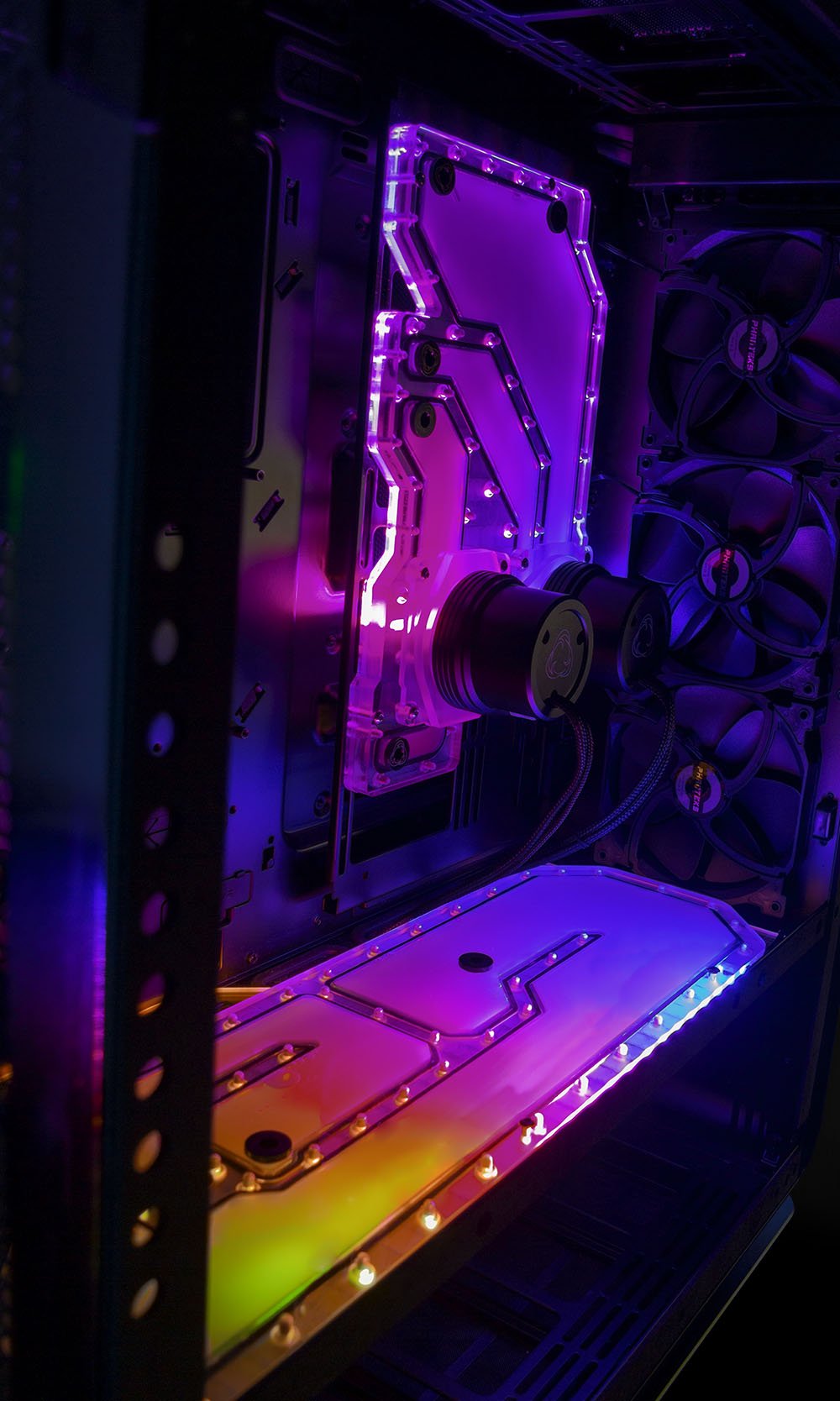

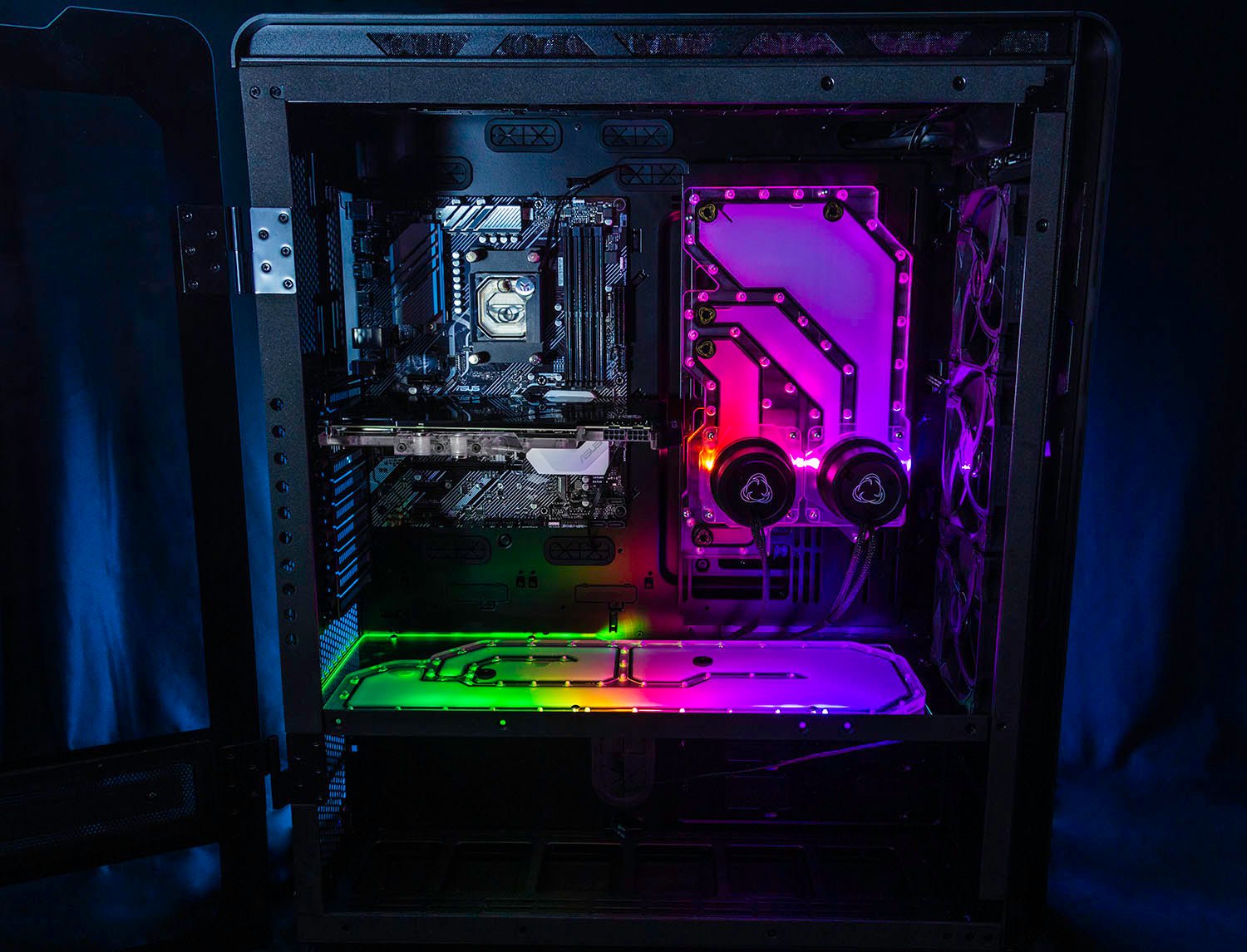

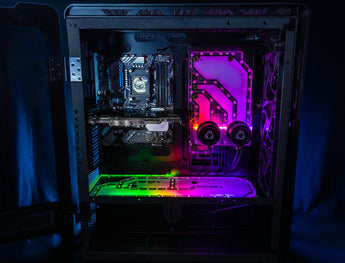

Phanteks Enthoo Elite: Align the distribution plate mounting holes with the mounting holes on the radiator mounting panel which fits next to the motherboard on the Phanteks Enthoo Elite, and use the included x4 M4 22mm Button head Bolts and x4 M4 Nuts for mounting.







Distro 84 Specifications:



Material: Clear Cast Acrylic.
Fasteners: Stainless Steel Silver.
Gaskets: Silicone Black.
O-rings: Silicone Black and Clear.
Ports: x5. Outlets: x2. Inlets: x2. Fill Port: x1.
LED Strip: DRGB 5V Addressable.
Dimensions: Width: 220mm. Length: 343mm.
Thickness: 16mm. Full thickness with Protium Combos



Distro 84 Included Items:

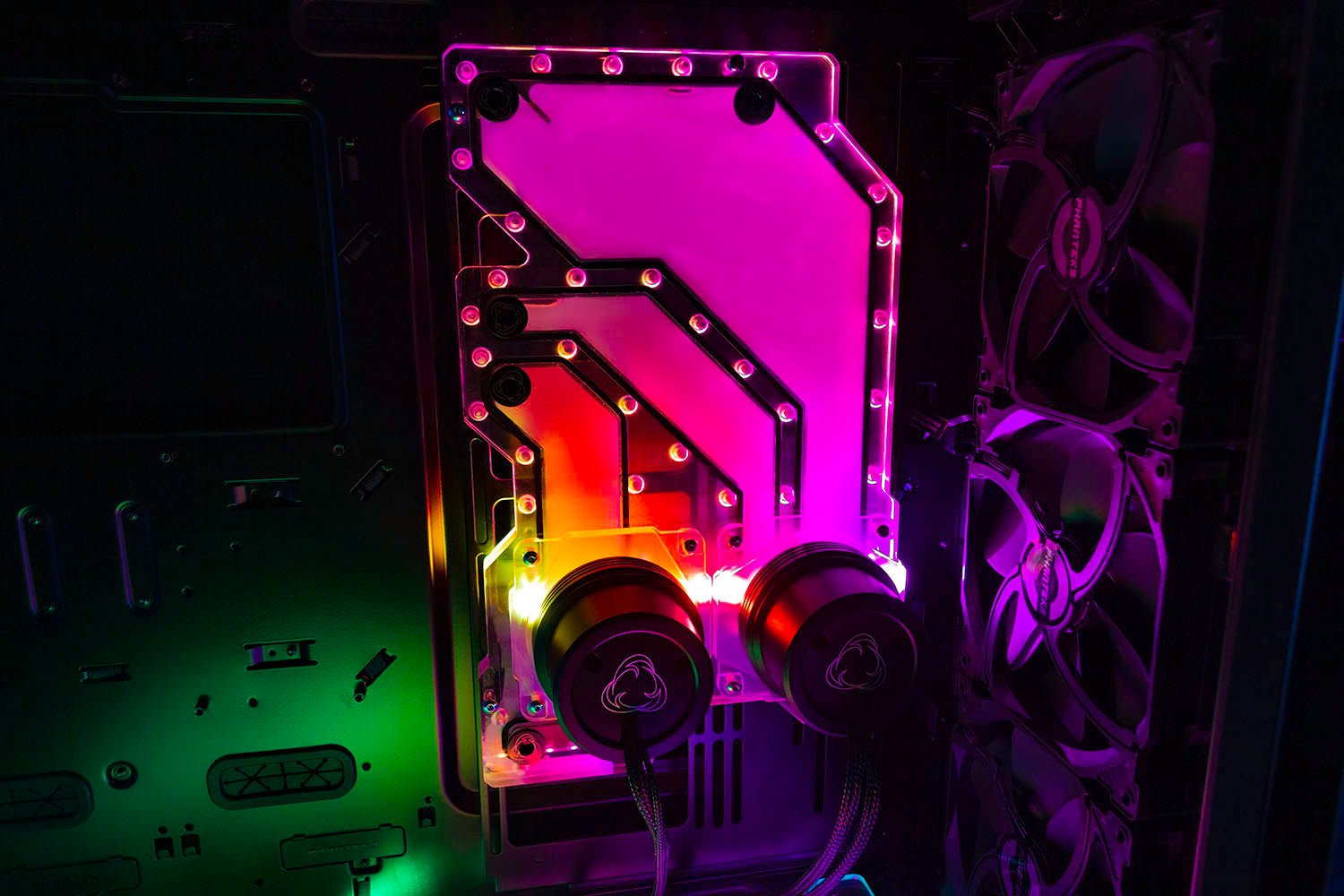

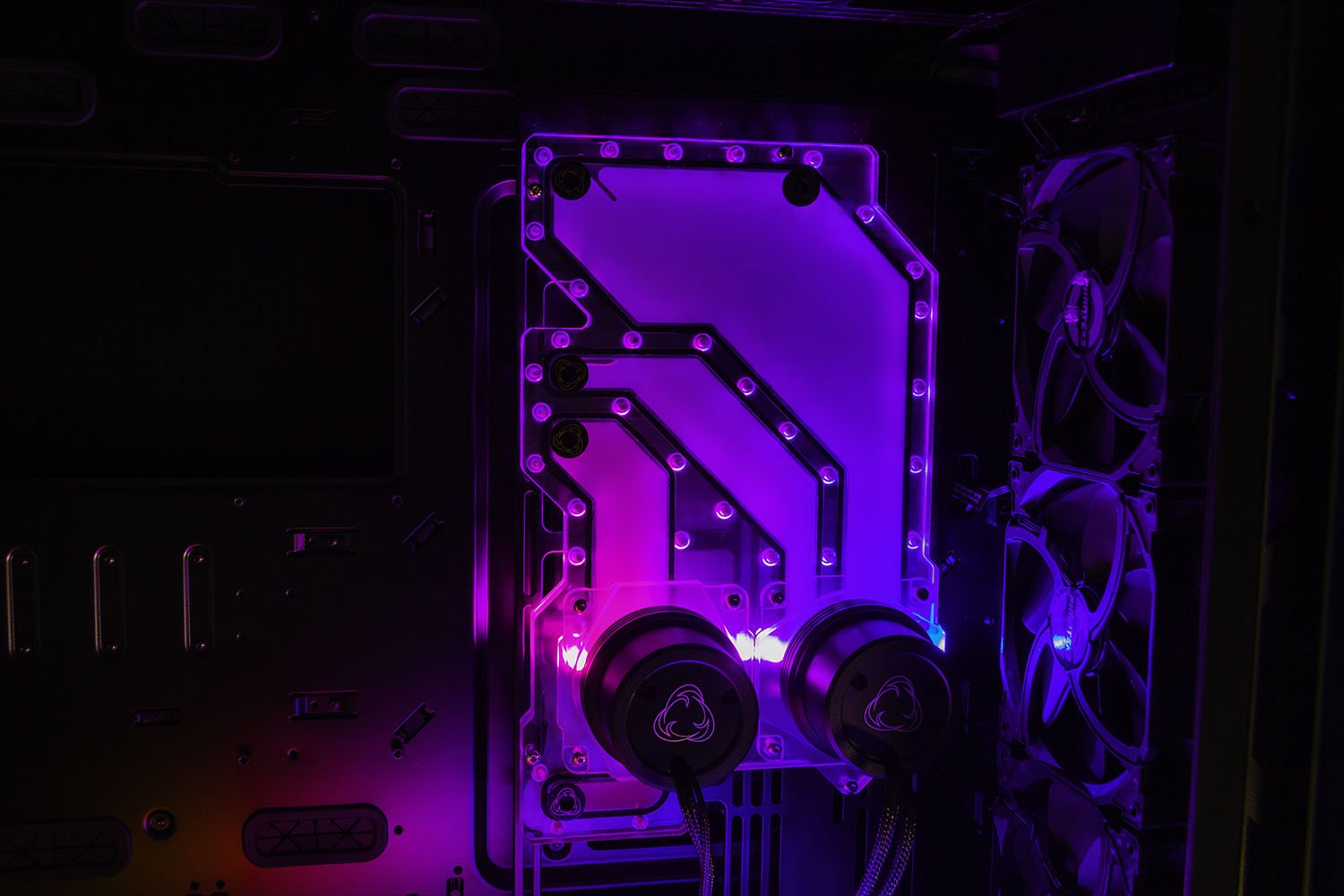

Phanteks Elite Verticall Distribution Plate: x1.
Spectrum 2.0 DRGB LED Strip: x1.
Mounting Fasteners: M4 22mm Button Head Hex: x4. M4 Nuts: x4.



Distro 85 Specifications:



Material: Clear Cast Acrylic.
Fasteners: Stainless Steel Silver.
Gaskets: Silicone Black.
O-rings: Silicone Black and Clear.
Ports: x4.
LED Strip: DRGB 5V Addressable.
Dimensions: Width: 186mm. Length 490mm.
Thickness: 16mm.



Distro 85 Included Items:

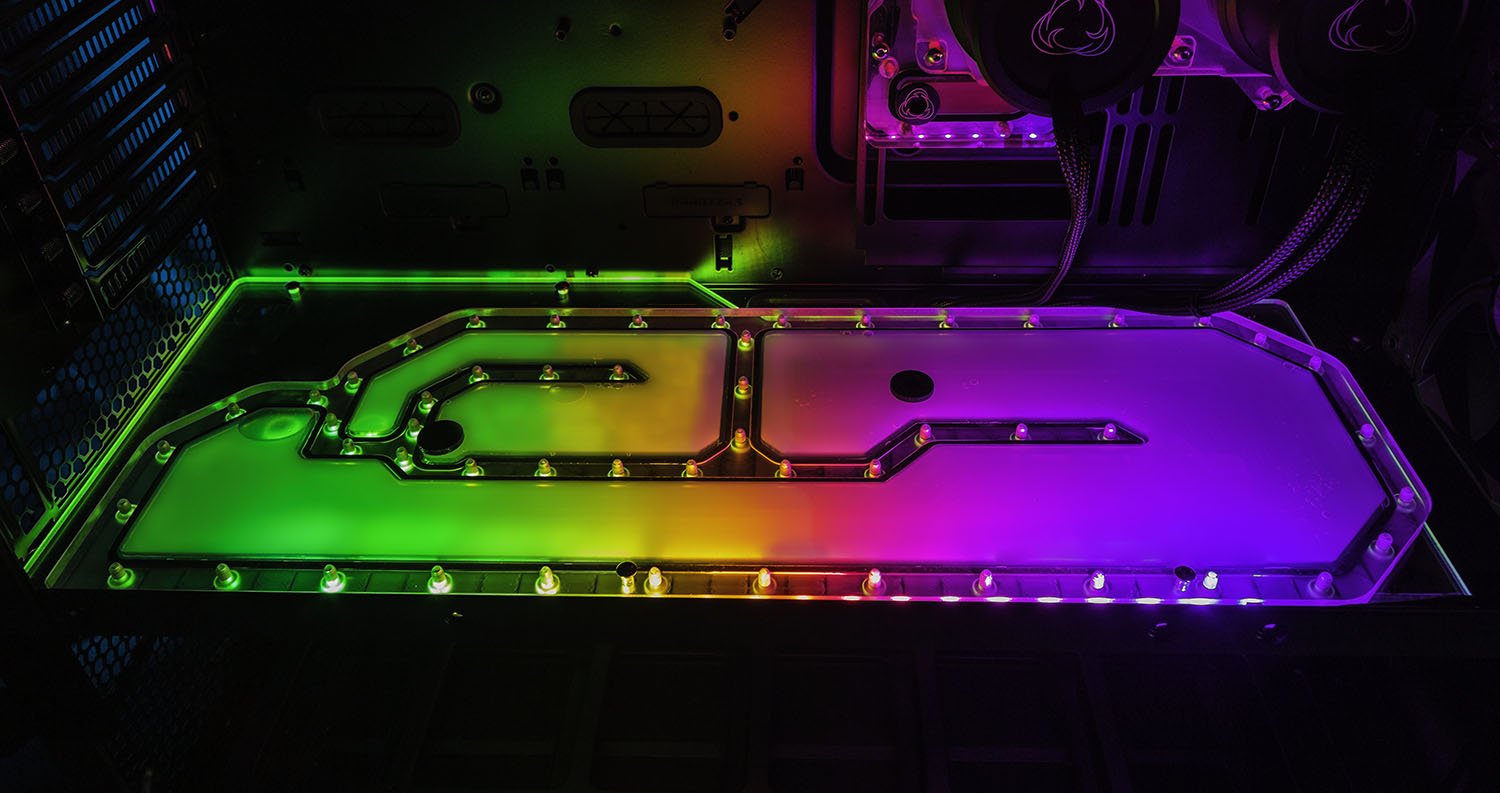

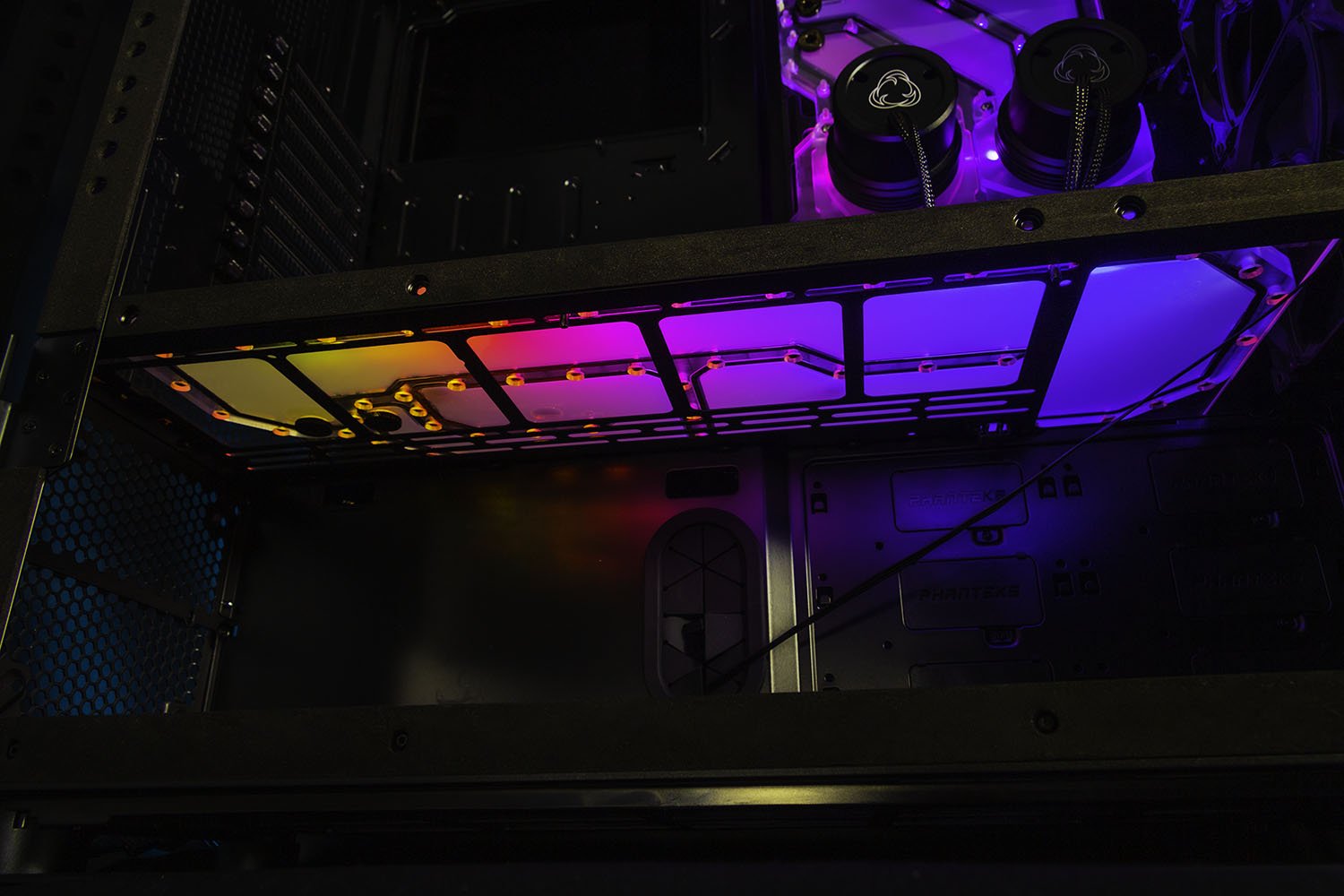

Phanteks Elite Horizontal Distribution Plate: x1.
Spectrum 2.0 DRGB LED Strip: x1.
Mounting Fasteners: M4 22mm Button Head Hex: x4. M4 Nuts: x4.
