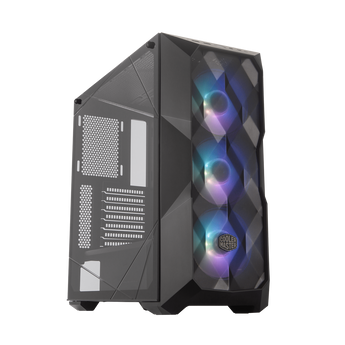

Cooler Master MasterBox TD500 Mesh Airflow ATX Mid-Tower with Polygonal Mesh Front Panel,and Crystalline Tempered Glass - Black

MCB-D500D-KGNN-S01

Display your build with the white MasterBox TD500 Mesh Mid-Tower Case from Cooler Master. Designed to look good without sacrificing functionality, this 40.14L mid-tower case comes with a tempered glass side window and three ARGB fans pre-installed. In addition to the pre-installed fans, users can add up to three 120mm fans or radiators to the top of the case, and an additional 120mm fan or radiator to the rear of the case. Inside, the TD500 can support ATX, Micro-ATX, Mini-ITX, and SSI CEB motherboards. It can also support E-ATX boards measuring up to 12 by 10.7.

Found a better price? Let us know and we'll try and match it!
Estimate shipping
$99.95 Sold out
Shipping calculated at checkout.

Pickup currently unavailable at Performance-PCs.com

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

Display your build with the white MasterBox TD500 Mesh Mid-Tower Case from Cooler Master. Designed to look good without sacrificing functionality, this 40.14L mid-tower case comes with a tempered glass side window and three ARGB fans pre-installed. In addition to the pre-installed fans, users can add up to three 120mm fans or radiators to the top of the case, and an additional 120mm fan or radiator to the rear of the case. Inside, the TD500 can support ATX, Micro-ATX, Mini-ITX, and SSI CEB motherboards. It can also support E-ATX boards measuring up to 12 by 10.7.

Users also have plenty of room for storage, thanks to two 2.5/3.5 drive bays, plus another two dedicated 2.5 bays. The TD500 can also fit CPU coolers up to 6.49 and graphics cards up to 16.1. Bottom-mount ATX power supplies up to 7.08 are supported by the case right out of the box, but users can fit large PSUs up to 11.61 by removing the HDD cage. Behind the motherboard tray, a space for cable management provides 0.74 of clearance, allowing you to keep unsightly wires from blocking your internals. Dominating the front of the case, a polygonal mesh is intended to facilitate better airflow along with dust filters on the top and bottom of the TD500. On top of the case, an I/O panel includes two USB 3.2 Gen 1 ports and separate 3.5mm ports for audio input and output. An ARGB controller and ARGB 2-to-3 splitter cable are also included, along with a hardware kit.

Polygonal Mesh
Featuring three-dimensional contours, the TD500's polygonal mesh is designed to provide high airflow while also filtering dust.
USB 3.2 Gen 1
USB 3.2 Gen 1 features a maximum throughput of 5 Gb/s and is synonymous with USB 3.1 Gen 1 and USB 3.0.
width=2378
Features

Features:






  • Revolutionary Highly-Durable Polygonal Mesh Design features a three-dimensional contour capable of simultaneously providing high airflow and dust filtration.

  • A Crystalline Tempered Glass side panel dons a crystalline design, precision engineered for strength durability as well as aesthetics

  • 2 x USB 3.2 Gen 1 (USB 3.0) ports Located on front panel

  • Three included addressable fine-tuned RGB fans flood the build with bright lighting while providing considerable airflow.

  • Built for enthusiast-grade cooling, two 360mm radiators are supported on the top and front panel to keep the most extreme systems cool.

  • Support for up to seven 120mm fans and front, top, and rear liquid cooling ensure the utmost in performance.




Specifications

Specifications:








































































































Model Number MCB-D500D-KGNN-S01 (Mesh w/ Hub), MCB-D500D-KGNN-S00 (Mesh w/o controller), MCB-D500D-WGNN-S01 (Mesh White w/ Hub), MCB-D500D-WGNN-S00 (Mesh White w/o controller)











Color(s) Black, White











Materials - Exterior Steel, Mesh, Plastic











Materials - Left Side Panel Tempered Glass











Dimensions (L x W x H) 493 x 217 x 469mm (incl. Protrusions), 429.5 x 205x 447mm (excl. Protrusions)











Volume 40.14L (excl. Protrusions)











Motherboard Support Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*up to 12� x 10.7� motherboards)











Expansion Slots 7











5.25 Drive Bays N/A











2.5 / 3.5 Drive Bays (Combo) 2











2.5 Drive Bays 4 (2+2 combo)











I/O Panel 2 x USB 3.2 Gen 1 (USB 3.0), 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack, 1x ARGB Hub, 1x ARGB 1-to-3 Splitter











Pre-installed Fans - Top N/A











Pre-installed Fans - Front 3x 120mm CF120 ARGB











Pre-installed Fans - Rear N/A











Fan Support - Top 3x 120mm, 2x 140mm











Fan Support - Front 3x 120mm, 2x 140mm











Fan Support - Rear 1x 120mm











Radiator Support - Top 120mm, 240mm, 360mm, (44mm max motherboard component height)











Radiator Support - Front 120mm, 140mm, 240mm, 280mm, 360mm











Radiator Support - Rear 120mm











Clearance - CPU Cooler 165mm/6.49











Clearance - PSU 180mm/7.08, 295mm/11.61 (w/ HDD cage removed)











Clearance - GFX 410mm/16.1











Cable Routing 19mm/0.74











Dust Filters Front, Top, Bottom











Power Supply Support Bottom Mount, ATX











Warranty 2 years











Series MasterBox Series











Size Mid Tower
