Cooler Master MWE Gold 1250 V2 ATX3.0 Fully Modular, 1250W, 80 Gold PSU

Cooler Master

MPE-C501-AFCAG

MWE Gold â?? V2 (Full Modular) is the next step in the evolution of Cooler Masterâ??s entry level 80 PLUS Gold power offerings. The intention was not to create a new product but to improve a current one to be even more useful to consumers. The design changes implemented in this iteration of the MWE Gold were based on user feedback and demand. New things were added or changed to make the user experience better and simpler. Together, these design choices deliver a great entry level power supply option complete with high efficiency, reliability, simplicity, and a competitive price point.

Found a better price? Let us know and we'll try and match it!
Estimate shipping
1 in stock
$229.95
Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

MWE Gold â?? V2 (Full Modular) is the next step in the evolution of Cooler Masterâ??s entry level 80 PLUS Gold power offerings. The intention was not to create a new product but to improve a current one to be even more useful to consumers. The design changes implemented in this iteration of the MWE Gold were based on user feedback and demand. New things were added or changed to make the user experience better and simpler. Together, these design choices deliver a great entry level power supply option complete with high efficiency, reliability, simplicity, and a competitive price point.
Features

Features:



  • Fully support ATX3.0: 12VHPWR connector with a compact 12+4 pin cable can pump up to 600W of power to a GPU via a single cable.

  • Highly Efficient Performance: The 80 PLUS Gold certification guarantees a minimum efficiency of 90%.

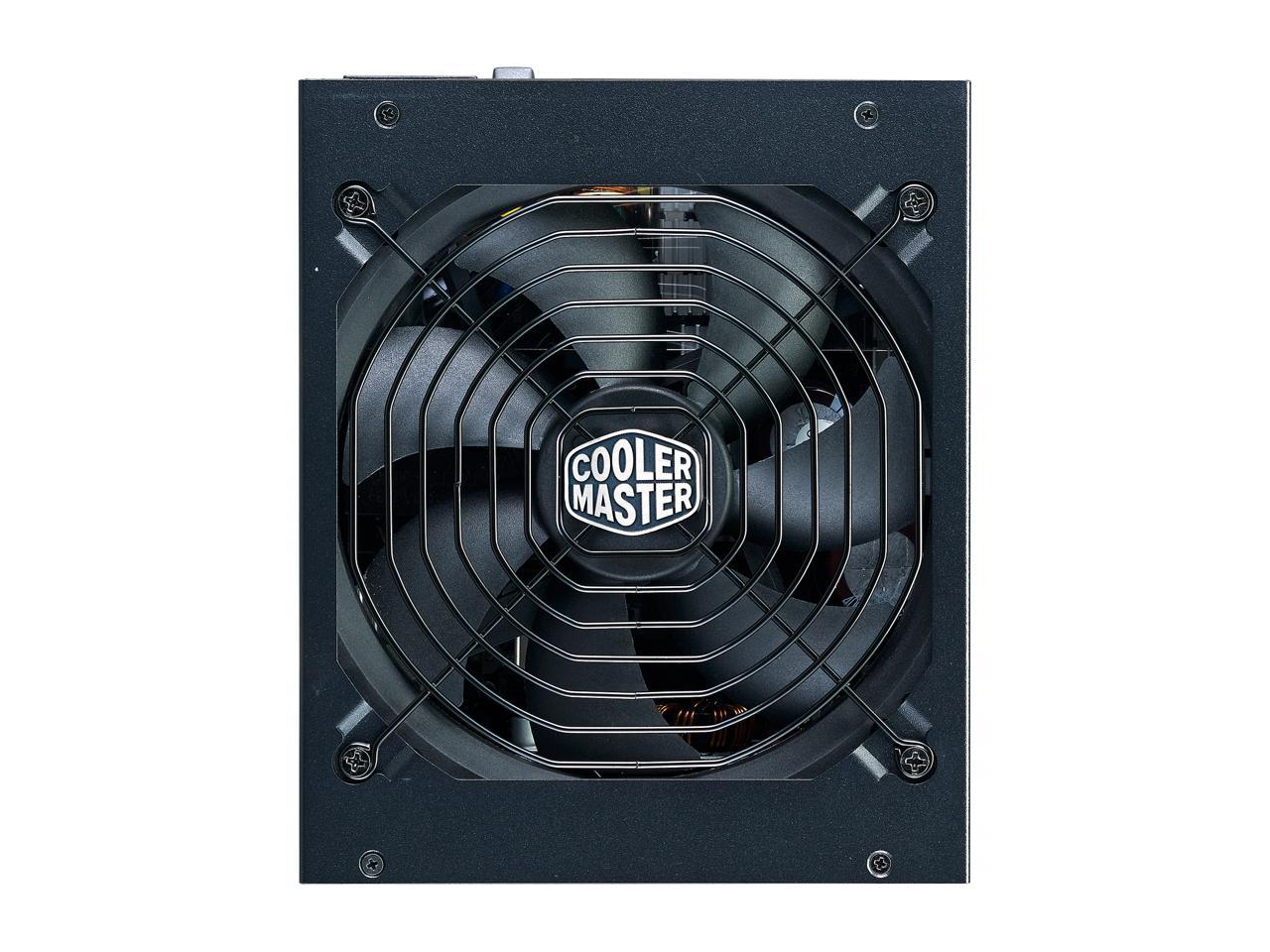

  • 140mm Two Ball Bearing Fan: MWE Gold 1250 V2 has delivered to a premium high air flow and long life bearing fan, offering more effective cooling performance.

  • 100% Japanese Capacitors: Implementing the highest quality of Japanese capacitors to increase efficiency and reduce ripple noise.

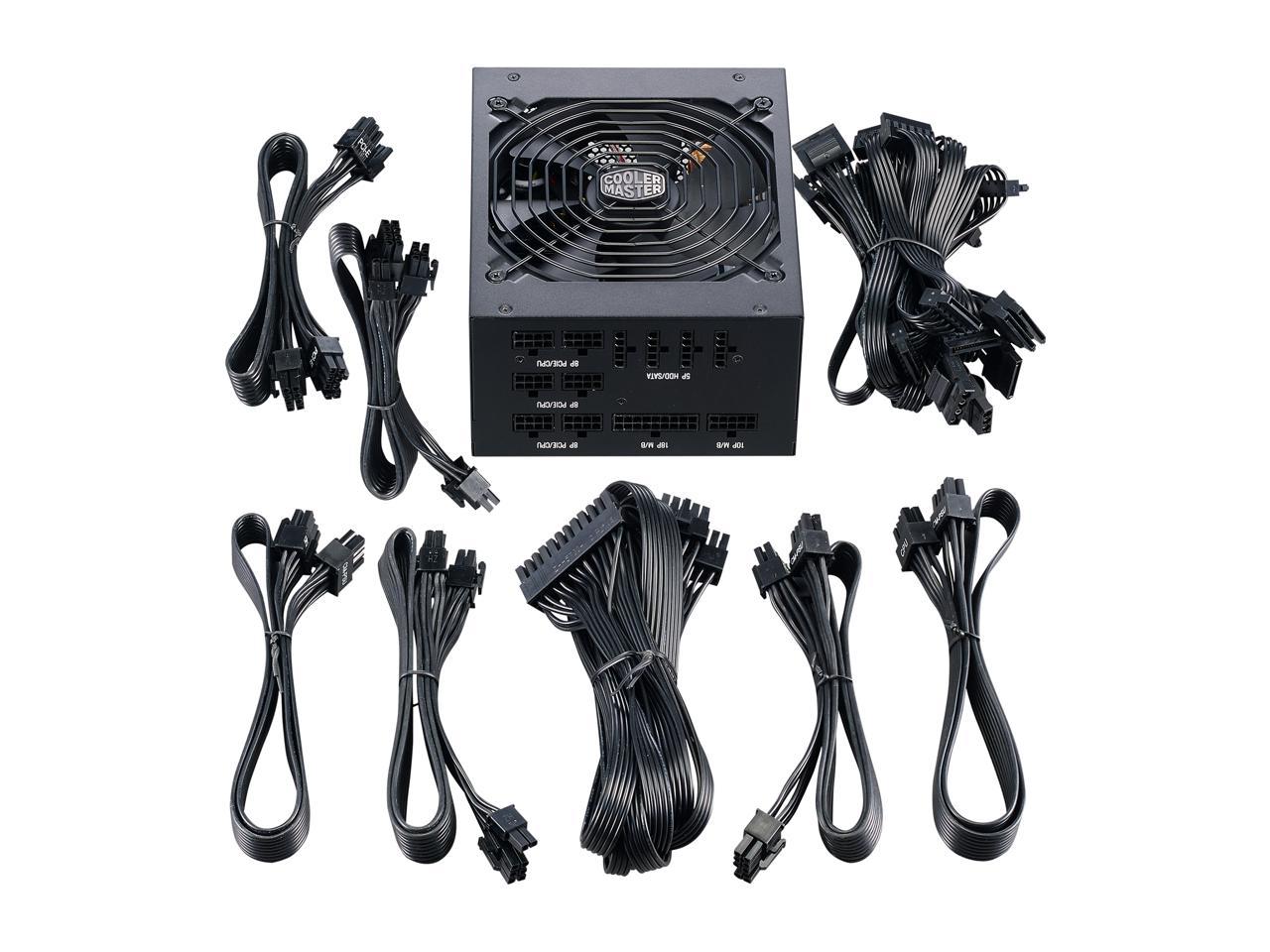

  • Fully Modular: Modular flat black cables reduce clutter, increase airflow, and improve overall efficiency and thermal performance.
Specifications

Specifications:

















































































































Model MPE-C501-AFCAG











ATX Version ATX 12V V2.52











PFC Active PFC











Input Voltage 100-240V











Input Current 15-7A











Input Frequency 47-63Hz











Dimensions (L x W x H) 180 x 150 x 86 mm











Fan Size 140mm











Fan Bearing FDB











Fan Speed 2200 RPM











Noise Level @ 20% 0 dBA











Noise Level @ 50% 15.8 dBA











Noise Level @ 100% 30.1 dBA











Efficiency â?¥90% @ Typical Load











80 PLUS Rating 80 PLUS Gold











ErP 2014 Lot 3 Yes











Operating Temperature 0-50°C











Power Good Signal 100 - 150 ms











Hold Up Time >20ms at 100% Load











MTBF >100,000 Hours











Protections OVP, UVP, OPP, OTP, SCP, OCP











Regulatory TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, CB, UKCA

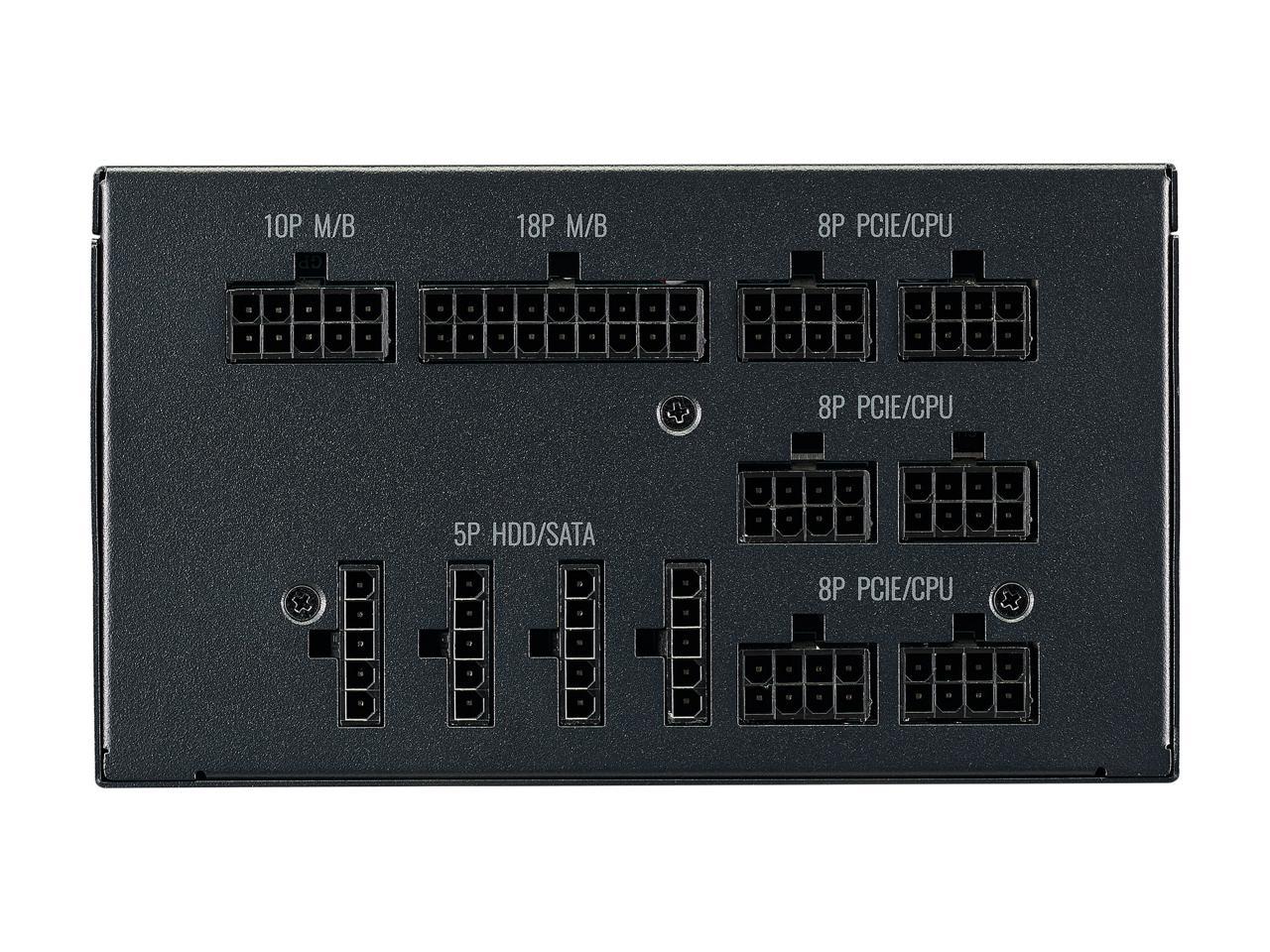

ATX 24 Pin Connectors 1











EPS 4+4 Pin Connectors 1











EPS 8 Pin Connector 1











SATA Connectors 12











Peripheral 4 Pin Connectors 4











PCI-e 6+2 Pin Connectors 8











Warranty 10 Years











Series MWE Gold Series











80 Plus Gold











Modular Full Modular











Wattage Above 750W
