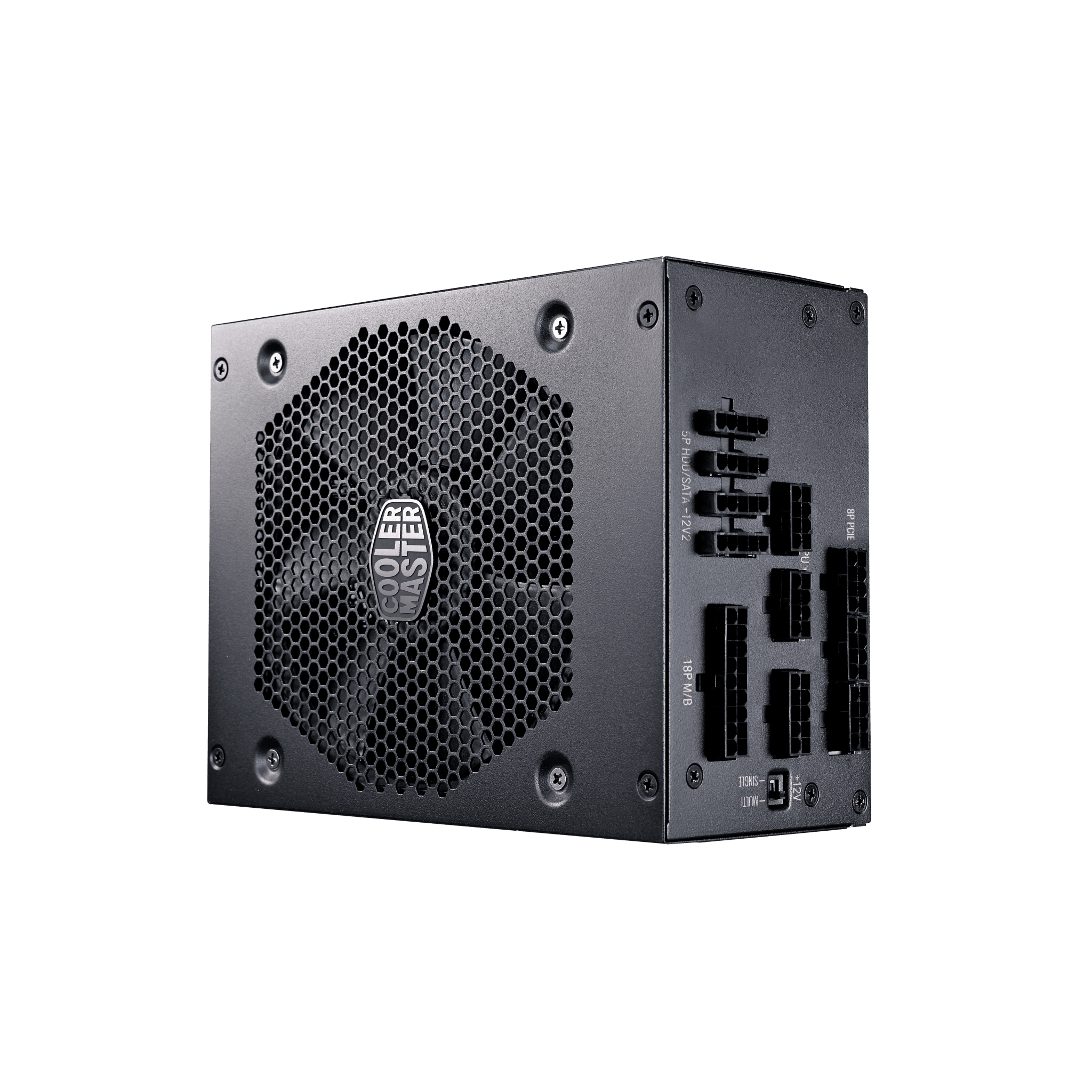

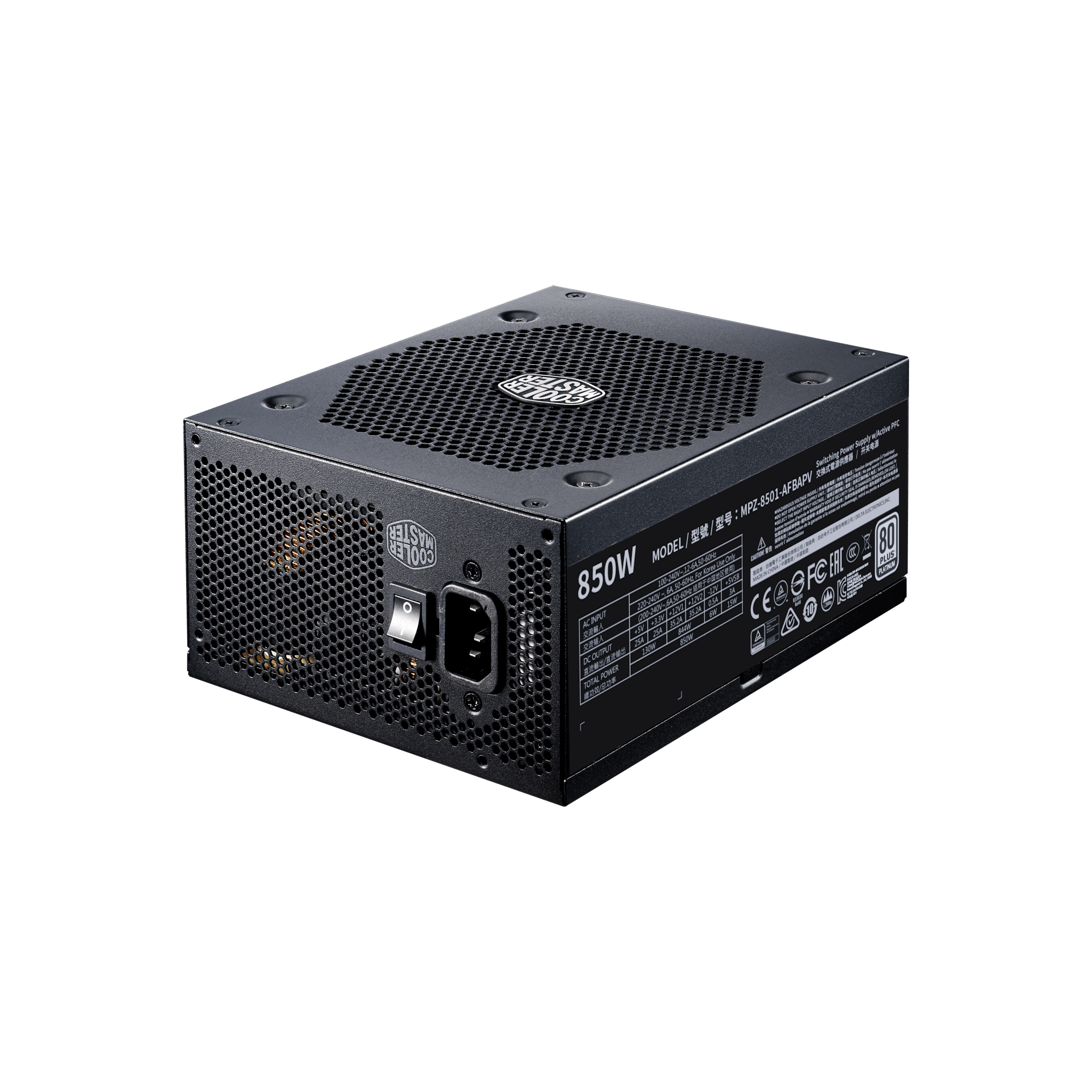

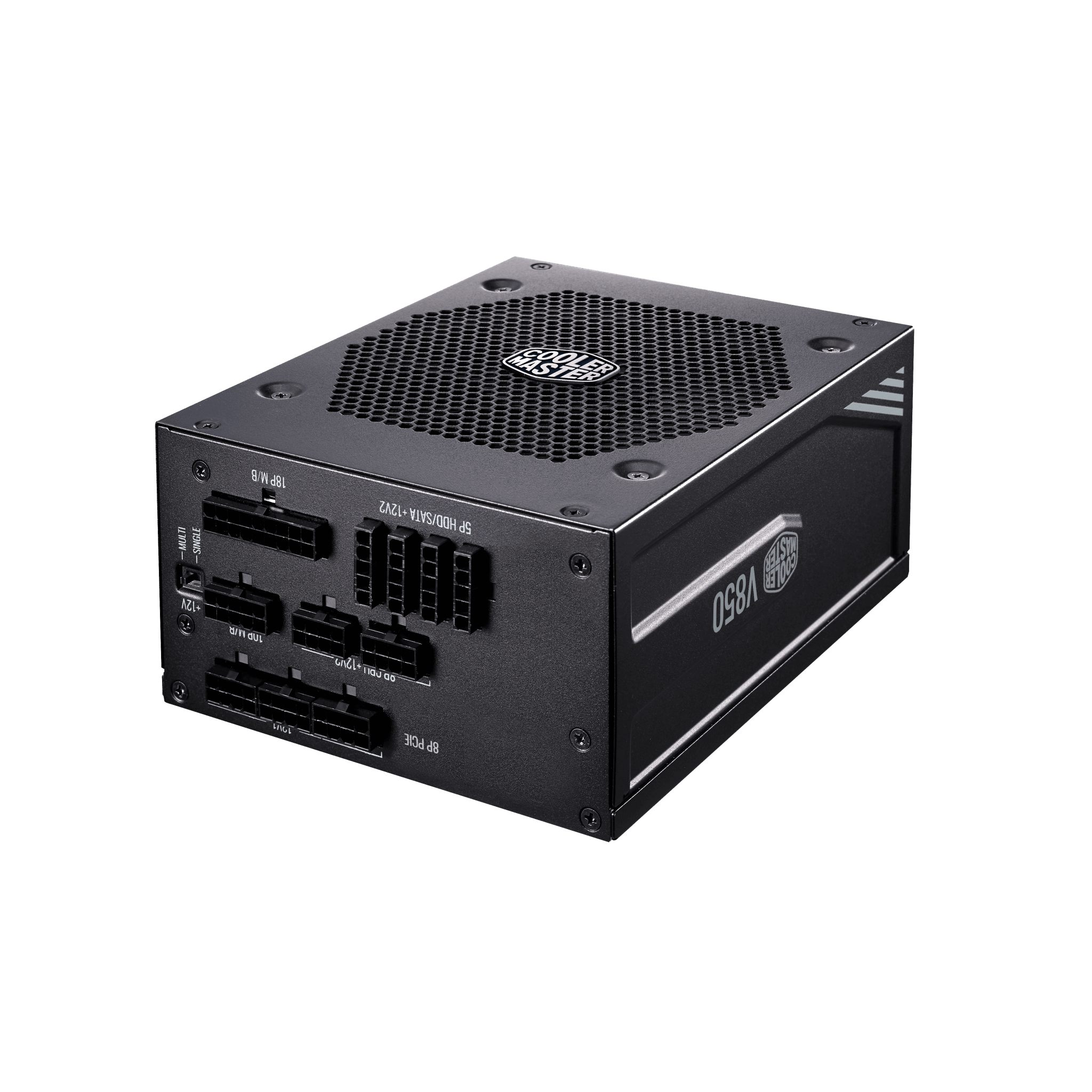

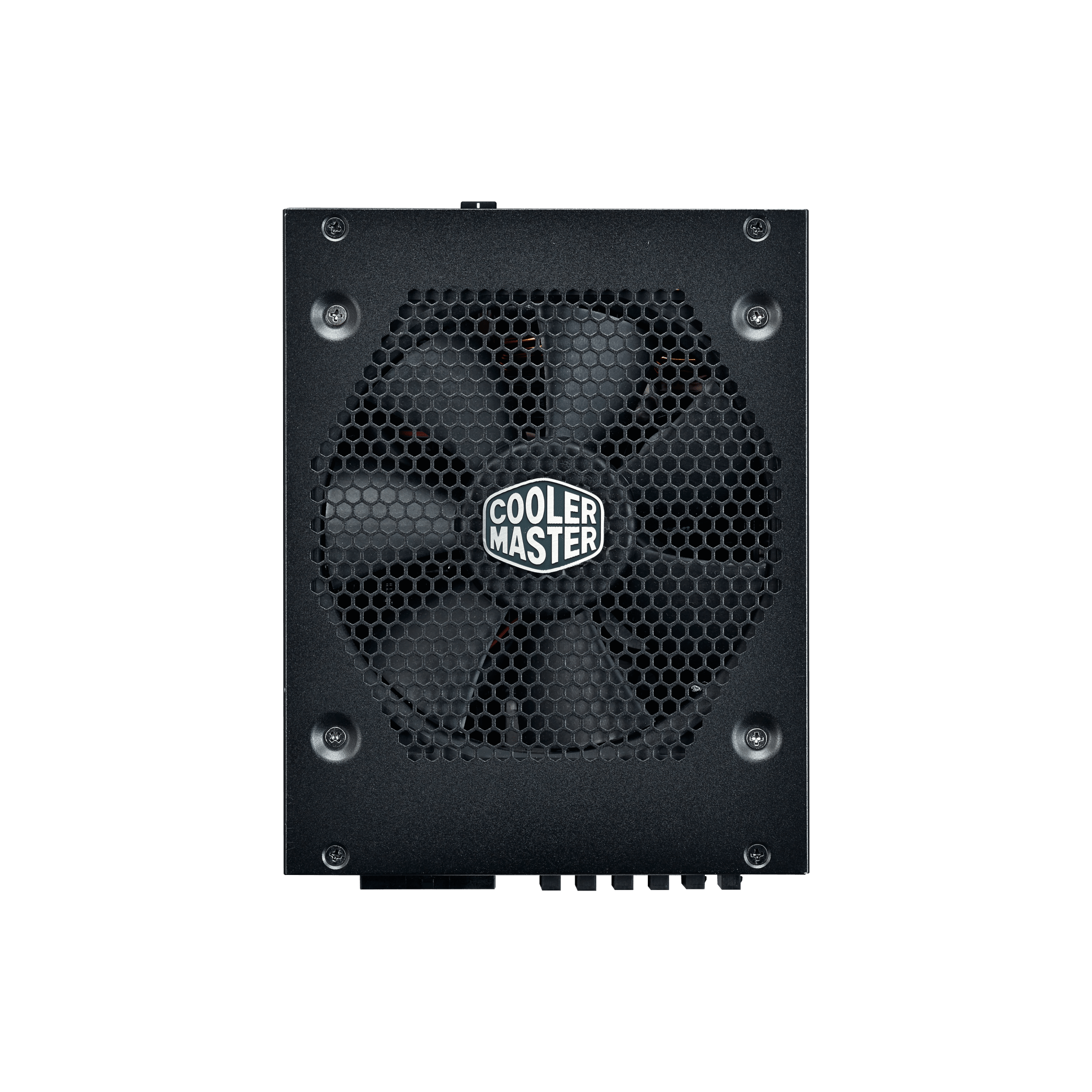

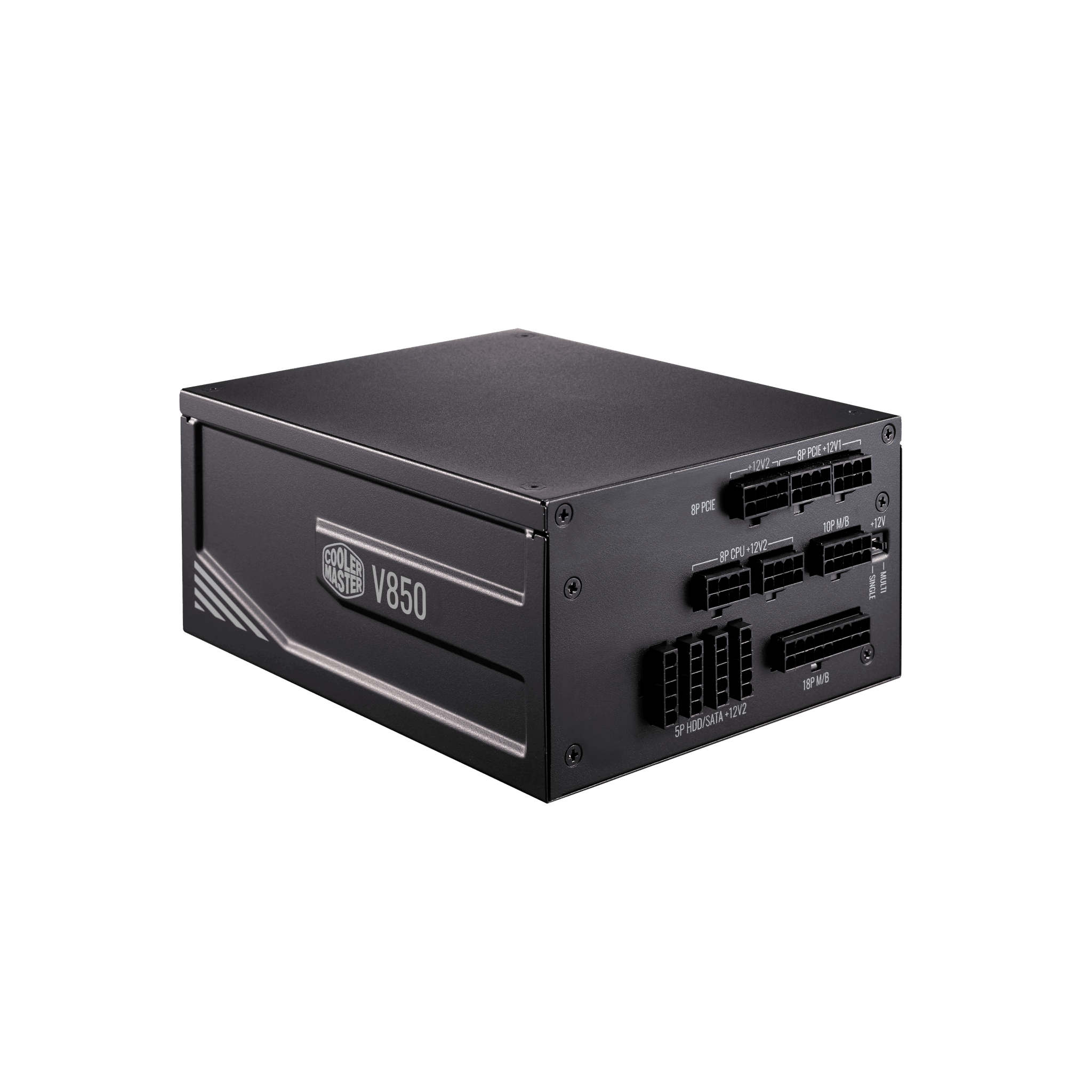

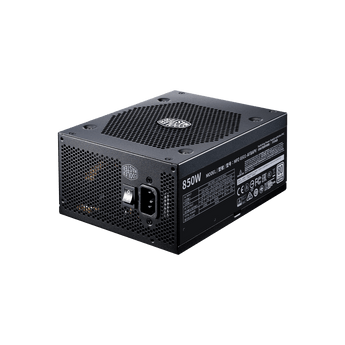

Cooler Master V850 Platinum 850W Full-Modular, 80 PLUS Platinum Power Supply

Name: Cooler Master V850 Platinum 850W Full-Modular, 80 PLUS Platinum Power Supply
Brand: Cooler Master
SKU: MPZ-8501-AFBAPV-US
Price: 149.99 USD
Availability: OutOfStock

MPZ-8501-AFBAPV-US

The V Platinum series promises high-end performance for every type of PC user. This vanguard of power supply innovation and development offers an 80 PLUS Platinum efficiency certification, full-modular cabling, 100% Japanese capacitors, a high operating temperature of 50 C, and a hardware based single/multi rail switch. Add on the 10 year warranty and you have a PSU that won?t disappoint even the most seasoned system integrators and PC builders. For highly efficient, quiet operation, you simply can?t go wrong with the V Platinum.Cooler Master V850 Platinum - Full-Modular 80 Plus Platinum Certified Power Supply.

Found a better price? Let us know and we'll try and match it!

Product variants

Estimate shipping

Country

Zip code

~~$199.99~~ $149.99 Sale Sold out

Shipping calculated at checkout.

Pickup currently unavailable at Performance-PCs.com

99% of orders ship same day M-F!
FREE Shipping Possible!
All-Star CS Team
30-Day Hassle Free Returns

Details

Features

80 PLUS Platinum Certification: Guarantees a typical efficiency of 92% under normal operating conditions.

Thermal Regulation Mode (TRM) : Regulates temps, keeping a constant and quiet fan speed up to 60% of maximum load.

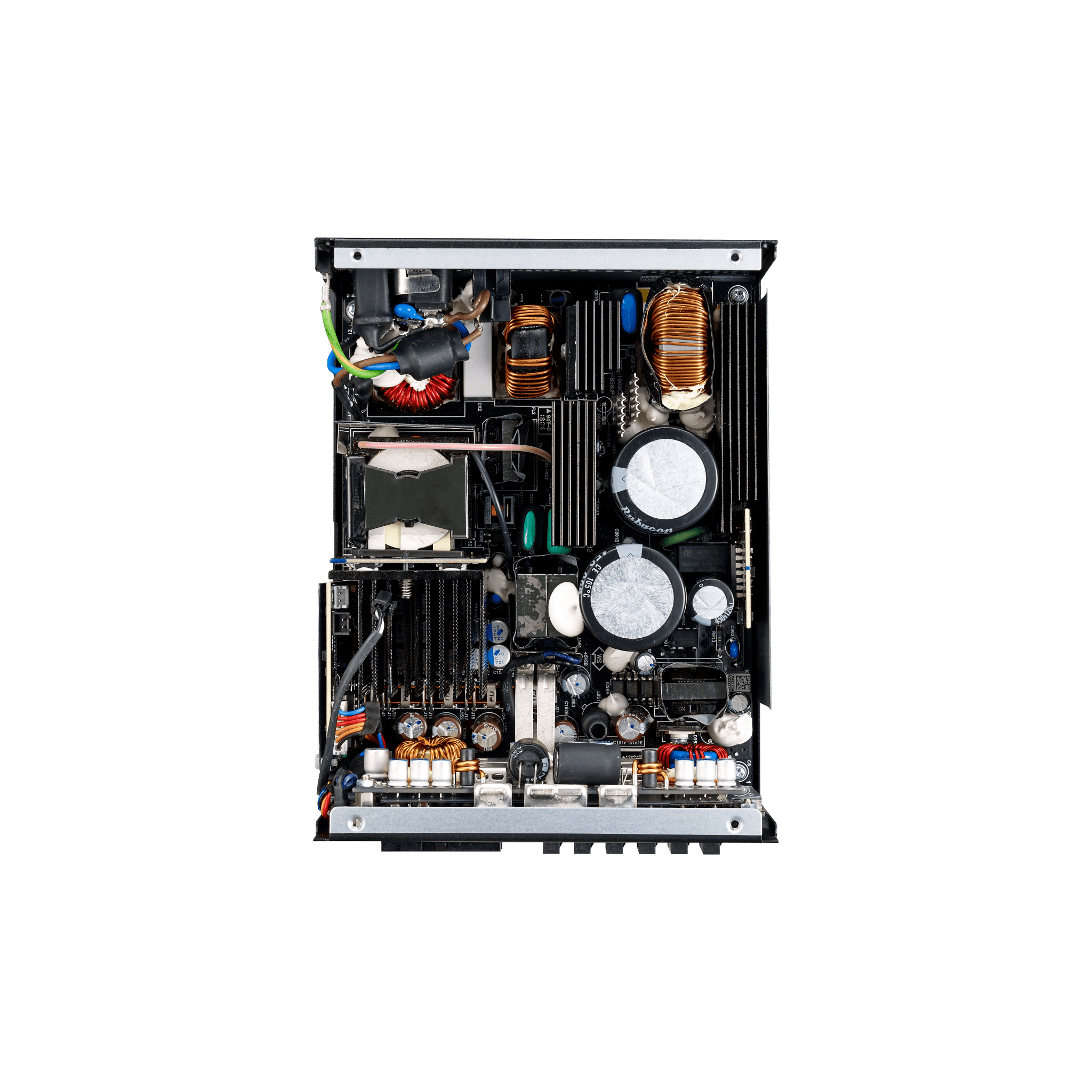

Performance Driven Topology : Full-bridge LLC offer reliable and stable voltage outputs for safer, more reliable performance and higher efficiency.

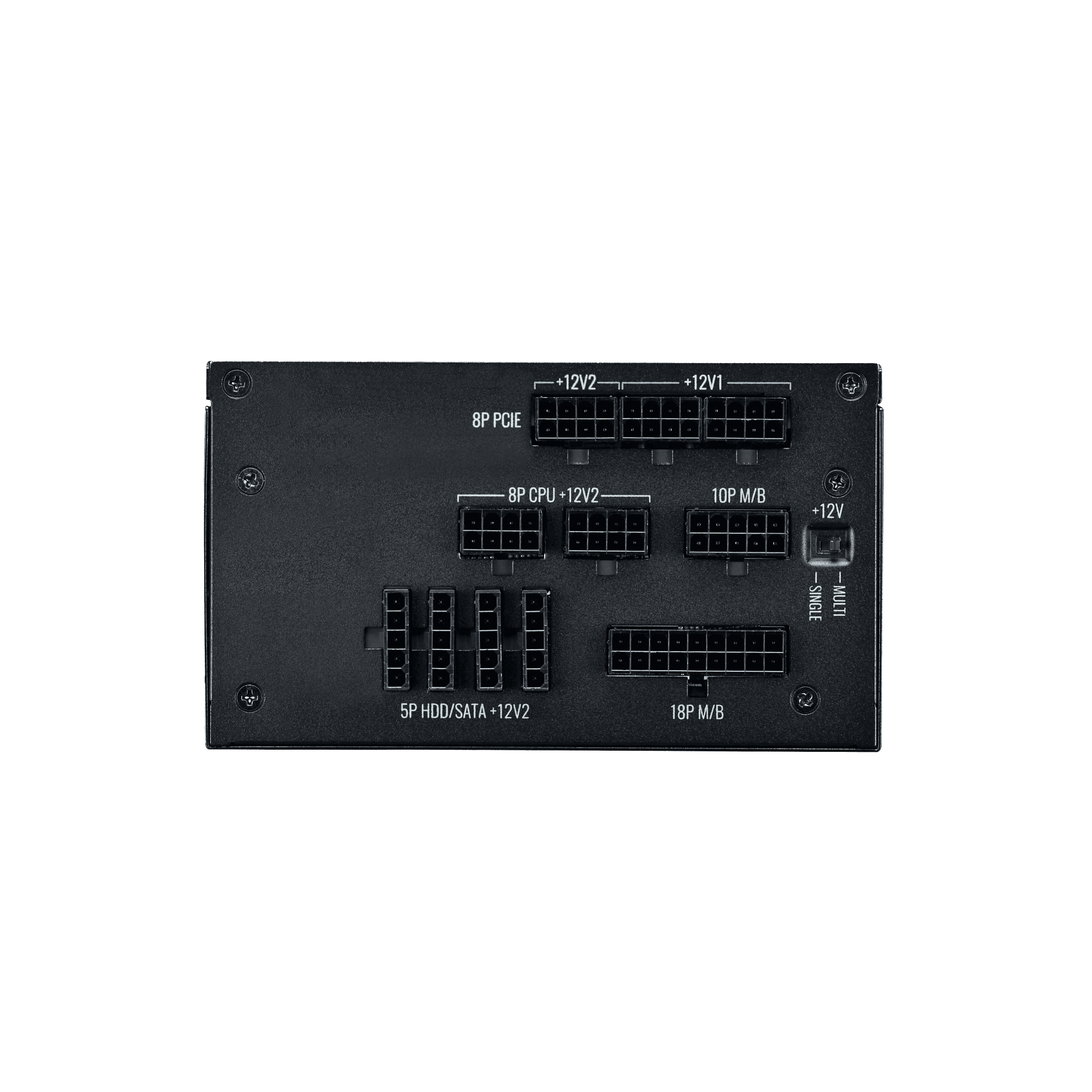

Single/Multi-Rail Switch : Built in rail switch allows users to change between multi and single rail power output settings.

16 AWG PCI-e Cables : Thicker 16 AWG PCI-e cables for higher currents, improving efficiency and safety.

10 Year Warranty : Standard limited manufacturing warranty from the date of purchase.

Specifications

Specifications:

Model
Brand	Cooler Master
Model	MPZ-8501-AFBAPV-US
Series	V850 Platinum

Details
Type	ATX12V
Maximum Power	850W

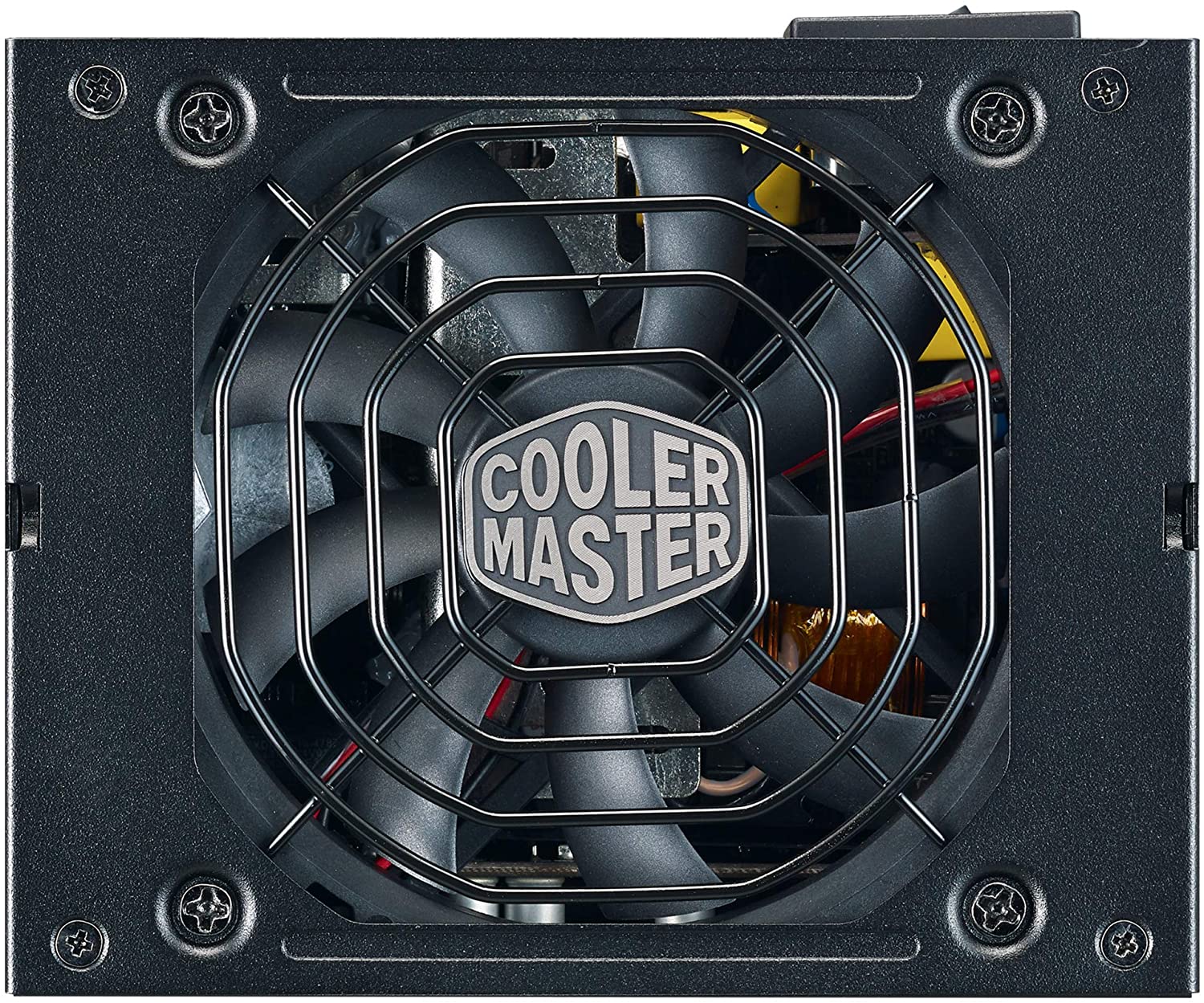

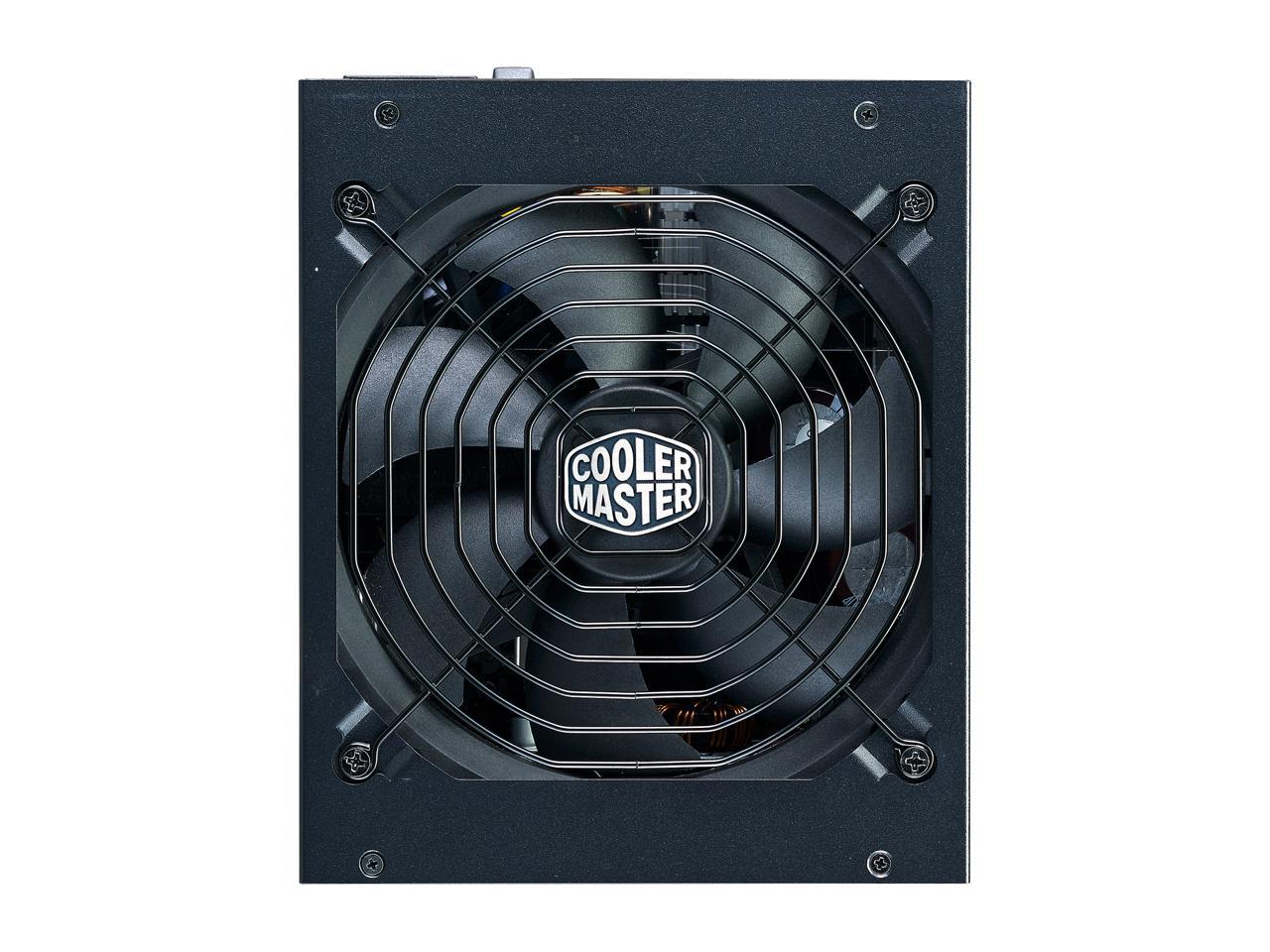

Fans	135mm fan
PFC	Active
Main Connector	24Pin
+12V Rails	Single / Multi-Rail Switch
PCI-Express Connector	6 x 6+2-Pin
SATA Power Connector	12
Modular	Full Modular
Efficiency	92% Typical Load
Energy-Efficient	80 PLUS PLATINUM Certified
Over Voltage Protection	Yes

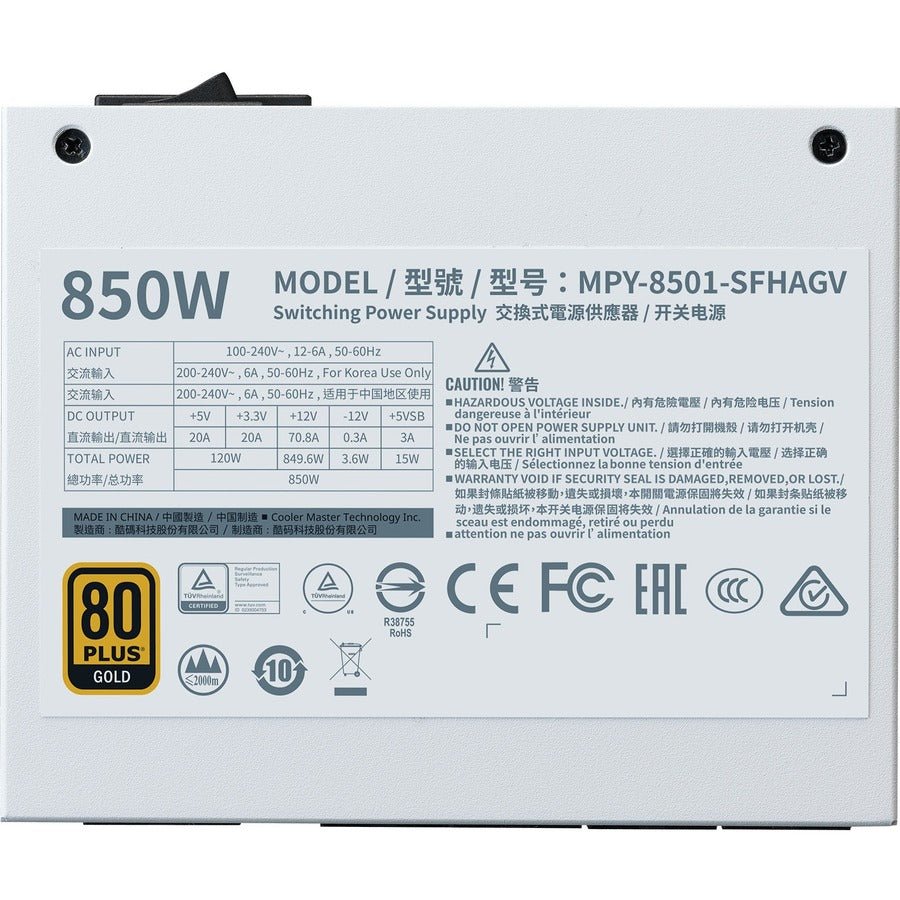

Input Voltage	100 - 240 V
Input Frequency Range	50/60 Hz
Input Current	12 - 6A

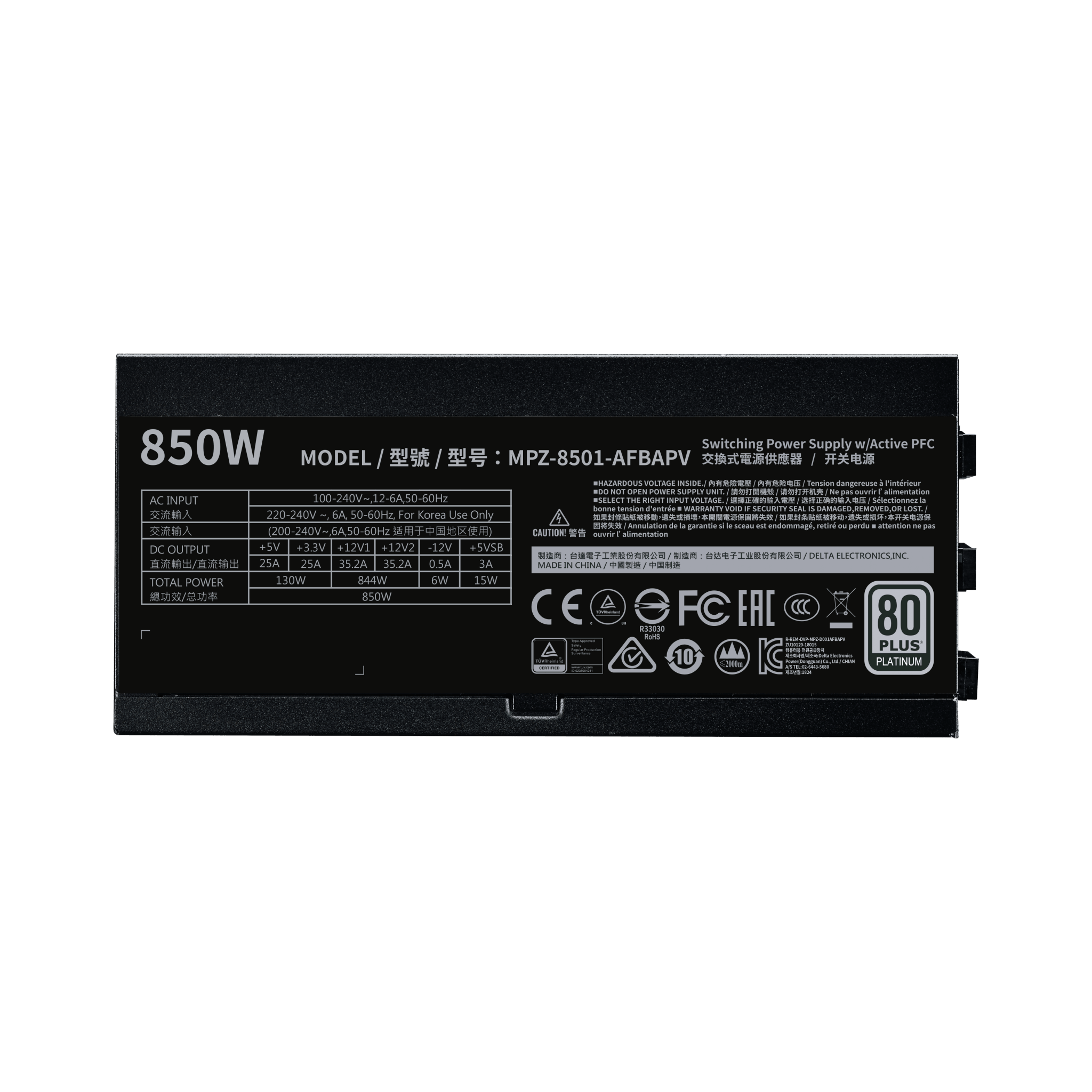

Output	+5V@25A, +3.3V@25A, +12V1@35.2A, +12V2@35.2A, -12V@0.5A, +5VSB@3A
MTBF	>100,000 Hours
Approvals	cTUVus, TUV, CE, CCC, FCC, EAC, RCM, BSMI, KC
Dimensions	3.39 x 5.91 x 7.92
Max PSU Length	200 mm
Weight	6.83 lbs.

Features

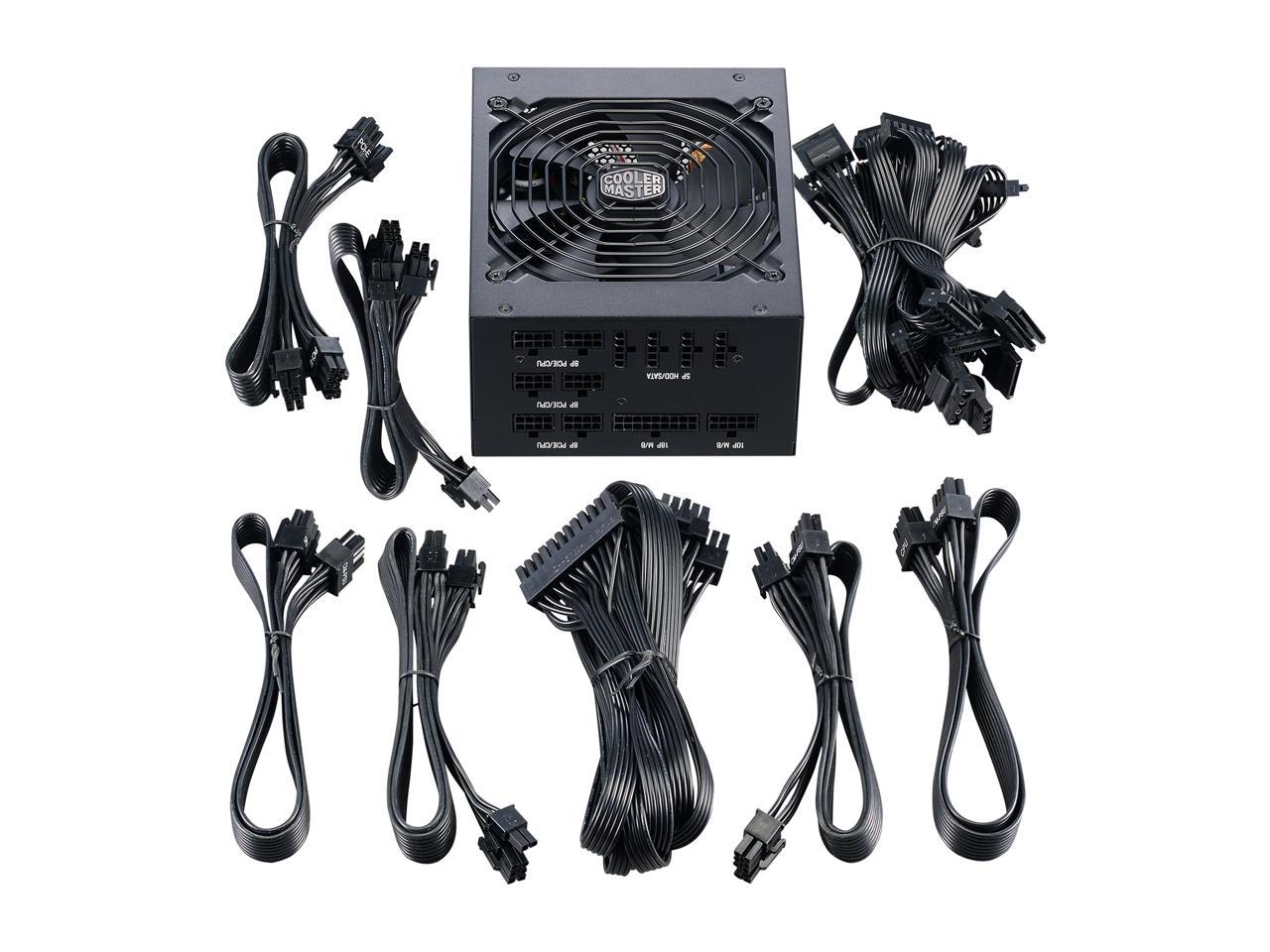

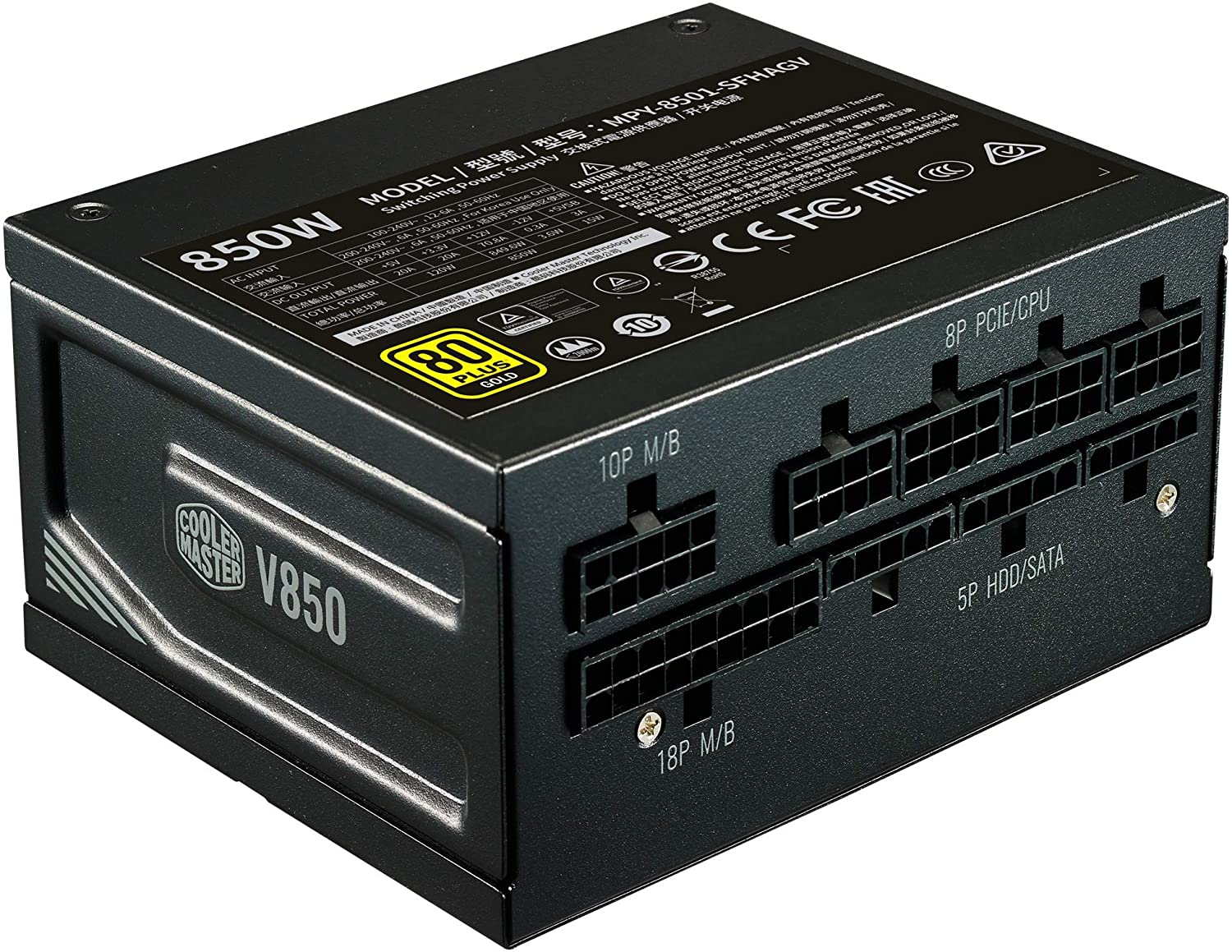

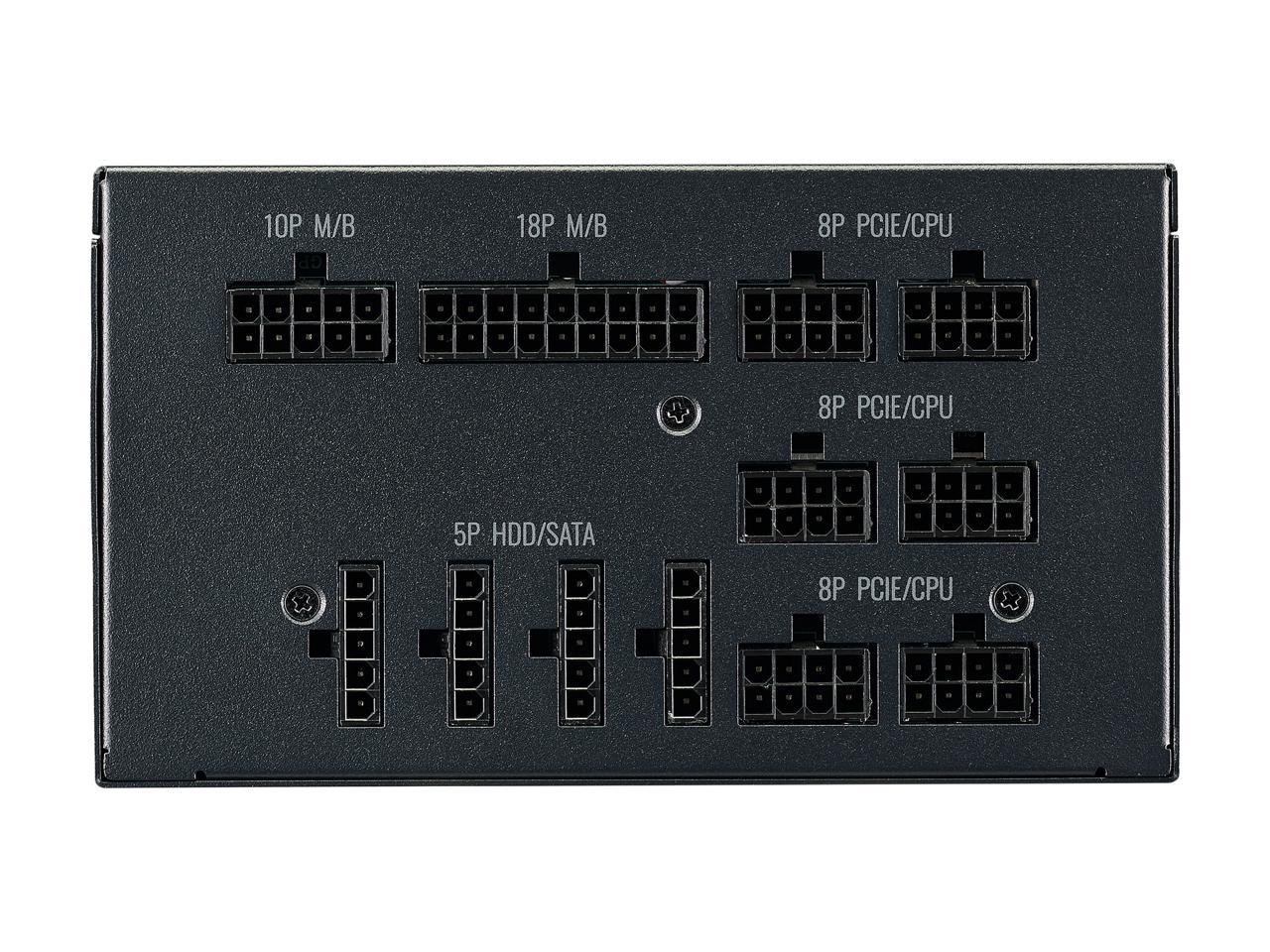

Connectors	1 x ATX 24 pin 1 x EPS 4+4 pin 1 x EPS 8 pin 6 x PCI-e 6+2 pin 12 x SATA 15 pin 4 x Peripheral 4 pin 1 x Floppy 4 pin
Features	80 PLUS Platinum Certification: Guarantees a typical efficiency of 92% under normal operating conditions. Thermal Regulation Mode (TRM) : Regulates temps, keeping a constant and quiet fan speed up to 60% of maximum load. Performance Driven Topology : Full-bridge LLC offer reliable and stable voltage outputs for safer, more reliable performance and higher efficiency. Single/Multi-Rail Switch : Built in rail switch allows users to change between multi and single rail power output settings. 16 AWG PCI-e Cables : Thicker 16 AWG PCI-e cables for higher currents, improving efficiency and safety. 10 Year Warranty : Standard limited manufacturing warranty from the date of purchase.
