Corsair Hydro X Series XR5 240 V2 Custom Cooling Radiator - BlackCX-9033001-WW

Brass

30mm

Corsair Hydro X Series XR5 240 V2 Custom Cooling Radiator- Black

Name: Corsair Hydro X Series XR5 240 V2 Custom Cooling Radiator- Black
Brand: Corsair
Price: 94.99 USD
Availability: InStock

CX-9033001-WW

The CORSAIR Hydro X Series XR5 V2 Custom Cooling Radiator delivers extreme cooling performance, featuring a 30mm thick radiator and 25-micron thin cooling fins to maximize heat dissipation surface area. A premium copper radiator core is optimized for use alongside copper CPU and GPU water blocks, enhancing thermal transfer efficiency. Intuitive features, such as Integrated Fan Screw Guides, built-in Screw Protection Plates, improved support for iCUE LINK fans, simplify installation and help prevent radiator damage. With standard G1/4" threads for universal compatibility and a surface area capable of handling cutting-edge high-performance hardware, the Hydro X Series XR5 V2 Custom Cooling Radiator is engineered to cool even the most ambitious custom liquid cooling loops and conquer heat.

Found a better price? Let us know and we'll try and match it!

Product variants

Estimate shipping

Country

Zip code

Quantity

5 in stock

$94.99 USD

Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

99% of orders ship same day M-F!
FREE Shipping Possible!
All-Star CS Team
30-Day Hassle Free Returns

Details

XR5 V2

CUSTOM COOLING RADIATOR

BUILT FOR AMBITION

EXTREME PERFORMANCE

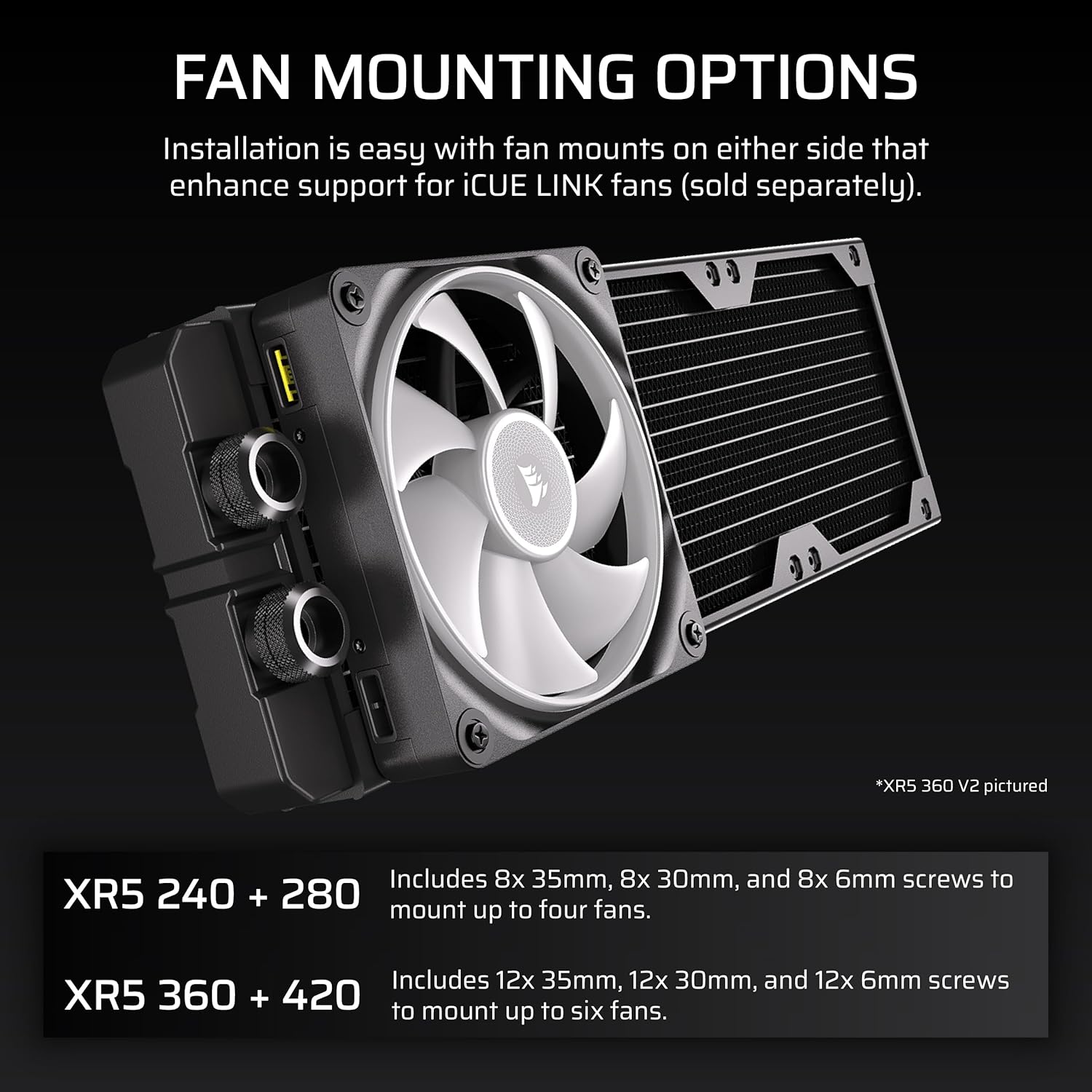

Fan mounts on each side of the radiator give the flexibility to build high-performance push-pull configurations or scale up airflow in more complex layouts. Whether you’re chasing lower temps or assembling a showcase loop, the XR V2 Series delivers the thermal headroom needed for serious custom cooling.

CPU WATER BLOCK

OPTIMIZED FOR iCUE LINK

Carefully positioned inlet and outlet ports enable full connectivity for iCUE LINK devices on both sides of the radiator. This allows for flexible fan configurations, including push-pull setups, while keeping cable routing clean and straightforward.

LEARN MORE ABOUT iCUE LINK

BUILT TO PERFORM

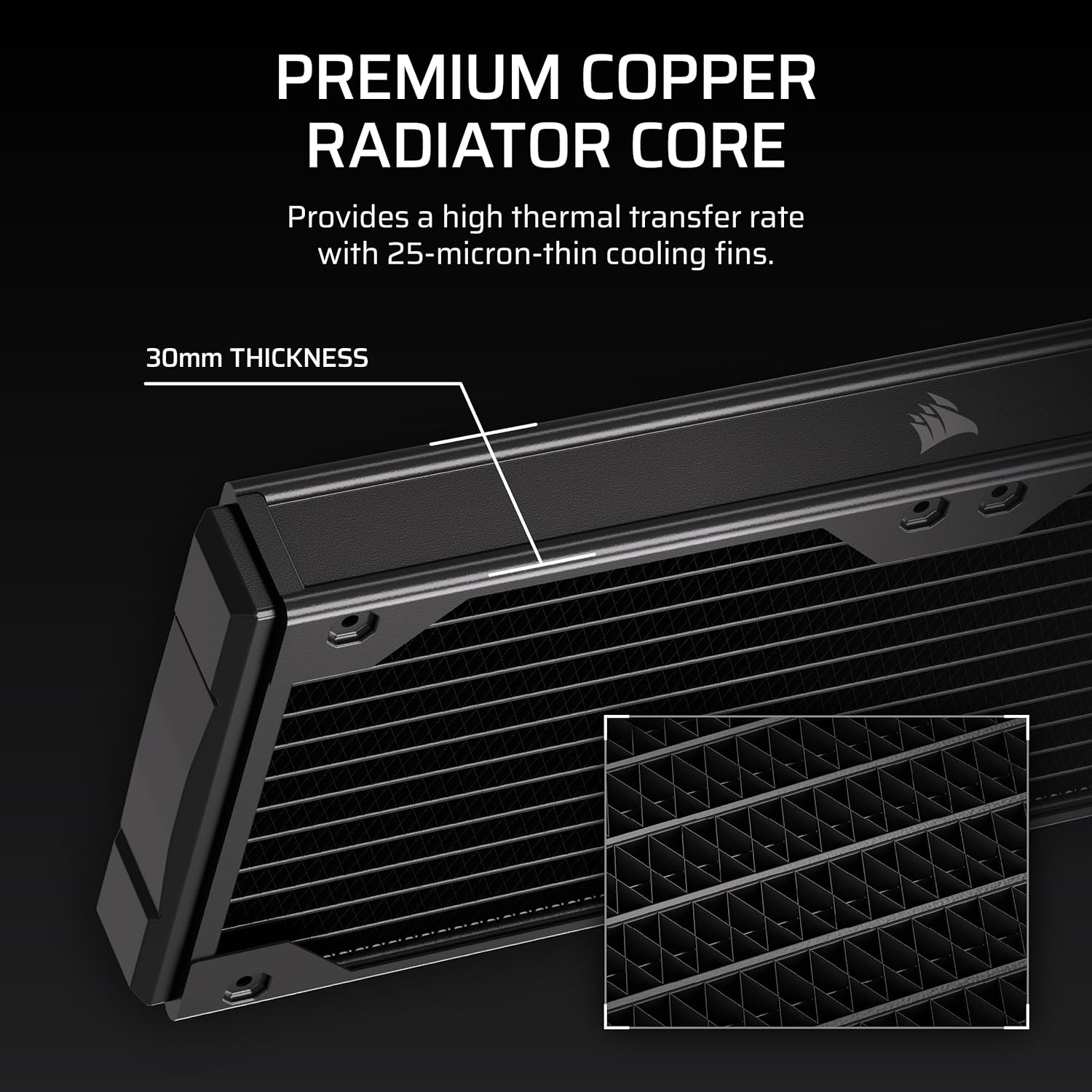

HIGH SURFACE AREA

A 30mm-thick radiator with 25-micron cooling fins provide a high thermal transfer rate optimized for CORSAIR high-performance copper water blocks. The dual fin arrangement improves heat dissipation efficiency, making this an ideal radiator for the most demanding setups where every degree counts.

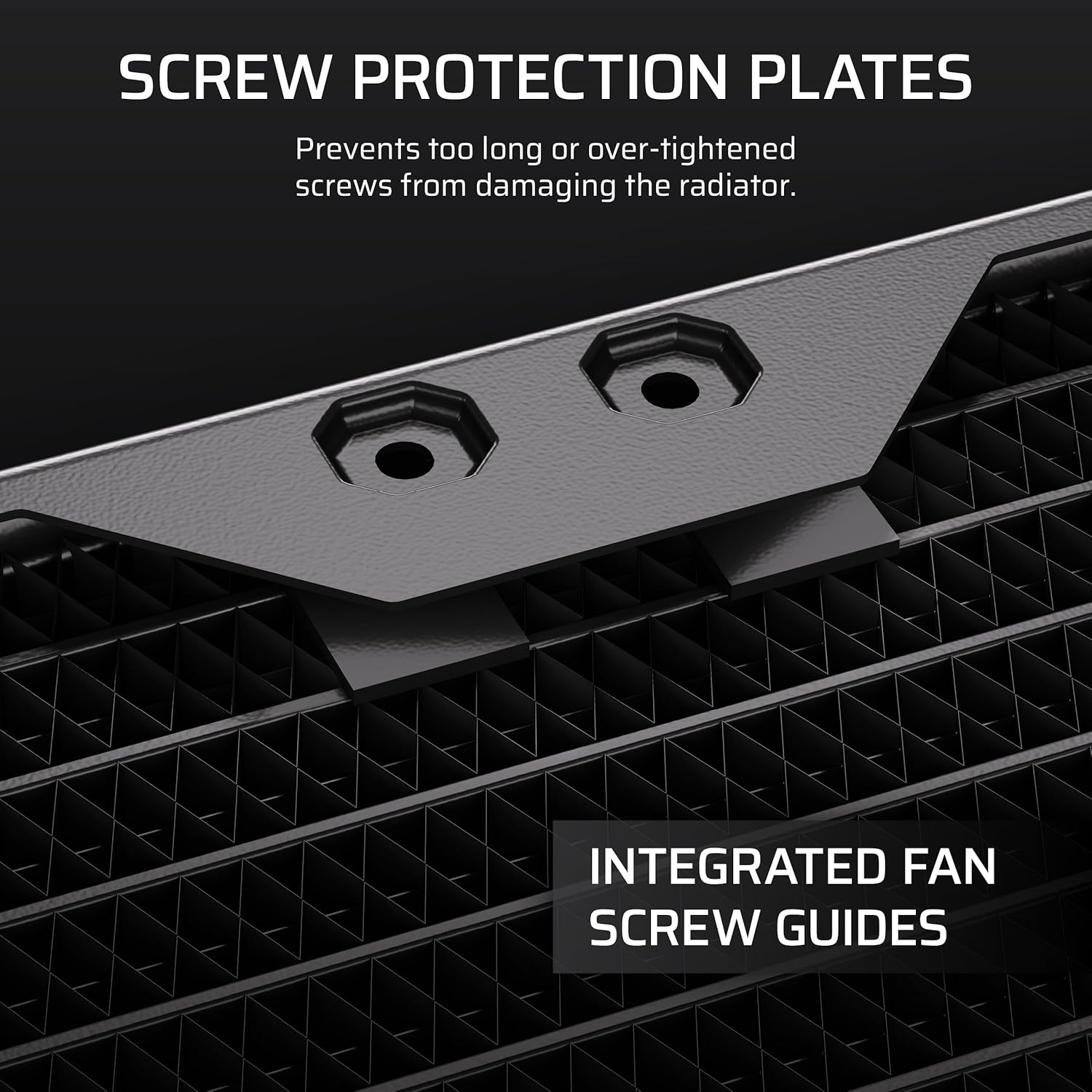

PROTECT AND GUIDE

EASY AND SAFE MOUNTING

Screw Protection Plates prevent long or over-tightened screws from damaging the radiator core, while integrated Fan Screw Guides ensure easy installation.

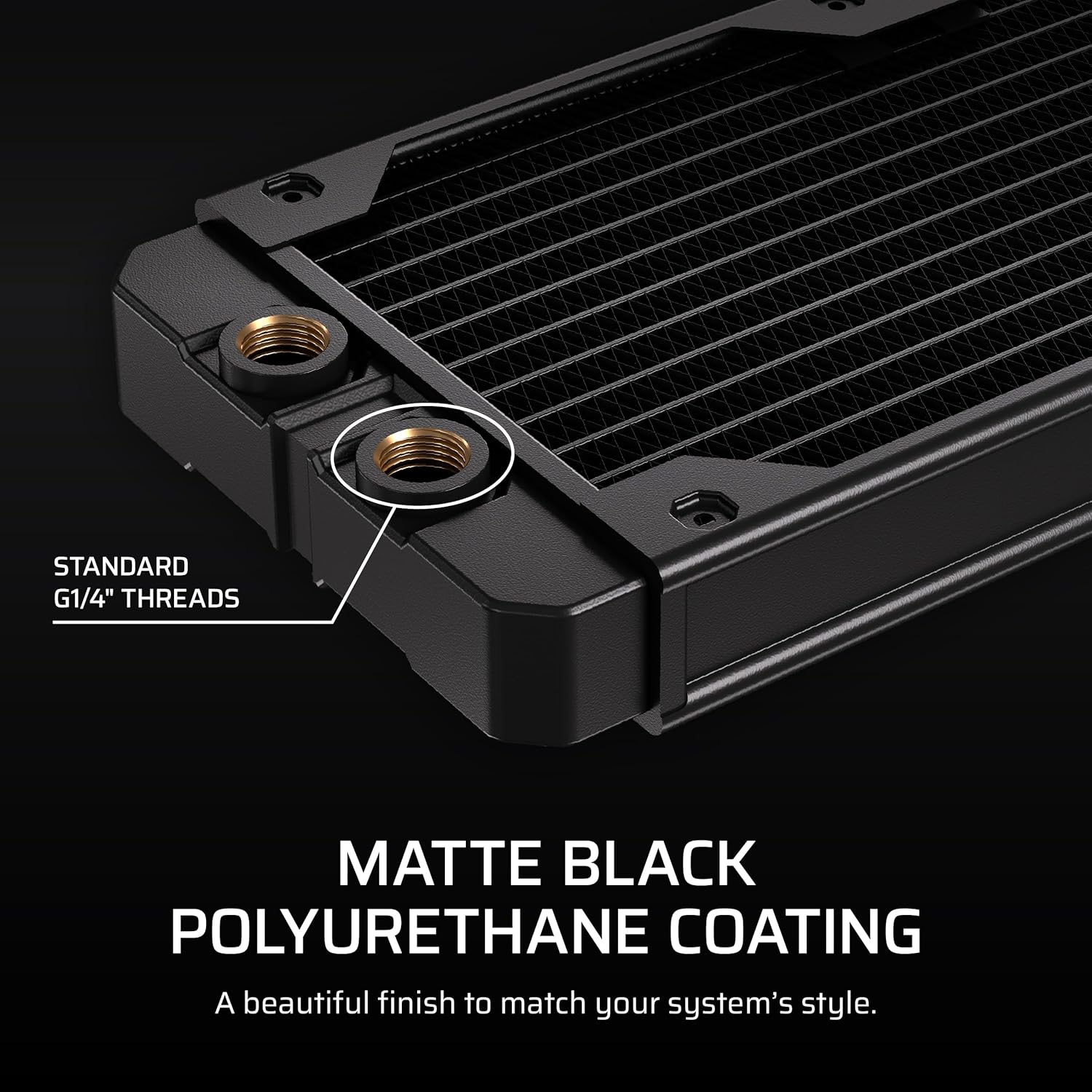

UNIVERSAL SUPPORT

STANDARD G1/4" THREADS

The inlet and outlet ports use standard G1/4" BSPP threading, ensuring broad compatibility with a wide range of fittings and custom cooling components. Whether using soft or hard tubing, straight or angled adapters, the ports integrate cleanly into any setup and support everything from high-flow loops to compact builds.

CUSTOM COOLING CONFIGURATOR

Take out all the guesswork and create the custom cooling system of your dreams.

With thousands of components and millions of hardware combinations, it’s easy to pick, tweak, and personalize your custom cooling system, with a detailed render of how your future loop will look.

THREE-YEAR WARRANTY

WORLD-CLASS SUPPORT

Our award-winning service means you can enjoy your gear worry-free.

Tech Specs

Material	Copper / Brass
Compatible Materials	Only mix with other copper / brass products
Screw Thread Size	M4xP0.7
Port Thread	G1/4" BSPP
Radiator Thickness	30mm
Max Operating Temperature	60°C coolant temperature
Compatible Coolants	CORSAIR XL or equivalent

Weight
Color	BLACK
Cooling Warranty	3 Year
Number of Fans	2
Radiator Dimensions	280mm x 120mm x 30mm
Model	Radiator

Features

Extreme custom cooling performance
Optimized support for iCUE LINK fans
30mm radiator thickness delivers easy installation
25-micron cooling fins for high thermal transfer
High-quality polyurethane coating

Specifications

Tech Specs

Material	Copper / Brass
Compatible Materials	Only mix with other copper / brass products
Screw Thread Size	M4xP0.7
Port Thread	G1/4" BSPP
Radiator Thickness	30mm
Max Operating Temperature	60°C coolant temperature
Compatible Coolants	CORSAIR XL or equivalent
