Quick Disconnect Coupling

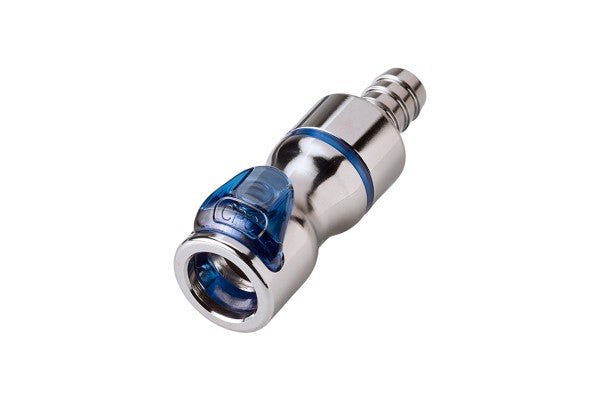

CPC Everis quick disconnect coupling LQ4 series for 3/8" hose - Blue

CPC-1022428

The LQ4 series CPC Everis shut-off quick connect coupling uses valve technology that reduces dripping and is also suitable for longer periods of use. Connecting and disconnecting the LQ4 series is therefore extremely reliable; valuable electronic parts are protected.

Found a better price? Let us know and we'll try and match it!
Estimate shipping
2 in stock
$63.71 USD
Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

The LQ4 series CPC Everis shut-off quick connect coupling uses valve technology that reduces dripping and is also suitable for longer periods of use. Connecting and disconnecting the LQ4 series is therefore extremely reliable; valuable electronic parts are protected.

The series, specially designed for refrigeration applications, offers a high flow capacity, thus enabling the highest performance in liquid cooling systems.

Specifications

Technical specifications:



  • Max. working pressure: vacuum up to 8.3 bar

  • Max Operating Temperature: -17°C to 115°C

  • Material housing: chrome-plated brass

  • Material thumb button: polysulfone

  • Material Internal spring: stainless steel

  • Material External spring: stainless steel

  • Material O-Ring: EPDM


Technical details













































Compatibility: Soft tubing (PVC, Silikon, Neoprene)
Color: blue
2. Side: Quick Release Female
Thread length: Not specified
Specification: Shape: straight
Rotatable: Yes - 360°
1. Side: Barbed fittings 10mm (3/8)
Manufacturer: CPC
Material: Nickel-plated brass
Dimensions (L x B x H): 63,37 x 20,3 x 24,77 mm
