Creative Labs X-Fi/Audigy Sound Card to Front Case Port Adapter Cable
in Audio Cables
in Creative
SB-FP-AC97

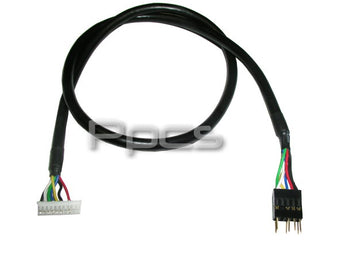

Another custom made cable from Performance-PCs.com! We solve the dilema on how to hook up your computer cases front ports to the extremely popular X-Fi and Audigy Sound cards. This cable will plug in directly to your sound card and provide 24 of cable to a male AC-97 header end that you can easily plug into your cases front audio ports. Now you dont have to buy the Creative Labs Platinum series to use your case's front audio ports using this slick new cable! This cable does not work with every X-Fi/Audigy card. Please be sure to check the pictures and make sure your card uses the connectors found on this cable. Specifications: CONNECTORS CABLE Green: Back Line-out Left / BL-OUT L Product Details:
PURPOSE
Headphone & Mic - Front Audio AC97
10-pin Creative connector female
2x5 header connector male AC97
Audio cable - 6 wires + 1 shielding ground
Length - 2 feet (610 mm)
WIRE ASSIGNMENTS
Yellow: Back Line-out Right / BL-OUT R
White: Front Line-out Left / L-OUT L
Blue: Front Line-out Right / L-OUT R
Red: Microphone Power / MIC PWR / Bias / REF
Black: Microphone / MIC
Black: Ground / GND
Thank you for your submission!
We will get back to you soon.
Estimate shipping
Shipping calculated at checkout.
Pickup currently unavailable at Performance-PCs.com
Details
Product Details:
Another custom made cable from Performance-PCs.com! We solve the dilema on how to hook up your computer cases front ports to the extremely popular X-Fi and Audigy Sound cards. This cable will plug in directly to your sound card and provide 24 of cable to a male AC-97 header end that you can easily plug into your cases front audio ports. Now you dont have to buy the Creative Labs Platinum series to use your case's front audio ports using this slick new cable!
This cable does not work with every X-Fi/Audigy card. Please be sure to check the pictures and make sure your card uses the connectors found on this cable.
Specifications:
PURPOSE Headphone & Mic - Front Audio AC97 CONNECTORS CABLE
Green: Back Line-out Left / BL-OUT L |
Specifications
Specifications: CONNECTORSÂ CABLE Green: Back Line-out Left / BL-OUT L Â
PURPOSE
Headphone & Mic - Front Audio AC97
10-pin Creative connector female
2x5 header connector male AC97
Audio cable - 6 wires + 1 shielding ground
Length - 2 feet (610 mm)
WIRE ASSIGNMENTS
Yellow: Back Line-out Right / BL-OUT R
White: Front Line-out Left / L-OUT L
Blue: Front Line-out Right / L-OUT R
Red: Microphone Power / MIC PWR / Bias / REF
Black: Microphone / MIC
Black: Ground / GND
