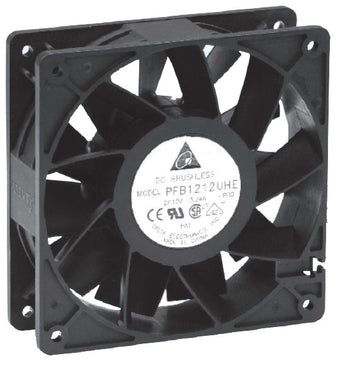

Delta 120x38mm PFB1212UHE Ultra Extreme 256 CFM Super High Speed Case Fan

The PFB series is one of Delta's newest DC Fan product lines introduced in 2006. This model, PFB1212UHE, has features that are similar to the FFB and TFB line but with a bit lower price. It outputs over 252 CFM at 66.5 dB. The biggest advantage we've noticed with this part is the noticeably more open airflow/exhaust area on the fan's surface. This is certainly due to two factors: 9 Directional Fins instead of 13, and a fan hub/motor circumference of 0.5 centimeter less. The dreaded dead zone is lessened further as a result. Another big factor with this part is power as you'll see below. We've made a simple comparison chart below outlining some additional differences between the PFB1212EHE, TFB1212GHE and FFB1212EHE

120x120x38mm, 252.85 CFM @ 5500 RPM, 66.5 dBA, 48 watts, 4.80 amps, Maximum Air Pressure 35.877 mm H²O, 12v DC, 3 or 3+4 pin Molex header connector(s).

Delta Part #	FFB1212EHE	TFB1212GHE	PFB1212EHE	PFB1212UHE
CFM	190.00	220.01	181.27	252.85
Noise dB(A)	59.0	65.0	59.0	66.5
RPM	4000	4600	4000	5500
Weight (grams)	370g	300g	380g	380g
# of Directional Blades	13	13	9	9
# of Fan Blades	9	9	11	11
Rated Current - Amps (startup)	3.00a	2.94a	1.92a	4.8a
Rated Current - Amps (sustained)	2.00a	2.45a	1.60a	1.60a
Rated Input Power - Watts	24.00w	29.40w	19.20w	48w
VDC Range	7.0 to 13.2v	9.0 to 13.2w	8.0 to 13.2w	8.0 to 13.2w
Maximum Air Pressure - mm H²0	17.78	26.44	19.078	35.877
