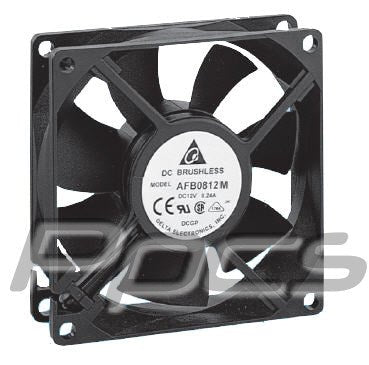

Delta 80x25mm AFB0812M Medium Speed

Delta's AFB line is one of the most widely found Delta fan part in the United States. Recently we discovered Delta has been refining the AFB line with a better blade design, a semi-directional vane addition, as well as improved airflow and noise ratings. We've picked up on these improvements and have made available the M (medium speed) models. Apparently the changes allowed Delta to ramp up the airflow with this design.

• Bearing Type: Ball Bearing


• Material: Impeller & Frame : Plastic (UL 94V-0)


• Lead Wires : UL 1007 AWG #24 O Equivalent


• Red Wire Positive (+)


• Black Wire Negative (-)


• Weight : 80g (2.82 oz)


• 80x80x25mm


• 3-pin Molex header connector


• 80x80x25mm


• 3-pin Molex header connector

Delta Part # AFB0812M
CFM: 31.43
Noise dB(A): 28.0
RPM: 2700
Weight (grams): 80g
# of Directional Blades: 7
# of Fan Blades: 7
Rated Current - Amps (sustained): 0.12a
Rated Input Power - Watts: 1.44w
VDC Range: 7.0 to 13.8v
Maximum Air Pressure - mm H²0: 3.28
