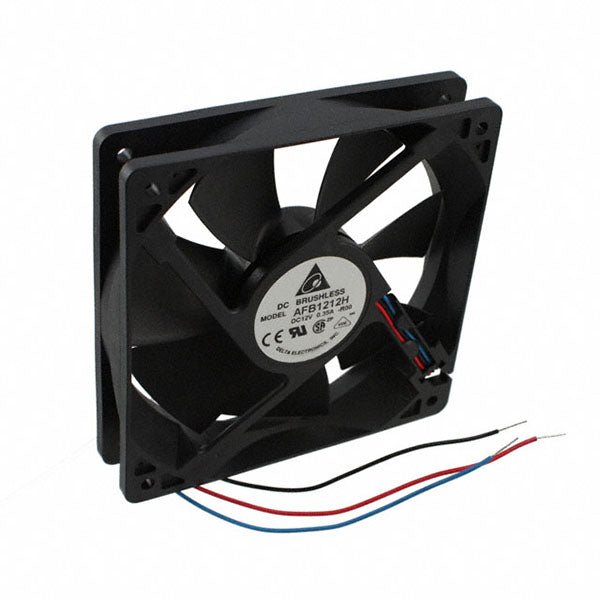

Delta AFB1212H-R00 120x25mm Performance Case Fan - Sleeved

Name: Delta AFB1212H-R00 120x25mm Performance Case Fan - Sleeved
Brand: Delta Electronics
SKU: AFB1212H-R00
Price: 16.46 USD
Availability: InStock

AFB1212H-R00

Delta AFB1212H-R00 120x25mm Performance Case Fan. Failure sensor, 82.67CFM, 38.5dBA, 2500RPM, 0.35AMP, 3 wire.

Fan cable is fully sleeved in nylon Techflex sleeving and Premium Heatshrink, colors of your choice.

Found a better price? Let us know and we'll try and match it!

Product variants

Estimate shipping

Country

Zip code

Quantity

11 in stock, ready to ship

~~$21.95~~ $16.46 Sale

Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

99% of orders ship same day M-F!
FREE Shipping Possible!
All-Star CS Team
30-Day Hassle Free Returns

Details

Delta AFB1212H-R00 120x25mm Performance Case Fan. Failure sensor, 82.67CFM, 38.5dBA, 2500RPM, 0.35AMP, 3 wire.

Fan cable is fully sleeved in nylon Techflex sleeving and Premium Heatshrink, colors of your choice.

Features

Bearing Type: Ball Bearings

Material: Impeller Plastic (UL 94V-0)

Lead Wires: UL 1007 AWG #24 Or Equivalent / Red Wire Positive (+) / Black Wire Negative (-)

Weight : 198g (6.98 oz) Ball Bearings & Frame

Specifications

Fan Type	Tubeaxial
Size / Dimension	Square - 120mm L x 120mm H x 25.4mm W
Voltage - Rated	12VDC
Power (Watts)	2.76W
Features	Locked Rotor Sensor
RPM	2500 RPM
Noise	38.5 dB(A)
Static Pressure	0.246 in H2O (61.3 Pa)
Air Flow	82.7 CFM (2.34m³/min)
Termination	3 Wire Leads
Bearing Type	Ball
Operating Temperature	-
Weight	0.436 lb (197.77g)
Current Rating	0.230A
Voltage Range	7 ~ 13.8VDC
Life Expectancy	70000 hrs @ 40°C
Material - Frame	Plastic
Material - Blade	Plastic
