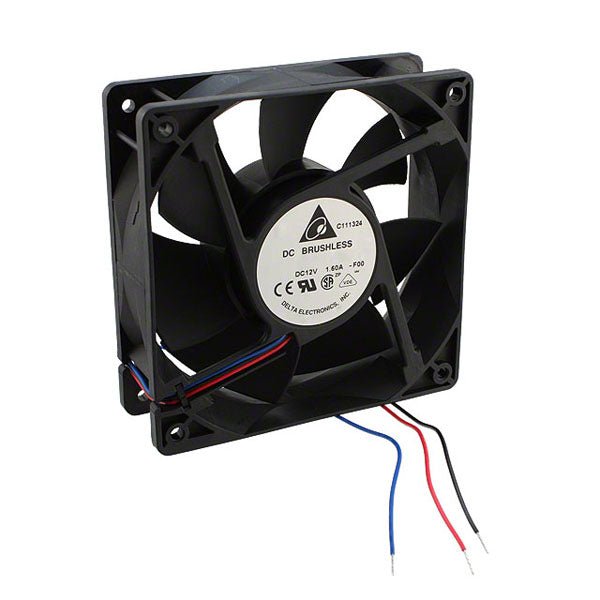

Delta AFB1212SHE-F00 120mm Case Fan

The Delta 120x38mm High-Speed fan AFB1212SHE is an outrageously high performance fan that moves over 151 cubic feet of air every minute. It is loud with 53dB-A but it also has an amazing near 3:1 airflow to noise ratio. The AFB parts can be undervolted slightly more and it lacks the high pitched whine that accompanies directional fin fans.

• Compatibility: Case


• Fan Size: 120mm


• Bearing Type: 2 Ball


• RPM: 3700 RPM


• Air Flow: 151.85 CFM


• Noise Level: 53 dBA


• Power Connector:



  • 3 bare wires


  • 4+3pin (TAC output)



  • Rated Voltage : 12V



  • Operating Voltage Range : 4 ~ 13.2V



  • Input Current : 1.05 Amp



  • Input Power : 12.6 Watt



  • Maximum Air Pressure : 14.50 mm H²O
