Dimensions |
120 x 120 x 25 mm
|
|---|
Frame |
PBT+30%GF UL94V-0 (Black)
|
|---|
Impeller |
PBT+15%GF UL94V-0 (Black)
|
|---|
Weight |
154 grams
|
|---|
Operating Temparature |
â?? 10 °C ~ + 65 °C (65 %RH)
|
|---|
Storage Temperature |
â?? 30 °C ~ + 70 °C (65 %RH)
|
|---|
Notes |
(1) Available in Sleeve Bearing, Dual Ball Bearing
(2) MTBF (Operating temp. from 25°C to 40°C): Sleeve Bearing: 35,000 hours, Dual Ball Bearing: 70,000 hours
|
|---|
*All product specifications and product images are subject to change without notice.
Variations
Model No. |
DF1212025_H |
DF1212025_M |
DF1212025_L |
DF1212025_E |
|---|
Voltage (V) |
12 |
12 |
12 |
12 |
|---|
Speed (RPM) |
2600 |
2200 |
1800 |
1500 |
|---|
Bearing |
SB |
SB |
SB |
SB |
|---|
Current (Amp) |
0.65 |
0.45 |
0.27 |
0.25 |
|---|
Watts (W) |
7.80 |
5.40 |
3.24 |
3.00 |
|---|
Air Flow (CFM) |
96.00 |
80.60 |
64.50 |
53.30 |
|---|
Static Pressure (mm/H2O) |
4.80 |
3.40 |
2.40 |
1.50 |
|---|
Noise (dBA) |
42.60 |
36.50 |
32.80 |
28.50 |
|---|

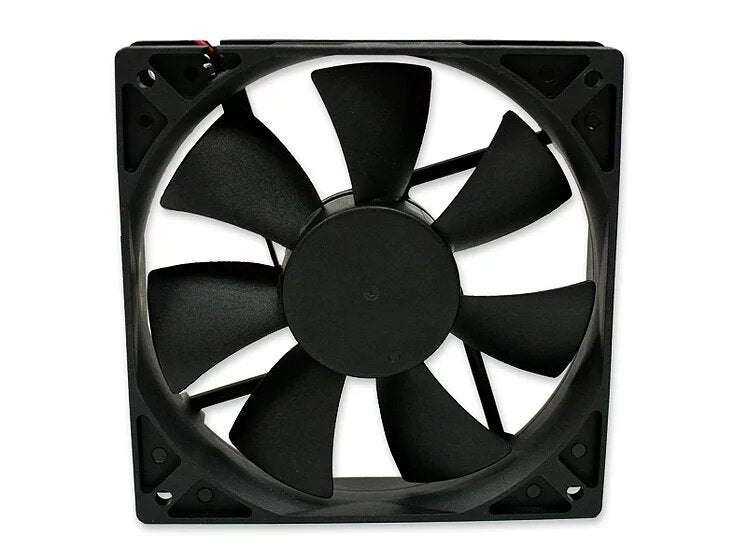

Model Number System DF1212025BH-3G
Voltage
|
DC |
Voltage Range |
12V |
Type |
Fan |
Size L*W*H (mm) |
120*120*25 |
Bearing System |
Dual Ball |
Speed |
High |
Connector |
3 pin with 3 wires connector |
RoHS |
Compliance |
