Aluminum

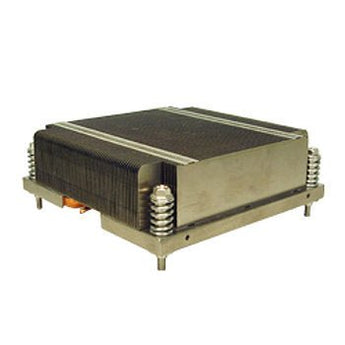

Dynatron G118 ROHS 1U Passive Heatsink with Vapor Chamber Base for Intel Nehalem Process
G118-D
Dynatron G118 ROHS 1U Passive Heatsink with Product Details:
vapor chamber base for Intel Nehalem Processors.
CPU Socket
1366
CPU Support
Intel® Xeon� 5500
Series Nehalem EP Processor W5580, X5570, X5560, X5550, E5540,
E5530, E5520, E5506, E5504, E5502, L5520, L5506, L5508, L5518
Solution
1U
Overall
Dimension
90.0 x
89.5 x 27.0Â mm
Weight
225 g
Material
Vapor
Chamber Base with Aluminum Stacked Fin
Fan Dimension
-
Speed
-
Bearing
-
Rated Voltage
-
Power
-
Air Flow
-
Noise Level
-
Air Pressure
-
Lead Wire Pin Out
-
Note
1.Vapor Chamber Technology passive heatsink for 1U Server
application
2. G118 is designed for Intel Nehalem server motherboard.
3. Backplate is not included
4. RoHS Compliance
Thank you for your submission!
We will get back to you soon.
Estimate shipping
5 in stock
Shipping calculated at checkout.
Pickup available at Performance-PCs.com
Usually ready in 1 hour
Details
Product Details:
Dynatron G118 ROHS 1U Passive Heatsink with vapor chamber base for Intel Nehalem Processors.
| CPU Socket | 1366 |
 |
|
| CPU Support | Intel ® Xeon ? 5500 Series Nehalem EP Processor W5580, X5570, X5560, X5550, E5540, E5530, E5520, E5506, E5504, E5502, L5520, L5506, L5508, L5518 |
|
|
|
| Solution | 1U |
|
|
|
| Overall Dimension | 90.0 x 89.5 x 27.0 mm |
|
|
|
| Weight | 225 g |
|
|
|
| Material | Vapor Chamber Base with Aluminum Stacked Fin |
|
|
|
| Fan Dimension | - |
|
|
|
| Speed | - |
|
|
|
| Bearing | - |
|
|
|
| Rated Voltage | - |
|
|
|
| Power | - |
|
|
|
| Air Flow | - |
|
|
|
| Noise Level | - |
|
|
|
| Air Pressure | - |
|
|
|
| Lead Wire Pin Out | - |
|
|
|
| Note |
1.Vapor Chamber Technology passive heatsink for 1U Server
application 2. G118 is designed for Intel Nehalem server motherboard. 3. Backplate is not included 4. RoHS Compliance |
