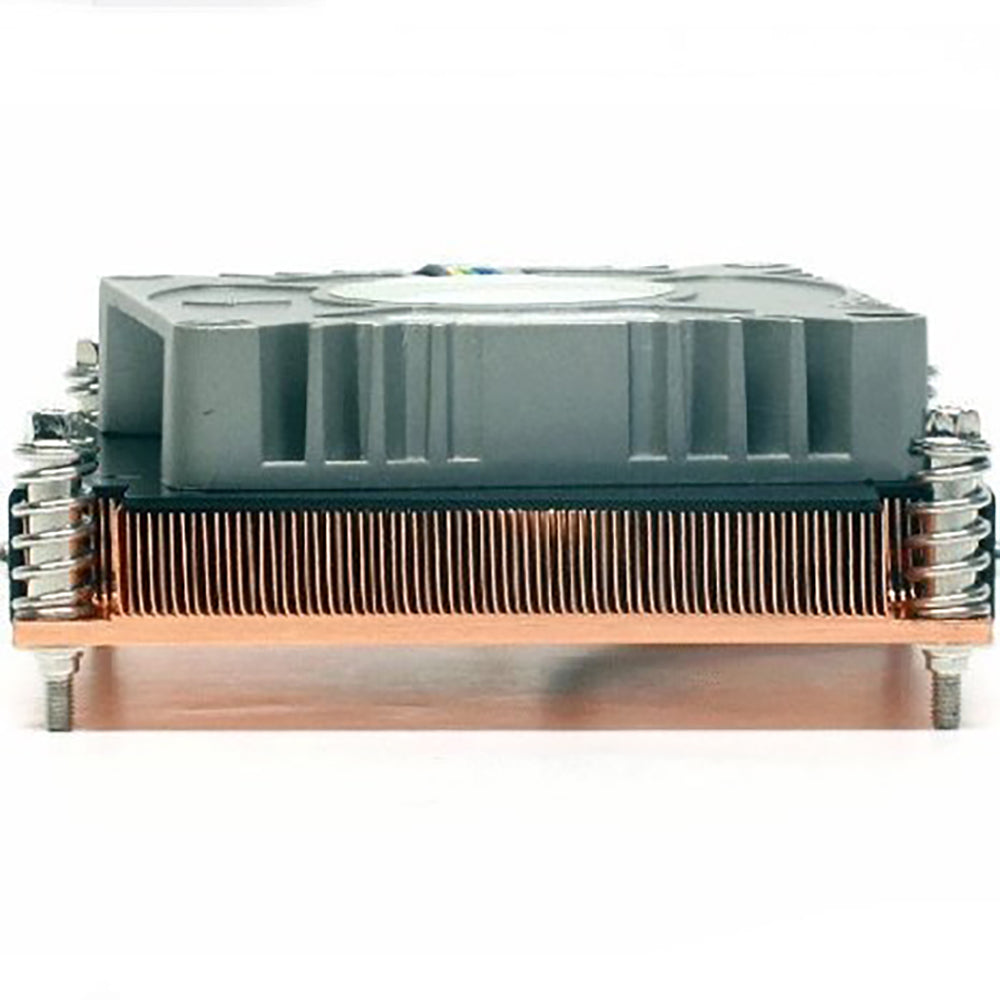

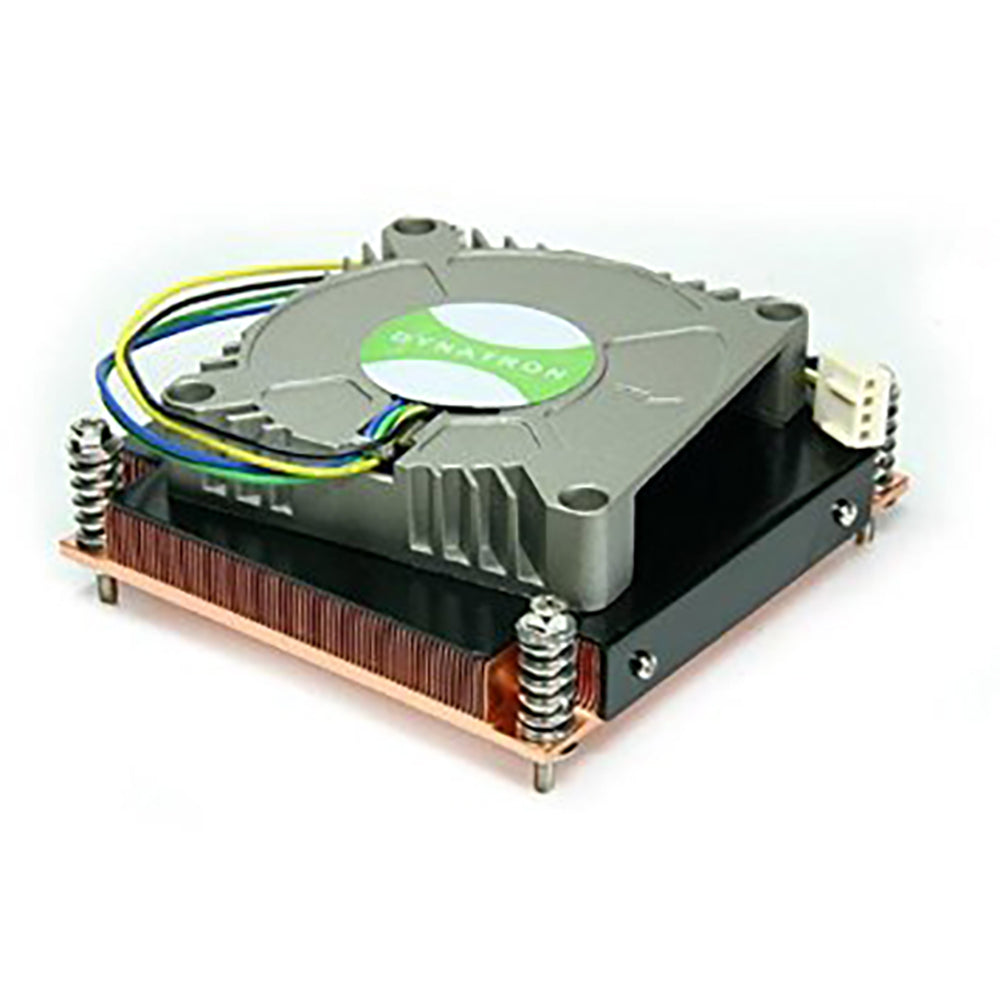

Dynatron G199 70mm 2 Ball CPU Cooler
Specifications
CPU Socket
1366
CPU Support
Intel® Xeon? 5600 series Westmere Processor X5680, X5677, X5670, X5667, X5660, X5650, E5645, E5640, E5630, E5620, L5640, L5638, L5630, L5618, L5609 & 5500 Series Nehalem EP Processor W5580, X5570, X5560, X5550, E5540, E5530, E5520, E5506, E5504, E5502, L5520, L5506, L5518, L5508
Solution
1U
Overall Dimension
90.0 x 90.0 x 27.7 mm
Weight
475 g
Material
Copper Heatsink
Fan Dimension
70 x 70 x 15 mm
Speed
At Duty Cycle 0%: 1100 RPM
At Duty Cycle 20%: 1100 RPM
At Duty Cycle 100%: 6000 RPM
Bearing
2 Ball Bearing
Rated Voltage
12 V
Power
At Duty Cycle 0%: 0.6 W
At Duty Cycle 20%: 0.6W
At Duty Cycle 100%: 8.76 W
Air Flow
At Duty Cycle 0%: 2.45 CFM
At Duty Cycle 20%: 2.45 CFM
At Duty Cycle 100%: 14.32 CFM
Noise Level
At Duty Cycle 0%: 19.1 dBA
At Duty Cycle 20%: 19.1 dBA
At Duty Cycle 100%: 53.8 dBA
Air Pressure
-
Lead Wire Pin Out
Pin1-Black (-)
Pin2-Yellow (+)
Pin3-Green (Tachometer/Signal output)
Pin4-Blue (PWM)
Note
1. Backplate is not included
2. RoHS Compliance
