Copper/Aluminum

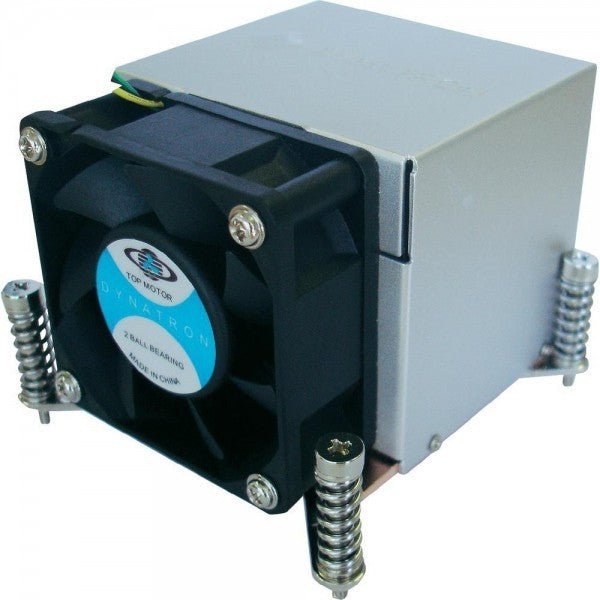

Dynatron G650 2U Server PWM CPU Cooler - Intel® Nehalem LGA 1366
G650-D
Thank you for your submission!
We will get back to you soon.
Estimate shipping
5 in stock
Shipping calculated at checkout.
Pickup available at Performance-PCs.com
Usually ready in 1 hour
Details
The G650 2U Server PWM CPU Cooler is designed for Intel ® Xeonâ?¢ 5500 Series Nehalem EP Processors. The PWM Fan connector and the standard server board bolt-thru mounting mechanism makes this a great choice for your 5500 Series Xeon ® board. Pre-applied thermal grease make this cooler easy to install as well.
Features
Specifications
CPU Socket
1366
CPU Support
Intel® Xeon® 5600 series Westmere Processor E5645, E5640, E5630, E5620, L5640, L5638, L5630, L5618, L5609 & 5500 Series Nehalem EP Processor E5540, E5530, E5520, E5506, E5504, E5502, L5520, L5506, L5518, L5508
Solution
2U&Up
Overall Dimension
90.0 x 90.0 x 65.0 mm
Weight
480 g
Material
Aluminum Fin Heatsink with Copper Base
Fan Dimension
60 x 60 x 25 mm
Speed
At Duty Cycle 0~20%: 1400 RPM
At Duty Cycle 50%: 3500 RPM
At Duty Cycle 100%: 7000 RPM
Bearing
2 Ball Bearing
Rated Voltage
12 V
Power
At Duty Cycle 0~20%: 0.6 W
At Duty Cycle 50%: 1.20 W
At Duty Cycle 100%: 5.4 W
Air Flow
At Duty Cycle 0~20%: 7.405 CFM
At Duty Cycle 50%: 18.517 CFM
At Duty Cycle 100%: 38.283 CFM
Noise Level
At Duty Cycle 0~20%: 2.01 dBA
At Duty Cycle 50%: 35.9 dBA
At Duty Cycle 100%: 48.1 dBA
Air Pressure
-
Lead Wire Pin Out
Pin1-Black (-)
Pin2-Yellow (+)
Pin3-Green (Techometer/Signal output)
Pin4-Blue (PWM)
Note
1. Thermal Grease Pre-Printed with TIG830SP
2. Backplate is not included
3. RoHS Compliance
