Copper/Aluminum

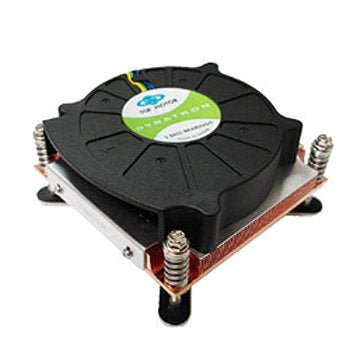

Dynatron K199 ROHS 1U Active Heatsink for Intel Socket 1156
K199
Dynatron K199 ROHS 1U Active Heatsink for Intel Product Details:
1156 Processors.
CPU Socket
1156
CPU Support
Intel® Core� i5
I5-750; Xeon® Processor 3400 Series; Core� i7 Processors,
I7-870 & I7-860
Solution
1U Server
Overall Dimension
85.0 x 81.5 x 28.5mm
Weight
355g ± 5g
Material
Copper Heatsink
Fan Dimension
80 x 80 x 15Â mm
Speed
At Duty Cycle
0~20%: 1000 RPM
At Duty Cycle 50%: 2500 RPM
At Duty Cycle 100%: 5000Â RPM
Bearing
2 Ball Bearing
Rated Voltage
12
Power
At Duty Cycle
0~20%: 0.60 W
At Duty Cycle 50%: 1.44 W
At Duty Cycle 100%: 9.60Â W
Air Flow
At Duty Cycle
0~20%: 5.355 CFM
At Duty Cycle 50%: 7.654CFM
At Duty Cycle 100%: 14.719Â CFM
Noise Level
At Duty Cycle
0~20%: 20.71 dBA
At Duty Cycle 50%: 37.5 dBA
At Duty Cycle 100%: 51.7 dBA
Air Pressure
At Duty Cycle
0~20%: 2.083 mm-H2O
At Duty Cycle 50%: 9.780 mm-H2O
At Duty Cycle 100%: 36.168 mm-H2O
Lead Wire Pin
Out
Pin1-Black (-)
Pin2-Yellow (+)
Pin3-Green (Techometer/Signal output)
Pin4-Blue (PWM)
Thermal
Resistance & Noise Level VS. Cooling Fan Speed
Note
1. Thermal
Grease Pre-Printed with GE-Toshiba TIG830SP
2. RoHS Compliance
Thank you for your submission!
We will get back to you soon.
Estimate shipping
6 in stock, ready to ship
Shipping calculated at checkout.
Pickup available at Performance-PCs.com
Usually ready in 1 hour
Details
Product Details:
Dynatron K199 ROHS 1U Active Heatsink for Intel 1156 Processors.
| CPU Socket | 1156 |
 |
|
| CPU Support | Intel ® Core ? i5 I5-750; Xeon ® Processor 3400 Series; Core ? i7 Processors, I7-870 & I7-860 |
|
|
|
| Solution | 1U Server |
|
|
|
| Overall Dimension | 85.0 x 81.5 x 28.5mm |
|
|
|
| Weight | 355g ± 5g |
|
|
|
| Material | Copper Heatsink |
|
|
|
| Fan Dimension | 80 x 80 x 15 mm |
|
|
|
| Speed | At Duty Cycle
0~20%: 1000 RPM At Duty Cycle 50%: 2500 RPM At Duty Cycle 100%: 5000 RPM |
|
|
|
| Bearing | 2 Ball Bearing |
|
|
|
| Rated Voltage | 12 |
|
|
|
| Power | At Duty Cycle
0~20%: 0.60 W At Duty Cycle 50%: 1.44 W At Duty Cycle 100%: 9.60 W |
|
|
|
| Air Flow | At Duty Cycle
0~20%: 5.355 CFM At Duty Cycle 50%: 7.654CFM At Duty Cycle 100%: 14.719 CFM |
|
|
|
| Noise Level | At Duty Cycle
0~20%: 20.71 dBA At Duty Cycle 50%: 37.5 dBA At Duty Cycle 100%: 51.7 dBA |
|
|
|
| Air Pressure | At Duty Cycle
0~20%: 2.083 mm-H2O At Duty Cycle 50%: 9.780 mm-H2O At Duty Cycle 100%: 36.168 mm-H2O |
|
|
|
| Lead Wire Pin Out | Pin1-Black (-) Pin2-Yellow (+) Pin3-Green (Techometer/Signal output) Pin4-Blue (PWM) |
|
|
|
| Thermal Resistance & Noise Level VS. Cooling Fan Speed |
 |
|
|
|
| Note |
1. Thermal
Grease Pre-Printed with GE-Toshiba TIG830SP 2. RoHS Compliance |
