EK-CoolStream CE 140 (Single)

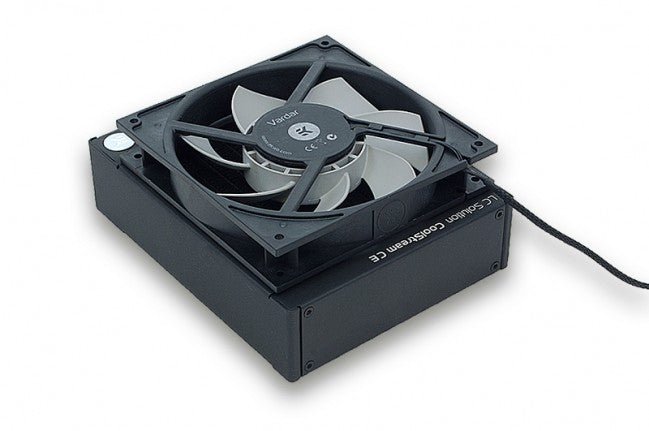

EK-CoolStream CE is a high-performance computer liquid cooling radiator which combines EK's unique CSQ design with latest radiator core engine. Built for EK-Vardar 140mm high static pressure fans, these radiators are optimized for maximum heat dissipation across entire fan operational range thus delivering exceptional performance at both low- and high airflow operation.

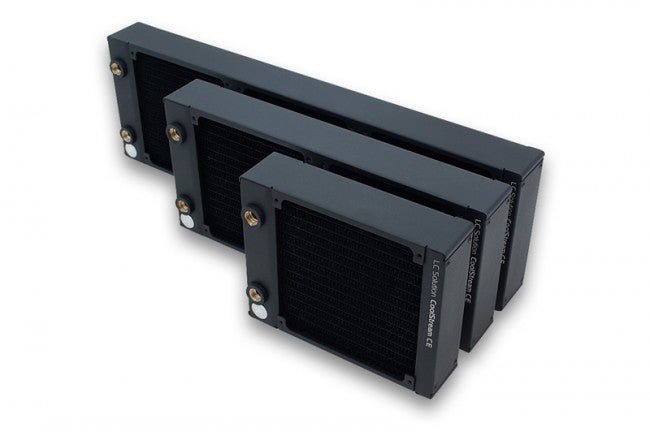

EK assured quality level, optimal price-performance ratio and unique minimalistic design make these EK-CoolStream CE series radiators a perfect choice for any computer water cooled system.

This radiator offers best cooling capacity in the 45mm thick radiator class: Dual stack copper fins provide massive surface area while the parallel flow cooling chambers reduce hydraulic flow resistance to a minimum. Radiator shrouds are tapped with UNC 6-32 threads on both sides to enable push-pull fan installation to even further increase the cooling performance.

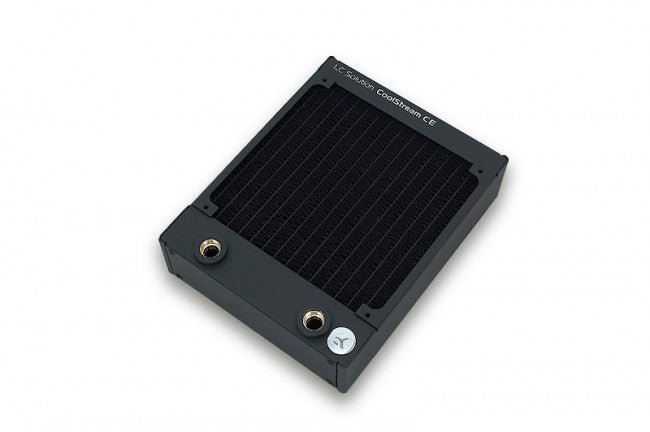

This product features two recessed G1/4 threaded ports with pre-installed extenders to allow any G1/4 threaded fitting to be used. EK recommends EK-ACF series compression fittings.

Technical details:

• Material:




• Copper fins


• 90% copper tubing (H90)


• Brass chambers


• Aluminum/Steel housing

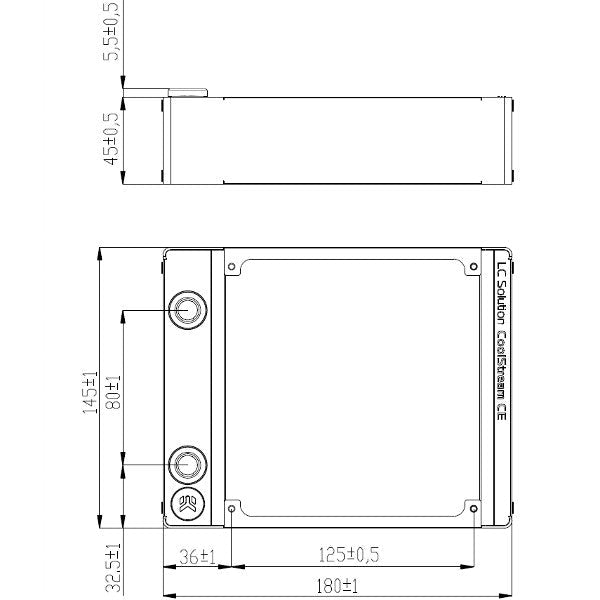

• Dimensions: 180 x 145 x 45mm (L x W x H)


• Weight: 0.75kg


• Liquid Capacity: ~200mL


• FPI: 16


• Port threads: 2x G1/4


• Fan compatibility: any standard size 140x140x25mm fan; UNC 6-32 thread tapping


• Pressure tested: 1bar(g)

Enclosed:

• EK-CoolStream CE series radiator /w two pre-installed G1/4 extenders

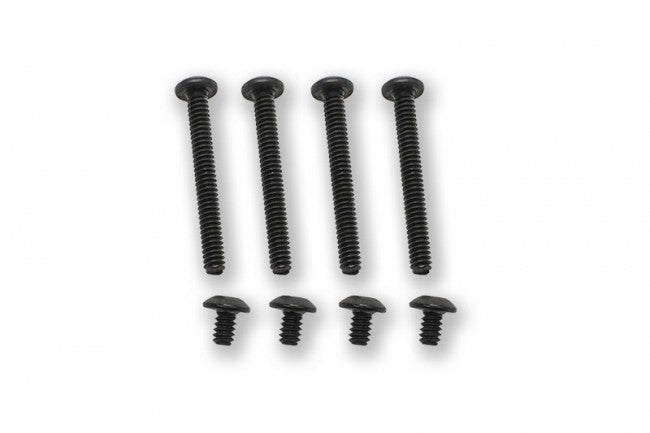

• Flat-head UNC 6-32 screws (l=30mm)


• Flat-head UNC 6-32 screws (l=5mm)


• Allen key 2,5mm


• Allen key 9mm

PLEASE NOTE:

• When using fans other than standard 140x140x25mm size please use appropriately long screws!


• Use of the improperly long screws may result in piercing of the radiator core and irrepairable damage the product. Such misuse is not covered by product warranty!
