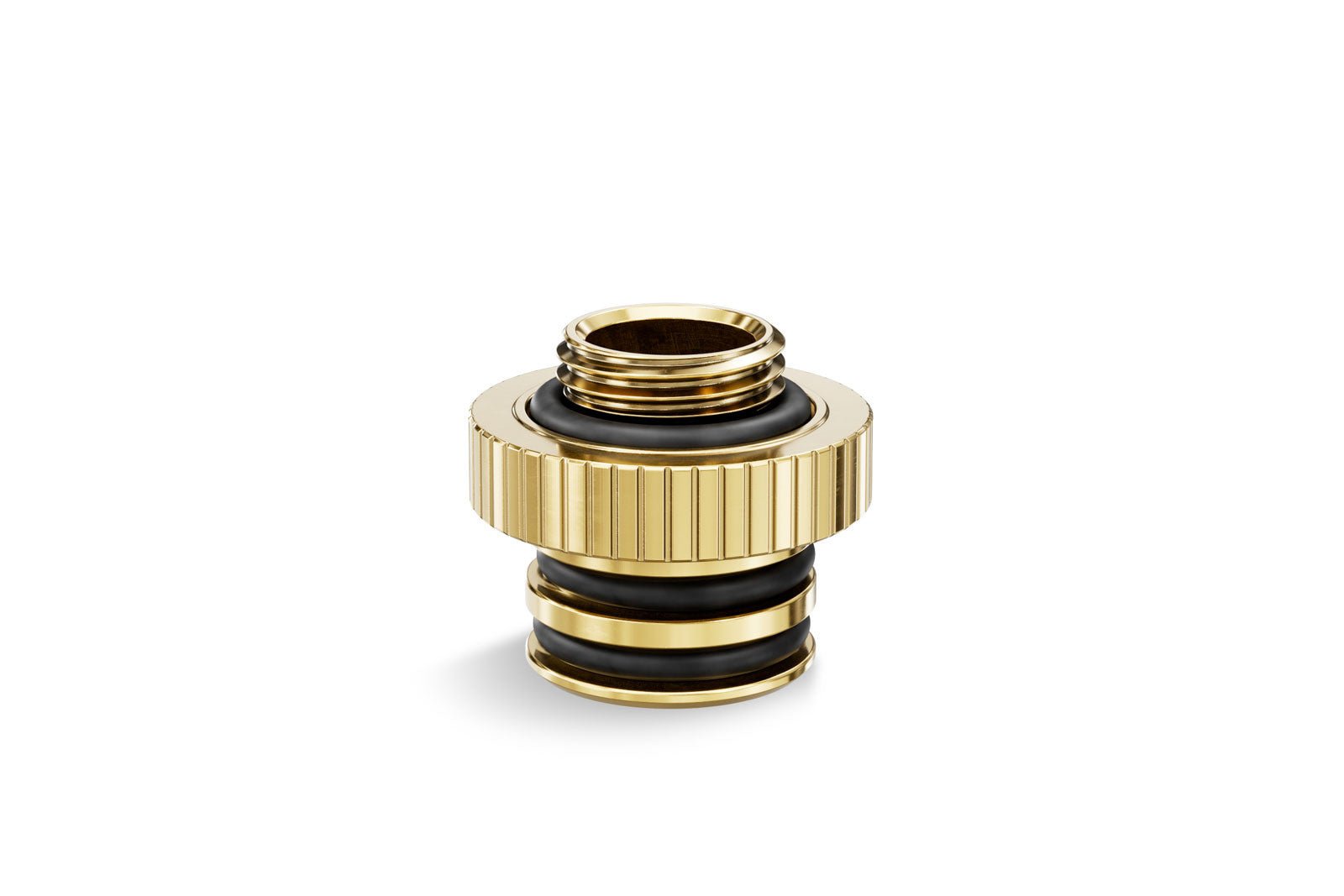

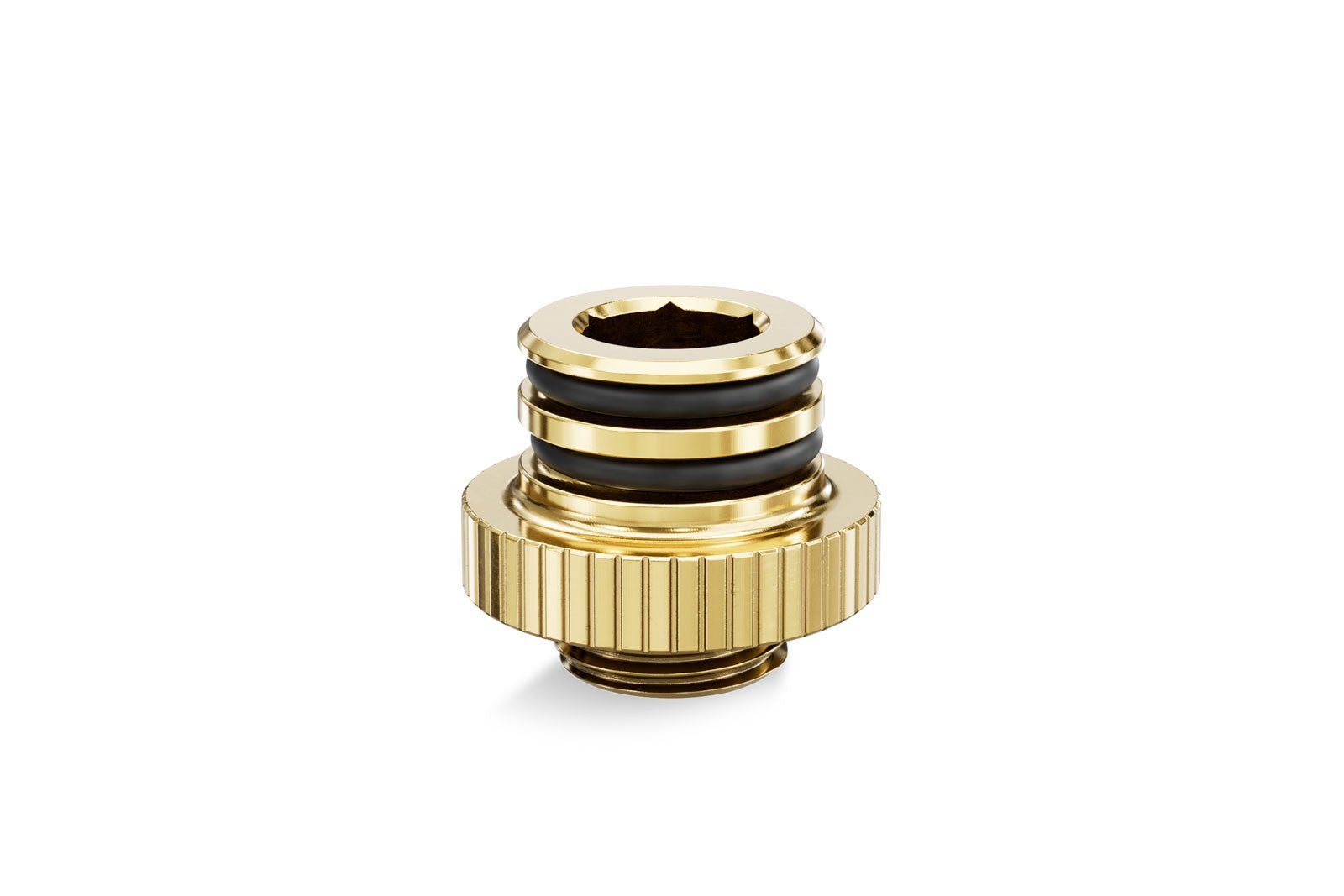

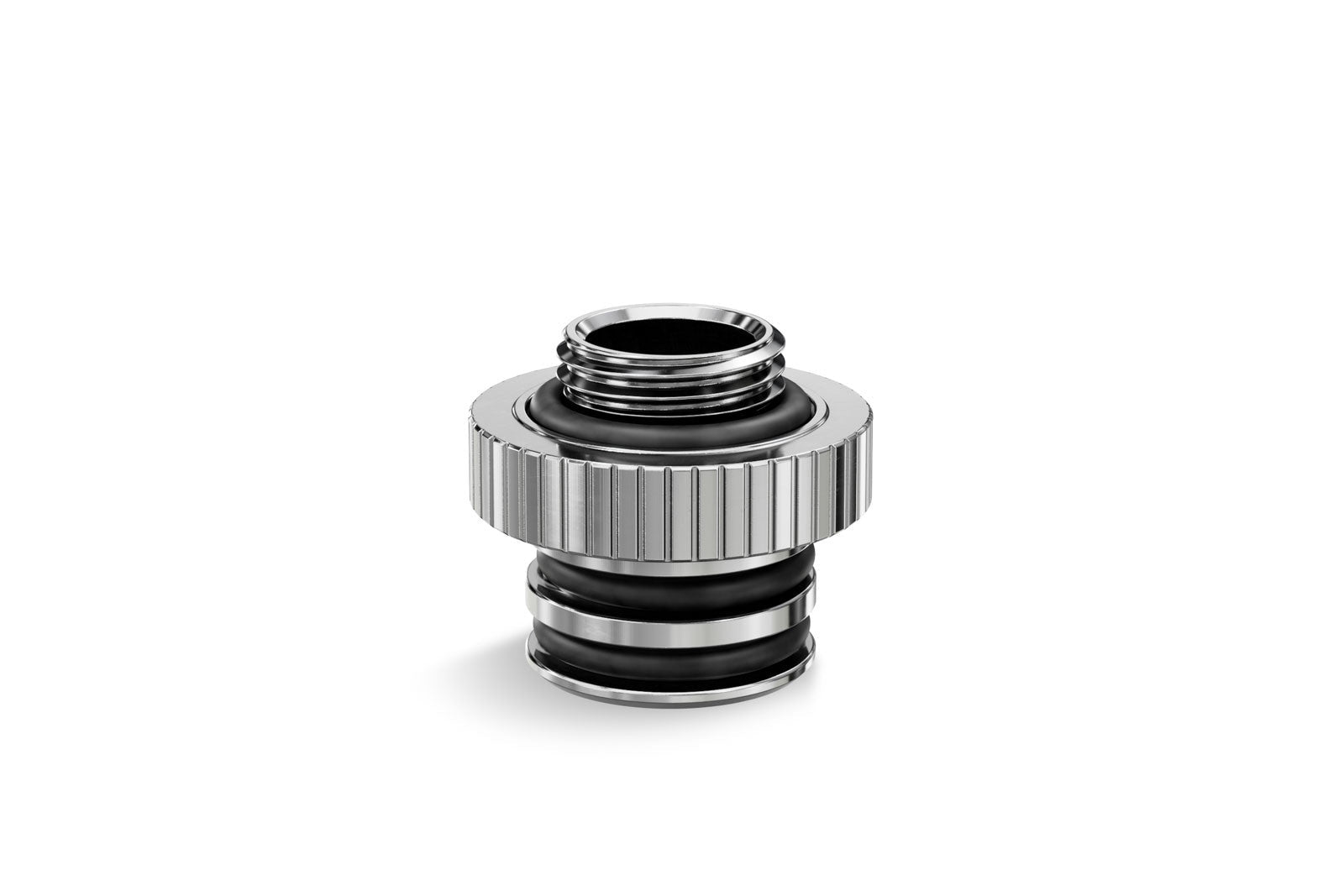

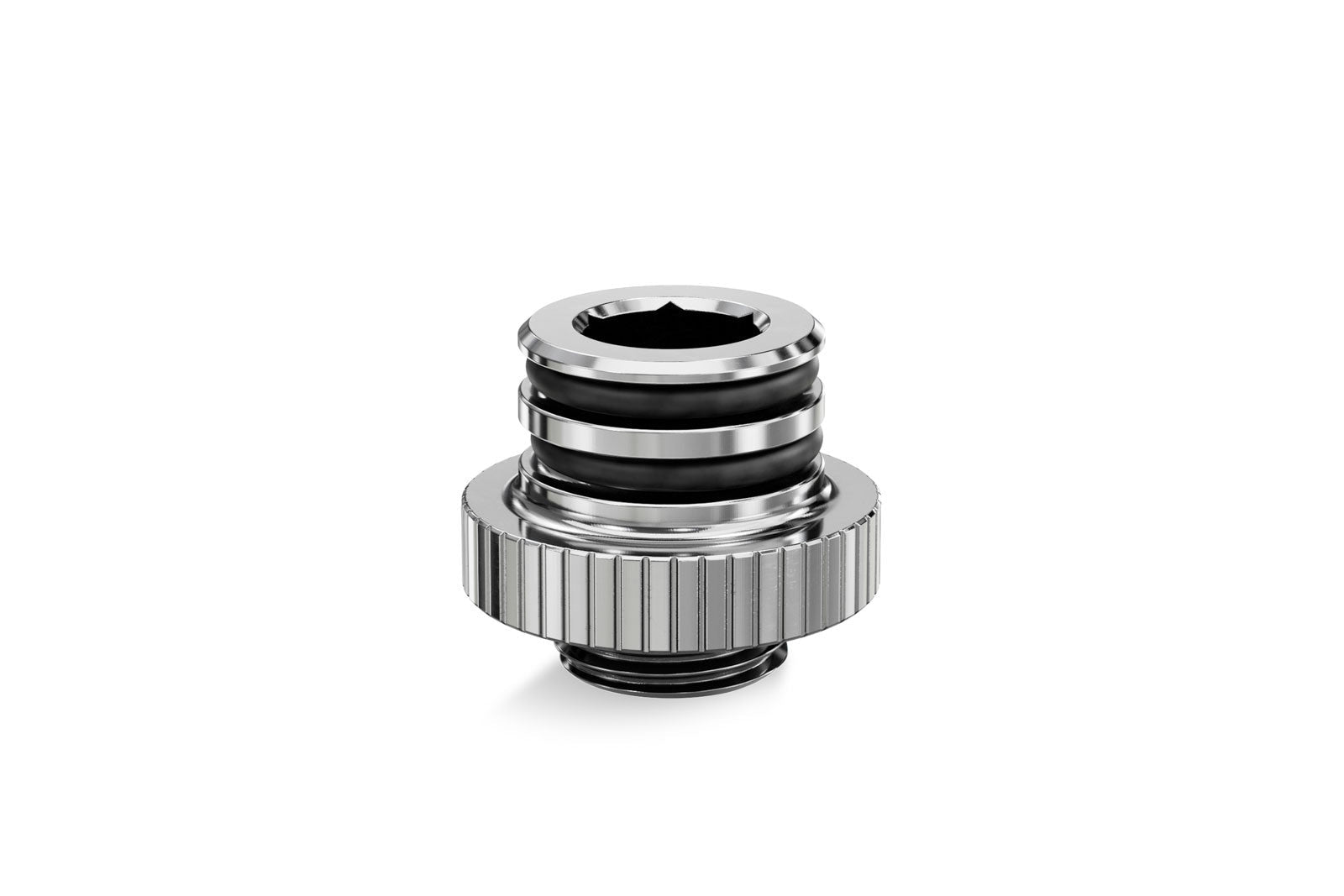

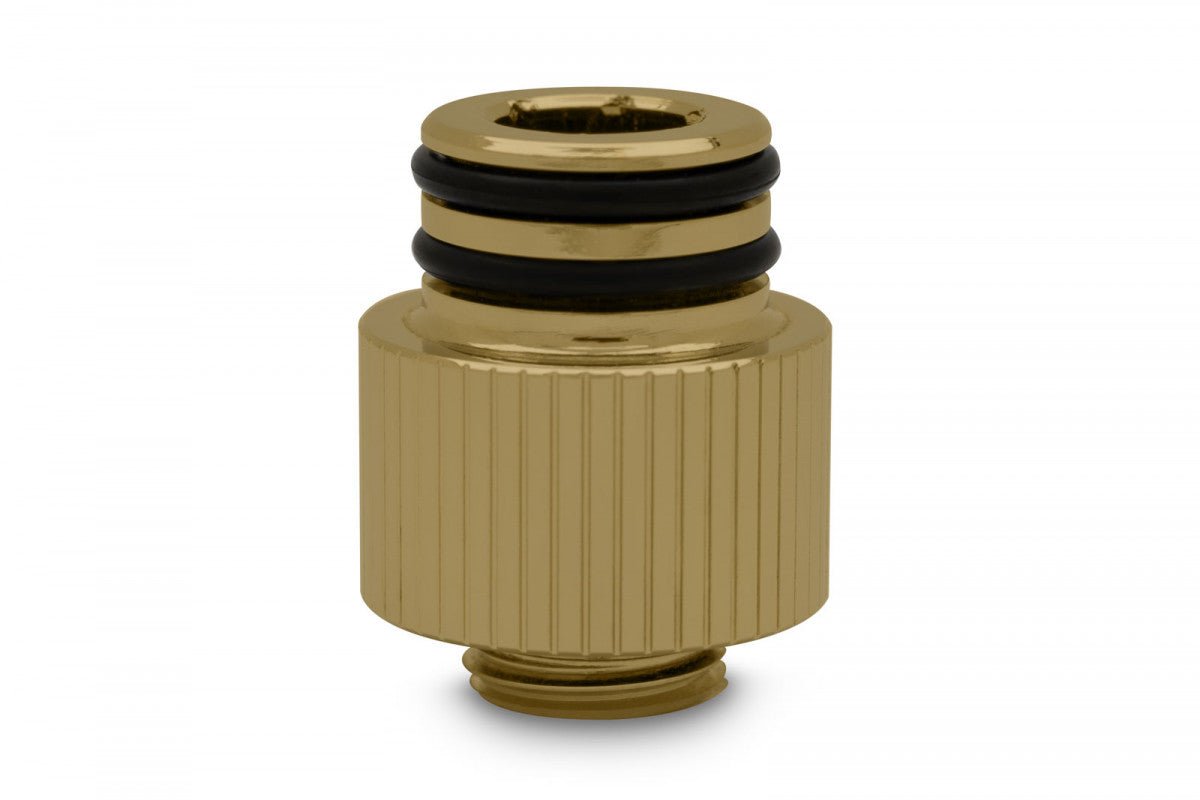

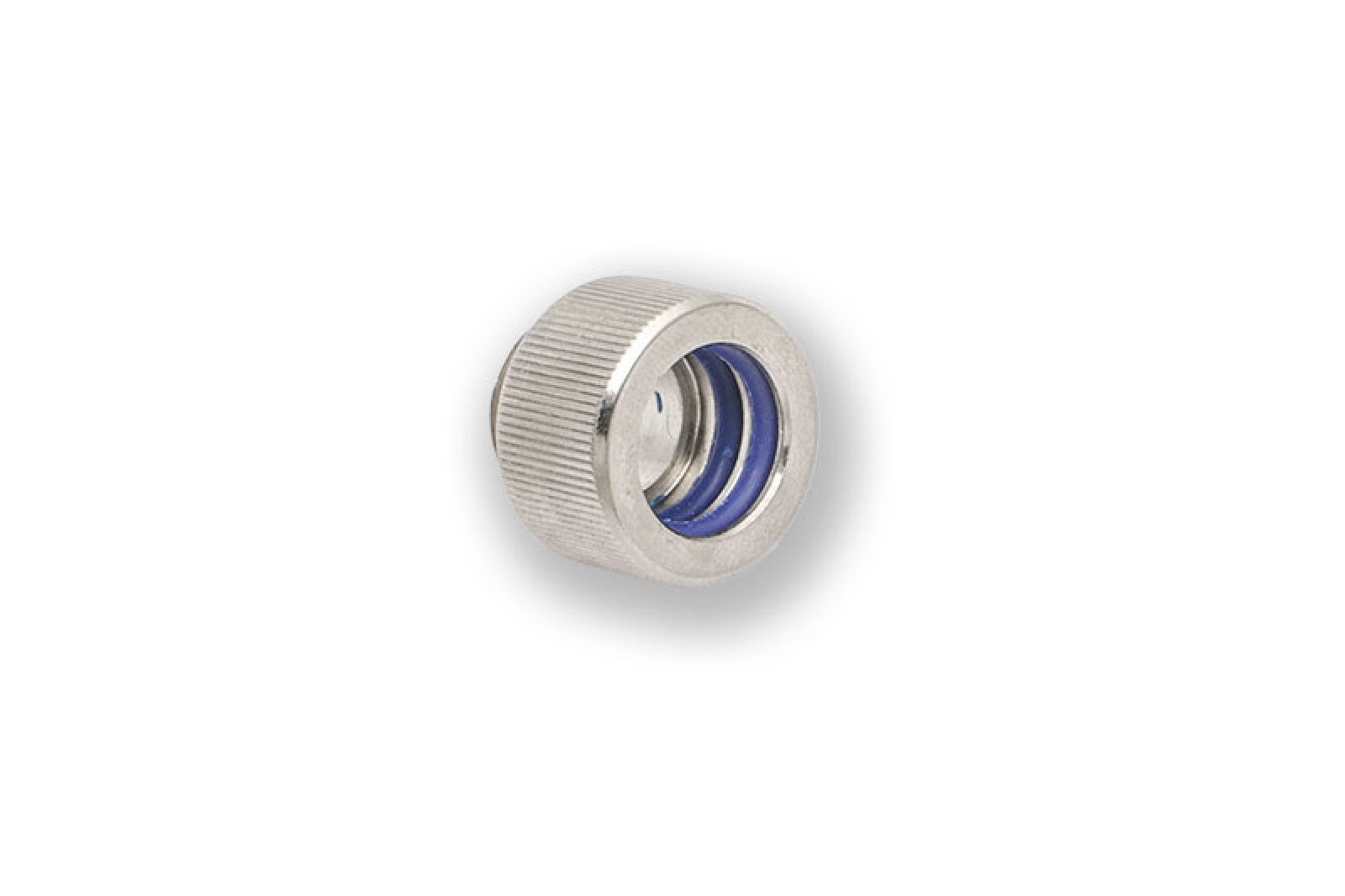

EK-HD Adapter 10/12mm - Nickel

EK-HD Adapter is a solid-tube fitting, intended to be used with solid tubing such as Acrylic or Copper tube. Used in conjuction with EK-HD Tube it can also be used for connecting multiple Full Cover water blocks as an alternative method to using EK-FC Terminal system.

The product is made of nickel-plated machined brass with quality O-rings. These adapters are fully compatible with EK-CSQ series (45 °/90 °) angled adapters.

Technical data:

• Thread: G1/4 BSP; 4.5mm male thread lenght


• Supported tube: 12mm (OD)


• Outer diameter of a fitting: 18.7mm


• Installed height: 11mm


• Compatible tubing: solid Acrylic-, Copper-, Brass- or Stainless Steel tube

ROHS Compliant!

Made in Slovenia - EU!

PLEASE NOTE:
- Please wet the gasket (o-ring) using drops of water prior to installing solid tube.
- Do not use excessive force when inserting solid tube!
- It is mandatory to chamfer the edges of freshly cut solid tube in order to prevent gasket (o-ring) damage. EK recommends a 0,5mm x 45° chamfer.
