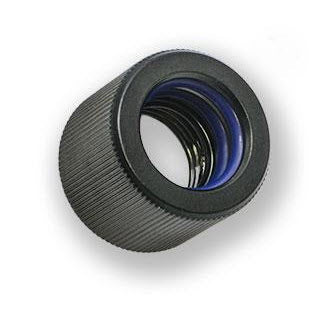

EK-HD Adapter Female 10/12mm - Black

EK-HD Adapter Female is a solid-tube female type fitting, intended to be used with solid tubing such as Acrylic or Copper tube.



The product is made of machined brass with quality O-rings. These adapters are fully compatible with EK-CSQ series (45°/90°) angled adapters.

Technical data:

• Inner thread: G1/4 BSP


• Supported tube: 16mm (OD)


• Outer diameter of a fitting: 21.7mm


• Installed height: 11mm


• Compatible tubing: solid Acrylic-, Copper-, Brass- or Stainless Steel tube

ROHS Compliant!

Made in Slovenia - EU!

PLEASE NOTE:

• Please wet the gasket (o-ring) using drops of water prior to installing solid tube.


• Do not use excessive force when inserting solid tube!


• It is mandatory to chamfer the edges of freshly cut solid tube in order to prevent gasket (o-ring) damage. EK recommends a 0,5mm x 45° chamfer.
