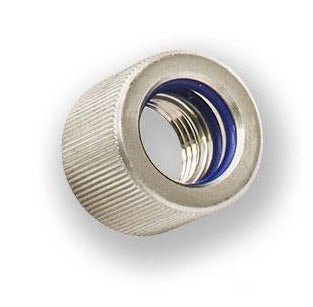

EK-HD Adapter Female 10/12mm - Nickel EK-HD Adapter Female 10/12mm - Nickel
EK-HD Adapter Female 10/12mm - Nickel
Rigid Compression

EK-HD Adapter Female 10/12mm - Nickel

EK Waterblocks

EK-HD-F-10-12-NK

EK-HD Adapter Female is a solid-tube female type fitting, intended to be used with solid tubing such as Acrylic or Copper tube. The product is made of machined brass with quality O-rings. These adapters are fully compatible with EK-CSQ series (45°/90°) angled adapters.


Found a better price? Let us know and we'll try and match it!
Estimate shipping
43 in stock, ready to ship
$4.50
Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

EK-HD Adapter Female is a solid-tube female type fitting, intended to be used with solid tubing such as Acrylic or Copper tube.

The product is made of machined brass with quality O-rings. These adapters are fully compatible with EK-CSQ series (45°/90°) angled adapters.
Specifications

Technical data:



  • Inner thread: G1/4 BSP

  • Supported tube: 16mm (OD)

  • Outer diameter of a fitting: 21.7mm

  • Installed height: 11mm

  • Compatible tubing: solid Acrylic-, Copper-, Brass- or Stainless Steel tube


ROHS Compliant!

Made in Slovenia - EU!


PLEASE NOTE:



  • Please wet the gasket (o-ring) using drops of water prior to installing solid tube.

  • Do not use excessive force when inserting solid tube!

  • It is mandatory to chamfer the edges of freshly cut solid tube in order to prevent gasket (o-ring) damage. EK recommends a 0,5mm x 45° chamfer.
