EK-HD Adapter Female 12/16mm - Nickel

Name: EK-HD Adapter Female 12/16mm - Nickel
Brand: EK Waterblocks
SKU: EK-HD-F-12-16-NK-D
Price: 4.5 USD
Availability: InStock

EK-HD-F-12-16-NK-D

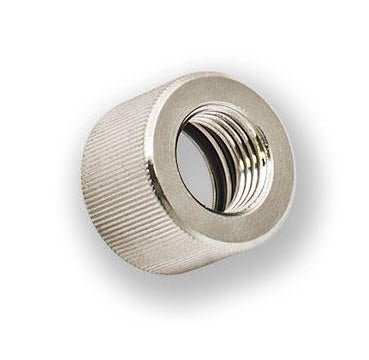

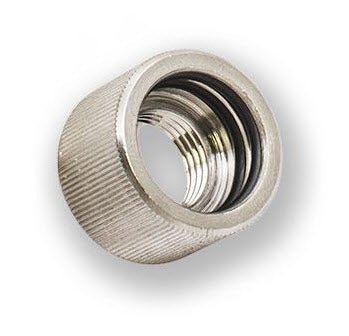

EK-HD Adapter Female is a solid-tube female type fitting, intended to be used with solid tubing such as Acrylic or Copper tube. The product is made of machined brass with quality O-rings. These adapters are fully compatible with EK-CSQ series (45°/90°) angled adapters.

Found a better price? Let us know and we'll try and match it!

Product variants

Estimate shipping

Country

Zip code

Quantity

111 in stock, ready to ship

~~$5.50~~ $4.50 Sale

Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

99% of orders ship same day M-F!
FREE Shipping Possible!
All-Star CS Team
30-Day Hassle Free Returns

Details

EK-HD Adapter Female is a solid-tube female type fitting, intended to be used with solid tubing such as Acrylic or Copper tube.

The product is made of machined brass with quality O-rings. These adapters are fully compatible with EK-CSQ series (45°/90°) angled adapters.

Specifications

Technical data:
- inner thread: G1/4 BSP
- supported tube: 16mm (OD)
- outer diameter of a fitting: 21.7mm
- installed height: 11mm
- compatible tubing: solid Acrylic-, Copper-, Brass- or Stainless Steel tube

ROHS Compliant!

Made in Slovenia - EU!

PLEASE NOTE:
- Please wet the gasket (o-ring) using drops of water prior to installing solid tube.
- Do not use excessive force when inserting solid tube!
- It is mandatory to chamfer the edges of freshly cut solid tube in order to prevent gasket (o-ring) damage. EK recommends a 0,5mm x 45° chamfer.
