EK WaterblocksEK - Loop Angled Bracket - 120/120mmEK - LOOP - ANGLED - 120 - 120

Aluminum

EK-Loop Angled Bracket - 120/120mm

Name: EK-Loop Angled Bracket - 120/120mm
Brand: EK Waterblocks
Price: 32.99 USD
Availability: InStock

EK-LOOP-ANGLED-120-120

Found a better price? Let us know and we'll try and match it!

Product variants

Estimate shipping

Country

Zip code

Quantity

2 in stock

$32.99 USD

Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

99% of orders ship same day M-F!
FREE Shipping Possible!
All-Star CS Team
30-Day Hassle Free Returns

Details

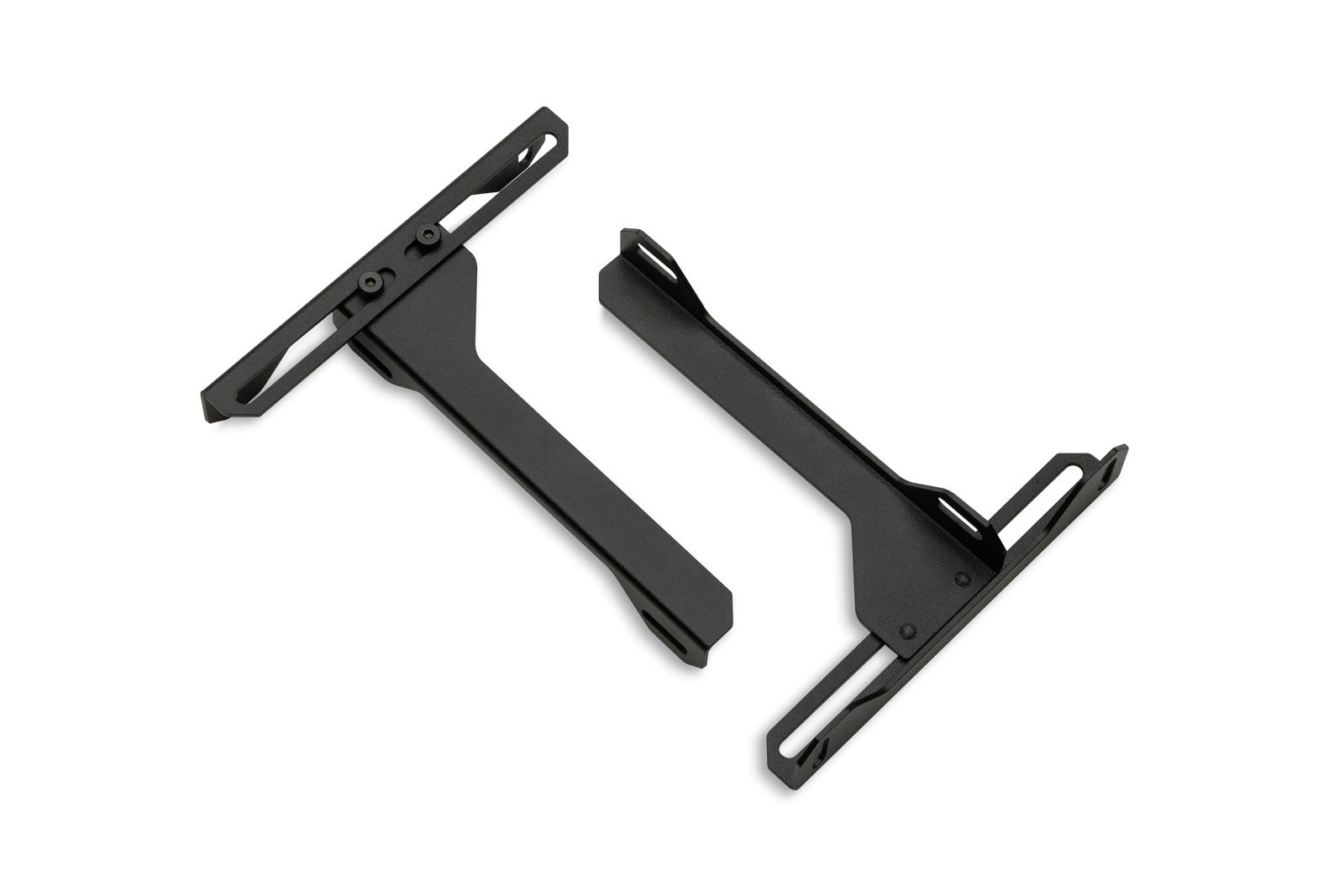

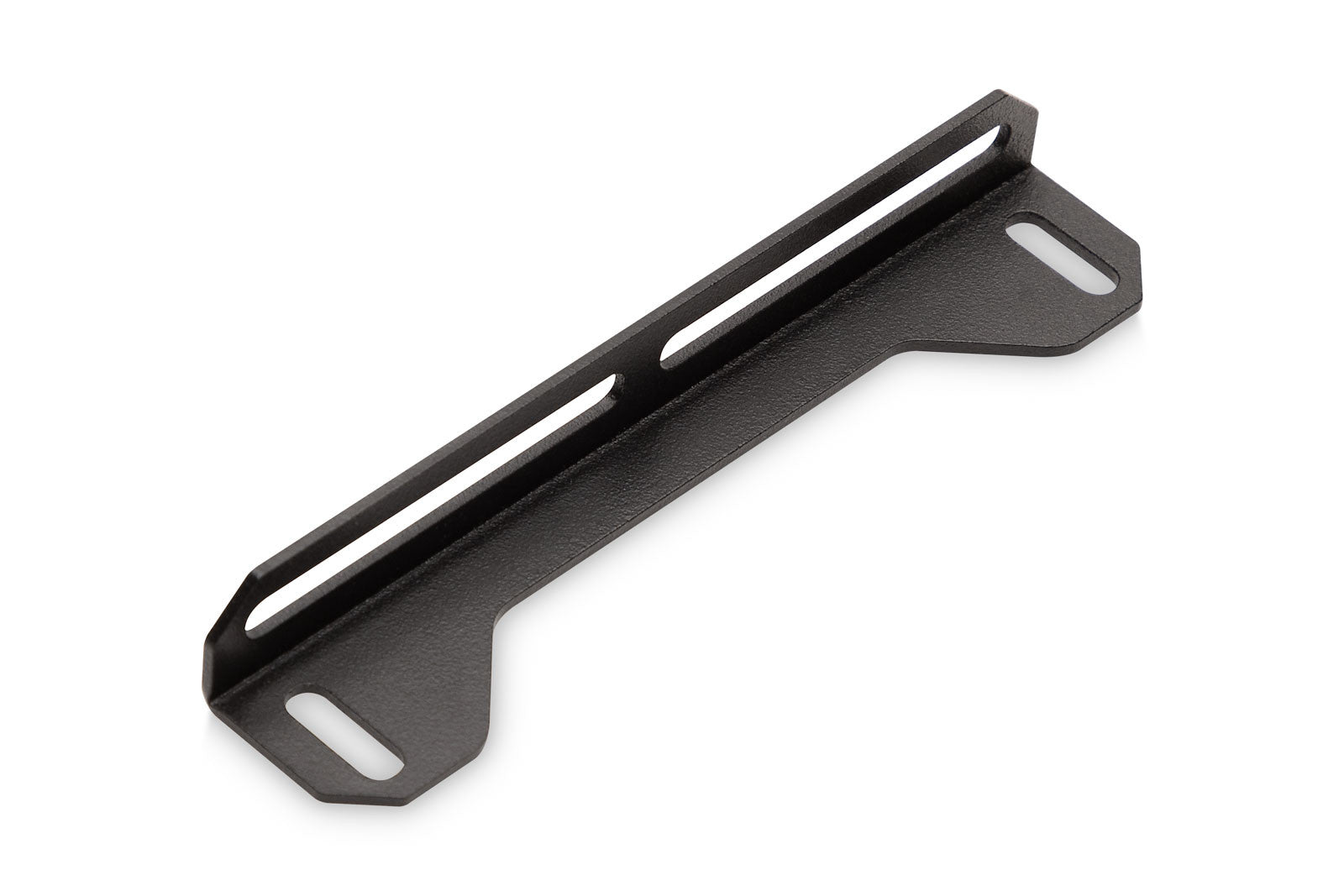

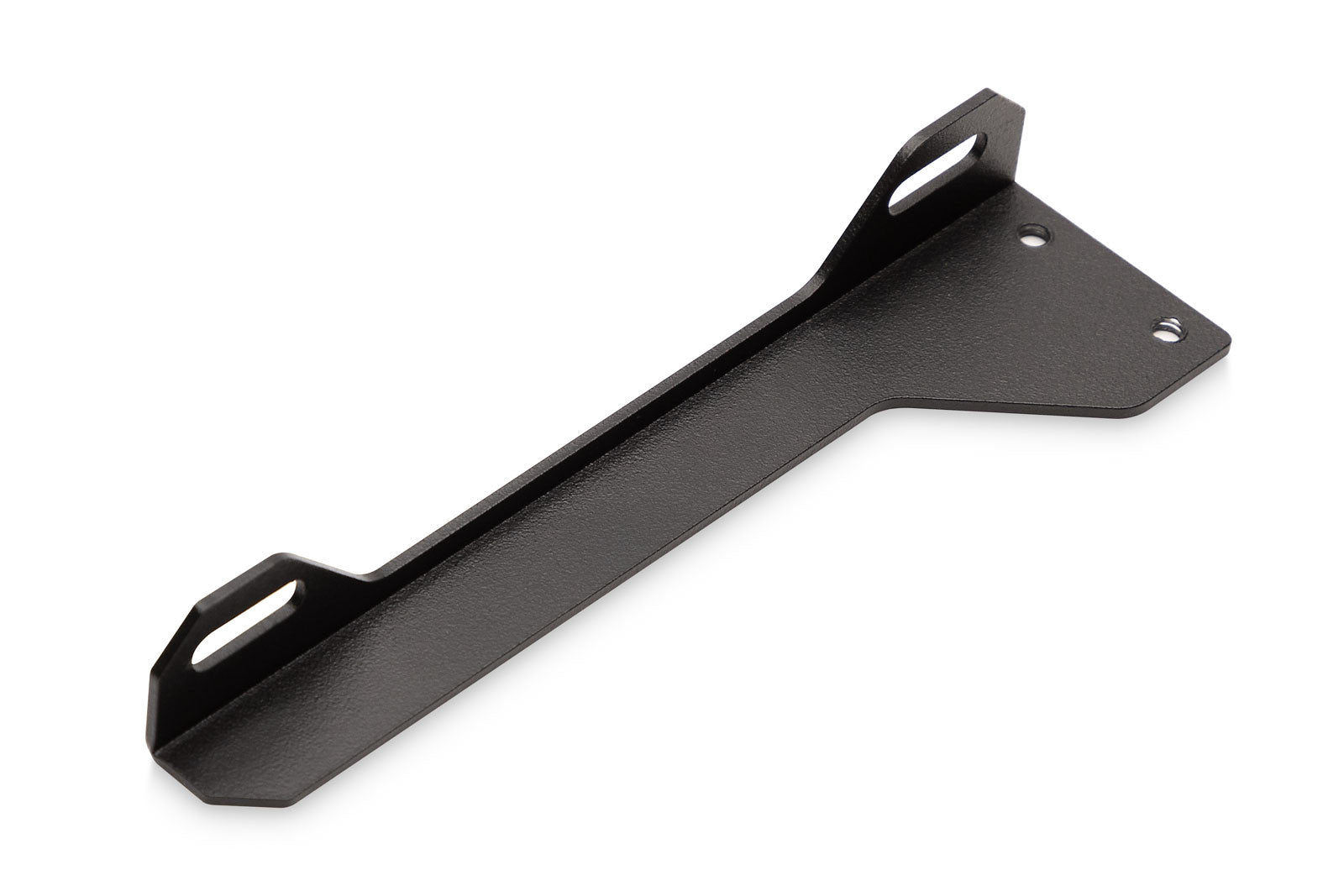

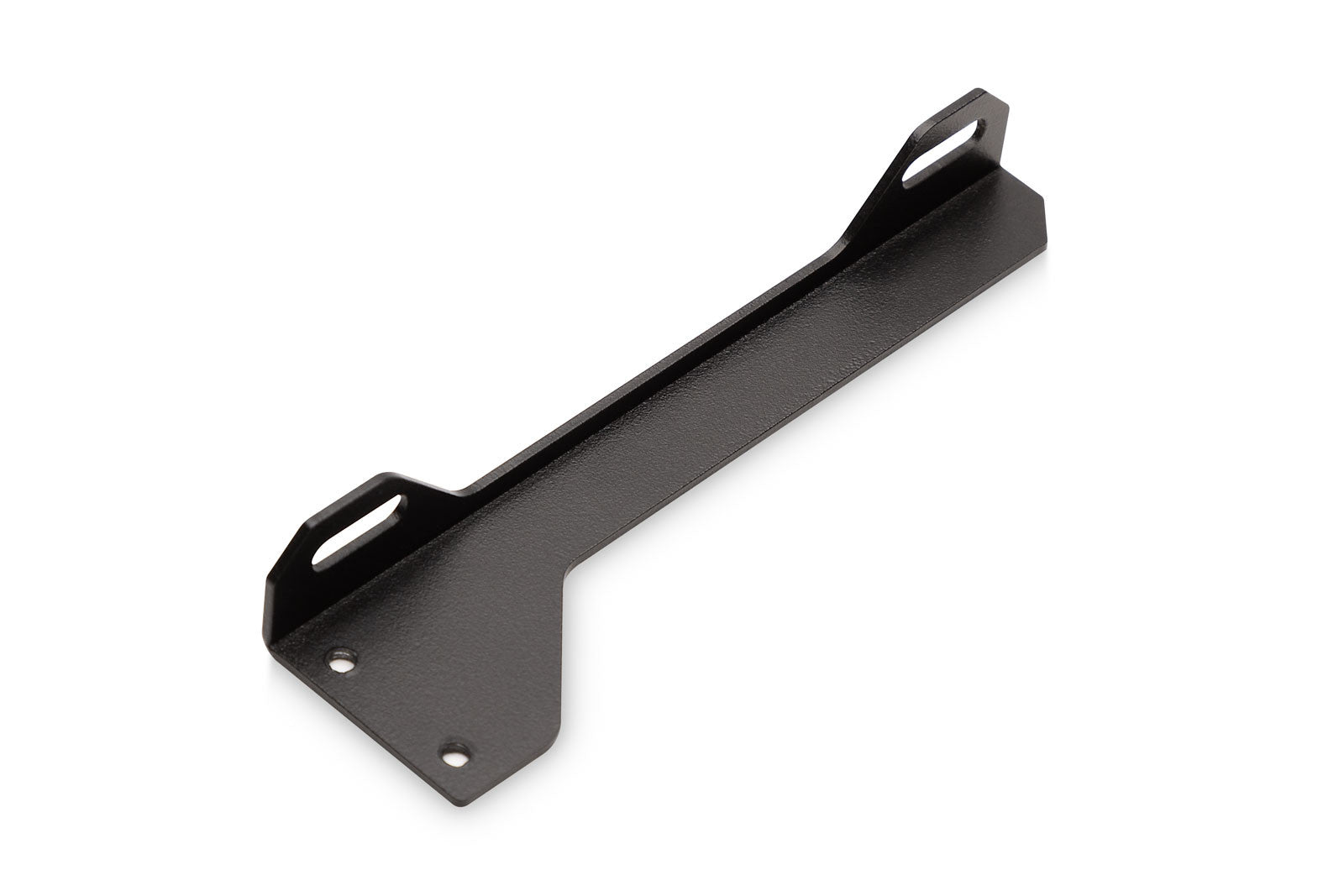

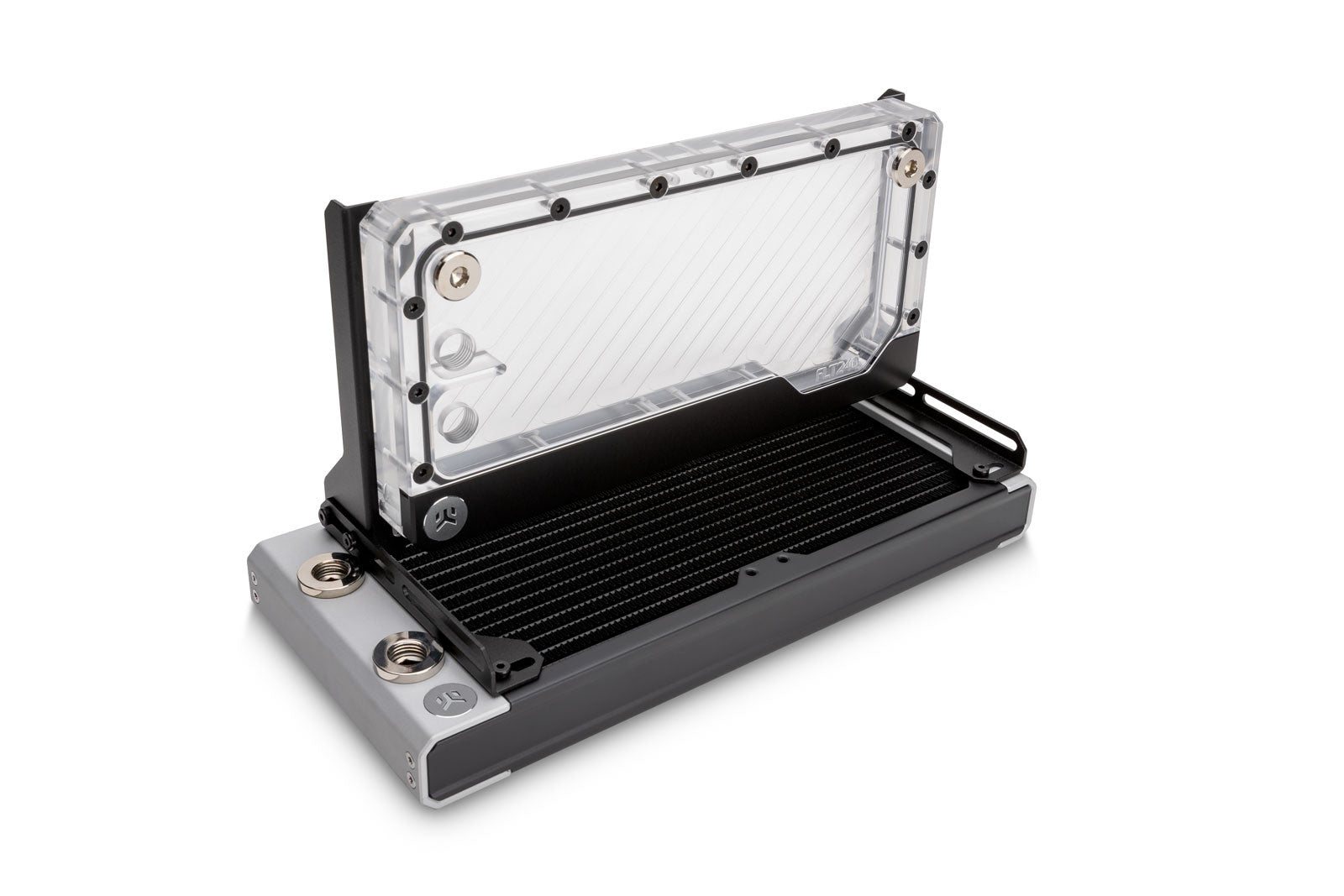

EK-Loop Angled Bracket 120/120mm is a steel mounting bracket that enables the user to mount the FLT-style combo units or reservoirs perpendicular to any 120mm (105mm hole spacing) fan mounting holes. This will allow more airflow to freely pass through the case or just to offer new mounting options which are not supported by the case itself. Additionally, you can use the long or the short side of your FLT product for additional mounting options.

Features

This bracket also allows offsetting the product by about 50mm in each direction with the rail system it uses because the screws are not in a fixed location. This bracket is not limited to FLT series products, even though it was engineered for it. With a bit of imagination, you can also use it for mounting radiators or any products with 120mm fan mounts.Â Made from press-bent 1,5mm thick painted steel.

This product is compatible with FLT reservoirs and combo units but can be used for any product with 120mm fan mounting holes.

Specifications

Enclosed:

-Â EK-Loop Angled Brackets (left + right + base brackets)
- 4x polyamide washer M4 0.8mm
- 4x acetal spacer
- 4x screws M4x4 DIN7984
- 8xÂ screws M4x10 DIN7984
- 4x nut M4
- Allen key 2.5mm

Made in Slovenia - Europe!
