Aluminum

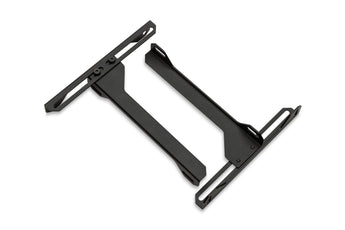

EK-Loop Angled Bracket - 140/140mm

EK-LOOP-ANGLED-140-140

EK-Loop Angled Bracket - 140/140mm is a steel mounting bracket that enables the user to mount the FLT-style combo units or reservoirs, radiators, and fans perpendicular to any 140mm (125mm hole spacing) fan mounting holes. This will allow more airflow to freely pass through the case or just offer new mounting options that are not supported by the case itself.

Found a better price? Let us know and we'll try and match it!
Estimate shipping
8 in stock, ready to ship
$32.99
Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

Details

EK-Loop Angled Bracket - 140/140mm is a steel mounting bracket that enables the user to mount the FLT-style combo units or reservoirs, radiators, and fans perpendicular to any 140mm (125mm hole spacing) fan mounting holes. This will allow more airflow to freely pass through the case or just offer new mounting options that are not supported by the case itself. Additionally, you can use the long or the short side of your FLT product for additional mounting options.

Features

This bracket also allows offsetting the product by about 50mm in each direction with the rail system it uses because the screws are not in a fixed location. This bracket is not limited to FLT series products, even though it was engineered for it. With a bit of imagination, you can also use it for mounting radiators or any products with 140mm fan mounts. Made from press-bent 1,5mm thick painted steel.


This product is compatible with FLT reservoirs and combo units but can be used for any product with 140mm fan mounting holes.

Specifications

Enclosed:


- EK-Loop Angled Brackets (left + right + base brackets)
- 4x polyamide washer M4 0.8mm
- 4x acetal spacer
- 4x screws M4x4 DIN7984
- 8x screws M4x10 DIN7984
- 4x nut M4
- Allen key 2.5mm


Made in Slovenia - Europe!
