EK - Loop D5 MX PWM MotorEK-LOOP-D5-MX-PWM

EK-Loop D5 MX PWM Motor

Name: EK-Loop D5 MX PWM Motor
Brand: EK Waterblocks
Price: 68.99 USD
Availability: OutOfStock

EK-LOOP-D5-MX-PWM

EK-Loop D5 MX PWM Motor is a low-power version of the full D5 water pump with PWM speed control via the motherboard or a dedicated fan/pump controller.Â

Found a better price? Let us know and we'll try and match it!

Product variants

Estimate shipping

Country

Zip code

$68.99 USD Sold out

Shipping calculated at checkout.

Pickup currently unavailable at Performance-PCs.com

99% of orders ship same day M-F!
FREE Shipping Possible!
All-Star CS Team
30-Day Hassle Free Returns

Details

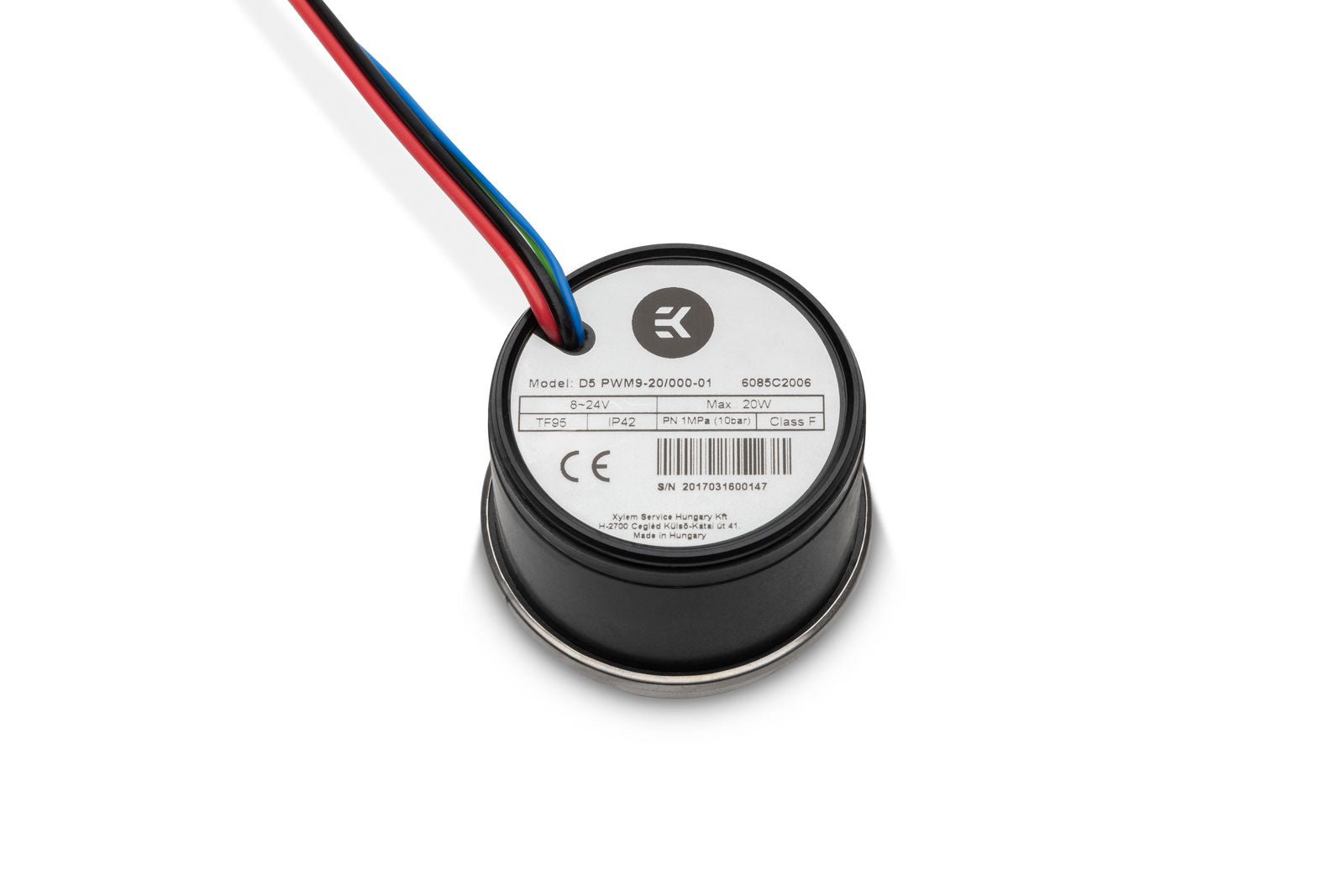

EK-Loop D5 MX PWM Motor is a low-power version of the full D5 water pump with PWM speed control via the motherboard or a dedicated fan/pump controller. Compared to the full-power D5 G3, it has a 20% lower flow rate and a weaker head pressure. It uses less power, with only a 15W power draw. Also, power is drawn via Molex connector compared to the SATA on the G3.

Features

EK-Loop D5 MX PWM is an original Xylem D5 PWM pump, with a reduced power draw.

PWM control allows for automatic pump speed regulation depending on your CPU temperature. Full performance on demand or whisper-quiet operation in idle mode!

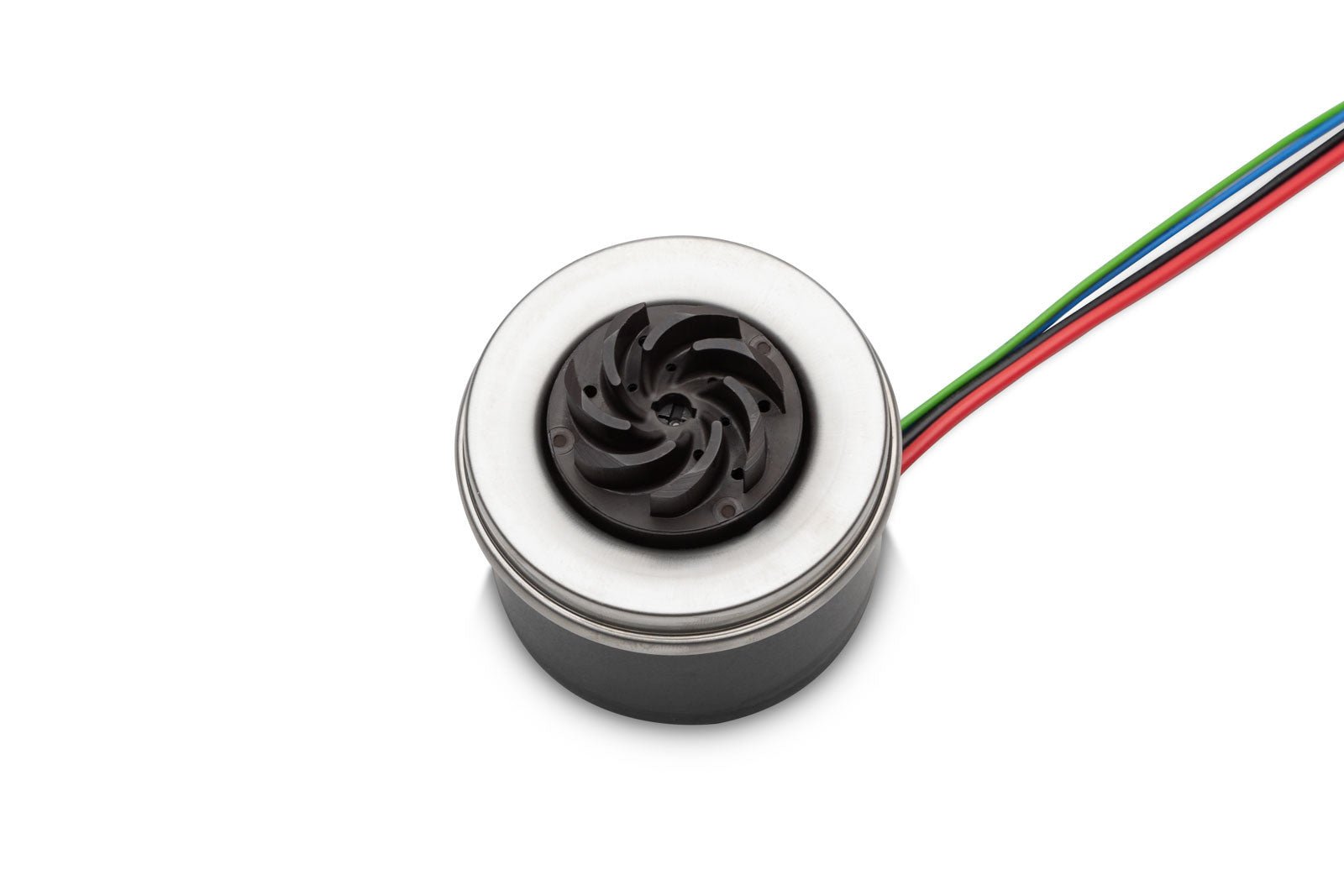

This pump is ideal for PC and other electronics water cooling. The D5 pump is equipped with an electronically commutated spherical motor. In a pump with a spherical motor, the only moving part is a spherically shaped rotor held in place by a bearing ball made of ultra-hard and wear-resistant ceramic.

The magnetic rotor always balances itself ideally on the ceramic bearing. The pump is very robust and the parts exposed to the fluid are corrosion-resistant, which provides an exceptionally long service time.

This product is compatible with any product that supports D5 pumps, including:
- EK-Quantum Kinetic TBE D5 series
- EK-Quantum Kinetic FLT D5 series
- EK-Quantum Inertia D5 series
- EK-Quantum Reflection and ReflectionÂ²
- EK-XTOP Revo Dual D5 PWM Serial (incl. 2x pump)

Specifications

Technical specifications:
- Motor: Electronically commuted spherical motor
- Rated voltage: 12V DC
- Power consumption: 15W
- Maximum head pressure: 2.6m
- Maximum flow: 1200L/h
- Maximum liquid temperature: 60Â°C
- Cable color: Black

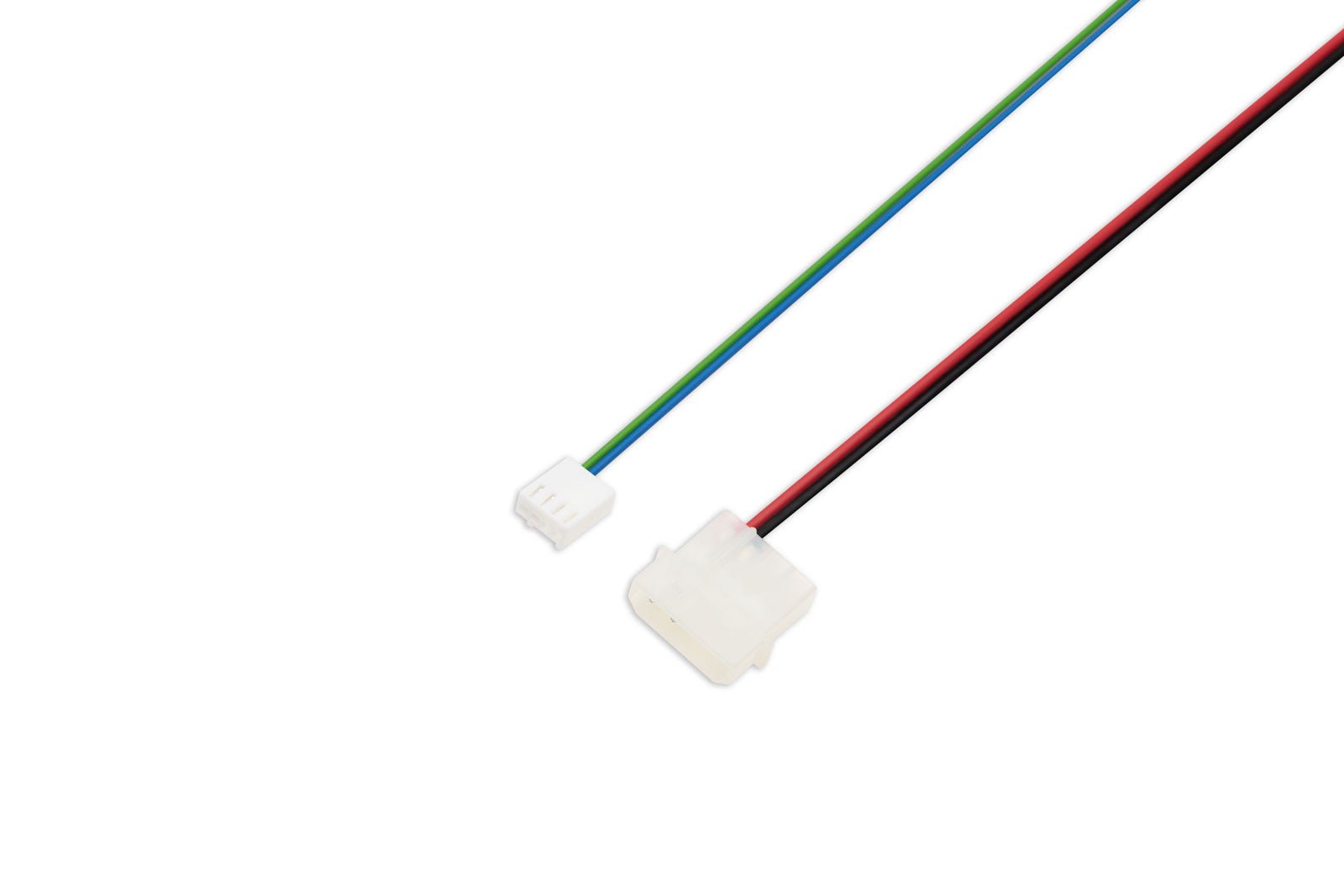

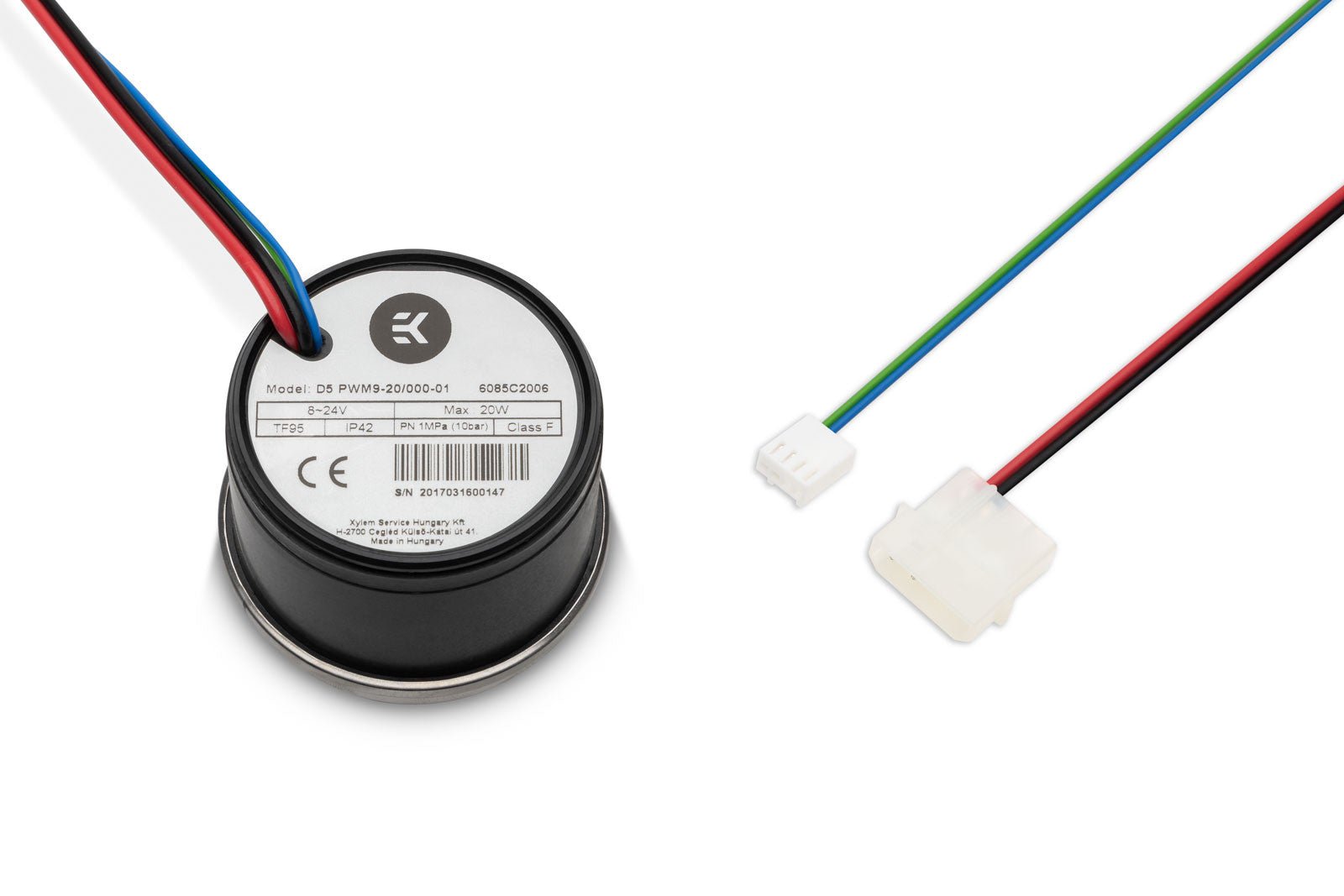

- Power connector: Molex power and 4-pin PWM FAN connector

Operational regime:
- PWM duty cycle: ~ 20-100%
- Default behavior: Runs at 100% duty cycle when no PWM feedback signal is present

Â Made in the EU.
