EK-Loop DDC 4.1 PWM Motor

Name: EK-Loop DDC 4.1 PWM Motor
Brand: EK Waterblocks
Price: 61.99 USD
Availability: OutOfStock

in Pumps

EK-LOOP-DDC-41

EK-Loop DDC 4.1 PWM Motor is a custom loop water pump with power management control (via PWM - pulse width modulation) of rotation speed through motherboard BIOS or a dedicated fan controller.Â

Found a better price? Let us know and we'll try and match it!

Product variants

Estimate shipping

Country

Zip code

$61.99 USD Sold out

Shipping calculated at checkout.

Pickup currently unavailable at Performance-PCs.com

99% of orders ship same day M-F!
FREE Shipping Possible!
All-Star CS Team
30-Day Hassle Free Returns

Details

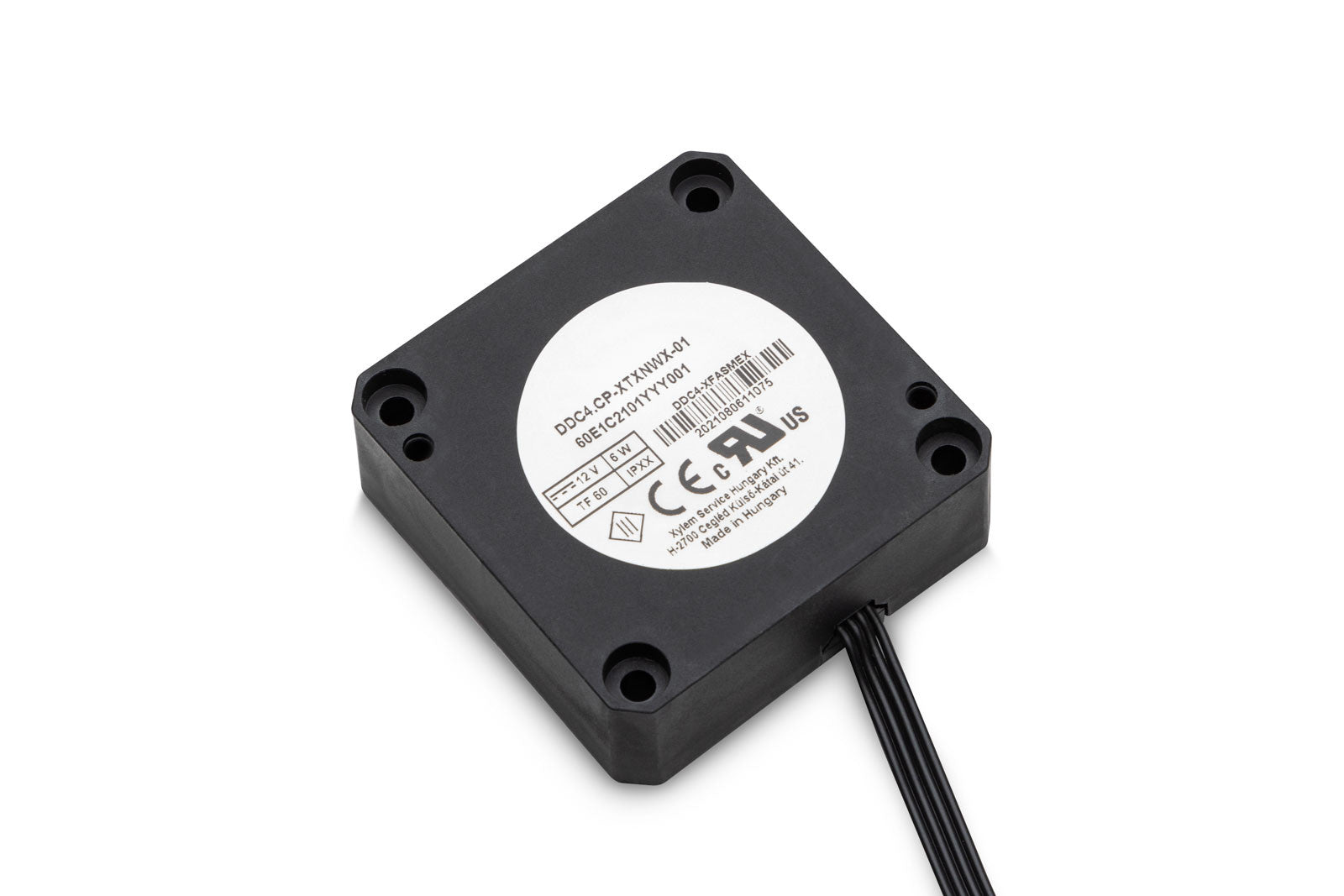

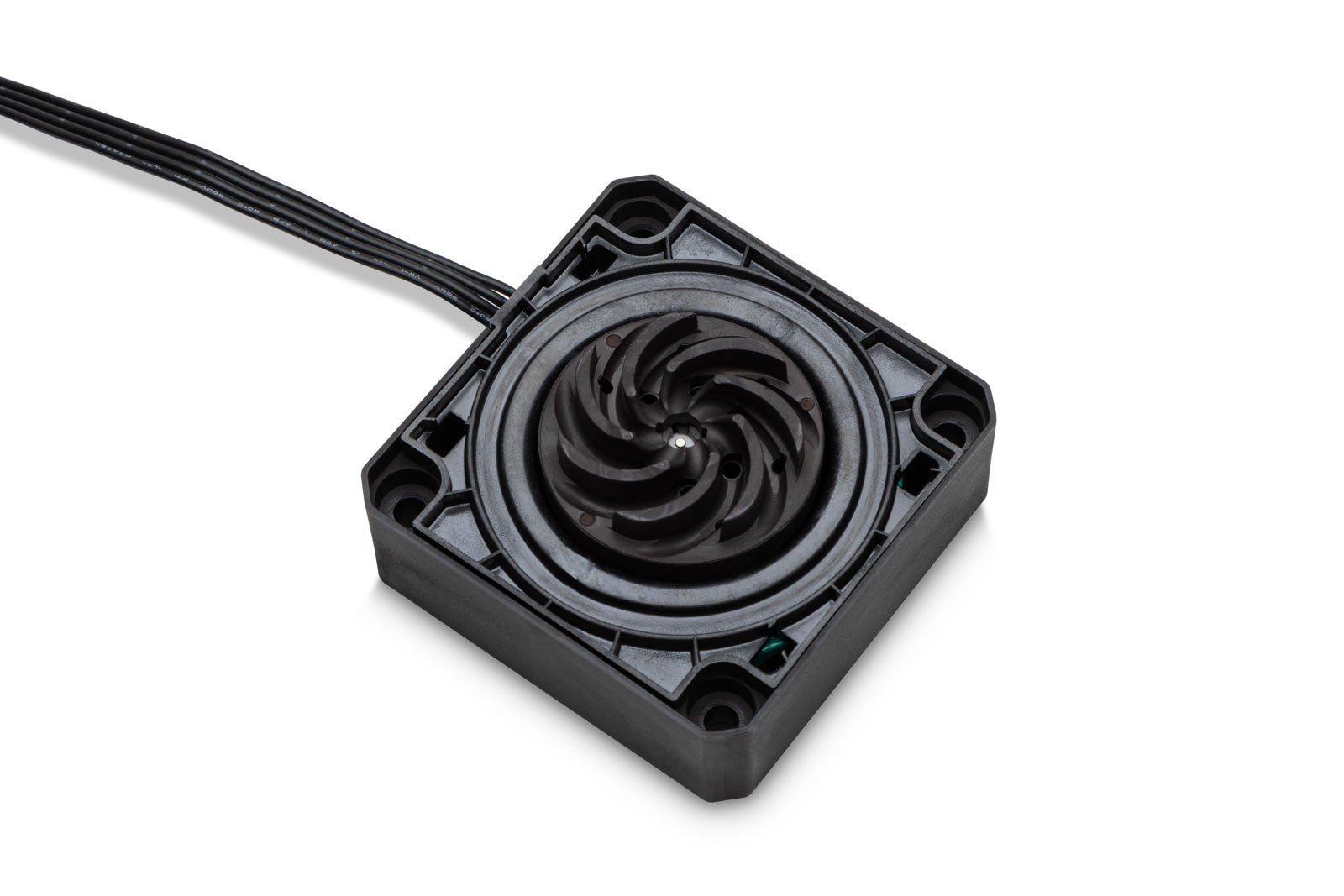

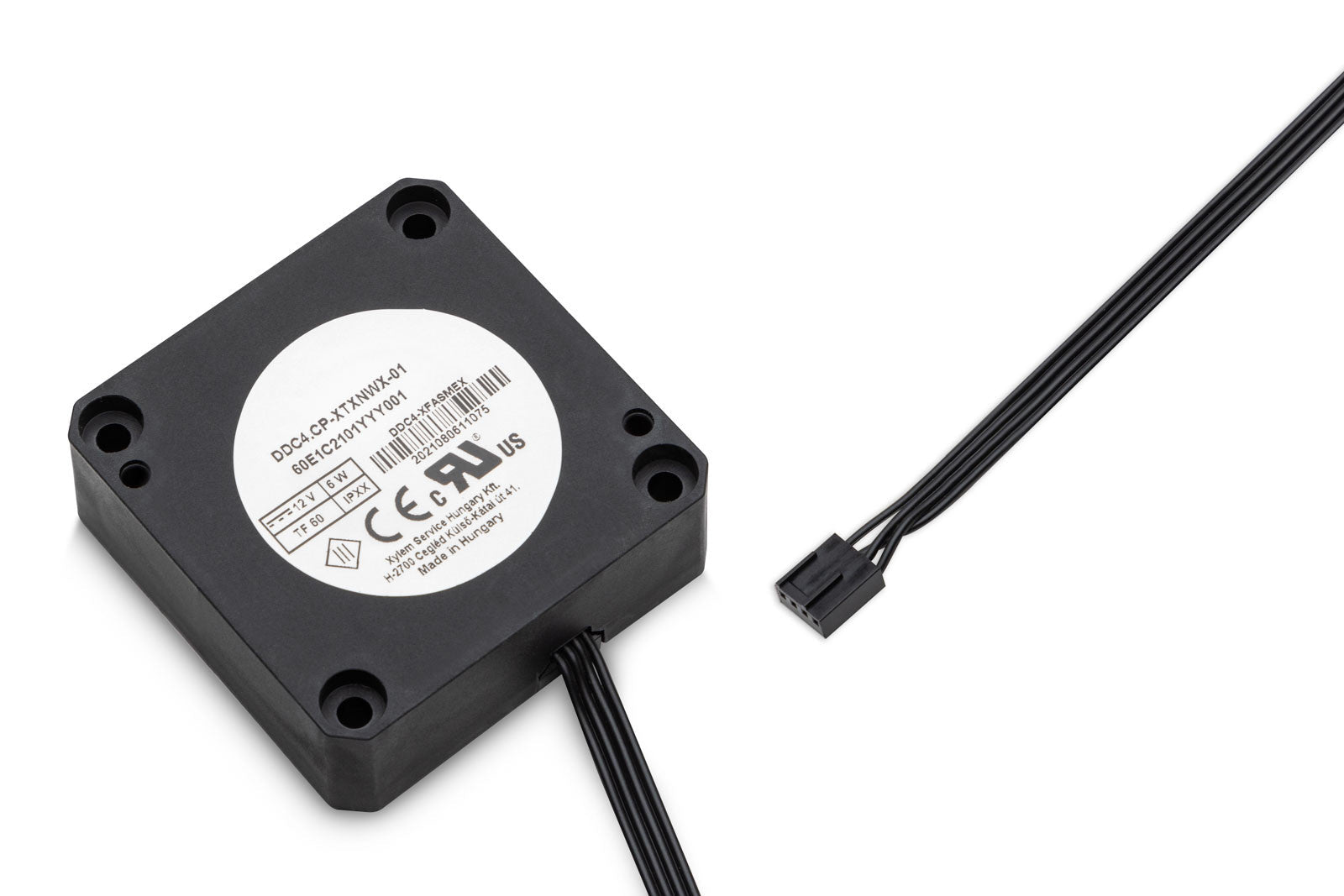

EK-Loop DDC 4.1 PWM Motor is a custom loop water pump with power management control (via PWM - pulse width modulation) of rotation speed through motherboard BIOS or a dedicated fan controller. This is a low-power version of the full DDC pump carrying both power and PWM control through the fan 4-pin header. It features the exact same physical characteristics on the outside as the EK-Loop DDC 4.2 PWM Motor, which is the high-power version.

Features

This pumpÂ is compatible with any EK-Quantum Kinetic TBE DDC and FLT DDC pump-res combo units. Using an optionalÂ Convection heatsinkÂ can even further prolong the lifespan of the pump.

Despite a remarkably small footprint of 2.4 square, EK-Loop DDC 4.1 PWM features a respectable 2,6m of head pressure. This is more than adequate for usual loops that feature one or two water blocks and no QDCs or other flow-restricting components. This pump is also a high-reliability, high-pressure industrial pump featuring a 50,000-hour MTBF (5-year lifetime) and using only 6W of power.

It's compact, quiet, energy-efficient, and quite capable while not requiring additional power connectors.

Specifications

Technical Specifications:
- Dimensions (W x D x H): 90 x 62 x 38mm
- Motor: Electronically commuted ball bearing motor
- Rated voltage: 12V DC
- Power consumption: 6W
- Maximum head pressure: up to 2.6m
- Maximum flow rate: up to 500L/h
- Maximum liquid temperature: 60Â°C
- Materials: Stainless steel, PPS-GF40, EPDM O-rings, Aluminium oxide, hard coal

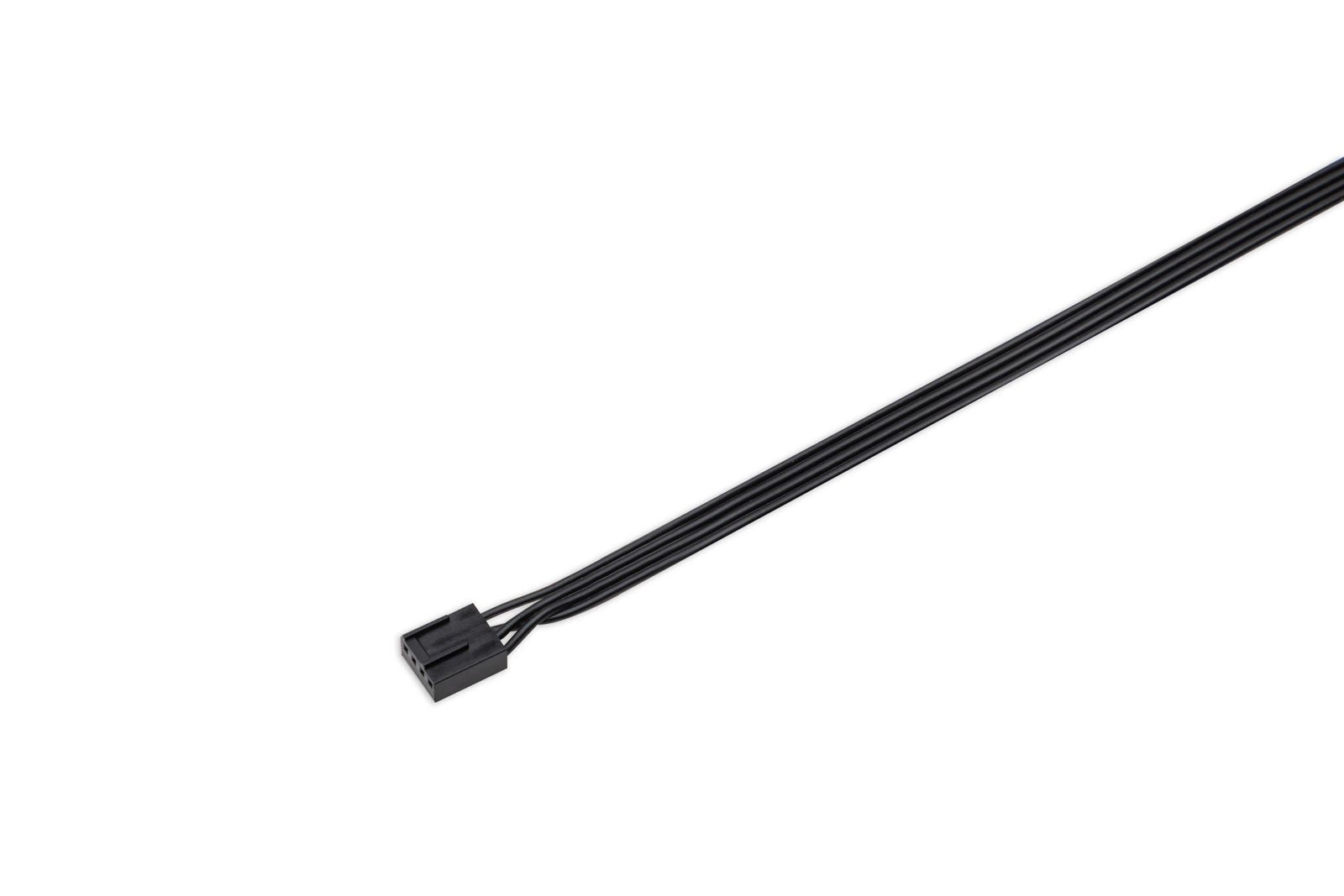

- Power connector: 4-pin PWMÂ FAN connector for PWM / RPM readout and power

Made in the EU.

PLEASE NOTE:

DDC pumps are wet tested before shipping. While they are dried out before packaging, it can occasionally happen that the pump is delivered still slightly wet.
