EK - Loop OmniLink 6 - Pin PowerEK-LOOP-OMNI-6PIN-POWER-D

EK-Loop OmniLink 6-Pin Power

Name: EK-Loop OmniLink 6-Pin Power
Brand: EK Waterblocks
Price: 5.99 USD
Availability: InStock

EK-LOOP-OMNI-6PIN-POWER-D

EK-Loop OmniLink 6-Pin Power cable is the starting point of the OmniLink cable harness with the necessary 6-Pin power, D-RGB and 4-Pin fan connectors

Found a better price? Let us know and we'll try and match it!

Product variants

Estimate shipping

Country

Zip code

Quantity

16 in stock, ready to ship

~~$7.99 USD~~ $5.99 USD Sale

Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

99% of orders ship same day M-F!
FREE Shipping Possible!
All-Star CS Team
30-Day Hassle Free Returns

Details

EK-Loop OmniLink 6-Pin Power cable is the starting point of the OmniLink cable harness with the necessary 6-Pin power, D-RGB and 4-Pin fan connectors. The OmniLink cable allows for easy transmission and distribution of +12V and +5V Power, PWM, TACHO, and D-RGB signals. The cable features a stylish black ribbon cable for easy build integration and cable management.

This cable will not draw any power from the motherboard/controller headers since +5V and +12V are connected directly to the PSU. Thus raising the maximum current available to 8.5A for D-RGB and 8.5A for fans/pumps.

Features

Content:

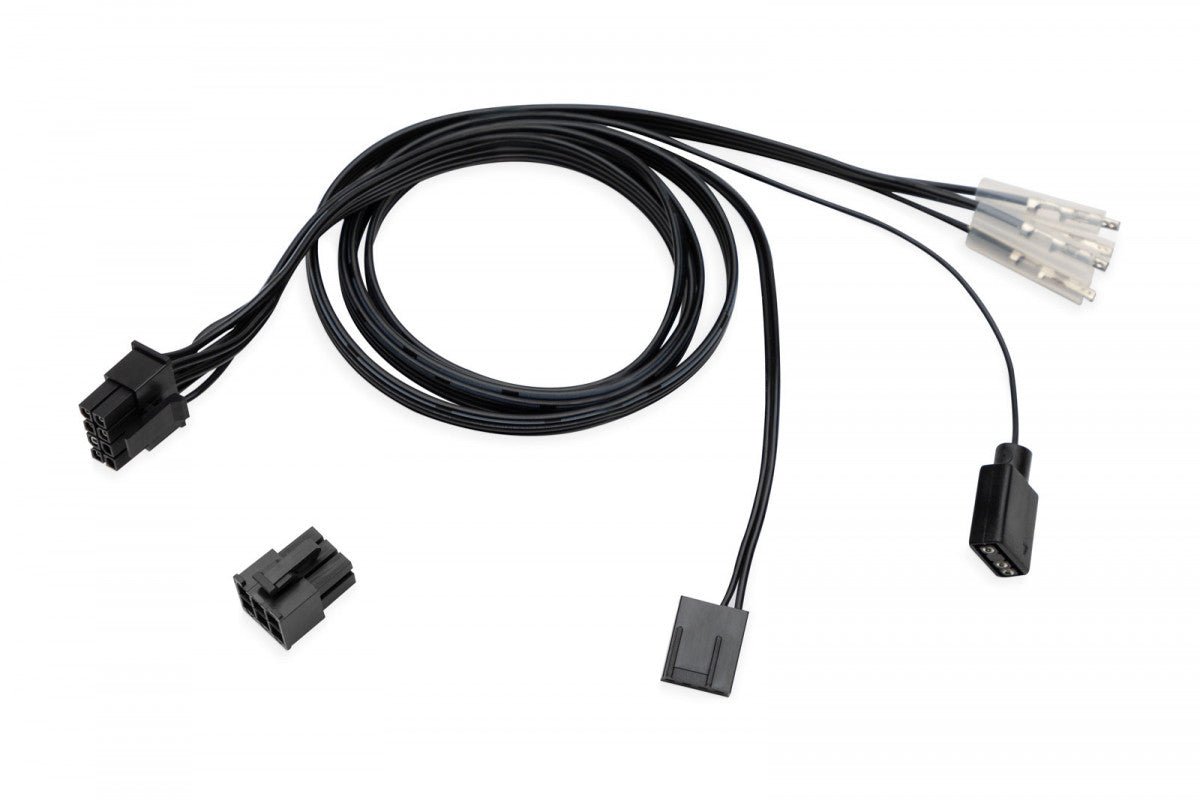

- EK-Loop OmniLink 6-Pin Power cable

- 6-Pin Power Connector

Specifications

Technical Specifications:

- Molex Micro-fit 3.0 8-pin Female connector to:

1x 6-Pin Power Connector (Pinout PSU Dependent)

1x 4-Pin PWM 1 Source Female Fan Connector (TACHO, PWM)

1x 3-Pin D-RGB LED Source Female Connector (5V, Data, Blocked, Ground)

- Cable length: 500Â±10mm

- Color: Black

- Power Wire gauge: AWG20

- Signal Wire gauge: AWG22

- Molex Micro-fit Connector current rating: 8.5A

- Power Cable current rating: 8A

- Signal Cable current rating: 6A

EK-Loop OmniLink 6-Pin Power cable is compatible with all EK OmniLink products, standard 4-pin PWM fan/pump motherboard headers, and standard 5V D-RGB (ARGB) connectors used by most major motherboard manufacturers.

The cable 6-pin Power connector must be assembled manually following the desired PSU pinout diagram, as it connects directly to the modular PSU Peripheral/SATA power output.

Designed in Slovenia, made in China

EKWB d.o.o | Slovenia â?? EU |Â www.ekwb.com
