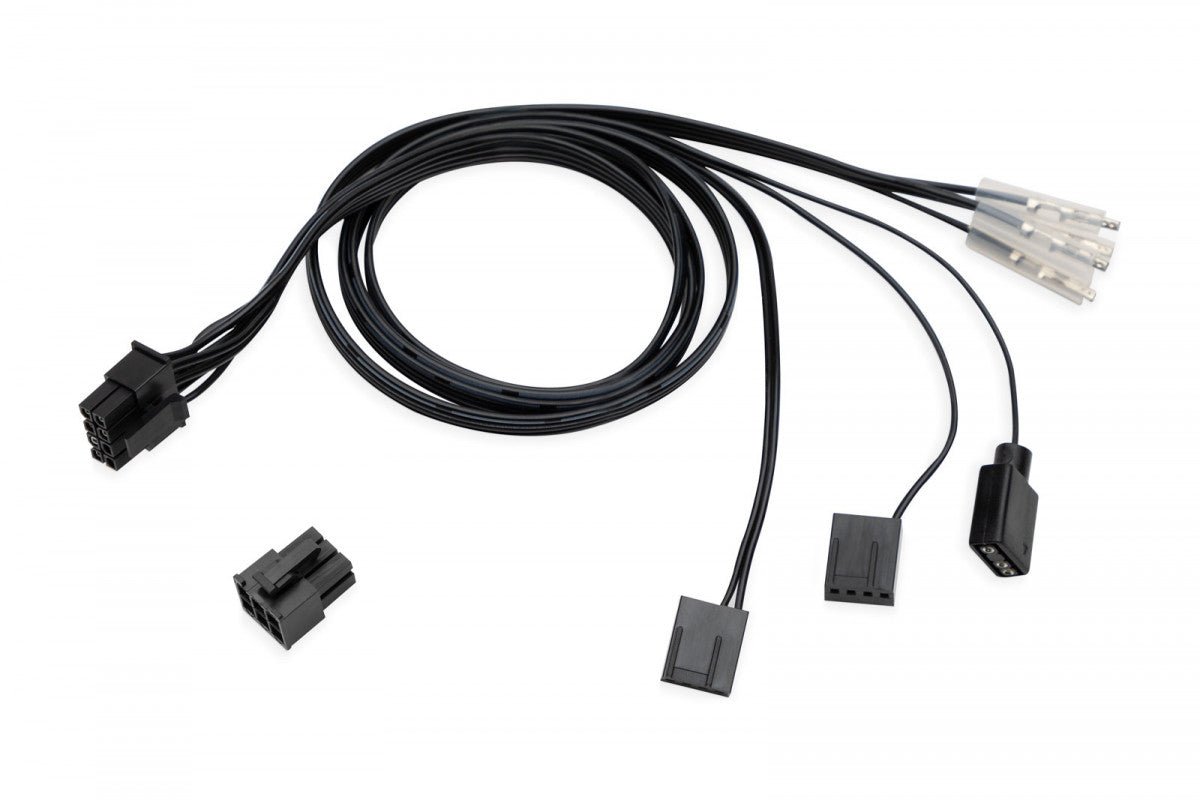

EK-Loop OmniLink 6-Pin Power (dual PWM)

Technical Specifications:

- Molex Micro-fit 3.0 8-pin Female connector to:

• 1x 6-Pin Power Connector (Pinout PSU Dependent)


• 1x 4-Pin PWM 1 Source Fan Female Connector (Blank, Blank, TACHO, PWM)


• 1x 4-Pin PWM 2 Source Fan Female Connector (PWM signal only)


• 1x 3-Pin D-RGB LED Source Female Source Connector (Data line only)

- Cable length: 500±10mm

- Color: Black

- Power Wire gauge: AWG20

- Signal Wire gauge: AWG22

- Molex Micro-fit Connector current rating: 8.5A

- Power Cable current rating: 8A

- Signal Cable current rating: 6A

-PWM labeled connector is the default, available on other OmniLink Splitter cables; EK-Loop OmniLink 6-Pin Power (dual PWM) is required to control the secondary PWM signal

- TACHO signal only on PWM labeled connector

EK-Loop OmniLink 6-Pin Power (dual PWM) cable is compatible with all EK OmniLink products, standard 4-pin PWM fan/pump motherboard headers, and standard 5V D-RGB (ARGB) connectors used by most major motherboard manufacturers. The cable 6-pin Power connector needs to be assembled manually by following the desired PSUs pinout diagram, as it connects directly to the modular PSU Peripheral/SATA power output.

This cable must be used with the EK-Loop OmniLink Pump PWM Signal Splitter to get the correct values of TACHO since the TACHO signal is wired in such a way as to read the speed of the device, which is controlled by the PWM2 signal. That means the user won't be able to get TACHO readings from devices controlled by the PWM1 signal.

Designed in Slovenia, made in China

EKWB d.o.o | Slovenia EU | www.ekwb.com
