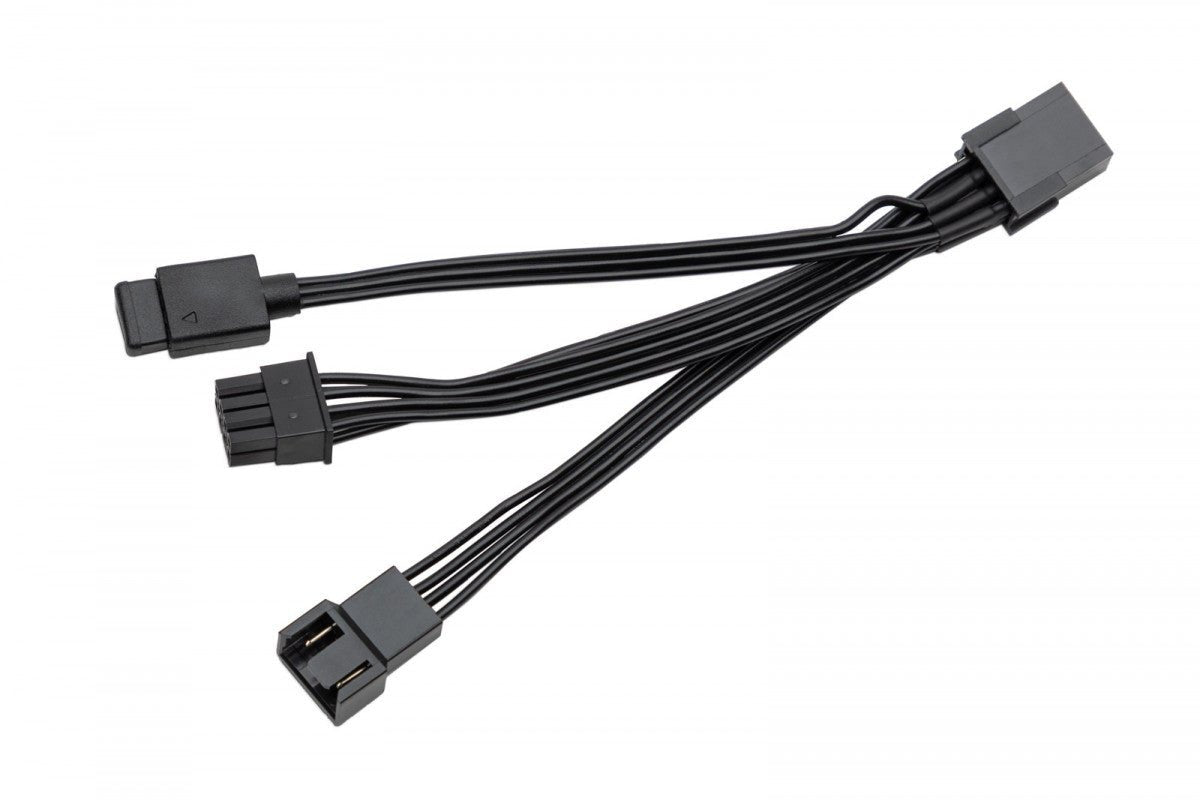

EK-Loop OmniLink Fan PWM D-RGB Signal Splitter

Name: EK-Loop OmniLink Fan PWM D-RGB Signal Splitter
Brand: EK Waterblocks
Price: 7.99 USD
Availability: InStock

EK-LOOP-OMNI-FAN-PWM-DRGB-SIG-SPL

EK-Loop OmniLink Fan PWM D-RGB Signal Splitter cable allows users to connect D-RGB LED devices and 4-Pin PWM fans to the OmniLink cable harness using their standard connectors.Â

Found a better price? Let us know and we'll try and match it!

Product variants

Estimate shipping

Country

Zip code

Quantity

15 in stock, ready to ship

$7.99 USD

Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

99% of orders ship same day M-F!
FREE Shipping Possible!
All-Star CS Team
30-Day Hassle Free Returns

Details

EK-Loop OmniLink Fan PWM D-RGB Signal Splitter cable allows users to connect D-RGB LED devices and 4-Pin PWM fans to the OmniLink cable harness using their standard connectors. The OmniLink cable allows for easy transmission and distribution of +12V and +5V Power, PWM, TACHO, and D-RGB signals. The cable features a stylish black ribbon cable for easy build integration and cable management.

It is primarily used for connecting legacy fans to the omnilink system.

Features

Content:

- EK-Loop OmniLink Fan PWM D-RGB Signal Splitter cable

Specifications

Technical Specifications:

- Molex Micro-fit 3.0 8-pin Male connector to:

1x Molex Micro-fit 3.0 8-pin Female connector

1x 4-Pin PWM 1 Fan Male Connector (Ground, +12V, TACHO, PWM)

1x 3-Pin D-RGB LED Female Connector (+5V, Data, Blocked, Ground)

- Cable length: 100Â±10mm

- Color: Black

- Power Wire gauge: AWG20

- Signal Wire gauge: AWG22

- Molex Micro-fit Connector current rating: 8.5A

- Power Cable current rating: 8A

- Signal Cable current rating: 6A

EK-Loop OmniLink Fan PWM D-RGB Signal Splitter cable is compatible with all EK OmniLink products, standard 4-pin PWM fan/pump motherboard headers, and standard 5V D-RGB (ARGB) connectors used by most major motherboard manufacturers. Only the default PWM 1 signal is accessible with this OmniLink splitter cable.

Designed in Slovenia, made in China

EKWB d.o.o | Slovenia â?? EU |Â www.ekwb.com
