EK - Loop OmniLink Molex PowerEK-LOOP-OMNI-MOLEX-POWER

EK-Loop OmniLink Molex Power

Name: EK-Loop OmniLink Molex Power
Brand: EK Waterblocks
Price: 7.99 USD
Availability: InStock

EK-LOOP-OMNI-MOLEX-POWER

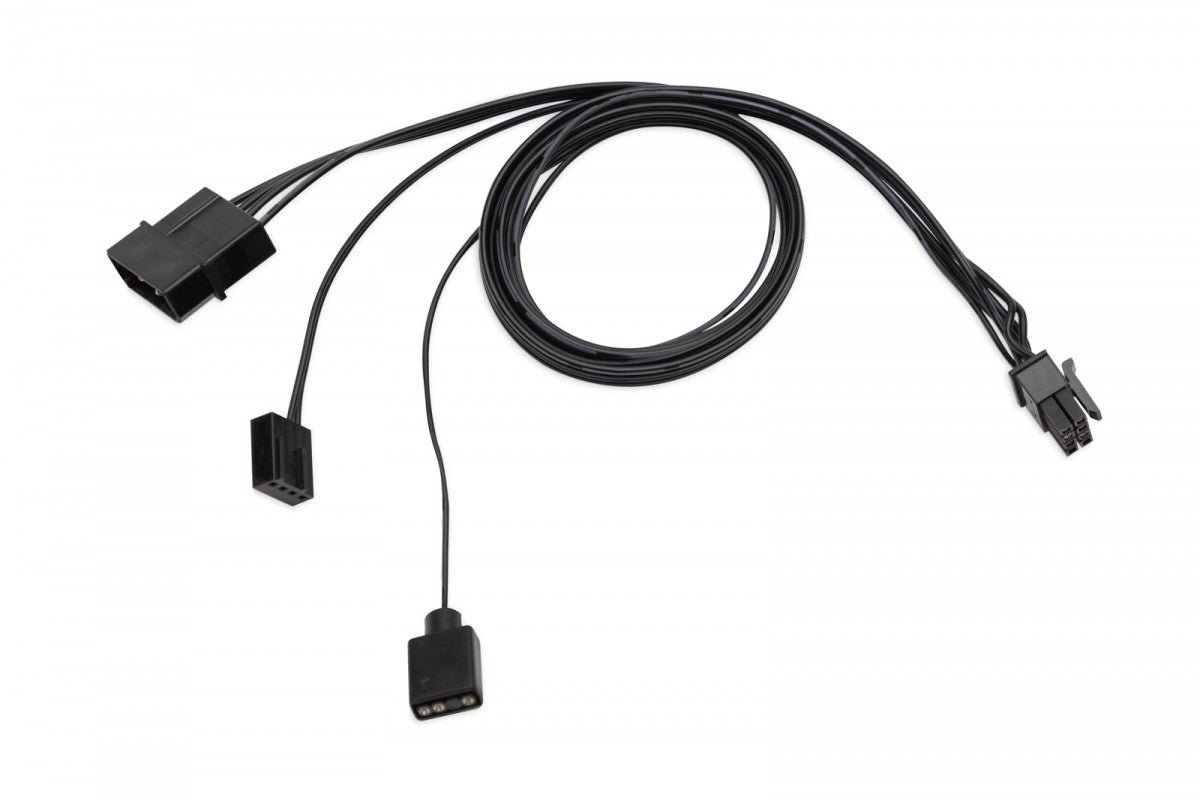

EK-Loop OmniLink Molex Power cable is the starting point of the OmniLink cable harness with the necessary Molex power, D-RGB, and 4-Pin fan connectors.

Found a better price? Let us know and we'll try and match it!

Product variants

Estimate shipping

Country

Zip code

Quantity

15 in stock, ready to ship

$7.99 USD

Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

99% of orders ship same day M-F!
FREE Shipping Possible!
All-Star CS Team
30-Day Hassle Free Returns

Details

EK-Loop OmniLink Molex Power cable is the starting point of the OmniLink cable harness with the necessary Molex power, D-RGB, and 4-Pin fan connectors. The OmniLink cable allows for easy transmission and distribution of 12V and 5V Power, PWM, TACHO, and D-RGB signals. The cable features a stylish black ribbon cable for easy build integration and cable management.

This cable can be installed without any modifications/re-pinning with any PSU while still providing the maximum 8.5A available on 5V and 12V by utilizing the Molex connector.

Features

Content:

- EK-Loop OmniLink Molex Power cable

Specifications

Technical Specifications:

- Molex Micro-fit 3.0 8-pin Female connector to:

1x Molex Connector 4pin (Power)

1x 4-Pin PWM 1 Source Female Fan Connector (TACHO, PWM)

1x 3-Pin D-RGB LED Source Female Connector (5V, Data, Blocked, Ground)

- Cable length: 500Â±10mm

- Color: Black

- Power Wire gauge: AWG20

- Signal Wire gauge: AWG22

- Molex Micro-fit Connector current rating: 8.5A

- Power Cable current rating: 8A

- Signal Cable current rating: 6A

EK-Loop OmniLink Molex Power cable is compatible with all EK OmniLink products, standard 4-pin PWM fan/pump motherboard headers, and standard 5V D-RGB (ARGB) connectors used by most major motherboard manufacturers.

Designed in Slovenia, made in China

EKWB d.o.o | Slovenia â?? EU |Â www.ekwb.com
