EK - Loop OmniLink Pump SATA PWM D - RGB Signal SplitterEK-LOOP-OMNI-PUMP-SATA-PWM-SIG-SPL

EK-Loop OmniLink Pump SATA PWM D-RGB Signal Splitter

Name: EK-Loop OmniLink Pump SATA PWM D-RGB Signal Splitter
Brand: EK Waterblocks
Price: 9.99 USD
Availability: InStock

EK-LOOP-OMNI-PUMP-SATA-PWM-SIG-SPL

Found a better price? Let us know and we'll try and match it!

Product variants

Estimate shipping

Country

Zip code

Quantity

15 in stock, ready to ship

$9.99 USD

Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

99% of orders ship same day M-F!
FREE Shipping Possible!
All-Star CS Team
30-Day Hassle Free Returns

Details

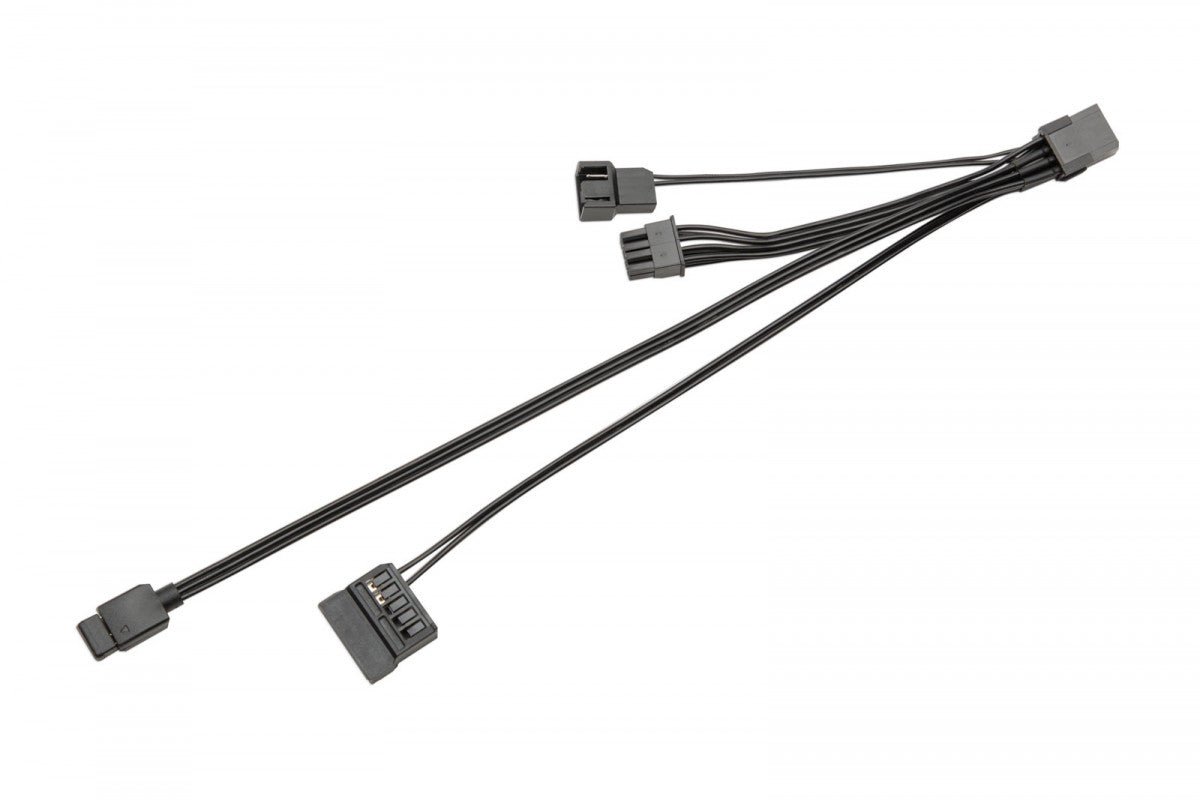

EK-Loop OmniLink Pump SATA PWM D-RGB Signal Splitter cable allows users to connect D-RGB LED devices, SATA powered pumps and 4-Pin PWM fans to the OmniLink cable harness using their standard connectors. The OmniLink cable allows for an easy transmission and distribution of +12V and +5V Power; PWM, TACHO, and D-RGB signals. The cable features a stylish black ribbon cable for easy build integration and cable management.

Features

Content:

- EK-Loop OmniLink Pump SATA PWM D-RGB Signal Splitter cable

Specifications

Technical Specifications:

- Molex Micro-fit 3.0 8-pin Male connector to:

1x Molex Micro-fit 3.0 8-pin Female Connector

1x SATA Power Female Connector (Ground, +12V)

1x 4-Pin PWM 2 Fan Male Connector (Ground, +12V, TACHO, PWM)

1x 3-Pin D-RGB LED Female Connector (+5V, Data, Blocked, Ground)

- Cable length: 250Â±10mm

- Color: Black

- Power Wire gauge: AWG20

- Signal Wire gauge: AWG22

- Molex Micro-fit Connector current rating: 8.5A

- Power Cable current rating: 8A

- Signal Cable current rating: 6A

EK-Loop OmniLink Pump SATA PWM D-RGB Signal Splitter cable is compatible with all EK OmniLink products, PWM fan/pump speed control technology, and all popular D-RGB sync technologies from major motherboard manufacturers (if the header is supported).Â

Only the PWM 2 signal is accessible with this OmniLink splitter cable, which is intended to control the pump speed. For the PWM2 signal to work, the the EK-Loop OmniLink 6-Pin Power (dual PWM) cable must also be used.Â Itâ??s primarily used for adding a distro plate/combo into omnilink and consolidating all of the connectors into the harness.

For PWM2 signal to work, EK-Loop OmniLink 6-Pin Power (dual PWM) cable must be also used.

Designed in Slovenia, made in China
