EK-Pro Manifold 2CPU 6GPU - Acetal

Name: EK-Pro Manifold 2CPU 6GPU - Acetal
Brand: EK Waterblocks
Price: 209.99 USD
Availability: OutOfStock

EK-MANI-2CPU-6GPU-AC

Details

Found a better price? Let us know and we'll try and match it!

Product variants

Estimate shipping

Country

Zip code

$209.99 USD Sold out

Shipping calculated at checkout.

Pickup currently unavailable at Performance-PCs.com

99% of orders ship same day M-F!
FREE Shipping Possible!
All-Star CS Team
30-Day Hassle Free Returns

Details

The EK-Pro Manifold is a purpose-made coolant delivery system for multiple water blocks in workstation systems. It offers perfect coolant distribution by using multiple industry-standard G1/4 In and Out ports. The EK-Pro Manifold 2CPU 6GPU can support two CPU and six GPU water blocks in parallel or semi-parallel setups.

For best results, EK recommends the use of EK-Pro GPU Quick Disconnect and EK-Pro CPU Quick Disconnect Kits (sold separately) in combination with the EK-Pro Manifold. The manifold system, in combination with the QDC kits, enables the users to easily add or remove water blocks to the cooling loop without the need to drain the entire loop. This avoids precious downtime for workstations and other professionally used computer setups.

Features

It features a full acetal body, stainless steel end caps, and nickel-plated brass plugs. Pre-assembled, out of the box, it is set up to be used in a semi-parallel setup. Please follow the user manual for detailed information on connectivity options.

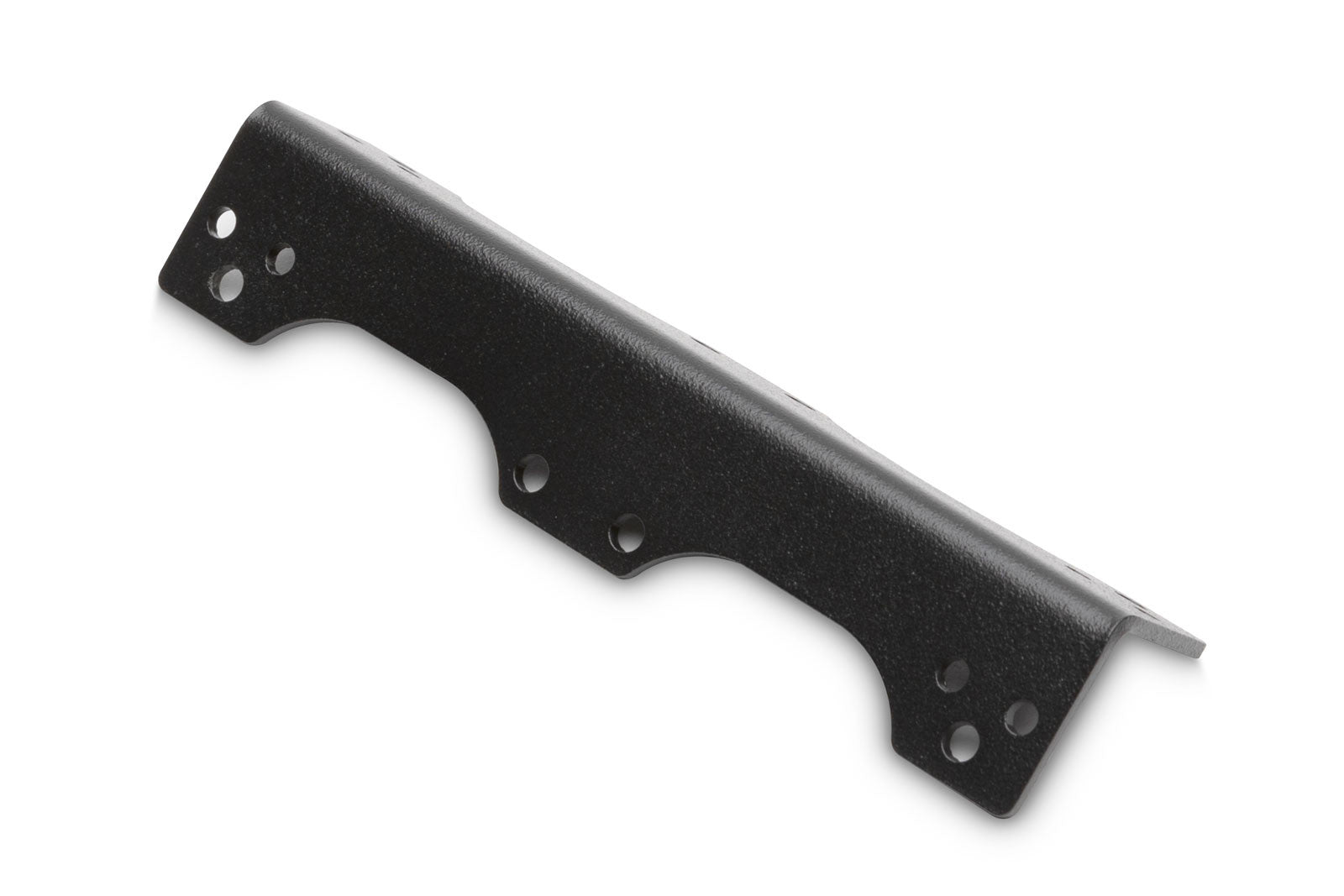

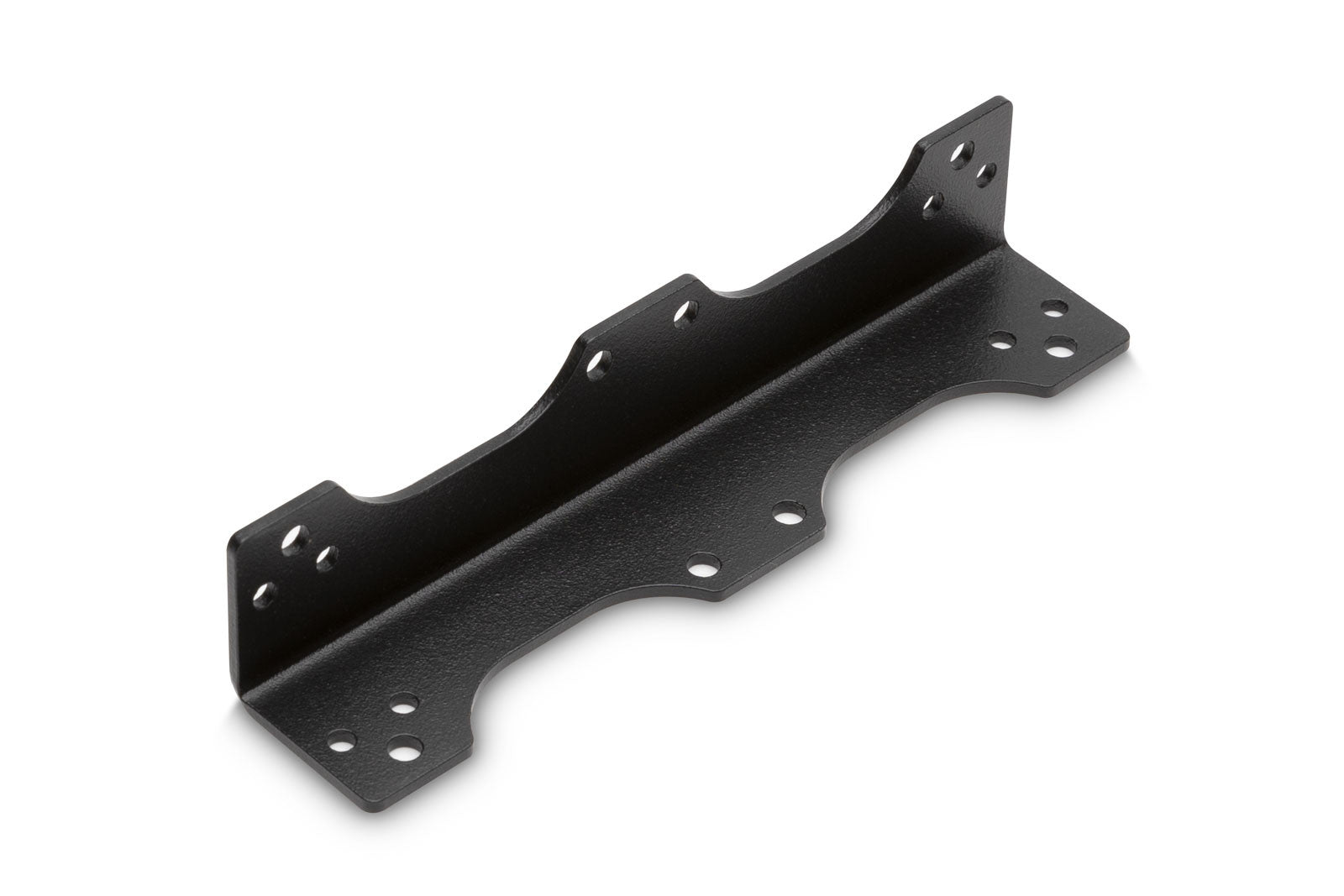

The EK-Pro Manifold is delivered with a universal mounting system that can be used in various scenarios. The steel mounting plate is equipped with 120 and 140mm fan mounting patterns, which can be found in all computer cases.

Please note that only seven G1/4 plugs are supplied with the manifold unit. If any of the In and Out ports are planned to be unused, additional plugs are needed for operation. Spare G1/4 plugs are sold separately.

Specifications

Technical specifications:

- Maximum CPUs: 2
- Maximum GPUs: 6
- Material: Acetal, Steel, with nickel-plated brass plugs
- Mounting system: 120mm or 140mm fan patterns

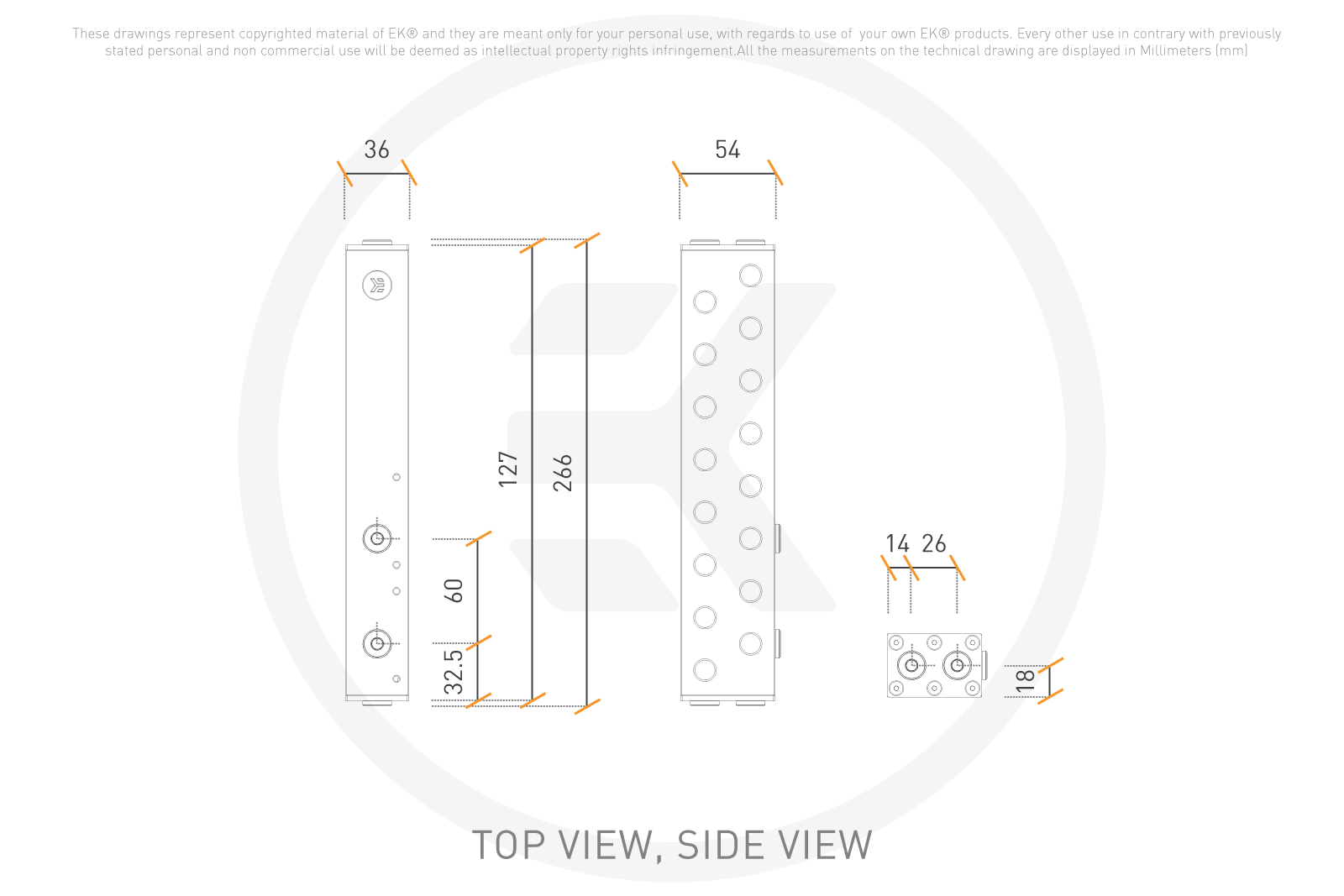

- Size (HxWxD): 266 x 57 x 36mm (without the mounting system)

Enclosed:

- EK-Pro Manifold unit
- Allen key 6mm (1pc)
- Allen key 2,5mm (1pc)
- Manifold mounting (1pc)
- Screws M4 x 6mm DIN7984 (4pcs)
- G1/4 Plugs (7pcs)

PLEASE NOTE:

The manifold does not replace the role of the reservoir. A standalone reservoir is still recommended to be used.

Please note that only sevenÂ G1/4 plugs are supplied with the manifold unit. If any of the In and Out ports are planned to be unused, additional plugs are needed for operation. SpareÂ G1/4Â plugsÂ are sold separately.
