EK-Quantum MSI MPG Z590 CARBON EK X + Kinetic FLT 240 D5 PWM D-RGB

EK-KIN-FLT-240-D5-Z590-CARBON

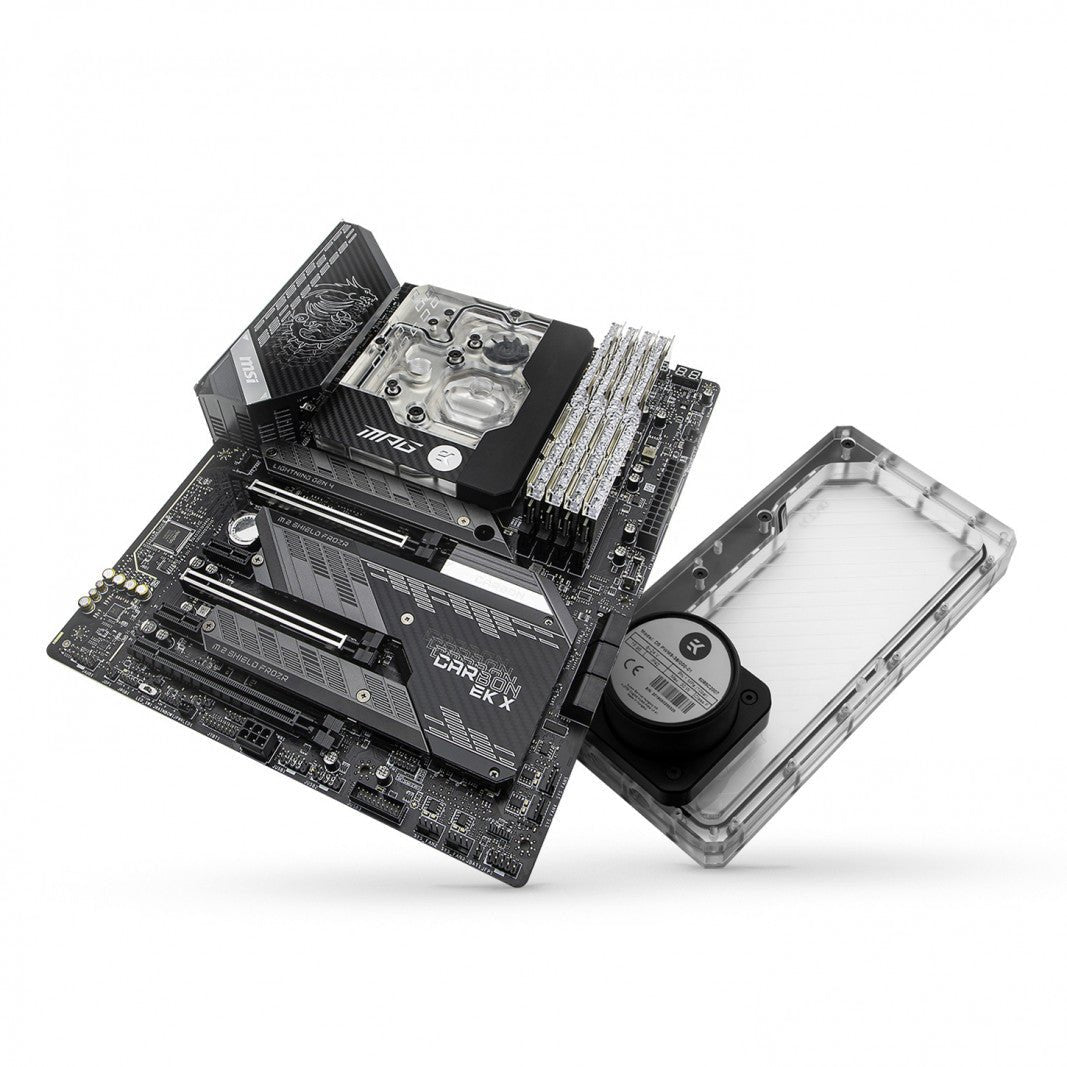

This limited-quantity bundle is a great liquid cooling offer for all who seek to improve the performance and aesthetics of their PC. It combines the award-winning, high-performance gaming motherboard, the EK-Quantum MSI MPG Z590 CARBON EK X D-RGB, with a premium custom loop pump-reservoir combo, the EK-Quantum Kinetic FLT 240 D5 PWM D-RGB â?? Plexi, for just the price of the motherboard. The pump-reservoir combo unit is included for free in this bundle deal.


Found a better price? Let us know and we'll try and match it!
Estimate shipping
2 in stock
$499.99 USD $459.99 USD Sale
Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

This limited-quantity bundle is a great liquid cooling offer for all who seek to improve the performance and aesthetics of their PC. It combines the award-winning, high-performance gaming motherboard, the EK-Quantum MSI MPG Z590 CARBON EK X D-RGB, with a premium custom loop pump-reservoir combo, the EK-Quantum Kinetic FLT 240 D5 PWM D-RGB â?? Plexi, for just the price of the motherboard. The â?¬200+ pump-reservoir combo unit is included for free in this bundle deal.

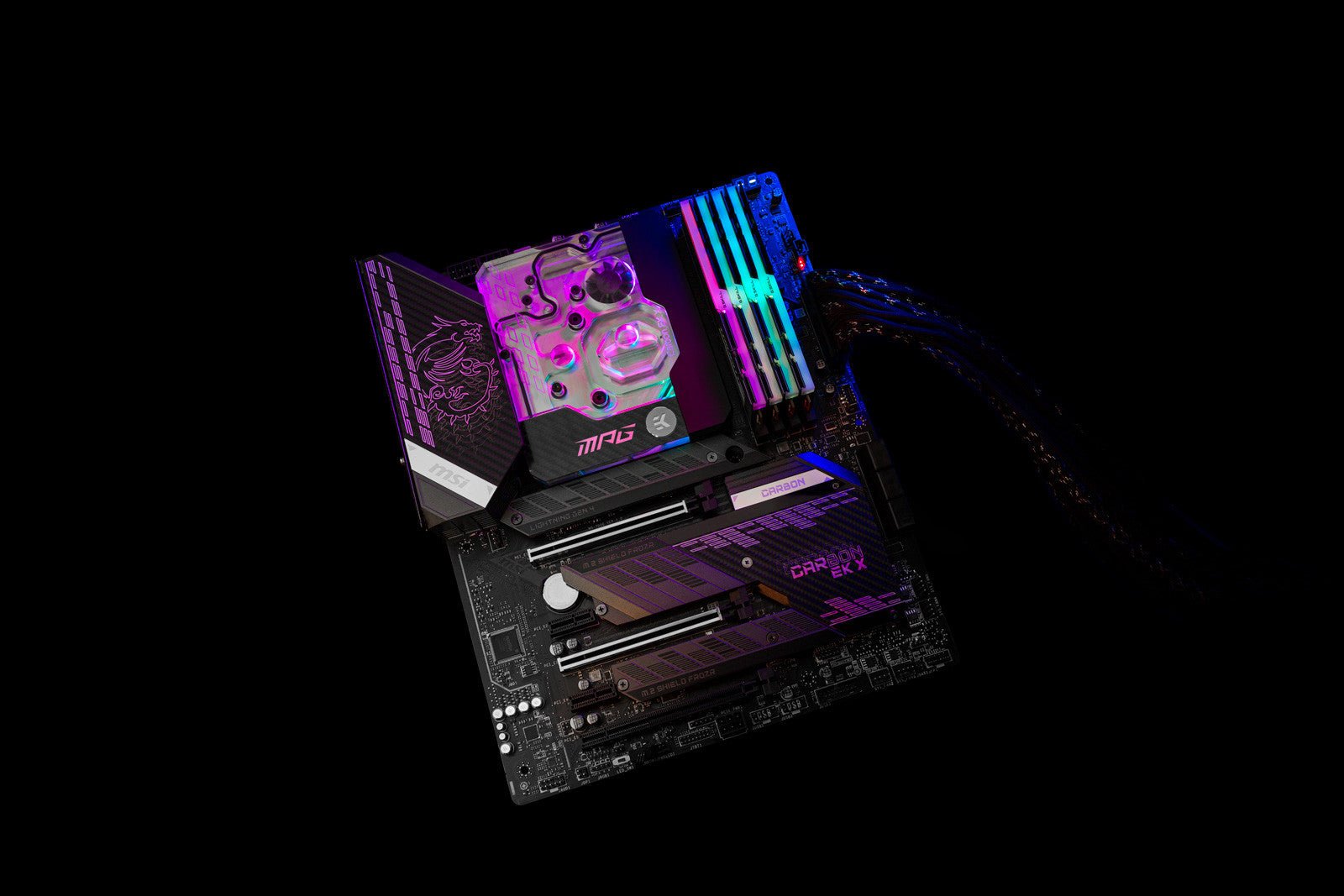

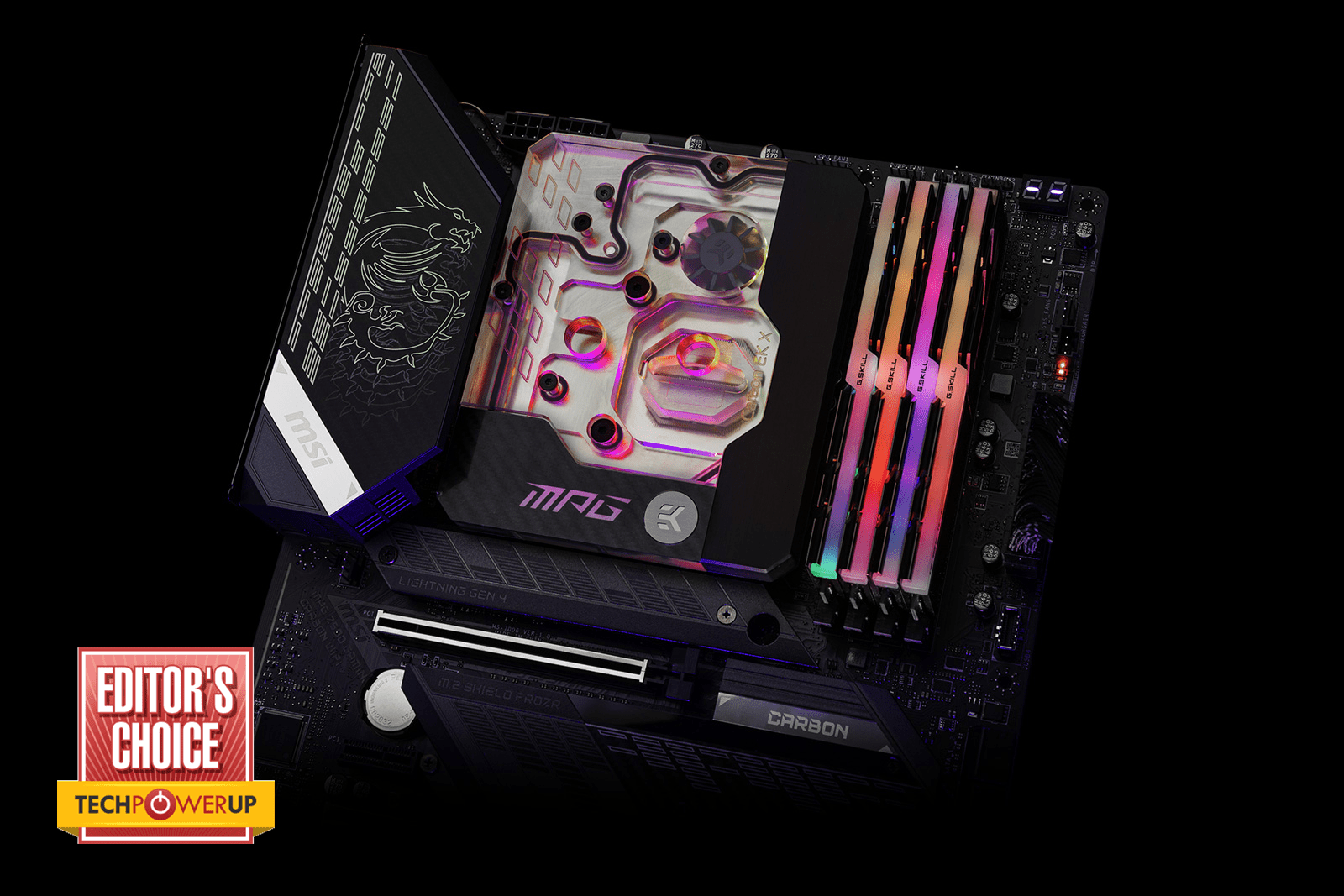

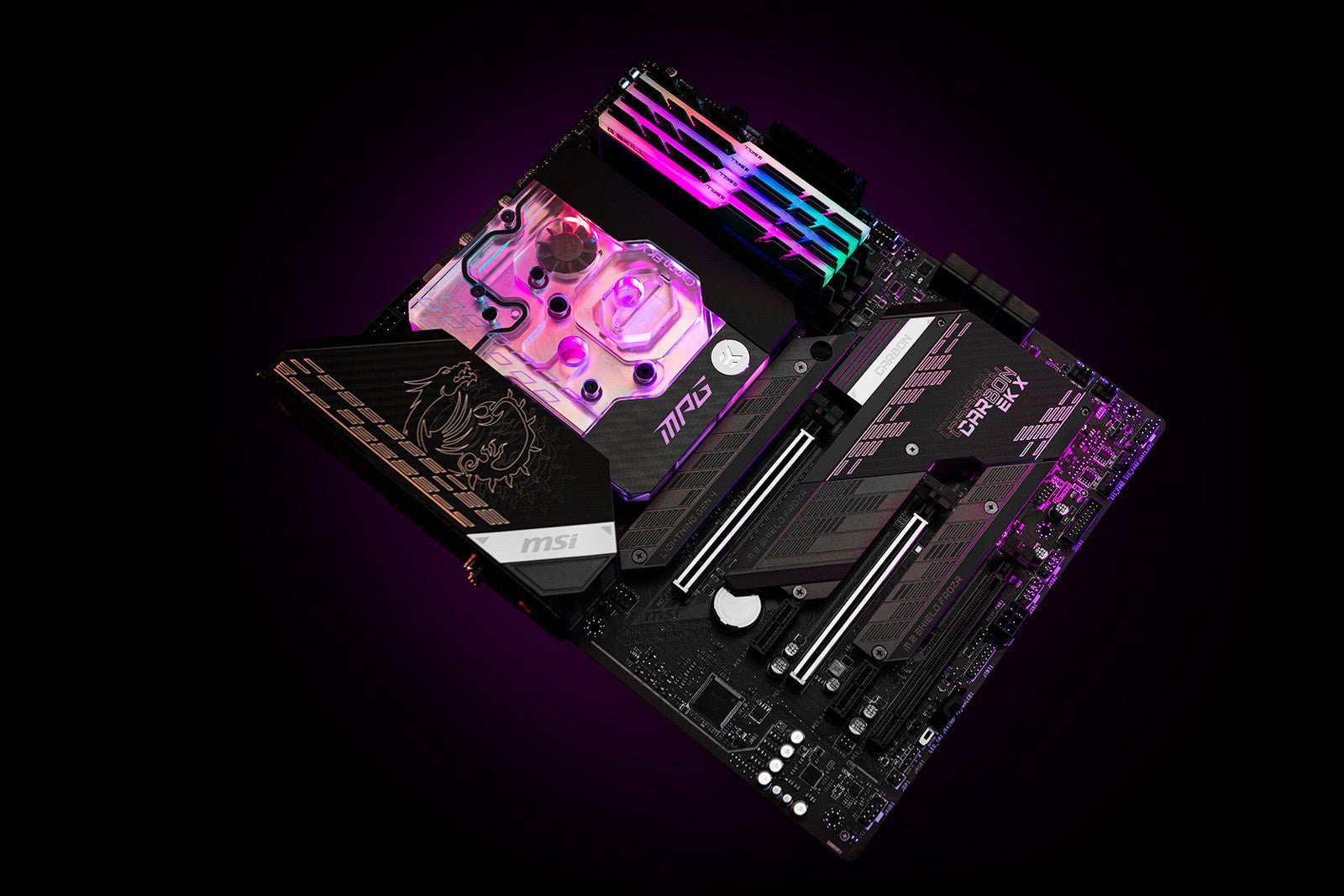

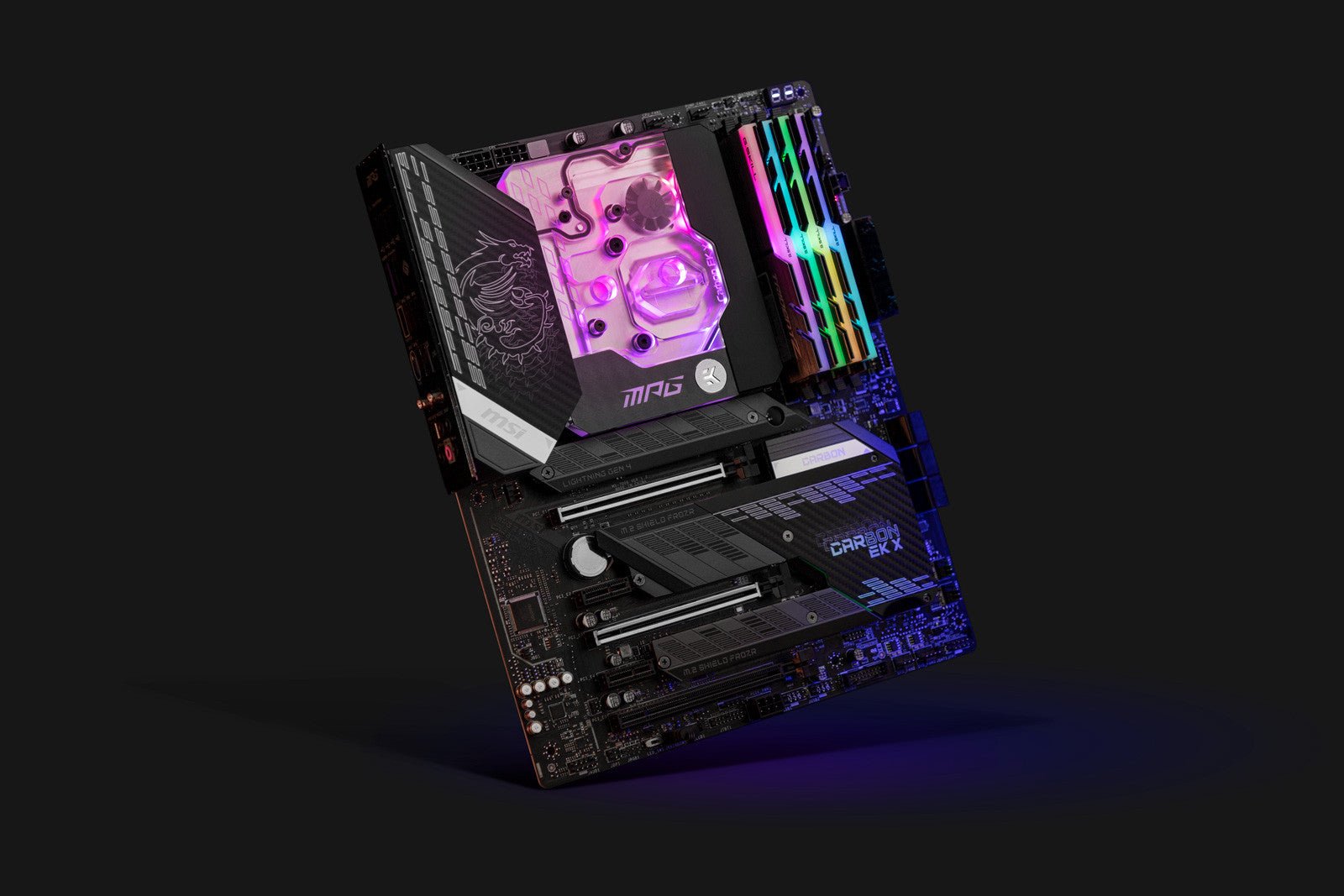

EK-Quantum MSI MPG Z590 CARBON EK X D-RGB

EK-Quantum MSI MPG Z590 CARBON EK X is a Z590-based motherboard that is a result of a partnership of EK and MSI. It offers unparalleled cooling for the VRM section and Intel ® 11th Gen Coreâ?¢ series CPUs thanks to its purpose-designed monoblock cooling solution. MSI's world-class engineering team and EK's industry-leading thermal engineers worked together to bring you the technology that will improve your liquid-cooled PC and enhance its performance. The EK-Quantum MSI MPG Z590 CARBON EK X allows maximum performance without a noisy environment, providing you with countless hours of uninterrupted gameplay. And to top it all off, it also comes with an included EK-Leak Tester and a coupon code voucher for the EK webshop!



Specifications


EK-Quantum MSI MPG Z590 CARBON EK X D-RGB


Enclosed:


- EK-Quantum MSI MPG Z590 CARBON EK X D-RGB motherboard + monoblock
- EK-Leak Tester and EK Webshop Discount Voucher
- User Manual
- SATA Cables
- WIFI Antenna
- Other Accessories


Specifications:


- Supports 11th and 10th Gen Intel® Core� / Pentium® Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 5333(OC) MHz
- Ready 4 the Future: Support Lightning Gen 4 Solution for the future
- Enhanced Power Design: 16+1+1 Duet Rail Power System, 8+8 pin CPU power connectors, Core Boost, DDR4 Boost
- MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click.
- M.2 Shield Frozr: Both M.2 slots with Shield Frozr to built for high-performance system and non-stop gaming experience
- Lightning USB 20G: Built-in USB 3.2 Gen 2�2 port offers 20Gb/s transmission speed, which is 4 times faster than USB 3.2 Gen 1.
- AUDIO BOOST 5: Reward your ears with the studio-grade sound quality for the most immersive gaming experience
- 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Pre-installed I/O Shielding: Better EMI protection and more convenience for installation


EK-Quantum Kinetic FLT 240 D5 PWM D-RGB â?? Plexi


Technical specifications:



- Size (HxWxT): 245x120x86mm (with the mounting system)
- Capacity: ~265ml
- D-RGB connector 3-pin 5V digital LED header (Pinout: +5V, D, Blocked, Ground)


Pump electrical and mechanical properties:
- Motor: Electronically commuted spherical motor
- Rated voltage: 12V DC
- Power consumption: 23W
- Maximum pressure head: 3.9m
- Maximum flow: 1500L/h
- Maximum system temperature: 60°C
- Materials: Stainless steel, PPS-GF40, EPDM O-rings, Aluminium oxide, hard coal
- Power connector: SATA power and 4-Pin PWM FAN connector


Operational regime:


- PWM duty cycle: ~ 20-100%
- Default behavior: Runs at 100% duty cycle when no PWM feedback signal is present


Enclosed:


- EK-Quantum Kinetic FLT 240 PWM D5 D-RGB
- Mounting mechanism with all necessary screws for 120mm fan mounting
- Pair of EK reservoir holders with mounting screws
- 4 � G1/4 Plugs
- 1 Ã? Allen key for reservoir holders





PLEASE NOTE:



EK-Quantum MSI MPG Z590 CARBON EK X D-RGB



  • RAM modules are not included!

  • Due to an immense variety of fittings/barbs available on the market and no prescribed standards, we guarantee compatibility only for connectors bought from our website.

  • This product should NOT be installed with any aluminum fluid gaming parts!

  • The use of specifically engineered coolants that contain corrosion, scale, and biological inhibitors is mandatory to prevent damage to your nickel-plated water block! EK is offering a selection of such products in the coolant section.


  • EK-Quantum Kinetic FLT 240 D5 PWM D-RGB â?? Plexi



    • Do not clean the reservoir with alcohol derivates or other solvents as the acrylic may crack!

    • Coolant and additional plugs are just for showcase and are not delivered with the product!

    • The D5 pump is water lubricated, in other words, it uses a wet rotor design. Therefore, it is strongly recommended not to run the pump dry.
