EK-Quantum Torque Pass-Through G1/4 - Nickel

EK-QTM-TORQUE-PT-G14-NK

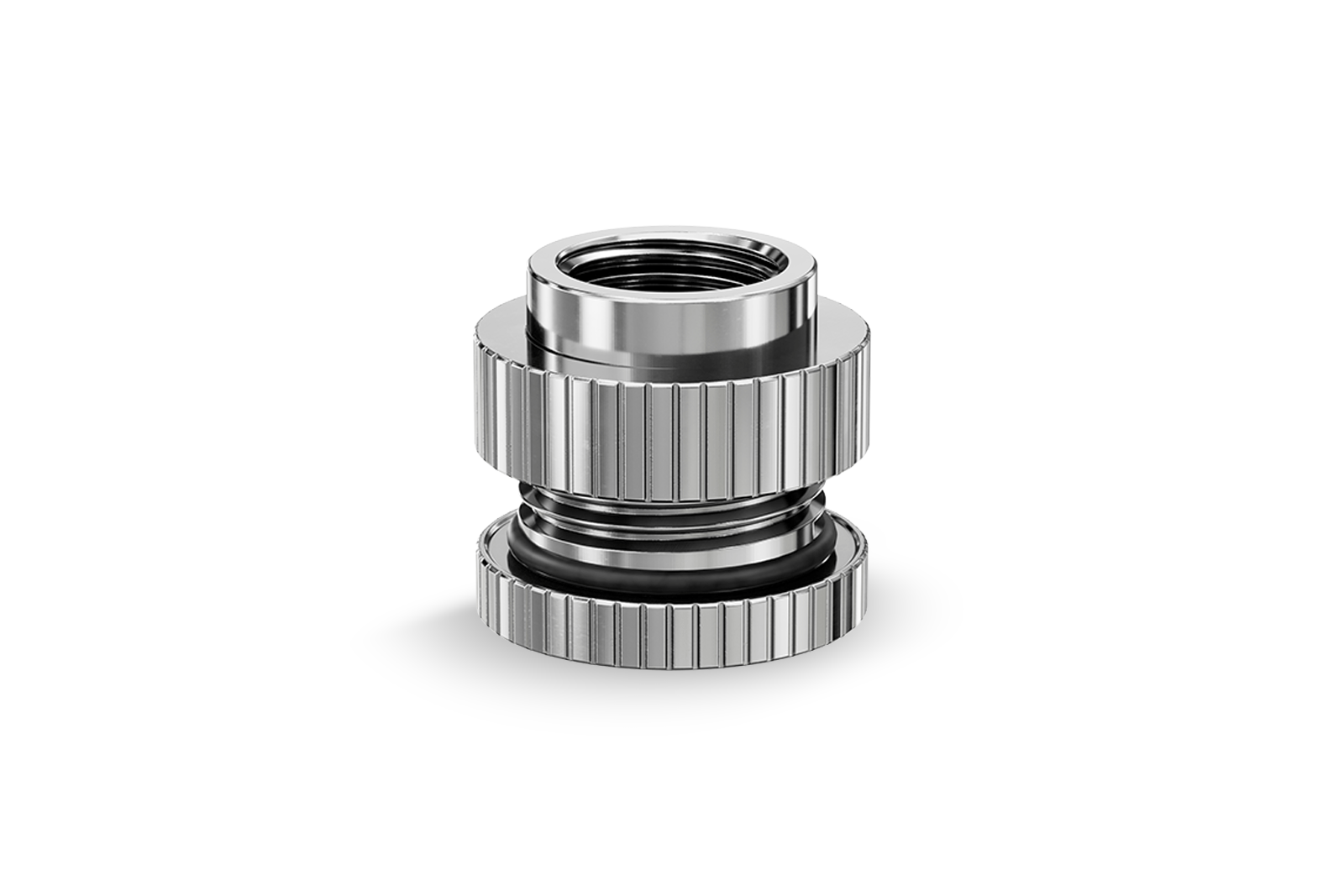

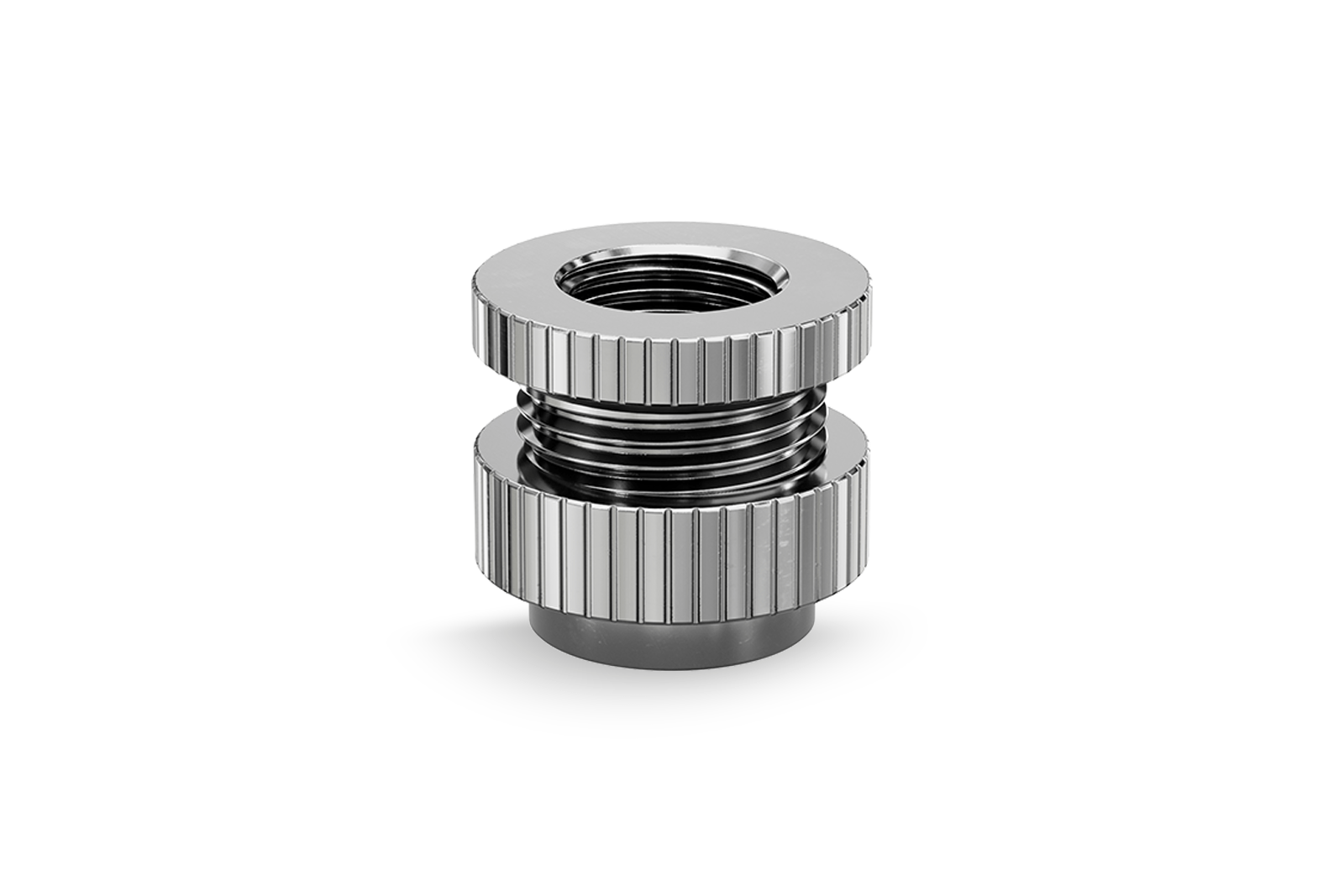

The EK-Quantum Torque Pass-Through G1/4 - Nickel is a panel-mounted adapter fitting. Equipped with female G1/4 BSP threads on both ends, it enables seamless liquid interconnection between separate chassis compartments.

Found a better price? Let us know and we'll try and match it!
Estimate shipping
$9.99 Sold out
Shipping calculated at checkout.

Pickup currently unavailable at Performance-PCs.com

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

Details

The EK-Quantum Torque Pass-Through G1/4 - Nickel is a panel-mounted adapter fitting. Equipped with female G1/4 BSP threads on both ends, it enables seamless liquid interconnection between separate chassis compartments.

pass

Features

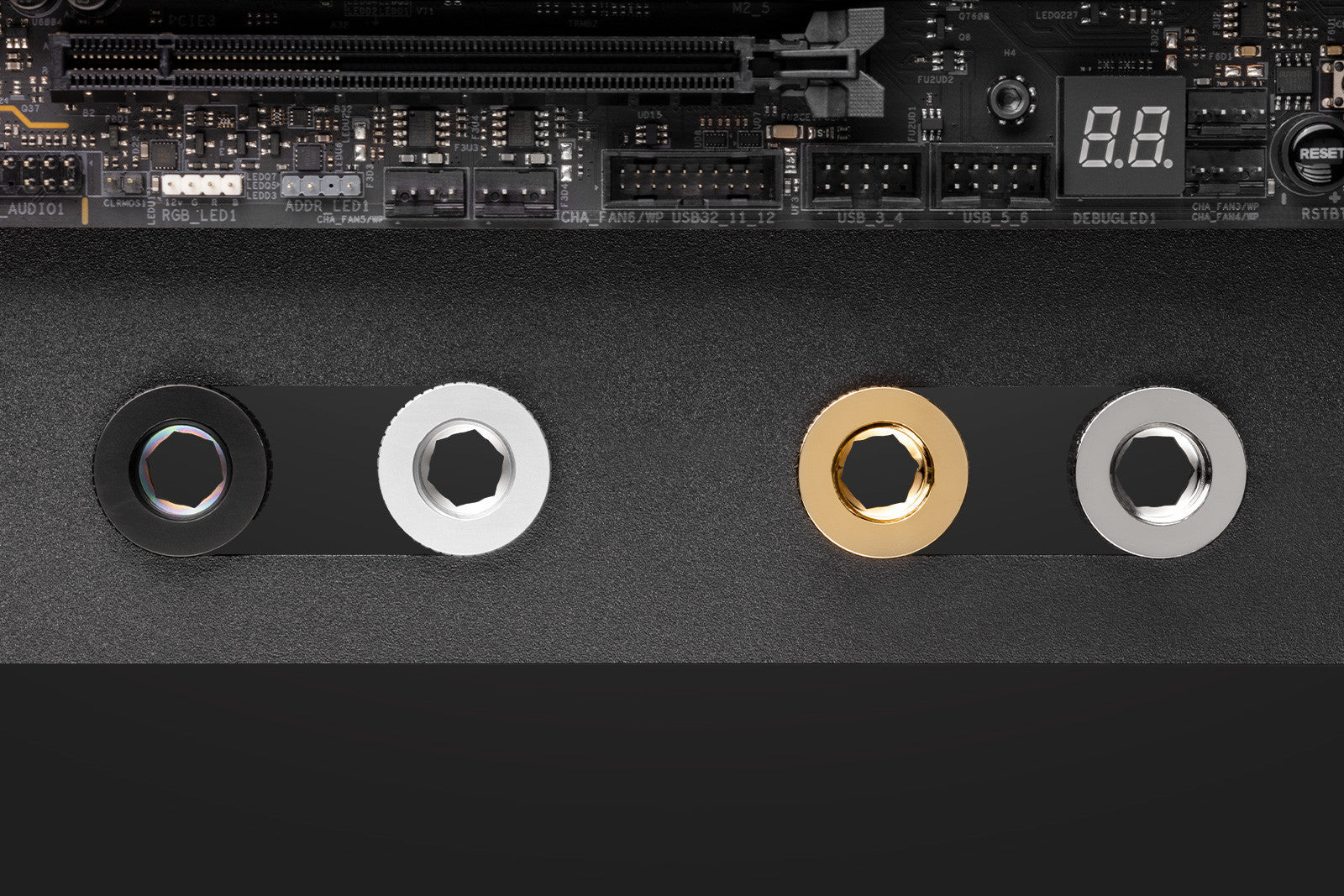

This fitting is particularly well-suited for compact small form factor (SFF) cases that lack space for internal radiator placement, necessitating external positioning.


pass

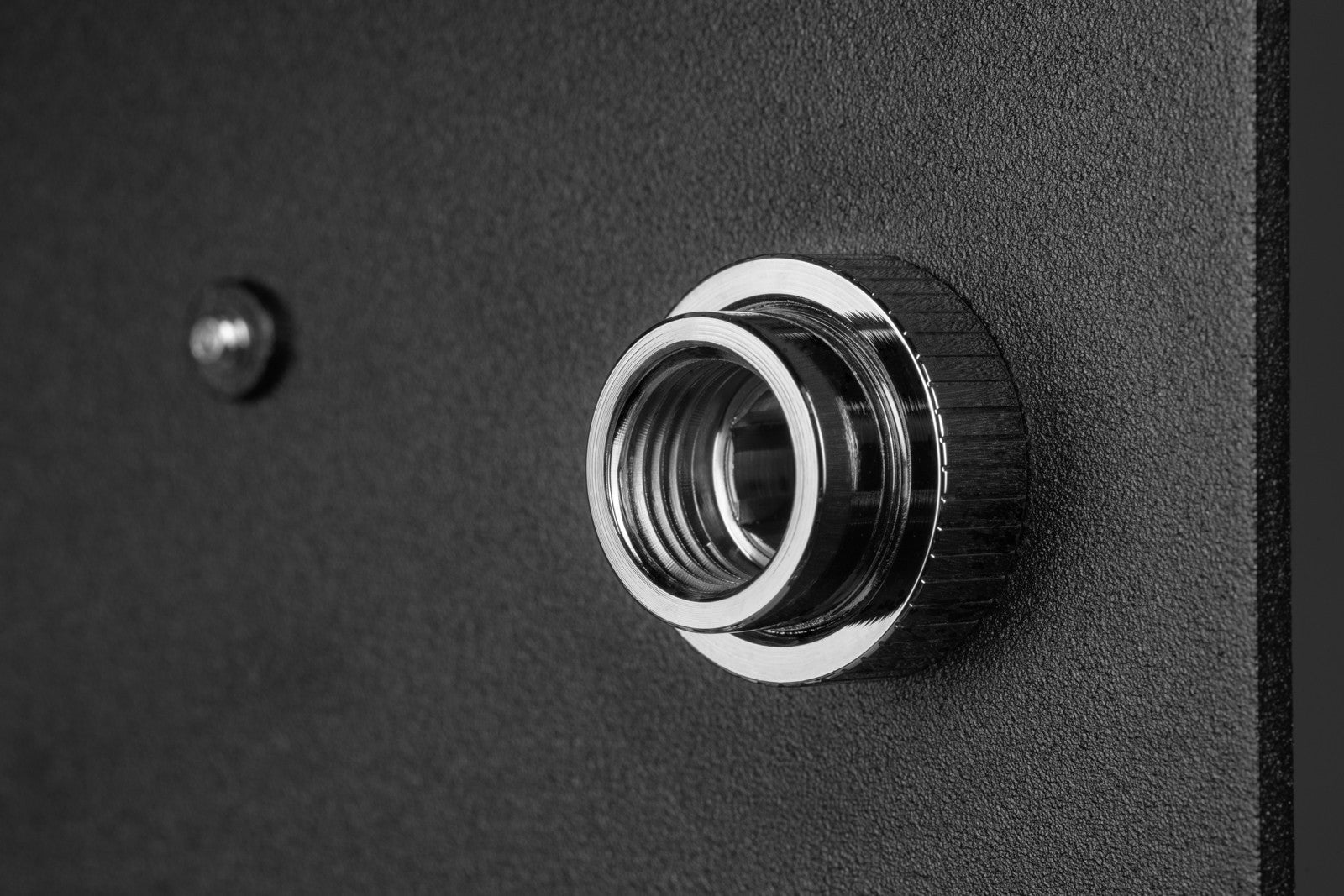

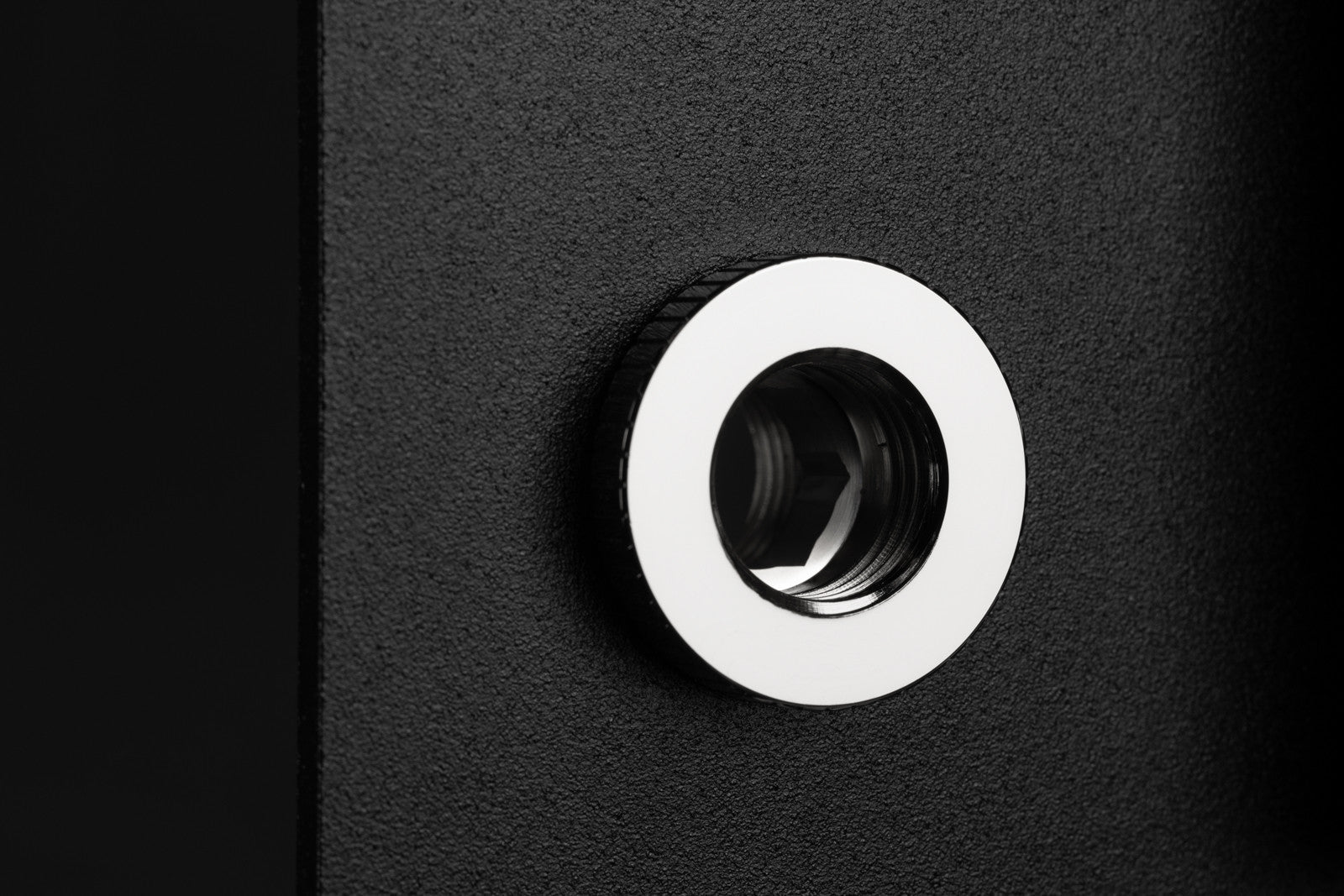

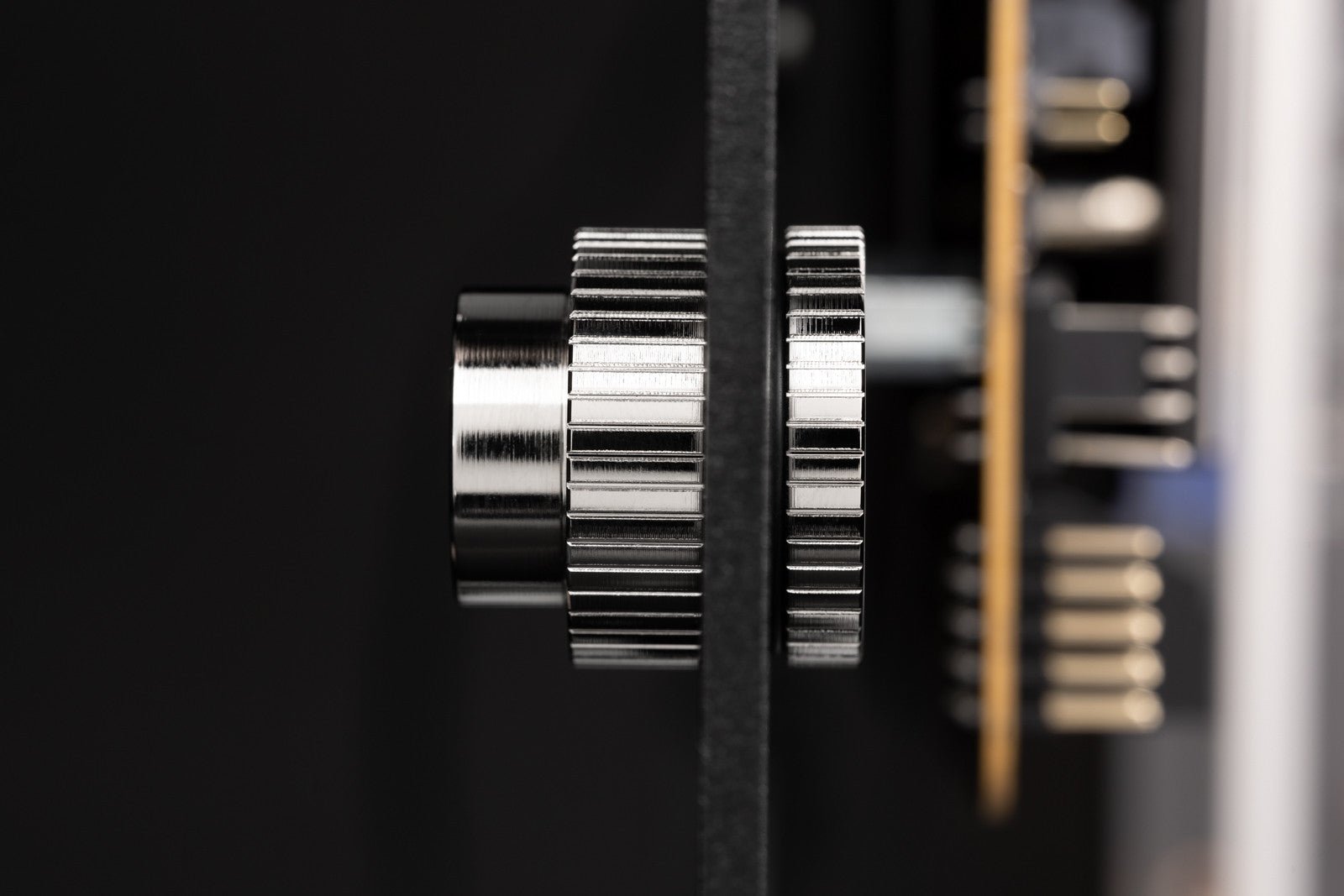

This Adapter Fitting is secured to the panel with the enclosed grip nut.


pass


It is constructed from nickel-plated CNC-machined brass, ensuring durability and an appealing aesthetic.


pass

Specifications

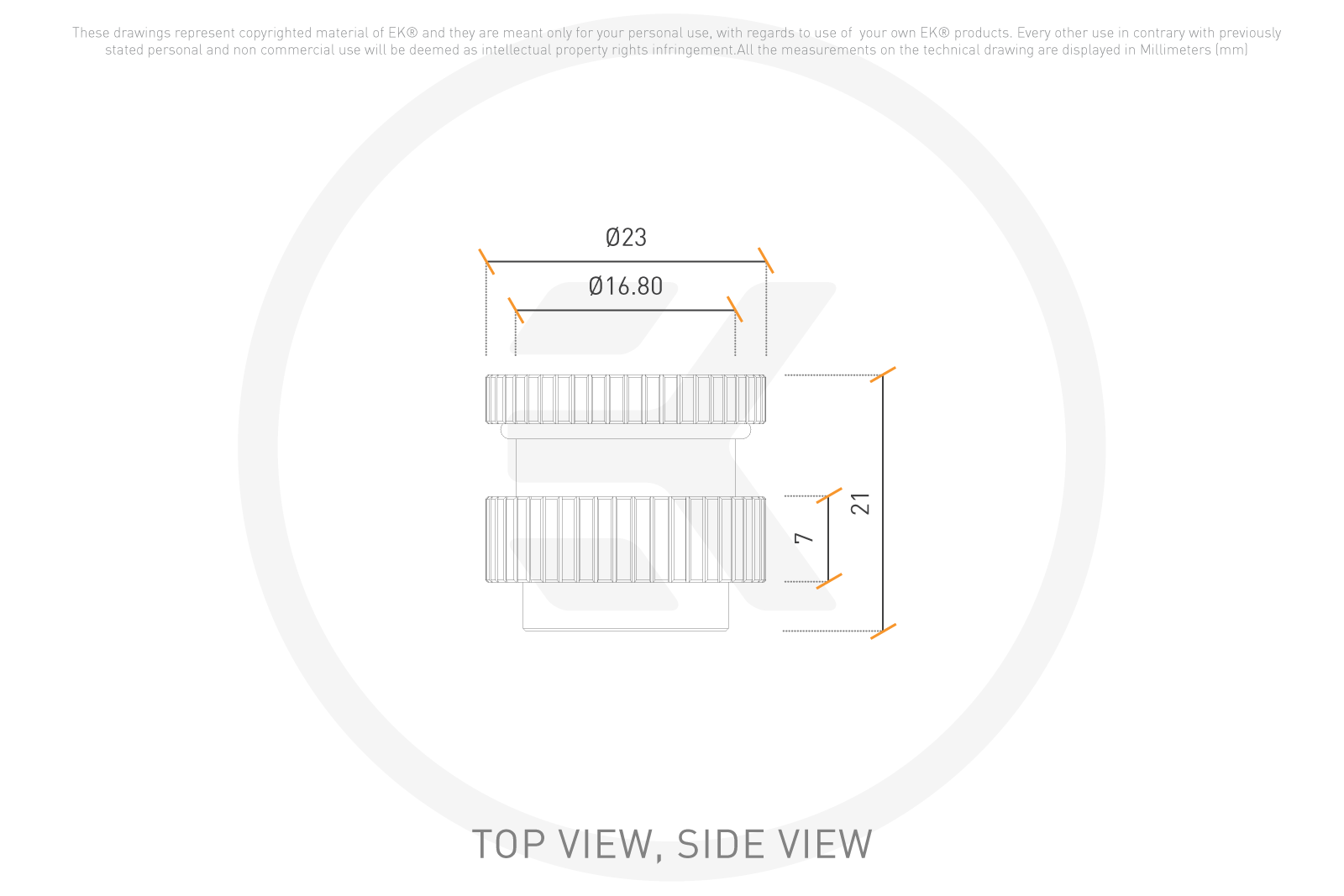

Technical data:


- Threading: 2 x G 1/4 (Female-Female)
- Thread length: 4.5mm
- Hole Diameter: 20.0mm
- Max thickness of the wall to bridge: 6mm
- Installation height on the side of the screw: 4mm
- Installation height on the side of the nut: min 7mm/max 16mm
- Width: 23.0mm
- Length: 21.0mm




PLEASE NOTE:




  • This product should NOT be installed with any aluminum Fluid Gaming parts!








Additional Info













Material / Design / Color option Nickel
Threads G1/4, G1/4
